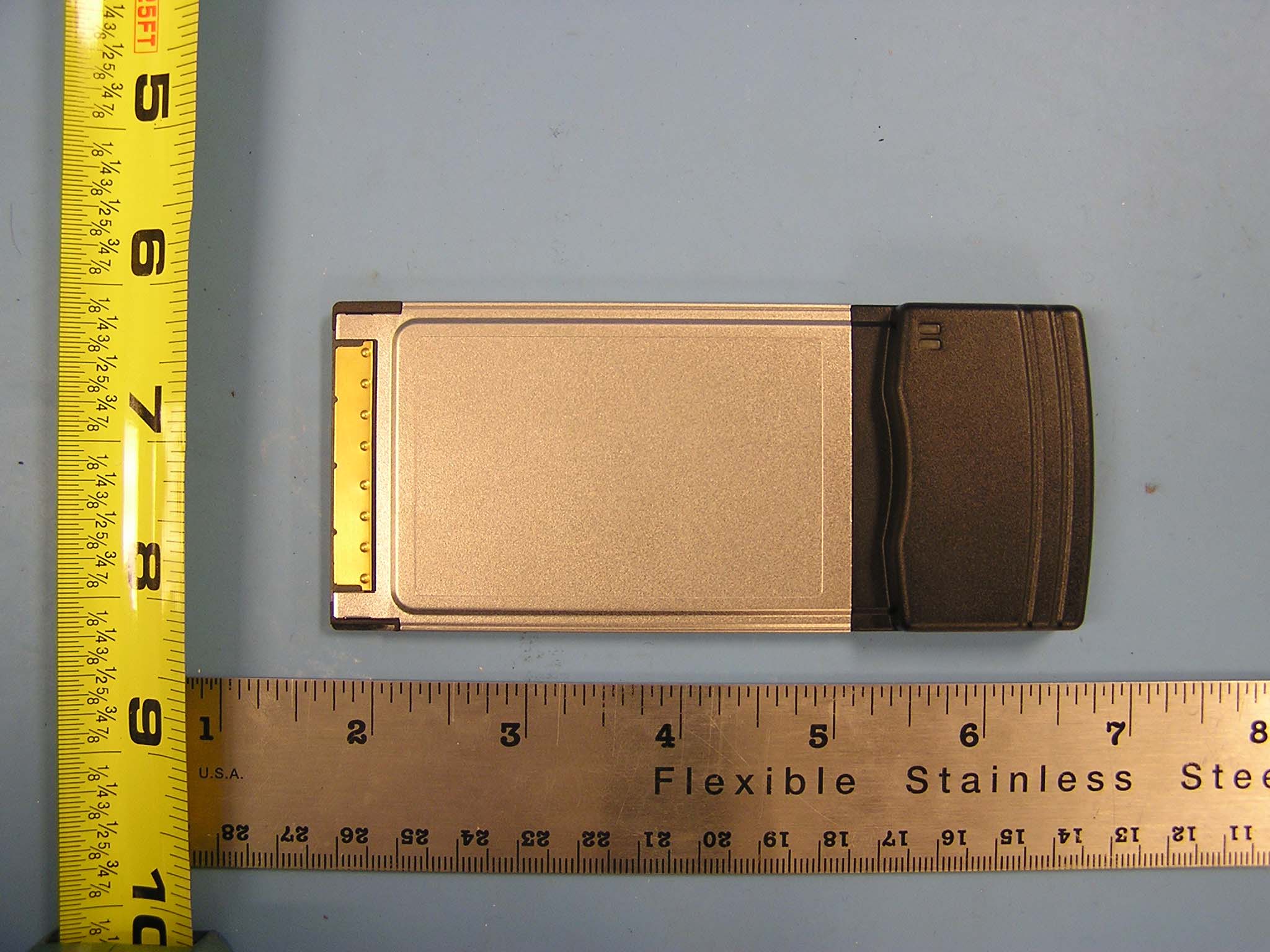

IN ACCORDANCE WITH THE REQUIREMENTS OF FCC OET BULLETIN 65 SUPPLEMENT C IC RSS 102 ISSUE 1 : 1999 FOR 802.11N DUAL BAND CARDBUS ADAPTER MODEL: AR5BCB-00072 FCC ID: PPD-AR5BCB-00072 REPORT NUMBER: 06U10485-10 ISSUE DATE: AUGUST 22, 2006 Prepared for ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 06U10485-10 DATE: August 22, 2006 FCC ID: PPD-AR5BCB-00072 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 46 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issued date Revisions Revised By -- August 22, 2006 Initial issue HS REPORT NO: 06U10485-10 DATE: August 22, 2006 FCC ID: PPD-AR5BCB-00072 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 46 This report shall not be reproduced except in full, without the written approval of CCS. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: August 15, 16, 17, 18, 21, and 22, 2006 APPLICANT: ADDRESS: ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY, SANTA CLARA, CA 95054, USA FCC ID: MODEL: PPD-AR5BCB-00072 AR5BCB-00072 DEVICE CATEGORY: EXPOSURE CATEGORY: Portable Device General Population/Uncontrolled Exposure 802.11n Dual Band Cardbus Adapter (2x3) is installed in three host laptops. Test Sample is a: Production unit Host Laptops: 1- HP Pavilion zv6000 2- Compaq Presario v2000 3- HP Pavilion ze4400 Rule Parts Frequency Range [MHz] The Highest SAR Values [1g_mW/g] 2412-2462 1- HP Pavilion zv6000 0.968 2- Compaq Presario v2000 1.014 3- HP Pavilion ze4400 1.405 FCC 15.247 5745 - 5825 1- HP Pavilion zv6000 0.333 2- Compaq Presario v2000 0.200 3- HP Pavilion ze4400 0.371 FCC 15.401 5180 - 5310 1- HP Pavilion zv6000 0.242 2- Compaq Presario v2000 0.237 3- HP Pavilion ze4400 0.382 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (Edition 01-01) and RSS 102. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. No part of this report may be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any government agency. Approved & Released For CCS By: Tested By: Hsin Fu Shih Ninous Davoudi Senior Engineer EMC Engineer Compliance Certification Services Compliance Certification Services REPORT NO: 06U10485-10 DATE: August 22, 2006 FCC ID: PPD-AR5BCB-00072 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 46 This report shall not be reproduced except in full, without the written approval of CCS. Table Of Contents 1 EQUIPMENT UNDER TEST (EUT) DESCRIPTION............................................................................ 5 2 FACILITIES AND ACCREDITATION ...................................................................................................6 3 SYSTEM DESCRIPTION ..................................................................................................................... 7 3.1 COMPOSITION OF INGREDIENTS FOR TISSUE SIMULATIG LIQUIDS ................................. 8 4 SIMULATING LIQUID PARAMETERS CHECK ................................................................................... 9 4.1 SIMULATING LIQUID PARAMETER CHECK RESULT............................................................ 11 5 SYSTEM PERFORMANCE CHECK .................................................................................................. 17 5.1 SYSTEM PERFORMANCE CHECK RESULTS........................................................................ 19 6 SAR MEASURMENT PROCEDURE ................................................................................................. 21 6.1 DASY4 SAR MEASURMENT PROCEDURE............................................................................ 22 7 PROCEDURE USED TO ESTABLISH TEST SIGNAL ...................................................................... 23 8 SAR MEASURMENT RESULTS........................................................................................................ 26 8.1 2.4GHZ....................................................................................................................................... 26 8.1.1 HP PAVILION ZV6000................................................................................................. 26 8.1.2 COMPAQ PRESARIO V2000....................................................................................... 28 8.1.3 HP PAVILION ZE4400................................................................................................. 30 8.2 5.2GHZ....................................................................................................................................... 32 8.2.1 HP PAVILION ZV6000................................................................................................. 32 8.2.2 COMPAQ PRESARIO V2000....................................................................................... 33 8.2.3 HP PAVILION ZE4400................................................................................................. 34 8.3 5.8GHZ....................................................................................................................................... 35 8.3.1 HP PAVILION ZV6000................................................................................................. 35 8.3.2 COMPAQ PRESARIO V2000..................................…

Text truncated - open the document above for the full version.

Date/Time: 8/15/2006 9:34:53 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.02 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.1 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 83.7 V/m; Power Drift = 0.128 dB Peak SAR (extrapolated) = 27.1 W/kg SAR(1 g) = 13 mW/g; SAR(10 g) = 5.95 mW/g Maximum value of SAR (measured) = 14.6 mW/g 0 dB = 14.6mW/g Date/Time: 8/15/2006 9:45:14 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.30 mW/g Date/Time: 8/16/2006 9:27:40 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 2.03 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 14.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 83.7 V/m; Power Drift = 0.031 dB Peak SAR (extrapolated) = 27.3 W/kg SAR(1 g) = 13.1 mW/g; SAR(10 g) = 5.99 mW/g Maximum value of SAR (measured) = 14.7 mW/g 0 dB = 14.7mW/g Date/Time: 8/16/2006 9:39:14 AM Test Laboratory: Compliance Certification Services System Performance Check @ 2450 MHz DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:706 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.35 mW/g Date/Time: 8/17/2006 9:35:40 AM Test Laboratory: Compliance Certification Services SystemPerformanceCheck-D5GHz-uniform DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: 5200 - 5800MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.48 mho/m; ε r = 48.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(4.07, 4.07, 4.07); Calibrated: 5/30/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm, Pin=250mW, f=5200 MHz/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 23.1 mW/g d=10mm, Pin=250mW, f=5200 MHz/Zoom Scan (4.3x4.3x3mm), dist=2mm (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 88.0 V/m; Power Drift = 0.011 dB Peak SAR (extrapolated) = 76.5 W/kg SAR(1 g) = 18.1 mW/g; SAR(10 g) = 5.08 mW/g Maximum value of SAR (measured) = 35.0 mW/g 0 dB = 35.0mW/g Date/Time: 8/17/2006 10:06:24 AM Test Laboratory: Compliance Certification Services SystemPerformanceCheck-D5GHz-uniform DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: 5200 - 5800MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW, f=5200 MHz/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 7.60 mW/g Date/Time: 8/18/2006 9:25:40 AM Test Laboratory: Compliance Certification Services SystemPerformanceCheck-D5GHz-uniform DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: 5200 - 5800MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.48 mho/m; ε r = 47; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 24.0deg. C; Liquid Temperature: 23.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(4.07, 4.07, 4.07); Calibrated: 5/30/2006 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 d=10mm, Pin=250mW, f=5200 MHz/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 23.1 mW/g d=10mm, Pin=250mW, f=5200 MHz/Zoom …

Text truncated - open the document above for the full version.

Date/Time: 8/15/2006 2:01:43 PM Test Laboratory: Compliance Certification Services HP Pavilion zv6000 DUT: 802.11abgn CardBus; Type: CardBus; Serial: CB72-021-L47 Communication System: 802.11bgn; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.96 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 b mode L ch/Area Scan (10x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.606 mW/g b mode L ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 17.2 V/m; Power Drift = -0.102 dB Peak SAR (extrapolated) = 0.957 W/kg SAR(1 g) = 0.563 mW/g; SAR(10 g) = 0.321 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.615 mW/g Date/Time: 8/15/2006 12:43:54 PM Test Laboratory: Compliance Certification Services HP Pavilion zv6000 DUT: 802.11abgn CardBus; Type: CardBus; Serial: CB72-021-L47 Communication System: 802.11bgn; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 2 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 b mode M ch/Area Scan (10x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.03 mW/g b mode M ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 21.3 V/m; Power Drift = -0.071 dB Peak SAR (extrapolated) = 1.62 W/kg SAR(1 g) = 0.952 mW/g; SAR(10 g) = 0.539 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 1.04 mW/g Date/Time: 8/15/2006 12:57:49 PM Test Laboratory: Compliance Certification Services HP Pavilion zv6000 DUT: 802.11abgn CardBus; Type: CardBus; Serial: CB72-021-L47 Communication System: 802.11bgn; Frequency: 2437 MHz;Duty Cycle: 1:1 b mode M ch/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.598 mW/g Date/Time: 8/15/2006 2:20:57 PM Test Laboratory: Compliance Certification Services HP Pavilion zv6000 DUT: 802.11abgn CardBus; Type: CardBus; Serial: CB72-021-L47 Communication System: 802.11bgn; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 2.03 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 b mode H ch/Area Scan (10x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.745 mW/g b mode H ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 18.6 V/m; Power Drift = 0.042 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.690 mW/g; SAR(10 g) = 0.386 mW/g Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.756 mW/g Date/Time: 8/15/2006 12:20:14 PM Test Laboratory: Compliance Certification Services HP Pavilion zv6000 DUT: 802.11abgn CardBus; Type: CardBus; Serial: CB72-021-L47 Communication System: 802.11bgn; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 2 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 23.0deg. C; Liquid Temperature: 22.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552; ConvF(7.08, 7.08, 7.08); Calibrated: 5/30/2006 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 SN558; Calibrated: 1/20/2006 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.7 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 171 g mode M ch/Area Scan (10x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.632 mW/g g mode M ch/…
