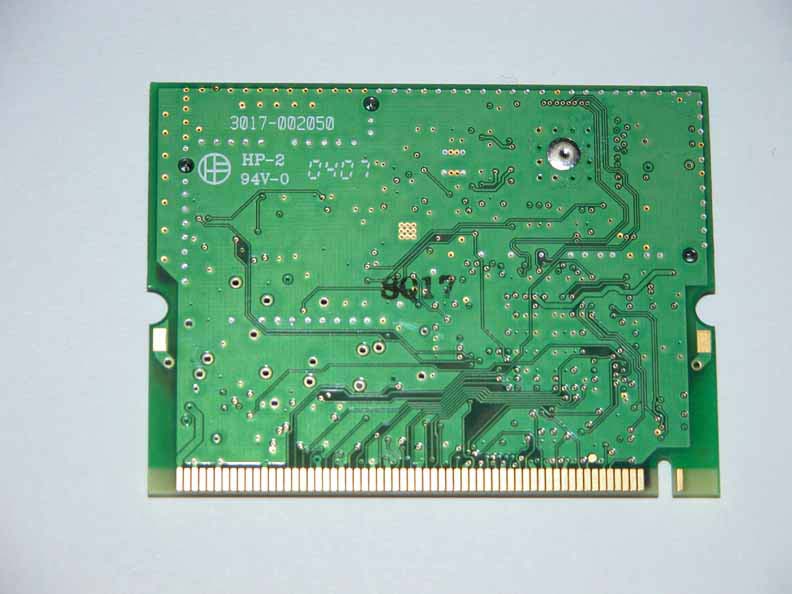

PPD-AR5BMB-00043802.11 b/g Mini PCI Transceiver Module

Atheros Client Utility Help Model AR5BMB-43 (802.11b/g radio) Model AR5BMB-44(802.11a/b/g radio) PRELIMINARY March 2004 PRELIMINARY Atheros Communications, Inc. Page 2 COMPANY CONFIDENTIAL March 2004 Introduction • System Requirements Profile Management • Create or Modify a Profile • Remove a Profile • Profile Auto Selection • Switch Profiles • Configure TCP/IP • Configuring Win XP Security • EAP-TLS • EAP-TTLS • PEAP (EAP-GTC) • PEAP (EAP-MSCHAP V2) • LEAP • WPA Passphrase Check Status or Diagnostics • Check Current Status • Check Driver Information • Check Statistics Connect to Another Network Settings • Signal Strength Display • Data Display • Display Refresh Interval Tools • Tray Icon • Troubleshooting Utility • Enable/ Disable the Radio Compliance Introduction The Atheros Client Utility (ACU) is a user-mode utility designed to edit and add configuration profiles, as well as display diagnostics pertaining to a selected Atheros network interface card (wireless adapter). System Requirements • Laptop/ PC containing: • 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) • Mini PCI • 32 MB memory or greater • 300 MHz processor or higher PRELIMINARY Atheros Communications, Inc. Page 3 COMPANY CONFIDENTIAL March 2004 Microsoft Windows 2000, Windows Millennium Edition, Windows 98 Second Edition, Windows XP, or Windows NT 4.0 (with Service Pack 6) Profile Management Configure the wireless network adapter (wireless card) from the Profile Management tab of the Atheros Client Utility. • Add a profile • Edit a profile • Import a Profile • Export a Profile • Order profiles • Switch to a different profile • Remove a profile • Connect to a Different Network The wireless network adapter works in either infrastructure mode (which uses an access point) or ad hoc mode (a group of stations participating in the wireless LAN). Create or Modify a Configuration Profile To add a new configuration profile, click New on the Profile Management tab. To modify a configuration profile, select the configuration from the Profile list and click the Modify button. The Profile Management dialog box displays the General tab . Profile Management: • Edit the General tab. • Edit the Security tab. • Edit the Advanced tab. To configure a profile for ad hoc or access point (infrastructure) mode, edit the Network Type field on the Advanced tab . Remove a Configuration Profile 1. Go to the Profile Management tab. 2. Select the profile to remove from the list of configuration profiles. 3. Click the Remove button. PRELIMINARY Atheros Communications, Inc. Page 4 COMPANY CONFIDENTIAL March 2004 Auto Profile Selection Management Including a profile in the auto selection feature allows the wireless adapter to automatically select that profile from the list of profiles and use it to connect to the network. Including a profile in auto profile selection: 1. On the Profile Management tab, click the Order Profiles button. 2. The Auto Profile Selection Management window appears, with a list of all created profiles in the Available Profiles box. 3. Highlight the profiles to add to auto profile selection, then click Add. The profiles appear in the Auto Selected Profiles box. Ordering the auto selected profiles: 1. Highlight a profile in the Auto Selected Profiles box. 2. Click Move Up or Move Down as appropriate. The first profile in the Auto Selected Profiles box has highest priority, and the last profile has lowest priority. 3. Click OK. 4. Check the Auto Select Profiles box. 5. Save the modified configuration file. When auto profile selection is enabled by checking Auto Select Profiles on the Profile Management tab, the client adapter scans for an available network. The profile with the highest priority and the same SSID as one of the found networks is the one that is used to connect to the network. If the connection fails, the client adapter tries the next highest priority profile that matches the SSID, and so on. With auto profile selection enabled, the wireless adapter scans for available networks. The highest priority profile with the same SSID as a found network is used to connect to the network. On a failed connection, the client adapter tries with the next highest priority profile. Switching to a different configuration profile 1. To switch to a different profile, go to the Profile Management tab. 2. Click on the profile name in the Profile List. 3. Click the Activate button. The Profile List provides icons that specify the operational state for that profile. The list also provides icons that specify the signal strength for that profile. See also Scan Available Networks. PRELIMINARY Atheros Communications, Inc. Page 5 COMPANY CONFIDENTIAL March 2004 Import and Export Profiles Importing a Profile 1. From the Profile Management tab, click the Import button. The Import Profile window appears. 2. Browse to the directory where the profile is located. 3. Highlight the profile name. 4. Click Open. The imported profile appears in the profiles list. Exporting a Profile 1. From the Profile Management tab, highlight the profile to export. 2. Click the Export button. The Export Profile window appears. 3. Browse to the directory to export the profile to. 4. Click Save. The profile is exported to the specified location. TCP/IP Configuration Configuring the TCP/IP Address for the network device: 1. After configuring the wireless network adapter properties, open the Control Panel and open Network and Dial-up Connections. 2. Find the Local Area Connection associated with the wireless network adapter. Right-click that connection, and click Properties. 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Click the radio button Use the following IP address, then enter an IP address and Subnet mask. Assigning an IP address and Subnet mask allows stations to operate in access point mode (infrastructure mode) or in ad hoc mode and to have Internet access. Default gateway and DNS server information is also required. IP configuration infor…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 529 Almanor Avenue Sunnyvale CA 94085 t 408 773 5200 f 408 773 9940 www.atheros.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 July 2, 2003 Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Compliance Engineering Services, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, antenna spec. and a detailed description of the theory of operation of the device. We ask that these portions (block diagrams, schematics, antenna spec. and theory of operation) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of the product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request that these documents and this letter be segregated from the body of our evaluation report and withheld from public inspection. Sincerely, Michael Green Manager of Global Product Compliance

1 Mike Kuo From: Claire Hoque Sent: April162004Friday 1:38 PM To: Mike Kuo Cc: Michael Heckrotte; Nancy Omron Subject: RE: ATHEROS COMMUNICATIONS, INC., FCC ID:PPD-AR5BMB-00043, AN04T3834 Hi Mike, Here are the answers. Question #1: The model name listed in the user manual is AR5BMB-4X(X=3,4). Two FCC ID numbers are listed on page 27 of manual as PPD-AR5BMB-00043 and PPD-AR5BMB-00044. This user manual is written to include 802.11b, 802.11g and 802.11a operations but there is no clear technical description to associate the model name or to the FCC ID number. Please revise user manual to have clear indication the capabilities of FCC ID:PPD-AR5BMB-00043 and PPD-AR5BMB- 00044. <Atheros> pls see revised user's manual. MB43_44 User Manual(revised 4-... Question #2: Please revise first paragraph in page 27 of user manual to include the following statement : "The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. " <Atheros> pls see revised user's manual. Question #3: The spectrum plots contain in page 56 and page 57 are duplicated. Please provide 802.11g mid channel RF conducted spurious emission plots to up 10th harmonics. <MH>Corrrected in revised report. 04U2554-1 FCC DTS Report(Revi... Question #4: Please provide individual correction factor that used for 31dB offset while measuring restricted band edge. <MH>Pls see pages 64/65 in revised report. Question #5: Section 7.8.3 of test report contains radiated emission data below 1 GHz. The mode of operation indicates 802.11 b, g mode. Please provide mode of operation, channel setting and power setting used during the tests. <MH>Pls see page 64 in revised report. Question #6: The proposed FCC ID label format for OEM does not comply with FCC public DA 00-1407. The label format is missing " FCC ID:". Please provide revised FCC ID label format. <Claire> pls see revised label. FCC ID LABEL(revised).pdf Question #7 : In the user manual for OEM, it does not contain the labeling instruction. Please include such instruction and submit revised user manual. <Atheros> pls see revised user's manual. Question #8 : Please provide OEM installation instruction to show the required antenna location when used in the notebook computer. <Atheros> pls see revised user's manual. Thanks, 2 Claire

Atheros Communications, Inc. FCC ID: PPD-AR5BMB-00043 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 2.5V power regulator and 3.3V host supply. Refer to Schematics 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the laptop for modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Compliance with RF exposure limits.

PROPOSED FCC ID LABEL AND LOCATION ATHEROS COMMUNICATIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PPD-AR5BMB-00043 FCC ID LABEL LOCATION PROPOSED FCC ID LABEL FOR HOST DEVICE ATHEROS COMMUNICATIONS, INC. This device contains FCC ID: PPD-AR5BMB-00043

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 802.11 B/G MINI PCI TRANSCEIVER MODULE MODEL NUMBER: AR5BMB-43 FCC ID: PPD-AR5BMB-00043 REPORT NUMBER: 04U2554-1 ISSUE DATE: APRIL 12, 2004 Prepared for ATHEROS COMMUNICATIONS, INC. 529 ALMANOR AVENUE SUNNYVALE CA 94085, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 04U2554-1 DATE: APRIL 12, 2004 EUT: 802.11 b/g Mini PCI Transceiver Module FCC ID: PPD-AR5BMB-00043 Page 2 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.................................................................................................. 3 2. EUT DESCRIPTION.......................................................................................................................... 4 3. TEST METHODOLOGY .................................................................................................................. 5 4. FACILITIES AND ACCREDITATION .......................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.......................................................................................... 6 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT................................................................................ 7 6. SETUP OF EQUIPMENT UNDER TEST ....................................................................................... 8 7. APPLICABLE LIMITS AND TEST RESULTS ........................................................................... 10 7.1. 6 dB BANDWIDTH ..................................................................................................................... 10 7.2. 99% BANDWIDTH ..................................................................................................................... 18 7.3. PEAK OUTPUT POWER............................................................................................................ 26 7.4. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................... 35 7.5. AVERAGE POWER..................................................................................................................... 38 7.6. PEAK POWER SPECTRAL DENSITY ....................................................................................... 39 7.7. CONDUCTED SPURIOUS EMISSIONS.................................................................................... 47 7.8. RADIATED EMISSIONS.............................................................................................................62 7.8.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 62 7.8.2. TRANSMITTER RADIATED EMISSIONS ABOVE 1 GHZ .......................................... 65 7.8.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 84 7.9. POWERLINE CONDUCTED EMISSIONS ................................................................................ 92 8. SETUP PHOTOS .............................................................................................................................. 96 REPORT NO: 04U2554-1 DATE: APRIL 12, 2004 EUT: 802.11 b/g Mini PCI Transceiver Module FCC ID: PPD-AR5BMB-00043 Page 3 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: ATHEROS COMMUNICATIONS, INC. 529 ALMANOR AVENUE SUNNYVALE, CA 94085, USA EUT DESCRIPTION: 802.11 b/g Mini PCI transceiver module MODEL: AR5BMB-43 DATE TESTED: FEBRUARY 24 – MARCH 19, 2004 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE YAN ZHENG ENGINEERING MANAGER EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 04U2554-1 DATE: APRIL 12, 2004 EUT: 802.11 b/g Mini PCI Transceiver Module FCC ID: PPD-AR5BMB-00043 Page 4 of 100 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section o…
