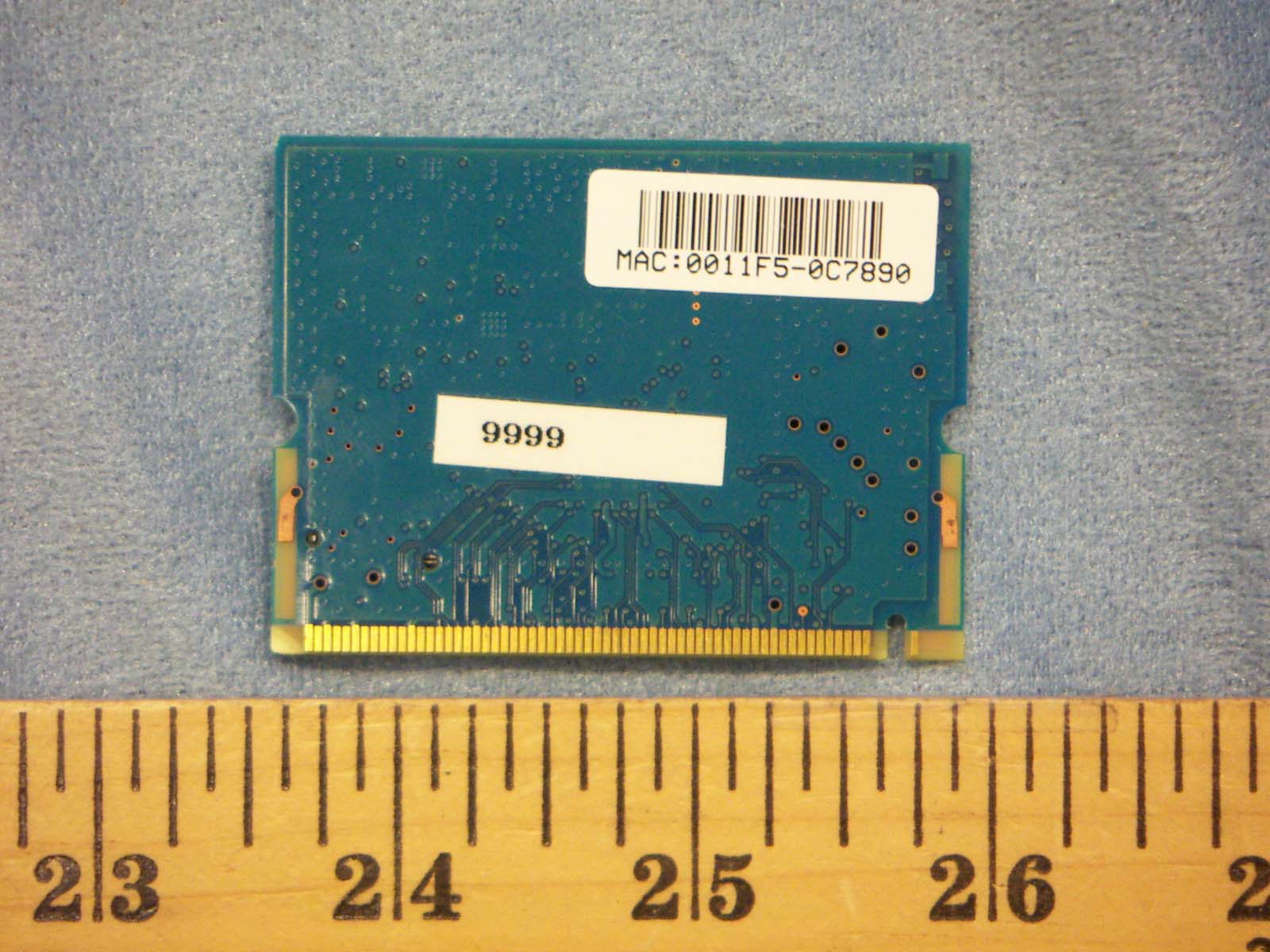

PPD-AR5BMB6802.11 a/b/g Mini-PCI Module

Atheros Client Utility Help Model AR5BMB6 (802.11a/b/g radio) PRELIMINARY PRELIMINARY Atheros Communications, Inc. Page 2 COMPANY CONFIDENTIAL February 2005 Introduction • System Requirements Profile Management • Create or Modify a Profile • Remove a Profile • Profile Auto Selection • Switch Profiles • Configure TCP/IP • Configuring Win XP Security • EAP-TLS • EAP-TTLS • PEAP (EAP-GTC) • PEAP (EAP-MSCHAP V2) • LEAP • WPA Passphrase Check Status or Diagnostics • Check Current Status • Check Driver Information • Check Statistics Connect to Another Network Settings • Signal Strength Display • Data Display • Display Refresh Interval Tools • Tray Icon • Troubleshooting Utility • Enable/ Disable the Radio Compliance Introduction The Atheros Client Utility (ACU) is a user-mode utility designed to edit and add configuration profiles, as well as display diagnostics pertaining to a selected Atheros network interface card (wireless adapter). System Requirements • Laptop/ PC containing: • 32-bit CardBus slot (or Desktop PC with PC Card-PCI adapter) • Mini PCI • 32 MB memory or greater • 300 MHz processor or higher PRELIMINARY Atheros Communications, Inc. Page 3 COMPANY CONFIDENTIAL February 2005 Microsoft Windows 2000, Windows Millennium Edition, Windows 98 Second Edition, Windows XP, or Windows NT 4.0 (with Service Pack 6) Profile Management Configure the wireless network adapter (wireless card) from the Profile Management tab of the Atheros Client Utility. • Add a profile • Edit a profile • Import a Profile • Export a Profile • Order profiles • Switch to a different profile • Remove a profile • Connect to a Different Network The wireless network adapter works in either infrastructure mode (which uses an access point) or ad hoc mode (a group of stations participating in the wireless LAN). Create or Modify a Configuration Profile To add a new configuration profile, click New on the Profile Management tab. To modify a configuration profile, select the configuration from the Profile list and click the Modify button. The Profile Management dialog box displays the General tab . Profile Management: • Edit the General tab. • Edit the Security tab. • Edit the Advanced tab. To configure a profile for ad hoc or access point (infrastructure) mode, edit the Network Type field on the Advanced tab . Remove a Configuration Profile 1. Go to the Profile Management tab. 2. Select the profile to remove from the list of configuration profiles. 3. Click the Remove button. PRELIMINARY Atheros Communications, Inc. Page 4 COMPANY CONFIDENTIAL February 2005 Auto Profile Selection Management Including a profile in the auto selection feature allows the wireless adapter to automatically select that profile from the list of profiles and use it to connect to the network. Including a profile in auto profile selection: 1. On the Profile Management tab, click the Order Profiles button. 2. The Auto Profile Selection Management window appears, with a list of all created profiles in the Available Profiles box. 3. Highlight the profiles to add to auto profile selection, then click Add. The profiles appear in the Auto Selected Profiles box. Ordering the auto selected profiles: 1. Highlight a profile in the Auto Selected Profiles box. 2. Click Move Up or Move Down as appropriate. The first profile in the Auto Selected Profiles box has highest priority, and the last profile has lowest priority. 3. Click OK. 4. Check the Auto Select Profiles box. 5. Save the modified configuration file. When auto profile selection is enabled by checking Auto Select Profiles on the Profile Management tab, the client adapter scans for an available network. The profile with the highest priority and the same SSID as one of the found networks is the one that is used to connect to the network. If the connection fails, the client adapter tries the next highest priority profile that matches the SSID, and so on. With auto profile selection enabled, the wireless adapter scans for available networks. The highest priority profile with the same SSID as a found network is used to connect to the network. On a failed connection, the client adapter tries with the next highest priority profile. Switching to a different configuration profile 1. To switch to a different profile, go to the Profile Management tab. 2. Click on the profile name in the Profile List. 3. Click the Activate button. The Profile List provides icons that specify the operational state for that profile. The list also provides icons that specify the signal strength for that profile. See also Scan Available Networks. PRELIMINARY Atheros Communications, Inc. Page 5 COMPANY CONFIDENTIAL February 2005 Import and Export Profiles Importing a Profile 1. From the Profile Management tab, click the Import button. The Import Profile window appears. 2. Browse to the directory where the profile is located. 3. Highlight the profile name. 4. Click Open. The imported profile appears in the profiles list. Exporting a Profile 1. From the Profile Management tab, highlight the profile to export. 2. Click the Export button. The Export Profile window appears. 3. Browse to the directory to export the profile to. 4. Click Save. The profile is exported to the specified location. TCP/IP Configuration Configuring the TCP/IP Address for the network device: 1. After configuring the wireless network adapter properties, open the Control Panel and open Network and Dial-up Connections. 2. Find the Local Area Connection associated with the wireless network adapter. Right-click that connection, and click Properties. 3. Select Internet Protocol (TCP/IP) and click Properties. 4. Click the radio button Use the following IP address, then enter an IP address and Subnet mask. Assigning an IP address and Subnet mask allows stations to operate in access point mode (infrastructure mode) or in ad hoc mode and to have Internet access. Default gateway and DNS server information is also required. IP configuration information (DHCP to assign the IP addr…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 529 Almanor Avenue Sunnyvale CA 94085 t 408 773 5200 f 408 773 9940 www.atheros.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Examiner: We request the following portions of our application be withheld from public inspection as provided under FCC section 0.459: Block Diagram Schematics Parts List Theory of Operation Antenna Specifications These documents contain details of the proprietary operation of the product not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. In addition, pursuant to Public Notice DA 04-1705, in order to comply with the marketing regulations in 47 CFR §2.803 and importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request the commission grant short-term confidentiality for the following attachments until 45 days from the date of the Grant of Equipment Authorization: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all other attachments must be made available for public review once the grant of equipment authorization is issued. Sincerely, Michael Green Manager of Global Product Compliance

Atheros Communications, Inc. FCC ID: PPD-AR5BMB6 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation The transmitter has its own power supply regulator. 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the laptop for modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to Refer to MPE sections of address RF exposure compliance in accordance test reports with Section 15.247(b)(4). Transmitter meets MPE calculations of 47 CFR 1.1307(b)(1). o

1 Mike Kuo From: Claire Hoque Sent: Thursday, March 17, 2005 5:22 PM To: Mike Kuo Cc: Yan Zheng; Michael Heckrotte; Christine Vu; Jack He; Danielle Zhan Subject: answer: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BMB6, Assessment NO.: AN05T4626/AN05T4627,( DTS/UNII ) Attachments: Ant Spec. for FCC Revised 3-17-05.xls; AR5BMB6_Tech_Description Revised 3-17-05.pdf; AR5BMB6_User Manual revised 3-17-05.pdf; Modular Characteristic Letter Revised 3-17-05.pdf; 05U3230-1 FCC DTS Report(revised).pdf; 05U3230-3 FCC UNII Report(revised).pdf Ant Spec. for FCC Revised 3-17... AR5BMB6_Tech_De scription Revis... AR5BMB6_User Manual revised 3-... Modular Characteristic Letter ... 05U3230-1 FCC DTS Report(revis... 05U3230-3 FCC UNII Report(revi... Hi Mike, Here are the answers. Question #1: Information given in Item 3 of request for modular approval does not agree with theory of operation. Please make necessary correction. <answer>pls see revised modular approval letter and revised theory of operation. Question #2: Please provide detail information for item 8 of request for modular approval. By indicating complied with RF exposure requirement does not address the requirement fully. <answer>pls see revised modular approval letter. Question #3: The FCC ID number listed in the OEM user manual does not agree with proposed FCC ID number. Please make necessary changes. <answer>pls see revised user's manual. Question #4: There are some typos in page 27 of user manual, please make necessary correction. <answer>user's manual is revised. Question #5: The antenna list submitted only included the antenna manufacturer name , part number and antenna gain . There is no description on the type of antennas for each entry. Please provide antenna type information and photos for each type of antenna of same manufacturer. <answer>pls see revised antenna list. Question #6: This is related to question #5. In section 5.2 of test report, there is no justification provided to justify the type of antennas used for the final tests. Please review this question with question #5 and provide a clear justification for selected antennas. <answer>both DTS/UNII reports have been revised with antenna descriptions. Question #7: As indicated in page 146 of DTS report, at 802.11g mode / high channel / horizontal , this device failed restricted band on average measurement. Please address this non-compliance issue. <answer>The report is revised with the correct plot. Question #8 : Please provide strong justification for the antenna position used during radiated stand alone tests. The antenna is placed at flat position. <answer>The antenna was placed at the normal position. The gray portion is the tape for holding the antennas during the standalone radiated tests. Please refer to the document "Ant Spec. for FCC Revised 3-17-05.xls" for a closeup photograph showing the detail of the antenna structure. 2 Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION ATHEROS COMMUNICATIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PPD-AR5BMB6 FCC ID LABEL LOCATION 802.11 a/b/g MINI PCI MODULE PROPOSED FCC ID LABEL FOR HOST DEVICE ATHEROS COMMUNICATIONS, INC. This device contains FCC ID: PPD-AR5BMB6

REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 29 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 30 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Equation (1) and the measured peak power is used to calculate the MPE distance. REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 31 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From §1.1310 Table 1 (B), S = 1.0 mW/cm^2 RESULTS No non-compliance noted: NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. ModePower DensityOutputAntennaMPE LimitPowerGainDistance (mW/cm^2)(dBm)(dBi)(cm) 802.11a1.017.675.564.09 802.11a Turbo1.017.455.563.99

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR 802.11 a/b/g MINI PCI MODULE MODEL NUMBER: AR5BMB6 FCC ID: PPD-AR5BMB6 REPORT NUMBER: 05U3230-3 ISSUE DATE: FEBRUARY 25, 2005 Prepared for ATHEROS COMMUNICATIONS, INC. 529 ALMANOR AVE. SUNNYVALE, CA 94085 U.S.A. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 2 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Revisions Revised By REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 3 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 7 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 7 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 8 6. TEST AND MEASUREMENT EQUIPMENT .............................................................................. 10 7. LIMITS AND RESULTS ................................................................................................................. 11 7.1. CHANNEL TESTS FOR THE 5150 TO 5350 MHz BAND ......................................................... 11 7.1.1. EMISSION BANDWIDTH ................................................................................................ 11 7.1.2. PEAK POWER ................................................................................................................... 19 7.1.3. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 29 7.1.4. AVERAGE POWER........................................................................................................... 32 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 33 7.1.6. PEAK EXCURSION .......................................................................................................... 42 7.1.7. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 51 7.2. RADIATED EMISSIONS.............................................................................................................59 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 59 7.2.2. TRANSMITTER ABOVE 1 GHZ FOR 5150 TO 5350 MHz BAND ............................... 62 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 80 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 84 8. SETUP PHOTOS .............................................................................................................................. 88 REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 4 of 92 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ATEROS COMMUNICATIONS, INC. 529 ALMANOR AVENUE SUNNYVALE, CA 94085 EUT DESCRIPTION: 802.11 a/b/g MINI PCI MODULE MODEL: AR5BMB6 SERIAL NUMBER: 0011F5-3C53C1, 0011F5-007890 DATE TESTED: JANUARY 26 – FEBRUARY 22, 2005 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART E NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revis…

Text truncated - open the document above for the full version.

REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 89 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 90 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 91 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 92 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 05U3230-3 DATE: FEBRUARY 25, 2005 EUT: 802.11 a/b/g MINI PCI MODULE FCC ID: PPD-AR5BMB6 Page 93 of 93 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
