PPD-AR5BMB712.4 GHz 802.11n MPCI Module

COMPANY CONFIDENTIAL April 2006 Client Utility AR5BMB71 802.11n 3x3 MPCI Module PRELIMINARY April 2006 April 2006 COMPANY CONFIDENTIAL © 2000–2006 by Atheros Communications, Inc. All rights reserved. ATHEROS, the Atheros logo, 5-UP, Driving the Wireless Future, Atheros Driven, Atheros Turbo Mode, and the Air is Cleaner at 5-GHz are trademarks of Atheros Communications, Inc. All other trademarks are the property of their respective holders. Notice The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Atheros Communications, Inc. (Atheros) assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Atheros reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Atheros does not represent that products described herein are free from patent infringement or from any other third party right. No part of this document may be reproduced, adapted or transmitted in any form or by any means, electronic or mechanical, for any purpose, except as expressly set forth in a written agreement signed by Atheros. Atheros or its affiliates may have patents or pending patent applications, trademarks, copyrights, maskwork rights or other intellectual property rights that apply to the ideas, material and information expressed herein. No license to such rights is provided except as expressly set forth in a written agreement signed by Atheros. ATHEROS MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT SHALL ATHEROS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN PARTICULAR, ATHEROS SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERWISE USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. ATHEROS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AS THEY MIGHT OTHERWISE APPLY TO THIS DOCUMENT AND TO THE IDEAS, MATERIAL AND INFORMATION EXPRESSED HEREIN. Atheros Communications, Inc. 3 of 3 COMPANY CONFIDENTIAL April 2006 Contents Introduction ............................................................................................................... 5 System Requirements ........................................................................................ 5 Profile Management ................................................................................................. 5 Create or Modify a Configuration Profile....................................................... 5 Remove a Configuration Profile....................................................................... 6 Auto Profile Selection Management....................................................................... 6 Switching to a Different Configuration Profile..................................................... 7 Import and Export Profiles ...................................................................................... 7 Importing a Profile.................................................................................................... 7 Exporting a Profile .................................................................................................... 7 TCP/IP Configuration.............................................................................................. 7 Configuring the TCP/IP Address for the network device:................................. 7 General Tab................................................................................................................ 8 Advanced Tab............................................................................................................ 8 Security Tab ............................................................................................................... 9 Using EAP-TLS Security ................................................................................. 10 Using EAP-TTLS Security ............................................................................... 10 Using PEAP (EAP-GTC) Security .................................................................. 11 Using PEAP-MSCHAP V2 Security............................................................... 12 Using LEAP Security ....................................................................................... 13 Configuring LEAP .................................................................................................. 13 Pre-Shared Encryption Keys.................................................................................. 14 Defining pre-shared encryption keys:.................................................................. 14 Overwriting an Existing Static WEP Key ............................................................ 14 Disabling Static WEP .............................................................................................. 14 Using WPA Passphrase Security .......................................................................... 15 Zero Configuration ................................................................................................. 15 Wireless Network Configuration.......................................................................... 15 Check the Status Information or Diagnostics...................................................... 16 April 2006 COMPANY CONFIDENTIAL Current Status................................................................................................... 16 Adapter Information Button ..................…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com March 18, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Michael Green / Manager, Global Product Compliance Atheros Communications Inc.

Chris Harvey From: Claire Hoque [[email protected]] Sent: Tuesday, April 18, 2006 7:12 PM To: Chris Harvey -TCB; Chris Harvey Cc: Barbara Judge; Christine Vu; [email protected]; Michael Heckrotte; Thu Chan; David Garcia Subject: answer (06U10236)for ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BMB71, Assessment NO.: AN06T5680, Notice#1 Attachments: Setup Photos(revised).pdf; 06U10236-1 FCC DTS Report(revised).pdf; MPE.pdf Page 1 of 1 4/18/2006 Hi Chris, Pls see answers below and pls help to issue grant today. Question #1: From the description of the Power Spectral Density test in the test report it appears as though PSD Option #1 from the with FCC DTS measurement procedure published on May 09, 2005 has been used. Since output power is measured with output power option 2, you must also measure PSD with PSD option 2. The requirement for PSD measurement is stated below: Section 15.247(d) ¡V Power spectral density (PSD). The same method of determining the conducted output power shall be used to determine the power spectral density. If a peak output power is measured, then a peak power spectral density measurement is required. If an average output power is measured, then an average power spectral density measurement should be used. Use PSD Option 1 if Power output Option 1 was used. Use PSD Option 2 if power output Option 2 was used. Please redo the PSD measurement and update the test report with the procedure and new data. <answer>pls see revised report to address this question, all output powers are measured with peak output power measurements in option 1, just like normal DTS band method measurement. Question #2: Was Single Chain or Triple Chain (3x3) transmitting mode used in Test Report Section 6.2 radiated spurious emission tests? <answer>EUT was tested with all three chains transmitting. Question #3: The Modular Approval request letter indicates that the MPE Exhibit is included in the test report. Although the test report is 384 pages in length, the MPE exhibit has not been included. Please provide a separate MPE Exhibit for the worst case transmitting mode/state of this device. Please note that this device will be restricted for installation into devices that must maintain a 20cm minimum separation to users. <answer>MPE is added in the report, and it is also attached here. Thanks, Claire

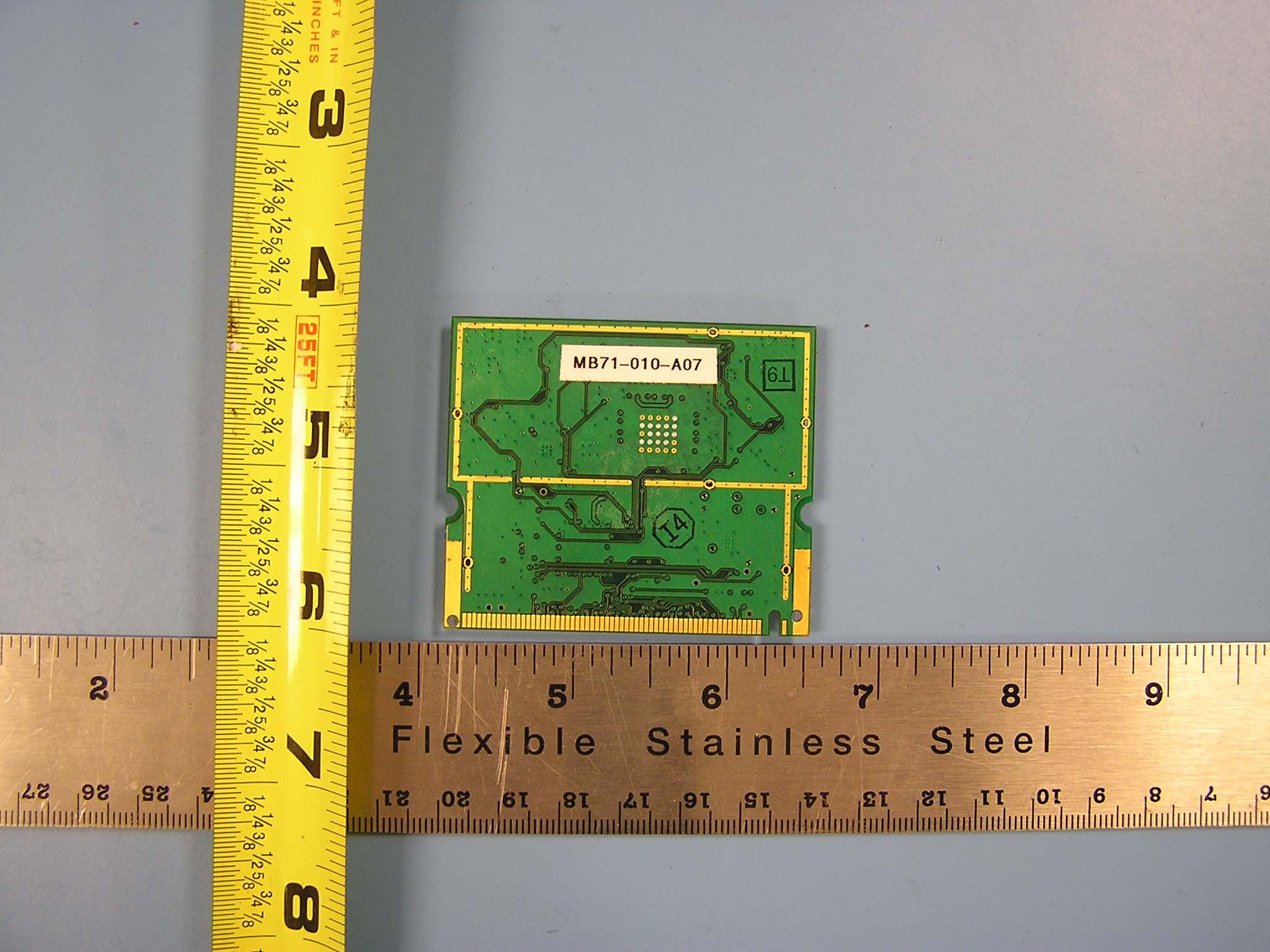

FCC ID: PPD-AR5BMB71 Request for transmitter modular approval Transmitter Module Characteristics ItemRequirementsEUT 1Have its own RF shieldingDevice is equipped with Metal shielding to cover RF section. Refer to e xternal photos 2Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3Have it own power supply regulation The transmitter has its own power supply regulator. 4Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the host for modular approval. Refer to setup photos. 6Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to Refer to MPE sections of address RF exposure compliance in accordance test reports with Section 15.247(b)(4). Transmitter meets MPE calculations of 47 CFR 1.1307(b)(1).

Label Dimensions 45mm x 16mm FCCID: PPD-AR5BMB71 FCCID: PPD-AR5BMB71 Sample Label For Affixing to Outside of Host System

REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 145 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 6.1.4. MAXIMUM PERMISSIBLE EXPOSURE LIMITS §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 146 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. CALCULATIONS Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields d = 0.282 * 10 ^ ((P + G) / 20) / √ S where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Rearranging terms to calculate the power density at a specific distance yields S = 0.0795 * 10 ^ ((P + G) / 10) / (d^2) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 147 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. LIMITS From §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 RESULTS No non-compliance noted: (MPE distance equals 20 cm) NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. No non-compliance noted: (MPE distance is greater than 20 cm) ModeMPETotal AntennaPower DistancePowerGainDensity (cm)(dBm)(dBi)(mW/cm^2) 802.11b20.025.642.000.12 802.11g20.027.332.000.17 802.11n HT2020.027.492.000.18 802.11n HT4020.027.022.000.16 ModePower DensityOutputAntennaMPE LimitPowerGainDistance (mW/cm^2)(dBm)(dBi)(cm) 802.11b1.025.642.006.80 802.11g1.027.332.008.26 802.11n HT201.027.492.008.41 802.11n HT401.027.022.007.97

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR 2.4GHz 802.11n MPCI MODULE MODEL NUMBER: AR5BMB71 FCC ID: PPD-AR5BMB71 REPORT NUMBER: 06U10236-1, Rev B ISSUE DATE: APRIL 18, 2006 Prepared for ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 *Details of specific model(s) tested and model differences are identified in body of report REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 2 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 04/17/06 Initial Issue Thu B 04/18/06 Changed Output Power test method to option #1; Removed the incorrect output power method statement. Thu REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 3 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................4 2. TEST METHODOLOGY.........................................................................................................5 3. FACILITIES AND ACCREDITATION...................................................................................5 4. CALIBRATION AND UNCERTAINTY..................................................................................5 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 4.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5. EQUIPMENT UNDER TEST..................................................................................................6 5.1. DESCRIPTION OF EUT.....................................................................................................6 5.2. MAXIMUM OUTPUT POWER............................................................................................6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS......................................................................7 5.4. SOFTWARE AND FIRMWARE............................................................................................7 5.5. WORST-CASE CONFIGURATION AND MODE..................................................................7 5.6. DESCRIPTION OF TEST SETUP........................................................................................8 6. TEST AND MEASUREMENT EQUIPMENT.......................................................................10 6.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND.................................................11 6.1.1. 6 dB BANDWIDTH...................................................................................................11 6.1.2. 99% BANDWIDTH...................................................................................................57 6.1.3. PEAK OUTPUT POWER.........................................................................................101 6.1.4. MAXIMUM PERMISSIBLE EXPOSURE................................................................145 6.1.5. AVERAGE POWER................................................................................................149 6.1.6. PEAK POWER SPECTRAL DENSITY....................................................................150 6.1.7. CONDUCTED SPURIOUS EMISSIONS..................................................................194 6.2. RADIATED EMISSIONS..................................................................................................279 6.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS...........................................279 6.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND.........................282 6.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz........................................326 6.3. POWERLINE CONDUCTED EMISSIONS........................................................................330 7. SETUP PHOTOS..................................................................................................................334 REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 4 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, USA EUT DESCRIPTION: 2.4GHz 802.11n MPCI MODULE MODEL: AR5BMB71 SERIAL NUMBER: MB71-010-A0 DATE TESTED: APRIL 13 – APRIL 15, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify …

Text truncated - open the document above for the full version.

REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 151 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RESULTS No non-compliance noted: 802.11b Mode ChannelFrequencyPPSD Chain 0 PPSD Chain 1 PPSD Chain 2 PPSD Total LimitMargin (MHz)(dBm)(dBm)(dBm)(dBm)(dBm)(dB) Low2412-3.90-5.20-4.200.378-7.63 Middle2437-3.40-3.61-3.601.248-6.76 High2462-4.00-4.08-3.850.808-7.20 802.11g Mode ChannelFrequencyPPSD Chain 0 PPSD Chain 1 PPSD Chain 2 PPSD Total LimitMargin (MHz)(dBm)(dBm)(dBm)(dBm)(dBm)(dB) Low2412-8.26-9.39-6.97-3.328-11.32 Middle2437-6.05-7.22-5.98-1.618-9.61 High2462-8.34-8.19-6.57-2.858-10.85 802.11 HT20 Mode ChannelFrequencyPPSD Chain 0 PPSD Chain 1 PPSD Chain 2 PPSD Total LimitMargin (MHz)(dBm)(dBm)(dBm)(dBm)(dBm)(dB) Low2412-10.23-10.57-8.87-5.058-13.05 Middle2437-6.65-7.45-6.61-2.128-10.12 High2462-9.81-9.03-7.53-3.918-11.91 802.11 HT40 Mode ChannelFrequencyPPSD Chain 0 PPSD Chain 1 PPSD Chain 2 PPSD Total LimitMargin (MHz)(dBm)(dBm)(dBm)(dBm)(dBm)(dB) Low2422-15.62-13.48-12.35-8.848-16.84 2'nd Low2427-14.22-12.50-11.00-7.618-15.61 Middle2437-8.97-8.41-8.90-3.988-11.98 2'nd High2447-11.21-12.51-9.18-5.988-13.98 High2452-12.36-10.62-10.82-6.438-14.43 REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 152 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PEAK POWER SPECTRAL DENSITY (802.11b MODE CHAIN 0) PPSD LOW CH (802.11b mode chain 0) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 153 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD MID CH (802.11b mode chain 0) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 154 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD HIGH CH (802.11b mode chain 0) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 155 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PEAK POWER SPECTRAL DENSITY (802.11b MODE CHAIN 1) PPSD LOW CH (802.11b mode chain 1) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 156 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD MID CH (802.11b mode chain 1) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 157 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD HIGH CH (802.11b mode chain 1) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 158 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PEAK POWER SPECTRAL DENSITY (802.11b MODE CHAIN 2) PPSD LOW CH (802.11b mode chain 2) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 159 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD MID CH (802.11b mode chain 2) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 160 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD HIGH CH (802.11b mode chain 2) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 161 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PEAK POWER SPECTRAL DENSITY (802.11g MODE CHAIN 0) PPSD LOW CH (802.11g mode chain 0) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 162 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. PPSD MID CH (802.11g mode chain 0) REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 …

Text truncated - open the document above for the full version.

REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 334 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 335 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 336 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10236-1, Rev B DATE: APRIL 17, 2005 EUT: 2.4 GHz 802.11n MPCI MODULE FCC ID: PPD-AR5BMB71 Page 337 of 338 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MO…

Text truncated - open the document above for the full version.
