PPD-AR5BXB112AR5BXB112 3x3 802.11n PCIe Module

Page 1 of 9 Atheros Modular Certification Instructions to OEM Integrators December 2010 © 2000–2009 by Atheros Communications, Inc. All rights reserved. Atheros ® , Atheros Driven ® , Atheros XR ® , Driving the Wireless Future ® , ROCm ® , Super AG ® , Super G ® , Total 802.11n ® , and Wake on Wireless ® are registered by Atheros Communications, Inc. Atheros SST™, Signal-Sustain Technology™, the Air is Cleaner at 5-GHz™, XSPAN™, Wireless Future. Unleashed Now.™, and 5-UP™ are trademarks of Atheros Communications, Inc. The Atheros logo is a registered trademark of Atheros Communications, Inc. All other trademarks are the property of their respective holders. Notice The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Atheros Communications, Inc. (Atheros) assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Atheros reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Atheros does not represent that products described herein are free from patent infringement or from any other third party right. No part of this document may be reproduced, adapted or transmitted in any form or by any means, electronic or mechanical, for any purpose, except as expressly set forth in a written agreement signed by Atheros. Atheros or its affiliates may have patents or pending patent applications, trademarks, copyrights, maskwork rights or other intellectual property rights that apply to the ideas, material and information expressed herein. No license to such rights is provided except as expressly set forth in a written agreement signed by Atheros. ATHEROS MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT SHALL ATHEROS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN PARTICULAR, ATHEROS SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERWISE USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. ATHEROS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AS THEY MIGHT OTHERWISE APPLY TO THIS DOCUMENT AND TO THE IDEAS, MATERIAL AND INFORMATION EXPRESSED HEREIN. Page 3 of 9 Revision History Revision Description of Changes Aug 2009 Initial Release Introduction This document describes mandatory steps required by the OEM integrator when designing and manufacturing any host PC system utilizing an Atheros radio module. Also refer to the Atheros Regulatory Compliance Guide available on the Atheros customer support site and from the Atheros customer support contact person. This document lists the mandatory responsibilities and actions of the OEM integrator. Failure to comply with all requirements and conditions in this document, may result in non-compliance of the host PC with FCC rules and invalidate the Atheros FCC certification for the module. This guide applies to Client modules that act under control of an Access Point. This document does not apply to a Client module or Access Point with radar detection feature. Allowed Antennas to be Used with the Radio Module The Integrator must request from Atheros sales or regulatory contact person the current list of allowable antennas for use with the specific radio module. This information is not available on the public FCC database but will be provided by Atheros. Atheros will provide a table of antenna type(s) models, cable lengths, and peak gain in each band. Generally, the list will include omnidirectional Inverted-F (PIFA) and stamped metal/film antennas for use inside laptops. In some cases, dipole antenna types may be included in the available list. Peak gain including cable losses are quoted in the table provided by Atheros. Use of any of the antennas in the list (identical or equivalent antenna with same gain, dimensions and cable lengths) is acceptable in the host device, without any further FCC testing or submission. However, use of an antenna that is Higher gain than those on the list or is a Different Type, requires additional testing and submission to the FCC. Also, if the host PC is certified as an FCC Portable device subject to RF Exposure (SAR) evaluation, then additional SAR testing per FCC rules may be required. Therefore, antennas with higher gain or different type than specified by Atheros, may not be used with the Atheros module until new testing and reporting is completed. You must contact the Atheros Regulatory Group to report any higher gain or new antenna type to be used with the module. Antenna Placement and RF Hazard (SAR) Compliance For host PCs certified as FCC Mobile Category devices, the FCC Grant of approval for the Atheros module is only valid when the Integrator ensures antenna placement in the host system that maintains at least 20 cm separation between any part of the antenna element(s) and any part of the end user’s body (considering their likely or usual operation position and grip). This spacing is naturally met by non-Mobile systems such as Access Points or Desktop PCs. Laptop PCs typically have integrated antennas placed high in the LCD display assembly. However, additional certification testing including RF Exposure (SAR) testing and an FCC certification submission are required to gain permission to place antennas closer than 20 cm to the end-user (e.g. a WLAN radio in a handheld personal organizer, Netbook or Tablet PC where the antennas will be close to the users hands or lap. Such host PCs will requi…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com January 8, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Atheros Communications, Inc. 5480 Great America Parkway Santa Clara CA 95054 t 408 773 5200 f 408-773-9940 www.atheros.com e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, Michael Green / Manager, Global Product Compliance Atheros Communications Inc.

Dec. 14, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: PPD-AR5BXB112 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Block Diagram Schematics Operational Description Antenna datasheet The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, --------------------------------------------------------------------------- Michael Green / Manager, Global Product Compliance Atheros Communications, Inc.

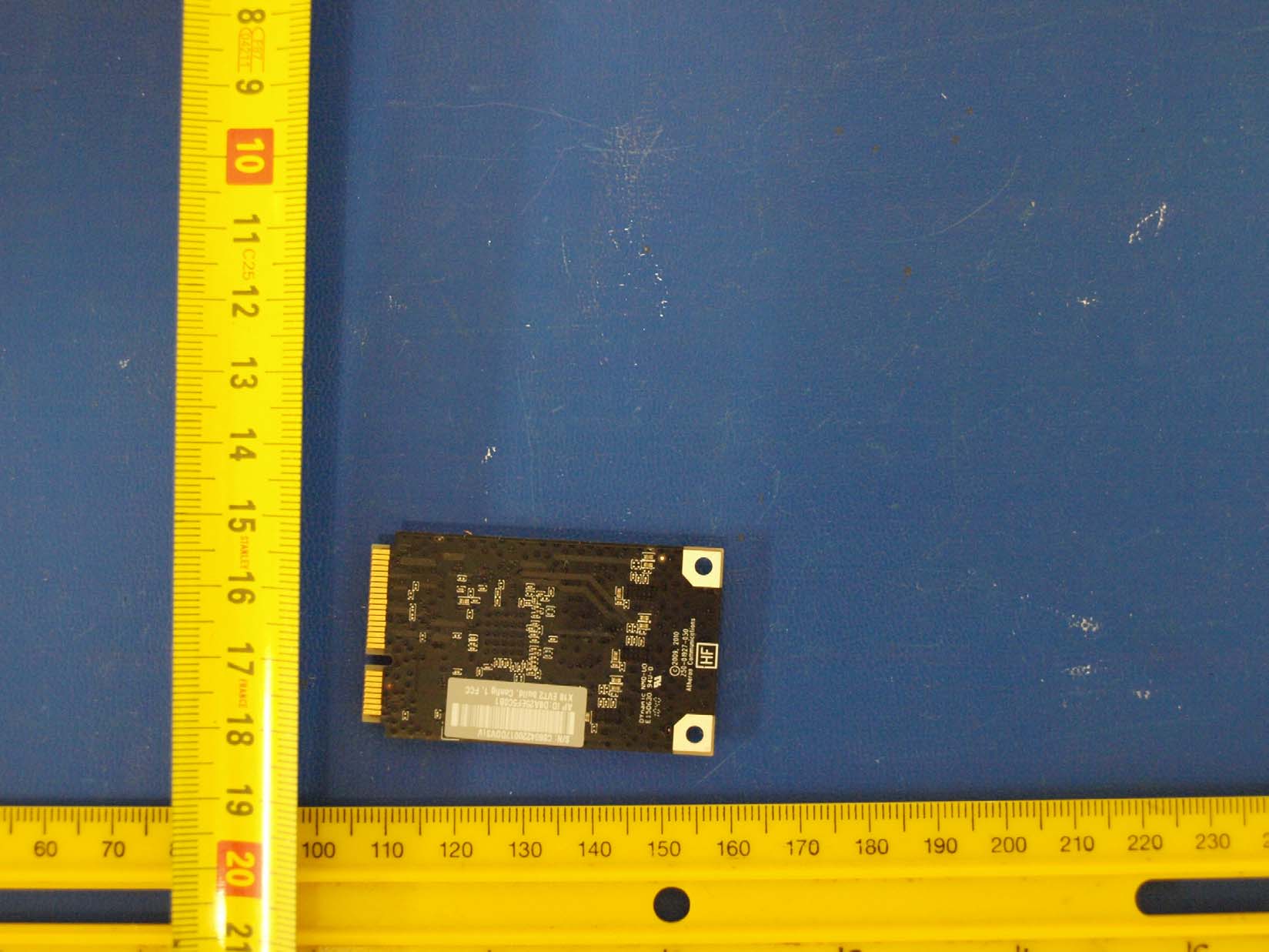

Applicant/Grantee Atheros Communications Inc. FCC ID: PPD- AR5BXB112 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. Y 3 The modular transmitter must have its own power supply regulation. The transmitter has its own power supply regulator. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between Device was tested outside the laptop for modular approval. Refer to setup photos. Y the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Two proposed FCC ID label format are included in the filing. One label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the Refer to “User’s Guide” Exhibit Y application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Transmitter meets MPE calculations of 47 CFR 1.1307(b)(1). Refer to MPE section of the test reports. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

Date:2010/12/14 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: PPD-AR5BXB112 To Whom It May Concern: Pursuant to DA 04-1705 of the Commission’s Rules, we request short-term confidential treatment for the following information for 180 days in order to ensure sensitive business information remains confidential until the actual marketing of the device: Test setup photos EUT external and internal photos OEM installation instructions User’s Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards --------------------------------------------------------------------------- Michael Green / Manager, Global Product Compliance Atheros Communications, Inc.

PROPOSED FCC ID LABEL AND LOCATION Printed Color： ：： ： Black 地 色 地色地 色 地色： ：： ：White 材質 材質材質 材質： ：： ：一般合成紙 一般合成紙一般合成紙 一般合成紙 粘著材 粘著 材 粘著材 粘著材： ：： ：樹脂系糊 樹脂系糊樹脂系糊 樹脂系糊 Bottom of EUT FCC /IC Label Location ATHEROS COMMUNICATIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PPD-AR5BXB 112 IC: 4104A-AR5BXB 112 Model: AR5BXB 112

FCC CFR47 PART 15 SUBPART B ICES-003 ISSUE 4 VERIFICATION TEST REPORT FOR AR5BXB112 3x3 802.11n PCIe MODULE MODEL NUMBER: AR5BXB112 REPORT NUMBER: 09U12738-5 ISSUE DATE: DECEMBER 09, 2010 Prepared for ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY Santa Clara, CA 95054, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES (UL CCS) 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 2 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By --- 12/09/10 Initial Issue T. Chan REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 3 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 5 3. FACILITIES AND ACCREDITATION.................................................................................... 5 4. CALIBRATION AND UNCERTAINTY .................................................................................. 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 5 4.2. SAMPLE CALCULATION.............................................................................................. 5 4.3. MEASUREMENT UNCERTAINTY................................................................................ 5 5. EQUIPMENT UNDER TEST ................................................................................................. 6 5.1. DESCRIPTION OF EUT................................................................................................ 6 5.2. TEST CONFIGURATIONS............................................................................................ 6 5.3. MODE(S) OF OPERATION........................................................................................... 6 5.4. SOFTWARE AND FIRMWARE..................................................................................... 6 5.5. MODIFICATIONS.......................................................................................................... 6 5.6. DETAILS OF TESTED SYSTEM .................................................................................. 7 6. TEST AND MEASUREMENT EQUIPMENT ......................................................................... 9 7. APPLICABLE LIMITS AND TEST RESULTS .................................................................... 10 7.1. RADIATED EMISSIONS ............................................................................................. 10 7.2. AC MAINS LINE CONDUCTED EMISSIONS ............................................................. 12 8. SETUP PHOTOS................................................................................................................. 15 REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 4 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: ATHEROS COMMUNICATION, INC. 1700 TECHNOLOGY DRIVE, SAN JOSE, CA 95110 EUT DESCRIPTION: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 SERIAL NUMBER: CUS152-053-F0760 DATE TESTED: DECEMBER 09, 2010 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART B Pass ICES-003 ISSUE 4 Pass Compliance Certification Services (UL CCS) tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL CCS based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL CCS and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL CCS will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For CCS By: Tested By: THU CHAN CHIN PANG EMC MANAGER EMC ENGINEER UL CCS UL CCS REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 5 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2009, CAN/CSA-CEI/IEC CISPR 22:02 as referenced by ICES-003 Issue 4. 3. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are loc…

Text truncated - open the document above for the full version.

REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 15 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 8. SETUP PHOTOS RADIATED EMISSION RADIATED EMISSIONS (FRONT) RADIATED EMISSIONS (BACK) REPORT NO: 10U13467-8 DATE: DECEMBER 09, 2010 EUT: AR5BXB112 3x3 802.11n PCIe MODULE MODEL: AR5BXB112 Page 16 of 16 COMPLIANCE CERTIFICATION SERVICES (UL CCS) FORM NO: CCSUP4701D 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. AC MAINS LINE CONDUCTED EMISSION END OF REPORT LINE CONDUCTED EMISSION (FRONT) LINE CONDUCTED EMISSION (BACK)
