PPD-AR5BXB72P

Qualcomm Atheros, Inc.

802.11 a/b/g/n PCIExpress Minicard

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 04, 2006
Application Purpose: Original Equipment
Date of Application: Jul 04, 2006
Equipment Note: 802.11 a/b/g/n PCIExpress Minicard
Frequency Range: 5745.00000000 - 5825.00000000
Company: Qualcomm Atheros, Inc.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

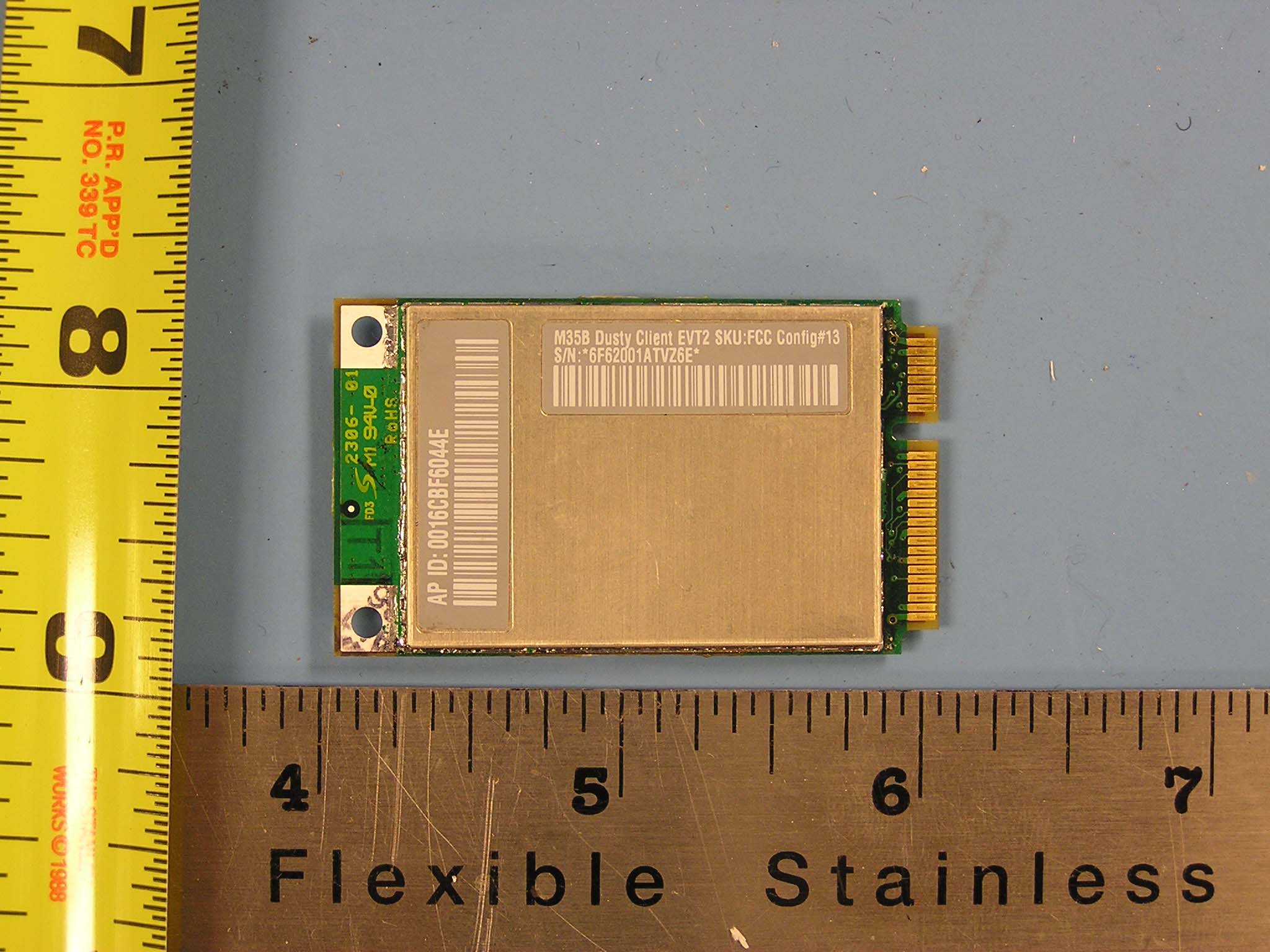

External Photos

ID Label/Location Info

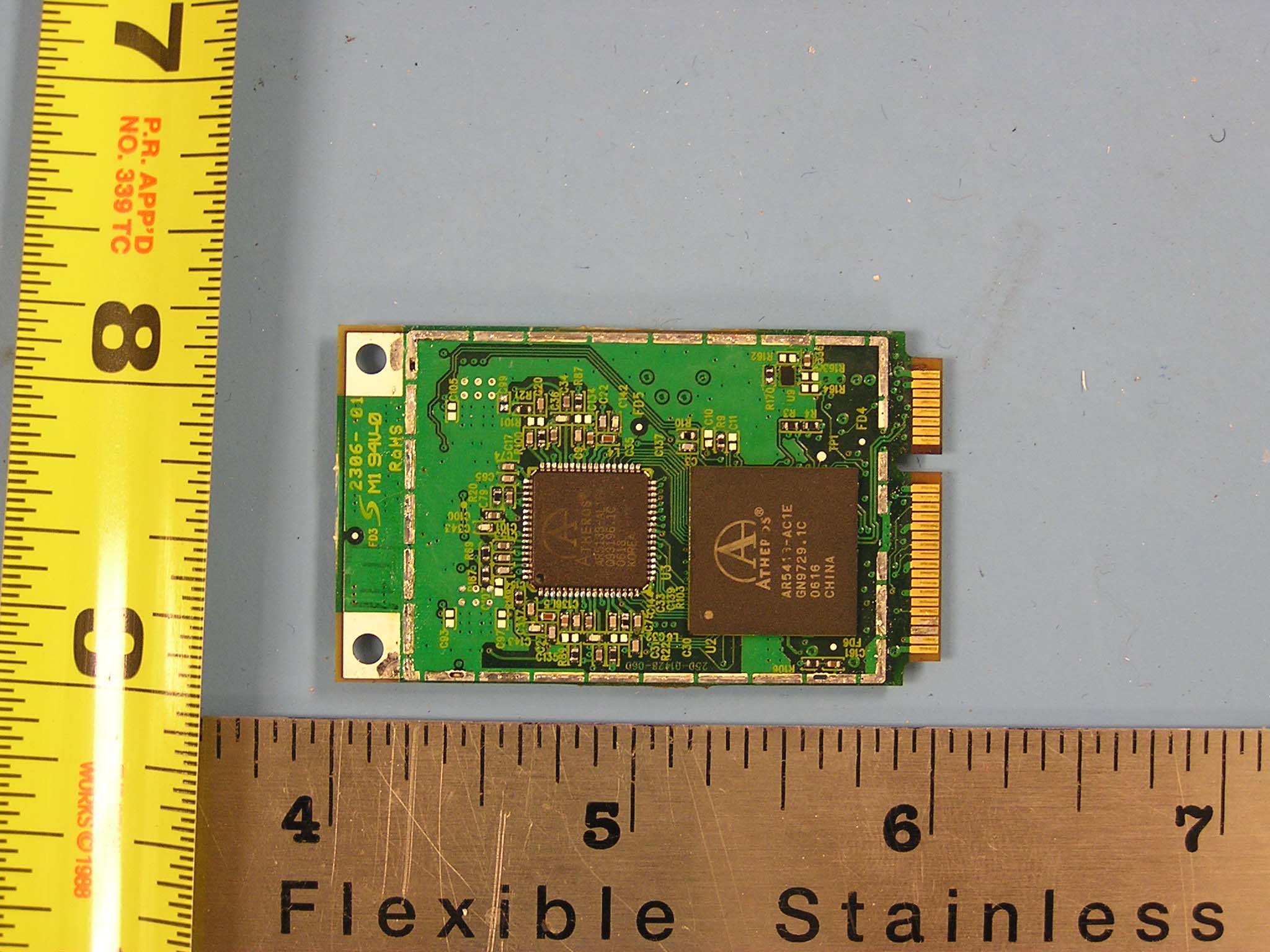

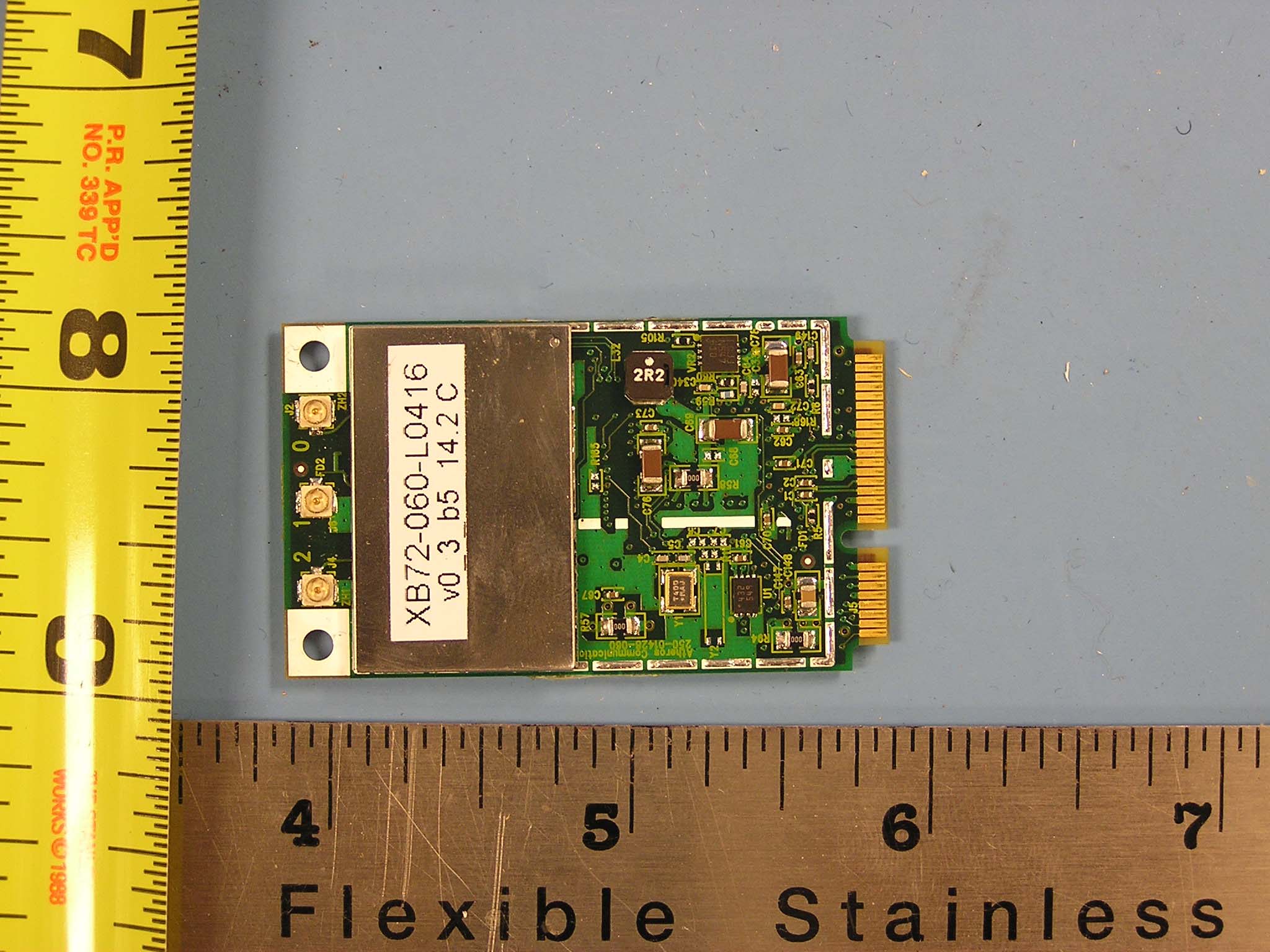

Internal Photos

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15C	5.75 GHz - 5.83 GHz	105.00 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Approval. Power listed is the maximum combined conducted output power as indicated in the filing. Device is a PCI-E Mini Card operating in either 2x3 or 2x2 Spatial Multiplexing/Cyclic Delay Diversity MIMO configurations as described in this filing. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
