PPD-AR5BXB92802.11n 2x2 PCIe Minicard

Atheros 802.11n Adapter Model AR5BXB92 802.11n Adapter Dec 2007 © 2000–2006 by Atheros Communications, Inc. All rights reserved. ATHEROS, the Atheros logo, 5-UP, Driving the Wireless Future, Atheros Driven, Atheros Turbo Mode, and the Air is Cleaner at 5-GHz are trademarks of Atheros Communications, Inc. All other trademarks are the property of their respective holders. Notice The information in this document has been carefully reviewed and is believed to be accurate. Nonetheless, this document is subject to change without notice, and Atheros Communications, Inc. (Atheros) assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the contained information, or to notify a person or organization of any updates. Atheros reserves the right to make changes, at any time, in order to improve reliability, function or design and to attempt to supply the best product possible. Atheros does not represent that products described herein are free from patent infringement or from any other third party right. No part of this document may be reproduced, adapted or transmitted in any form or by any means, electronic or mechanical, for any purpose, except as expressly set forth in a written agreement signed by Atheros. Atheros or its affiliates may have patents or pending patent applications, trademarks, copyrights, maskwork rights or other intellectual property rights that apply to the ideas, material and information expressed herein. No license to such rights is provided except as expressly set forth in a written agreement signed by Atheros. ATHEROS MAKES NO WARRANTIES OF ANY KIND WITH REGARD TO THE CONTENT OF THIS DOCUMENT. IN NO EVENT SHALL ATHEROS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL SPECULATORY OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBLITY OF SUCH DAMAGES. IN PARTICULAR, ATHEROS SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA TRANSMITTED OR OTHERWISE USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE OR DATA. ATHEROS SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AS THEY MIGHT OTHERWISE APPLY TO THIS DOCUMENT AND TO THE IDEAS, MATERIAL AND INFORMATION EXPRESSED HEREIN. Atheros Communications, Inc. • iii COMPANY CONFIDENTIAL March 2008 Document Conventions Text Conventions bold Bold type within paragraph text indicates commands, file names, directory names, paths, output, or returned values. Example: The DK_Client package will not function unless you use the wdreg_install batch file. italic Within commands, italics indicate a variable that the user must specify. Example: mem_alloc size_in_bytes Titles of manuals or other published documents are also set in italics. Courier The Courier font indicates output or display. Example: Error:Unable to allocate memory for transfer! Menu The Menu character tag is used for menu items. Example: Choose Edit > Copy. [ ] Within commands, items enclosed in square brackets are optional parameters or values that the user can choose to specify or omit. { } Within commands, items enclosed in braces are options from which the user must choose. | Within commands, the vertical bar separates options. ... An ellipsis indicates a repetition of the preceding parameter. > The right angle bracket separates successive menu selections. Example: Start > Programs > DK > wdreg_install. Notices NOTE: This message denotes neutral or positive information that calls out important points to the text. A note provides information that may apply only in special cases. iv • Atheros Communications, Inc. Dec 2007 COMPANY CONFIDENTIAL Revision History Revision Description of Changes Dec 2007 Initial Release Atheros Communications, Inc. • v COMPANY CONFIDENTIAL Dec 2007 Contents Introduction ............................................................................................................... 7 System Requirements ........................................................................................ 7 Profile Management ................................................................................................. 7 Create or Modify a Configuration Profile....................................................... 7 Remove a Configuration Profile....................................................................... 8 Auto Profile Selection Management....................................................................... 8 Switching to a Different Configuration Profile..................................................... 9 Import and Export Profiles ...................................................................................... 9 Importing a Profile.................................................................................................... 9 Exporting a Profile .................................................................................................... 9 TCP/IP Configuration.............................................................................................. 9 Configuring the TCP/IP Address for the network device:................................. 9 General Tab.............................................................................................................. 10 Advanced Tab.......................................................................................................... 10 Security Tab ............................................................................................................. 11 Using EAP-TLS Security ................................................................................. 12 Using EAP-TTLS Security ............................................................................... 12 Using PEAP (EAP-GTC) Security .................................................................. 13 Using …

Text truncated - open the document above for the full version.

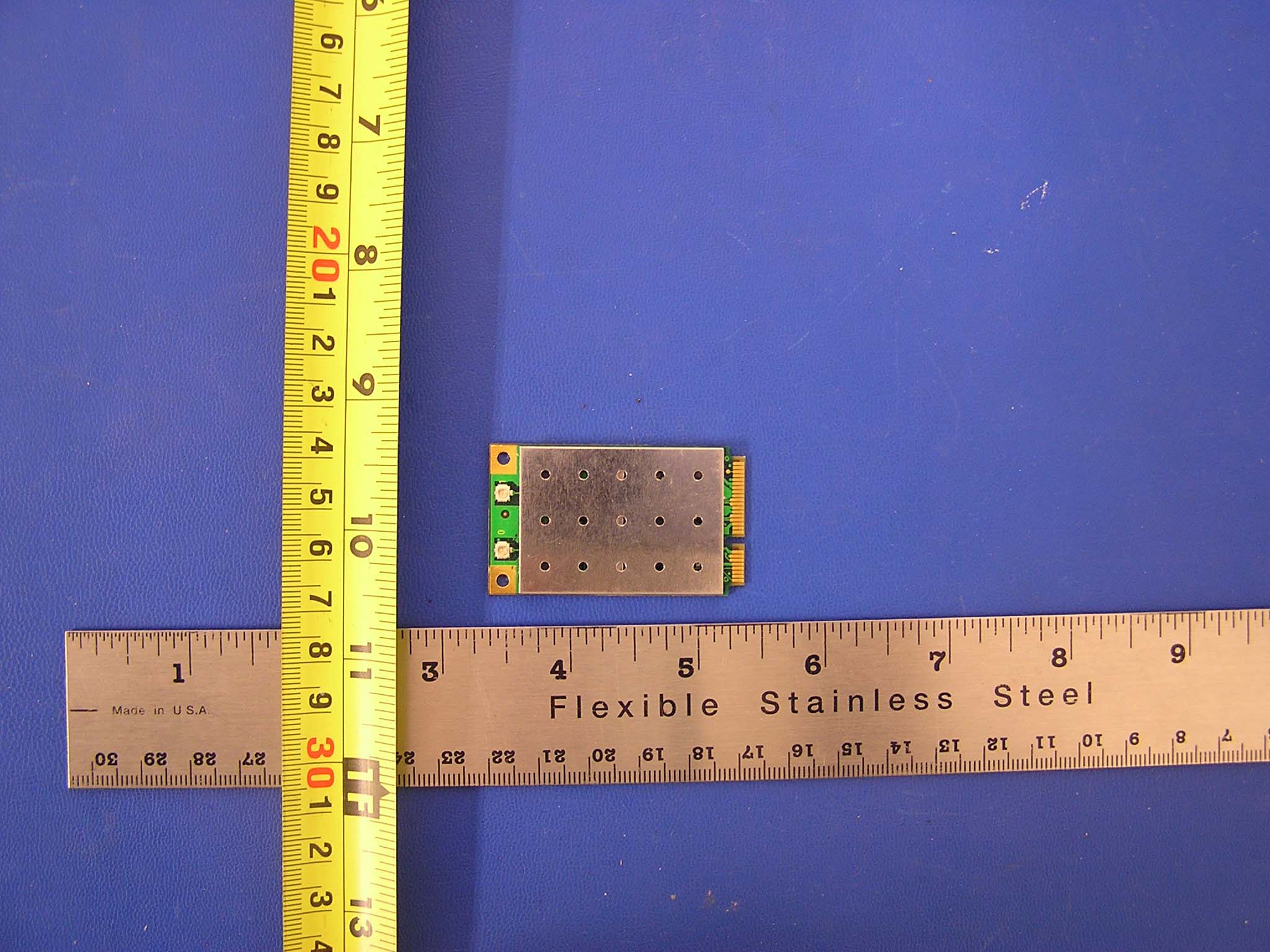

Atheros Communications, Inc. FCC ID: PPD-AR5BXB92 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation The transmitter has its own power supply regulator. 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)- LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the laptop for modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to Refer to MPE sections of address RF exposure compliance in accordance test reports with Section 15.247(b)(4). Transmitter meets MPE calculations of 47 CFR 1.1307(b)(1). o

Atheros Communications, Inc. 5480 Great America Parkway, Santa Clara, CA 95054 t 408 773 5200 f 408 773 9940 www.atheros.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 11/5/2007 Dear Examiner: We request the following portions of our application be withheld from public inspection as provided under FCC section 0.459: Block Diagram & Theory of Operation Schematics Antenna Specifications These documents contain details of the proprietary operation of the product not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. In addition, pursuant to Public Notice DA 04-1705, in order to comply with the marketing regulations in 47 CFR §2.803 and importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request the commission grant short-term confidentiality for the following attachments until 45 days from the date of the Grant of Equipment Authorization: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all other attachments must be made available for public review once the grant of equipment authorization is issued. Sincerely, Michael Green Manager of Global Product Compliance

answer: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BXB92, Assessment NO.: AN08T7709, Notice#1 Inbox X from Claire Hoque <[email protected]> to "Timothy M. Dwyer" <[email protected]>, Tim Dwyer - TCB <[email protected]>, "Timothy M. Dwyer" <[email protected]>, cc Thu Chan <[email protected]>, Tiffany Hong <[email protected]>, Christine Vu <[email protected]>, date Mon, Mar 17, 2008 at 5:45 PM subject answer: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BXB92, Assessment NO.: AN08T7709, Notice#1 hide details 5:45 PM Reply Hi Tim Pls see answer below. Pls note AN08T7709, AN08T7710 and IC AN08I2344 are most important. Pls help to issue grants TODAY. Since I will leave at 6pm, so pls complete FCC 731 forms ASAP, so that I could do uploading and issue grants. Thanks, Claire -----Original Message----- From: Timothy M. Dwyer Sent: Sunday, March 16, 2008 8:04 PM To: Thu Chan; Claire Hoque Cc: Timothy M. Dwyer Subject: ATHEROS COMMUNICATIONS, INC., FCC ID: PPD-AR5BXB92, Assessment NO.: AN08T7709, Notice#1 Hello Claire, Thu, Review of the application is complete. Please provide confirmation or explanation for the following items. Q1: The power entered on Equipment Specification line 3 2422-2452 MHz 0.56719W is different from the 0.36042 W in the test report. It appears this may be an entry error. Please confirm or explain. <answer>0.36042 W is correct, IC appendix B is revised. Q2: It appears to me that the point-to-point antenna gain considerations on pages 16, 38, 104 of the test report may not necessary since listed powers are already reduced by more than the amount that that antenna gains exceed 6 dBi. Please confirm or explain by reply email or revise the report. This is important because if fixed point-to-point operation is intended, it needs to be shown on the grant. <answer> DTS report is revised, DTS report and setup photos are saved in our network AN08T7709 TCBUpload\AN08T7709\DTS report revised Best regards, Tim Dwyer Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4 attachments — Download all attachments Appendix B_ DTS Band_08U11572 Atheros_Revised 031708.pdf 76K View as HTML Download 08U11572-1B FCC IC DTS WLAN Report(1).pdf 1553K View as HTML Download 08U11572-1B FCC IC DTS WLAN Report(2).pdf 1867K View as HTML Download 08U11572-1B DTS Setup Photos.pdf 212K View as HTML Download http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu http://mail.google.com/mail/?ui=2&view=bsp&ver=ymdfwq781tpu 3/17/2008 5:43:58 PM

PROPOSED FCC ID LABEL AND LOCATION Bottom of EUT FCC /IC Label Location ATHEROS COMMUNICATIONS, INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Model: AR5BXB92 PROPOSED FCC ID LABEL FOR HOST DEVICE Atheros Communications, Inc. This device contains FCC ID: PPD-AR5BXB92, IC: 4104A-AR5BXB92

FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 7 CERTIFICATION TEST REPORT FOR 802.11n 2x2 PCIe MINICARD TRANSCEIVER MODEL NUMBER: AR5BXB92 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 REPORT NUMBER: 08U11572-1B ISSUE DATE: MARCH 17, 2008 Prepared for ATHEROS COMMUNICATIONS, INC. 5480 GREAT AMERICA PARKWAY SANTA CLARA, CA 95054, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 2 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 03/10/08 Initial Issue T. Chan B 03/17/08 Revised page 16, 38, and 104 per TCB reviewer’s comments T. Chan REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 3 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................6 2. TEST METHODOLOGY..........................................................................................................7 3. FACILITIES AND ACCREDITATION.....................................................................................7 4. CALIBRATION AND UNCERTAINTY....................................................................................7 4.1. MEASURING INSTRUMENT CALIBRATION................................................................7 4.2. MEASUREMENT UNCERTAINTY.................................................................................7 5. EQUIPMENT UNDER TEST...................................................................................................8 5.1. DESCRIPTION OF EUT.................................................................................................8 5.2. MAXIMUM OUTPUT POWER........................................................................................8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS................................................................8 5.4. SOFTWARE AND FIRMWARE......................................................................................8 5.5. WORST-CASE CONFIGURATION AND MODE...........................................................9 5.6. DESCRIPTION OF TEST SETUP................................................................................10 6. TEST AND MEASUREMENT EQUIPMENT........................................................................12 7. ANTENNA PORT TEST RESULTS......................................................................................13 7.1. 802.11b DUAL CHAIN LEGACY MODE IN THE 2.4 GHz BAND...............................13 7.1.1. 6 dB BANDWIDTH................................................................................................13 7.1.2. 99% BANDWIDTH................................................................................................15 7.1.3. OUTPUT POWER.................................................................................................16 7.1.4. AVERAGE POWER..............................................................................................23 7.1.5. POWER SPECTRAL DENSITY...........................................................................24 7.1.6. CONDUCTED SPURIOUS EMISSIONS..............................................................28 7.2. 802.11g DUAL CHAIN LEGACY MODE IN THE 2.4 GHz BAND...............................35 7.2.1. 6 dB BANDWIDTH................................................................................................35 7.2.2. 99% BANDWIDTH................................................................................................37 7.2.3. OUTPUT POWER.................................................................................................38 7.2.4. AVERAGE POWER..............................................................................................45 7.2.5. POWER SPECTRAL DENSITY...........................................................................46 7.2.6. CONDUCTED SPURIOUS EMISSIONS..............................................................50 7.3. 802.11n HT20 MODE IN THE 2.4 GHz BAND.............................................................57 7.3.1. 6 dB BANDWIDTH................................................................................................57 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 4 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.3.2. 99% BANDWIDTH................................................................................................59 7.3.3. OUTPUT POWER.................................................................................................60 7.3.4. AVERAGE POWER..............................................................................................67 7.3.5. POWER SPECTRAL DENSITY...........................................................................68 7.3.6. CONDUCTED SPURIOUS EMISSIONS..............................................................72 7.4. 802.11n HT40 MODE IN THE 2.4 GHz BAND.............................................................79 7.4.1. 6 dB BANDWIDTH................................................................................................79 7.4.2. 99% BANDWIDTH...............................................................................…

Text truncated - open the document above for the full version.

REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 151 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. CHAIN 1 OUTPUT POWER OUTPUT POWER LOW CH, CHAIN 1 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 152 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. OUTPUT POWER HIGH CH, CHAIN 1 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 153 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.7.4. AVERAGE POWER LIMITS None; for reporting purposes only. TEST PROCEDURE The transmitter output is connected to a power meter. RESULTS The cable assembly insertion loss of 17.5 dB (including 16 dB pad and 1.5 dB cable) entered as an offset in the power meter to allow for direct reading of power. ChannelFrequencyChain 0 PowerChain 1 PowerTotal Power (MHz)(dBm)(dBm)(dBm) Low575517.8019.3421.65 High579516.9718.3120.70 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 154 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.7.5. POWER SPECTRAL DENSITY LIMITS FCC §15.247 (e) IC RSS-210 A8.2 (b) The power spectral density conducted from the transmitter to the antenna shall not be greater than 8 dBm in any 3 kHz band during any time interval of continuous transmission. TEST PROCEDURE Output power was measured based on the use of a peak measurement, therefore the power spectral density was measured using PSD Option 1 in accordance with FCC document “Measurement of Digital Transmission Systems Operating under Section 15.247”, March 23, 2005. RESULTS: ChannelFrequencyPSD with Combiner LimitMargin (MHz)(dBm)(dBm)(dB) Low57554.588-3.42 High57952.988-5.02 REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 155 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWER SPECTRAL DENSITY, WITH COMBINER PSD LOW CH, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 156 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. PSD HIGH CH, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 157 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 7.7.6. CONDUCTED SPURIOUS EMISSIONS LIMITS FCC §15.247 (d) IC RSS-210 A8.5 Output power was measured based on the use of a peak measurement, therefore the required attenuation is 20 dB. TEST PROCEDURE The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to 100 kHz. The video bandwidth is set to 300 kHz. The spectrum from 30 MHz to 40 GHz is investigated with the transmitter set to the lowest and highest channels. RESULTS REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 158 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. SPURIOUS EMISSIONS WITH COMBINER LOW CH BANDEDGE, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 159 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. LOW CH SPURIOUS, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 160 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH BANDEDGE, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 161 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH SPURIOUS, WITH COMBINER REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 162 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. RADIATED TEST RESULTS 8.1. LIMITS AND PROCEDURE LIMITS FCC §15.205 and §15.209 IC RSS-210 Clause 2.6 (Transmitter) IC RSS-GEN Clause 6 (Receiver) Frequency Range Field Strength Limit Field Strength Limit (M…

Text truncated - open the document above for the full version.

REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 251 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 252 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 253 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 254 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 08U11572-1B DATE: MARCH 17, 2008 FCC ID: PPD-AR5BXB92 IC: 4104A-AR5BXB92 Page 255 of 255 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
