Back to Contents Page Technical Specifications and Regulatory Information: Wireless USB Adapter User's Guide Regulatory information Technical Specification Information for the User Wireless Interoperability The Wireless Network Adapter devices are designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with the following standards: zIEEE Std 802.11b-1999. Standard on 2.4 GHz Wireless LAN z IEEE Std 802.11g-2003. Standard on 2.4 GHz Wireless LAN z IEEE Std 802.11a-1999. Standard on 5 GHz Wireless LAN Safety Instructions The Wireless USB Adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this device, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The Wireless device operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the wireless devices may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations include the following: zUsing the Wireless equipment on board airplanes, z Using the Wireless equipment in medical facilities, or z Using the Wireless equipment in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful. If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airport, for example), you are encouraged to ask for authorization to use the Wireless device before you turn it on. Back to Top Regulatory information The Wireless network device must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. For country-specific approvals, see Radio approvals. Page 1 of 5Technical Specifications and Regulatory Information: Dell™ Wireless USB Adapter User's Guide 4/27/2005file://C:\Documents and Settings\Mark\My Documents\Reports to review\J59313\submittal items\... The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of the devices included with this Wireless kit, or the substitution or attachment of connecting cables and equipment. The correction of interference caused by such unauthorized modification, substitution or attachment is the responsibility of the user. The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines. Canada-Industry Canada (IC) This device complies with RSS210 of Industry Canada. Back to Top USA-Federal Communications Commission (FCC) Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 GHz to 5.25 GHz frequency range. The FCC requires this product to be used indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with this device, or can cause damage to this device, or both. Interference statement This device complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions: z This device may not cause harmful interference. z This device must accept any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instructions, the equipment may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures: z Relocate the device. z Increase the distance between the device and the receiver. z Connect the deviceto an outlet on a circuit different from that to which the receiver is connected. zConsult the dealer or an experienced radio/TV technician for help. Back to Top WARNING: The radiated output power of the Wireless Network Adapter devices is far below the FCC radio frequency exposure limits. Nevertheless, the Wireless Network Adapter devices should be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity) and the antenna that is built into the Wireless Network Adapter. Page 2 of 5Technical Specifications and Regulatory Information: Dell™ Wireless USB Adapter User's Guide 4/27/2005file://C:\Documents and Settings\Mark\My Documents\Reports to review\J59313\submittal items\... Technical Specification Wireless interoperability Wireless products are designed to be interoperable with any wireless LAN product that is based on direct sequence s…

Text truncated - open the document above for the full version.

Back to Contents Page Technical Specifications and Regulatory Information: Wireless USB Adapter User's Guide Regulatory information Technical Specification Information for the User Wireless Interoperability The Wireless Network Adapter devices are designed to be interoperable with any wireless LAN product that is based on direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) radio technology and to comply with the following standards:
IEEE Std 802.11b-1999. Standard on 2.4 GHz Wireless LAN
IEEE Std 802.11g-2003. Standard on 2.4 GHz Wireless LAN
IEEE Std 802.11a-1999. Standard on 5 GHz Wireless LAN Safety Instructions The Wireless USB Adapter, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this device, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The Wireless device operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of the wireless devices may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations include the following:
Using the Wireless equipment on board airplanes,
Using the Wireless equipment in medical facilities, or
Using the Wireless equipment in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful. If you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airport, for example), you are encouraged to ask for authorization to use the Wireless device before you turn it on. Back to Top Regulatory information The Wireless network device must be installed and used in strict accordance with the manufacturer's instructions as described in the user documentation that comes with the product. For country- specific approvals, see Radio approvals. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of the Page 1 of 5 4/28/2005file://P:\A\Atheros Communications\J59313\submittal items\Users Guide (Web format)\D1470U r... devices included with this Wireless kit, or the substitution or attachment of connecting cables and equipment. The correction of interference caused by such unauthorized modification, substitution or attachment is the responsibility of the user. The manufacturer and its authorized resellers or distributors are not liable for any damage or violation of government regulations that may arise from the user failing to comply with these guidelines. Unauthorized modifications made to the wireless network device could void the operator's right to use the device Canada-Industry Canada (IC) This device complies with RSS210 of Industry Canada. Back to Top USA-Federal Communications Commission (FCC) and Canada – Industry Canada (IC) The Wireless Network Adapter should not be co-located with any other transmitters Radio Frequency Interference Requirements This device is restricted to indoor use due to its operation in the 5.15 GHz to 5.25 GHz frequency range. The FCC requires this product to be used indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 GHz to 5.35 GHz and 5.65 GHz to 5.85 GHz bands. These radar stations can cause interference with this device, or can cause damage to this device, or both. Interference statement This device complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If the equipment is not installed and used in accordance with the instructions, the equipment may cause harmful interference to radio communications. There is no guarantee, however, that such interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by taking one or more of the following measures:
Relocate the device.
Increase the distance between the device and the receiver.
Connect the deviceto an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. WARNING: The radiated output power of the Wireless Network Adapter devices is far below the FCC radio frequency exposure limits. Nevertheless, the Wireless Network Adapter devices should be used in such a manner that the potential for human contact during normal operation is minimized. To avoid the possibility of exceeding the FCC radio frequency exposure limits, you should keep a distance of at least 20 cm between you (or any other person in the vicinity) and the antenna that is built into the Wireless Network Adapter. Page 2 of 5 4/28/2005file://P:\A\Atheros Communications\J59313\submittal items\Users Guide (Web format)\D1470U r... Back to Top Technical Specification Wireless interoperability Wireless products are designed to be interoperable with any wireless…

Text truncated - open the document above for the full version.

Atheros Communications, Inc. 529 Almanor Avenue Sunnyvale CA 94085 t 408 773 5200 f 408 773 9940 www.atheros.com Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 4/9/2005 Dear Examiner: We request the following portions of our application be withheld from public inspection as provided under FCC section 0.459: Block Diagram Schematics Parts List Theory of Operation Antenna Specifications These documents contain details of the proprietary operation of the product not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. In addition, pursuant to Public Notice DA 04-1705, in order to comply with the marketing regulations in 47 CFR §2.803 and importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request the commission grant short-term confidentiality for the following attachments until 45 days from the date of the Grant of Equipment Authorization: External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all other attachments must be made available for public review once the grant of equipment authorization is issued. Sincerely, Michael Green Manager of Global Product Compliance

April 9, 2005 American TCB 6731 Whittier Ave. McLean, VA 22101 Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories, Inc. as Agent for Atheros Communications, Inc. to sign applications before the Commission and to make representations to you on our behalf. Elliott Laboratories is to receive and exchange data between our company and the Commission. This authorization is made pursuant to Section 2.911(c) of the FCC Rules. I hereby certify that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Sincerely, Michael Green Manager of Global Product Compliance

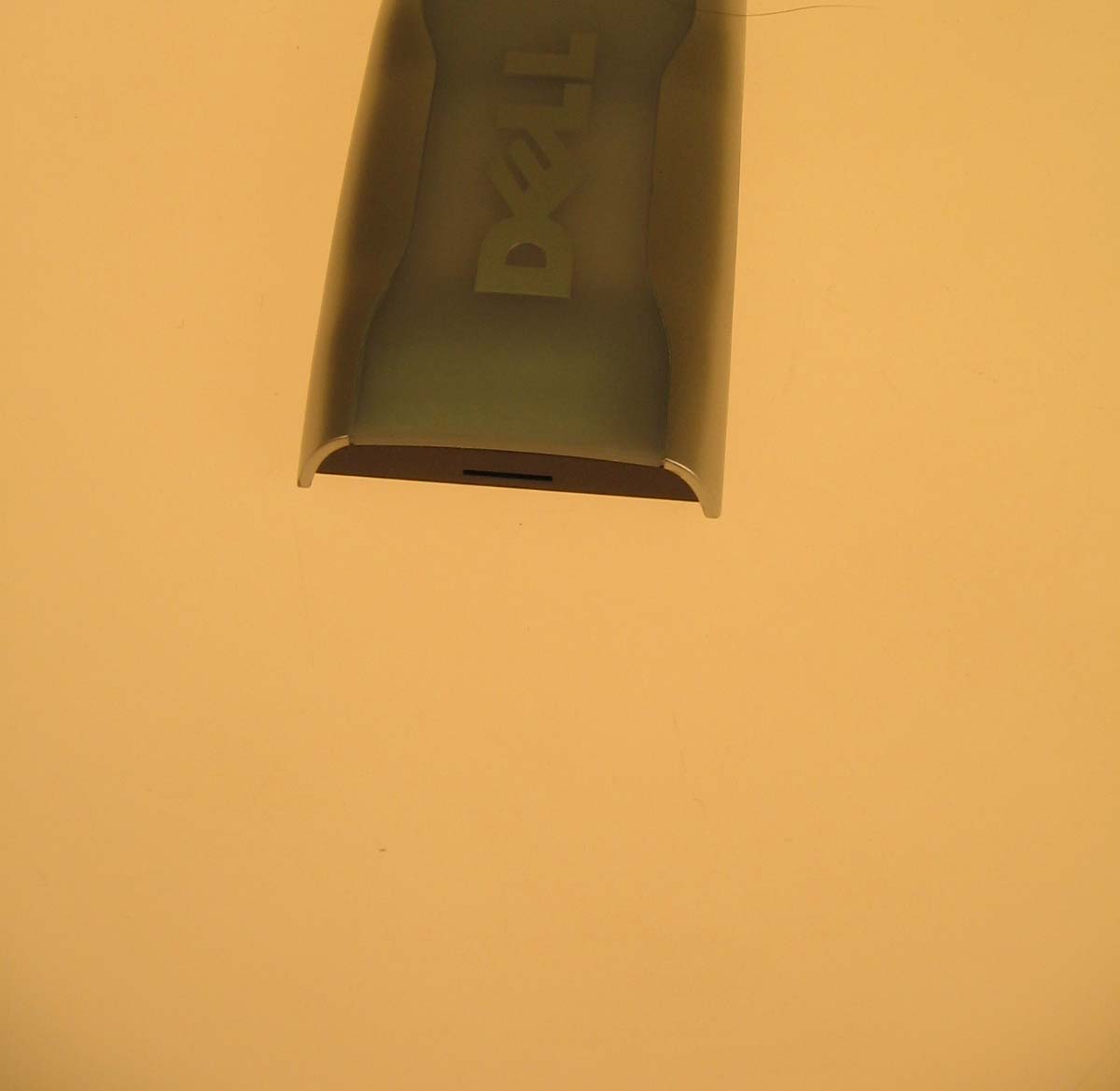

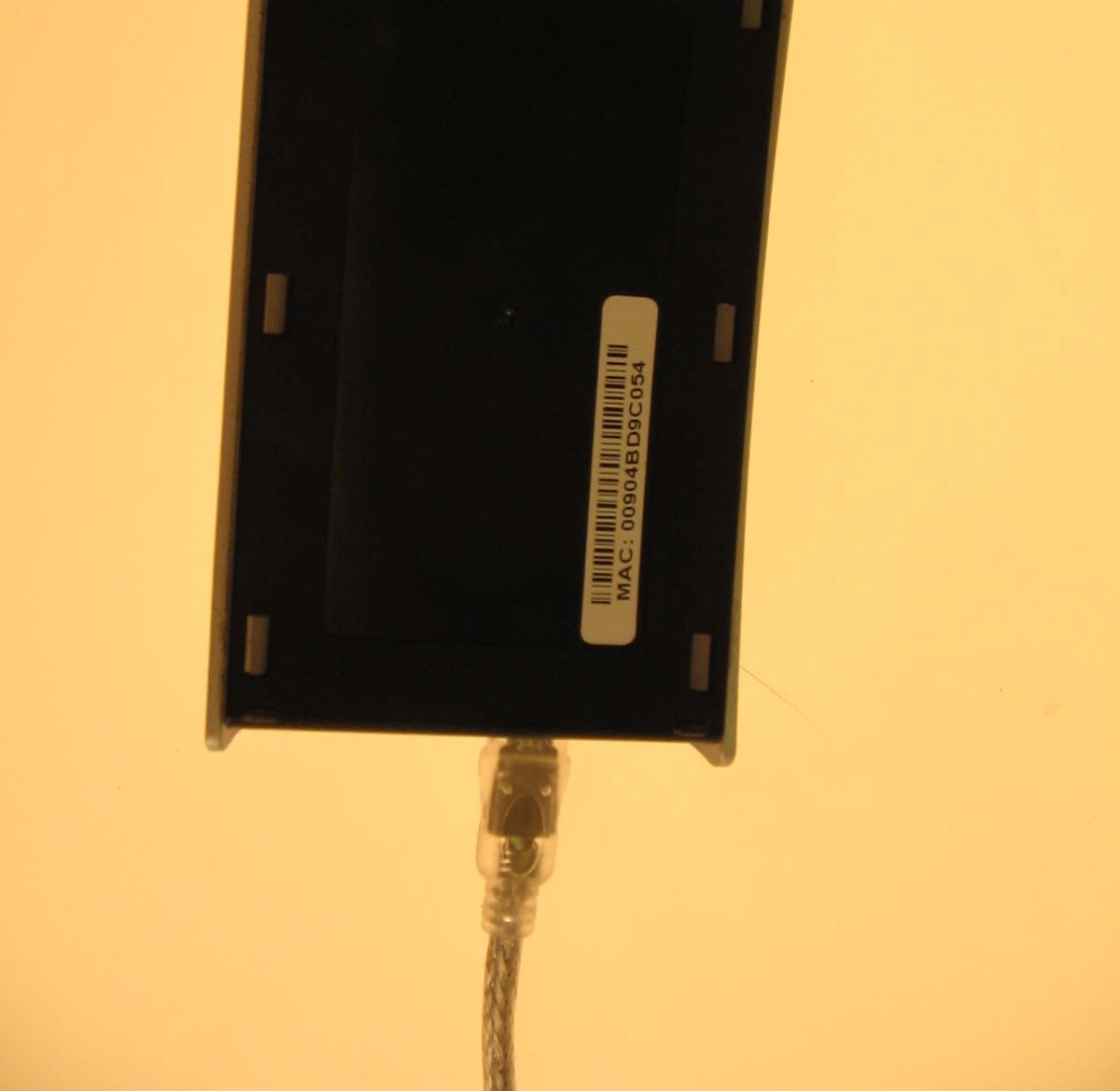

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 2, 2005 RE: FCC ID: PPD-D1470U_ATCB002384 Attention: Mark Briggs I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the IC number on the product is not in accordance with RSP100. The number should appear as IC: 4104U-D1470U and not Canada: 4104U-D1470U. Please note that RSP100 also states “A radio equipment that is issued a TAC or a Certificate but is not properly labeled is not considered certified.” This could be a problem and you should consider labeling the product as specified in RSP100. 2. Please include the name of the technical contact person on the 731 or please verify that Mark Briggs is the technical contact person. 3. The external photos show a USB cable connected to the device. However, it is not clear from the documentation if this USB cable is provided with the device. Please verify if a cable of sufficient length to provide the required 20cm separation is supplied with the device. 4. Please note that while page 2 of the manual states that the manufacturer is not responsible for unauthorized modification or unauthorized use of incorrect cables, the statement is not in compliance with 15.21 as it does not address the specific requirement of the FCC that says the manufacturer is responsible to inform the user that such unauthorized modifications may void the users authority to use the device. Please provide a manual that clearly meets the requirements of 15.21. 5. Please note that the conducted emissions plots on pages 36 to 39 of the report indicate a starting frequency of 200kHz. Tabular data has the lowest listed frequency of 180kHz. As there are a number of plots with signals at the beginning of the plotted data, please verify that the conducted emissions actually begin at 250 kHz and not 200 kHz or 180kHz. 6. Please note that on page 49 of the report the upper frequency is 5725MHz. Please also note that there is a signal at that band edge frequency that is more than 10 to 15 dB higher than the frequency where the marker is located. Please explain why the highest level signal was not selected as required. 7. Please note that in the plots on page 80 of the report you state that plot 0 had 20dB attenuation while you state that plot 1 had 30dB attenuation. As there is only a 10dB separation between the two plots the indication would be that there was not Peak Excursion taking place at this frequency. This is unlikely. Please explain and retest if needed. 8. Please note that on pages 87 through 90 you state that the measurements are antenna conducted measurements. The report then shows a red line that is apparently at -27dB. However, the amplitude is listed as dBuV/m. Please note that the limit is not -27dBuV/m but is -27dBm EIRP. Since the -27dBm limit is apparently what is being compared, it is assumed that the amplitude units should be in dBm. Please correct the plots to represent the actual measurement values and units. 9. Please note that in the item above the limit for -27dBm is EIRP and not a conducted limit. If conducted measurements are taken for the purpose of compliance to this limit, they must be corrected by the antenna gain of the system in order to provide ERIP values. As the gain of the antenna at this frequency range is 4dB, it is expected that the data in the comparison table would include this antenna gain. While the device may still be compliant, correct data showing actual measurement requirements should be provided. Please correct as necessary. z Page 2 May 2, 2005 Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 of 3 American TCB 5/2/2005 RE: FCC ID: PPD-D1470U_ATCB002384 Attention: Dennis Ward Please find our responses to your comments on this Application below: 1. Please note that the IC number on the product is not in accordance with RSP100. The number should appear as IC: 4104U-D1470U and not Canada: 4104U-D1470U. Please note that RSP100 also states “A radio equipment that is issued a TAC or a Certificate but is not properly labeled is not considered certified.” This could be a problem and you should consider labeling the product as specified in RSP100. Noted, a revised label diagram has been uploaded. 2. Please include the name of the technical contact person on the 731 or please verify that Mark Briggs is the technical contact person. Correct, M. Briggs is the technical contact. 3. The external photos show a USB cable connected to the device. However, it is not clear from the documentation if this USB cable is provided with the device. Please verify if a cable of sufficient length to provide the required 20cm separation is supplied with the device. The interface cabling description in the test data includes the footnote “The ferrite on the USB cable is molded onto the cable and the cable is provided with the EUT.” The interface cabling description details that the cable is 1m long, more than adequate to provide the 20cm separation. Please refer to page 29 of 118 in the pdf report document. Page 2 of 3 4. Please note that while page 2 of the manual states that the manufacturer is not responsible for unauthorized modification or unauthorized use of incorrect cables, the statement is not in compliance with 15.21 as it does not address the specific requirement of the FCC that says the manufacturer is responsible to inform the user that such unauthorized modifications may void the users authority to use the device. Please provide a manual that clearly meets the requirements of 15.21. An addendum to tha manual should have been uploaded with the application. It appears that this was not done, and the document has now been uploaded. The following statement has been added to the text you reference above: Unauthorized modifications made to the wireless network device could void the operator's right to use the device 5. Please note that the conducted emissions plots on pages 36 to 39 of the report indicate a starting frequency of 200kHz. Tabular data has the lowest listed frequency of 180kHz. As there are a number of plots with signals at the beginning of the plotted data, please verify that the conducted emissions actually begin at 250 kHz and not 200 kHz or 180kHz. The plot actually starts at 150kHz and the graphical table has not been set with the correct resolution (i.e. only 1 significant digit after the decimal place) to correctly reflect the frequency range displayed. Similarly, the RSS 210 plots actually started at 0.45 kHz. All three conducted plots have been updated with the correct start frequency. 6. Please note that on page 49 of the report the upper frequency is 5725MHz. Please also note that there is a signal at that band edge frequency that is more than 10 to 15 dB higher than the frequency where the marker is located. Please explain why the highest level signal was not selected as required. The plot on the previous page (48) shows a close-up of the spectrum from 5700MHz to 5850 MHz showing that the signal is more than 20dB below the fundamental signal level at a frequency of 5735 MHz. The signal shown on the plot you reference is the actual fundamental signal appearing on the edge of the plot because of the large span used to generate the plot. 7. Please note that in the plots on page 80 of the report you state that plot 0 had 20dB attenuation while you state that plot 1 had 30dB attenuation. As there is only a 10dB separation between the two plots the indication would be that there was not Peak Excursion taking place at this frequency. This is unlikely. Please explain and retest if needed. The two curves are plotted in the correct place on the graphs – the analyzer attenuation of 20dB in plot 0 and 30dB in plot 1 is accounted for in the data. The peak excursion is plotted below the two plots and shows a peak excursion of 10.9dB. Page 3 of 3 8. Please note that on pages 87 through 90 you state that the measurements are antenna conducted measurements. The report then shows a red line that is apparently at -27dB. However, the amplitude is listed as dBuV/m. Please note that the limit is not -27dBuV/m but is -27dBm EIRP. Since the -27dBm limit is apparently what is being compared, it is assumed that the amplitude units should be in dBm. Please correct the plots to represent the actual measurement values and units. The plots are actually in dBm and the amplitude axis is incorrectly marked. The plots have been updated. 9. Please note that in the item above the limit for -27dBm is EIRP and not a conducted limit. If conducted measurements are taken for the purpose of compliance to this limit, they must be corrected by the antenna gain of the system in order to provide ERIP values. As the gain of the antenna at this frequency range is 4dB, it is expected that the data in the comparison table would include this antenna gain. While the device may still be compliant, correct data showing actual measurement requirements should be provided. Please correct as necessary. The antenna gain at the frequencies shown in the plots is not known, since they are all more than 50 MHz from the allocated frequency bands. I have added a note to the the data that states: “The data in the above table assumes an antenna gain of 0dBm eirp at the frequencies noted. As the margins are all greater than 15dB, and all radiated spurious emissions measurements showed all spurious emissions below the limit the device meets the out of band spurious emissions requirements of FCC Part 15, RSS 210 and LP0002”. The following files have been uploaded to the TCB website to support the responses above: • R59543 rev 2.pdf • U…

Text truncated - open the document above for the full version.

Label affixed with permanent adhesive. IC:

MPE Calculations The device is not a portable device (i.e. intended to be worn on the body or be hand- held), so it is classified as being either a mobile device or a fixed mounted device. The user’s manual specifies a minimum separation distance of at least 20cm, consistent with this classification. FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure. The power density, P d (mW/cm 2 ) calculated from the maximum EIRP, P t (mW) and the distance, d (m), between the transmitting antenna and the closest person, can be calculated using: P d = P t /(4 πd 2 ) Frequency MPE Limit (mW/cm 2 ) Output Power (mW) Max. Antenna Gain (dBi) EIRP (mW) Pd at 20cm (mW/cm 2 ) Distance where Pd = limit (cm) 2412 to 2462 MHz 1.00 69.2 2.7 128.8 0.03 3.2 5745 to 5825 MHz 1.00 162.2 3.4 354.8 0.07 5.3 5180 to 5320 MHz 1.00 70.8 1 4.0 177.8 0.04 3.8 5280 to 5320 MHz 1.00 70.8 1 4.0 177.8 0.04 3.8 As shown in the calculations above, the power density 20cm from the device is below the maximum permitted level for uncontrolled exposure. 1 Based on the average power measured using an average power sensor.

File: R59543 Page 1 of 1 2016-01 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart C (15.247) DTS Specifications, FCC Part 15, Subpart E (UNII Devices) and Industry Canada RSS 210 Issue 5 (LELEAN Devices) on the Atheros Communications Model: D1470U FCC ID: PPD-D1470U UPN: 4104A-D1470U GRANTEE: Atheros Communications 529 Almanor Sunnyvale, CA 94086 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: April 25, 2005 FINAL TEST DATE: April 6, April 8, April 11, April 12 and April 13, 2005 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Principal Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: April 25, 2005 File: R59543 Page 2 of 2 pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: D1470U Manufacturer: Atheros Communications 529 Almanor Sunnyvale, CA 94086 Tested to applicable standards: RSS-210, Issue 5, November 2001 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15.247 (DTS) FCC Part 15 Subpart E (UNII Devices) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV1 Dated July 30, 2001 Departmental Acknowledgement Number: IC2845 SV3 Dated July 30, 2001 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4:2003 as detailed in section 5.3 of RSS-210, Issue 5); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Mark Briggs Title Principal Engineer Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: April 25, 2005 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: April 25, 2005 File: R59543 Page 3 of 3 pages TABLE OF CONTENTS COVER PAGE.............................................................................................................................................................1 DECLARATIONS OF COMPLIANCE....................................................................................................................2 TABLE OF CONTENTS ............................................................................................................................................3 SCOPE..........................................................................................................................................................................5 OBJECTIVE ................................................................................................................................................................5 SUMMARY OF RESULTS ........................................................................................................................................6 FCC 15.247 / RSS 210 6.2.2(O) – 2400 – 2483.5 MHZ BAND................................................................................6 FCC 15.247 / RSS 210 6.2.2(O) – 5725-5850 MHZ BAND......................................................................................7 FCC 15 E / RSS 210 6.2.2(Q1) – 5150 - 5350 MHZ BAND......................................................................................8 FCC AND RSS 210 REQUIREMENTS COMMON TO ALL OPERATING BANDS....................................................9 MEASUREMENT UNCERTAINTIES....................................................................................................................9 EQUIPMENT UNDER TEST (EUT) DETAILS .....................…
