PPQ-WCBN3605L802.11b/g/n 1Tx1R + BT5.0 IOT Combo Module

WCBN3605L Datasheet Page 1/18 USER MANUAL 802.11b/g/n 1Tx1R + BT5.0 IOT Combo Module Model Name: RIGEL Page 2/10 1. FEATURE AND SPECIFICATIONS 1.1 DESCRIPTION RTL8721CSM is a higjly integrated single-chip low power single band(2.4GHz) Wireless LAN (WLAN) and Bluetooth Low Energy (BLE5.0) communication controller. It consists of a high performance MCU (ARMv8-M, Cortex-M33 instruction set compatible) called Real-M300 (or KM4 thereafter) and a low power MCU (ARMv8-M, Cortex-M23 instruction set compatible) called Real-M200 (or KM0 thereafter), WLAN(802.11 b/g/n) MAC, an 1T1R capable WLAN baseband, RF, Bluetooth and peripherals. 1.2 PRODUCT FEATURES RTL8721CSM device contains dual processors: ◼ KM4 CPU ⚫ Cortex-M33 instruction set compatible - Floating Point Unit (FPU) - DSP - TrustZone-M ⚫ Running at a frequency of up to 200MHZ (configurable) ⚫ Memory Protection (MPU) ⚫ Built-in Nested Vectored Interrupt Controller (NVIC) ⚫ Non-maskable Interrupt (NMI) with a selection of sources ⚫ 32KB I-Cache and 4KB D-Cache ⚫ Up to 512KB contiguous main SRAM@200MHz ⚫ Optional 4MB PSRAM@50MHz ◼ KM0 CPU ⚫ Cortex-M33 instruction set compatible ⚫ Running at a frequency of up to 20MHZ ⚫ Built-in Nested Vectored Interrupt Controller (NVIC) ⚫ Non-maskable Interrupt (NMI) with a selection of sources ⚫ 16KB I-Cache and 4KB D-Cache ⚫ Up to 64KB contiguous main SRAM ⚫ Up to 1KB retention SRAM for keeping data in power saving mode Page 3/10 Module feature includes: ⚫ Bluetooth Low Energy V5.0 ⚫ Bluetooth Class I transmission power ⚫ Both central and peripheral modes ⚫ Internal co-existence mechanism between Wi-Fi and BT to share the same antenna ⚫ Operate at ISM frequency Band (2.4GHz) ⚫ IEEE Standards Support, 802.11b, 802.11g, 802.11n ⚫ Support for both 20 MHz, 40MHz channel width in 2.4GHz band ⚫ Low power architecture ⚫ Low power Tx/Rx for short range application @1.8V ⚫ Low power beacon listen mode ⚫ Low power RX mode ⚫ Very low power suspends mode (DLPS) ⚫ Built-in PA, also supports external PA and LNA ⚫ Supports Antenna Diversity ⚫ RoHS directive compliance Page 4/10 1.3 PRODUCT SPECIFICATIONS MAIN CHIPSET Realtek RTL8721CSM FUNCTIONAL SPECIFICATIONS BT Function Standard Bluetooth V5.0LE Bus Interface UART Data Rate 1 Mbps, 2Mbps Modulation Scheme GFSK Frequency Range 2.400~2.4835 GHz Operating Channel 0~39 Transmit Output Power Typical 4.5dBm Receiver Sensitivity < 0.1% BER at -88dBm Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface UART 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: Data Rate 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK 802.11b: CCK, DQPSK, DBPSK Modulation Technique 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Page 5/10 Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan EVM CCK < 35% OFDM < -25dB MCS0(HT20/40MHz) < -5dB MCS7(HT20/40MHz) < -28dB Transmit Output Power - single chain @ant Tolerance: ±[email protected] 802.11b 1Mbps 2Mbps 5.5Mbps 11Mbps Tgtpwr (dBm) 18 18 18 18 802.11g 6~24Mbps 36Mbps 48Mbps 54Mbps Tgtpwr (dBm) 18 18 16 16 802.11n HT20 MCS0 MCS1 MCS2 MCS3 MCS4 Tgtpwr (dBm) 18 18 18 18 18 MCS5 MCS6 MCS7 16 16 16 802.11n HT40 MCS0 MCS1 MCS2 MCS3 MCS4 Tgtpwr (dBm) 18 18 18 18 18 MCS5 MCS6 MCS7 16 16 16 Receiver Sensitivity Frequency Band Rate Condition Typical (1SS) (dBm) 2.4G 11b-1M PER < 8% -94 11b-11M PER < 8% -86 11g-6M PER < 10% -90 11g-54M PER < 10% -71 11n-HT20MCS0 PER < 10% -87 11n-HT20MCS7 PER < 10% -70 11n-HT40MCS0 PER < 10% -84 11n-HT40MCS7 PER < 10% -67 Network Architecture Infrastructure mode Frequency Range 802.11bg 2.400 ~ 2.4835 GHz Frequency Offset 2.4GHz -20ppm < Center Frequency < +20ppm Page 6/10 Security Items Description Hardware engine AES/DES/SHA hardware engine TrustZone TrustZone-M supported Secure boot Secure boot supported SWD protection Debug port access protection and prohibition modes eFuse protection Secure eFuse RSIP Flash decryption on-the-fly Operating Voltage 3.3V ±5% I/O supply voltage Power Consumption Mode Average Peak TX TBDmA TBDmA RX TBDmA TBDmA Suspend Mode TBDmA TBDmA 2x Printed Antenna on PCBA and 1x U.FL connector for Antenna Type antenna diversity 1x FAKRA connector reserved(optional) Page 7/10 1.4 Operation Conditions Table 3-2 Recommended Operation Conditions Symbol Rating Min Typ Max Units 3.3V_In 3.3V Supply Voltage 3.135 3.3 3.465 V T A Ambient operating temperature -20 25 85 0 C T S Storage temperature -40 25 85 0 C Table 3-3 DC Characteristics Symbol Parameter Min Typ Max Units V IL Input Low Voltage - - 0.8 V V IH Input High Voltage 2.0 - - V V OL Output Low Voltage - - 0.4 V V OH Output High Voltage 2.4 - - V Page 8/10 WARNINGS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 24, 2023 FCC ID: PPQ-WCBN3605L RE: Attestation Statements Part 2.911(d)(5)(i) Filing LITE-ON TECHNOLOGY CORP. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: Attestation Statements Part 2.911(d)(5)(ii) Filing LITE-ON TECHNOLOGY CORP. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant : LITE-ON TECHNOLOGY CORP. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City 23585, Taiwan Signature : _________________________________ Name and Job Title. : TC Wu, Director / Network Access S.B.U. E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 24, 2023 FCC ID: PPQ-WCBN3605L RE: Attestation Statements Part 2.911(d)(5)(i) Filing LITE-ON TECHNOLOGY CORP. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: Attestation Statements Part 2.911(d)(5)(ii) Filing LITE-ON TECHNOLOGY CORP. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant : LITE-ON TECHNOLOGY CORP. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City 23585, Taiwan Signature : _________________________________ Name and Job Title. : TC Wu, Director / Network Access S.B.U. E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: June 7, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: PPQ LITE-ON TECHNOLOGY CORP. (“the applicant”) certifies that, as of the date of the filing of the application, LITE-ON TECHNOLOGY CORP. is our designated U.S. agent for service of process for the above referenced Grantee Code. LITE-ON TECHNOLOGY CORP. accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the designated agent information changes. LITE-ON TECHNOLOGY CORP. accepts the designation by the applicant as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Designated U.S. Agent Information: FRN: 0033411521 Name: LITE-ON TECHNOLOGY CORP. Address: 3001 Summit Avenue Ste. 400, Plano, TEXAS 75074, USA Contact Person: Joshua Winkler Tel.: (480) 422-4548 Email: [email protected] Sincerely, Applicant U.S. Agent LITE-ON TECHNOLOGY CORP. LITE-ON TECHNOLOGY CORP. TC Wu, Director / Network Access S.B.U. Joshua Winkler Signature: Signature:

Date: August 24, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: declaration of composite/rated equipment for FCC ID: PPQ-WCBN3605L To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Other Class B digital devices & peripherals has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : LITE-ON TECHNOLOGY CORP. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City 23585, Taiwan Signature : _________________________________ Name and Job Title. : TC Wu, Director / Network Access S.B.U. E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Confidentiality Request Letter Date: August 24, 2023 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: PPQ-WCBN3605L To whom it may concern: Short-term Confidentiality pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : LITE-ON TECHNOLOGY CORP. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City 23585, Taiwan Signature : _________________________________ Name and Job Title. : TC Wu, Director / Network Access S.B.U. E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Letter of Authorization Date: August 24, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: PPQ-WCBN3605L Product Name: 802.11b/g/n 1Tx1R + BT5.0 IOT Combo Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Name : Leo Huang Job Title : VP e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : LITE-ON TECHNOLOGY CORP. Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City 23585, Taiwan Signature : _________________________________ Name and Job Title. : TC Wu, Director / Network Access S.B.U. E-mail : [email protected] Tel. : +886-2-2222-6181 #8301

Modular Approval Request Letter Date: August 22, 2023 Subject: Modular Approval Attestation FCC ID: PPQ-WCBN3605L Dear Reviewer, We, Sporton International Inc., are authorized by LITE-ON TECHNOLOGY CORP., to have their 802.11b/g/n 1Tx1R + BT5.0 IOT Combo Module approved under single module approval authorization. The requirements regulated in 47 CFR 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip MX25L12833FM2I-10G. 3. The requirement of power supply regulation: The part number of the power regulator is RTL8721CSM. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE and SAR RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Signature : _________________________________ Name and Job Title. : Leo Huang, VP E-mail : [email protected]

PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 1 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 2 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1

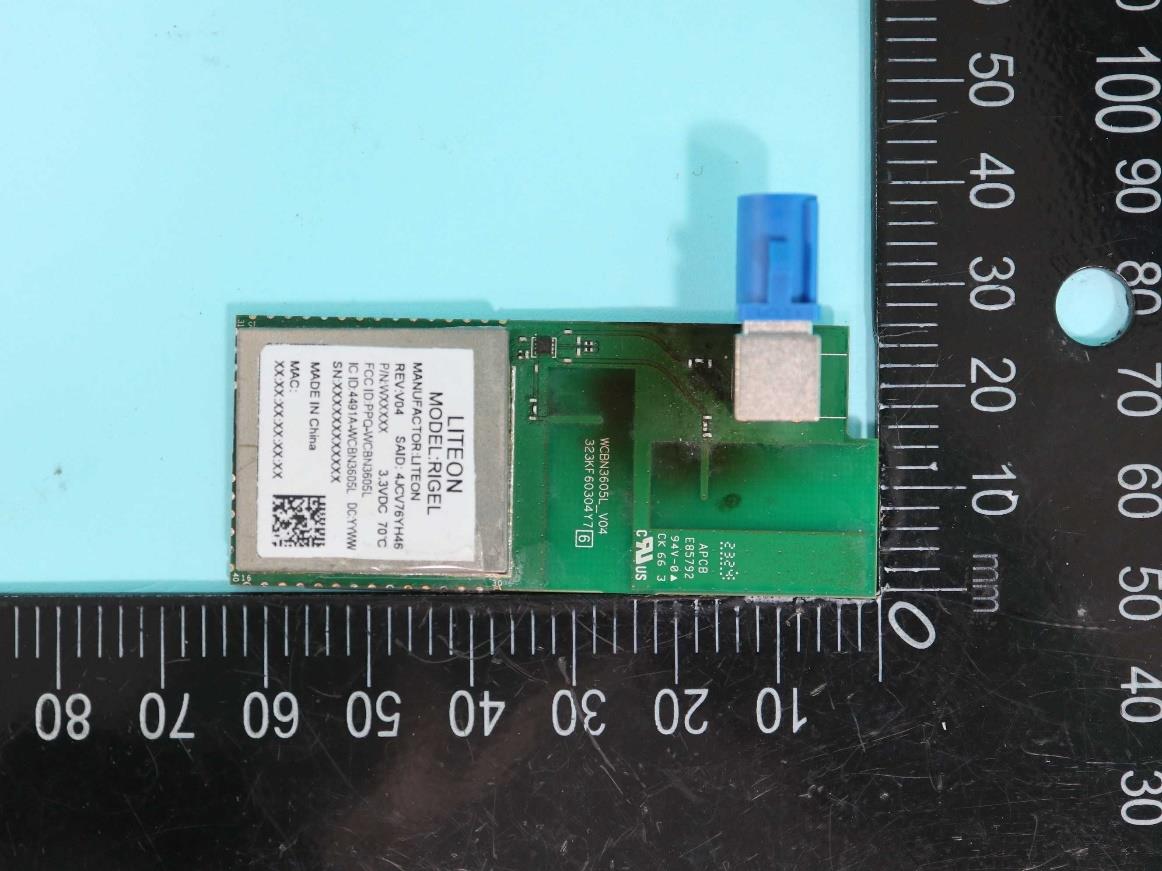

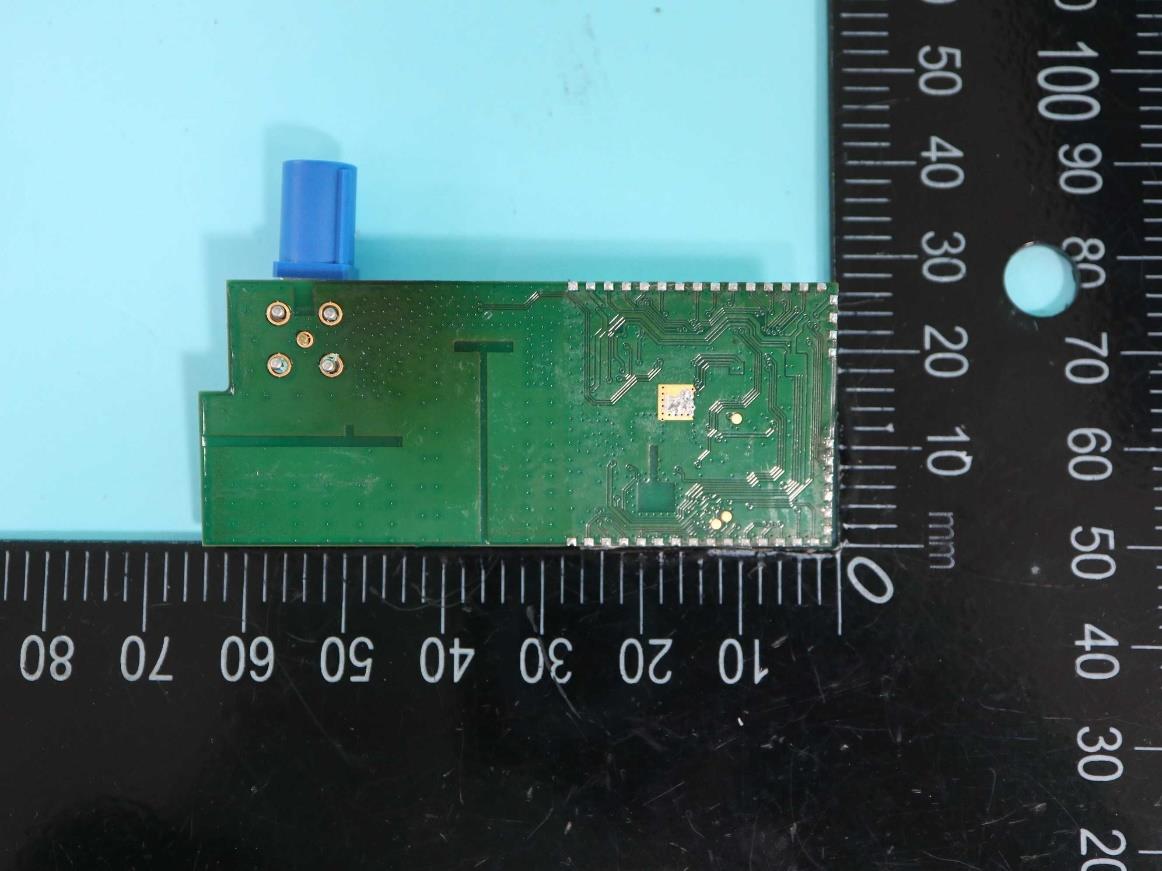

5X5MM WCBN3605L MM11322620D Rita Huang 2023.08.04 BingLi WI-CQES-002 21*21mm 3:1 條碼為MAC ID，使用ECC200. 顯示內容為 BT=MAC+1 MAC:XX:XX:XX:XX:XX:XX-SAID:4JCV76YH46-SN:XXXXXXX 由業務提供 REV:V04 3.3VDC 70 C MODEL:RIGEL LITEON A1 MAC: XX:XX:XX:XX:XX:XX MADE IN China DC:YYWW P/N:WXXXXX FCC ID:PPQ-WCBN3605L IC ID:4491A-WCBN3605L 50900112643D 21mm 21mm MANUFACTURER:LITEON SN:XXXXXXXXXXXX SAID: 4JCV76YH46 REV:V04 3.3VDC 70 C MODEL:RIGEL LITEON MAC: XX:XX:XX:XX:XX:XX MADE IN China DC:YYWW P/N:WXXXXX FCC ID:PPQ-WCBN3605L IC:4491A-WCBN3605L 21mm 21mm MANUFACTURER:LITEON SN:XXXXXXXXXXXX SAID: 4JCV76YH46

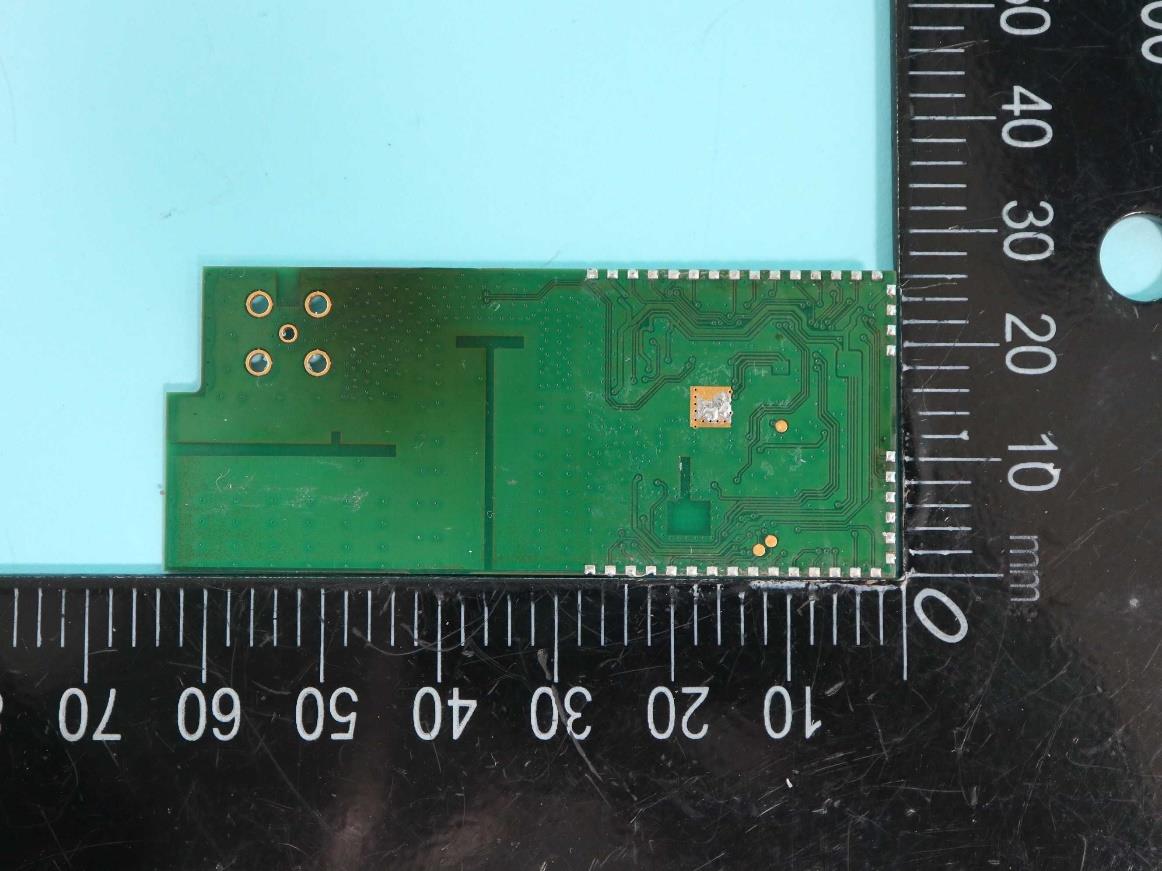

PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 3 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 4 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 5 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 6 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 7 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 8 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 9 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 10 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 PHOTOGRAPHS OF EUT EP371404 Sporton International Inc. Page No. : 11 of 11 Report Template No.: SE Ver 1.0_EP Issued Date : Aug. 28, 2023 Report Version : 1 ______________THE END______________

Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 1 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L Radio Exposure Evaluation Report FCC ID : PPQ-WCBN3605L Equipment : 802.11b/g/n 1Tx1R + BT5.0 IOT Combo Module Brand Name : LITEON Model Name : RIGEL Applicant : LITE-ON Technology Corp. Bldg. C, 90, Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C Manufacturer : LITE-ON Technology (Changzhou) CO.LTD A9 Building,No.88 Yanghu Road, Wujin Hi-Tech Industrial Development Zone ,Changzhou City, Standard : 47 CFR FCC Part 2 Subpart J, section 2.1091 The product was received on Jul. 27, 2023, and testing was started from Aug. 02, 2023 and completed on Aug. 11, 2023. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR FCC Part 2 Subpart J, section 2.1091 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 2 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location ..................................................................................................................................... 7 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 8 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 8 2.2 RF Exposure Exempt Measurement ...................................................................................................... 9 2.3 Multiple RF Sources Exposure ............................................................................................................. 10 2.4 MPE Calculation Method ...................................................................................................................... 11 2.5 Calculated Result and Limit .................................................................................................................. 12 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 3 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L History of this test report Report No. Version Description Issued Date FA371404 01 Initial issue of report Aug. 28, 2023 Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 4 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None Reviewed by: Sam Tsai Report Producer: Amber Chiu Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 5 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L 1 General Description 1.1 Information 1.1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 2.4GHz WLAN 2400-2483.5 2412-2462 802.11b: DSSS (DBPSK, DQPSK, CCK) 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) Radio Exposure Evaluation Report Report No. : FA371404 TEL : 886-3-327-3456 Page Number : 6 of 12 FAX : 886-3-327-0973 Issued Date : Aug. 28, 2023 Report Template No.: HE1-A1 Ver5.0 Report Version : 01 FCC ID: PPQ-WCBN3605L 1.1.2 Antenna Information Ant. Brand Model Name Antenna Type Connector Cable length Support 1 LITEON WCBN3605L Printed Ant N/A N/A 2.4G+BT 2 LITEON WCBN3605L Printed Ant N/A N/A 2.4G+BT 3 MOLEX 2167990001 PIFA Fakra N/A 2.4G+BT 4 MOLEX 1461530050 PIFA I-PEX 50 mm 2.4G+BT 5 MOLEX 1461530100 PIFA I-PEX 100 mm 2.4G+BT 6 MOLEX 1461530150 PIFA I-PEX 150 mm 2.4G+BT 7 MOLEX 1461530200 PIFA I-PEX 200 mm 2.4G+BT 8 MOLEX 1461530250 PIFA I-PEX 250 mm 2.4G+BT 9 MOLEX 1461530300 PIFA I-PEX 300 mm 2.4G+BT Ant. Gain (dBi) 2.4G BT 1 2.06 2.06 2 2.1 2.1 3 2.4 2.4 4 3.2 3.2 5 3.0 3.0 6 2.8 2.8 7 2.6 2.6 8 2.4 2.4 9 2.2 2.2 Note 1: The EUT has nine antennas. Note 2: EUT can match with above antennas for using. Higher gain of ant…

Text truncated - open the document above for the full version.

1 Single Band -Radiation Pattern ANT1 ANT2 XY Plane YZ PlaneXZ Plane XY Plane YZ PlaneXZ Plane

APPROVAL SHEET Customer Name: Whirlpool Model Name: 2167990001 Frequency: 2.4GHz Whirlpool P/N: W11409842 Customer Model: Rigel Date: LITE-ON Approved by Checked By Author Customer Approved By Sign 台灣莫仕股份有限公司 Molex Taiwan Ltd. 新北市淡水區下圭柔山100-3號 No. 100-3, Xiaguirou Mt., Tamsui Dist., New Taipei City 251004, Taiwan TEL: 886-2-26202300 FORMAT: tb-prod-A3 REVISION: J DATE: 2020/01/14 DOCUMENT STATUS P1 RELEASE DATE 2021/05/0608:38:32 MOLEX WIFI EXTERNAL ANTENNA PRODUCT CUSTOMER DRAWING DOCUMENT NUMBERDOC TYPEDOC PARTREVISION 2167990001 PSD 000 B MATERIAL NUMBER CUSTOMERSHEET NUMBER 2167990001 CUSTOMER RELEASE 1 OF 2 DIMENSION UNITSSCALE mm 1:1 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 1.0 ° 4 PLACES ± 0.15 3 PLACES ± 0.2 2 PLACES ± 0.25 1 PLACE ± 0.3 0 PLACES ± 0.5 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS CURRENT REV DESC: EC NO: 660350 DRWN: KCHENG06 2021/04/21 CHK'D:HORACM1 2021/05/06 APPR: HORACM1 2021/05/06 INITIAL REVISION: DRWN: KCHENG06 2021/01/26 APPR: HORACM1 2021/02/26 THIRD ANGLE PROJECTIONDRAWINGSERIES A3-SIZE 216799 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION FUNCTIONAL SYMBOLS = 0 = 0 = 0 DIVISIONAL SYMBOLS REVDATE DESCRIPTION 12020/07/16 NEW RELEASE 22020/09/16 UPDATE CABLE LENGTH AND ADD ONE CABLE TIE 32020/09/30 ADD ONE VIEW FOR CABLE LENGTH 4 2020/10/17 ADD FOUR MOLEX P/N A 2021/01/26 UPDATE THE ANTENNA PART NUMBER AND UPLOAD TO THE B 2021/03/20 CUSTOMER DRAWING VERSION UPGRADE (FROM AB TO AC) 1 A 1 A 2 B 2 B 3 C 3 C 4 D 4 D 5 E 5 E 6 F 6 F 7 7 8 8 9 910 1 4 5 6 7 8 MATERIAL BOM ITEM DESCRIPTIONQ'TY REMARK 1 TOP COVER 1 PC (LEXAN 923) COLOR :BLACK 2 BOTTOM COVER 1 PC (LEXAN 923) COLOR :BLACK 3 INSIDE ANTENNA 1 METAL PLATE 4 CABLE 1 RG316（FEP） 5 TAPE SEE DESCRIPTIONCOLOR:WHITE 6 CABLE TIE - PUSH MOUNTSEE DESCRIPTIONCOLOR：NATURAL 7 CONNECTOR 1 FAKRA CODE C;COLOR:BLUE 8 HEAT SHRINK TUBE 1 COLOR:BLACK 9 LABEL 1 MOLEX MARK 9 2 3 NOTES: 1.MATERIAL REFER TO BOM； 2.NO ANY DAMAGE ALLOWED ON COSMETIC; 3.NO COLOUR DIFFERENCE AND NO TEXTURE DIFFERENCE ON COSMETIC; 4.REFER TO PRODUCT SPECIFICATION FOR RF PARAMETERS.(PS-2167990001) 5.PACKAGE REFERENCE TO DRAWING PK-2167990001. FORMAT: master-tb-prod-A3 REVISION: J DATE: 2020/01/14 DOCUMENT STATUS P1 RELEASE DATE 2021/05/0608:38:32 FUNCTIONAL SYMBOLS = 0 = 0 = 0 DIVISIONAL SYMBOLS DIMENSION UNITSSCALE mm 1:2 GENERAL TOLERANCES (UNLESS SPECIFIED) ANGULAR TOL ± 1.0 ° 4 PLACES ± 0.15 3 PLACES ± 0.2 2 PLACES ± 0.25 1 PLACE ± 0.3 0 PLACES ± 0.5 DRAFT WHERE APPLICABLE MUST REMAIN WITHIN DIMENSIONS THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION MOLEX WIFI EXTERNAL ANTENNA PRODUCT CUSTOMER DRAWING DOCUMENT NUMBERDOC TYPEDOC PARTREVISION 2167990001 PSD 000 B MATERIAL NUMBER CUSTOMERSHEET NUMBER 2167990001 CUSTOMER RELEASE 2 OF 2 CURRENT REV DESC: EC NO: 660350 DRWN: KCHENG06 2021/04/21 CHK'D:HORACM1 2021/05/06 APPR: HORACM1 2021/05/06 INITIAL REVISION: DRWN: KCHENG06 2021/01/26 APPR: HORACM1 2021/02/26 THIRD ANGLE PROJECTIONDRAWINGSERIES A3-SIZE 216799 1 A 1 A 2 B 2 B 3 C 3 C 4 D 4 D 5 E 5 E 6 F 6 F 7 7 8 8 9 910 54.37 12.46 38.20 ±0.50 23.27 51.50 7.97 10.00 14.02 17.52 3.00 9.02 5.77 5.83⌀ �13.00� �13.00� 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 13.98 L2 +10.00 - 0.00 L1 +10.00 - 0.00 L3 +10.00 - 0.00 �13.00� 18 DESCRIPTION MOLEXCABLE TIECUSTOMERCABLE LENGTH ITEM DRAWING P/NMOLEX P/NMOLEX P/NQTY P/N DRAWING REV. L1L2L3 L4L 12167990001216799000121679910083W11409842 AC 20069088011591185 22167990001216799003121679910081W11516201 AC 460 -- 11141140 32167990001216799004121679900082W11516200 AC 420905 - 11341160 L4 +40.00 - 0.00 19 �12.0� LABEL SEE MOLEX P/N:2167990006 L +40.00 - 0.00 �P/N：2067790008 OR 2167991008� CABLE TIE TOP COVER BOTTOM COVER DATASHEET REVISION: ECR/ECN INFORMATION: TITLE: Whirlpool PIFA Antenna Datasheet SHEET No. A EC No: 663219 1 of 13 DATE: 2021/1/29 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: Stern Zhao Chris Zhong Luo Ning TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC Whirlpool PIFA Antenna 1. RF Specification: 2. Test Equipment 2.1 Vector Network Analyzer A vector network analyzer Agilent E5071C (VNA) is used to test VSWR parameter. Antenna under test Description Equipment Whirlpool Part Number W11409842 W11516201 W11516200 Frequency Range(MHz) VNA E5071C 2400-2500 2400-2500 2400-2500 VSWR VNA E5071C < 2 < 2 < 2 Peak Gain (dBi) OTA Chamber ETS 8500 2.4 2.7 2.5 Average Total Efficiency (%) OTA Chamber ETS 8500 >60 >60 >60 Input Impedance VNA E5071C 50 ohms DATASHEET REVISION: ECR/ECN INFORMATION: TITLE: Whirlpool PIFA Antenna Datasheet SHEET No. A EC No: 663219 2 of 13 DATE: 2021/1/29 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: Stern Zhao Chris Zhong Luo Ning TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 2.2 Anechoic Chamber The ETS 8500 anechoic chamber is used to test the antenna gain, efficiency and radiation pattern. 3. RF Measurement Results 3.1 Antenna Picture Top View Bottom View Antenna under test DATASHEET REVISION: ECR/ECN INFORMATION: TITLE: Whirlpool PIFA Antenna Datasheet SHEET No. A EC No: 663219 3 of 13 DATE: 2021/1/29 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: Stern Zhao Chris Zhong Luo Ning TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 3.2 VSWR Plots 2pcs samples were measured for each part number. VSWR of 2167990001 Antenna Measured in Free Space. VSWR of 2167990031 Antenna Measured in Free Space. DATASHEET REVISION: ECR/ECN INFORMATION: TITLE: Whirlpool PIFA Antenna Datasheet SHEET No. A EC No: 663219 4 of 13 DATE: 2021/1/29 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: Stern Zhao Chris Zhong Luo Ning TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC VSWR of 2167990041 Antenna Measured in Free Space. 3.3 Peak Gain Peak Gain of 2167990001 Antenna Measured in Free Space. DATASHEET REVISION: ECR…

Text truncated - open the document above for the full version.

APPROVAL SHEET Customer Name: Whirlpool Model Name: 146153 Series Frequency: 2.4GHz Whirlpool P/N: Customer Model: Rigel Date: LITE-ON Approved by Checked By Author Customer Approved By Sign 台灣莫仕股份有限公司 Molex Taiwan Ltd. 新北市淡水區下圭柔山100-3號 No. 100-3, Xiaguirou Mt.…
