PPQ-WPX8324Access Point

Step 3: Check the LED status Wait for a few minutes until the Power LED turns solid Greenand LAN1 LED turns Blinking. The AP is then online for operation. Troubleshooting The following table shows the status of the AP’sLED indicators. WPX8324LED Descriptions LED Indicative Color Status Description Power GreenSolid Light Power on Light off Power off 2.4G Green Solid Light Connect to WLAN port Blinking WLAN activity present Light off No activity or power off 5G Green Solid Light Connect to WLAN port Blinking WLAN activity present Light off No activity or power off LAN1 (PoE in) Green Solid Light Device connected to LAN port at 10/100/1000Mbps Blinking LAN Activity present Light off Not Connected LAN2 Green Solid Light Device connected to LAN port at 10/100/1000Mbps Blinking LAN/WANActivity present Light off Not Connected If the AP fails to connect to the cloud server, please check the following: 1.Ensure that the Ethernet cable is plugged into the LAN 1(PoE) port, and LAN1 LED is NOT OF F. 2.If the AP fails to get a valid IP address fromthe localDHCP server, ensure that the DHCP service is ENABLEDon your router. 3.Ensure there isInternet connectivity onthe local LAN network to which the AP is connected Getting AP online Step 1: Power up Using PoE, plug one end of the Ethernet cable into the PoE switch or injector and plug the other end into the LAN 1(PoE) port. Step 2: Connect to the network Make sure the PoE switch or injector is connectedto your LAN network with Internet access. for WPX8324 515000060147 A0 (材質):100g書紙 正面 (顏色):Black (表面處理):NO (尺寸):150*210mm (公差):+-1mm QSG 210mm 150mm 75mm 105mm Dereck 2022-05-10 反面

Declaration for model numbers Hereby, We Name: LITE-ON Technology Corp Address: Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, 23585, Taiwan declares that this equipment: Product description: Wireless Access Point Type designation(s): WPX8324, WRX8324, WPA-2 Trademark: LITEON, PoEWit The differences between the models as below. Model No. Remark WPX8324 with PoE/ Trademark : LITEON WRX8324 W/O PoE/ Trademark : LITEON WPA-2 with PoE/ Trademark : PoEWit The circuit design and layout between of all model numbers are the same. Date: January 12, 2023 City: New Taipei City Name: TC Wu Function: Deputy Director (R & D Division) Signature: ______________________

RF_160, Issue 02 Declaration of Authorization We Name: LITE-ON TECHNOLOGY CORP. Address: Bldg. C, 90, Chien 1 Rd., Chung-Ho, City: New Taipei City, 23585 Country: Taiwan Declare that: Name Representative of agent: Nina Hsu (1) Agent Company name: Cerpass Technology Corporation Address: No.10, Lane 2, Lianfu Street, Luzhu Dist., City: Taoyuan City 33848 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: Wireless Access Point Type designation: WPX8324, WRX8324, WPA-2 Trademark: LITEON, PoEWit on our behalf. Date: January 12, 2023 City: New Taipei City Name: TC Wu (2) Function: Deputy Director(R & D Division) Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: LITE-ON TECHNOLOGY CORP. Address: Bldg. C, 90, Chien 1 Road, Chung Ho, City: New Taipei City 23585 Country: Taiwan(R.O.C.) To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: PPQ-WPX8324 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Marketing purpose Planned Release Date STC: 180days after grant issued (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: October 04, 2022 Name and signature of applicant: TC Wu Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

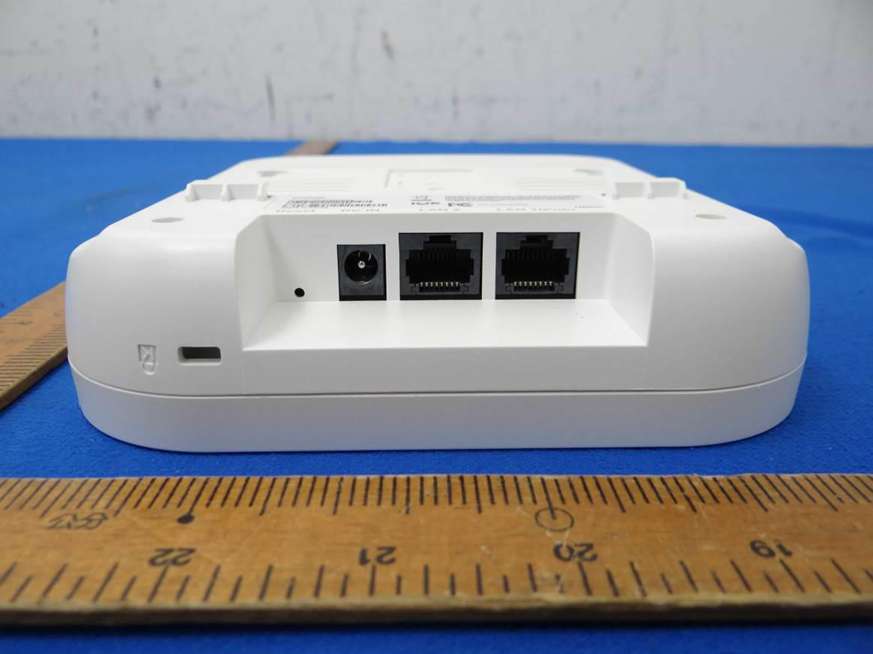

CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 1 of 60 Photographs of EUT WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 2 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 3 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 4 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 5 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 6 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 7 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 8 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 9 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 10 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 11 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 12 of 60 WRX8324

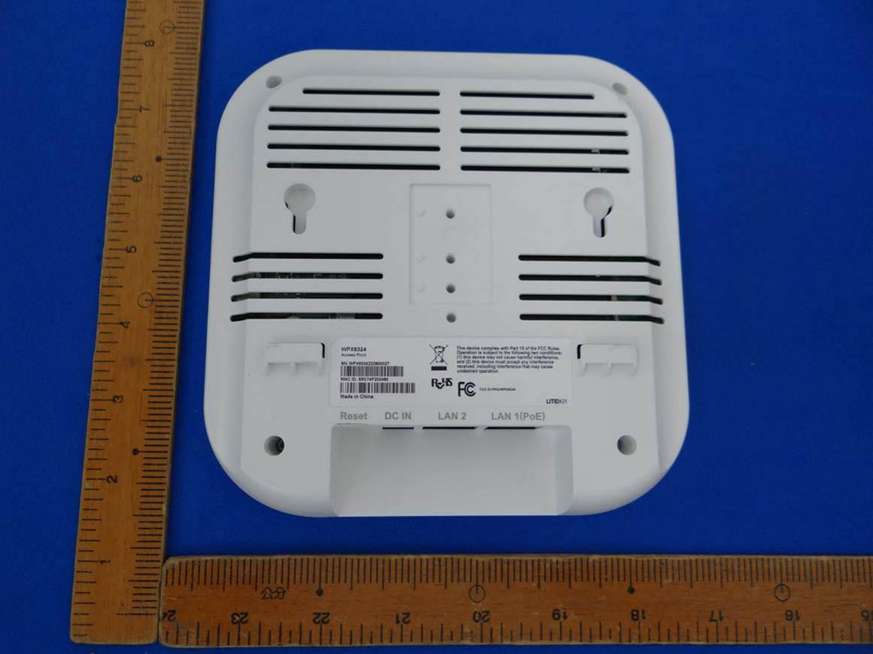

Label & Location Bottom of EUT Label Here

CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 13 of 60 WPX8324 ANT 1 connector (For WLAN) ANT 2 connector (For WLAN) ANT 3 Position (For BT) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 14 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 15 of 60 WPX8324 ANT 3 connector (For BT) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 16 of 60 WPX8324 ANT 1 Position (For WLAN) ANT 2 Position (For WLAN) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 17 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 18 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 19 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 20 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 21 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 22 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 23 of 60 WPX8324 RF Chip (For 5G) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 24 of 60 WPX8324 RF Chip (For BT & 2.4G ) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 25 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 26 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 27 of 60 WPX8324 BT Antenna CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 28 of 60 WPX8324 WLAN Antenna 1 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 29 of 60 WPX8324 WLAN Antenna 2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 30 of 60 WPX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 31 of 60 WPA-2 ANT 1 connector (For WLAN) ANT 3 Position (For BT) ANT 2 connector (For WLAN) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 32 of 60 WPA-2 ANT 3 connector (For BT) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 33 of 60 WPA-2 ANT 1 Position (For WLAN) ANT 2 Position (For WLAN) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 34 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 35 of 60 WPA-2 RF Chip (For BT & 2.4G ) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 36 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 37 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 38 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 39 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 40 of 60 WPA-2 RF Chip (For 5G ) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 41 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 42 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 43 of 60 WPA-2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 44 of 60 WPA-2 BT Antenna WLAN Antenna 2 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 45 of 60 WPA-2 WLAN Antenna 1 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 46 of 60 WRX8324 ANT 1 connector (For WLAN) ANT 2 connector (For WLAN) ANT 3 Position (For BT) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 47 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 48 of 60 WRX8324 ANT 3 connector (For BT) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 49 of 60 WRX8324 ANT 1 Position (For WLAN) ANT 2 Position (For WLAN) CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 50 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 51 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 52 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 53 of 60 WRX8324 CERPASS TECHNOLOGY CORP. Report No.: 22090062 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 Page No. : 54 of 60 WRX8324 RF Chip (For BT & 2.4G) RF Chip (For 5G) CERPASS TECHNOLOGY CORP…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC03 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-506-0 Ver 1.5 Page No. : 57 of 58 FCC ID. : PPQ-WPX8324 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure General Population/Uncontrolled exposure Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is -0.67dBm (0.857mW) at 2480MHz (with 2.55dBi antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC03 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-506-0 Ver 1.5 Page No. : 58 of 58 FCC ID. : PPQ-WPX8324 12.3 Maximum Permissible Exposure Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2402-2480 -0.67 -0.17 2.55 0.23 1.05 3060 ----------THE END OF REPORT----------

CERPASS TECHNOLOGY CORP. Report No.:22090062-TRFCC01 Cerpass Technology Corp. Issued date : Jan. 07, 2023 T-FD-508-0 Ver 1.5 Page No. : 121 of 122 FCC ID : PPQ-WPX8324 12. Radio Frequency Exposure 12.1 Applicable Standards The measurements shown in this test report were made in accordance with the procedures given in FCC Part 2 (Section 2.1091) 12.2 EUT Specification Frequency band (Operating) WLAN: 2412MHz ~ 2462MHz WLAN: 5150MHz ~ 5250MHz WLAN: 5250MHz ~ 5350MHz WLAN: 5470MHz ~ 5725MHz WLAN: 5725MHz ~ 5850MHz Bluetooth: 2402MHz ~ 2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: 1. The maximum conducted output power is 24.87 dBm (306.605mW) at 2437MHz (with 3.96dBi antenna gain.) From Non BeamForming 2. The maximum conducted output power is 20.95 dBm (124.353 mW) at 2422MHz (with 6.75dBi antenna gain.) From BeamForming 3. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 4. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. CERPASS TECHNOLOGY CORP. Report No.:22090062-TRFCC01 Cerpass Technology Corp. Issued date : Jan. 07, 2023 T-FD-508-0 Ver 1.5 Page No. : 122 of 122 FCC ID : PPQ-WPX8324 12.3 Maximum Permissible Exposure Non BeamForming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2437 24.87 25.37 3.96 27.18 521.89 3060 BeamForming Channel Frequency (MHz) Max. Conducted output power(dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Max.Tune up e.r.p. Power (dBm) Max. Tune up e.r.p power (mW) Limit (mW) 2422 20.95 21.45 6.75 26.05 402.40 3060 Maximum Permissible Exposure (Co-location) (BT+2.4) Non-Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Max. Tune up e.r.p power (mW) Limit (mW) MPE Ratio GFSK 2402 14.84 15.34 2.55 20 38.64 3060 0.013 11g 2437 24.87 25.37 3.96 20 521.89 3060 0.171 Co-location Total 0.184 ∑MPE ratios Limit 1 Beamforming Modulation Type Channel Frequency (MHz) Max. Conducted output power (dBm) Max. Tune up power (dBm) Antenna Gain(dBi) Distance (cm) Max. Tune up e.r.p power (mW) Limit (mW) MPE Ratio GFSK 2402 14.84 15.34 2.55 20 38.64 3060 0.013 11ax HE40 2422 20.95 21.45 6.75 20 402.40 3060 0.132 Co-location Total 0.145 ∑MPE ratios Limit 1 ----------THE END OF REPORT----------

1 Copyright © by WalsinTechnology Corporation | All rights reserved. 2 光寶_WP8324 P r e s e n t e d b y Sam Wa l s i nTe c h n o l o g y C o r p o r a t i o n 2022/9/29 Copyright © by WalsinTechnology Corporation | All rights reserved. 3 VersionDateDescriptionAuthor V012022/03/23New ReleaseSam V022022/08/29 使用DVT1樣機，量測修改後的ANT1與 修改板寬後的ANT3天線特性 Sam 4 OUTLINE 1. Measurement Information 3. Summary 2.1Return Loss & Isolation 2.2Antenna Efficiency 2.3 3 views of antenna & 2D Radiation Patterns 1.1 Experimental Setup 1.2 Antenna Solution Detail 2. Antenna Characteristics 5 1. Measurement Information 1.1Experimental Setup X Z Y 6 1. Measurement Information 1.2Antenna Solution Detail ANT1 ANT2 ANT3 X Y 7 2.1Return Loss 2. Antenna Characteristics ANT1 8 2.1Return Loss 2. Antenna Characteristics ANT2 9 2.1Return Loss 2. Antenna Characteristics ANT3 10 2.1Isolation 2. Antenna Characteristics ANT1-ANT2 11 2.1Isolation 2. Antenna Characteristics ANT1-ANT3 12 2.1Isolation 2. Antenna Characteristics ANT2-ANT3 13 Maximum Efficiency at 2450MHz : 72.82 % 2.2Antenna Efficiency 2. Antenna Characteristics ANT1_2G 14 Maximum Efficiency at 5850MHz : 72.28 % 2.2Antenna Efficiency 2. Antenna Characteristics ANT1_5G 15 Maximum Efficiency at 2450 MHz : 71.28 % 2.2Antenna Efficiency 2. Antenna Characteristics ANT2_2G 16 Maximum Efficiency at 5550 MHz : 75.45 % 2.2Antenna Efficiency 2. Antenna Characteristics ANT2_5G 17 Maximum Efficiency at 2450 MHz : 68.78 % 2.2Antenna Efficiency 2. Antenna Characteristics ANT3 18 2.33 views of antenna 2. Antenna Characteristics X-Z planeY-Z planeX-Yplane Z Y -Z -Y X Y -X -Y Z X -Z -X 19 2.32D Radiation Patterns ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 2400 1.48-1.903.96-0.912.06-0.85 2450 1.46-1.713.71-0.542.14-0.79 2500 1.54-1.843.57-0.662.06-0.79 2. Antenna Characteristics ANT1_2G 20 2.32D Radiation Patterns ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 51504.03-0.904.76-1.222.94-1.20 55002.70-1.294.10-1.123.68-0.86 58504.44-1.964.73-1.144.63-0.22 2. Antenna Characteristics ANT1_5G 21 2.32D Radiation Patterns ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 2400 -1.42-4.153.52-1.090.05-1.66 2450 -1.14-3.322.00-1.230.88-1.23 2500 0.06-2.811.33-1.710.78-1.52 2. Antenna Characteristics ANT2_2G 22 2.32D Radiation Patterns ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 51504.370.304.27-1.373.24-1.17 55003.94-0.143.43-1.733.22-0.67 58503.72-0.063.29-1.753.02-0.67 2. Antenna Characteristics ANT2_5G 23 2.32D Radiation Patterns ZX planeZY planeXY plane Frequency [MHz] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] Max Value [dBi] Average [dBi] 2400 1.03-2.620.54-2.280.15-3.75 2450 2.20-1.351.78-1.600.62-2.62 2500 2.55-1.191.80-1.810.42-2.66 2. Antenna Characteristics ANT3 24 24 3. Summary ※ The performance of antennas is shown in table ANT 1ANT 2 ANT3 2G5G2G5G Maximum Peak gain(dBi) 3.964.763.524.372.55 Maximum Efficiency(%) 72.8272.2871.2875.4568.78 25 本資料均屬機密，僅供指定之收件人使用，未經寄件人許可不得揭露、複製或散佈本信件。 This message and any attachments are confidential and may be legally privileged. Any unauthorized review, use or distribution by anyone other than the intended recipient is strictly prohibited. If you are not the intended recipient, please immediately notify the sender, completely delete this documents, and destroy all copies. Your cooperation will be highly appreciated. Thank you

CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC03 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-506-0 Ver 1.5 Page No. : 1 of 58 FCC ID. : PPQ-WPX8324 FCC RADIO TEST REPORT Applicant : LITE-ON Technology Corp Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, 23585, Taiwan Equipment : Access Point Model No. : WPX8324, WRX8324, WPA-2 Trade Name : LITEON, PoEWit FCC ID : PPQ-WPX8324 I HEREBY CERTIFY THAT : The sample was received on Oct. 03, 2022 and the testing was completed on Jan. 05, 2023 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC03 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-506-0 Ver 1.5 Page No. : 2 of 58 FCC ID. : PPQ-WPX8324 CONTENTS 1. Summary of Test Procedure and Test Results ................................................................................ 5 1.1 Applicable Standards ................................................................................................................. 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test ............................................................................................... 6 2.2 Carrier Frequency of Channels .................................................................................................. 8 2.3 Test Mode and Test Software ..................................................................................................... 9 2.4 Description of Test System ....................................................................................................... 10 2.5 General Information of Test ...................................................................................................... 11 2.6 Measurement Uncertainty ........................................................................................................ 12 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 13 4. Antenna Requirements ..................................................................................................................... 16 4.1 Standard Applicable ................................................................................................................. 16 4.2 Antenna Construction and Directional Gain ............................................................................. 16 5. Test of AC Power Line Conducted Emission ................................................................................. 17 5.1 Test Limit .................................................................................................................................. 17 5.2 Test Procedures ....................................................................................................................... 17 5.3 Typical Test Setup .................................................................................................................... 18 5.4 Test Result and Data ................................................................................................................ 19 5.5 Test Photographs ..................................................................................................................... 21 6. Test of Spurious Emission (Radiated) ............................................................................................ 23 6.1 Test Limit .................................................................................................................................. 23 6.2 Test Procedures ....................................................................................................................... 24 6.3 Typical Test Setup .................................................................................................................... 25 6.4 Test Result and Data (9kHz ~ 30MHz)..................................................................................... 27 6.5 Test Result and Data (30MHz ~ 1GHz) ................................................................................... 27 6.6 Test Result and Data (1GHz ~ 25GHz) .................................................................................... 29 6.7 Restricted Bands of Operation ................................................................................................. 41 6.8 Test Photographs (30MHz ~ 1GHz) ......................................................................................... 42 6.9 Test Photographs (1GHz ~ 25GHz) ......................................................................................... 43 7. Test of Spurious Emission (Conducted)......................................................................................... 45 7.1 Test Limit .................................................................................................................................. 45 7.2 Test Procedure ......................................................................................................................... 45 7.3 Test Setup Layout .................................................................................................................... 45 7.4 Test Result and Data ................................................................................................................ 45 8. On Time, Duty Cycle and Measurement methods ......................................................................... 50 8.1 Test Limit .................................................................................................................................. 50 8.2 Test Procedure ..................…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC05 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-503-0 Ver 1.5 Page No. : 1 of 34 FCC ID. : PPQ-WPX8324 FCC RADIO TEST REPORT Applicant : LITE-ON Technology Corp Address : Bldg. C, 90, Chien 1 Rd., Chung-Ho, New Taipei City, 23585, Taiwan Equipment : Access Point Model No. : WPX8324, WRX8324, WPA-2 Trade Name : LITEON, PoEWit FCC ID : PPQ-WPX8324 I HEREBY CERTIFY THAT : The sample was received on Oct. 03, 2022 and the testing was completed on Oct. 21, 2022 at Cerpass Technology Corp. The test result refers exclusively to the test presented test model / sample. Without written approval of Cerpass Technology Corp., the test report shall not be reproduced except in full. Approved by: Mark Liao / Supervisor Laboratory Accreditation: Cerpass Technology Corporation Test Laboratory CERPASS TECHNOLOGY CORP. Report No.: 22090062-TRFCC05 Cerpass Technology Corp. Issued Date : Jan. 07, 2023 T-FD-503-0 Ver 1.5 Page No. : 2 of 34 FCC ID. : PPQ-WPX8324 Contents 1. Summary of Test Procedure and Test Results ................................................................................ 4 1.1 Applicable Standards ................................................................................................................. 4 2. Test Configuration of Equipment under Test ................................................................................... 5 2.1 Feature of Equipment under Test ............................................................................................... 5 2.2 Test Mode and Test Software ..................................................................................................... 7 2.3 Description of Test System ......................................................................................................... 8 2.4 General Information of Test ........................................................................................................ 9 2.5 Measurement Uncertainty ........................................................................................................ 10 3. Test Equipment and Ancillaries Used for Tests ............................................................................. 11 4. Test of AC Power Line Conducted Emission ................................................................................. 12 4.1 Test Limit .................................................................................................................................. 12 4.2 Test Procedures ....................................................................................................................... 12 4.3 Typical Test Setup .................................................................................................................... 13 4.4 Test Result and Data ...........................…

Text truncated - open the document above for the full version.
