PQC-MDL48512.4 GHz Radio Module

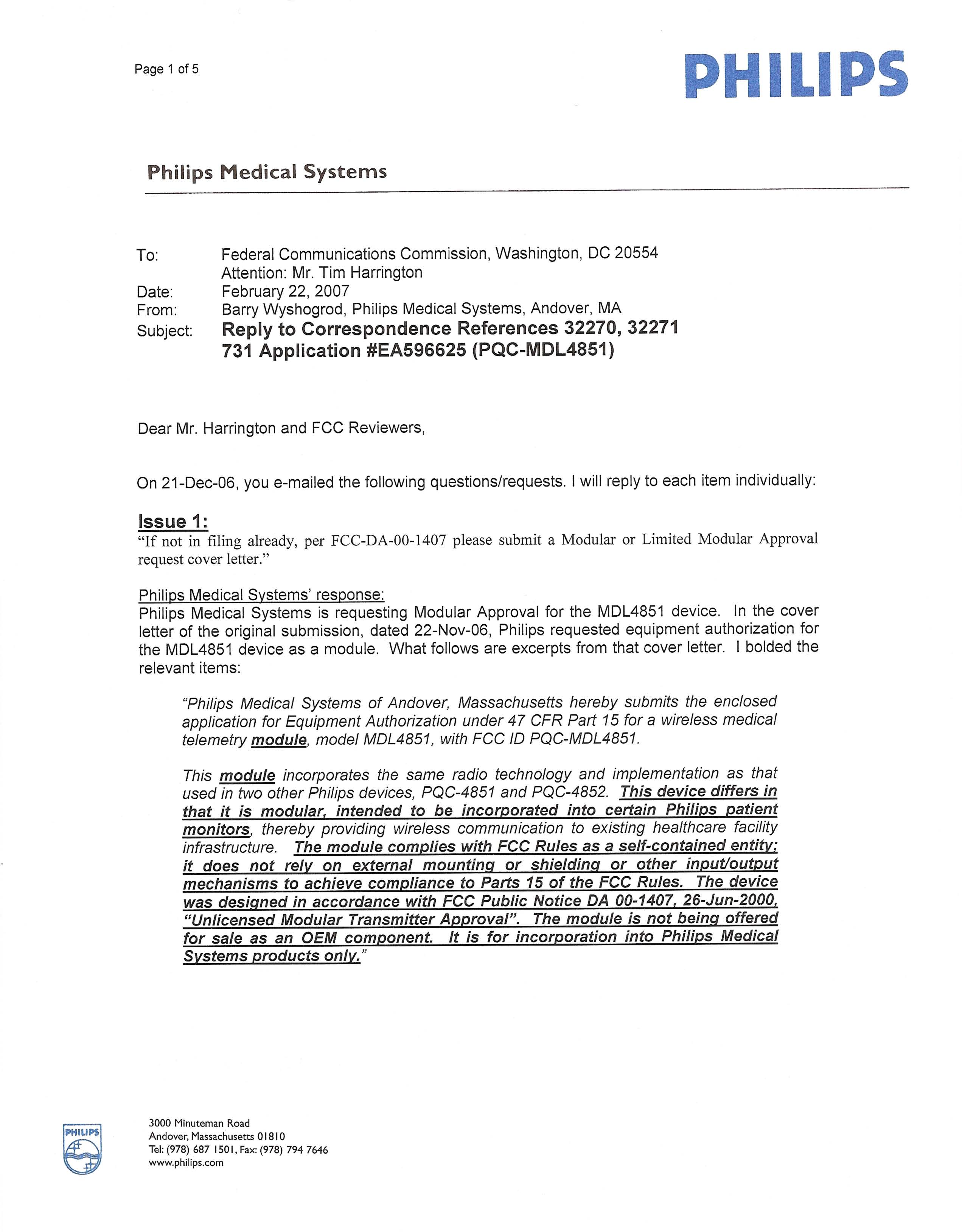

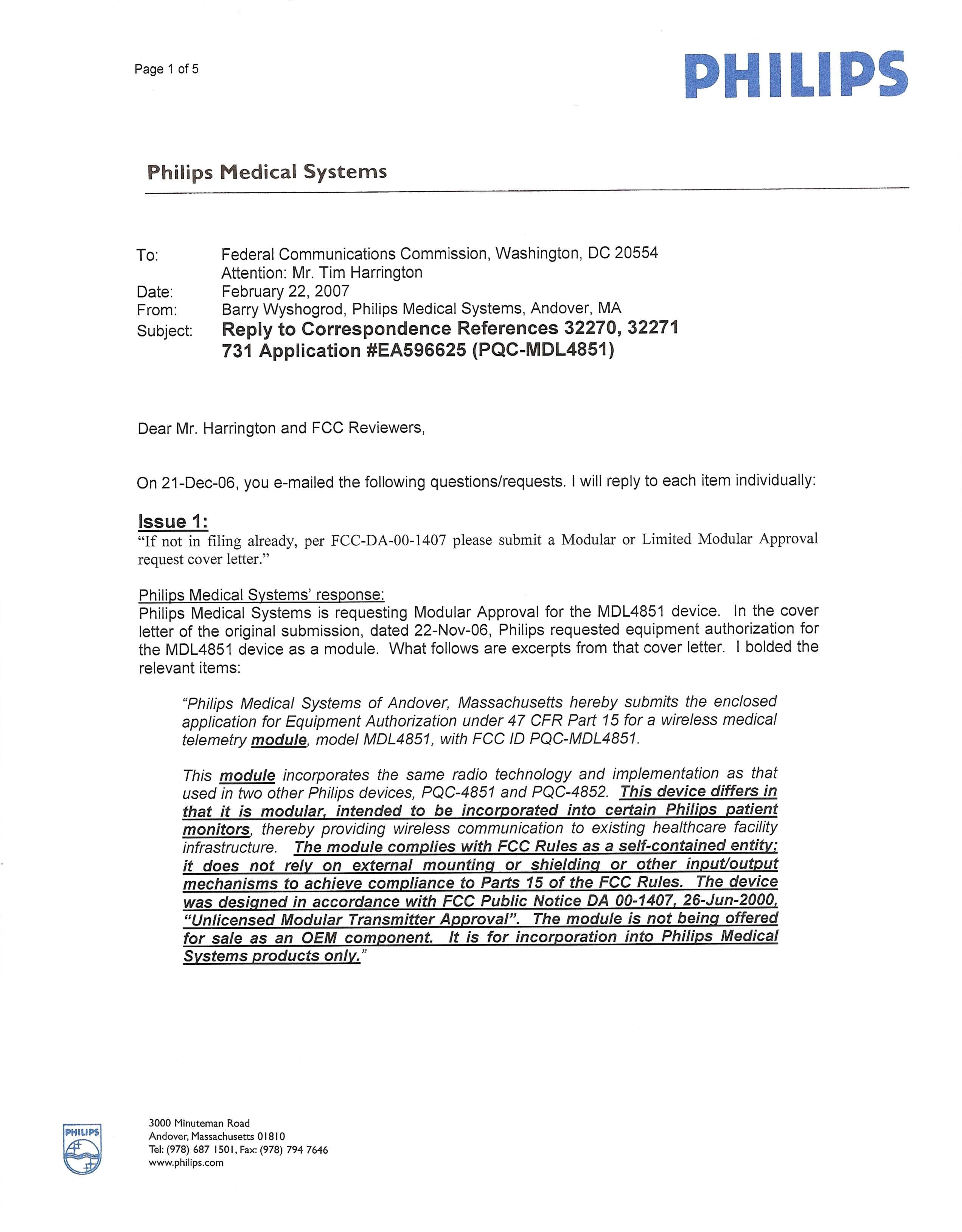

Page 1 of 8 1 Patient Monitoring Quality & Regulatory Group 3000 Minuteman Road Mailstop 0490 Andover, MA 01810 Tel: (978) 659-7383 Fax: (978) 685-5624 Application Note: MDL4851-MODULE Prepared by: Delroy Smith Last revised: 22-Nov-06 The following information is intended for Philips internal use only. It is a guide for the incorporation of the MDL4851 module into Philips patient monitoring medical devices. Interested Philips engineers should contact the Wireless ER Manager for additional information and referral to specific design specialists. This document is an internally controlled document under the Philips Quality System. Philips Medical Systems Page 2 of 8 2 1 Table of Contents 1 Table of Contents ..................................................................................................................... 2 2 Introduction............................................................................................................................... 2 3 Host Interface ........................................................................................................................... 3 4 Serial Connection ..................................................................................................................... 4 4.1 Serial Specification: ............................................................................................................ 4 4.2 Maximum User Data Rate: ................................................................................................. 4 5 MDL4851-MODULE RF Shielding. .......................................................................................... 5 6 MDL4851-MODULE Mounting Considerations. ....................................................................... 6 7 RF Input/Output, Antenna ........................................................................................................6 7.1 RF Transmitter Specifications ............................................................................................ 6 8 Fault Conditions ....................................................................................................................... 7 8.1 Over/ Under Voltage ........................................................................................................... 7 8.2 Excessive Signal Level on Serial Input .............................................................................. 7 8.3 Excessive Data Rate on Serial Input .................................................................................. 7 9 Accompanying Documentation for products incorporating the MDL4851-MODULE ............... 8 2 Introduction The MDL4851-MODULE is a serial network adapter designed to be used with specialized medical devices manufactured by Philips Medical Systems (Figure 1). It enables the host medical device to wirelessly establish bi directional communication with other remote devices using the Philips’ 2.4GHz ROW infrastructure. Page 3 of 8 3 Figure 1: MDL4851-MODULE Block Diagram 3 Host Interface The MDL4851 radio module interfaces to the host though a single I/O connector (Figure 2). Via this connector the host must supply DC power, signal ground and modulating data to the radio module. The communication between the host device and the radio module is a two wire asynchronous serial interface (Table 1). Figure 2: MDL4851-MODULE Interface Host Connector Page 4 of 8 4 Pin Name I/O Function 1 Ground First of two ground connections for the module. 2 ITS_Tx OUT Serial data to host. 3 ITS_Rx IN Serial data from host. 4 Ground Second of two ground connections for the module. 5 +5 vdc + 5 vdc +/- 5%, Sinks 38 mA average, 320 mA Peak during radio Tx/Rx 6 Not Connected Table 1: Host Connector pin assignment 4 Serial Connection 4.1 Serial Specification: The interface to the Host is a serial communication link (Table 2): Æ Flow Control: Tx, Rx; no hardware flow control Æ Baud Rate: 115.2 kbaud; Æ Parity: No parity bit Æ Bits: 8 bits of data, plus 1 Start/Stop bits Æ Logic Levels: TTL levels, 5 volt tolerant. Logical Zero Logical One Conditions LOW HIGH 0.1 V max 100uA sink 0.55V max 24mA sink 2.9V min 100uA load ITS_Tx 2.3V min 24mA load ITS_Rx 0.6V max 2.2V min - Table 2: Serial Lines, Electrical DC Characteristics 4.2 Maximum User Data Rate: The maximum user data rate that the radio supports is 12 kbits/second in each direction. This maximum over the air data rate is fixed by design and cannot be modified by the user. Page 5 of 8 5 5 MDL4851-MODULE RF Shielding. The module contains all necessary RF shielding. The host device does not need to provide additional shielding. The available module metal enclosure is optional, it is not needed to achieve EMC compliance. Page 6 of 8 6 6 MDL4851-MODULE Mounting Considerations. The module is self-contained and can be mounted anywhere using the supplied threaded pem nuts. No special heat sinking considerations are required. There are no orientation constraints. 7 RF Input/Output, Antenna The MDL4851 Radio Module is approved for use with multiple antennas specified by Philips, part numbers M4842-61400 and M8100-66490. This antenna cannot be replaced with an antenna of a different type. However, antenna of equivalent gain & type to the qualified antennas can be used. The RF input and output of the MDL4851-MODULE is matched to 50 ohms. A coaxial cable brings the RF outside the metal enclosure. This cable uses a unique non standard connector manufactured by JST (JST part number AYUI-1S-12676-221). The coaxial cable connects to a JST to reversed TNC adapter made by Amphenol (Amphenol part number 031-6101) where the antenna plugs in. The antenna is made by Radial to Philips’ specifications (Philips specifications number A-M4842-61400-1, rev A). 7.1 RF Transmitter Specifications The following table summarizes general transmitter specifications (Table 3). For complete details (including details on the receiver section) refer to ES-M4840-90145: Parameter Specification Frequenc…

Text truncated - open the document above for the full version.

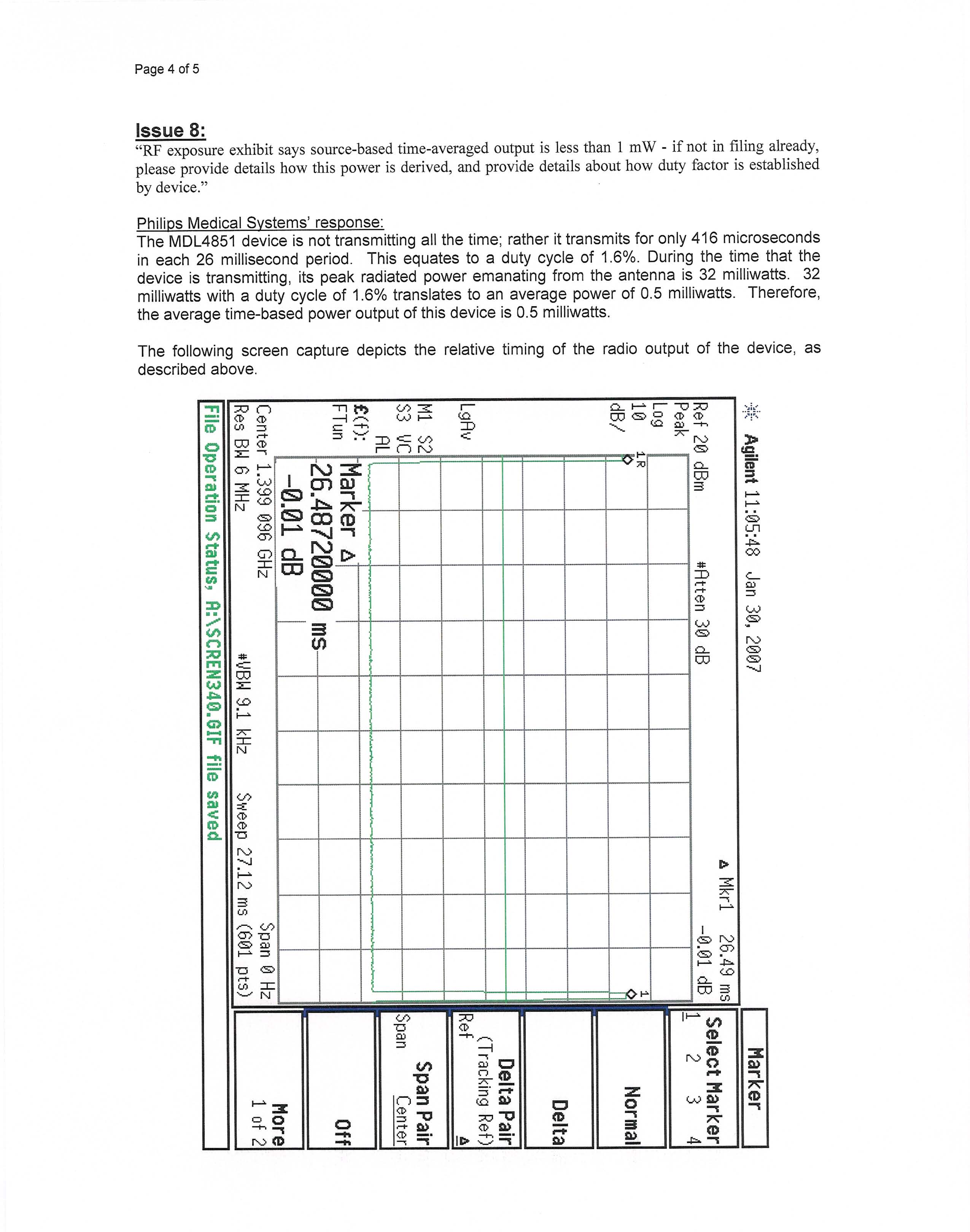

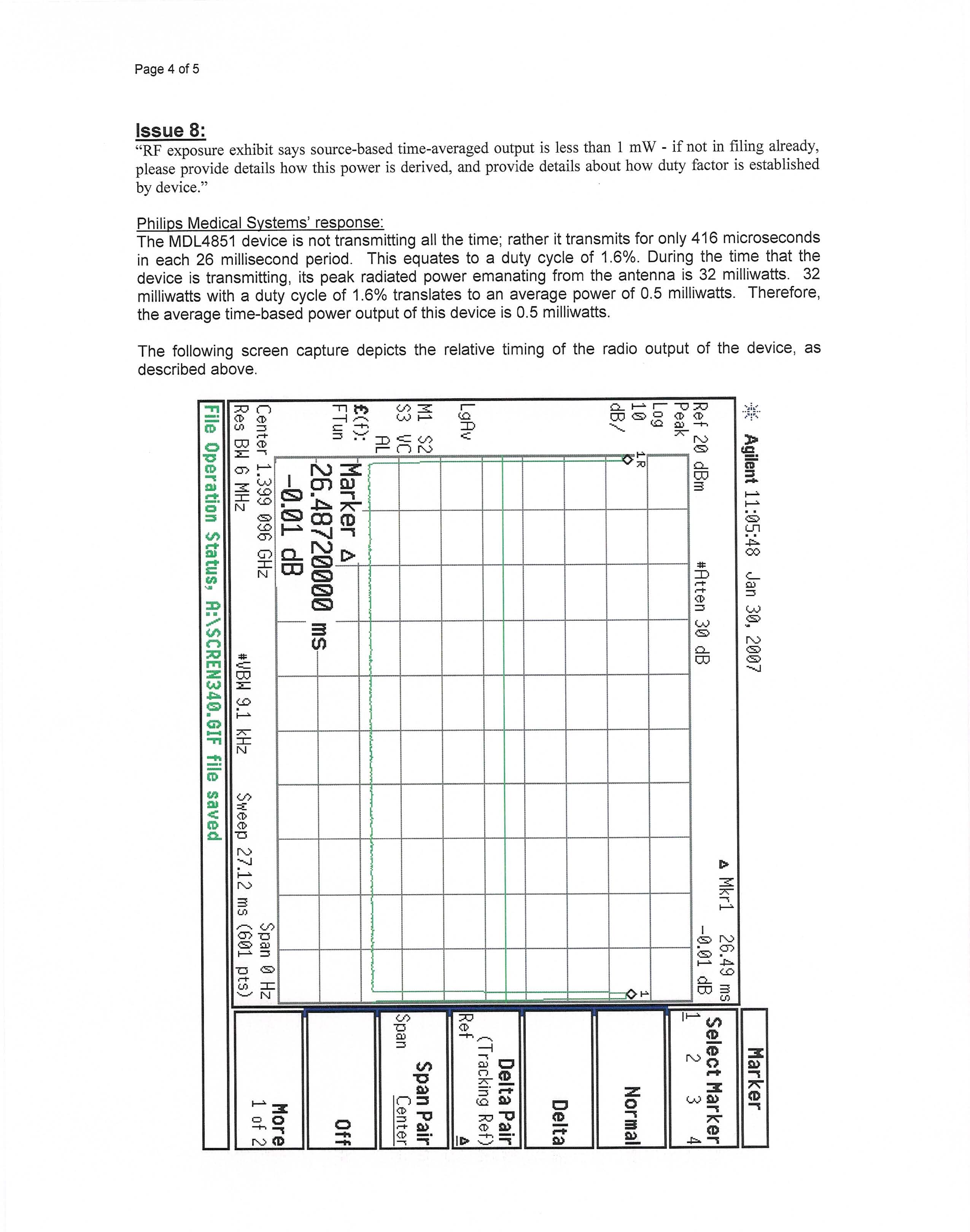

RF Exposure Statement Philips Medical Systems hereby declares that the Wireless medical telemetry transmitter module, MDL4851 (FCC ID: PQC-MDL4851) is compliant to 47 CFR Part 15B and 15C, §1.1310 and §2.1093 of the FCC rules. As per the FCC/TCB training of October 15, 2004, this statement of compliance is sufficient for devices with sourced based time average power of less than 1 mW. This applies to both TCB and FCC filings. The output power for this device based on sourced based time average power is less than 1 mW. The duty cycle is 1.6 %. Zety Billard, Regulatory Engineer Submitted 22-November-2006 Philips Medical Systems

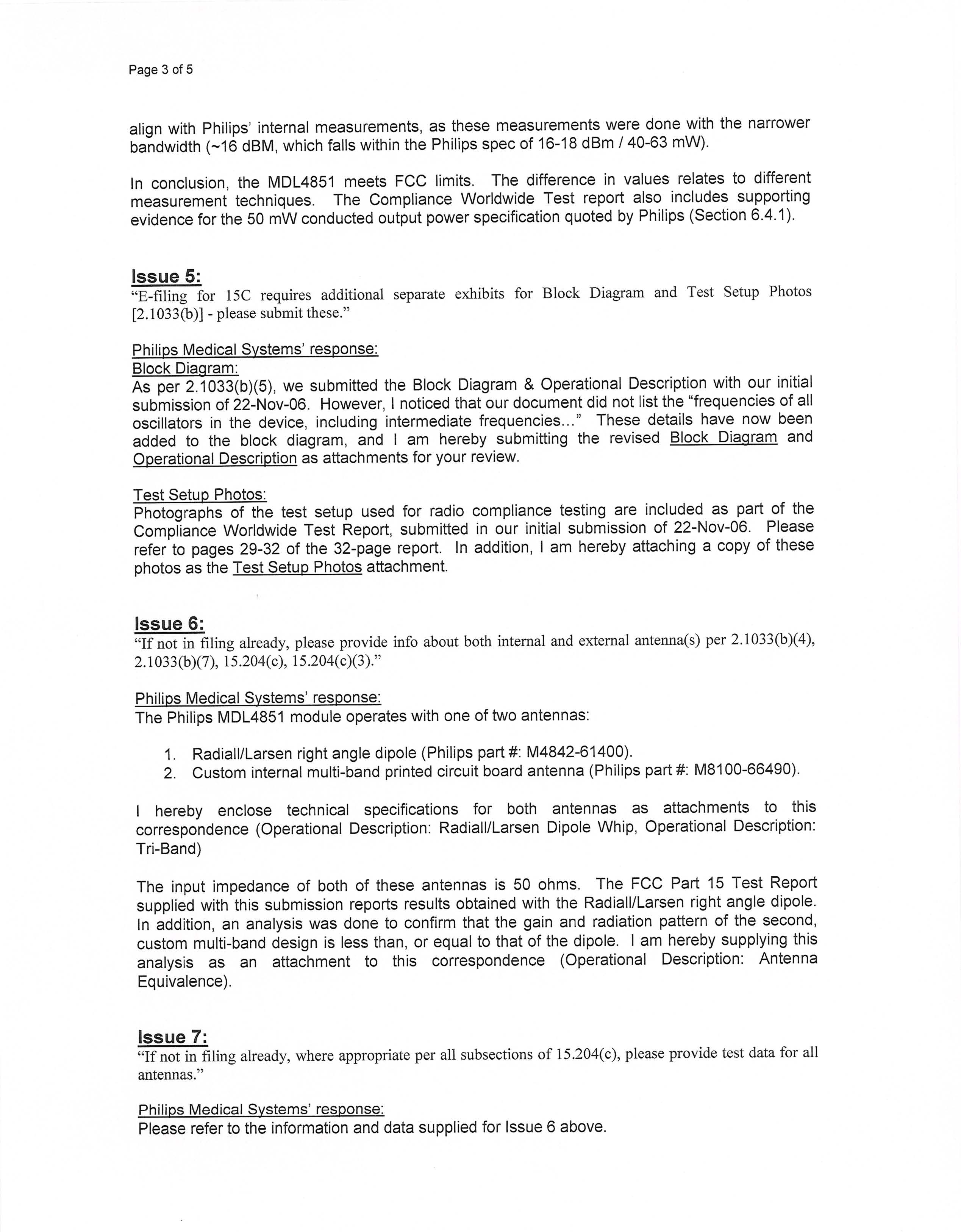

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com COMPLIANCE WORLDWIDE INC. TEST REPORT 286-06 In Accordance with the Requirements of FCC PART 15, SUBPART C INDUSTRY CANADA RSS 210, ISSUE 6 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Philips Medical Systems 3000 Minuteman Drive Andover, MA 01810 978-659-2800 for MDL4851 ITS Module ROW Report Issued on October 20, 2006 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. Test Number: 286-06 Issue Date: 10/20/2006 Page 2 of 32 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1 Scope ................................................................................................................................... 3 2 Product Details..................................................................................................................... 3 2.1 Manufacturer............................................................................................................................ 3 2.3 Serial Number........................................................................................................................... 3 2.4 Description................................................................................................................................ 3 2.5 Power Source ........................................................................................................................... 3 2.6 EMC Modifications.................................................................................................................... 3 3 Product Configuration .......................................................................................................... 3 3.1 Operational Characteristics & Software ................................................................................... 3 3.2 Support Equipment................................................................................................................... 4 3.3 Additional Support Equipment (Directly connected to the DUT) ............................................. 4 3.4 Cables ...................................................................................................................................... 4 3.5 Block Diagram .......................................................................................................................... 5 4 Measurements Parameters.................................................................................................. 6 4.1 Measurement Equipment Used to Perform Test...................................................................... 6 4.2 Measurement & Equipment Setup ........................................................................................... 6 4.3 Test Procedure ......................................................................................................................... 6 5 Measurement Summary....................................................................................................... 7 6 Measurement Data............................................................................................................... 8 6.1 Minimum 6 dB Bandwidth......................................................................................................... 8 6.2 Maximum Peak Conducted Output Power ............................................................................. 12 6.3 Conducted Spurious Emissions ............................................................................................. 14 6.4 Lower and Upper Band Edge Measurements........................................................................ 19 6.5 Power Spectral Density .......................................................................................................... 21 6.6 Public Exposure to Radio Frequency Energy Levels ............................................................. 23 6.7 Radiated Field Strength of Harmonics................................................................................... 24 6.8 Power Line Conducted Emissions.......................................................................................... 26 6.9 Determination of Average Factor ........................................................................................... 28 7 Test Facility Description .................................................................................................................... 28 8 Test Setup Photographs.................................................................................................................... 29 Test Number: 286-06 Issue Date: 10/20/2006 Page 3 of 32 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 1. Scope This test report certifies that the Philips MDL4851 2.4 GHz ROW ITS Radio Module with External Antenna, as tested, meets the FCC Part 15, Subpart C and Industry Canada RSS 210 requirements. The scope of this test report is limited to the test sample provided by the client, only in as much as that sample represents other production units. If any significant changes are made to the unit, the changes shall be evaluated and a retest may be required. 2. Product Details 2.1. Manufacturer: Philips Medical Systems 2.2. Model Number: MDL4851 ITS Module / ROW PP2 2.3. Serial Number: US42300566 2.4. Description: The MDL4851 ROW ITS Module with External Antenna is a radio module which transmits patient physiological ECG and SpO2 data and waveforms in the 2.4 GHz ISM bands to the M4852A 2.4 GHz ROW Access Point. The EUT has no display or method to monito r itself. The monitoring will be done on the IntelliVue Information Center and also on the MP50 bedside patient monitor. 2.5. Power Source: DC 12 volt…
