PQC-MX40SH2B4INTELLIVUE MX40 2.4GHz PATIENT WORN DEVICE

Philips Medical Systems North America Co.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 13, 2012
Application Purpose: Original Equipment
Date of Application: May 13, 2012
Equipment Note: INTELLIVUE MX40 2.4GHz PATIENT WORN DEVICE
Frequency Range: 2405.00000000 - 2480.00000000
Company: Philips Medical Systems North America Co.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

IntelliVue MX40 Instructions for Use Release B.0 Draft Copy ii Notice Proprietary Information This document contains proprietary information, which is protected by copyright. First Edition 2012 4535 643 15721 Copyright Copyright © 2012 Koninklijke Philips Electronics N.V. All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright holder. Philips Medical Systems Nederland B.V. reserves the right to make changes in specifications and/or to discontinue any products at any time without notice or obligation and will not be liable for any consequences resulting from the use of this publication. This product contains software licensed under an open source license. For acknowledgments, license texts and source code, please refer to the IntelliVue Information Center iX M3290B Software\References\README.pdf. Windows ® is a registered trademark of Microsoft Corporation in the United States and other countries. EASI is a trademark of Zymed Inc. OxiCliq ® and OxiMax ® are registered trademarks of Nellcor Incorporated. Duracell ® is a registered trademark of Procter & Gamble Incorporated. STERRAD ® is a registered trademark of Advanced Sterilization Products. GORE-TEX ® is a registered trademark of W.L. Gore & Assoc. Incorporated. Tone modulation is licensed under US patent 4,653,498 from Nellcor Puritan Bennett Incorporated. Manufacturer Philips Medical Systems 3000 Minuteman Road Andover, MA 01810-1099 (978) 687-1501 Printed in USA Document number Draft Copy iii 4535 643 15721 Warranty The information contained in this document is subject to change without notice. Philips Medical Systems makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties or merchantability and fitness for a particular purpose. Philips Medical Systems shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. FCC This device complies with Part 15 and/or Part 95 of the FCC Rules. Operation is subject to the following two conditions: (1) these devices may not cause harmful interference, and (2) these devices must accept any interference received, including interference that may cause undesired operation. Changes and modifications not expressly approved by Philips Medical Systems can void your authority to operate this equipment under Federal Communications Commission's rules Protecting Personal Information It is recommended that customers have policies and procedures for the proper handling of personal or sensitive information, ePHI (electronic protected health information) and PHI (protected health information), which will maintain the confidentiality, integrity, and the availability of these types of data. Any organization using this product should implement the required protective means necessary to safeguard personal information consistent with each applicable country law, code and regulation; and consistent with their developed and maintained internal policies and procedures. While handling personal information is outside the scope of this document; in general, each organization is responsible for identifying: Who has access to personal data and under what conditions an individual has authorization to use that data. What security controls are in place to protect personal and sensitive data. How the data is stored and the conditions by which it is stored. How the data is transmitted and the conditions under which that data is transmitted. Draft Copy iv Protecting personal health information is a primary component of a security strategy. Personal and sensitive information should be protected according to the applicable laws, regulations and directives, such as HIPAA, PIPEDA and/or Council of the European Union security and privacy rules. Compliance Uses of the system for purposes other than those intended and expressly stated by the manufacturer, as well as incorrect use, incorrect operation, or modifications made to the system without explicit approval from Philips, may relieve the manufacturer (or his agent) from all or some responsibilities for resultant noncompliance, damage or injury. Printing History New editions of this document will incorporate all material updated since the previous edition. Update packages may be issued between editions and contain replacement and additional pages to be merged by a revision date at the bottom of the page. Note that pages which are rearranged due to changes on a previous page are not considered revised. The documentation printing date and part number indicate its current edition. The printing date changes when a new edition is printed. (Minor corrections and updates which are incorporated at reprint do not cause the date to change.) The document part number changes when extensive technical changes are incorporated. First Edition February 2012 Document Conventions In this guide: Warnings Warning A Warning alerts you to a potential serious outcome, adverse event or safety hazard. Failure to observe a warning may result in death or serious injury to the user or patient. Draft Copy v Cautions Caution A Caution alerts you to where special care is necessary for the safe and effective use of the product. Failure to observe a caution may result in minor or moderate personal injury or damage to the product or other property, and possibly in a remote risk of more serious injury. Notes A Note contains additional information on the product's usage. Draft Copy vi Draft Copy Contents 1 Contents 1. Introducing the IntelliVue MX40 1-1 MX40 Features -------------------------------------------------------------------------- 1-2 MX40 Models ---------------------------------------------------------------------------- 1-3 MX40 Release B.0 Compatibility --------------------------------------------------- 1-4 2. What's New? 2-1 New Features and Enhancements---------------------------------…

Text truncated - open the document above for the full version.

Cover Letter(s)

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax (603) 887 6445 www.complianceworldwide.com April 30, 2012 RE: Philips Medical Systems MX40 Patient Worn Monitor FCC ID: PQC-MX40SH2B4 IC: 3549B-MX40SH2B4 To whom it may concern: Please find enclosed an original application for Philips Medical Systems, Philips Telemetry System MX40 Patient Worn Monitor. This device was previously approved under FCC ID: PQC- MX40SH24 and IC: 3549B-MX40SH24 by TIMCO Engineering in August 2011. These approval ids consisted of a review of a 2.4 GHz WLAN 802.11 radio in CW Test Report #304-11R2, a 2.4 GHz Short Range Radio (SRR) under CW Test Report #264-11R1 and a 2.4 GHz Smart Hopping Radio (2.4SH) under CW Test Report #278-11R1 This application includes data and information for the enabling of a 5 GHz WiFi WLAN Radio within the device along with an updated set of data for the 2.4 GHz 802.11 WiFi WLAN Radio. The original 2.4 GHz SH Radio and 2.4 GHz SRR Radio test reports have also been provided with updated certification identifiers. The implementation of the 5 GHz WiFi WLAN Radio was achieved via a software change, and none of the hardware has changed since the original application. Since the power of the radio has increased in the 5 GHz band versus what was originally reported in the 2.4 GHz band, a class II permissive change could not be performed. Although the reported power of the device in the 2.4 GHz and 5.8 GHz ranges exceeds the public exposure limits for a portable device, the source-based time averaged power is significantly below the limits. The only purpose of any of the radios within the device is to transmit telemetry data collected by the device and provide that information either to a central station or a bedside monitor. As shown in the timing plots of either the 2.4 or 5 GHz WLAN radios a very short transmission burst (less than 400 microseconds) is sent only once in a 100 mS period. An updated MPE Calculation for the radios has been provided as part of this application. If you have any further questions, please don’t hesitate to contact me at (603) 887 3903 or via email at [email protected] Sincerely, Larry Stillings President

External Photos

External Photos, MX40, FCC ID: PQC-MX40SH2B4 Front Back

Internal Photos

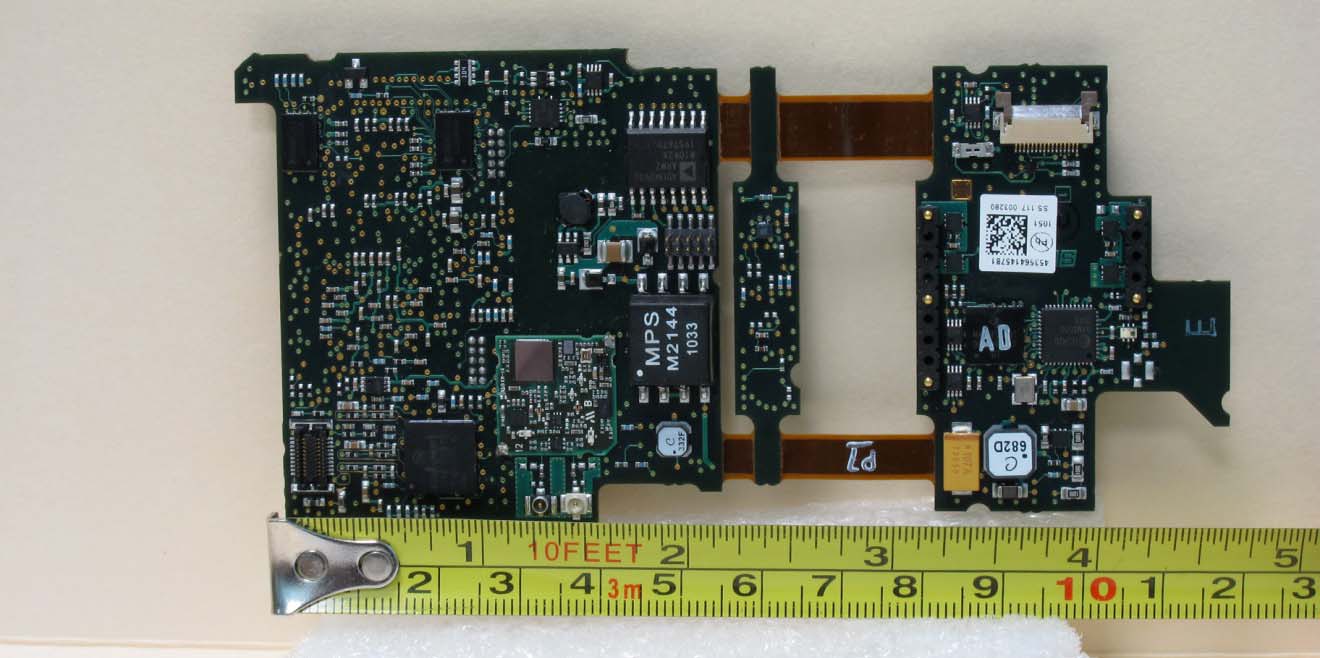

Internal Photos, MX40, FCC ID: PQC-MX40SH2B4 2.4 GHz radio module 2.4 GHz radio module without can Component side: SpO2 board Solder Side: SpO2 board Main board Main board with 2.4 SH and WLAN 2.4 SH and WLAN Module

RF Exposure Info

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 141-12R1A In Accordance with the Requirements of MPE Calculation for FCC PART 15.247, SUBPART C FCC Part 15.407, Subpart E INDUSTRY CANADA RSS 210, ISSUE 8 Issued to Philips Medical Systems 3000 Minuteman Drive Andover, MA 01810 978-659-2800 for the Philips Telemetry System MX40 Patient Worn Monitor 2.4 GHz CTS Radio FCC ID: PQC-MX40SH2B4 IC: 3549B-MX40SH2B4 Report Issued on April 23, 2012 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 141-12R1A Issue Date: 04/23/2012 Page 2 of 12 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com RF Exposure Requirements: 1.1307(b)(1) and 1.1.307(b)(2): Systems operating under the provision of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: 1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) limit shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in Section 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec 2.1093 of this chapter. Test Results: Compliant. A summation of the power densities of each of the individual radios shows that the combination of all three radios are in compliance with the limit. Radio MPE Distance (cm) DUT Output Power (dBm) Time Averaged Power (dBm) DUT Antenna Gain (dBi) Power Density (mW/cm2) Power Density (W/m2) Limit (mW/cm2) Result (1) (2) (2) (3) (4) (4) (5) 2.4 CTS 2.5 15.40 -20.65 -3.0 0.0000549 0.0005494 1.00 Compliant SRR 2.5 0.60 N/A 0.3 0.0156591 0.1565914 1.00 Compliant WLAN 2.4 2.5 19.20 -33.76 -3.0 0.0000027 0.0000269 1.00 Compliant SUM 2.5 N/A N/A N/A 0.0157168 0.1571677 1.00 Compliant Radio MPE Distance (cm) DUT Output Power (dBm) Time Averaged Power (dBm) DUT Antenna Gain (dBi) Power Density (mW/cm2) Power Density (W/m2) Limit (mW/cm2) Result (1) (2) (2) (3) (4) (4) (5) 2.4 CTS 2.5 15.40 -20.65 -3.0 0.0000549 0.0005494 1.00 Compliant SRR 2.5 0.60 0.60 0.3 0.0156591 0.1565914 1.00 Compliant WLAN 5.8 2.5 18.23 -29.73 1.0 0.0000171 0.0001707 1.00 Compliant SUM 2.5 N/A N/A N/A 0.0157312 0.1573115 1.00 Compliant Test Number: 141-12R1A Issue Date: 04/23/2012 Page 3 of 12 7. Measurement Data for 2.4 GHz CTS Radio from Test Report #278-11R1 7.10. Public Exposure to Radio Frequency Energy Levels (15.247(i) (1.1307 (b)(1)) RSS- GEN 5.5, RSS 102 Power Density MPE Distance (cm) DUT Output Power (dBm) DUT Antenna Gain (dBi) (mW/cm2) (W/m2) Limit (mW/cm2) Channel Frequency (1) (2) (3) (4) (5) Result 2401.060 2.5 15.40 -3.0 0.22126 2.21264 1 Compliant 2442.320 2.5 15.00 -3.0 0.20179 2.01795 1 Compliant 2482.252 2.5 13.70 -3.0 0.14959 1.49593 1 Compliant OP + AG (4 x π x d²) PD = • PD = Power Density (mW/cm 2 ) • OP = DUT Output Power (dBm) • AG = DUT Antenna Gain (dBi) • d = MPE Distance (cm) 1. Reference CFR 2.1093(b): For purposes of this section, a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 2.5 centimeters of the body of the user. 2. Section 7.4 of this test report. 3. Data supplied by the client. Antenna specification data of worst case antenna used by the DUT. 4. Power density is calculated from field strength measurement and antenna gain. 5. Reference CFR 1.1310, Table 1: Limits for Maximum Permissible Exposure (MPE), Section (B): Limits for General Population/Uncontrolled Exposure. Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Test Number: 141-12R1A Issue Date: 04/23/2012 Page 4 of 12 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com 7. Measurement Data (continued) 7.10. Public Exposure to Radio Frequency Energy Levels (15.247(i) (1.1307 (b)(1)) RSS- GEN 5.5, RSS 102 The calculated output power can be referenced in column 6 of the table below. The calculated peak output power is greater than the 24.17 mW requirement for performing SAR testing using the formula: 60 / F (GHz). Frequency Peak Field Strength Distance Antenna Gain 1 Measured Output Power Time Averaged Power Channel (MHz) (dBμV/m) (m) (dBi) (mW) (mW) Low 2401.1 107.60 3.0 -3.0 34.44 0.0086 Middle 2442.3 107.20 3.0 -3.0 31.41 0.0079 High 2482.3 105.90 3.0 -3.0 23.29 0.0058 However the time averaged power is significantly lower then the 24.17 mW requirement for 47CFR 1.1307 and 20 mW requirement for RSS-102 Power Density Channel Frequency (MHz) Output Power (mW) Time Averaged Power (mW) (mW/cm2) (W/m2) Limit (mW/cm2) Result 2401.060 34.44 0.0086 0.0000549 0.0005494 1 Compliant 2442.320 31.41 0.0079 0.0000498 0.0004976 1 Compliant 2482.252 23.29 0.0058 0.0000369 0.0003689 1 Compliant RSS-102 Section 2.5, 2.5.1 & 2.5.2 Requirements: 2.5 - All transmitters are exempt from routine SAR and RF exposure evaluations provided that output power complies with the power levels of sections 2.5.1 or 2.5.2. If the equipment under test (EUT) meets the requirements of sections 2.5.1 or 2.5.2, applicants are only required to submit a properly signed declaration of compliance (see Annex C). 2.5.1 - SAR evaluation is required if the separation distance between the user and the radiating element of the device is less than or equal to 20 cm, except when the device operates as follows: • above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use and 100 mW for controlled use 2.5.2 - RF exposure ev…

Text truncated - open the document above for the full version.

Test Report

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 278-11R3 In Accordance with the Requirements of FCC PART 15.247, SUBPART C INDUSTRY CANADA RSS 210, ISSUE 8 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Philips Medical Systems 3000 Minuteman Drive Andover, MA 01810 978-659-2800 for the Philips Telemetry System MX40 Patient Worn Monitor 2.4 GHz CTS Radio FCC ID: PQC-MX40SH2B4 IC: 3549B-MX40SH2B4 Original Report Issued on August 2, 2011 R3 Report Issued on May 9, 2012 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 278-11R3 Issue Date: 05/09/2012 Page 2 of 33 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2 .Product Details.................................................................................................................... 3 2.1 Manufacturer ............................................................................................................................ 3 2.3 Serial Number........................................................................................................................... 3 2.4 Description................................................................................................................................ 3 2.5 Power Source ........................................................................................................................... 3 2.6 EMC Modifications.................................................................................................................... 3 3. Product Configuration ......................................................................................................... 4 3.1 Operational Characteristics & Software ................................................................................... 4 3.2 EUT Hardware.......................................................................................................................... 4 3.3 EUT Hardware/Software/Firmware Revision Level.................................................................. 4 3.4 EUT Cables/Transducers ......................................................................................................... 4 3.5 Support Equipment................................................................................................................... 4 3.6 Support Equipment Cables/Transducers ................................................................................. 5 3.7 Miscellaneous........................................................................................................................... 5 3.8 Block Diagram .......................................................................................................................... 5 4. Measurements Parameters.................................................................................................6 4.1 Measurement Equipment Used to Perform Test...................................................................... 6 4.2 Measurement & Equipment Setup ........................................................................................... 6 4.3 Measurement Procedure .......................................................................................................... 6 4.4 Measurement Uncertainty ........................................................................................................ 7 5. Choice of Equipment for Test Suits..................................................................................... 7 5.1 Choice of Model........................................................................................................................ 7 5.2 Presentation ............................................................................................................................. 7 5.3 Choice of Operating Frequencies.............................................................................................7 6. Measurement Summary......................................................................................................8 7. Measurement Data.............................................................................................................. 9 7.1 Antenna Requirement .............................................................................................................. 9 7.2 Minimum 6 dB Bandwidth......................................................................................................... 9 7.3 99% Bandwidth....................................................................................................................... 11 7.4 Maximum Peak Conducted Output Power ............................................................................. 14 7.5 Operation with directional antenna gains greater than 6 dBi ................................................. 17 7.6 Transmitter Spurious Radiated Emissions ............................................................................. 19 7.7 Band Edge Measurements.....................................................................................................22 7.8 Power Spectral Density .......................................................................................................... 26 7.9 Public Exposure to Radio Frequency Energy Levels ............................................................. 28 8. Test Setup Photographs.............................................................................................................. 31 9. Test Site Description..........................................................................................…

Text truncated - open the document above for the full version.

Test Report

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 264-11R4 In Accordance with the Requirements of FCC PART 15.247, SUBPART C INDUSTRY CANADA RSS 210, ISSUE 8 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Philips Medical Systems 3000 Minuteman Drive Andover, MA 01810 978-659-2800 for the Philips Telemetry System MX40 Patient Worn Monitor 2.4 GHz Short Range Radio (SRR) FCC ID: PQC-MX40SH2B4 IC: 3549B-MX40SH2B4 Report Issued on April 23, 2012 Revision R4 Issued on May 9, 2012 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 264-11R4 Issue Date: 05/09/2012 Page 2 of 29 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2 .Product Details.................................................................................................................... 3 2.1 Manufacturer ............................................................................................................................ 3 2.3 Serial Number........................................................................................................................... 3 2.4 Description................................................................................................................................ 3 2.5 Power Source ........................................................................................................................... 3 2.6 EMC Modifications.................................................................................................................... 3 3. Product Configuration ......................................................................................................... 3 3.1 Operational Characteristics & Software ................................................................................... 3 3.2 EUT Hardware.......................................................................................................................... 4 3.3 . EUT Hardware/Software/Firmware Revision Level................................................................ 4 3.4 EUT Cables/Transducers ......................................................................................................... 4 3.5 Support Equipment................................................................................................................... 4 3.6 Support Equipment Cables/Transducers ................................................................................. 4 3.7 Miscellaneous........................................................................................................................... 4 3.7 Block Diagram .......................................................................................................................... 5 4. Measurements Parameters.................................................................................................6 4.1 Measurement Equipment Used to Perform Test...................................................................... 6 4.2 Measurement & Equipment Setup ........................................................................................... 6 4.3 Measurement Procedure .......................................................................................................... 6 5. Choice of Equipment for Test Suits..................................................................................... 7 5.1 Choice of Model........................................................................................................................ 7 5.2 Presentation ............................................................................................................................. 7 5.3 Choice of Operating Frequencies.............................................................................................7 6. Measurement Summary......................................................................................................8 7. Measurement Data.............................................................................................................. 8 7.1 Antenna Requirement .............................................................................................................. 8 7.2 Minimum 6 dB Bandwidth......................................................................................................... 8 7.3 99% Bandwidth....................................................................................................................... 11 7.4 Maximum Peak Conducted Output Power ............................................................................. 13 7.5 Operation with directional antenna gains greater than 6 dBi ................................................. 16 7.6 Transmitter Spurious Radiated Emissions ............................................................................. 16 7.7 Band Edge Measurements.....................................................................................................21 7.8 Power Spectral Density .......................................................................................................... 24 7.9 Public Exposure to Radio Frequency Energy Levels ............................................................. 26 8. Test Setup Photographs.............................................................................................................. 27 9. Test Site Description..................................................................................................................... 30 Test Number: 264-11R4 Issue Date: 05/09/2012 Page 3 of 29 Compliance Worldwide, Inc. - 357 Main S…

Text truncated - open the document above for the full version.

Test Report

Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 COMPLIANCE WORLDWIDE INC. TEST REPORT 141-12R2 In Accordance with the Requirements of FCC PART 15.247, SUBPART C INDUSTRY CANADA RSS 210, ISSUE 8 Low Power License-Exempt Radio Communication Devices Intentional Radiators Issued to Philips Medical Systems 3000 Minuteman Drive Andover, MA 01810 978-659-2800 for the Philips Telemetry System MX40 Patient Worn Monitor WLAN Radio FCC ID: PQC-MX40SH2B4 IC: 3549B-MX40SH2B4 Original Report Issued on April 23, 2012 Revision R2 Issued on May 8, 2012 Tested by This test report shall not be reproduced, except in full, without written permission from Compliance Worldwide, Inc. (603) 887 3903 Fax 887 6445 http://www.complianceworldwide.com Test Number: 141-12R2 Issue Date: 05/08/2012 Page 2 of 33 Compliance Worldwide, Inc. - 357 Main Street - Sandown, NH 03873 (603) 887 3903 Fax 887 6445 http://www.cw-inc.com Table of Contents 1. Scope .................................................................................................................................. 3 2 .Product Details.................................................................................................................... 3 2.1 Manufacturer ............................................................................................................................ 3 2.3 Serial Number........................................................................................................................... 3 2.4 Description................................................................................................................................ 3 2.5 Power Source ........................................................................................................................... 3 2.6 EMC Modifications.................................................................................................................... 3 3. Product Configuration ......................................................................................................... 4 3.1 Operational Characteristics & Software ................................................................................... 4 3.2 EUT Hardware.......................................................................................................................... 4 3.3 EUT Hardware/Software/Firmware Revision Level.................................................................. 4 3.4 EUT Cables/Transducers ......................................................................................................... 4 3.5 Support Equipment................................................................................................................... 4 3.6 Support Equipment Cables/Transducers ................................................................................. 5 3.7 Miscellaneous........................................................................................................................... 5 3.8 Block Diagram .......................................................................................................................... 5 4. Measurements Parameters.................................................................................................6 4.1 Measurement Equipment Used to Perform Test...................................................................... 6 4.2 Measurement & Equipment Setup ........................................................................................... 6 4.3 Meas…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Delroy Smith(Principal Architect)

[email protected]1-617-798-0865Fax: 1-617-798-0865

Test Firm

Compliance Worldwide, Inc.Deb Bourbeau

[email protected]603-887-3903Fax: 603 887 6445

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
3	15C	2.40 GHz - 2.48 GHz	600.00 µW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. This device is approved for operation in the Wireless Medical Telemetry Service. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
