PQG-ADMRFID READER

ADM User Manual - for end users - ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 2 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM Revision History Table Revision Changes Since Previous Revision Rev1 This is the initial release of the document ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 3 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM TABLE OF CONTENTS 1. OVERVIEW 6 1.1 Main Characteristics 6 1.2 Physical concept 7 2. MODES OF OPERATION 8 3. FUNCTIONAL ARCHITECTURE 8 3.1 LF Exciter 8 3.1.1 Operation 8 3.1.2 Excitation Distance 9 3.2 UHF Receiver 10 3.2.1 Receive Distance 10 3.2.2 Tag message filtration 10 3.3 GSM Modem 10 3.4 Test Tag 10 3.5 USB Ports 10 3.6 LEDs 10 3.6.1 Power 11 3.6.2 Busy 11 3.6.3 GSM 11 3.7 Power Supply System 11 3.7.1 Battery pack 11 3.7.2 Backup battery 12 4. ENVIRONMENTAL 12 5. REGULATORY 12 ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 4 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM LIST OF FIGURES Figure 1 – ADM Concept_____________________________________________________________________ 6 Figure 2 - ADM Assembly____________________________________________________________________ 7 Figure 3 - ADM Main Unit and Battery Pack_____________________________________________________ 7 Figure 4 – LF Excitation Zone_________________________________________________________________ 9 Figure 5 – Door Slot Installation_______________________________________________________________ 9 LIST OF TABLES Table 1 – Excitation Distance_________________________________________________________________ 9 Table 2 – UHF Receive Distance_____________________________________________________________ 10 Table 3 – Battery Pack Characteristics________________________________________________________ 11 Table 4 – Backup Battery Characteristics______________________________________________________ 12 ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 5 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM Definition of terms Tag Collection Period The time (typically 24 hours) interval between two consecutives scheduled data SMS transmissions Read Time Table A table that defines the frequency of tag reading cycles within 24 hours SMS Time Table A table that defines the time of the day when the data SMS is sent Tag Registration First read of a tag in a tag collection period Acronyms ADM Automated Delivery Measurement GSM Global Standard for Mobiles LOS Line-of-Sight RTT Read Time Table RTC Real Time Clock SIM Subscriber Identity Module SMS Short Message Service STT SMS Time Table TCP Tag Collection Period UHF Ultra High Frequency UTC Coordinated Universal Time ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 6 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM 1. OVERVIEW ADM is a remote data collection device used to provide accurate last mile mail delivery measurements. The ADM is placed inside a mailbox or above a mail door slot. When a test letter (letter that contain a tag) is placed in the proximity of an ADM, the tag inside the envelope is excited and its unique ID is read. The ID and the time of read are then transmitted to a backend application over the GSM network using SMS. The ADM concept is illustrated in Figure 1. Test Letter Mailbox GSM Network Backend Application ADM Test Letter Test Lett er Figure 1 – ADM Concept 1.1 Main Characteristics Overall Dimensions (target) - Length: 185mm (including battery pack) - Width: 85mm - Height: 20mm (with small battery pack) Reader - 433MHz receiver, Integrated antenna - 125kHz transmitter, Integrated antenna GSM Modem - 2-Watt EGSM 900/GSM 850 radio section - 1-Watt GSM 1800/1900 radio section - Integrated antenna Data Backup - USB Flash Drive Digital Interface - Micro B USB receptacle for debug and service console LEDs - Power, Busy and GSM ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 7 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM Power - Li-Polymer rechargeable cells Environment - IP64 with battery pack - IP20 w/o battery pack - RoHS compliant 1.2 Physical concept The ADM consists of a main unit and a detachable battery pack. The ADM physical concept is illustrated in Figs. 2-3 Figure 2 - ADM Assembly Figure 3 - ADM Main Unit and Battery Pack Main Unit Battery Pack GSM LED Busy LED Power LED Charge LED ON/OFF Switch ADM Technical Description RFID-LSCAN File: ADM UserMan.doc Page 8 of 12 Status: Rev1 Last Update: 9/21/2010 3:49:00 PM Main physical characteristics • Push-in push-out (double click) battery pack lock mechanism • ON/OFF slide switch • Reset button 2. MODES OF OPERATION The ADM has two modes of operation: a) normal mode (power saving), b) continuous mode: a) In normal mode, the unit is in sleep most of the time. It wakes-up regularly, based on a Read Time Table (RTT). The RTT specifies the frequency of reads (e.g. every five minutes) during a specific time interval (e.g. 8 hours). The RTT spans over 24 hours. One can define up to eight time intervals in 24 hours; each interval can have a different read frequency. In power saving mode, a read cycle can also be triggered by vibration/shock/motion (if the vibration sensor is enabled). The power saving mode is recommended for mailbox installation. b) In continuous mode, the ADM is on all the time. The exciter generates continuously low power LF field designed to catch test letters that are momentarily in the proximity of the unit. This mode is intended for door slot installations. One can combine power saving mode and continuous mode in the RTT. As an example, an ADM can read tags continuously from 7:00AM to 4:00PM, every 10 minutes from 4:00PM to 9:00PM and no reads from 9:00PM to 7:00AM next day. 3. FUNCTIONAL ARCHITECTURE Essentially, the ADM is a battery powered, active RFID reader equipped with a GSM modem. It performs the following main operations: a) Generates LF excitation field b) Receives UHF signal from tags c) Transmits data and status information ove…

Text truncated - open the document above for the full version.

EUT EUT reverse EUT – Labels

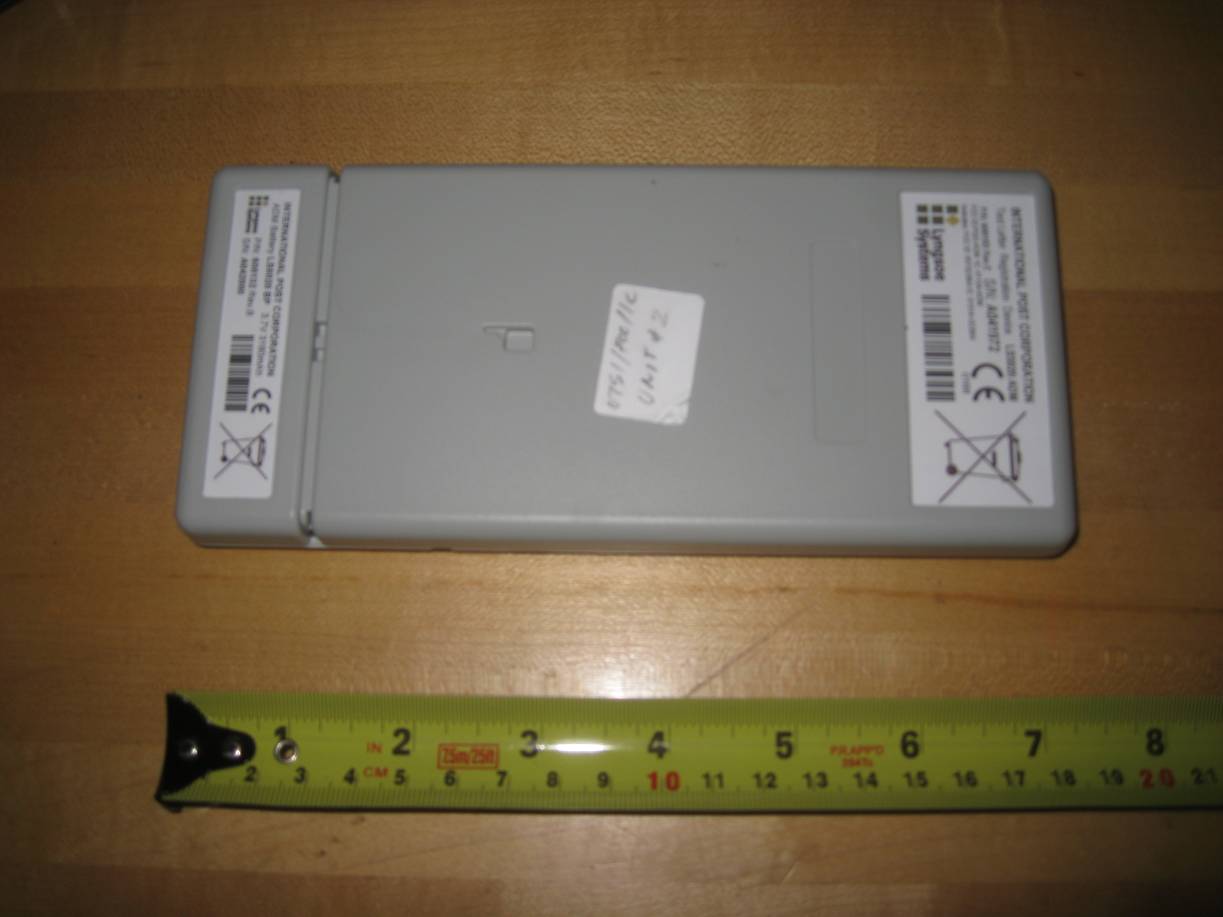

Page 1/1 September 21, 2010 ADM Labels Location September 21, 2010 ADM device label Separate label on the battery pack.

Page 1/1 September 21, 2010 ADM device label Separate label on the battery pack.

Top Side Bottom Side

ADM Technical Description RFID-LSCAN File: ADM Technical description Page 7 of 23 Status: Rev1 Last Update: 9/9/2010 9:50:00 PM 1. OVERVIEW ADM is a remote data collection device used to provide accurate last mile mail delivery measurements. The ADM is placed inside a mailbox or above a mail door slot. When a test letter (letter that contain a tag) is placed in the proximity of an ADM, the tag inside the envelope is excited and its unique ID is read. The ID and the time of read are then transmitted to a backend application over the GSM network using SMS. The ADM concept is illustrated in Figure 1. Test Letter Mailbox GSM Network Backend Application ADM Test Letter Test Lett er Figure 1 – ADM Concept 1.1 Main Characteristics Overall Dimensions (target) - Length: 185mm (including battery pack) - Width: 85mm - Height: 20mm (with small battery pack) Reader - 433MHz receiver, IPC UHF air interface - Integrated antenna - 125kHz 3-D coil transmitter, IPC LF interface GSM Modem - 2-Watt EGSM 900/GSM 850 radio section - 1-Watt GSM 1800/1900 radio section - Integrated antenna Data Backup - USB Flash Drive Debug Interface - USB LEDs - Power, Busy and GSM ADM Technical Description RFID-LSCAN File: ADM Technical description Page 8 of 23 Status: Rev1 Last Update: 9/9/2010 9:50:00 PM Primary power - Li-Polymer rechargeable cells Package - IP64 with battery pack - IP20 w/o battery pack Environment - RoHS compliant 1.2 Physical concept The ADM consists of a main unit and a detachable battery pack. The ADM physical concept is illustrated in Figs. 2-3 Figure 2 - ADM Assembly Figure 3 - ADM Main Unit and Battery Pack Main Unit Battery Pack GSM LED Busy LED Power LED Charge LED ON/OFF Switch

REGISTRATION #6844A-1 Testing Laboratory Certificate #2555.01 R-2621 C-2864 Page 1 of 45 Report issued: 10/21/2010 GEMC #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 231 Rev1.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 7:2007 & FCC Part 15 Subpart C:2010, 15.209 & 15.231(e) Unlicensed Intentional Radiators on the Automated Delivery Measurement (ADM) Scott Drysdale, Narte Certified Technician EMC Lab Manager Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details . Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 2 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions of Spurious Emissions and Emissions Below 30 MHz ................... 13 Duty Cycle of Periodically Operated Transmitters .......................................................... 26 Radiated Emissions of 433.92 MHz Fundamental ......................................................... 30 20 dB Bandwidth of Periodically Operated Transmitters ................................................ 33 Appendix A – EUT/Customer Summary ............................................................................. 37 Appendix B – EUT and Test Setup Photographs................................................................. 39 Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 3 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Combi RFID Master ADM, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 4 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: PQG-ADM EUT Industry Canada Certification #, IC: 4113A-ADM EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 5 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation Not allowed Pass FCC 15.207 Power line conducted emissions QuasiPeak Average See Justification FCC 15.209 RSS-210 (Table 2) FCC 15.231(e) RSS-210 (Table 5) Intentional / Spurious Radiated emissions QuasiPeak Average Pass FCC 15.231(e) RSS-210 A1.1.1(b) Automatic transmission Transmission time < 1 seconds Pass FCC 15.231 (e) RSS-210 A1.1.1(c) Tra…

Text truncated - open the document above for the full version.

Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 43 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions – 9 kHz to 30 MHz setup Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 44 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated emissions – 30 MHz to 1 GHz Note: Although this unit is shown connected to a computer during testing, this provision is only available in the test unit provided for the purposes of initiating the continuous test mode operation. Normal operation would not have this device connected to a computer. Client Lyngsoe Systems Product Automated Delivery Measurement (ADM) Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2010 Page 45 of 45 Report issue date: 10/21/2010 GEMC File #: GEMC-FCC-19845R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Radiated Emissions – 1 GHz to 10 GHz Although this unit is shown connected to a computer during testing, this provision is only available in the test unit provided for the purposes of initiating the continuous test mode operation. Normal operation would not have this device connected to a computer.
