PQG-MC30RGRFID PORTAL FOR POSTAL/DELIVERY TRACKING

Lyngsoe Systems Combi RFID Master MC30RG Doc no. 950237 - Page 1 of 14 Combi RFID Master MC30RG (LS 4230) User Guide Revision A January 2010 Lyngsoe Systems Combi RFID Master MC30RG Doc no. 950237 - Page 2 of 14 1. General..................................................................................................................................................3 2. MC30RG Description ........................................................................................................................... 3 3. Installation ............................................................................................................................................ 6 4. MC30RG Connections .......................................................................................................................... 7 5. Operation .............................................................................................................................................. 8 5.1. The Display and the two buttons ...................................................................................................... 8 5.2. The Motion Sensor ........................................................................................................................... 8 5.3. The front panel LEDs ....................................................................................................................... 8 5.4. Operation.......................................................................................................................................... 9 5.5. Commands Examples ....................................................................................................................... 9 5.5.1. Receiver commands ....................................................................................................................... 10 5.5.2. Exciter commands .......................................................................................................................... 10 5.5.3. Motherboard commands................................................................................................................. 11 5.5.4. Passive tags reader (UHF EPCglobal Gen2 compatible) commands ............................................. 12 5.6. Other commands ............................................................................................................................ 12 6. FCC compliance ................................................................................................................................. 13 7. Appendix 1 – Active and Passive RFID Tags Examples .................................................................... 14 Lyngsoe Systems Combi RFID Master MC30RG Doc no. 950237 - Page 3 of 14 1. General Combi RFID Master MC30RG is a combined unit that can operate completely independent as an RFID Portal that is able to read RFID active tags on 125 kHz/434MHz as well as passive tags on 868/915MHz (see Appendix 1 for active and passive tags examples). After reading, the incorporated Single Board Computer (SBC) can filter the relevant readings and can report them over a wireless GSM / GPRS link to a central database for processing. The marketing name for MC30RG is LS4230 – this name is printed on the front label. Figure 1 - General view 2. MC30RG Description On the top side of the MC30RG portal there is a cover that needs to be removed in order to connect the unit to power and wired RS485 communication lines. Place the portal on a flat surface with the cover up. If the passive antennas are installed, it is recommended to place the portal transversal on a narrower work table with the top cover up such that the two passive antennas hang in the open space. Remove the plastic quarter-turn screws and lift the cover. Figure 2 - Cover removal for MC30RG Remove the four plastic screws using a coin or a flat screwdriver 10-20mm wide. Cover Power Cable RS485 Cable Lyngsoe Systems Combi RFID Master MC30RG Doc no. 950237 - Page 4 of 14 As it can be seen in the above block diagram and from Figure 3 and Figure 4 below, the MC30RG portal integrates in the same enclosure the following modules and subassemblies: Figure 3 – MC30RG inside view – tray closed Figure 4 – MC30RG inside view – tray open #2. MBD40 motherboard #3. EXB40 Transmitter on 125kHz and 434MHz #6. GSM / GPRS QuadBand Modem #4. 434MHz Receiver RDS23 #5. Single Board Computer (SBC) Compact Flash Card (EDECS) Supporting arm 2 x Cooling Fans Two RS485 communication connectors Two +24Vdc Power connectors #1. Passive Tags Reader Internal Motion Sensor Two +24Vdc Power connectors Lyngsoe Systems Combi RFID Master MC30RG Doc no. 950237 - Page 5 of 14 1. Impinj Speedway Revolution passive reader (Part no IPJ-REV-R440-EU11M1 for Europe and IPJ-REV-R440-USA1M for North America) with two or four antennas (can be band specific EU or USA, or dual band antennas that work on both frequencies), compatible with ISO 18000-6C & EPCglobal UHF Class 1 Gen 2 protocols 2. motherboard MBD40 Rev A that provides mechanical support, power and data communication to all other subassemblies and modules. 3. RFID Exciter EXB40 that generates a 125 kHz excitation field for Lyngsoe active tags. In the pictures below you can see an example of Lyngsoe Active RFID tag model PT23. The EXB40 board also includes the 434MHz transmitter circuitry of an active tag in order to generate self-test messages. 4. receiver RD23 on 434MHz that receives the replies from the active tags PT23, PT30 etc. 5. Single Board Computer (SBC) from Axiomtek – Part no. SBC84620 6. GSM / GPRS Quad band modem from TMAS – Part no. TMA-M55i 7. 2.4 GHz RF modem (ZigBee) from Digi (MaxStream) – part no. XBP24-DMCIT-250J For the included subassemblies, details and technical specifications are completely described by the following documents that are part of this user manual (document name in italics): General: RFID System S23, Reference Guide – S23ReferenceGuide.pdf; Motherboard:…

Text truncated - open the document above for the full version.

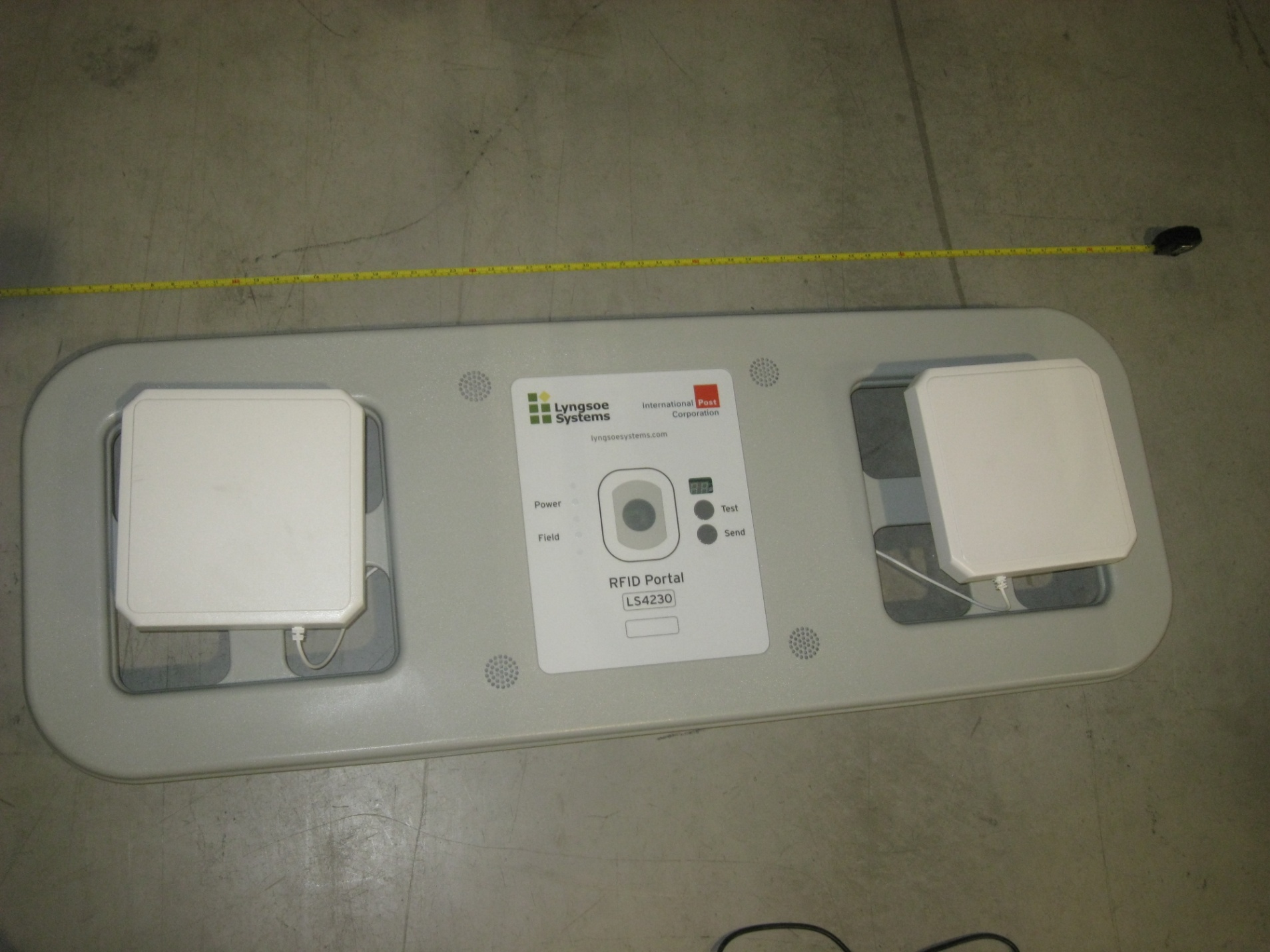

Internal center, cover removed Reverse side of main board (populated with daughter cards) Reverse side of main board (populated without daughter cards) Exciter Board (EXB40) Top Exciter Board (EXB40) Bottom Reader (top) Reader (Bottom) Computer (top with shield removed) Computer (bottom) Loop Antenna

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 52 Report issue date: 1/26/2010 GEMC File #: GEMC-FCC-19282R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 231 Rev1.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 7:2007 & FCC Part 15 Subpart C:2008, 15.209 & 15.231(e) Unlicensed Intentional Radiators on the Combi RFID Master MC30RG Scott Drysdale, Narte Certified Technician EMC Lab Manager Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details . Client Lyngsoe Systems Product Combi RFID Master MC30RG Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2008 Page 2 of 52 Report issue date: 1/26/2010 GEMC File #: GEMC-FCC-19282R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions of Spurious Emissions and Emissions Below 30 MHz ................... 13 Duty Cycle of Periodically Operated Transmitters .......................................................... 32 Radiated Emissions of 433.92 MHz Fundamental ......................................................... 36 20 dB Bandwidth of Periodically Operated Transmitters ................................................ 41 Appendix A – EUT/Customer Summary ............................................................................. 45 Appendix B – EUT and Test Setup Photographs................................................................. 47 Client Lyngsoe Systems Product Combi RFID Master MC30RG Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2008 Page 3 of 52 Report issue date: 1/26/2010 GEMC File #: GEMC-FCC-19282R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Combi RFID Master MC30RG, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2008 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Lyngsoe Systems Product Combi RFID Master MC30RG Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2008 Page 4 of 52 Report issue date: 1/26/2010 GEMC File #: GEMC-FCC-19282R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: PQC-MC30RG EUT Industry Canada Certification #, IC: 4113A-MC30RG EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Lyngsoe Systems Product Combi RFID Master MC30RG Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2008 Page 5 of 52 Report issue date: 1/26/2010 GEMC File #: GEMC-FCC-19282R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation Not allowed Pass FCC 15.207 Power line conducted emissions QuasiPeak Average See Justification FCC 15.209 RSS-210 (Table 2) FCC 15.231(e) RSS-210 (Table 5) Intentional / Spurious Radiated emissions QuasiPeak Average Pass FCC 15.231(e) RSS-210 A1.1.1(b) Automatic transmission Transmission time < 1 seconds Pass FCC 15.231 (e) RSS-210 A1.1.1(c) Transmission off time > 30 x TX interval > 10 seconds Pass FCC 15.231 (c) R…
