PQG-PRX23RFID READER

@Process RFID reader and exciter PRX23 User Manual Doc.# 950409 Rev. A Date: March 8, 2011 Lyngsoe Systems RFID Reader and Exciter PRX23 950409 Page 2 of 8 1. General PRX23 (marketing name LS5050) is an RFID reader and exciter for Lyngsoe’s active tags operating in the 433.92 MHz band. PRX23 (Figure 1) is used for installations in postal applications. Figure 1 – PRX23 PRX23 is designed to operate in a multi-drop RS485 network or on Ethernet LANs; it has assigned a unique address. PRX23 provides the following main functions: • Generates Lyngsoe compliant LF excitation field • Receive over-the-air Lyngsoe tag messages • Process received messages and send data packets with the received data to the network over RS485 or Ethernet (with PoE option) upon request; PRX23 can also store a number of messages in a non-volatile data memory • Remote control/configuration using the RS485 communication network or Ethernet • Output (on/off switchable) to power external devices such as RFID exciter • Remote reset over the RS485 network 2. Installation The typical installation of the PRX23 is wall mount (Figure 2). PRX23 is equipped with two receive antennas (1/4 quarter-wave whip) for diversity. Lyngsoe Systems RFID Reader and Exciter PRX23 950409 Page 3 of 8 Figure 2 – Typical PRX23 installation 2.1. PRX23 Connections PRX23 has the following interfaces: • Power • RS485 • Ethernet • Auxiliary power output 2.1.1. Power Connection WARNING! Before you start the installation, check if the Power Supply provides the specified output voltage, i.e. 24Vdc +/- 10%/0.5A. For power connection use the 4.2mm Mini-Fit Jr receptacle (LS PN 350238) and the female crimp terminals for AWG18-24 (LS PN 350238). Strip the wire isolation 3.0-3.5 mm and crimp the terminals on the wire using the Molex crimping tool 11-01-0197. Insert the terminals in the receptacle body – terminals 1 for (+24V), terminal 3 for (GND) voltage and terminal 2 (middle) for the ground. Remove the connectors cover (Figure 3) and plug in the power connector into the Power In jack. The Power LED (green) goes ON and the Data LED (red) blinks three times (booting). After booting, PRX23 is ready to receive over the air tag messages. Lyngsoe Systems RFID Reader and Exciter PRX23 950409 Page 4 of 8 Figure 3- PRX23 with the connector cover removed 2.1.2. RS485 Connection For the RS485 connection use a standard Cat5 Ethernet cable and RJ45 plug. Crimp the connector using the recommended tool and the following color scheme: pin 1 - Wh/Or; pin 2 – Or; pin 3 – Wh/Gr; pin 4 – Bl; pin 5 – Wh/Bl; pin 6 – Gr; pin 7 – Wh /Br; pin 8 – Br. PRX23 has a single RS485 port with two RG45 jacks connected in parallel for ease of installation (when several PRX23 are attached to an RS485 network). Insert the RS485 connector into one of the RS485 Jacks. The default serial communications parameters are: • Bits per second: 19200 • Data bits: 8 • Parity: None • Stop bits: 1 • Flow Control: None Up to 99 PRX23s can be connected to an RS485 serial bus (Figure 4). Each reader has its own serial address. Figure 4 – PRX23 on RS485 network Controller PRX23 Address=1 PRX23 Address=n (n<100) RS485 bus Power In Jack Ethernet Port RS485 Jacks Aux. Power Outputs Data LED Power LED USB Lyngsoe Systems RFID Reader and Exciter PRX23 950409 Page 5 of 8 The operation of the PRX23 reader is controlled by commands and parameters. The commands and parameters are passed to the PRX23 reader by a computer running a serial communication application such as Procomm. There are several specific commands to configure or to query the PRX23 parameter values. Each command starts with an address field. The commands are described in details in the RFID System S23 Reference Guide document. 2.1.3. Ethernet Connection PRX23 is equipped with a 10/100 Ethernet port for LAN connection. The default mode is AutoDetect. The port also supports the HP Auto-MDIX mode. The Ethernet port connection use a standard RG45 jack. All the commands and parameters available on the PRX23 can use either static IP address (default) or dynamic IP address. The IP address has to be set using the USB console. PRX23 uses a UART-to-USB converter (FT232R). When PRX23 is connected to the USB port of a computer for the first time, one needs to install the VCP driver for the FT232R device from http://www.ftdichip.com/FTDrivers.htm. After downloading the driver, plug one end (micro B) of the USB cable into the USB port (located under the ETHERNET port, see Figure 3) of the Reader and the other end into a computer USB port. The USB serial port settings are: • Bits per second: 19200 • Data bits: 8 • Parity: None • Stop bits: 1 • Flow Control: None Before setting the IP address, the subnet Mask and the Gateway need to be set. From the USB console, type INM=”x.x.x.x” and press Enter, where x.x.x.x is the Subnet Mask. You should see: OK INM=”x.x.x.x” If you see ERROR, try again. Type IGW=”x.x.x.x” and press Enter, where x.x.x.x is the Gateway. You should see: OK IGW=”x.x.x.x” Type :CONFIG:STORE and press Enter to store these configuration. You should see: OK 00 a. Set a static IP address Lyngsoe Systems RFID Reader and Exciter PRX23 950409 Page 6 of 8 To assign a static IP address, type IIP=”x.x.x.x” where x.x.x.x is the IP address, and press Enter. You should see OK IIP=” x.x.x.x” Type :CONFIG:STORE and press Enter, to store the new IP address. You should see: OK 00 Then, type :RESET and press Enter. You should see: PRX23, Lyngsoe Systems Ltd. (c) b. Use DHCP to get an IP address Make sure the network cable is connected. Type IDH=Y and press Enter to select “dynamic IP mode”. You should see: OK IDH=Y Type :CONFIG:STORE and press Enter. You should see; OK 00 Type :RESET and press Enter. You should see PRX23, Lyngsoe Systems Ltd. (c) Type IIP and press Enter to read the IP address. You should see: OK DHCP IP Address: x.x.x.x where x.x.x.x is the IP address assigned to the PRX23. If the PRX23 power is cycled, the dynamic IP address may change. After the IP ad…

Text truncated - open the document above for the full version.

Page 1/1 Date: March 8, 2011 To Whom It May Concern Subject: Authority to Act as an Agent Applicant: Lyngsoe Systems Ltd. FCC ID: PQG-PRX23 Dear Sir/Madam, I hereby appoint Global EMC Inc to act as my agent in preparation of this application for authorization of above equipment under F.C.C. Rules. The applicant hereby certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a “party” for these purposes. I also certify that the information provided, properly describe the device or system for which authorization is required. Regards Don Ferguson President

Page 1/1 Federal Communications Commission May 30, 2011 Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: PQG-PRX23 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics PQG-PRX23 Schem.pdf Parts List PQG-PRX23 PartsLst.pdf Block diagrams PQG-PRX23 BlockDia.Pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Don Ferguson, President

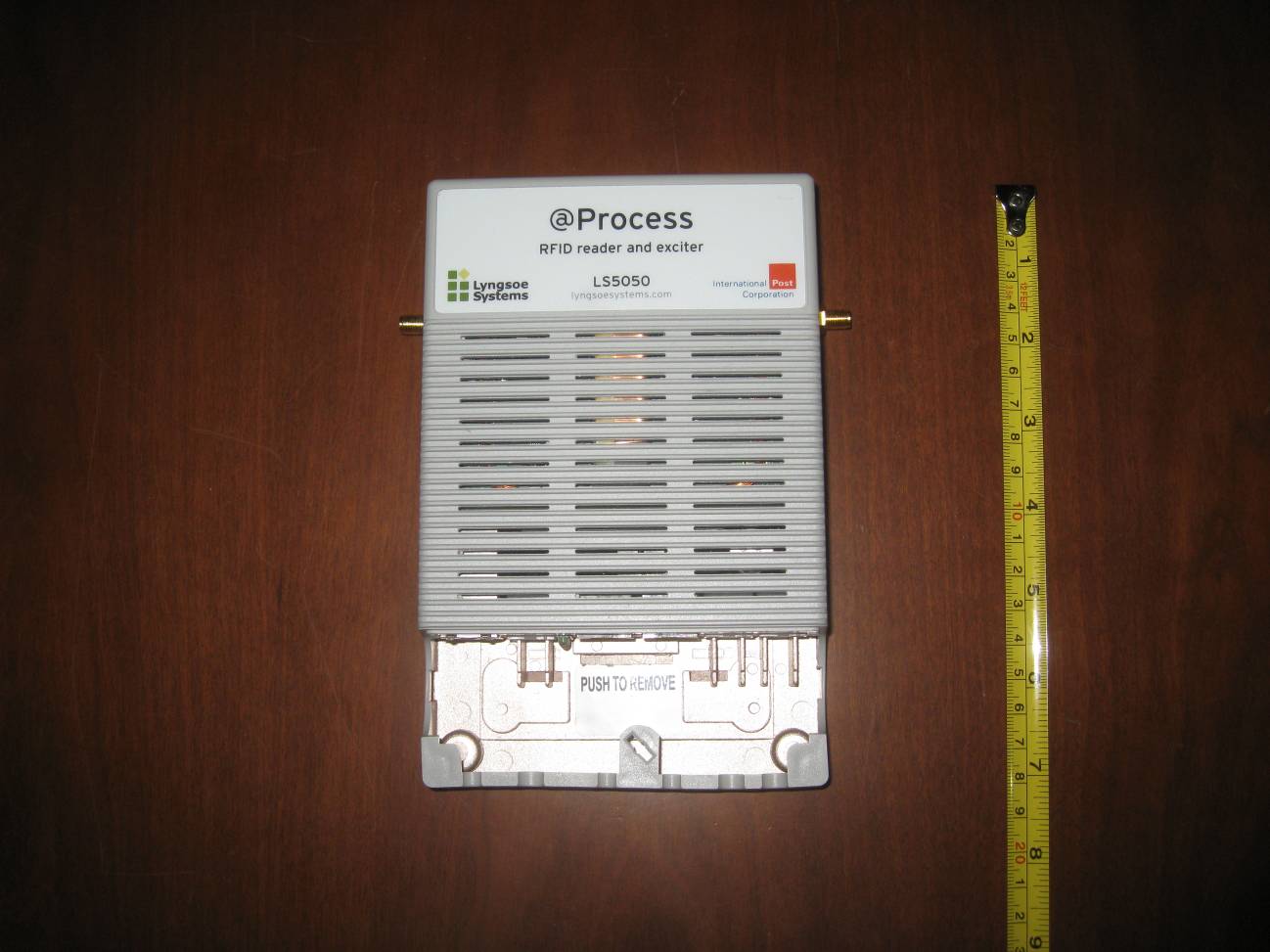

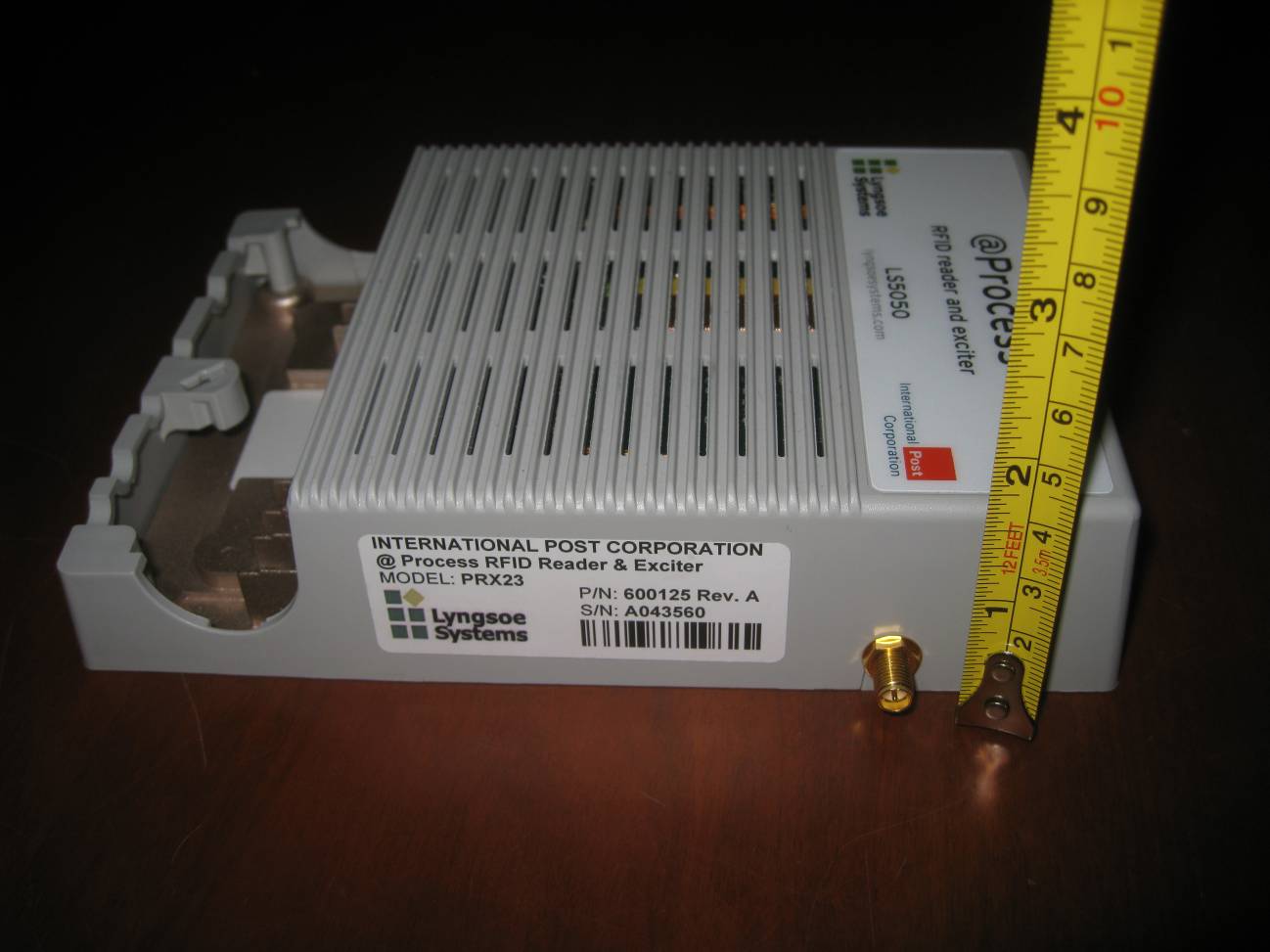

External Photo(s) Top Bottom Side 1 Side 2 Side 2 (cover on) Top (With Antenna)

Page 1/1 March 8, 2011 PRX23 Labels Location Figure 1 – PRX23 Device label location Figure 2 – PRX23 FCC/IC/EC label location

Page 1/1 March 8, 2011 PRX23 device label PRX23 FCC/IC/CE label

Internal Photo(s) Top (assembled) Top (master board) Top (master board with shield removed) Bottom (master board) Top (daughterboard) Bottom (daughterboard)

REGISTRATION #6844A-1 Testing Laboratory Certificate #2555.01 R-2621 C-2864 Page 1 of 55 Report issued: 5/25/2011 GEMC #: GEMC-FCC-20130R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 231 Rev1.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2010, 15.209 & 15.231(e) Unlicensed Intentional Radiators on the @Process RFID reader and exciter (PRX23) Scott Drysdale, Narte Certified Technician EMC Lab Manager Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details . Client Lyngsoe Systems Product @Process RFID reader and exciter (PRX23) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 2 of 55 Report issue date: 5/25/2011 GEMC File #: GEMC-FCC-20130R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Power Line Conducted Emissions ................................................................................... 13 Radiated Emissions .......................................................................................................... 20 Duty Cycle of Periodically Operated Transmitters .......................................................... 33 Radiated Emissions of 433.92 MHz Fundamental ......................................................... 38 20 dB Bandwidth of Periodically Operated Transmitters ................................................ 42 Appendix A – EUT/Customer Summary ............................................................................. 46 Appendix B – EUT and Test Setup Photographs................................................................. 49 Client Lyngsoe Systems Product @Process RFID reader and exciter (PRX23) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 3 of 55 Report issue date: 5/25/2011 GEMC File #: GEMC-FCC-20130R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Combi RFID Master ADM, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Lyngsoe Systems Product @Process RFID reader and exciter (PRX23) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 4 of 55 Report issue date: 5/25/2011 GEMC File #: GEMC-FCC-20130R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: PQG-PRX23 EUT Industry Canada Certification #, IC: 4113A-PRX23 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Scott Drysdale Client Lyngsoe Systems Product @Process RFID reader and exciter (PRX23) Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2010 Page 5 of 55 Report issue date: 5/25/2011 GEMC File #: GEMC-FCC-20130R2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation Not allowed Pass FCC 15.207 Power line conducted emissions QuasiPeak Average Pass FCC 15.209 RSS-210 (Table 2) FCC 15.231(e) RSS-210 (Table 5) Intentional / Spurious Radiat…

Text truncated - open the document above for the full version.

Test Setup Photo(s) Power line conducted emissions Radiated Emissions Below 30 MHz Radiated Emissions – 30 MHz to 1 GHz
