PQG-PT40APT40A Postal tag

PT40A Postal Tag RFID-LSCAN Page: 1 of 6 PT40A Postal Tag User Manual Version 2 – Feb 2012 PT40A Postal Tag RFID-LSCAN Page: 2 of 6 TABLE OF CONTENTS 1 INTRODUCTION 3 1.1 Purpose 3 1.2 Definitions 3 2 BLOCK DIAGRAM 3 3 PT40A OPERATION DESCRIPTION 3 3.1 Modes of operation 4 3.2 Valid Excitation Fields 4 3.3 Commands and Parameters 4 3.4 PT23 / PT40A vs. PT21 4 3.4.1 ExId range 4 3.4.2 Black-out 4 4 REGULATORY COMPLIANCE 5 4.1.1 Maximum Transmission Time 5 4.1.2 Maximum Duty Cycle 6 PT40A Postal Tag RFID-LSCAN Page: 3 of 6 1 INTRODUCTION 1.1 Purpose The purpose of this document is to describe the functionality and operation of the PT40A tag intended for use in a RFID system custom designed for International Post Corporation. The tag features reflect the application requirements. You can find more details into “PT40A Functional Specifications”. 1.2 Definitions Valid LF Field – A 125 kHz carrier signal modulated OOK with a signal carrying the exciting device identification number (ExID). Excitation Mode – tag transmits its ID together with the exciter ID when it is woken up by a valid LF field. Transmission – When is excited by a valid LF field, the tag transmits its ID over a 433.92 MHz FSK modulated carrier. 2 BLOCK DIAGRAM Block diagram for Postag PT40A is presented in Figure 2-1 below: 3 PT40A OPERATION DESCRIPTION Postag PT40A is a transponder (RF Tag) that receives an excitation signal and responds by transmitting back a message. It is custom designed for low cost and reliability in the postal environment. It is a direct replacement of previous models PT21 and PT23 tags and can be used with any of the Lyngsoe RFID systems – S96, S21 S23, and S30. PT40A operates exactly the same as PT30 only in a smaller form factor that can be placed in a foam carrier. Postag PT40A provides the following main functions: - Identifies a valid excitation field and reads the excitation identifier (ExId); - Following a valid excitation, it transmits on 433.92MHz several identical messages that include (among others) the tag user data, the ExId and a battery flag. - Its user data and operating parameters are programmed wirelessly using a special programming device LF_RX uCtrl UHF_TX 3V Battery U H F A n t e n n a LF Ant 13.56MHz crystal Figure 2-1 PT40A Postal Tag RFID-LSCAN Page: 4 of 6 3.1 Modes of operation Postag PT40A has several main modes of operation: sleep, LF excitation recognition, UHF transmission and programming. The sleep mode is the normal mode of operation. In the sleep mode, only the LF receiver is powered up and the total current consumption is less than 5uA. When a LF signal is detected by the LF receiver, it wakes-up the microcontroller to check if this signal has a valid modulation pattern. The LF field validation is done by the microcontroller using an RC internal 90 kHz clock at a low current consumption. If a valid excitation field is recognized, then the microcontroller wakes-up its UHF Transmitter and transmits on the UHF the pre-programmed messages. When PT40A recognizes a valid S21 / S23 excitation it transmits on UHF messages using S21 format. The PT40A operation and the message content can be programmed using dedicated devices. The tag transmits a number of messages each time it enters a valid S21 or S23 fields. First transmission is delayed a few ms depending of the parameter WID that programmed randomly for each tag within the 10 -30 range during the manufacturing process. Subsequent transmissions are each randomly delayed compared with the preceding one based on a calculation that involves several random numbers generated internally function of another parameter WSD. This WSD parameter is also programmed randomly for each tag within the 10 -30 range during the manufacturing process. Repeating the same message a number of times ensures that, even if multiple tags are excited in the same time, many messages will not collide and at least one from each tag will be successfully received. 3.2 Valid Excitation Fields For a field to be valid, it has to have a special pattern called exciter ID. If fields with different exciter ID overlap and a tag moves from one to another it will transmit WEP number of messages each time it “sees” a new exciter ID. 3.3 Commands and Parameters The commands and parameters accepted by Postag PT40A are the same as for the Postag PT21 / PT23 and are listed in the RFID System S21 – Reference Guide, document 950061 rev. 1. The most used programmable parameters for PT40A are WIP, WRC and WUD. Examples of default parameters’ values that will fit most applications are: WUD = “xxxxx” 5 characters of user data WIP, WRC= their sum represents the number of identical messages to transmit following an excitation. WIP parameter range is 1 to 20, WRC parameter range is 0 to 10, and default values for each are 10. WID = randomly assigned initial delay after excitation, multiples of 4 ms, range 1-200, default 1. This ensures a randomization of the first transmissions following an (almost) simultaneously excitation of multiple tags. WSD = inter-message random delay, range 7 – 15, default 10 (no direct physical interpretation of this value) 3.4 PT40A vs. PT21 The main functional differences between tags model PT40A and PT21 are related to the ExId range of identifiers and the black- out time. PT40A behaves the same as PT30. 3.4.1 ExId range Postags PT21 recognize and report received ExId with S21 format in the range 0 to 31. PT40A recognize and report received ExId with S21 format in the range 0 to 31, and with S23 format in the range 0 to 127. 3.4.2 Black-out Black-out is the minimum time interval between two consecutive excitations which the tag can recognize. Postag PT21 has a black-out time 10.0 s. For PT40A this blackout time was reduced to less than 2.0 s. In situations where we want to re-register a tag that leaves and re-enters a field with the same exciter ID, the tag has to be out of the field for more than the black out time duration. This happens for example w…

Text truncated - open the document above for the full version.

January 25, 2012 Ultratech Engineering Labs, Inc. 3000 Bristol Circle Oakville, Ontario L6H 6G4 Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.231 Momentarily Operation at 433.92 MHz Applicant: Lyngsoe Systems Ltd. Product: Postal Tag Model No.: PT40A FCC ID: PQG-PT40A Dear Sir/Madam: As appointed agent for Lyngsoe Systems Ltd., we submit this application for equipment certification of the above product. Please review all required documents uploaded to your E-Filing Site. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu V.P., Engineering Encl UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 FCC 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R Korea KCC-RRL CA2049 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected] January 25, 2012 Lyngsoe Systems Ltd. 5570 Kennedy Road, Unit B Mississauga, Ontario Canada L4Z 2A9 Attn.: Ms. Mary Huzum Subject: Application for Equipment Certification under FCC Part 15, Subpart C, Section 15.231 Momentarily Operation at 433.92 MHz Product: Postal Tag Model No.: PT40A FCC ID: PQG-PT40A Dear Ms. Huzum: The product sample, as provided by you, has been tested and found to comply with FCC Part 15, Subpart C, FCC Part 15, Subpart C, Section 15.231 Momentarily Operation at 433.92 MHz. Enclosed you will find copy of the engineering report. If you have any queries, please do not hesitate to contact us. Yours truly, Tri Minh Luu V.P., Engineering Encl UltraTech Group of Labs FCC TCB & IC CB Ultratech’s Accreditations: 0685 31040/SIT C-1376 46390-2049 200093-0 SL2-IN-E-1119R Korea MIC-RRL 2005-82 & 83 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]

ANNEX 2 – EXTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A ANNEX 2 – EXTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A

ANNEX 4 – Label& Label Location Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A ANNEX 4 – Label& Label Location Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A

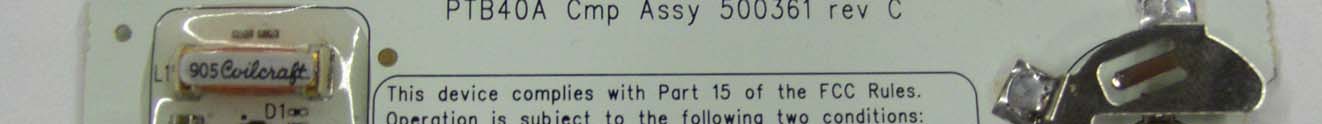

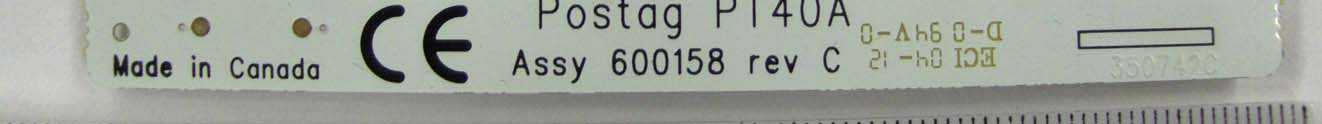

ANNEX 2 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A ANNEX 2 – INTERNAL PHOTOGRAPHS Lyngsoe Systems Ltd. Postal Tag, Model PT40A IC: 4113A-PT40A

Postal Tag Model No.: PT40A FCC ID: PQG-PT40A Applicant: Lyngsoe Systems Ltd. 5570 Kennedy Road, Unit B Mississauga, Ontario Canada L4Z 2A9 In Accordance With Federal Communications Commission (FCC) Part 15, Subpart C, Section 15.231 Low Power Transmitter & Momentarily Operation (433.92 MHz) UltraTech's File No.: LYI-087F15C231 This Test report is Issued under the Authority of Tri M. Luu Vice President of Engineering UltraTech Group of Labs Date: January 25, 2012 Report Prepared by: Dan Huynh Issued Date: January 25, 2012 Tested by: Hung Trinh, EMC/RFI Technician Test Dates: Jan. 22-23, 2012  The results in this Test Report apply only to the sample(s) tested, and the sample tested is randomly selected.  This report must not be used by the client to claim product endorsement by NVLAP or any agency of the US Government. UltraTech 3000 Bristol Circle, Oakville, Ontario, Canada, L6H 6G4 Tel.: (905) 829-1570 Fax.: (905) 829-8050 Website: www.ultratech-labs.com , Email: [email protected], Email: [email protected] FCC Korea KCC-RRL 91038 1309 46390-2049 NvLap Lab Code 200093-0 SL2-IN-E-1119R CA2049 FCC Part 15, Subpart C, Section 15.231 Periodic Transmitters Page 1 Postal Tag, Model No.: PT40A FCC ID: PQG-PT40A TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION .............................................................................................................................. 2 1.1. SCOPE ........................................................................................................................................................ 2 1.2. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 2 1.3. NORMATIVE REFERENCES ..................................................................................................................... 2 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................................... 3 2.1. CLIENT INFORMATION ............................................................................................................................. 3 2.2. EQUIPMENT UNDER TEST (EUT) INFORMATION .................................................................................. 3 2.3. EUT’S TECHNICAL SPECIFICATIONS ...................................................................................................... 4 2.4. LIST OF EUT’S PORTS .............................................................................................................................. 4 2.5. ANCILLARY EQUIPMENT .......................................................................................................................... 4 2.6. TEST SETUP BLOCK DIAGRAM ................................................................................................................ 5 EXHIBIT 3. EUT OPERATING CONDITIONS AND CONFIGURATIONS DURING TESTS ............................. 6 3.1. CLIMATE TEST CONDITIONS ................................................................................................................... 6 3.2. OPERATIONAL TEST CONDITIONS & ARRANGEMENT FOR TESTS .................................................... 6 EXHIBIT 4. SUMMARY OF TEST RESULTS ..................................................................................................... 7 4.1. LOCATION OF TESTS ................................................................................................................................ 7 4.2. APPLICABILITY & SUMMARY OF EMC EMISSION TEST RESULTS ....................................................... 7 4.3. MODIFICATIONS INCORPORATED IN THE EUT FOR COMPLIANCE PURPOSES ............................... 7 EXHIBIT 5. MEASUREMENTS, EXAMINATIONS & TEST DATA FOR EMC EMISSIONS ............................. 8 5.1. ANTENNA REQUIREMENTS [47 CFR § 15.203] ....................................................................................... 8 5.2. PROVISIONS FOR PERIODIC TRANSMITTERS [47 CFR 15.231(A)] ....................................................... 9 5.3. TRANSMITTER RADIATED EMISSIONS [47 CFR §§ 15.231(B), 15.209 & 15.205] ................................ 10 5.4. 20 DB BANDWIDTH [47 CFR 15.231(C)] ................................................................................................... 15 EXHIBIT 6. TEST EQUIPMENT LIST ............................................................................................................... 18 EXHIBIT 7. MEASUREMENT UNCERTAINTY ................................................................................................ 19 7.1. RADIATED EMISSION MEASUREMENT UNCERTAINTY ...................................................................... 19 FCC Part 15, Subpart C, Section 15.231 Periodic Transmitters Page 2 Postal Tag, Model No.: PT40A FCC ID: PQG-PT40A ULTRATECH GROUP OF LABS File #: LYI-087F15C231 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 January 25, 2012 Tel. #: 905-829-1570, Fax. #: 905-829-8050, Email: [email protected] , Website: http://www.ultratech-labs.com All test results contained in this engineering test report are traceable to National Institute of Standards and Technology (NI EXHIBIT 1. INTRODUCTION 1.1. SCOPE Reference: FCC Part 15, Subpart C, Section 15.231 Title: Code of Federal Regulations (CFR), Title 47, Telecommunication - Part 15 Purpose of Test: To gain FCC Equipment Certification for section 15.231 - Momentarily Operation at 433.92 MHz. Test Procedures: Both conducted and radiated emissions measurements were conducted in accordance with American National Standards Institute ANSI C63.4 - American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Environmental Classification: Commercial, industrial or business environment 1.2. RELATED SUBMITTAL(S)/GRANT(S) None. 1.3. NORMATIVE REFERENCES Publication Year Title 47 CFR Parts 0-19…
