PQMCRM02RADIO BOX

RADIO BOX PN : 621-8167 / 621-8168 General Power On/Off Set your vehicle’s Key to the ACC or ON position Power On: Press “ ” Power Off: Press “ ” Source Selection Press [AM], [FM], [DAB], [AUX], [BT] or [USB] to change the source. Volume Adjustment (Setting range: 0 to 20, Default 10) Touch the Volume indicator. Right direction to increase the volume, and Left direction to decrease the volume. [Volume] Select a band in the Radio [Power On/Off] Increase/Decrease the frequency. [BAND] Select a band in the Radio Radio Operation -AM/FM/DAB- Operation Flow 1. Press [AM] or [FM] to select a band. 2. Select station Frequency Adjustment T ouch the indicator. (Right side: Higher, Left side: Lower) Preset Station Selection Press the preset channel button from 1 to 7 to tune in a preset station Station Preset The 7 stations with good reception will be manually saved in the memory under preset 1 to 7. Preset stations can be simply called up by pressing 1 to 7. Manual Preset Memory 1. Use tuning to find a station 2. Press and hold one of the preset button 1 through 7 on the screen by more than 2 seconds. [BAND] Select a band in the Radio [TUNE] Increase/Decrease the frequency. [Preset Button] Select a preset station in the radio source, preset the current station.(By holding it down by more than 2 seconds) USB/Bluetooth ○ R Music Operation Operation Flow 1. Press [BT] or [USB] to select a band. 2. Connect the USB memory or iPOD to USB port. 3. When connect the USB memory or iPOD, the radio stream the sound automatically. 4. Folder Selection Touch the [Folder Select] and select the folder name. File Selection Touch the file name Pause Touch the white circle on the play time [BAND] Select a band in the Radio [Audio File] Select Audio File in the USB memory or iPOD. [Folder] Select the Folder [Play Time] Indicate the play time Push the white circle to pause the sound Bluetooth ○ R - General Operation Flow 1. Pairing Press the [Pairing] button to make this unit standby for pairing with waiting status. 2. Operate you Bluetooth device to input the PIN code for connection. (Default PIN code is “0000”) Once pairing is successful, the registered Bluetooth device can automatically communication with this unit. Paired Devices Press “Paired Devices” button to delete the registered device. Note
If registration is not successfully completed within 1 minute, “Time out” appears.
If registration fails because of mismatched PIN code, “BT PIN Error” appears.
Depending on the communication status, it may take 5 to 40 seconds for device connection. [Pairing] Go to process of Pairing [Paired Devices] Select the device which already was registered. Bluetooth ○ R - Hands Free Phone- Phone Call Select the [Phone] and select the [Call]. And select the phone number. Phone Hanging Up Press “” during a call. [Phone] Select a call or Bluetooth setting Phone Answering/ Reject Phone Answering Press “” button during a call incoming. The “Incoming Call” message blinks during a call incoming. Phone Reject/Hanging Up Press “” button when reject a call incoming or hang up a call. [Incoming Call Message] Indicate during a call incoming/ making a call [Phone Answering] [Hanging Up] AUX Operation Operation Flow 1. Press [AUX] 2. Connect the Sound equipment via Stereo jack. 3. When connect the Sound equipment, the radio stream the sound automatically. [BAND] Select a band in the Radio Model : 621-8167 / 621-8168 Specifications General ●Power supply : 24 V DC (12V / 24V), test voltage 24V, negative ground ●Current consumption : Less than 3 A (during USB playback) ●Power Output : 15 W x 2 ch (DIST=10% x 2ch) ●Maximum power output : 30 W x 2 ch ●Compatible speaker impedance : 8 Ω ●Dimensions (W x H x D) : 175 x 50 x 121.5 mm ●Weight: 540 g FM stereo radio ●Frequency range : North America 、 Latin America 87.5~107.9 MHz (200 KHz/STEP) Japan 76.0～108.0 MHz (100 KHz/STEP) Oceania 87.5~108.0 MHz (100 KHz/STEP) Europe 、 Asia 87.5~108.0 MHz (50 KHz/STEP) ●Usable sensitivity : 6 dB/μV ●Stereo separation : 35 dB (1 kHz) ●S/N ratio: 56dB AM radio ●Frequency range : North America 530～1710 kHz (10 KHz/STEP) Latin America 530～1710 kHz (5 KHz/STEP) Japan 、 Europe 、 Asia 、 Oceania 522～1629 kHz (9 KHz/STEP) ●Usable sensitivity : 33 dB/μV USB ●USB standard ●compatibility: 1.1/2.0 Full speed ●File system: FAT12/16/32 ●Power off maximum supply current for apple ipad: 2 A ●Playable a udio format: MP3/WMA ●capacity/partition: Less than 32 GB/Only supported for 1 partition. Bluetooth ® ●Frequency: 2400 ~ 2483.5 MHz ●RF Transmit Power(Basic Rate): -6 ~ +4dBm ● Bluetooth® Version: Version 4.2 Dealer Name: ZEPPELIN BAUMASCHINEN GMBH Physical Address: Zeppelinstrasse 2 03099 Kolkwitz-Krieschow Deutschland Website: https://www.zeppelin.com/de-en/cat/ Operating temperature : -40°C ~85°C FCC Statement: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which canbe determin ed by turning the equipment off and on, the user is encouraged to try to correctthe interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiveris connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliancecould void the user’s author…

Text truncated - open the document above for the full version.

TCB Authority to Act as Agent Page 1 of 1 Caterpillar: Confidential Green Authority to Act as Agent Date: 15 November 2022 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint _______TUV Taiwan_______ to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Caterpillar, Inc. 100, North East Adams Street, Peoria, Illinois,61629, United States. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 2022/11/15 Agreement is valid for 12 months from the above date. By: __________________________ Michael Caruthers (Signature) (Print name) Product Manager 309-578-8131 (Title) (Telephone) On behalf of: Caterpillar, Inc. (Company Name)

TCB Authority to Act as Agent Page 1 of 1 Caterpillar: Confidential Green Authority to Act as Agent Date: 14 November 2022 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint Caterpillar, Inc., Michael Caruthers to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with Caterpillar, Inc. 100, North East Adams Street, Peoria, Illinois,61629, United States. For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 2022/11/14 Agreement is valid for 12 months from the above date. By: __________________________ Wesley Breedlove (Signature) (Print name) Certification Engineer 309-578-6057 (Title) (Telephone) On behalf of: Caterpillar, Inc. (Company Name) Wes Breedlove

TCB FCC Request for Confidentiality Letter MS-0044715 Page 1 of 1 Revision 1 Caterpillar: Confidential Green Date: 11/15/2022 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: PQMCRM02 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction Caterpillar, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of specify number of days not to exceed 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: _______________________________________________ ____Michael Caruthers _ (Signature/Title) (Print name) Tel: Email:

Approval sheet Page 1 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 MULTILAYER CERAMIC ANTENNA RFANT Pb free Series – RoHS Compliance 2.4 GHz ISM Band Working Frequency P/N: RFANT5220110A0T Customer: Panasonic Taiwan Co., Ltd. *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 FEATURES
Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm 3 meet future miniaturization trend.
Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product.
High Stability in Temperature / Humidity Change APPLICATIONS
Bluetooth
Wireless LAN
HormRF
ISM band 2.4GHz wireless applications DESCRIPTION Walsin Technology Corporation develops a new ceramic embedded antenna specified for 2.4 GHz ISM Band application, as shown in below “CONSTRUCTION”. Both of Wireless LAN IEEE 802.11b and Bluetooth TM typically located on this unlicensed frequency band which range covers from 2.4GHz to 2.4835GHz. To fulfil the friendly usage for antenna, this antenna has been designed to a typical 150MHz bandwidth through Walsin’s advanced LTCC (Low Temperature Co-fired Ceramic) technology and superior product design via 3D EM Simulation Skill. This antenna has a rectangular ceramic body with a tiny dimension of 5.2x 2.0 x 1.1 mm 3 meet the future SMT automation and miniaturization requirements on modern portable devices. CONSTRUCTION Fig 1. Outline of 2.4GHz Antenna – RFANT5220110A0T Fig 2. Dimension L= 2.0 ±0.2 mm T= 1.15 ±0.10 mm W = 5.2 ± 0.2 mm A = 0.40 ± 0.25 mm A = 0.40 ± 0.25 mm WTC L= 2.0 ±0.2 mm T= 1.15 ±0.10 mm W = 5.2 ± 0.2 mm A = 0.40 ± 0.25 mm A = 0.40 ± 0.25 mm WTC L= 2.0 ±0.2 mm T= 1.15 ±0.10 mm W = 5.2 ± 0.2 mm A = 0.40 ± 0.25 mm A = 0.40 ± 0.25 mm WTC Identification mark Soldering terminal W T C W T C Feeding Identification mark Soldering terminal W T C W T C Feeding Approval sheet Page 3 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 SOLDER LAND PATTERN DESIGN Figure ELECTRICAL CHARACTERISTICS RFANT5220110A0T Specification Working Frequency Range 2.4 GHz ～ 2.5GHz Gain 2 dBi (Typical) VSWR 2 max. Polarization Linear Azimuth Bandwidth Omni-directional Impedance 50Ω Rated Power (max.) 3 Watts Maximum Input Power 5 Watts for 5 minutes Operation Temperature -40 ̊C ~ +85 ̊C Remark: The specification is defined based on the test board dimension as in below Approval sheet Page 4 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 Antenna on Test Board ( FR4 Thickness 0.8mm) Antenna S11 on Measured Board: Measured Frequency (GHz) 2.67 2.7425 2.82 Return Loss( S11)( dBmax.) <-10 <-10 <-10 Measured Board + S11: Bandwidth >150MHzBandwidth >150MHz Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Approval sheet Page 5 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT5220110A0T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= -0.82 dBi Peak Gain = 1.69 dBi Average Gain =-3.22 dBi Peak Gain= -5.42 dBi Average Gain=-8.98 dBi X - Z Plane Average Gai n=-0.91 dBi Peak Gain= -5.97 dBi Average Gain=-3.24dBi Peak Gain= 2.66 dBi Average Gain= -8.61 dBi X - Y Plane Average G ain= -0.68 dBi Peak Gain= -5.97 dBi Average Gain=-3.12 dBi Peak Gain= 2.59 dBi Average Gain= -9.24 dBi Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X z Y z Y z X z X X Y X Y Empty Area GROUND 30x18 mm WTC X Y Z Empty Area GROUND 30x18 mm WTC X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec *Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature ：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec *Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec *Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24 ±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Samples shall satisfy electrical specification after test. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N( ≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5 ±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Samples shall satisfy electrical specification after test. Approval sheet Page 7 of 9 ASC_RFANT5220110A0T_V13 Oct. 2010 Temperature cycle JIS C 0025 1. 30 ±3 minutes at -40°C±3°C, 2. 10~15 minutes at room temperature, 3. 30 ±3 minutes at +85°C±3°C, 4. 10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24 ±2 hrs No mechanical damage. Samples shall satisfy electrical specification after test. Vibration JIS C 0040 *Frequency ：10Hz~55Hz~10Hz(…

Text truncated - open the document above for the full version.

Caterpillar: Confidential Green 15-Nov-22 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: PQMCRM02 Models: 621-8167, 621-8168 Declaration on Similarity We herewith confirm that for the models listed above the RF Transmitter Module is Electrically Identical. The differences are in the model numbers and in the digital data interface. 1) Please describe the difference. 621-8168 with DAB tuner,621-8167 without DAB tuner. ___________________ Michael Caruthers (Signature) (Printed)

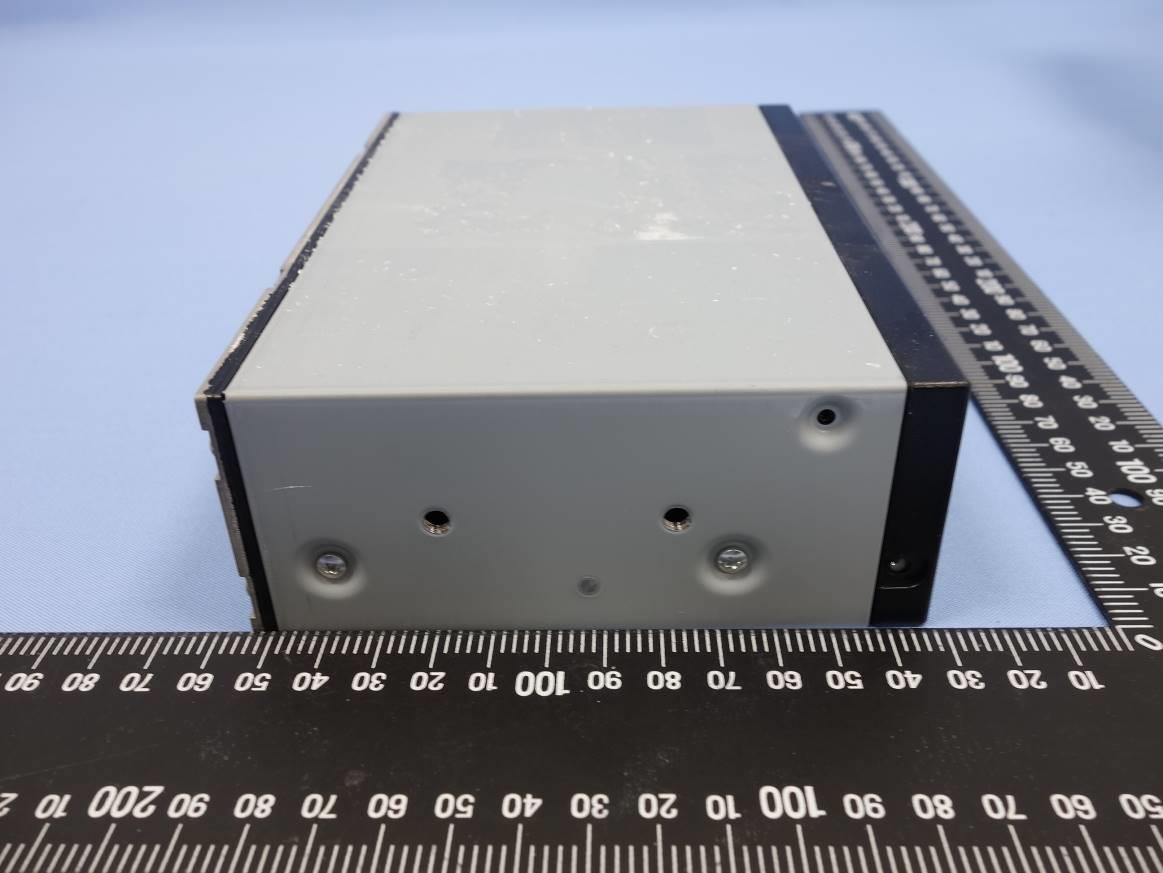

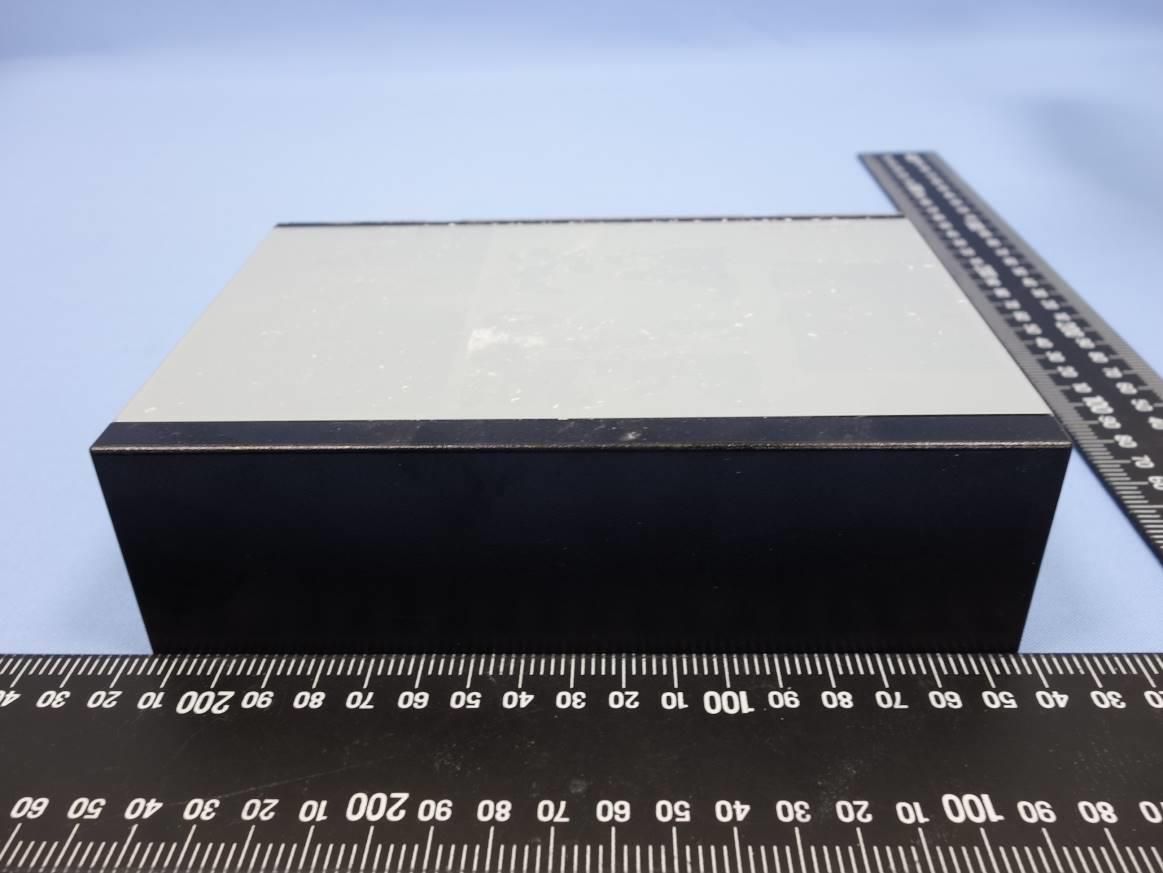

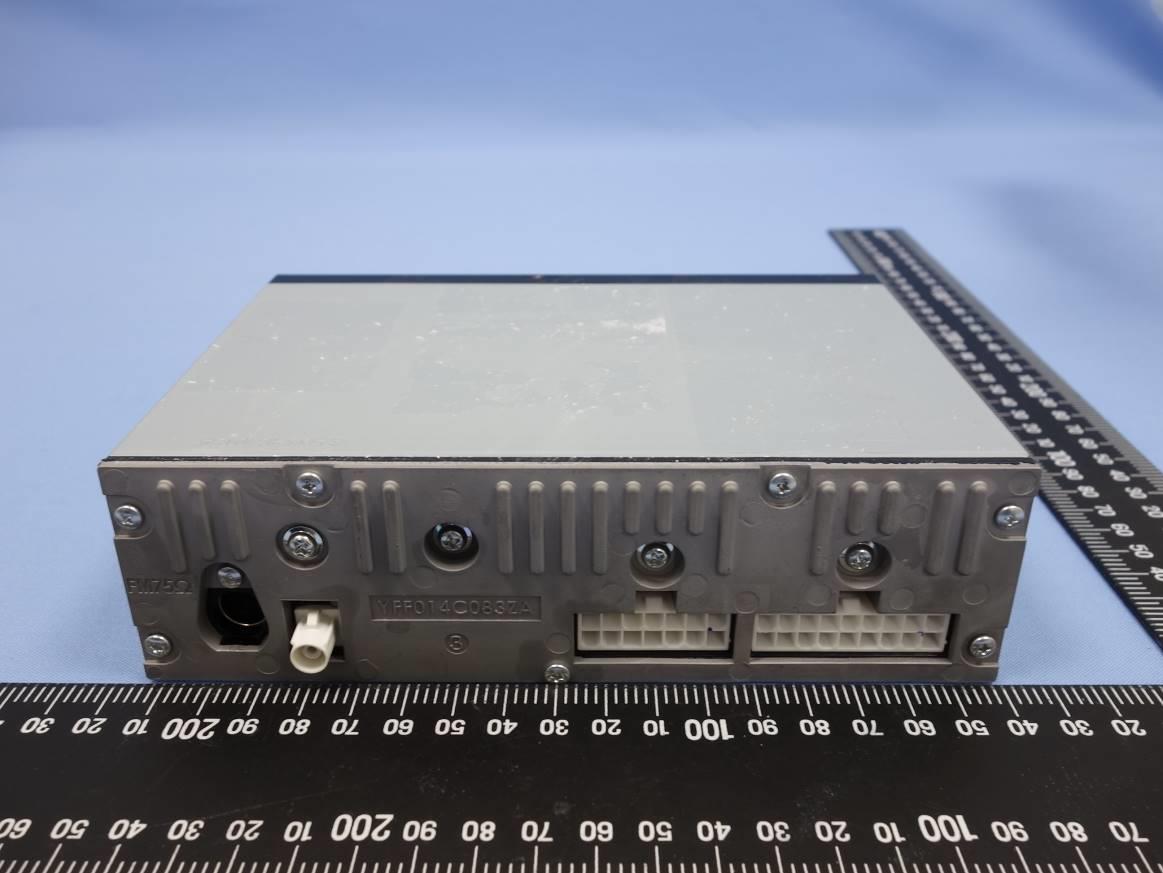

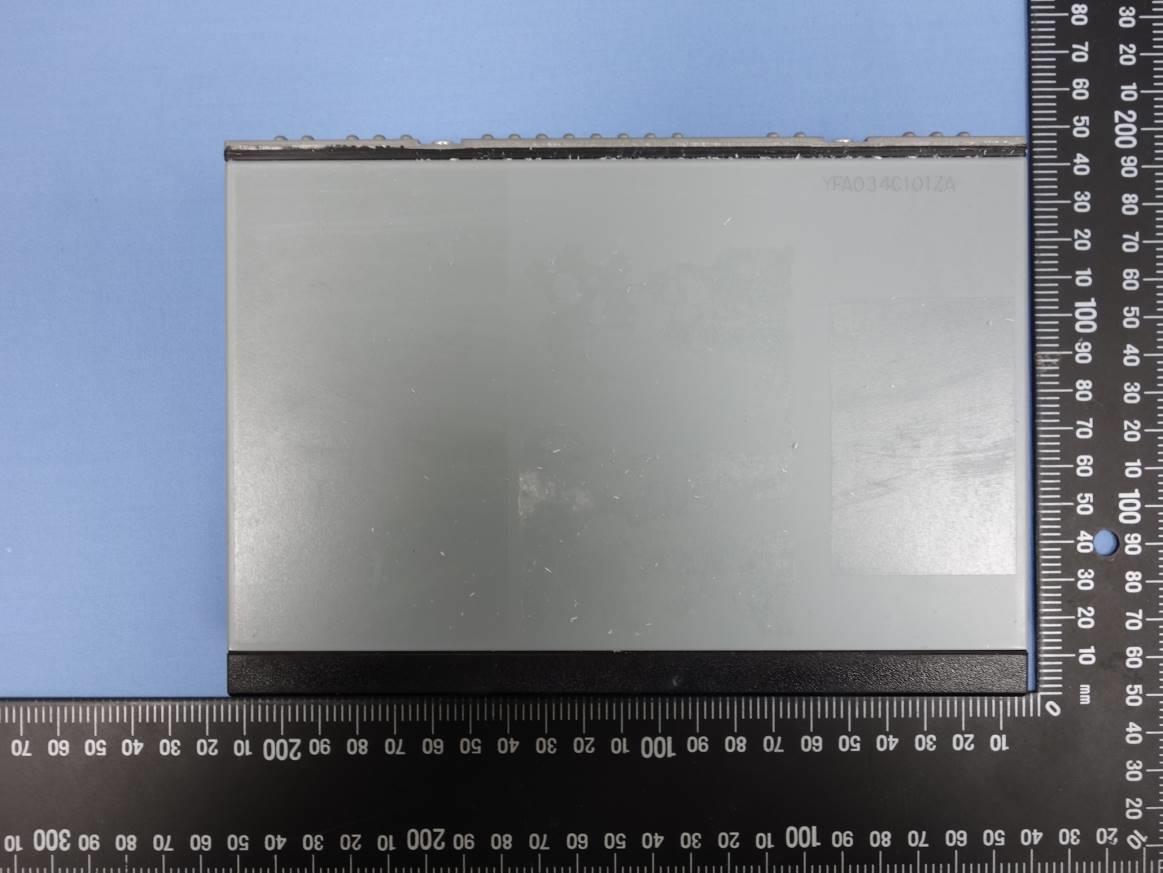

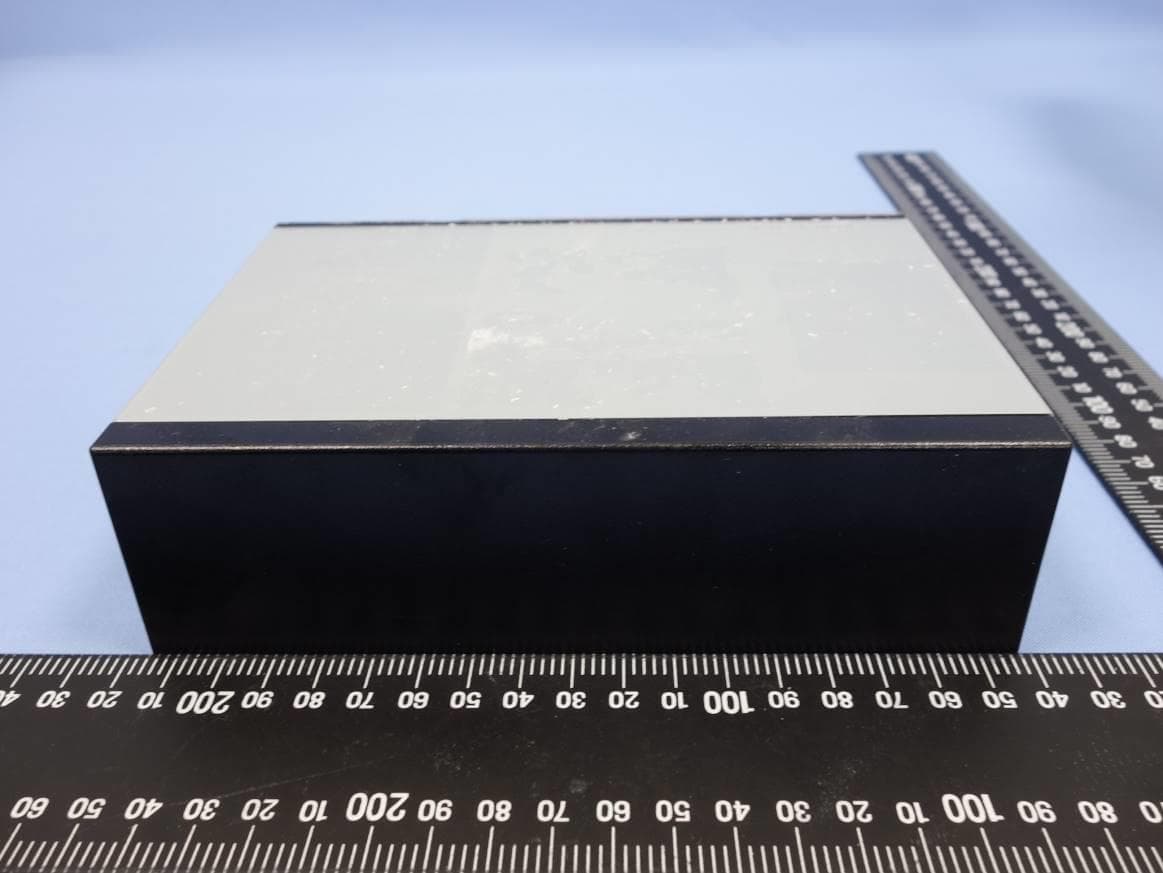

Appendix EP Photographs of EUT Page 1 of 6 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 Appendix EP Photographs of EUT Page 2 of 6 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 Appendix EP Photographs of EUT Page 3 of 6 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168

Appendix EP Photographs of EUT Page 4 of 7 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 <621-8168> Appendix EP Photographs of EUT Page 5 of 7 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 Antenna Appendix EP Photographs of EUT Page 6 of 7 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 Appendix EP Photographs of EUT Page 7 of 7 CN222KWR (P15C-BT) 001 CN222KWR (FCC-MPE) 001 CN227IO9 (RSS247-BT) 001 CN227IO9 (ISED-MPE) 001 Product: RADIO BOX Type Identification: 621-8167 / 621-8168 <621-8167>

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN222KWR (FCC-MPE) 001 Auftrags-Nr.: Order no.: 238549206 Seite 1 von 10 Page 1 of 10 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-10-24 Auftraggeber: Client: Caterpillar, Inc. 100, North East Adams Street, Peoria, Illinois,61629, United States Prü fgegenstand: Test item: RADIO BOX Bezeichnung / Typ-Nr.: Identification / Type no.: 621-8167 / 621-8168 Auftrags-Inhalt: Order content: FCC Certification Prü fgrundlage: Test specification: IEEE Std C95.1 47 CFR §2.1091 47 CFR §1.1310 KDB 447498 D04 Wareneingangsdatum: Date of sample receipt: 2022-10-18 Prü fmuster-Nr.: Test sample no: A003355537-025 A003355537-021 Prü fzeitraum: Testing period: 2022-10-29 - 2022-11-11 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass ü berprü ft von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-11-15 Ausstellungsdatum: Issue date: 2022-11-15 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prü fstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (FCC-MPE) 001 Seite 2 von 10 Page 2 of 10 Contents 1 GENERAL REMARKS ............................................................................................. 4 1.1 COMPLEMENTARY MATERIALS ............................................................................... 4 2 TEST SITES .......................................................................................................... 5 2.1 TEST FACILITIES ................................................................................................... 5 3 GENERAL PRODUCT INFORMATION ......................................................................... 6 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................... 6 3.2 RATINGS AND SYSTEM DETAILS ............................................................................. 6 4 MAXIMUM PERMISSIBLE EXPOSURE EVALUATION .................................................... 7 4.1 INTRODUCTION ..................................................................................................... 7 4.2 REFERENCE LEVELS ............................................................................................. 7 4.3 CLASSIFICATION OF THE ASSESSMENT METHODS.................................................... 9 5 TEST RESULTS ................................................................................................... 10 5.1 MAXIMUM POWER DENSITY ................................................................................. 10 APPENDIX EP - PHOTOGRAPHS OF EUT Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (FCC-MPE) 001 Seite 3 von 10 Page 3 of 10 HISTORY OF THIS TEST REPORT Report No. Description Date Issued CN222KWR (FCC-MPE) 001 Original Release 2022-11-15 Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (FCC-MPE) 001 Seite 4 von 10 Page 4 of 10 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix EP - Photographs of EUT 1.2 Decision Rule of Conformity The decision rule of conformity of this test report is following the requirements of the requested standard in the quotation, and agreed among testing laboratory and manufacturer (applicant) to exclude the consideration of Measurement Uncertainty, unless it is required by the specific standard. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (FCC-MPE) 001 Seite 5 von 10 Page 5 of 10 2 Test Sites 2.1 Test Facilities Taipei Testing Laboratories 11F. No.758, Sec. 4, Bade Rd., Songshan Dist. Taipei City 105 Taiwan (R.O.C.) 2.2 Test Facility Taipei Testing Laboratories No.458-18, Sec. 2, Fenliao Rd., Linkou Dist., New Taipei City 244 Taiwan (R.O.C.) Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (FCC-MPE) 001 Seite 6 von 10 Page 6 of 10 3 General Product Information 3.1 Product Function and Intended Use The EUT is RADIO BOX. It contains Bluetooth compatible module enabling the user to communicate data through a Wireless interface. For details refer to the User Guide, Data Sheet and Circuit Diagram. 3.2 Ratings and System Details Basic Information of EUT Item EUT Information Kind of Equipment/Test Item RADIO BOX Type Identification 621-8167 / 621-8168 FCC ID PQMCRM02 Technical Specification of EUT Item EUT Information Operating Frequency 2402 MHz ~ 2480 MHz Modulation GFSK, π/4-DQPSK, 8DPSK Operation Voltage 12 Vdc / 24 Vdc (Tes…

Text truncated - open the document above for the full version.

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: CN222KWR (P15C-BT) 001 Auftrags-Nr.: Order no.: 238549206 Seite 1 von 26 Page 1 of 26 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2022-10-24 Auftraggeber: Client: Caterpillar, Inc. 100, North East Adams Street, Peoria, Illinois,61629, United States Prü fgegenstand: Test item: RADIO BOX Bezeichnung / Typ-Nr.: Identification / Type no.: 621-8167 / 621-8168 Auftrags-Inhalt: Order content: FCC Part 15C Test report (BT) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247 Wareneingangsdatum: Date of sample receipt: 2022-10-18 Prü fmuster-Nr.: Test sample no: A003355537-025 A003355537-021 Prü fzeitraum: Testing period: 2022-10-29 - 2022-11-11 Ort der Prü fung: Place of testing: EMC/RF Taipei Testing Site Prü flaboratorium: Testing laboratory: Taipei Testing Laboratories Prü fergebnis*: Test result*: Pass überprü ft von: compiled by: Ryan Chen genehmigt von: authorized by: Brenda Chen Datum: Date: 2022-11-15 Ausstellungsdatum: Issue date: 2022-11-15 Stellung / Position: Senior Project Manager Stellung / Position: Senior Project Manager Sonstiges / Other: Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiwan Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiwan, R.O.C. Mail: [email protected] ∙ Web: www.tuv.com Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (P15C-BT) 001 Seite 2 von 26 Page 2 of 26 TEST SUMMARY Report Section FCC Clause Test Item Result 5.1.1 15.247(b) & 15.203 Antenna Requirement Pass 5.1.2 15.247(b)(1) Peak Output Power Pass 5.1.3 15.247(a)(1) 20 dB Bandwidth Pass 5.1.3 2.1049 99% Occupied Bandwidth Pass 5.1.4 15.247(d) Conducted Spurious Emission and Band Edges Pass 5.1.5 15.247(d) & 15.205 & 15.209 Radiated Spurious Emissions and Band Edges Pass 5.1.6 15.247(a)(1) Hopping Channel Separation Pass 5.1.7 15.247(a)(1) (iii) Number of Hopping Frequency Used Pass 5.1.8 15.247(a)(1) (iii) Dwell Time on Each Channel Pass - 15.207 Mains Conducted Emission N/A Note: 1. If the Frequency Hopping Systems operating in 2400-2483.5 MHz band and the output power less than 125 mW. The hopping channel carrier frequencies separated by a minimum of 25 kHz or two- thirds of the 20 dB bandwidth of hopping channel whichever is greater. 2. Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Prü fbericht - Produkte Test Report - Products Prü fbericht - Nr.: Test Report No. CN222KWR (P15C-BT) 001 Seite 3 von 26 Page 3 of 26 Contents HISTORY OF THIS TEST REPORT .............................................................................. 5 1. GENERAL REMARKS ............................................................................................. 6 1.1 COMPLEMENTARY MATERIALS ............................................................................... 6 1.2 DECISION RULE OF CONFORMITY ........................................................................... 6 2. TEST SITES .......................................................................................................... 7 2.1 TEST LABORATORY .............................................................................................. 7 2.2 TEST FACILITY ...................................................................................................... 7 2.3 TRACEABILITY ...............…

Text truncated - open the document above for the full version.
