PQP-SPLDR1Wireless HD Receiver

Prime Electronics & Satellitics Inc.
Wireless HD Receiver - FCC ID PQP-SPLDR1 - Prime Electronics & Satellitics Inc.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Aug 05, 2012
Application Purpose
Original Equipment
Date of Application
Aug 05, 2012
Equipment Note
Wireless HD Receiver
Frequency Range
60320.00000000 - 62800.00000000
Company
Prime Electronics & Satellitics Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗
↗
↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

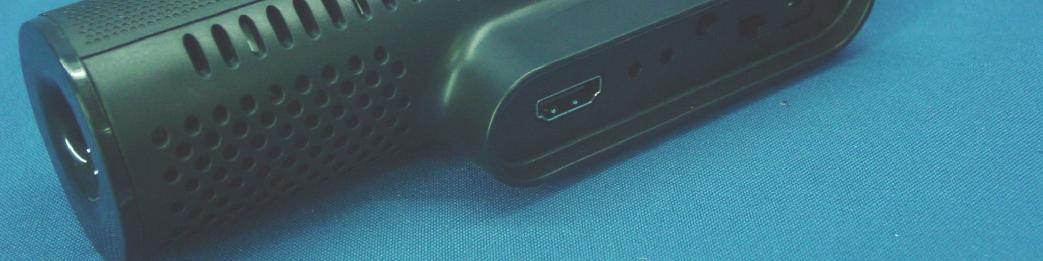

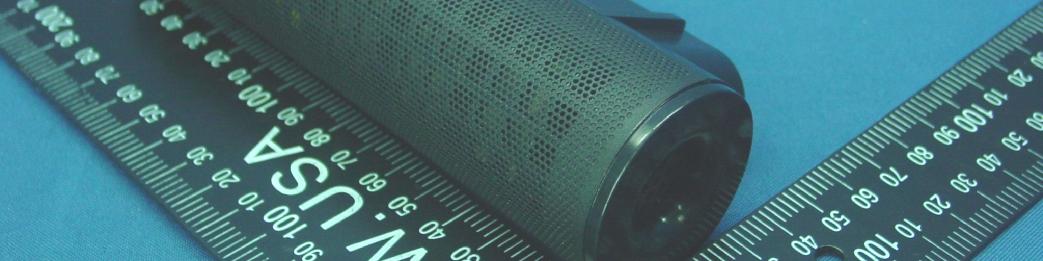

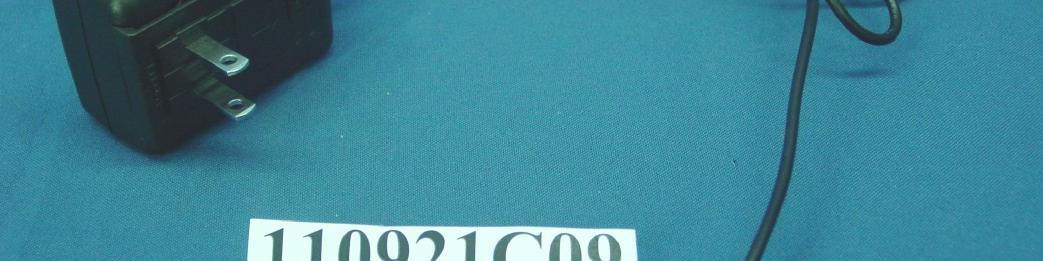

Page 1 CONSTRUCTION PHOTOS OF EUT Page 7 Page 8

ID Label/Location Info

制作要求: ,1图形 符号 字迹要清晰位置准确//, ,2注意辅助线与文字的区别 ,3所有尺寸单位为 丝印公差为+/-0.3mm,mm 机构尺寸参照4,: ,.5丝印顏色为白色 後 蓋 導光柱 12153-84503 12514-84502 表面黑色 86007-84501-LF PLST R/CVR AY WWHHK-92(RX) *LF A POWERLINKSCANONOFF/HDMI 5VDC 2A

Internal Photos

Page 2 Page 3 Page 4 Page 5 Page 6

Operational Description

FCC ID: PQP-SPLDR1 Report No.: RF110921C09 Operational Description The EUT is a Wireless HD Device which is high Definition Audio/Video in the 1080p format was sent from transmitter to the receiver via the wireless link. It is operate in 57 to 64GHz band for Wireless Video Audio Network (WVAN). There are LRP and HRP mode for transmitter. Receiver will send traffic (Beacon) message to communicate under LRP mode. The LRP modulation is BPSK. The HRP modulation can be either QPSK or 16QAM.Three system data rates are implemented: QPSK at 0.952 Gb/s (Quarter Rate),QPSK at 1.904 Gb/s (Half Rate) and 16-QAM at 3.807 Gb/s (Full Rate). For more detailed instruction, please take a look at the user’s manual.

Operational Description

1 Steve Cheng From: [email protected] Sent: Friday, August 03, 2012 3:55 AM To: Steve Cheng Cc: [email protected]; [email protected] Subject: Re: FW: TCB Review Comments for (A12-0517b-8120 PQP-SPLDT1-Prime 60G WHD transmitter) Attachments: 15.255i exemption accepted by FCC reviewer for SIMG 60GHz products.pdf Hi Steve, 客戶的回覆如下~ ============================================================================================ ======================================================================================== from Prime Electronics & Satellitics Inc. "Eileen Lin" <[email protected]> As you know we have some issues with FCC declaration letter and MK from Silicon Image (the designer of DVDO product) would like you to pass attachment to TCB. If TCB has any further question, please add them to this email loop for further explanation. Thank you ! ============================================================================================ ======================================================================================== (See attached file: 15.255i exemption accepted by FCC reviewer for SIMG 60GHz products.pdf) ============================================================================================ ======================================================================================== from Mahesh Kiwalkar <[email protected]> The purpose of that document is to show that this 15.255(I) exemption was discussed with FCC reviewer directly for another module based on our 60GHZ chipset and it was approved by FCC. Please also note that several products based on 3 generations of chipsets have been approved by various TCBs so far using this exception. ============================================================================================ ======================================================================================== B 陳綺芳 Demi Chen Senior Specialist, HwaYa Customer Service Dept. 立德集團 (BV) Bureau Veritas ADT Tel: +886 (0)3 318 3232 Ext. 1618 Mobile:+886 (0)987 615 290 Fax: +886 (0)3 211 5834 E-mail: [email protected] Website: www.adt.com.tw 如遇休假或案件處理,可聯繫職務代理人代為協助_Cindy Yo (分機 1911) If I am not in office or you have any project issue, please contact with my duty agent _Cindy Yo (ext: 1911) NOTICE: the domain name of our e-mail address is being shifted from adt.com.tw to tw.bureauveritas.com. The old e-mail address is still valid till mid- 2010. Please modify your address book to keep contact information correct and up-to-date. "Steve Cheng" <[email protected]> "Steve Cheng" <[email protected]> 2012/07/26 下午 03:32 To Demi Chen/TWN/VERITAS@VERITAS cc 2 Subject FW: TCB Review Comments for (A12-0517b-8120 PQP-SPLDT1-Prime 60G WHD transmitter) Ref FYI Best regards, Steve Cheng North American EMC Certification Services Inc. 24889 Ferguson Ave.. Maple Ridge, BC, Canada V2W 1H4 Tel: (604) 466-5978 Email: [email protected] From: Steve Cheng [mailto:[email protected]] Sent: Thursday, July 26, 2012 12:23 AM To: '[email protected]' Subject: TCB Review Comments for (A12-0517b-8120 PQP-SPLDT1-Prime 60G WHD transmitter) Dear Eileen, Below is the relevant rule for 60G product as we have discussed over the phone call. Please review and let me know if you need further help. Thanks. TCB Review Comments for (A12-0517b-8120 PQP-SPLDT1-Prime 60G WHD transmitter) Per FCC part 15 Section 15.255 following function need to be implemented in the device. 15.255 Operation within the band 57‐64 GHz (i) For all transmissions that emanate from inside a building, within any one second interval of signal transmission, each transmitter with a peak output power equal to or greater than 0.1 mW or a peak power density equal to or greater than 3 nW/cm 2, as measured 3 meters from the radiating structure, must transmit a transmitter identification at least once. Each application for equipment authorization must declare that the equipment that will be used inside a building contains the required transmitter identification feature and must specify a method whereby interested parties can obtain sufficient information, at no cost, to enable them to fully detect and decode this transmitter identification information. Upon the completion of decoding, the transmitter identification data block must provide the following fields: 1. FCC Identifier, which shall be programmed at the factory. 2. Manufacturer's serial number, which shall be programmed at the factory. 3. Provision for at least 24 bytes of data relevant to the specific device, which shall be field programmable. The grantee must implement a method that makes it possible for users to specify and update this data. The recommended content of this field is information to assist in contacting the operator. Best regards, Steve Cheng North American EMC Certification Services Inc. 24889 Ferguson Ave.. Maple Ridge, BC, Canada V2W 1H4 Tel: (604) 466-5978 Email: [email protected]

RF Exposure Info

Report No.: SA110921C09 Report Format Version 4.0.0 1 RF EXPOSURE REPORT REPORT NO.: SA110921C09 MODEL NO.: DVDOAR-1 FCC ID: PQP-SPLDR1 RECEIVED: Sep. 21, 2011 TESTED: Feb. 21, 2012 ISSUED: May 16, 2012 APPLICANT: Prime Electronics & Satellitics inc. ADDRESS: 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Taoyuan Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C This test report consists of 6 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by any government agency. The test results in the report only apply to the tested sample. Report No.: SA110921C09 Report Format Version 4.0.0 2 TABLE OF CONTENTS RELEASE CONTROL RECORD....................................................................................3 1. CERTIFICATION......................................................................................................4 2. RF EXPOSURE LIMIT..............................................................................................5 3. MPE CALCULATION FORMULA.............................................................................5 4. CLASSIFICATION....................................................................................................5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER...........................6 Report No.: SA110921C09 Report Format Version 4.0.0 3 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA110921C09 Original release May 16, 2012 Report No.: SA110921C09 Report Format Version 4.0.0 4 1. CERTIFICATION PRODUCT: Wireless HD Receiver BRAND NAME: DVDO MODEL NO.: DVDOAR-1 TEST SAMPLE: ENGINEERING SAMPLE APPLICANT: Prime Electronics & Satellitics inc. TESTED DATE: Feb. 21, 2012 STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: DVDOAR-1) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: May 16, 2012 ( Claire Kuan, Specialist ) APPROVED BY : , DATE: May 16, 2012 ( May Chen, Deputy Manager ) Report No.: SA110921C09 Report Format Version 4.0.0 5 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA110921C09 Report Format Version 4.0.0 6 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For LRP MODE: FREQUENCY BAND (GHz) EIRP POWER (mW) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 60.32 – 62.80 66.100 20 0.013 1.00 --- END ---

Test Report

Report No.: RF110921C09 1 Report Format Version 4.0.0 FCC TEST REPORT REPORT NO.: RF110921C09 MODEL NO.: DVDOAR-1 FCC ID: PQP-SPLDR1 RECEIVED: Sep. 21, 2011 TESTED: Feb. 14 to 21, 2012 ISSUED: May 16, 2012 APPLICANT: Prime Electronics & Satellitics inc. ADDRESS: 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Taoyuan Taiwan, R.O.C ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C This test report consists of 73 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or TAF and any government agencies. The test results in the report only apply to the tested sample. Report No.: RF110921C09 2 Report Format Version 4.0.0 Table of Contents RELEASE CONTROL RECORD........................................................................................4 1. CERTIFICATION....................................................................................................5 2. SUMMARY OF TEST RESULTS............................................................................6 2.1 MEASUREMENT UNCERTAINTY..........................................................................7 3. GENERAL INFORMATION.....................................................................................8 3.1 GENERAL DESCRIPTION OF EUT.......................................................................8 3.2 DESCRIPTION OF TEST MODES.........................................................................9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL........................10 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS.......................................13 3.4 DESCRIPTION OF SUPPORT UNITS..................................................................14 3.5 CONFIGURATION OF SYSTEM UNDER TEST...................................................15 4. TEST TYPES AND RESULTS..............................................................................16 4.1 AC POWER LINE CONDUCTED EMISSION MEASUREMENT...........................16 4.1.1 LIMITS OF AC POWER LINE CONDUCTED EMISSION MEASUREMENT.........16 4.1.2 TEST INSTRUMENTS..........................................................................................16 4.1.3 TEST PROCEDURES..........................................................................................17 4.1.4 DEVIATION FROM TEST STANDARD.................................................................17 4.1.5 TEST SETUP.......................................................................................................18 4.1.6 EUT OPERATING CONDITIONS.........................................................................18 4.1.7 TEST RESULTS...................................................................................................19 4.2 SURIOUS EMISSIONS........................................................................................21 4.2.1 LIMIT OF SURIOUS EMISSIONS.........................................................................21 4.2.2 TEST INSTRUMENTS..........................................................................................22 4.2.3 TEST PROCEDURES..........................................................................................23 4.2.4 DEVIATION FROM TEST STANDARD.................................................................24 4.2.5 TEST SETUP.......................................................................................................25 4.2.6 EUT OPERATING CONDITIONS.........................................................................25 4.2.7 TEST RESULTS...................................................................................................26 4.3 6DB BANDWIDTH MEASUREMENT...................................................................40 4.3.1 LIMITS OF 6DB BANDWIDTH MEASUREMENT.................................................40 4.3.2 TEST INSTRUMENTS..........................................................................................40 4.3.3 TEST PROCEDURE.............................................................................................40 4.3.4 DEVIATION FROM TEST STANDARD.................................................................41 4.3.5 TEST SETUP.......................................................................................................41 4.3.6 EUT OPERATING CONDITIONS.........................................................................41 4.3.7 TEST RESULTS...................................................................................................42 4.4 POWER DENSITY MEASUREMENT...................................................................46 4.4.1 LIMITS OF POWER DENSITY MEASUREMENT.................................................46 4.4.2 TEST INSTRUMENTS..........................................................................................47 4.4.3 TEST PROCEDURE.............................................................................................48 Report No.: RF110921C09 3 Report Format Version 4.0.0 4.4.4 DEVIATION FROM TEST STANDARD.................................................................49 4.4.5 TEST SETUP.......................................................................................................49 4.4.6 EUT OPERATING CONDITION............................................................................49 4.4.7 TEST RESULTS.........................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 111013E05 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 111013E05 2 RADIATED EMISSION TEST

Contact Information

Applicant

willian Chiang Hsieh(R&D Engineer)
[email protected]886-3-461-5000Fax: 886-3-461-4000

Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchGary Chang
[email protected]886-3-3183232

No. 19, Hwa Ya 2nd Rd., Kwei Shan Hsiang · Taoyuan Hsien · Taiwan

Non-Technical Contact

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchDemi Chen
[email protected]886-3-3183232

Test Firm

Bureau Veritas CPS (H.K.) Ltd. Taoyuan BranchRichard Chen
[email protected]886-3-3183232Fax: 886-3-2115834

Technical Specifications

#Rule PartsFrequency RangePower Output
115C60.32 GHz - 62.80 GHz1.70 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. The product can be used for indoor application(s) only.
