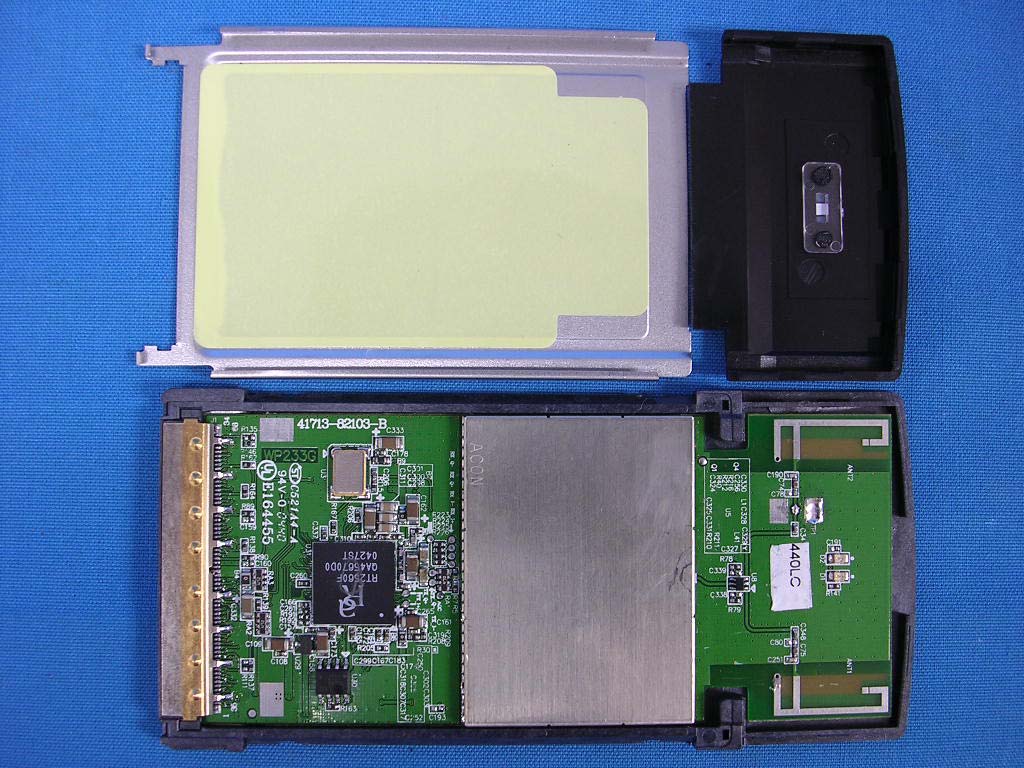

Report No： 04BH018-F-R02-T Page: 64 of 68 Version:1.0 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo Report No： 04BH018-F-R02-T Page: 65 of 68 Version:1.0 (3) EUT Photo (4) EUT Photo Report No： 04BH018-F-R02-T Page: 66 of 68 Version:1.0 (5) EUT Photo (6) EUT Photo Report No： 04BH018-F-R02-T Page: 67 of 68 Version:1.0 (7) EUT Photo Report No： 04BH018-F-R02-T Page: 68 of 68 Version:1.0 (8) EUT Photo

Report No： 04BH018-F-R02-T Page: 6 of 68 Version:1.0 1.2. Operational Description EUT is a Wireless LAN CardBus Card with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps for IEEE 802.11b and eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps for IEEE 802.11g. The device of RF carrier is DQPSK, DBPSK and CCK. The device adapts Digitally Modulation Spread Spectrum modulation. The Printed antenna was provides diversity function to improve the receiving function. This Wireless LAN CardBus Card, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission for IEEE 802.11b and Orthogonal Frequency Division Multiplexing (OFDM) for IEEE 802.11g, the Wireless LAN CardBus Card t Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 20/May/2004 Size Sheet of File Name: C A D:\PCB( )\WP233g(41713-82103)\PCB\41713-82103EL01-A. ddb - Documents\82011-82103ES01-A-1.SCH 試產 USED ON DRAWN 14 WP233g Wireless LAN CardBus CARD WP233g SCHEMATIC DATE 82011-82103 ES01 October 20/May/2004Alex 20/May/2004 DATE ISSUED DATE CHECKED DATE APPROVED REVISION RECORD REV ECO DATE DESCRIPTION A 20/May/2004 Joan20/May/2004October20/May/2004Alex20/May/2004 VCCB RX_BB_Q+TX_BB_I+ GND TX_BB_Q- RX_BB_I+TX_BB_I-RX_BB_Q-TX_BB_Q+ RX_BB_Q- TX_BB_Q- reference:RALINK TECHNOLOGY, CORP.CB-RT2560-RT2525-RFIC-V32P-RA-040226.pdfCB-RT2560-RT2525-RFIC-V32P-RA-2-pcb RX_BB_Q+ SAW: TFS374A (Telefilter) LNA1 VCCA 40MI 1 2 R221 4.7K RFRX_PE VCCA RFTX_PE CY_X1 VCCA RX_BB_I- VCCA RX_BB_I+ PA_RFIN 1 2 C349 6.8pF GND 1 2 L122.2nH 1 2 L44 0 ohm RX_BB_I- 12 C60 10pF 12 C315820 SYNDATA 12 L233.9nH 12 C219 1.5pF SYNCLK 1 2 L11 2.2nH UB 1 GND/DC 2 BP 3 BP 4 NC 6 GND 5 U34 BL2012-20B2450T SYNCLK 1 2 L43 0 ohm SYNDATA AGC TX_BB_I+ VCCA RF_LE-G# RF_LE-G# LNAG0 VE VCCA VCCB GND GND VCCF RF-OUT+ IF-IN+ TXBBI RF-OUT- TXBBQ GND TX_BB_I- PA_RFIN TX_BB_Q+ PAF GND IFIN- IFIN+ IF-IN- IFIN- Change value Low-GainCNT-TO-PARTS IFIN+ CNT-TO-PARTS CLOSE TO THE SAW CLOSE TO THE SAW LD (PE1)(PE2) LD_FO VCCA VCC6 CY_X2 VCCB VCCB VCC5 VCCB VCCA VCCA DO2 VCCB VCCA VCCA VCCB VCTRL2 VCCA AGC VCCC GND RFVC3 LNA1 RFIN LD_FO LNAG1 IREFLNA0AGC SYNDATA GND RF_LE-G#SYNCLK RX_BB_I- 40MI RFTX_PERFRX_PELNA1RX_BB_I+RX_BB_Q-RX_BB_Q+ VCTRL1 TX_BB_I-TX_BB_I+ VCCE TX_BB_Q-TX_BB_Q+ VCCB 12 C89 1nF 1 2 C83 1nF DO1 1 2 R14 1K 1 2 L10 6.8nH DO1 1 2 L36 22nH/NI 1 2 L27 0 ohm 1 2 C321 2.2pF LNA0 1 2 R190 27 12 L1839nH 1 2 R30 100 1 2 C320 10pF LNA0 12 C56 68pF 12 R32909 1 2 C343 8.2pF 1 2 C21 1.8pF 1 2 C84 1nF 12 R621K 12 C2551nF 1 2 L380 ohm 1 2 L32100nH RFRX_PE 1 2 L35 27 1 2 L4 56nH GND 1 2 R27 4.3K 1 2 R5 127 TR_PE 12 C67 4.7uF/10V 1 2 C346 0.01uF RF_PE 1 2 C31 0.01uF 12 C250100pF RFTX_PE 1 2 C2541pF 12 C257 1nF 12 C55 33nF 1 2 R132.4K 1 2 C42 1nF 1 2 C54 1nF 1 2 C45 1.8pF 12 C231nF 12 C65 100pF 1 2 L8 2.2nH IREF 12 C316100pF 1 2 R177 0 ohm 12 C94 22nF 1 2 C93 180pF 1 2 R7 127 12 C26100pF GND 1 2 R214 510/NI 12 C2440.1uF GND Core1_Vcc 2 VCC10 47 IFOUT+ 46 IFOUT- 45 BB_Q_In+ 42 BB_Q_In- 41 BB_I_In+ 44 LO1_VC 1 LNA_Gain1 5 RFIN- 7 RFIN+ 6 VCC2 8 RFOUT+ 10 RFOUT- 11 VCC3 19 VCC4 20 VCC5 32 IFIN+ 39 IFIN- 38 TR_PE 12 RF_PE 3 VP1 17 DO1 18 VCC6 34 CLK 15 LD_fo 23 VCC7 35 DO2 26 VP2 27 BB_Q_Out- 28 BB_Q_Out+ 29 VCC8 37 BB_I_Out- 30 RX_AGC 36 IREF 16 DATA 14 LE 13 X1 24 X2 25 VCC11 48 BB_I_Out+ 31 VCC9 40 VCC1 4 BB_I_In- 43 GND 49 LO2_VC 33 LNA_Gain0 9 VCC41 21 VCC42 22 U9RT2525L 1 2 R172 4.7K VD 12 C7610pF 1 2 R176 0 ohm VCCB 1 2 L26100nH 1 2 C20 1.8pF 12 C95 47pF/NI 1 2 R215 510/NI 1 2 C253 1pF 1357 2468 RA1 RA 47*4 12 C322 100pF 1 2 C342 8.2pF 1 2 L5 56nH 1 2 L34 27 1 2 R28 100nH 1 2 L390 ohm 12 C25910pF/NI 1 2 R171 4.7K/NI 12 C304 100pF 1 2 L2 10-ohm 12 L17 56nH 1 2 R160 27 12 C344100pF 12 C245 4.7uF/10V GND 12 C258 10pF/NI 1 2 L33 100nH 4 4 2 2 3 3 7 7 6 6 1 1 5 5 8 8 U11 SAW_374 1 2 L140 ohm 1 2 C48 1.5pF GND VCCA RFOUT+ IREF IFRC VCCA VCCA VCC42 RFRC VCCB GND GND VCC41 GND RFVC4 GND RFIN VCCA VCCA VCCB VCCA IFOUT+ RFVCC1 VCCB VCTRL1 GND VCCA GND IFOUT- RFIN+RFIN- GND GND VCCA RFOUT- VCCA GND GND GND RFIN_F VCCA GND GND GND GND GND VCCA VCCA IFO-IFO+ GND GND GND C21, C21 C342, C343 U11 (SAW Filter) TFS374A (Telefilter)TB0152A (TAI-SAW) 1.8pF 8.2pF 1.5pF 5.6pF L1847nH33nH PA_PE_GLNA1RFINPA_RFINTR_SW ANTSEL_P ANTSEL_N TR_SWN TSSI 82011-82103ES01-A-282011-82103ES01-A-2.SCH AD[0..31]IDSELCBE3BGNTBINTABREQBMRSTBTX_BB_I+TX_BB_Q+TX_BB_I-TX_BB_Q-RADIO_PD#PA_PE_GLNA0LNA1SYNDATARFRX_PETR_SWSYNCLKRF_LE-G#CCLKIRDYBFRAMEB TRDYB CBE2B CLKRUNB STOPB DEVSELB AGC RX_BB_Q+ RX_BB_Q- RX_BB_I- RX_BB_I+ TSSI IREF RFTX_PE LD_FO TR_SWN ANTSEL_P ANTSEL_N PERRBSERRB PAR CBE1BCBE0B 40MI 82011-82103ES01-A-382011-82103ES01-A-3.SCH AD[0..31]CBE0BCBE1BCBE2BCBE3BPARPERRBIRDYBCLKRUNBFRAMEBDEVSELB STOPB GNTB MRSTB REQB SERRB CCLK TRDYB INTAB IDSEL RADIO_PD# 82011-82103ES01-A-482011-82103ES01-A-4.SCH 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 20/May/2004 Size Sheet of File Name: C A D:\PCB( )\WP233g(41713-82103)\PCB\41713-82103EL01-A. ddb - Documents\82011-82103ES01-A-2.SCH 試產 USED ON DRAWN 24 WP233g Wireless LAN CardBus CARD Wireless LAN CardBus CARD WP233g SCHEMATIC DATE 82011-82103 ES01 October 20/May/2004Alex 20/May/2004 DATE ISSUED DATE CHECKED DATE APPROVED reference:RALINK TECHNOLOGY, CORP.CB-RT2560-RT2525-RFIC-V32P-RA-040226.pdfCB-RT2560-RT2525-RFIC-V32P-RA-2-pcbreference:RALINK TECHNOLOGY, CORP.CB-RT2560-RT2525-RFIC-V32P-RA-040226.pdfCB-RT2560-RT2525-RFIC-V32P-RA-2-pcb GND 1 2 L3 2.2nH GND GND 12 C46 1pF VCC1 L3 & C46 is different to reference design V3.2p Ant 2 PA 1 TP1RF TEST PAD VBB PA_RFO TSSI VB2 1 2 ANT2INVERT-ANT 1 2 ANT1INVERT-ANT GND GND GNDGND VB1 ANTSEL_NTR_SWNANTSEL_P GND PA_RFIN PA_PEG Use BSS84 Use 74LVC1G08 Note PAPEI 180-ohm100-ohm 240-ohm150-ohm R211 R210 PA_OUT BPF_OUT D RFIN G PA_OUT S BPF_IN 3.3VD 3.3VD SW10SW9 ANTE2 VCCA SW6 3.3VD PA_PE_G LNA1 RFIN PA_RFIN SW8 TR_SW ANTSEL_P ANTSEL_N TR_SWN TSSI 12 C340C/NI 12 C256 100pF/NI 12 C325 100pF GND 1 2 L1 10nH/0603 12 C338C/NI 1 2 C75 2.2nH 12 C330 10uF BI 2 BO 4 G 3 G 1 U7 MF2450B 1 2 C347 10pF ANTN 12 C80 NI 1 2 R791K 12 C249 1.5pF/NI GND 12 C78NI 12 R216 4.7K/NI SW5 12 R219 1K 12 C339C/NI 1 2 R781K OUT1 1 GND 2 OUT2 3 VC2 4 IN 5 VC1 6 U6AS179-92 12 C341C/NI 12 C2512.2p ANTP RF IN 1 GND 2 DECT_V 3 DECT_OUT 4 NC 8 GND 7 VB2 6 VB1 5 NC 9 RFOUT 10 RFOUT 11 RFOUT 12 VCC1 13 VCC1 14 NC 15 NC 16 GND 17 U5 AP1091 1 2 C74 2.2nH 12 R40 1K/NI 12 C248 1.8pF/NI SW1 1 2 R210 270 G V 2 45 31 Vcc G U36 74LVC1G04/SC70 12 C1902.2pF SW3 12 C329 10pF 12 C328 10pF 1 2 R15 1K/NI G Vcc 12 45 3 U37 74LVC1G08/SC-70 12 C331 100pF 1 2 C324 0.1uF 1 2 R12 1K/NI 12 C327 2.7pF SD 1 23 Q4 BSS138/NI 1 2 R222 4.7K 3.3VD 1 2 C323 10pF 1 2 L41 27nH/0603 MTR_SWN 1 2 R212 1K 1 2 C…

Text truncated - open the document above for the full version.

Report No： 04BH018-F-R02-T Page: 1 of 68 Version:1.0 Test Report Product Name ：Wireless LAN CardBus Card Model No. ：WP233g FCC ID. ：PQP-WP233G Applicant ： PRIME ELECTRONICS & SATELLITICS INC. Address ： 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt：2004/11/02 Issued Date ：2004/11/15 Report No. ：04BH018-F-R02-T The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No： 04BH018-F-R02-T Page: 2 of 68 Version:1.0 Test Report Certification Issued Date : 2004/11/15 Report No. : 04BH018-F-R02-T Product Name ：Wireless LAN CardBus Card Applicant ：PRIME ELECTRONICS & SATELLITICS INC. Address ：69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Manufacturer ：PRIME ELECTRONICS & SATELLITICS INC. Model No. ：WP233g FCC ID. ：PQP-WP233G Rated Voltage ：AC 120 V / 60 Hz EUT Voltage ：DC 3.3V Trade Name ：PESI Measurement Standard ： Part 15 Subpart C Paragraph 15.247: 2003 Measurement Procedure ： ANSI C63.4: 2001 Test Result ：Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By ： ( Carol Tsai ) Tested By ： (Louis Hsu) Approved By ： ( James Chang ) Accredited by NIST (FCC) Registration Number: 92195 Report No： 04BH018-F-R02-T Page: 3 of 68 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.................................................................................................................5 1.1. EUT Description..........................................................................................................................5 1.2. Test Mode....................................................................................................................................7 1.3. Tested System Details................................................................................................................8 1.4. Configuration of tested System................................................................................................9 1.5. EUT Exercise Software..............................................................................................................9 1.6. Test Facility................................................................................................................................10 2. Conducted Emission............................................................................................................. 11 2.1. Test Equipment.........................................................................................................................11 2.2. Test Setup..................................................................................................................................11 2.3. Limits...........................................................................................................................................12 2.4. Test Procedure..........................................................................................................................12 2.5. Test Specification......................................................................................................................12 2.6. Test Result.................................................................................................................................13 2.7. Test Photo..................................................................................................................................17 3. Peak Power Output................................................................................................................18 3.1. Test Equipment.........................................................................................................................18 3.2. Test Setup..................................................................................................................................18 3.3. Limits...........................................................................................................................................18 3.4. Test Specification......................................................................................................................18 3.5. Test Result.................................................................................................................................19 4. Radiated Emission.................................................................................................................21 4.1. Test Equipment.........................................................................................................................21 4.2. Test Setup..................................................................................................................................21 4.3. Limits...........................................................................................................................................22 4.4. Test Procedure..........................................................................................................................22 4.5. Test Specification......................................................................................................................22 4.6. Test Result.................................................................................................................................23 4.7. Test Photo..................................................................................................................................47 5. Band Edge........................................................................................................…

Text truncated - open the document above for the full version.

Report No： 04BH018-F-R02-T Page: 17 of 68 Version:1.0 2.7. Test Photo Test Mode ： Mode 1: Data Transmit Description： Front View of Conducted Emission Test Setup Test Mode ： Mode 1: Data Transmit Description： Front View of Conducted Emission Test Setup Report No： 04BH018-F-R02-T Page: 47 of 68 Version:1.0 4.7. Test Photo Test Mode ： Mode 1: Data Transmit Description： Front View of Radiated Emission Test Setup Test Mode ： Mode 1: Data Transmit Description： Back View of Radiated Emission Test Setup Report No： 04BH018-F-R02-T Page: 48 of 68 Version:1.0 Test Mode ： Mode 1: Data Transmit Description： Front View of Radiated Emission Test Setup (Horn)
