PQP-WI233LWireless LAN PCI Adapter

W W i i r r e e l l e e s s s s L L A A N N 1 1 1 1 g g P P C C I I A A d d a a p p t t e e r r User Manual Model :WI233L Version: 2.1 (October. 2005) Wireless LAN 11g PCI Adapter I Copyright Copyright  2004 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Wireless LAN 11g PCI Adapter II Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment complies with FCC radiation exposure limits. However, in order to avoid the possibility of exceeding the FCC exposure limits, this device and its antenna should not be co-located or operating in conjunction with any other antenna or transmitter.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. Wireless LAN 11g PCI Adapter III EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 Wireless LAN 11g PCI Adapter IV Manual Contents Chapter 1 Introduction ......................................................... 1 Chapter 2 Installation Procedure ......................................................... 2 Chapter 3 Using the Configuration & Monitor Utility ................................ 5 3.1 Using Utility ...................................... 5 3.1.1 Network ...........................................................................................5 3.1.2 Status setting ...........................................................................................7 3.1.3 WEP Setting ...........................................................................................8 3.1.4 Status ...........................................................................................9 3.1.5 Information ...........................................................................................10 3.2 Configuration & Monitor Utility Under Windows XP ............... 11 3.3 Using WinXP Wireless Zero configuration for WPA setup ............... 12 Chapter 4 Technical Specifications ...........…

Text truncated - open the document above for the full version.

ABCD DCBA Title Wireless LAN 11g PCI adapter Number Revision Size B Date: 4-Apr-2005 Sheet of File: C:\D ocuments and Set ti ngs \p es i\ \WI233L Block diagram Drawn By: RT2562 MAC/BBP PCI Interface RT2527 Transceiver BPF BF2520 PA TQP777002 TX/RXSwitch AS 179-92 EEPROMAT93C66 XTAL 40MHZ WI233L Block Diagram

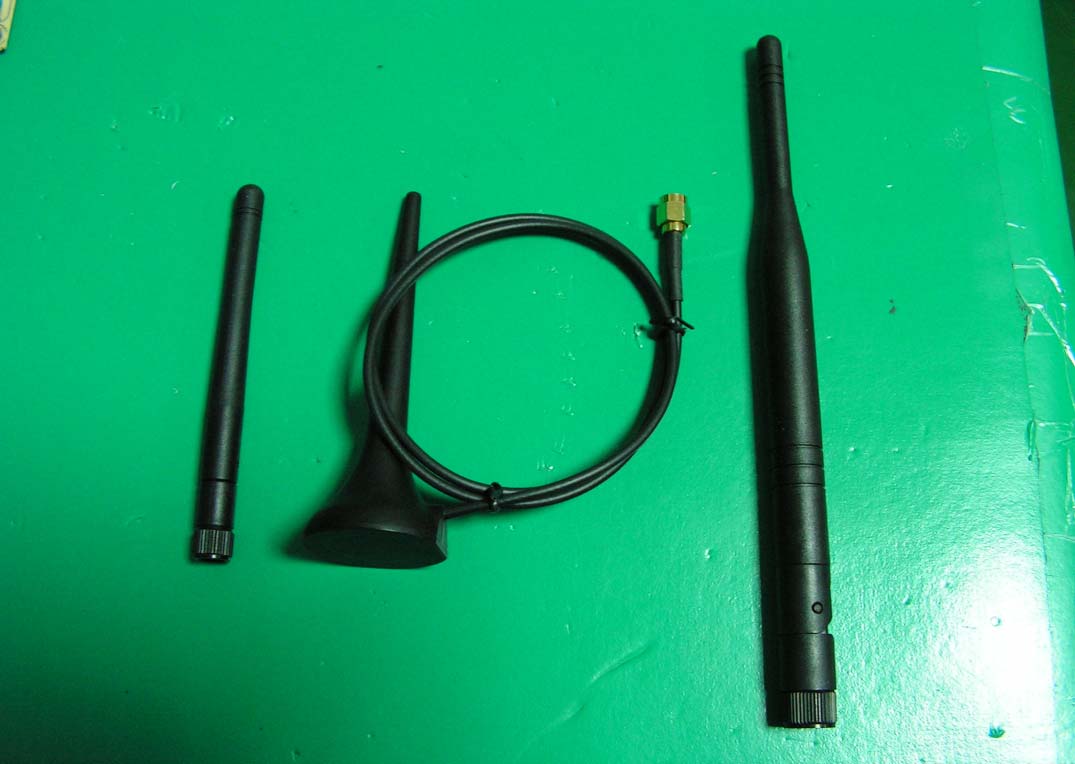

GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 108 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. Front View Of Wireless LAN 11g PCI adapter (EUT) 2. ANT

Rating: 380mA max FCC ID: PQP-WI233L Rating: 380mA max FCC ID: PQP-WI233L A A WI233L(PESI) 2005/10/20 2005/10/20 Joyce 26007-83828 TX01 : 1.:35*25mm 2.: 3.: 4.: 1PCS()

Rating: 380mA max FCC ID: PQP-WI233L Wireless LAN 11g PCI Adapter

GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 108 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. Front View Of Wireless LAN 11g PCI adapter (EUT) 2. ANT GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 109 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. Front Side 4. Connector GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 110 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. Cover Remove 6. Main Chipset-1 GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 111 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 7. Main Chipset-2 8. Main Chipset-3 GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 112 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. Rear Side 10. Label Here

GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 5 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The EUT is Mini PCI interface and powered by PC System. This EUT has three type antenna and non-simultaneously connect in PCB. The final test is chose 5dBi antenna and 2.5dBi antenna. The other instruction, please look at user manual. This is a digital transmission system (DTS) and have five type of modulation DSSS, DBPSK, DQPSK, OFDM, CCK. The data rate are 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54Mbps The equipment enables high-speed access without wires to network assets. This adapter uses the IEEE 802.11g protocol to enable wireless communications between the host computer and other computers. 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION The EUT will certification with three antenna. The final test is chose 5dBi antenna and 2.5dBi antenna for final test. Antenna List Antenna Type Antenna GainManufacturer Model Number 1/4 Swivel Dipole Antenna 5dBi FULL RISE ELECTRONIC., LTD. AN-G1-XDC 1/4 Swivel Dipole Antenna 2dBi WANSHIH ELECTRONICS., LTD. WSS002 Swivel Access Point Antenna 2.5dBi ARISTOTLE ENTERPRISES RFA-02-TC0A2-RG174- 600 Mode 1 Mode 2 Test Mode (Antenna Gain 5dBi) 802.11b: 11Mbps 802.11g: 54Mbps Mode 3 Mode 4 Test Mode (Antenna Gain 2.5dBi) 802.11b: 11Mbps 802.11g: 54Mbps

GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN 11g PCI adapter Model Number: WI233L FCC ID: PQP-WI233L Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : (02) 2603-5321 Fax : (02) 2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 3 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test October 17, 2005 Temperature 24.5 deg/C EUT Wireless LAN 11g PCI adapter Humidity 53 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 33.1894 0.0209 6 2437.00 44.3609 0.0279 11 2462.00 41.6869 0.0262 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 4 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test October 17, 2005 Temperature 24.5 deg/C EUT Wireless LAN 11g PCI adapter Humidity 53 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 41.4954 0.0261 6 2437.00 44.3609 0.0279 11 2462.00 48.9779 0.0308 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 5 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test October 17, 2005 Temperature 24.5 deg/C EUT Wireless LAN 11g PCI adapter Humidity 53 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.5dBi or 1.78 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 33.1894 0.0117 6 2437.00 44.3609 0.0157 11 2462.00 41.6869 0.0147 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0510057 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 6 of 6 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test October 17, 2005 Temperature 24.5 deg/C EUT Wireless LAN 11g PCI adapter Humidity 53 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.5dBi or 1.78 in linear scale. Output Power Into Ant…

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 16/Aug/2005 Size Sheet of File Name: B A D:\PCB( )\WI233L(41713-83802)\41713-83802EL01-A.ddb - Documents\82011-83802ES01-1- A USED ON DRAWN 15 WI233L W ireless LAN 11g PCI adapter DATE 82011-83802 ES01 Laurence 16/Aug/2005Alex 16/Aug/2005 DATE ISSUED DATE CHECKED DATE APPROVED REVISION RECORD REV ECO DATE DESCRIPTION PEF00009B A 16/Aug/2005 Joan 16/Aug/2005 Laurence Alex 16/Aug/2005 16/Aug/2005 RF_LE-G# IREF RADIO_PD# SYNCLK SYNDATA RX_BB_Q- RFIN_G PA_RFING RFTX_PE RFRX_PE RX_BB_Q+RX_BB_I-RX_BB_I+ TX_BB_I- TX_BB_I+ TX_BB_Q+ TX_BB_Q- 40MI 82011-83802ES01-2-A82011-83802ES01-2-A.SCH PA_RFING RFIN_G PA_PE_G TR_SW0 TR_SWN0 82011-83802ES01-3-A82011-83802ES01-3-A.SCH PARCBE1BCBE0BDEVSELBSERRBPERRBSTOPBTRDYBFRAMEBIRDYBCBE2B MRSTB INTABCBE3B CCLK IDSEL RFTX_PERFRX_PETR_SWN0TR_SW0RADIO_PD#PA_PE_GTX_BB_I+TX_BB_I-TX_BB_Q- IREF RX_BB_I+ RX_BB_I- RX_BB_Q- RX_BB_Q+ 40MI TX_BB_Q+REQB GNTB SYNDATARF_LE-G#SYNCLKAD[0..31] 82011-83802ES01-4-A82011-83802ES01-4-A.SCH DEVSELB REQB AD[0..31]IDSELMRSTBGNTBIRDYBCCLKCBE2BPARPERRBCBE3B SERRB TRDYBCBE1B INTAB FRAMEBCBE0BSTOPB 82011-83802ES01-5-A82011-83802ES01-5-A.SCH 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 16/Aug/2005 Size Sheet of File Name: C A D:\PCB( )\WI233L(41713-83802)\41713-83802EL01-A. ddb - Documents\82011-83802ES01-2-A.SCH USED ON DRAWN 25 WI233L W ireless LAN 11g PCI adapter DATE 82011-83802 ES01 Laurence 16/Aug/2005Alex 16/Aug/2005 DATE ISSUED DATE CHECKED DATE APPROVED PEF00009B SYNCLK RF_LE-G# GND RF_LE-G# GND RFLDOBP IREF SYNDATA RADIO_PD# SYNDATA IREF SYNCLK RX_BB_Q- RX_BB_Q- RFOUTG+RFING+ PA_RFING GND GNDGNDGND VCCAVCCA RFIN_G RFOUTG-RFING- GND TXR_VO3 VCTRL1 TXR_VO3 GND TXR_VO2 VCCA C_VCC VE RFRC C_VCC TXR_VO3 GNDGND RFRX_PE RFRX_PE RFTX_PE RFTX_PE VCCA VCCA VCCA VCCA VCCARX_BB_Q+ RX_BB_Q+ RX_BB_I- RX_BB_I- RX_BB_I+ RX_BB_I+ TX_BB_I- RF_VCCD VCCA GND 1.8VA 1.8VA GND GND GND GND GND3.3VA 3.3VD VCCA GND VCCA GND GND GND TX_BB_I- TX_BB_Q- TX_BB_Q-TX_BB_Q+ TX_BB_Q+ TX_BB_I+ TX_BB_I+ TXR_VO2 TXR_VO2 40MI TXR-40MO GND RFIN_F F40M GND 40MX240MX1 1 2 L10 6.8nH 1 2 R260 68pF 1 2 R115 0 ohm 1 2 L63 0 ohm/NI 1 2 L55 2.7nH 1 2 R7 0 ohm 1 2 L8 2.2nH 12 C45315pF 1 2 C15 33pF 12 C244 0.1uF 12 C413 10uF/6.3V 12 C4261nF 1 2 C464 1nF 12 C4523.3nF 1 2 C45 1.8pF 12 C2810uF/6.3V 1 2 C409 10uF/6.3V 1 2 R200 ohm 1 2 C454 10pF/NI RFinP2 1 RFinM2 2 VCC2 3 RFoutP2 4 RFoutM2 5 NC 6 NC 7 NC 8 NC 9 NC 10 NC 11 TR_PE 47 CLK 41 Data 42 LE 43 Core_Vcc 21 LO_Vcc 20 VCCA 24 VCCD 29 GND 49 VP1 23 LO_Vc 22 LD_fo 27 CLK_Out 28 Base_Vcc1 37 I_OutP 34 I_OutM 33 Base_Vcc2 32 Q_OutP 31 Q_OutM 30 X1/OSCI 26 X2 25 VCC1 48 Iref 44 Bias_Vcc 45 RF_PE 46 LDO_Out3 17 I_InP 40 I_InM 39 Q_InP 36 Q_InM 35 LDO_Bypass 15 LDO_In 14 LDO_PE 13 LDO_Out1 12 LDO_Out2 16 NC 18 NC 19 DAC_Vcc 38 U47RT2527-48P 1 2 R267 18K 5x3.2 12 43 U50 XTAL/5x7/40MHz 1 2 R259 68pF 1 2 R160 27 12 C4421nF 1 2 C3210 ohm 1 2 L26 100nH 1 2 C492 4.7pF 1 2 C491 100pF 1 2 L54 1.2nH 12 C417 10pF 1 2 C48 1.5pF 12 C4394.7pF 12 C446 100pF 1 2 C437 10pF 1 2 C443 39pF 1 2 C461 0.01uF 12 C2454.7uF/6.3V 1 2 C414 10uF/6.3V 1 2 C419 0.01uF 12 C2733pF/NI 1 2 L36 2.7nH/NI 1 2 C24 10pF 12 C428 1nF RF_LE-G#IREF RADIO_PD# SYNCLKSYNDATA RX_BB_Q- RFIN_G PA_RFING RFTX_PERFRX_PE RX_BB_Q+RX_BB_I-RX_BB_I+TX_BB_I-TX_BB_I+TX_BB_Q+TX_BB_Q- 40MI VCCA VCCA VCCA VCCA VCCA 1.8VA 3.3VA 3.3VDVCCA VCCA XTAL: CL=15pF, Co=1.5pF Joan 16/Aug/2005 Laurence Alex 16/Aug/2005 16/Aug/2005 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 16/Aug/2005 Size Sheet of File Name: C A D:\PCB( )\WI233L(41713-83802)\41713-83802EL01-A. ddb - Documents\82011-83802ES01-3-A.SCH USED ON DRAWN 35 WI233L W ireless LAN 11g PCI adapter DATE 82011-83802 ES01 Laurence 16/Aug/2005Alex 16/Aug/2005 DATE ISSUED DATE CHECKED DATE APPROVED PEF00009B ANTE2E ANTE2 PA_RFING DT2 STR25 MPAO_G DR2 GNDPAF BPF_OG GND GND PA_PE_G GND GND VB1 TR_SWN0 TR_SWN TR_SW0 GND TR_SW GND GND GND GND GND GND GND 3.3VD PA_IN GND GND DET1 GND GND 3.3VD GND VC1 PARFO GND GND VC2 12 C362 10uF 12 C472 C/NI 12 C219 0.5pF 12 L1 1.2nH/NI 1 2 C26 10pF 12 C21.8pF 12 C360 0.1uF/NI 1 2 R282 0 ohm/SB 1 2 5 3 4 CON2 SMA_5P-RA 1 2 C469 10pF BI 4 BO 2 G 3 G 1 U6 BPF-LCB22B2450S1 12 C3 1uF/NI 1 2 C525 10pF 1 2 R281 0 ohm/SB 12 L232.7nH 1 2 C30 2.7nH 1 2 C29 10pF 12 C512 100pF/NI 12 L101 0 ohm 12 C3281uF 12 C329 1uF 12 L100 100nH 12 C610pF/NI 1 2 R210 0 ohm/SB RFin 2 GND 3 Vcc1 13 GND 1 Vdet_out 8 NC 7 NC 6 NC 5 NC 9 GND 10 RFOUT 11 GND 12 NC 15 Vcc1 16 GND 17 Vcc2 14 Vpc 4 U5 TQP777002 12 C325 10nF 12 C1 1.8pF 12 C511 100pF/NI 12 C471 NP 1 2 C7 10pF OUT1 3 GND 2 OUT2 1 VC2 6 IN 5 VC1 4 U3 AS 179-92 PA_RFING RFIN_G PA_PE_G TR_SW0 TR_SWN0 3.3VD Main Antenna Joan 16/Aug/2005 Laurence Alex 16/Aug/2005 16/Aug/2005 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 16/Aug/2005 Size Sheet of File Name: C A D:\PCB( )\WI233L(41713-83802)\41713-83802EL01-A. ddb - Documents\82011-83802ES01-4-A.SCH USED ON DRAWN 45 WI233L W ireless LAN 11g PCI adapter DATE 82011-83802 ES01 Laurence 16/Aug/2005Alex 16/Aug/2005 DATE ISSUED DATE CHECKED DATE APPROVED PEF00009B 1.8VD 1.8VD 3.3VD 3.3VD 3.3VD GND PARCBE1B 3.3VD CBE0B 3.3VD 1.8VD LED_LKACT# DEVSELBSERRBPERRBSTOPBTRDYBCLKRUNB 1.8VD FRAMEBIRDYBCBE2B 1.8VD EEDIEECS ORG 3.3VD 1.8VD IDSEL INTAB REQB GNTB MRSTBREQB MRSTB CBE3BGNTB CBE3B INTABIDSEL AD23 AD30 AD7AD12AD13AD5AD18AD10 AD31 AD29 AD27 AD22 AD21 AD19AD3AD9 AD24 AD25 AD16 AD[0..31] AD8AD2 AD28 AD26 AD4AD17 AD20 AD14AD15AD6AD11AD1AD0 CCLK CCLK 1.8VC 1.8VC 1.8VC VREF25P 3.3VD 1.8VD 1.8VD 1.8VA1.8VC1.8VA EECS EEDO EEDO RFTX_PERFRX_PETR_SWN0TR_SW0RADIO_PD# GND SYNDATA PA_PE_G TX_BB_Q-TX_BB_I+TX_BB_Q+TX_BB_I- VREF IREF TSSI_AG 3.3VARF_LE0 LED_RDYA# 1.8VC 1.8VA 3.3VA GND RX_BB_Q-RX_BB_Q+RX_BB_I-RX_BB_I+ GND RF_LE-G#SYNCLK RF_CLKRF_DATA0 VREF25N 1.8VDPLL 1.8VD 1.8VDPLL GND 1.8VDPLL 1.8VD EESK 3.3VD 3.3VD GND EESK EEDI 1.8VA1.8VAVREFP GND GND GND 1.8VA G…

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK 1082 ILAC MRA October 2005 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 PRIME ELECTRONICS & SATELLITICS INC. Product Type : Wireless LAN 11g PCI adapter Model Number : WI233L Test Report Number : GTK-0510057 Date of Test : October 17, 2005- October 20, 2005 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2001 Sharon Chang, President Date: October 27, 2005 http : //www.gestek.com.tw 200085-0 GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Declaration of Conformity On Behalf Of PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN 11g PCI adapter Model Number: WI233L FCC ID: PQP-WI233L Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ..................................................................................................................................3 2. GENERAL INFORMATION ..................................................................................................................4 2.1 PRODUCTION DESCRIPTION ................................................................................................................................. 4 2.2 OPERATIONAL DESCRIPTION................................................................................................................................ 5 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION ........................................................................................... 5 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS .................................................................................... 6 2.5 CONFIGURATION OF THE TESTED SYSTEM ....................................................................................................... 7 2.6 TEST FACILITY....................................................................................................................................................... 10 2.7 TEST SETUP........................................................................................................................................................... 11 2.8 EUT OPERATING CONDITIONS ............................................................................................................................ 11 3. CONDUCTION EMISSION DATA ......................................................................................................12 3.1 TEST EQUIPMENTS............................................................................................................................................... 12 3.2 BLOCK DIAGRAM OF TEST SETUP...................................................................................................................... 12 3.3 CONDUCTED EMISSION LIMIT ............................................................................................................................. 13 3.4 OPERATING CONDITION OF EUT ........................................................................................................................ 13 3.5 EUT CONFIGURATION ON MEASUREMENT ....................................................................................................... 13 3.6 CONDUCTED EMISSION DATA............................................................................................................................. 13 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS ...................................................................................... 14 4. RADIATION EMISSION DATA...........................................................................................................18 4.1 TEST EQUIPMENT ................................................................................................................................................. 18 4.2 OPEN TEST SITE SETUP DIAGRAM..................................................................................................................... 18 4.3 RADIATED EMISSION LIMIT.................................................................................................................................. 19 4.4 EUT CONFIGURATION .......................................................................................................................................... 19 4.5 OPERATING CONDITION OF EUT .....................................................................................…

Text truncated - open the document above for the full version.

GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 102 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. PHOTOGRAPHS FOR TEST 9.1 TEST PHOTOGRAPHS FOR CONDUCTION 5dBi GESTEK Lab Report #: 0510057ID Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 103 of 115 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.5dBi
