PQP-WI233GWireless LAN PCI Adapter

33333333 百 一 電 子 股 份 有 限 公 司 PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN COUNTY, TAIWAN. 中壢巿中壢工業區東園路69號 TEL: +886-3-461-5000 FAX: +886-3-461-4000 W W i i r r e e l l e e s s s s L L A A N N P P C C I I A A d d a a p p t t e e r r User manual M M o o d d e e l l n n a a m m e e : : W W I I 2 2 3 3 3 3 g g Version: 2.0 (June. 2004) Wireless LAN PCI Adapter I Copyright Copyright  2004 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Wireless LAN PCI Adapter II Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment complies with FCC radiation exposure limits. However, in order to avoid the possibility of exceeding the FCC exposure limits, this device and its antenna should not be co-located or operating in conjunction with any other antenna or transmitter.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Wireless LAN PCI Adapter III Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 U.S.A: Channel 12 and 13 is locked by firmware. Wireless LAN PCI Adapter IV Manual Contents Chapter 1 Introduction ......................................................... 1 Chapter 2 Installation Procedure ........…

Text truncated - open the document above for the full version.

33333333

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 13, 2004 RE: FCC ID: PQP-WI233G_ATCB001997 Attention: Joanna Chen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that while the report states 2412 to 2462MHz, the manual mentions channels 12 and 13, which is above the 2462MHz frequency. As these channels are not allowed in the US, please confirm and provide evidence that the device only operates on channels in the frequency range of 2412 to 2462MHz in the US. 2. Please provide a manual with the required rf exposure 20cm separation distance statement. 3. Please note that while the report states a reverse SMA was used, the schematics indicate an SMA antenna connector is used. Please note that this is not a unique connector. Please verify and please provide evidence that the device meets the unique connector requirements of part 15.203. 4. FYI - Please note that when you compare a peak reading for compliance reasons, you must compare the peak reading to the proper limit. For example, on page 32 of the report you state that the peak reading at 7236MHz has a margin of 20.89dB. Please note this is not correct as the limit that is to be compared to show compliance is to be the average limit NOT the 20dB over average. Thus the actual margin for the purpose of compliance is 0.89dB not 20.89dB. Please remember that for compliance you must compare your findings to the average limit. Please report your findings to the correct limits so that the correct margins can be reported. 5. Please note that you state the setup was done in accordance to ANSI C63.4. Please note that the setup photos show significantly greater distances between equipment on the table than 20cm. Please explain and please provide test data with equipment setup in accordance with ANSI C63.4 separation distances. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

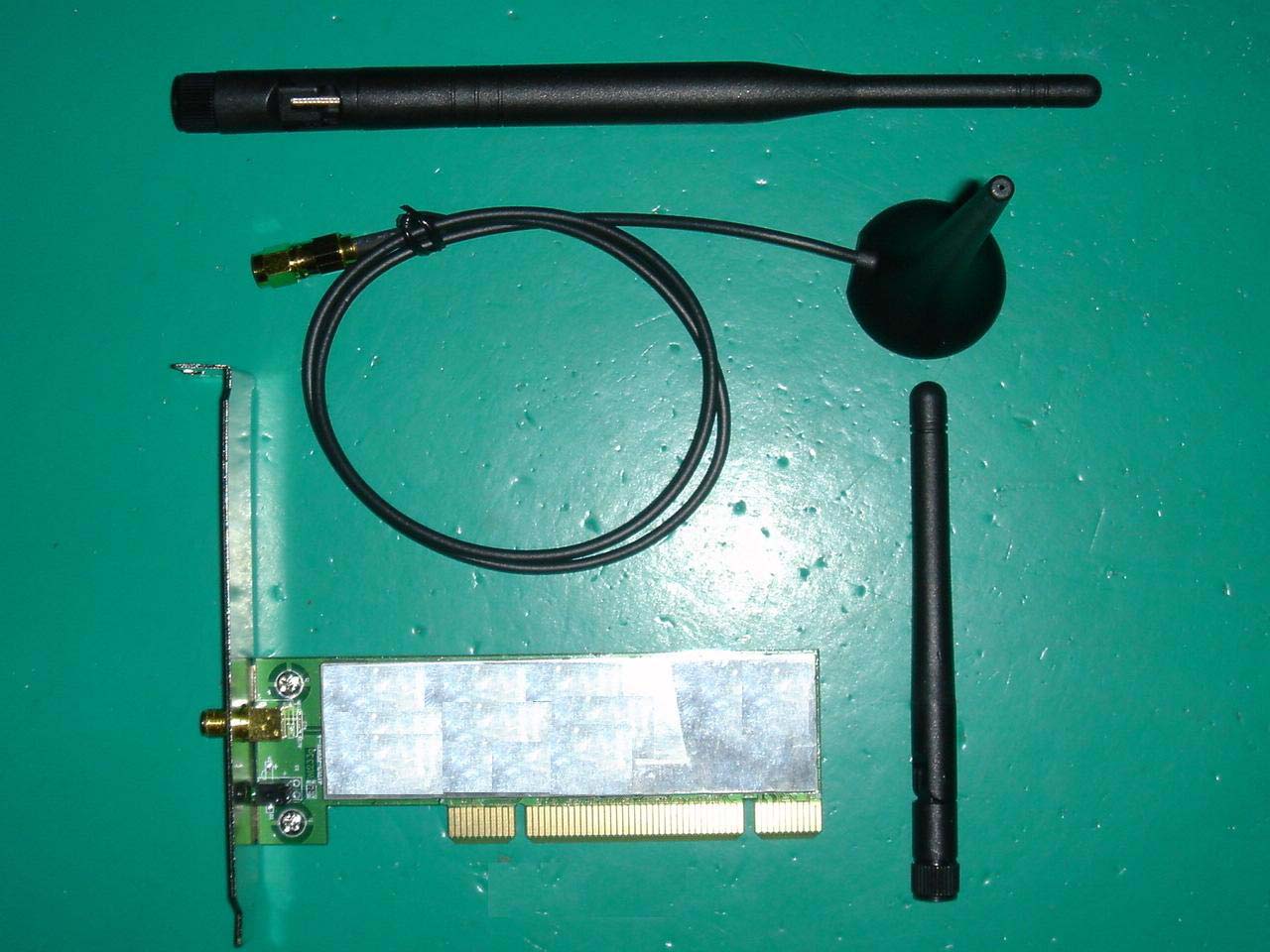

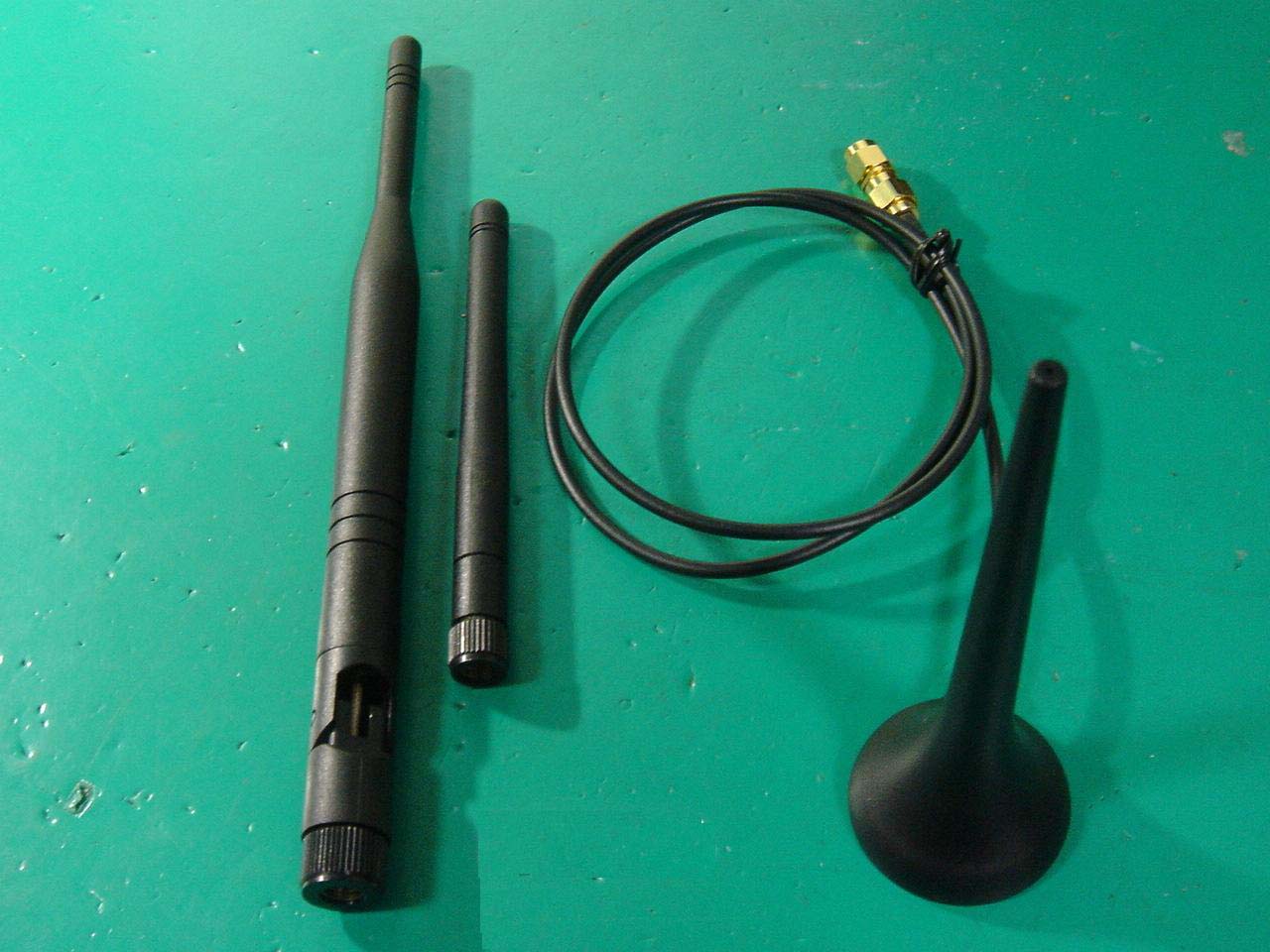

GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 98 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. Front View Of Wireless LAN PCI adapter (EUT) 2. Front View Of Wireless LAN PCI adapter (EUT) GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 100 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 4. Front side of Wireless LAN PCI adapter (EUT) 5. Inner View Of Wireless LAN PCI adapter (EUT)

Wireless LAN PCI Adapter Model: WI233g FCC ID: PQP-WI233G Made in China 802.11g Compliant 54Mbps Data Transfer Rate Certified for FCC Part 15 Class B

GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 99 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. LABEL HERE

GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 100 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 4. Front side of Wireless LAN PCI adapter (EUT) 5. Inner View Of Wireless LAN PCI adapter (EUT) GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 101 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 6. Rear side of Wireless LAN PCI adapter (EUT) 7. Back View Of Wireless LAN PCI adapter (EUT) GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 102 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 8. MAIN CHIPSET-1 9. MAIN CHIPSET-2 GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 103 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. MAIN CHIPSET-3 11. MAIN CHIPSET-4 GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 104 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 12. MAIN CHIPSET-5 13. Conntector

GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 5 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The EUT is Mini PCI interface and powered by PC System. This EUT has three type antenna and non-simultaneously connect in PCB. The final test is chose 5dBi antenna and 2.5dBi antenna. The other instruction, please look at user manual. This is a digital transmission system (DTS) and have five type of modulation DSSS, DBPSK, DQPSK, OFDM, CCK. The data rate are 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54Mbps The equipment enables high-speed access without wires to network assets. This adapter uses the IEEE 802.11g protocol to enable wireless communications between the host computer and other computers.

GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN PCI adapter Model Number: WI233g FCC ID: PQP- WI233G Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City 320, Taoyuan, Taiwan. Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : (02) 2603-5321 Fax : (02) 2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 3 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test November 29, 2004 Temperature 23.9 deg/C EUT Wireless LAN PCI adapter Humidity 55 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 64.5654 0.0406 6 2437.00 76.3836 0.0481 11 2462.00 77.9830 0.0491 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 4 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test November 29, 2004 Temperature 23.9 deg/C EUT Wireless LAN PCI adapter Humidity 55 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 5dBi or 3.16 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 69.8232 0.0439 6 2437.00 74.6449 0.0470 11 2462.00 77.0903 0.0485 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 5 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test November 29, 2004 Temperature 23.9 deg/C EUT Wireless LAN PCI adapter Humidity 55 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.5dBi or 1.78 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 64.5654 0.0228 6 2437.00 76.3836 0.0270 11 2462.00 77.9830 0.0276 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0411087 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 6 of 6 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test November 29, 2004 Temperature 23.9 deg/C EUT Wireless LAN PCI adapter Humidity 55 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.5dBi or 1.78 in linear scale. Output Power Into Antenna & RF E…

Text truncated - open the document above for the full version.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Ken 25/Jun/2004 Size Sheet of File Name: C A D:\PROTEL LOYOUT\WI233G\WI233G-2\WI233g-2.DDB - Documents\41713-83801\82011-83801ES01-A-1.Sch USED ON DRAWN 14 RT2525 Wireless LAN PCI Adapter WI233g SCHEMATIC DATE 82011-83801 ES01 Jiun 25/Jun/2004Alex 25/Jun/2004 DATE ISSUED DATE CHECKED DATE APPROVED REVISION RECORD REV ECO DATE DESCRIPTION RX_BB_Q+TX_BB_I+ GND TX_BB_Q- RX_BB_I+TX_BB_I-RX_BB_Q-TX_BB_Q+ RX_BB_Q- TX_BB_Q- RX_BB_Q+ LNA1 40MI RFRX_PERFTX_PE CY_X1 RX_BB_I-RX_BB_I+ GND RX_BB_I- SYNDATA SYNCLK SYNCLK SYNDATA AGC TX_BB_I+ RF_LE-G# RF_LE-G# LNAG0 VE VCCF IF-IN+ TXBBITXBBQ TX_BB_I- TX_BB_Q+ IFIN- IFIN+ IF-IN- IFIN- IFIN+ LD LD_FO VCC6CY_X2VCC5DO2VCTRL2 AGC VCCC GND RFVC3 LNAG1 VCTRL1 VCCE DO1 LNA0 LNA0 RFRX_PE TR_PERF_PE RFTX_PE IREF VD VCCB GND GND IREF VCC42 VCC41 RFVC4 RFIN VCCB RFVCC1 VCTRL1 GND RFIN+RFIN- RFIN_F VCCA GND GND GND IFO+ IFO- VCCA GND VCCAVCCA IFOUT- VCCA IFOUT+ RFRC IFRC PAF PA_RFIN RF-OUT- RFOUT-RFOUT+ RF-OUT+ LNA1 VCCA VCCA 12 C2440.1uF 1 2 L26100nH 1 2 R171 4.7K/NI 1 2 R221 4.7K 1 2 L8 2.2nH 12 R32910 1 2 C321 2.2pF 12 R62620 12 C95 47pF/NI 12 C231nF 1357 2468 RA1 RA 47*4 12 L233.9nH 1 2 C48 1.5pF 1 2 R132.4K 1 2 L2 10-ohm 1 2 C93 180pF 1 2 C346 0.01uF 1 2 C320 10pF 1 2 L34 27 1 2 L33 100nH 1 2 R215 510/NI 12 C26100pF 1 2 C342 8.2pF 1 2 R27 4.3K 1 2 L36 22nH/NI 1 2 C349 6.8pF 12 C219 1.5pF 12 C25910pF/NI 12 L1847nH 12 C7610pF 1 2 L35 27 12 C94 22nF 1 2 C45 1.8pF 1 2 R14 1K 1 2 R214 510/NI 12 C315820 1 2 L380 ohm 1 2 L43 0 1 2 L27 0 ohm 12 C245 4.7uF/10V 1 2 C21 1.8pF 1 2 C254 1pF 12 C67 4.7uF/10V 12 C65 100pF 12 C316100pF 1 2 L140 ohm 1 2 L390 ohm 1 2 L11 2.2nH 1 2 R160 27 Core1_Vcc 2 VCC10 47 IFOUT+ 46 IFOUT- 45 BB_Q_In+ 42 BB_Q_In- 41 BB_I_In+ 44 LO1_VC 1 LNA_Gain1 5 RFIN- 7 RFIN+ 6 VCC2 8 RFOUT+ 10 RFOUT- 11 VCC3 19 VCC4 20 VCC5 32 IFIN+ 39 IFIN- 38 TR_PE 12 RF_PE 3 VP1 17 DO1 18 VCC6 34 CLK 15 LD_fo 23 VCC7 35 DO2 26 VP2 27 BB_Q_Out- 28 BB_Q_Out+ 29 VCC8 37 BB_I_Out- 30 RX_AGC 36 IREF 16 DATA 14 LE 13 X1 24 X2 25 VCC11 48 BB_I_Out+ 31 VCC9 40 VCC1 4 BB_I_In- 43 GND 49 LO2_VC 33 LNA_Gain0 9 VCC41 21 VCC42 22 U9RT2525 12 C89 1nF 1 2 C31 0.01uF 1 2 C83 1nF 1 2 L44 0 12 C258 10pF/NI 1 2 C42 1nF 12 C56 68pF 1 2 R190 27 1 2 L5 56nH 1 2 R28 100nH 1 2 L122.2nH 1 2 R5 127 12 C2551nF 12 C55 33nF 1 2 C20 1.8pF 12 C304 100pF 1 2 R30 100 12 L17 47nH 1 2 C54 1nF 12 C322 100pF 1 2 R176 0 ohm/SB 1 2 L32100nH 1 2 L4 56nH 1 2 L10 6.8nH 1 2 C253 1pF 1 2 C343 8.2pF 1 2 R7 127 12 C250100pF 1 2 R172 4.7K 12 C257 1nF UB 1 GND/DC 2 BP 3 BP 4 NC 6 GND 5 U34 BL2012-20B2450 1 2 C84 1nF G 4 I 2 I 3 O 7 O 6 G 1 G 5 G 8 U11 SAW_374 1 2 R177 0 ohm/SB 12 C60 10pF 12 C344100pF TX_BB_Q+TX_BB_Q-TX_BB_I+TX_BB_I-RX_BB_Q+RX_BB_Q-RX_BB_I+ LNA1RFRX_PERFTX_PE 40MI RX_BB_I- SYNCLKRF_LE-G#SYNDATA AGCLNA0 IREF LD_FO RFIN PA_RFIN VCCA VCCB VCCA VCCA VCCB VCCB VCCA VCCA VCCB VCCB VCCB VCCA VCCA VCCA VCCA (PE2)(PE1) CLOSE TO THE SAW CLOSE TO THE SAW CNT-TO-PARTS CNT-TO-PARTSLow-Gain RALINK TECHNOLOGY, CORP.CONFIDENTIAL U11 (SAW Filter) TFS374A (Telefilter)TB0152A (TAI-SAW) 1.8pF 8.2pF 1.5pF 5.6pF L1847nH C21, C21 33nH C342, C343 VCTRL1 IFIN- IFIN+ LNA1LNA0 RFTX_PE RFRX_PE TR_SWN TR_SW PA_RFIN LNA1 PA_PE_G RFINTSSI 82011-83801ES01-A-282011-83801ES01-A-2.SCH AD[0..31] IDSEL CBE3B GNTB INTABREQB MRSTB TX_BB_I+TX_BB_Q+TX_BB_I-TX_BB_Q-RADIO_PD#PA_PE_GLNA0LNA1SYNDATARFRX_PETR_SWSYNCLKRF_LE-G# CCLK IRDYBFRAMEBTRDYBCBE2BSTOPBDEVSELBAGC TSSI IREF RFTX_PE LD_FO TR_SWNPERRBSERRBPARCBE1BCBE0B40MI RX_BB_Q- RX_BB_I+ RX_BB_Q+ RX_BB_I- MRSTBINTABGNTBREQBFRAMEBDEVSELBSTOPBTRDYBIRDYBSERRBPERRBRF_LE-G#CLKRUNBRXBB_Q-RXBB_Q+RXBB_I+RXBB_I- 82011-83801ES01-A-382011-83801ES01-A-3.SCH GNTBREQBMRSTBAD[0..31]CBE0BCBE1BCBE2BCBE3BPARTRDYBIRDYBINTABIDSELSTOPBDEVSELBPERRBFRAMEBSERRBCCLKRADIO_PD# 82011-83801ES01-A-482011-83801ES01-A-4.SCH 12 C10 10uF Ken 25/Jun/2004 25/Jen/2004 25/Jun/2004 Jiun Alex 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Ken 25/Jun/2004 Size Sheet of File Name: A A D:\PROTEL LOYOUT\WI233G\WI233G-2\WI233g-2.DDB - Documents\41713-83801\82011-83801ES01-A-2.SCH USED ON DRAWN 24 PA and TX/RX Wireless LAN PCI Adapter WI233g SCHEMATIC DATE 82011-83801 ES01 Jiun 25/Jun/2004Alex 25/Jun/2004 DATE ISSUED DATE CHECKED DATE APPROVED VCC1 VBB TSSI VB2VB1 TR_SWN PA_RFIN PA_PEG PAPEI PA_OUT BPF_OUT RFINPA_OUT BPF_IN SW10SW9SW8 3.3VDMTR_SWN MTR_SW TR_SW LNA1TR_SWN VCCA GND PH PA_PE_G 3.3VD VCCPA GND ANTE2E +33V ANTE2 GND GND PA_RFO BI 2 BO 4 G 3 G 1 U7 BPF-MF2450B-01124501U213210 12 C341C/NI 1 2 R211 220 12 C78C/NI 1 2 R12 1K/NI 12 C328 3.9pF 12 R40 1K/NI 1 2 R212 1K 12 C340C/NI 12 C6 1.2pF/NI 12 C330 10uF 12 C46 1pF 12 C249 1.5pF/NI SD 1 32 Q1 BSS84/NI 1 2 C324 0.1uF 12 C329 10pF 1 2 C74 10pF 1 2 L41 27nH/0603 OUT1 1 GND 2 OUT2 3 VC2 4 IN 5 VC1 6 U6AS179-92 1 2 L1 0 ohm/SB 12 C331 100pF 12 C1902.2nH/NI 1 2 C323 10pF 1 2 L310pF 12 R169 3.3K/NI 1 2 R222 4.7K G V 12 45 3 U37 74LVC1G08/SC-70 G V 2 45 31 U36 74LVC1G04/SC70 1 2 L46 10nH/0603 12 R220 1K RF IN 1 GND 2 DECT_V 3 DECT_OUT 4 NC 8 GND 7 VB2 6 VB1 5 NC 9 RFOUT 10 RFOUT 11 RFOUT 12 VCC1 13 VCC1 14 NC 15 NC 16 GND 17 U5 AP1091 12 R219 1K SD 1 23 Q4 BSS138/NI 5 2 1 3 4 U4 SMA_5P-RA 1 2 R15 1K/NI 1 2 R210 270 12 C325 100pF G V 12 45 3 U35 74LVC1G08/SC-70 12 R216 4.7K/NI 12 C327 2.7pF 12 C248 1.8pF/NI 1 2 C43 10pF 12 C256 100pF/NI TR_SWN TR_SW PA_RFIN LNA1 PA_PE_G VCCA 3.3VD 3.3VD VCCPA S G D R210 R211 150-ohm240-ohm 100-ohm180-ohm Note Use74LVC1G08 UseBSS84 RALINK TECHNOLOGY, CORP.CONFIDENTIAL RFIN +33V TSSI Ken 25/Jun/2004 25/Jen/2004 25/Jun/2004 Jiun Alex 1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Ken 25/Jun/2004 Size Sheet of File Name: A A D:\PROTEL LOYOUT\WI233G\WI233G-2\WI233g-2.DDB - Documents\41713-83801\82011-83801ES01-A-3.SCH USED ON DRAWN 34 WLAN MAC+BBP - RT2560 Wireless LAN PCI Adapter WI233g SCHEMATIC DATE 82011-83801 ES01 Jiun 25/Jun/2004Alex 25/Jun/2004 DATE ISSUED DATE CHECKED DATE APPROVED GNTBCBE3B 1.8VD R…

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK 1082 ILAC MRA December 2004 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 PRIME ELECTRONICS & SATELLITICS INC. Product Type : Wireless LAN PCI adapter Model Number : WI233g Test Report Number : GTK-0411087 Date of Test : November 25, 2004- December 01, 2004 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2001 Sharon Chang, President Date: December 06, 2004 http : //www.gestek.com.tw Accredited Laboratory GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Certification On Behalf Of PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN PCI adapter Model Number: WI233g FCC ID: PQP- WI233G Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City 320, Taoyuan, Taiwan. Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0411087 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 107 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ...................................................................................................................3 2. GENERAL INFORMATION ...................................................................................................4 2.1 PRODUCTION DESCRIPTION ............................................................................................................4 2.2 OPERATIONAL DESCRIPTION...........................................................................................................5 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION.......................................................................6 2.4 CONFIGURATION OF THE TESTED SYSTEM ..................................................................................7 2.5 TEST FACILITY..................................................................................................................................10 2.6 TEST SETUP .....................................................................................................................................11 2.7 EUT OPERATING CONDITIONS.......................................................................................................11 3. CONDUCTION EMISSION DATA .......................................................................................12 3.1 TEST EQUIPMENTS..........................................................................................................................12 3.2 BLOCK DIAGRAM OF TEST SETUP.................................................................................................12 3.3 CONDUCTED EMISSION LIMIT ........................................................................................................13 3.4 OPERATING CONDITION OF EUT ...................................................................................................13 3.5 EUT CONFIGURATION ON MEASUREMENT..................................................................................13 3.6 CONDUCTED EMISSION DATA........................................................................................................13 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS.................................................................14 4. RADIATION EMISSION DATA ...........................................................................................16 4.1 TEST EQUIPMENT ............................................................................................................................16 4.2 OPEN TEST SITE SETUP DIAGRAM................................................................................................16 4.3 RADIATED EMISSION LIMIT.............................................................................................................17 4.4 EUT CONFIGURATION ................................................................................................................…
