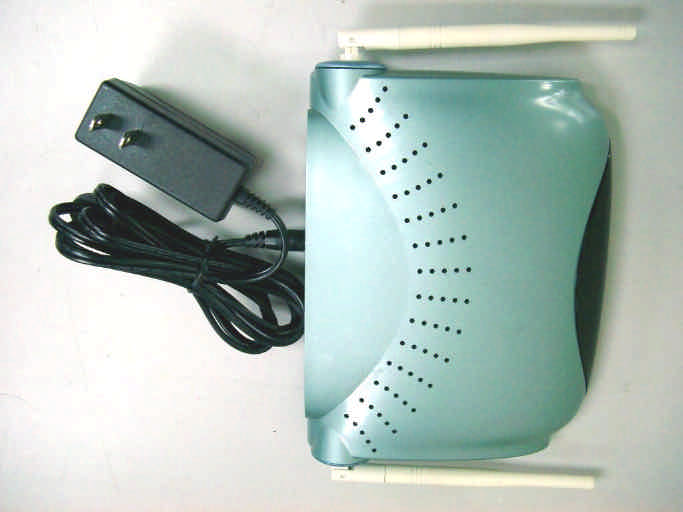

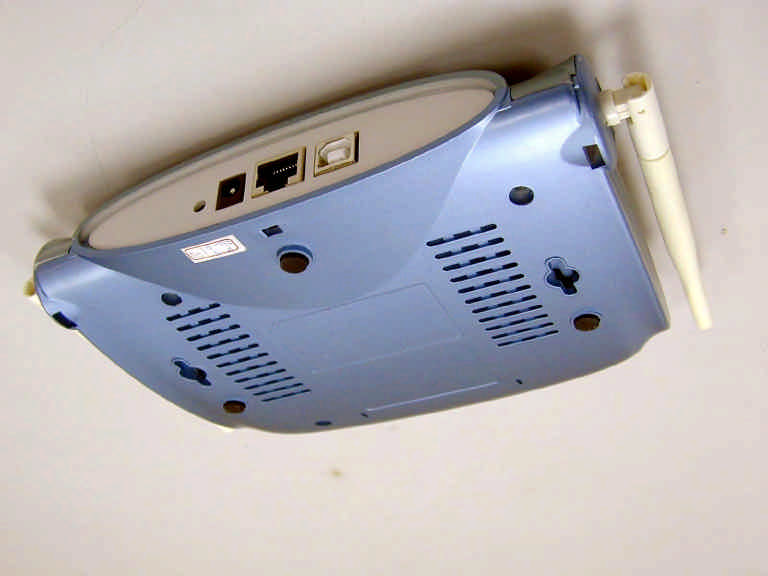

PQP-WA211P-XWireless Access Point

Wireless Access Point User Manual Wireless Access Point Copyright Copyright  2001 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. . All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/television technician for help. Notice 1: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2: Shielded interface cables, if any, must be used in order to comply with the emission limits. Notice 3: This device complies with Part 15 of the FCC Rules. Operations is subject to the following two conditions: (1) This devices may not cause harmful interference and (2) This devices must accept any interference received including interference that may cause undesired operation. Caution : “ To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. Do not alter the antenna(s) which is equipped with this device” Manual Contents Purpose This user guide gives you all the information to install and operate the Wireless Access Point Device properly. Structure This user guide consists of five chapters: Chapter 1 Introduction This chapter introduce the feature and package contents of this product before you proceed the Wireless Access Point installation Chapter 2 Installation This chapter gives all the necessary information that to install the Wireless Access Point Chapter 3 Configuring the Wireless Access Point This chapter contains step-by-step procedure on how to configure the Wireless Access Point through the DFU utility or the SNMP manager. Chapter 4 Troubleshooting This chapter provides solutions to problems usually encountered during the installation and operation of the Wireless Access Point Chapter 5 Appendix Wireless Access Point This chapter contains definitions of technical terms and acronyms commonly found when installing and configuring this device Table of Contents Chapter 1 Introduction 1.1 Package Contents..................................................... 1-1 1.2 System Requirements ............................................... 1-1 1.3 Features ..........................................................1-2 1.4 Specification......................................................1-2 Chapter 2 Installation 2.1 Hardware connection ..................................................... 2-1 2.2 LED Indicator .................................................................. 2-2 Chapter 3 Configuring the Wireless Access Point 3.1 Configure through DFU Utility .................................. 3-1 3.2 Configure through SNMP Manager ..........................3-7 Chapter 4 Troubleshooting 4.1 Frequently Asked Questions .................................... 4-1 Chapter 5 Appendix Chapter 1 Introduction Introduction 1-1 Thank you for purchasing Wireless Access Point. This device features the latest innovation wireless technology making the wireless networking world happened. This manual guides you on how to install and properly use the Wireless Access Point in order to take full advantage of its features. 1.1 Package Contents Make sure that you have the following items: • One Wireless Access Point • One AC Power Adapter • One USB Cable • One Installation Manual • One CD-Title with AP manager Software and manual If any of the above items are missing, contact your supplier as soon as possible. 1.2 System Requirements Before installation, please check the following requirements with your equipment. 1-2 User Manual • Pentium Based ( And Above ) IBM-Compatible PC System • CD-ROM drive • One Available USB Connector • Windows 9x/ME/NT4.0/2000 Operating System with TCP/IP protocol • At least 500Kbytes of free disk spac…

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV DATE APPROVED 12/26/2001 Joan Size Sheet of File Name: B A 26-Dec-2001 C:\PCB\ \ .Ddb - Documents\Sheet1.Sch 郭嘉良方塊圖 USED ON DRAWN 11 WA211P Block Diagram of WA211P DESCRIPTIONS DATE PLL HFA3683A RF/IFCONV I/O LO PLL HFA3783 QUAD IF REF IN REF OUT IFLO RFDACRFADCIFDACI ADCQ ADCI DACQ DACTXDACTXADC AGCCTL DEMOD I/O MOD TXALC 117666676 REF IN HFA3861B BBP VNET-B ARM CPU SDRAM AntSel REF IN Ethernet RF PHY LO HFA3983 RFPA AT76C510MAC RXTX/RX 44MHzTCXO 2074 MHz 748 MHz FLASH 32MHz 12MHz Ethernet MAC MAC Processor Ethernet 802.11 Processor

From: Mike Kuo Sent: Wednesday, January 23, 2002 8:18 PM To: '[email protected]' Subject: RE: PRIME ELECTRONICS & SATELLITICS INC., FCC ID:PQP-WA211P-X, AN02T1758 Dear Joe: Most of 15.247 mobile device are required to present MPE information to make sure the device can comply with 20cm separation distance. It is my understanding that ETC always measured MPE result but most of labs did not do so. MPE can be calculated and be presented as distance based on the field strength and antenna gain. This information is for your reference. Best Regards Mike Kuo -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Wednesday, January 23, 2002 4:02 AM To: Mike Kuo Subject: Re: PRIME ELECTRONICS & SATELLITICS INC., FCC ID:PQP-WA211P-X, AN02T1758 Dear Mike, Would you mind to explain that what situation we need to provide MPE data? Do all devices of wireless LAN need? Like this case? Best regards, Joe ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "K. C. (E-mail)" <[email protected]>; <[email protected]> Sent: Wednesday, January 23, 2002 9:02 AM Subject: FW: PRIME ELECTRONICS & SATELLITICS INC., FCC ID:PQP-WA211P-X, AN02T1758 > > > -----Original Message----- > From: CERTADM > Sent: Tuesday, January 22, 2002 5:01 PM > To: '[email protected]' > Subject: PRIME ELECTRONICS & SATELLITICS INC., FCC ID:PQP-WA211P-X, > AN02T1758 > > > Notice_content > ------------- > Question #1: There is no FCC ID number on the FCC ID label format. Please > provide revised FCC ID label format. > > Question #2: The rated output power as indicated on page 1 of test report is > 87.1mW. However, the corrected output power has max. of 120.2mW peak output > power. Please explain the differences. > > Question #3: Please provide MPE data. > > Question #4: There is no RF exposure information contains in the user > manual. Please provide revised user manual. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN HSIEN, TAIWAN. TEL: +886-3-461-5000 FAX: +886-3-461-4000 Wireless LAN - Access Point WA211P Product Label 33333333 http://www.PESI.com.tw

PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN HSIEN, TAIWAN. TEL: +886-3-461-5000 FAX: +886-3-461-4000 Wireless LAN - Access Point PRINCIPLE DESCRIPTION OF WA211P 33333333 http://www.PESI.com.tw The PESI-AP (IEEE 802.11b, 11 Mbps WLAN Access Point) is an internetworking device for interconnecting a WLAN with other WLANs and legacy LANs, which provides a 2.4 GHz RF network and bridges to an Ethernet backbone. The Access Point is the wireless equivalent of a LAN hub. It receives, buffers and transmits data between the WLAN and the wired network, supporting a group of wireless user devices. An Access Point is typically connected with the wired backbone through a standard Ethernet cable, and communicates with wireless devices by means of an antenna. The Access Point, or the antenna connected to it, is generally mounted high on a wall or on the ceiling. Like the cells in a cellular phone network. Figure 1 illustrates the block diagram of WA211P. The block diagram is comprised of 5 parts: • HFA3683 2.4GHz RF/IF Converter and Synthesizer • HFA3783 AGC Quadrature Modem and Synthesizer • HFA3983 PA with Detector • HFA3861 Baseband Processor with Rake Receiver •AT76C510 Media Access Controller The WA211P operates in half-duplex mode the up/down conversions and modulation/demodulation functions have been combined into HFA3683 and HFA3783 chip set. The HFA3683 features an integrated gain selectable low noise amplifier to amplify the incoming RF. Doubly balanced mixers are used for up and down conversion in the transmit and receive modes. A high performance transmit preamplifier provides 12dB of power gain and an integrated PLL synthesizer provides the LO for the mixers. The HFA3783, in addition to providing quadrature modulation and demodulation, also has an integrated AGC IF amplifier, IF level detection, second order I and Q antialiasing filters, and a transmit amplifier with 70dB of gain control range. Transmit and receive IF paths share a common differential matching network to reduce the IF filter component count. PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN HSIEN, TAIWAN. TEL: +886-3-461-5000 FAX: +886-3-461-4000 Wireless LAN - Access Point PRINCIPLE DESCRIPTION OF WA211P 33333333 http://www.PESI.com.tw The HFA3983 features two stages of RF power amplifiers that operate from a single 3.3V supply. A peak detector allows the user to implement a closed loop transmit power control function in conjunction with the HFA3861B Baseband Processor. The HFA3861B Baseband Processor contains all of the functions necessary for a full or half duplex DSSS packet baseband transceiver. It has 7-bit transmit and receive DACs for the AGC functions and meets FCC processing gain requirements at 1MBPS, 2MBPS, 5.5MBPS and 11MBPS. A RAKE receiver in the HFA3861A coherently resolves and combines multi-path reflections for improved SNR in hostile environments. Medium access control is performed by the AT76C510 MAC, which provides the necessary interface between the baseband HFA3861B and the Ethernet PHY device. The MAC utilizes a processor AT76C510 is also optimized for control of the WLAN protocol in order to support the 11 Mbps data rate with low power low power consumption. PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN HSIEN, TAIWAN. TEL: +886-3-461-5000 FAX: +886-3-461-4000 Wireless LAN - Access Point PRINCIPLE DESCRIPTION OF WA211P 33333333 http://www.PESI.com.tw Figure 1. The block diagram of the WA211P

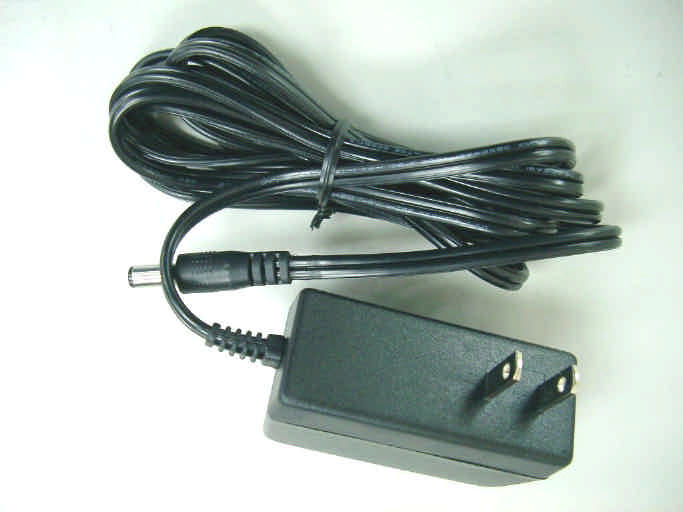

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN Access Point MODEL : WA211P FCC ID. : PQP-WA211P-X for APPLICANT: PRIME ELECTRONICS & SATELLITICS INC. ADDRESS: 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026#570~576 Fax:(03)3276188 Report Number : ET90S-11-041 ETC Report No. : ET90S-11-041FCC ID.: PQP-WA211P-X Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Manufacturer: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Description of EUT: a) Type of EUT: Wireless LAN Access Point b) Trade Name: PESI c) Model No.: WA211P d) Seriall No.: 1000WA211P e) Power Supply: Adaptor:I/P:100~240Vac 47~63Hz; O/P:5Vdc, 2.0A, 10W Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (1999) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :Jan. 31, 2002 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET90S-11-041FCC ID.: PQP-WA211P-X Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE2 2.1 Definition........................................................................................................................................2 2.2 Relative Requirement for Compliance..............................................................................................2 3. SYSTEM TEST CONFIGURATION3 3.1 Justification.....................................................................................................................................3 3.2 Devices for Tested System.............................................................................................................3 4 MAXIMUM PERMISSIBLE EXPOSURE MEASUREMENT4 4.1 Applicable Standard.......................................................................................................................4 4.2 Measurement Procedure.................................................................................................................4 4.3 Measurement Instrument.................................................................................................................5 4.4 Power Desity Data.........................................................................................................................5 ETC Report No. : ET90S-11-041FCC ID.: PQP-WA211P-X Page 1 of 5 Pages 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT: Wireless LAN Access Point b) Trade Name: PESI c) Model No.: WA211P d) Serial No.: 1000WA211P e) Power Supply : Adaptor:I/P:100~240Vac 47~63Hz; O/P:5Vdc, 2.0A, 10W 1.2 Characteristics of Device The PESI-AP (IEEE 802.11b, 11Mbps WLAN Access Point) is an internetworking device for interconnecting a WLAN with other WLANs and legacy LANs, which provides a 2.4 GHz RF network and bridges to an Ethernet backbone. The Access Point is the wireless equivalent of a LAN hub. It receives, buffers and transmits data between the WLAN and the wired network, supporting a group of wireless user devices. An Access Point is typically connected with the wired backbone through a standard Ethernet cable, and communicates with wireless devices by means of an antenna. The Access Point, or the antenna connected to it, is generally mounted high on a wall or on the ceiling. Like the cells in a cellular phone network. It feature: ü Highly Efficient Dipole Antennas Provide Extensive Range of Operation ü Auto Fall-Back Data Rate for Long-Distance Communication and Noisy Environments ü High-Speed Data Transmitter Rate Up to 11 Mbps ü Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment ü Features Roaming, Best Access Point Selection, Load Balancing, and Network Traffic Filtering ü 40-Bit or 128-Bit (optional) Wired Equivalent Privacy ü Free Software Driver Upgrades 1.3 Test Methodology The Wireless LAN Access Point designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps. The rated output power is 20.8 dBm (120.2 mW). The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET90S-11-041FCC ID.: PQP-WA211P-X Page 2 of 5 Pages 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Occupational / …

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV DATE APPROVED 10/Dec/2001 Erica Size Sheet of File Name: B A 26-Dec-2001 C:\PCB\ \WP211P .ddb - Documents\WA211PSMA001ES01-A-1.Sch 郭嘉良 認證 USED ON DRAWN 12 WA211PSMA001 ES01 WA211PA0 WA211PA0 Schematic DESCRIPTIONS DATE VCC1 1 NC1 2 GND1 3 RXD3 4 RXD2 5 RXD1 6 RXD0 7 RX_DV 8 RX_ER 9 RXCEN 10 RX_CLK 11 CFG 12 VCC3 13 GND2 14 MD7 15 MD6 16 MD5 17 MD4 18 MD3 19 MD2 20 MD1 21 MD0 22 VCC4 23 -MWE 24 -MOE 25 -SCE 26 -FCE 27 GND3 28 MA23 29 MA22 30 VCC8 31 MA21 32 GND4 65 SEL1 66 SEL0 67 TXCLK 68 TXDATA 69 TXPE 70 TXRDY 71 VCC9 72 SYNCLK 73 SYNDATA 74 SYNLE 75 SYNPE 76 GND8 77 RXCIN 78 RXDATA 79 RXPE 80 VCC10 81 BBREST 82 BBCS 83 BBAS 84 BBR/W 85 BBRXPE 86 BBTXPE 87 CCA 88 MDRDY 89 ~OSCST 90 GND9 91 TDCK2 92 ~TRS2 93 TDO2 94 TMS2 95 TDI2 96 TEST1 97 TEST2 98 GND10 99 LFT 100 VCC11 101 XIN 102 XOUT 103 GND11 104 RESET 105 VCC12 106 SUSP 107 DP 108 DN 109 GND12 110 USBLFT 111 VCC13 112 USBXIN 113 USBXOUT 114 GND13 115 MDC 116 MDO 117 MDI 118 COL 119 CRS 120 TXD3 121 TXD2 122 TXD1 123 TXD0 124 TX_ER 125 TX_EN 126 TXCEN 127 TX_CLK 128 MA20 33 MA19 34 MA18 35 MA17 36 GND5 37 MA16 38 MA15 39 MA14 40 MA13 41 MA12 42 MA11 43 MA10 44 VCC5 45 MA9 46 MA8 47 MA7 48 MA6 49 MA5 50 MA4 51 MA3 52 MA2 53 MA1 54 MA0 55 GND6 56 TDCK1 57 VCC6 58 TDI1 59 TEST 60 ~TRS1 61 TDO1 62 TMS1 63 GND7 64 U1AT76C510 WE 15 OE 37 CS 8 A0 3 A1 4 A2 5 A3 6 A4 7 A5 16 A6 17 A7 18 A8 19 A9 20 A10 41 A11 27 A12 28 A13 29 A14 30 A15 38 A16 39 A17 40 A18 26 GND0 12 GND1 34 VCC0 11 VCC1 33 D0 9 D1 10 D2 13 D3 14 D4 31 D5 32 D6 35 D7 36 U3GS74108T-12 A18 9 A17 6 A0 20 A1 19 A2 18 A3 17 A4 16 A5 15 A6 14 A7 13 A8 3 A9 2 A10 31 A11 1 A12 12 A13 4 A14 5 A15 11 A16 10 nCE 30 nOE 32 nWE 7 D0 21 D1 22 D2 23 D3 25 D4 26 D5 27 D6 28 D7 29 VCC 8 GND 24 U2AT29LV040A VCCS TDO1TMSTDO2TRSTTCKVCCS CAL_ENMD_RDYCCATX_PERX_PEBB_RWCSBRESET_BB_nT/R_SW_nRX_DATARX_CLKPE1S_DATAS_CLKTX_RDYT/R_SWTX_DATATX_CLKLE_IFLE_RF VCCS 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 J2P_HDR_14 R10000 R114.7K VCCS VCCS R7100 C61N C71N C2NP C115P VCCS ERXD[3..0],ETXD[3..0] ERXD3ERXD0ERXD1ERXD2 ETX_CLK ETX_EN ETX_ERR ETXD0 ETXD1 ETXD2 ETXD3 ECRS ECOL EMDIO EMDC TDO1 TDO2 ERX_DVERX_ERRERXCENERXCLK M_D0M_D1M_D2M_D3M_D4M_D5M_D6M_D7 M_D0M_D1M_D2M_D3M_D4M_D5M_D6M_D7 VCCS nMWEnMOEnSCEM_A0M_A1M_A2M_A3M_A4M_A5M_A6M_A7M_A8M_A9M_A10M_A11M_A12M_A13M_A14M_A15M_A16M_A17M_A18 M_D0M_D1M_D2M_D3M_D4M_D5M_D6M_D7 VCCS M_A0M_A1M_A2M_A3M_A4M_A5M_A6M_A7M_A8M_A9M_A10M_A11M_A12M_A13M_A14M_A15M_A16M_A17M_A18nFCE0nMOEnMWE M_A0 M_A1 M_A2 M_A3 M_A4 M_A5 M_A6 M_A7 M_A8 M_A9 M_A10 M_A11 M_A12 M_A13 M_A14 M_A15 M_A16 M_A17 M_A18 M_A20 nMWEnMOEnSCEnFCEM_A22M_A21 M_A[23..0],M_D[7..0] M_A[23..0],M_D[7..0] M_A[23..0],M_D[7..0] M_A[23..0],M_D[7..0] R4 10 C4100P C3100P R5 10 R31K VCC 1 GND 4 D+ 3 D- 2 J1USB_B VCCS ERXD[3..0],ETXD[3..0] C1115P C915P C10NP C140.1u C150.1u C160.1u C170.01u C200.01u C190.01u C180.01u C210.01u VCCS 123 45 U47SZ04F Radio_PD VCCS 1 23 4 X212MHz L2 C131N C12 1N R9100 1 23 4 X1 32MHz R48 000 L1 R2 10 R1 10 1 2 3 Q1BAT54S VCCSVCCS R12NP CAL_ENMD_RDYCCATX_PERX_PEBB_RWCSBRESET_BB_nT/R_SW_nRX_DATARX_CLKPE1S_DATAS_CLKTX_RDYT/R_SWTX_DATATX_CLKLE_IFLE_RF TRSTTDITMSTCK RST 1 2 3 Q2BAT54S R45 10 C4915P R49 000 R5110 C5015P ERXD[3..0],ETXD[3..0]RX_CLK+3.3VMD_RDYCCARX_DATAT/R_SWT/R_SW_nCAL_ENTX_RDYRX_PECSB+3.3VBB_RWS_CLKLE_IFRADIO_PDTX_PERESET_BB_nT/R_SW_nTX_DATATX_PES_DATAPE1LE_RFTX_CLKnFCE0GPIGPOWDCSnFCEM_A[23..0],M_D[7..0]GPOGPO0GPIGPIWDCSGPO0RST WA211PSMA001ES01-A-2WA211PSMA001ES01-A-2.Sch 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV DATE APPROVED 10/Dec/2001 Erica Size Sheet of File Name: B A 26-Dec-2001 C:\PCB\ \WP211P .ddb - Documents\WA211PSMA001ES01-A-2.Sch 郭嘉良 認證 USED ON DRAWN 22 WA211PSMA001 ES01 WA211PA0 WA211PA0 Schematic DESCRIPTIONS DATE C_LED 7 LA_LED 8 GND3 9 VDD2 10 SPEED 11 MDC 12 MDIO 13 COL 14 CRS 15 RX_DV 16 RX_ER 17 TX_CLK 29 TXD0 30 TXD1 31 TXD2 32 TXD3 33 TX_ER 34 TX_EN 35 GND4 36 OSCIN 37 RESET 38 REXT 39 VDD1 1 TPI+ 2 TPI- 3 GND2 4 L_LED 5 FD_LED 6 ANEG 40 GND1 41 DUPLX 42 TPO+ 43 TPO- 44 RXD3 18 RXD2 19 RXD1 20 RXD0 21 GND5 22 RPTR 23 VDD3 24 RX_CLK 25 RX_EN 26 GND6 27 VDD4 28 U11SEEQ80225 C381N C36 10N C42 0.01u C430.01u C37 0.01u C350.1u + C4122u TX+ 1 TX- 2 RX+ 3 P2+ 4 P2- 5 RX- 6 P4+ 7 P4- 8 J3RJ-45 1 16 2 15 3 14 6 11 7 10 8 9 U25ML102 R30 25 X325MHZ LA_LEDSPEEDEMDCEMDIOECOLECRSERX_DVERX_ERR VCCE R32 1K R31 10K R43 5.6K R44 5.6K R2710K ERXD3 ERXD2 ERXD1 ERXD0 ERXD[3..0],ETXD[3..0] VCCE ERXCEN ETX_ENETX_ERRETX_CLK VCCE VCCE VCCE VCCE FD_LED R2925R2810 R1510 R1410 R16 25 R20NP R21000 R345.6K R355.6K R22000R365.6K VCCE +5V SPEED R3375 R1975 R1775 R1875 J23PHONEJACK1 C280.01u C2610P C230.01u + C3122u + C2422u + C2722u ETXD0ETXD1ETXD2ETXD3 R37000R38NP VCCE 1 2 3 4 U7NP (3.3V) L3Bead +3.3V 1 2 3 4 U83.3V C250.1u C290.01u L4Bead + C3022u VCCS VCCE L5Bead VCCS 12 D2 3mm LED R231K C320.01u R24220 R13NP R25150 R26NP 12 D3 3mm LED C330.01u Rad Yellow Q33904 VCCS TX_PE 1 2 D43mm LED FD_LED Green LA_LED GND_IN GND_Ethernel GND_Digtal ERXD[3..0],ETXD[3..0] 323334 35363738394041424344454647484950515253545556575859606162 12345678910111213141516171819202122232425262728293031 636465666768 CON1CON34X2 RX_CLK+3.3VMD_RDYCCARX_DATAT/R_SWT/R_SW_nTX_RDYCAL_EN RX_PECSB+3.3VBB_RWS_CLKLE_IFRADIO_PDTX_PERESET_BB_nT/R_SW_nTX_DATATX_PES_DATAPE1LE_RFTX_CLK D11N5819 RX_CLK +3.3V MD_RDY CCA RX_DATA T/R_SW T/R_SW_n CAL_ENTX_RDY RX_PE CSB +3.3V BB_RW S_CLK LE_IF RADIO_PD TX_PE RESET_BB_n T/R_SW_nTX_DATA TX_PE S_DATA PE1 LE_RF TX_CLK L6Bead L7Bead R46000 ERXCLK R47 10 G2B 4 A 1 B 2 C 3 G1 6 G2A 5 Y7 7 Y6 9 Y5 10 Y4 11 Y3 12 Y2 13 Y1 14 Y0 15 VCC 16 GND 8 U2774LV138PW nFCE0 nFCE0 GPIGPO GPIGPO WDCS WDCS C51 0.01u VCCS nFCE nFCE M_A20M_A21M_A22 M_A[23..0],M_D[7..0] M_A[23..0],M_D[7..0] nCLR 1 D 2 CLK 3 Q 5 nQ 6 PRE 4 GND 7 U26A74LV74PW R5210 VCCS M_D0 GPO GPO GPO0 GPO0 /OE 1 I 2 GND 3 VCC 5 O 4 U2874AHC1G125 VCCS GPI GPI nCLR 13 D 12 CLK 11 Q 9 nQ 8 PRE 10 VCC 14 U26B74L…

Text truncated - open the document above for the full version.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN Access Point MODEL : WA211P FCC ID. : PQP-WA211P-X for APPLICANT: PRIME ELECTRONICS & SATELLITICS INC. ADDRESS: 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026#570~576 Fax:(03)3276188 Report Number : ET90S-11-041 ETC Report No. : ET90S-11-041FCC ID. : PQP-WA211P-X Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Manufacturer: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung Yuan Rd., Chung Li Industrial Park, Chung Li City, Tao Yuan, Taiwan, R.O.C. Description of EUT: a) Type of EUT: Wireless LAN Access Point b) Trade Name: PESI c) Model No.: WA211P d) Seriall No.: 1000WA211P e) Power Supply: Adaptor:I/P:100~240Vac 47~63Hz; O/P:5Vdc, 2.0A, 10W Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (1999) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :Jan. 07, 2002 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET90S-11-041FCC ID. : PQP-WA211P-X Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION.......................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device................................................................................................................1 1.3 Test Methodology..........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 OUTPUT POWER MEASUREMENT.........................................................................................2 2.1 Standard Applicable.......................................................................................................................2 2.2 Measurement Procedure.................................................................................................................2 2.3 Measurement Equipment................................................................................................................2 2.4 Measurement Data.........................................................................................................................3 APPENDIX : PLOTED DATAS OF OUTPUT PEAK POWER.......................................................................4 ETC Report No. : ET90S-11-041Sheet 1 of 7 Sheets FCC ID. : PQP-WA211P-X Rev. No 1.0 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT: Wireless LAN Access Point b) Trade Name: PESI c) Model No.: WA211P d) Serial No.: 1000WA211P e) Power Supply : Adaptor:I/P:100~240Vac 47~63Hz; O/P:5Vdc, 2.0A, 10W 1.2 Characteristics of Device The PESI-AP (IEEE 802.11b, 11Mbps WLAN Access Point) is an internetworking device for interconnecting a WLAN with other WLANs and legacy LANs, which provides a 2.4 GHz RF network and bridges to an Ethernet backbone. The Access Point is the wireless equivalent of a LAN hub. It receives, buffers and transmits data between the WLAN and the wired network, supporting a group of wireless user devices. An Access Point is typically connected with the wired backbone through a standard Ethernet cable, and communicates with wireless devices by means of an antenna. The Access Point, or the antenna connected to it, is generally mounted high on a wall or on the ceiling. Like the cells in a cellular phone network. It feature: ü Highly Efficient Dipole Antennas Provide Extensive Range of Operation ü Auto Fall-Back Data Rate for Long-Distance Communication and Noisy Environments ü High-Speed Data Transmitter Rate Up to 11 Mbps ü Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment ü Features Roaming, Best Access Point Selection, Load Balancing, and Network Traffic Filtering ü 40-Bit or 128-Bit (optional) Wired Equivalent Privacy ü Free Software Driver Upgrades 1.3 Test Methodology The Wireless LAN Access Point designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps. The ra…

Text truncated - open the document above for the full version.
