PQP-WM288PWireless LAN mini - PCI Card

編號：WM288PF00000 SP01 版次：A版 33333333 百一電子股份有限公司 Prime Electronics & Satellitics Inc. 產品規格書 適用機種：WM288P WLAN CARD WM288P Specifications 1. General specification 2. Standard test condition 3. Electrical specification 4. Frequency channel plan 核准： 審查： 製表： 莊繐瑄 修訂日期： 年 月 日 制定日期： 2003 年 1 月22 日 Page : 1/3 Specification No. Item ConditionMin. Typ.Max. Test Method/Condition 1. General specification 1-1. Standard IEEE 802.11b 1-2. Frequency Band(MHz) 2400 2483.5 1-3. No. of Selectable Channels 11 Channels (US, Canada) 13 Channels (Europe) 14 Channels (Japan) 1-4. Channel Spacing (MHz) 5 1-5. Modulation Technique DSSS (CCK, DQPSK, DBPSK) 1-6. Spreading 11-chip Barker Sequence 1-7. Media Access Protocol CSMA/CA(collision Avoidance) with ACK 1-8. Interface Mini PCI Type III A 1-9. Dimensions 60.0 mm x 45.0 mm x 3.5 mm 1-10. LED Indicators non 1-11. Antenna Connector Hirose U.FL-R-SMT 2. Standard Test Condition 2-1. Supply voltage(V) 3.3 3. Electrical Specification Temperature Range：0 ~ 55°C Humidity：95 % (Non-condensing) 150 Receiver Mode 3-1. Power Consumption (mA) @+3.3V 260 Transmit Mode -82 -84 @ 11 Msps -87 @ 5.5 Msps -90 @ 2 Msps 3-2 Receive Sensitivity (dBm)[FER < 8%] -92 @ 1 Msps 3-3. Average Output Power (dBm) 10 11 @29.5dB difference between the signal level at center frequency and higher first side lobe 3-4 Frequency Accuracy(ppm) - 25 + 25 Page : 2/3 4. Frequency channel plan Regulation Domains Channel_ID Frequency (Mhz) FCC (X ’10’ ) IC (X ‘20’ ) ETSI (X ’30‘ ) Spain (X ’31‘ ) France (X ‘32’ ) MKK (X ‘40’ ) 1 2412 X X X 2 2417 X X X 3 2422 X X X 4 2427 X X X 5 2432 X X X 6 2437 X X X 7 2442 X X X 8 2447 X X X 9 2452 X X X 10 2457 X X X X X 11 2462 X X X X X 12 2467 X X 13 2472 X X 14 2484 X Page : 3/3 AMD Confidential Manufacturing Test Suite User’s Manual A Utility for Testing the Am1772™ Mini PCI Reference Design Kit Version 0.2 MTS User Guide © 2002 Advanced Micro Devices, Inc. All rights reserved. The contents of this document are provided in connection with Advanced Micro Devices, Inc. (“AMD”) products. AMD makes no representations or warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice. No license, whether express, implied, arising by estoppel, or otherwise, to any intellectual property rights are granted by this publication. Except as set forth in AMD’s Standard Terms and Conditions of Sale, AMD assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right. AMD’s products are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body, or in other applications intended to support or sustain life, or in any other application in which the failure of AMD’s product could create a situation where personal injury, death, or severe property or environmental damage may occur. AMD reserves the right to discontinue or make changes to its products at any time without notice. Contacts www.amd.com [email protected] Trademarks AMD, the AMD Arrow logo, Alchemy, and combinations thereof, and Am1770, Am1771, and Am1772 are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies. AMD Confidential 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. AMD Confidential MTS User Guide Table of Contents 1 Overview 4 2 Installation 5 3 MTS Tests 7 3.1 Customized Transmit Modes 7 3.2 Transmit Continuous with Modulation 8 3.3 Transmit Packets with Modulation 9 3.4 Receive and Display PER 10 3.5 Unicast or Multicast Frame Transmit 11 3.6 Unicast or Multicast Frame Receive 12 3.7 Duty Cycle Measurement 13 3.8 Power Save and Awake 14 AMD Confidential 3 MTS User Guide 1 Overview The AMD Ma…

Text truncated - open the document above for the full version.

ADC Frame Composer PCI/CardBus Control Logic BTX BIRX BORX XTAL OSC EEPROM Power Supply Baseband MAC 2.5 V SDATA TXRX_SW ANT_SW 2.5V I/O 1.8 V Core 3.3 V I/O PA_ CTRL Control AGC VCO PLL DAC ADC DAC LNA CLK22 Tx_I Tx_Q Rx_I Rx_Q PA PCI/CardBus Host Interface PCI/ CardBus Media Independent Proprietary Interface Am1770™ RF Transceiver Am1771™ Baseband/MAC Timer Host I/F LED TXRX LEDs

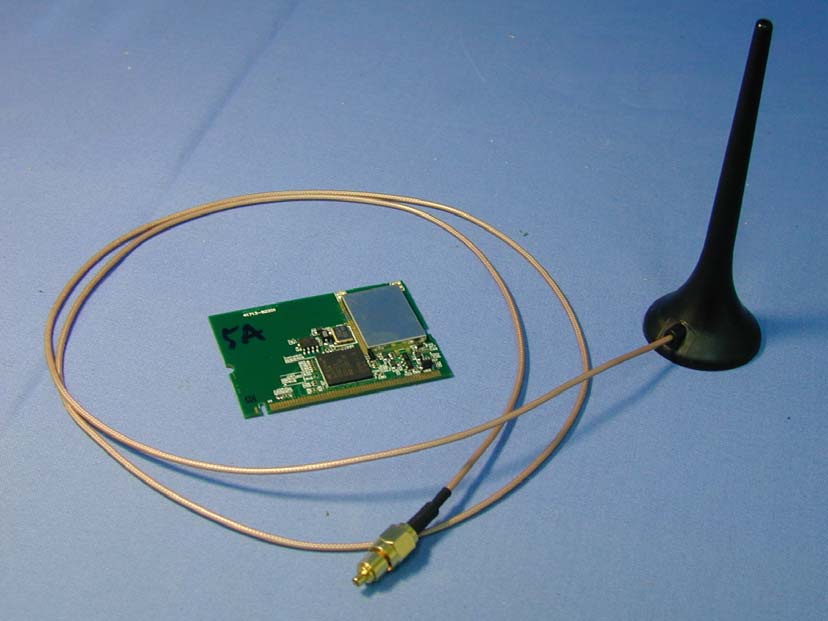

Report No.: 034H014FI Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

FCC ID.: PQP-WM288P FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN mini - PCI Card PESI Model No.: WM288P TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN mini - PCI Card Model No.: WM288P F F C C C C I I D D : : P P Q Q P P - - W W M M 2 2 8 8 8 8 P P This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID.: PQP-WM288P FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN mini - PCI Card PESI Model No.: WM288P TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN mini - PCI Card Model No.: WM288P F F C C C C I I D D : : P P Q Q P P - - W W M M 2 2 8 8 8 8 P P This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 034H014FI Page : 2 of 4 Version:1.0 (3) EUT Photo Report No.: 034H014FI Page : 3 of 4 Version:1.0 (4) EUT Photo Report No.: 034H014FI Page : 4 of 4 Version:1.0 (5) EUT Photo

Report No. 034H014FI Page: 6 of 36 Version:1.0 1.2. Operational Description EUT is a Wireless LAN mini - PCI Card with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Wireless LAN mini - PCI Card is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN mini - PCI Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV 9-Apr-2003 Joan Size Sheet of File Name: C 03 C:\PCB\C.P\WM288P\PCB\WM288P.ddb - Documents\41713-82201-03\Sheet1.Sch USED ON DRAWN 12 WM288P SCHEMATIC DESCRIPTIONS DATE REVISION RECORD REV ECO DATE DATE DRAWN - - - - 41713-82201-03 31-Mar-2003 Joan C41 CS 1 CLK 2 DI 3 DO 4 GND 5 ORG 6 VCC 8 IC4 C54 C50 C46 C52 C48 C51 C27 C38 C56 C60 C59 C58 C39 C31 C32 C40 C43 C44 D3V3D1V8 D3V3 D3V3 D3V3 D3V3 D3V3 LED0_YELN LED0_YELN LED1_GRNN LED1_GRNN D1V8 D3V3 LED1_GRNN LED1_GRNN DI0DI1DI2DI3DI4DI5 DI(0..5) DQ0DQ1DQ2DQ3DQ4DQ5 DQ(0..5) TXRX TXRX SDATA SDATA CLK22 CLK22 AGC AGC CCA CCA ANT_DIV ANT_DIV ANT_DIV_L ANT_DIV_L TXRX_SW TXRX_SW TXRX_SW_L TXRX_SW_L R15 MP10 R14R13 R12 R19 R21R22 LED0_YELN LED0_YELN IN 1 GND 2 EN 3 ADJ 4 OUT 5 IC8 IN 1 GND 2 EN 3 ADJ 4 OUT 5 IC7 C55C45 C47 DR2 C53 C57 C63 C61 C62 DR4 DR3 C49 D3V3 D3V3 D1V8 R20R23R18 R16 C42 D2V5 D2V5 D2V5 D2V5 TIP 1 RING 2 8PMJ_1 4 8PMJ_2 6 8PMJ_3 3 8PMJ_4 8 8PMJ_5 10 8PMJ_6 5 8PMJ_7 7 8PMJ_8 9 LED1_GRNP 11 LED1_GRNN 13 LED2_YELP 12 LED2_YELN 14 MOD_AUTO_MON 111 SYS_AUTO_OUT 115 SYS_AUDIO_OUT_GND 117 SYS_AUDIO_IN 116 SYS_AUDIO_IN_GND 118 VCC5VA 123 AUTO_GND_1 113 AUTO_GND_2 119 AUTO_GND_3 120 AC_RESET_L 110 AC_CODEC_ID1_L 109 AC_CODEC_ID0_L 108 AC_BIT_CLK 107 AC_SDATA_OUT 106 AC_SDATA_IN 105 AC_SYNC 103 CLKRUN_L 65 3V3AUX_1 124 3V3AUX_2 24 PME_L 34 MPCIACT_L 122 RESERVED_1 16 RESERVED_2 21 RESERVED_3 22 RESERVED_4 36 RESERVED_5 121 RESERVED_6 43 RESERVED_7 93 RESERVED_8 112 RESERVED_WIP_1 100 RESERVED_WIP_2 98 CHSGND 15 GND_16 114 GND_1 23 GND_2 27 GND_3 32 GND_4 37 GND_5 49 GND_6 50 GND_7 55 GND_8 62 GND_9 69 GND_10 74 GND_11 77 GND_12 82 GND_13 83 GND_14 101 GND_15 102 5V_2 97 5V_1 18 3V3_1 19 3V3_2 28 3V3_3 31 3V3_4 40 3V3_5 63 3V3_6 70 3V3_7 88 3V3_8 89 INTA_L 20 INTB_L 17 CBE0_L 86 CBE1_L 73 CBE2_L 59 CBE3_L 45 STOP_L 68 DEVSEL_L 72 IDSEL 48 CLK 25 RST_L 26 AD0 96 AD1 99 AD2 94 AD3 95 AD4 92 AD5 91 AD6 90 AD7 87 AD8 85 AD9 84 AD10 81 AD11 80 AD12 79 AD13 78 AD14 75 AD15 76 AD16 60 AD17 57 AD18 58 AD19 53 AD20 54 AD21 51 AD22 52 AD23 47 AD24 46 AD25 41 AD26 44 AD27 39 AD28 42 AD29 35 AD30 38 AD31 33 REQ_L 29 GNT_L 30 PAR 56 PERR_L 71 SERR_L 67 M66EN 104 IRDY_L 61 TRDY_L 66 FRAME_L 64 RESERVEPOWER MANAGEMENT AC _Link SUPPORT AUDIO LAN MODEM X1 INTA_L A8 CBE_LO R3 CBE_L1 M1 CBE_L2 G1 CBE_L3 B2 STOP_L L2 DEVSEL_L M2 IDSEL C1 PCLK A7 RST_L B7 ADO P7 AD1 R7 AD2 P6 AD3 R6 AD4 R5 AD5 P5 AD6 R4 AD7 P4 AD8 P3 AD9 R2 AD10 R1 AD11 P2 AD12 P1 AD13 N3 AD14 N2 AD15 N1 AD16 G2 AD17 F1 AD18 F2 AD19 D2 AD20 E1 AD21 C2 AD22 D1 AD23 C3 AD24 B1 AD25 B3 AD26 A1 AD27 A3 AD28 A2 AD29 A4 AD30 B4 AD31 A5 REQ_L A6 GNT_L B6 PAR E2 PERR_L L1 SERR_L K1 IRDY_L H1 TRDY_L K2 FRAME_L J2 PCIMODE B5 CLKRUN_L J1 MPCIACT_L R8 PowerManagement ElEPROM ELEDO G15 EEDI G14 EESK F15 EECS F14 VSS_CORE-1 G7 VSS_CORE-8 G8 VSS_CORE-2 G9 VSS_CORE-3 H7 VSS_CORE-4 H8 VSS_CORE-5 H9 VSS_CORE-6 J7 VSS_CORE-7 J8 VSSIO_2.5-4 M13 VSSIO_2.5-1 N13 VSSIO_2.5-2 P9 VSSIO_2.5-3 R9 VSSIO_3.3-1 B8 VSSIO_3.3-8 C4 VSSIO_3.3-9 C9 VSSIO_3.3-2 C13 VSSIO_3.3-7 D4 VSSIO_3.3-3 E4 VSSIO_3.3-4 F6 VSSIO_3.3-5 F10 VSSIO_3.3-6 G3 VSSIO_3.3-16 H6 VSSIO_3.3-10 H10 VSSIO_3.3-11 J3 VSSIO_3.3-12 J10 VSSIO_3.3-13 K10 VSSIO_3.3-14 M3 VSSIO_3.3-15 N8 DI0 P11 DI1 R12 DI2 P12 DI3 R13 DI4 P13 DI5 R14 DQ0 P14 DQ1 R15 DQ2 P15 DQ3 N14 DQ4 N15 DQ5 M14 TXRX L15 SDATA L14 CLK_22 M15 AGC_ACTIVE P10 CCA_ED R11 ANT_SEL J15 ANT_SEL_L J14 TXRX_SW K15 TXRX_SW_L K14 RFE_RST_L R10 PA_CTRL0 H14 PA_CTRL1 H15 LED1_L B15 RXD1 D12 RXD2 A15 RXD3 A14 TXD0 B11 TXD1 A11 TXD2 B10 TXD3 A10 LED0_L E14 RX_DV D13 TX_EN A12 TX_ER C10 TX_CLK B12 MDIO B13 MDC A13 LED3_L C15 LED2_L D14 XBB_RST_L E13 SCAN_IN0 C5 SCAN_IN1 C6 SCAN_IN2 C7 SCAN_IN3 C8 SCAN_IN4 B9 SCAN_IN5 A9 SCAN_IN6 C12 SCAN_IN7 C11 SCAN_OUT0 F13 SCAN_OUT1 D15 SCAN_OUT2 E15 SCAN_OUT3 G13 SCAN_OUT4 H13 SCAN_OUT5 G10 SCAN_OUT6 J13 SCAN_OUT7 N6 SCAN_EN N7 TEST0 L13 TEST1 L12 TEST2 M12 TEST3 N11 HIF_MCLK_TEST P8 Am1771 TEST SCANWMIIBB-RF IC6 PCI VCC_CORE-1 F7 VCC_CORE-2 F9 VCC_CORE-3 G6 VCC_CORE-4 J6 VCC_CORE-5 J9 VCC_CORE-6 K6 VCC_CORE-7 K7 VCC_CORE-8 K8 VCCIO_2.5-1 K13 VCCIO_2.5-2 N9 VCCIO_2.5-3 N12 VCCIO_2.5-4 N10 VCCIO_3.3-1 B14 VCCIO_3.3-2 C14 VCCIO_3.3-3 D3 VCCIO_3.3-4 E3 VCCIO_3.3-5 F3 VCCIO_3.3-6 F8 VCCIO_3.3-7 H2 VCCIO_3.3-8 H3 VCCIO_3.3-9 K3 VCCIO_3.3-10 K9 VCCIO_3.3-12 M4 VCCIO_3.3-13 M5 VCCIO_3.3-14 N4 VCCIO_3.3-15 N5 VCCIO_3.3-11 L3 IC6 C64 R24R25 R26R27 COEX1_BT_ACTIVECOEX2_WLAN_ACTIVE R28 B 2 A 1 GND 3 VCC 5 Y 4 IC9 R29 COEX1_BT_ACTIVECOEX2_WLAN_ACTIVE R30 R31 D3V3 RSTN RSTN D2V5 C65 R32 HW_Radi0_Disable_L HW_Radi0_Disable_L CCAAGCRSTNDI(0..5)DQ(0..5)CLK22SDATATXRXANT_DIVANT_DIV_LTXRX_SWTXRX_SW_LIN Sheet2Sheet2.Sch 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV 9-Apr-2003 Joan Size Sheet of File Name: B 03 C:\PCB\C.P\WM288P\PCB\WM288P.ddb - Documents\41713-82201-03\Sheet2.Sch USED ON DRAWN 22 WM288P SCHEMATIC DESCRIPTIONS DATE DATE DRAWN - - - - 41713-82201-03 31-Mar-2003 Joan AVSS1 1 AVDD1 2 AVDD2 3 AVSS2 4 AVSS3 5 ANT 6 AVSS4 7 TX_OUTP 8 TX_OUTN 9 AVSS5 10 AVSS6 11 AVDD3 12 TXRX 13 SDATA 14 TST 15 CLK44 16 VSS1 17 CLK22 18 VDD1 19 VSS2 20 DQ1 26 DQ2 24 DQ3 23 DQ4 22 DQ5 21 VDD2 25 DQ0 27 VSS3 28 DI0 35 DI1 34 DI2 32 DI3 31 DI4 30 DI5 29 VDD3 36 VDD4 33 CCA_DE 37 ACC_ACTIVE 38 RSTN 39 VREF 40 AVSS7 41 VCO_VDD 42 AVDD4 43 TSTIN 44 TSTIP 45 TSTON 46 TSTOP 47 AVSS8 48 IC5 C18 C19 C20C17 CCA AGC CCA AGC C37 C36 C35 C29C26C24C23 C34C33 C30 C28 OE 1 GND 2 CLK 3 VCC 4 Q1 C22 C21 DR1 C25 RSTN DI(0..5) DQ(0..5) CLK22 SDATA TXRX RSTN CLK22 SDATA TXRX MP1 MP2 MP3 MP4 MP5 MP6 MP7 MP8 MP9 1 2 BU1 1 2 BU2 C7C5 ANT_DIV ANT_DIV_L ANT_DIV_L ANT_DIV C11C13 TXRX_SW TXRX_SW_L TXRX_SW_L TXRX_SW 123 645 IC1 C1 C2 R2R3 1 1 2 2 3 3 4 4 BF1 123 465 IC3 R6R5 C14 12345 67891011 IC2 L1C4 W=5 L=359 C3 R1 R4 C10 C12 C8 C6 C9 R7 R8 R9 C16C15 1 2 34 5 6 L2 R17 R11 R10 DI0DI1DI2DI3DI4DI5 DQ0DQ1DQ2DQ3DQ4DQ5 DI(0..5) DQ(0..5) IN IN D2V5 D2V5 D2V5 D3V3 L32.2nH

Report No. 034H014FI Page: 1 of 36 Version:1.0 Test Report Product Name : Wireless LAN mini - PCI Card Model No.: WM288P FCC ID.: PQP-WM288P Applicant : PRIME ELECTRONICS & SATELLITICS INC. Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt : Apr 01, 2003 Date of Test : Apr 08, 2003 Report No. : 034H014FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 034H014FI Page: 3 of 36 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Result of Peak Power Output...............................................................................................15 4. RF Exposure Evaluation ...........................................................................................................16 4.1. Limits ..........................................................................................................................................16 4.2. Test Procedure .............................................................................................................................16 4.3. Test Result of RF Exposure Evaluation.......................................................................................17 5. Radiated Emission .....................................................................................................................18 5.1. Test Equipment............................................................................................................................18 5.2. Test Setup ....................................................................................................................................18 5.3. Limits ..........................................................................................................................................19 5.4. Test Procedure .............................................................................................................................19 5.5. Test Result of Radiated Emission................................................................................................20 6. Band Edge ..................................................................................................................................26 6.1. Test Equipment............................................................................................................................26 6.2. Test Setup ....................................................................................................................................26 6.3. Limits ..........................................................................................................................................27 6.4. Test Procedure .............................................................................................................................27 6.5. Test Result of Band Edge ............................................................................................................28 7. Occupied Bandwidth .................................................................................................................30 7.1. Test Equipment............................................................................................................................30 7.2. Test Setup ...................................................................................…

Text truncated - open the document above for the full version.

Report No.: 034H014FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 034H014FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 034H014FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
