PQP-WP222MF00001Wireless PCMCIA LAN Card

Wireless Multimedia LAN PCMCIA Card User Manual P/N:3010WP222M01 Wireless PCMCIA Card Copyright Copyright ¤ 2001 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. . All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Wireless Access Point 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. Notice 1: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2: Shielded interface cables, if any, must be used in order to comply with the emission limits. FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Wireless PCMCIA Card Manual Contents Chapter 1 Introduction 1.1 Package Content ......................................................1-1 1.2 System Requirement .................................................1-1 1.3 Feature .......................................................... 1-2 Chapter 2 Installation 2.1 Hardware/OS requiements .......................................2-1 2.2 Installing the hardware ..............................................2-1 2.3 Installing the hardware drivers ..................................2-2 Chapter 3 Installing the Network Manager software ..................................................3-1 Chapter 4 Using the Network 4.1 Device Managemet .................................................4-1 4.2 Bridge Access Point .................................................4-4 4.3 Network Management ..............................................4-4 4.4 Enrolling a Bridge Access Point into the netwrok .....4-5 4.5 Adding additional nodes ...........................................4-7 4.6 Bridge Manager ........................................................4-7 4.7 Using WEP ...............................................................4-9 4.8 Tip on using the Network ........................................4-10 Chapter 5 Uninstall 5.1 Windows 98,Me,and Windows 2000........................5-1 Chapter 1 Introduction Introduction 1-1 Thank you for purchasing the Wireless Multimedia PCMCIA Card. It offered a unprecedented multimedia wireless solution and provided the simultaneous multimedia audio and video stream without any other network activity. You may use the device to extends Cable/DSL connection and existing Ethernet network without any wires. This manual guides you on how to install and properly use the Wireless Access Point in order to take full advantage of its features. 1.1 Package Contents Make sure that you have the following items: xOne Wireless PCMCIA Card xOne Installation Manual x One CD-Title with AP manager Software If any of the above items are missing, contact your supplier as soon as possible. 1.2 System Requirements Before installation, please check the following requirements with your equipment. xPentium Based ( And Above ) IBM-Compatible PC System xCD-ROM drive 1-2 Introduction xOne PCMCIA Slot Interface xWindows 9x/ME/NT4.0/2000 Operating System with TCP/IP protocol 1.3 Features Wi-Fi (IEEE 802.11b) Certification and Interoperability with Wireless LAN Standards IEEE 8021.b & IEEE 802.11e-class Compliant 11 Mbps Transmission Rate Rugged Metal Design with Integrated Antenna Contention-Free Access and Dynamic Stream support Parameterized Quality of Service (QoS) to Support Multimedia Distribution and Ensure Delivery of Isochronously /Time-Dependent Content Excellent Interference Immunity Peer-to-Peer Communication among Multiple Devices for Efficient Bandwidth Utilization Forward Error Correction to Repair Corrupted Packets “ On The Fly ” during Transmission Chan…

Text truncated - open the document above for the full version.

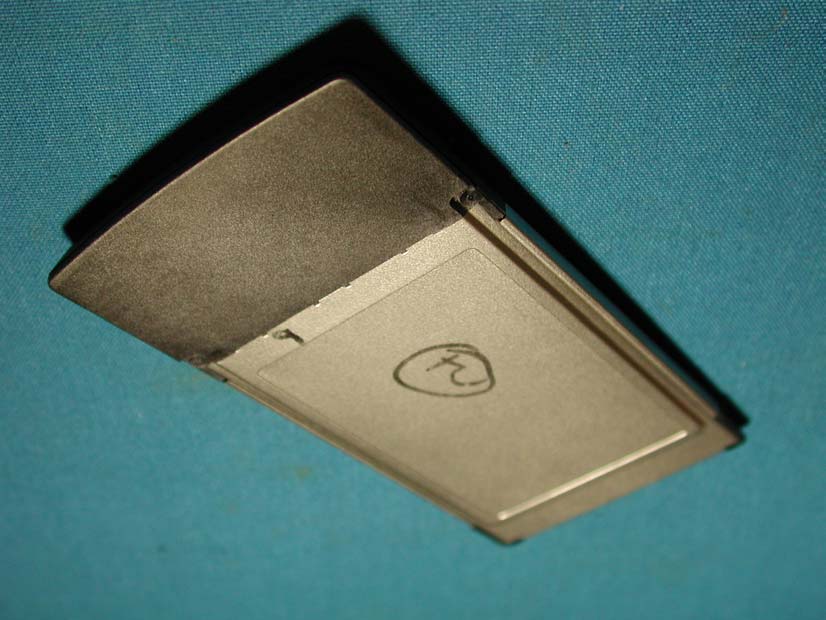

Report No.: 023H003FI Page : 1 of 3 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

FCC ID.: PQP-WP222MF00001 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN Card PESI Model No.: WP222M TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN Card Model No.: WP222M F F C C C C I I D D : : P P Q Q P P - - W W P P 2 2 2 2 2 2 M M F F 0 0 0 0 0 0 0 0 1 1 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 023H003FI Page : 2 of 3 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 023H003FI Page : 3 of 3 Version:1.0 (5) EUT Photo

Report No. 023H003FI Page : 5 of 48 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name : Wireless LAN Card Trade Name : PESI FCC ID. : PQP-WP222MF00001 Model No. : WP222M Frequency Range : 2412MHz to 2462MHz Channel Number : 11 Frequency of Each Channel (Working Frequency) : Channel 01: 2412MHz Channel 02: 2417 MHz Channel 03: 2422 MHz Channel 04: 2427MHz Channel 05: 2432MHz Channel 06: 2437MHz Channel 07: 2442MHz Channel 08: 2447MHz Channel 09: 2452MHz Channel 10: 2457MHz Channel 11: 2462MHz Type of Modulation : Direct Sequence Spread Spectrum Selection of Operating Frequency : Auto Antenna type : Soldered on PCB Note: 1. This device is a 2.4GHz Wireless LAN Card interface included a 2.4GHz receiving function, a 2.4GHz transmitting function. 2. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15 Subpart C Paragraph 15.247 for spread spectrum devices. 3. This device is a composite device in accordance with Part 15 regulations. The function receiving was measured and made a test report that the report number is 023H003F under Declaration of Conformity. 1.2. Operation Description The EUT is Wireless LAN Card. This RF module provided three kinds of transmission speed 2,5.5 and 11Mbps. The modulations of RF carrier are DQPSK and CCK. An extender was used during the test to prove the PCMCIA card can pass all the regulation alone Self-shielding and on board power regulator were built in the EUT. This module adopted direct sequence spread spectrum modulation. Data can be transmitted by the radio signal connect to Internet or local network.

Report No. 023H003FI Page : 14 of 48 Version:1.0 4. RF Exposure Evaluation According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz 4.1. Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 4.2. EUT Operation condition A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Report No. 023H003FI Page : 15 of 48 Version:1.0 4.3. Test Result of RF Exposure Evaluation Product : Wireless LAN Card Test Item : RF Exposure Evaluation Data Test Site : No.1 OATS Test Mode : Transmit 4.3.1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2 dBi linear scale. 4.3.2 Output Power Into Antenna & RF Exposure Evaluation Distance Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Minimum Allowable Distance ® From Skin(cm) 1 (2Mbps) 2412 15.93 2.222774ʳ 1 (11Mbps) 2412 15.89 2.212561ʳ 6 (2Mbps) 2437 15.17 2.036551ʳ 6 (11Mbps) 2437 15.25 2.055395ʳ 11 (2Mbps) 2462 14.07 1.794301ʳ 11 (11Mbps) 2462 14.12 1.804659ʳ The distance r (4 th column) calculated from the Friis transmission formula is far shorter than 20 cm separation requirement. So, RF exposure limit warning or SAR test are not required.

Report No. 023H003FI Page : 1 of 48 Version:1.0 Test Report Product Name : Wireless LAN Card Model No. : WP222M FCC ID.: PQP-WP222MF00001 Applicant : PRIME ELECTRONICS & SATELLITICS INC. Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt : Feb. 25, 2002 Date of Test : Mar. 14, 2002 Report No. : 023H003FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 023H003FI Page : 3 of 48 Version:1.0 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION .....................................................................................................5 1.1.EUT Description............................................................................................................................5 1.2.Operation Description ...................................................................................................................5 1.3.Tested System Details....................................................................................................................6 1.4.Configuration of Tested System ....................................................................................................7 1.5.EUT Exercise Software .................................................................................................................7 1.6.Test Facility ...................................................................................................................................8 2.Conducted Emission....................................................................................................................9 2.1.Test Equipment List.......................................................................................................................9 2.2.Test Setup ......................................................................................................................................9 2.3.Limits ............................................................................................................................................9 2.4.Test Procedure .............................................................................................................................10 2.5.Test Result of Conducted Emission.............................................................................................11 3.Peak Power Output ...................................................................................................................12 3.1.Test Equipment............................................................................................................................12 3.2.Test Setup ....................................................................................................................................12 3.3.Test Condition .............................................................................................................................12 3.4.Minimum Standard......................................................................................................................12 3.5.Test Result of Peak Power Output...............................................................................................13 4.RF Exposure Evaluation ...........................................................................................................14 4.1.Friis Formula ...............................................................................................................................14 4.2.EUT Operation condition ............................................................................................................14 4.3.Test Result of RF Exposure Evaluation.......................................................................................15 5.Radiated Emission .....................................................................................................................16 5.1.Test Equipment............................................................................................................................16 5.2.Test Setup ....................................................................................................................................16 5.3.Test Condition .............................................................................................................................17 5.4.Limits ..........................................................................................................................................17 5.5.Test Procedure .............................................................................................................................18 5.6.Test Result of Radiated Emission................................................................................................19 5.7.Test Result of Band Edge ............................................................................................................31 6.Occupied Bandwidth .................................................................................................................37 6.1.Test Equipment............................................................................................................................37 6.2.Test Setup ....................................................................................................................................37 6.3.Test Condition .............................................................................................................................37 6.4.Standard Reqirement ...................................................................................................................37 6.5.Test Result of Occupied Bandwidth ............................................................................................38 7.Transmitter Power Density..…

Text truncated - open the document above for the full version.

Report No.: 023H003FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 023H003FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 023H003FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
