PQP-WU221BWireless USB Network Adapter

Wireless LAN PC Card User’s Manual *Belkin Corporation 501 West Walnut Street Compton • CA • 90220 • USA Tel: 310.898.1100 Fax: 310.898.1111 Belkin Components, Ltd. Express Business Park Shipton Way • Rushden • NN10 6GL United Kingdom Tel: +44 (0) 1933 35 2000 Fax: +44 (0) 1933 31 2000 Belkin Components B.V. Starparc Building • Boeing Avenue 333 1119 PH Schiphol-Rijk • The Netherlands Tel: +31 (0) 20 654 7300 Fax: +31 (0) 20 654 7349 Belkin Components, Ltd. 7 Bowen Crescent • West Gosford NSW 2250 • Australia Tel: +61 (0) 2 4372 8600 Fax: +61 (0) 2 4372 8603 Belkin Tech Support US: 310.898.1100 ext. 2263 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 Australia: 1800 666 040 P73947-C © 2002 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. belkin.com 150000025500E R01 User Manual F5D6050 Wireless USB Network Adapter Connects a USB-equipped desktop or laptop to a wireless network TABLE OF CONTENTS Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Knowing Your Wireless USB Network Adapter . . . . . . . . . . . . . . . . . . 3 Placing the Wireless USB Network Adapter . . . . . . . . . . . . . . . . . . . . 4 Connecting to Your Wireless Network . . . . . . . . . . . . . . . . . . . . . . . 8 Uninstalling the Software and Drivers . . . . . . . . . . . . . . . . . . . . . . . 9 Using the Belkin Wireless LAN Monitor Utility . . . . . . . . . . . . . . . . 10 The Status Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 The Statistics Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 The Site Survey Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 The Encryption Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 The Advanced Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Using Profile Manager Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Operating in Ad-Hoc Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 1 INTRODUCTION Thank you for purchasing the Belkin Wireless USB Network Adapter (the Adapter). Now you can take advantage of this great new technology and gain the freedom you need around the home or office without using cables. The Wireless USB Network Adapter works like a conventional network adapter, but without the wires. The easy installation and setup will have you networking wirelessly in minutes. Please be sure to read through this manual completely to be sure that you are getting the most out of your Wireless USB Network Adapter. Features: The Adapter complies with the IEEE 802.11b standard in order to communicate with other 802.11b-compliant wireless devices. • 2.4GHz ISM (Industrial, Science, and Medical) band operation • Integrated, easy-to-use profile manager for storing multiple wireless network settings for work, school, home, or any other setup • Wireless interface compliance with the IEEE 802.11b standard • USB interface, for Plug-and-Play installation and convenience • 64- or 128-bit Wireless (WEP) Encryption • Wireless access to networked resources • Support for both infrastructure and ad-hoc (peer-to-peer) networking modes • Data rate of up to 11Mbps • Supports 11, 5.5, 2 or 1Mbps rates (auto-rollback) • Easy installation and use • External antennas • LED link indicator Applications and Advantages • Wireless roaming with a laptop around the home or office Offers the freedom of networking—without cables. • Difficult-to-wire environments Enables networking in buildings with solid or finished walls, or open areas where wiring is difficult to install. • Frequently changing environments Adapts easily in offices or environments that frequently rearrange or change locations. INTRODUCTION 2 • Temporary LANs for special projects or peak time Sets up temporary networks such as at trade shows, exhibitions, and constructions sites, which need networks on a short-term basis; also companies who need additional workstations for a peak activity period. • SOHO (Small Office/Home Office) networking needs Provides the easy and quick small network installation SOHO users need. Product Specifications Host Interface: USB 1.1 Power Consumption: 300mA (max) Certification: FCC Class B, CE Mark, C-Tick Operating Temperature: 32–131° F (0–55° C) Storage Temperature: -13–158° F (-25–70° C) Typical Operating Range: Indoor: 160' (50m) @ 11Mbps, 260' (80m) @ 5.5Mbps or lower Outdoor: 490' (150m) @ 11Mbps, up to 1800' (550m) @ 5.5Mbps or lower System Requirements • PC with one available USB port • Windows® 98, 2000, Me, or XP Package Contents • Belkin Wireless USB Network Adapter • Quick Installation Guide • Installation Software CD • User Manual KNOWING YOUR WIRELESS USB NETWORK ADAPTER 3 Status Light Indicates network activity and power Adjustable Antenna PLACING THE WIRELESS USB NETWORK ADAPTER 4 The best location for your adapter is on top of your computer’s monitor. Placing the Adapter on your desktop is acceptable, however, avoid placing the Adapter near metal objects such as a computer case or speakers. Any object that is metal has the ability to block the radio signals from the Adapter. Installing and Setting Up the Adapter Installing your Adapter is done in three easy steps: 1. Install the software FIRST. If you connect your Adapter to your PC before you install the software, it will not work until you install the software. 2. Connect the Adapter to your PC. 3. Let Windows finish installing the Adapter. NOTE: INSTALL THE SOFTWARE FIRST BEFORE YOU CONNECT THE ADAPTER TO YOUR COMPUTER Software and Driver Installation 1. Insert the CD into your CD-ROM drive. 2. The Belkin Wireless USB Network Adapter Setup Utility screen will automatically appear. If it does not appear within 15–…

Text truncated - open the document above for the full version.

Report No.: 031H029FI Page : 1 of 1 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

PRIME ELECTRONICS & SATELLITICS INC. FCC ID.: PQP-WU221B 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan... Tel: 886 3-461-5000 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN PC Card PESI Model No.: WU221B TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN PC Card Model No.: WU221B F F C C C C I I D D : : P P Q Q P P - - W W U U 2 2 2 2 1 1 B B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

PRIME ELECTRONICS & SATELLITICS INC. FCC ID.: PQP-WU221B 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan... Tel: 886 3-461-5000 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN PC Card PESI Model No.: WU221B TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN PC Card Model No.: WU221B F F C C C C I I D D : : P P Q Q P P - - W W U U 2 2 2 2 1 1 B B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

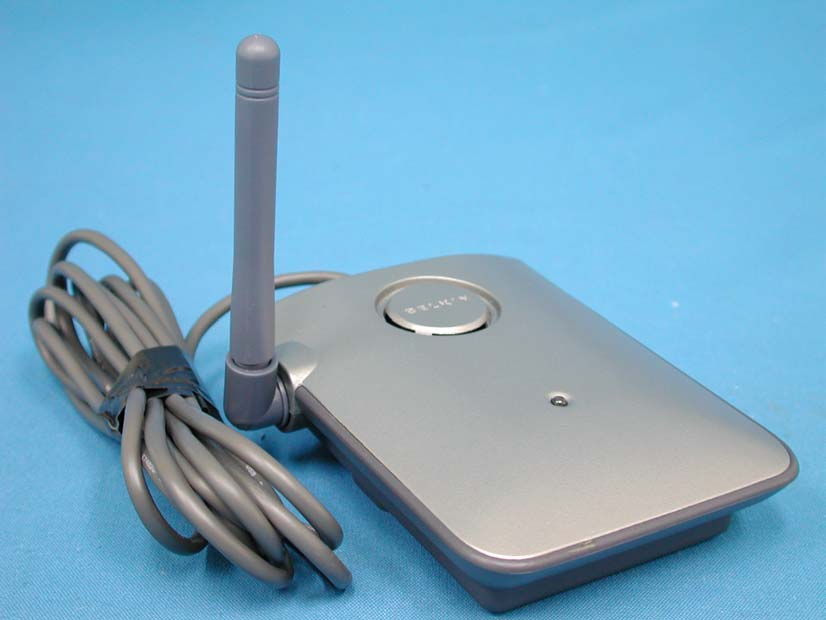

Report No.: 031H029FI Page : 1 of 3 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo Report No.: 031H029FI Page : 2 of 3 Version:1.0 (2) EUT Photo Report No.: 031H029FI Page : 3 of 3 Version:1.0 (3) EUT Photo

1.1. Operational Description EUT is a Wireless LAN PC Card with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK, DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The antenna was soldered on PCB provides diversity function to improve the receiving function. This Wireless LAN PC Card is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN PC Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV DATE APPROVED 2002/03/01 Erica Size Sheet of File Name: C 0 27-Mar-2002 USED ON DRAWN 12 WU221 B -3-A -MAC WU221 B -3-A Schematic DESCRIPTIONS DATE RESET_BB M_D0 EXTFL M_D7M_D4 S_DATA CCA M_D[7..0] BB3KCS NSCE M_D1 RADIO_PE M_D5 TX_PE M_D5 TX_DATA NMOE NMWE RX_DATA TDO CFG1 NMOE PA_PE M_D2 M_D7 NTRS RX_PE_BB M_D2 M_D3M_D6 NMWE MD_RDY WPE TX_RDY M_D6 CFG0 M_D4 M_D1 TDCK SYNTH_LERX_PE NSCE M_D0 CCA CFG2 M_D3 SEL1 D101 LT1075_Red R111 130 R124 470 R131470 C121 2.2n C119 0.1u X100 36Mhz R106 0 [R126] C1060.1u R123 3.3k C1070.1u IN 1 GND1 2 GND2 4 OUT 3 U100MIC5209-3.3BS C112 10n C122 2.2n VCC1 1 NC1 2 GND1 3 NC2 4 NC3 5 NC4 6 NC5 7 NC6 8 NC7 9 NC8 10 NC9 11 EXTFL 12 VCC3 13 GND2 14 MD7 15 MD6 16 MD5 17 MD4 18 MD3 19 MD2 20 MD1 21 MD0 22 VCC4 23 ~MWE 24 ~MOE 25 ~SCE 26 ~FCE 27 GND3 28 MA23 29 MA22 30 VCC8 31 MA21 32 VCC6 58 MA20 33 VCC5 45 GND6 56 GND5 37 GND7 64 MA19 34 MA18 35 MA17 36 MA16 38 MA15 39 MA14 40 MA13 41 MA12 42 MA11 43 MA10 44 MA9 46 MA8 47 MA7 48 MA6 49 MA5 50 MA4 51 MA3 52 MA2 53 MA1 54 MA0 55 TDCK 57 TDI/CFG0 59 TEST 60 ~TRS 61 TDO 62 TMS/CFG1 63 VCC10 81 GND4 65 GND8 77 GND9 91 VCC9 72 NC27 96 NC26 95 NC25 94 NC24 93 NC23 92 ~OSCST 90 MDRDY 89 CCA 88 BBTXPE 87 BBRXPE 86 BBR/W 85 BBAS/MOSI 84 BBCS 83 BBREST 82 RXPE 80 RXDATA 79 RXCIN 78 SYNPE 76 SYNLE 75 SYNDAT/MISO 74 SYNCLK 73 TXRDY 71 TXPE 70 TXDATA 69 TXCLK 68 SEL0 67 SEL1 66 NC22 128 VCC12 106 GND10 99 GND11 104 VCC11 101 GND12 110 VCC13 112 GND13 115 NC21 127 NC20 126 NC19 125 NC18 124 NC17 123 NC16 122 GPIO_0 121 GPIO_1 120 GPIO_2 119 GPIO_3 118 GPIO_4 117 USBattach 116 USBXOUT 114 USBXIN 113 USBLFT 111 DN 109 DP 108 SUSP 107 RESET 105 XOUT 103 XIN 102 LFT 100 SPI_PCS 98 TEST1/CFG2 97 U102 AT76C503A C11618p C114 10n C108 0.1u C1152.2n C104 0.1u 1 1 3 3 5 5 7 7 2 2 4 4 6 6 8 8 [J101] Q100 3904 D100 LT1075_Green L102EXC-ML20A390U WE 5 OE 32 CE 30 A0 20 A1 19 A2 18 A3 17 A4 16 A5 15 A6 14 A7 13 A8 3 A9 2 A10 31 A11 1 A12 12 A13 4 A14 11 A15 7 D0 21 D1 22 D2 23 D3 25 D4 26 D5 27 D6 28 D7 29 VCC 8 NC 9 GND 24 CE2 6 A16 10 U101 CY7C109B-15 R113 3.3k R108130 [R112] R107 10M C105 0.1u C11718p C11818p Q101 3904 R125 1k D102 LT1075_Yellow X101 12MHz C103 0.1u VCCS VCCS VCCS VCCS VCCS 1001 1 YELLOW CFG0 Internal ROM Configuration 01RED EXTFL Serial EEPROM present CFG2 Serial FLASH presentFin=3/4 XinExternal Flash Configuration 0 No serial Device, USB osc.present GREEN CFG1 1100 No serial Device, No USB oscillator Fin=Xin or XTAL VCCS GP3GP4 RST GP3 GP4 d- 2 d+ 3 gnd 4 vcc 1 5 J100 USB_B R101 15 L100 EXC-ML20A390U C101 0.1u [D103] NP R10315 L101 EXC-ML20A390U C111 150p [D104] R102 15 C110150p [R104] R10015 R105 1.5k VCCS VCCS DN DP DN DN DP + C100 4.7u nc 1 in 2 gnd 3 vcc 5 out 4 U105 TC7S04F PA_PE + C102 4.7u C113 18p +3.3V MOSI R1163.3k[R120] [R117] R1193.3k [R115] R1213.3k [R118]R1223.3k VCCS SPI_CS S_DATA nWP 5 nRESET 3 SI 1 nCS 4 SCK 2 VCC 6 GND 7 SO 8 [U103] R110 0 SI 5 nWP 3 nCS 1 GND 4 SO 2 SCK 6 nHOLD 7 VCC 8 U104 AT25040N-10SC-2.7 R1273.3k C1200.1u VCCS VCCS VCCS [R109] R114 0 Note: Components with (*) following the reference designator should not be populated on evaluation board. USBFLT USBFLT VCCS VCCS VCCS VCCS C1780.1u +5V C109 0.1u SEL0 S_CLK MOSIS_CLK S_CLK MOSI VCCS RXEN DATA_CLK WPE 44MHZ SPI_CS DP USBBAT USBBAT M_A0 M_A1 M_A2 M_A3 M_A4 M_A5 M_A6 M_A7 M_A8 M_A9 M_A10 M_A11 M_A12 M_A13 M_A14 M_A15 M_A16 M_A0M_A1M_A2M_A3M_A4M_A5M_A6M_A7M_A8M_A9M_A10M_A11M_A12M_A13M_A14M_A15M_A16 M_A[0..16] Y 4 A 1 B 2 GND 3 Vcc 5 U 1 0 6 TC7SH86F [R132] C1230.1u VCCS WPE MD RDY B MD_RDY R1303.3K WU221P-3-A-RFWU221P-3-A-RF 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV DATE APPROVED 2002/03/01 Erica Size Sheet of File Name: A3 0 27-Mar-2002 USED ON DRAWN 22 WU221 B -3-A -RF WU221 B -3-A Schematic DESCRIPTIONS DATE Note: Components with (*) following the reference designator should not be populated on evaluation board. CI R56130 R36330 R3418 SVCC +5V /GS IF_LO VCC 1 GND 2 RF_IN 3 PD 4 RF_OUT 5 U9RF2472 R30 0 L3BLM11HA471 L23.9nH N/C 4 GND 2 IN 1 SHT 3 OUT 5 U10LP2980IM5-3.1 DELAY 2 N/C 1 GND 3 IN 4 SHTDN 8 ERR 7 SENSE 6 OUT 5 U5 LP2987IM-3.0 +C844.7u L4 BLM11HA471 L9 10nH RF IN 6 GND 2 N/C 4 GND 1 VCC2 16 VCC2 15 VCC1 14 N/C 13 RF OUT 12 RF OUT 11 RF OUT 10 GND 9 PC 8 N/C 7 N/C 5 GND 3 BASE 17 U6 RF2189_MLF L1 BLM11HA471 L19 BLM11HA471 SDATA 27 GNDI 22 NC 5 GNDR 28 NC 3 GNDR 2 GNDR 1 GNDR 4 GNDR 6 IFLB 20 GNDD 18 XIN 15 GNDD 16 VDDD 17 IFLA 19 IFOUT 23 VDDI 24 SENB 25 VDDR 11 AUXOUT 12 GNDR 7 SCLK 26 RFOUT 10 PWDNB 13 GNDR 8 GNDR 9 GNDD 14 GNDI 21 DIEFLAG U1 Si4126BM [R31] G 1 I/O 2 G 3 I/O 4 FL3 2.442Ghz Q1 3904 Q33904 L17 4.7nH PD 1 RX_EN 2 RX IF BIAS 3 VCC1 4 RX_IF_IN 5 TX_IF_IN 6 VCC9 7 TX_GC 8 IF_LO 9 VCC8 10 VCC6 11 PA_OUT 12 PA_IN 13 VCC5 14 RF_LO 15 RF_OUT 16 IF_OUT- 17 IF_OUT+ 18 I_BYP 19 I_IN 20 Q_BYP 21 Q_IN 22 VCC4 23 I_OUT 24 Q_OUT 25 VREF_BUF 26 DCFBI 27 DCFBQ 28 BW_Sel 29 VCC2 30 VREF1 31 RX_GC 32 DF 33 U4 RF2948B GS 15 LNA_In 16 PD 1 Vcc1 2 Vcc2 3 MixOut- 4 MixOut+ 5 RxEn 7 Vcc3 8 Gnd3 9 Mix_In 10 NC 11 NC 12 LO_In 6 LNA_Out 13 Vcc4 14 DieFlag 17 U3 RF2494 TX_PE 1 RX_PE 2 MCLK 3 TX_RDY 4 RX_RDY 5 VDDD 6 GNDD 7 CCA 8 LNA_CNTL 9 TX_DATA 10 DATA_CLK 11 RX_DATA 12 CSn_AD0 13 CCLK 14 CDIN_AD1 15 CDOUT_SDA 16 RXVGC 17 NC 18 I_IN 19 Q_IN 20 VDDA 21 GNDA 22 I_OUT 23 Q_OUT 24 TXVGC 25 ANTSEL 26 RESET 27 VREF 28 U8RF3000 Out 3 Vcc 4 E/D 1 Gnd 2 U11 44MHz C8118p C7910n C785p C87 6.8p C8622p C801n C88 10p C83 10n R15 0 C70100p C95 22p C74 10n C6710n C69 10n [R2] R47 0 [R4] R45 47 VCC IF LO VCC [R28]R3247 C63 9p C5915P L163.9n C5422p C60 10n C4022p VCC C905p C47 1n C68100p C431n C5210n C48 1n C5722n C5822n C65 10n VCC E/D R44 23.7K VCC VCC R49 10 R392.2K R4647 R42 12.1K C73100p C7210n C76 100p C77 100p C448p C39 10p C3722p C505p R61 270 L1247n L15 27nH L1433nH R5410 VCC RX_EN G 1 I/O 2 G 3 I/O 4 FL1 2.442Ghz L82.2n C361.5p C515p C345p VCC C4510n C4110p C2622p GS VCC SVCC TP19 TP22 TP18 TP20 TP21 TX_PERX_PE T…

Text truncated - open the document above for the full version.

Report No. 031H029FI Page: 1 of 37 Version:1.0 Test Report Product Name : Wireless LAN PC Card Model No.: WU221B FCC ID.: PQP-WU221B Applicant : PRIME ELECTRONICS & SATELLITICS INC Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt : Jan 9, 2003 Date of Test : Jan 16, 2003 Report No. : 031H029FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 031H029FI Page: 3 of 37 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................6 1.3. Tested System Datails....................................................................................................................7 1.4. Configuration of tested System .....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................10 2.4. Test Procedure .............................................................................................................................11 2.5. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Result of Peak Power Output...............................................................................................15 4. RF Exposure Evaluation ...........................................................................................................16 4.1. Limits ..........................................................................................................................................16 4.2. Test Procedure .............................................................................................................................16 4.3. Test Result of RF Exposure Evaluation.......................................................................................17 5. Radiated Emission .....................................................................................................................18 5.1. Test Equipment............................................................................................................................18 5.2. Test Setup ....................................................................................................................................18 5.3. Limits ..........................................................................................................................................19 5.4. Test Procedure .............................................................................................................................20 5.5. Test Result of Radiated Emission................................................................................................21 6. Band Edge ..................................................................................................................................27 6.1. Test Equipment............................................................................................................................27 6.2. Test Setup ....................................................................................................................................27 6.3. Limits ..........................................................................................................................................28 6.4. Test Procedure .............................................................................................................................28 6.5. Test Result of Band Edge ............................................................................................................29 7. Occupied Bandwidth .................................................................................................................31 7.1. Test Equipment............................................................................................................................31 7.2. Test Setup .............................................................................................…

Text truncated - open the document above for the full version.

Report No.: 031H029FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 031H029FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 031H029FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
