PQP-WU221LWIRELESS LAN USB ADAPTER

W W i i r r e e l l e e s s s s L L A A N N U U S S B B A A d d a a p p t t e e r r User Manual Version: 1.0 (October. 2003) Wireless LAN USB Adapter I Copyright Copyright  2003 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Wireless LAN USB Adapter II Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment complies with FCC radiation exposure limits. However, in order to avoid the possibility of exceeding the FCC exposure limits, this device and its antenna should not be co-located or operating in conjunction with any other antenna or transmitter.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static Wireless LAN USB Adapter III electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 Wireless LAN USB Adapter IV Manual Contents Chapter 1 Introduction ......................................................... 1 Chapter 2 Installation Procedure ......................................................... 2 Chapter 3 Using the Configuration & Monitor Utility ................................ 4 3.1 Using the Configuration & Monitor Utility ...................................... 4 3.1.1 Monitor ........................................................................................... 4 3.1.2 Statistic ........................................................................................... 5 3.1.3 Site Survey ........................................................................................... 5 3.1.4 Encryption ........................................................................................... 6 3.1.5 Advanced ......................................................…

Text truncated - open the document above for the full version.

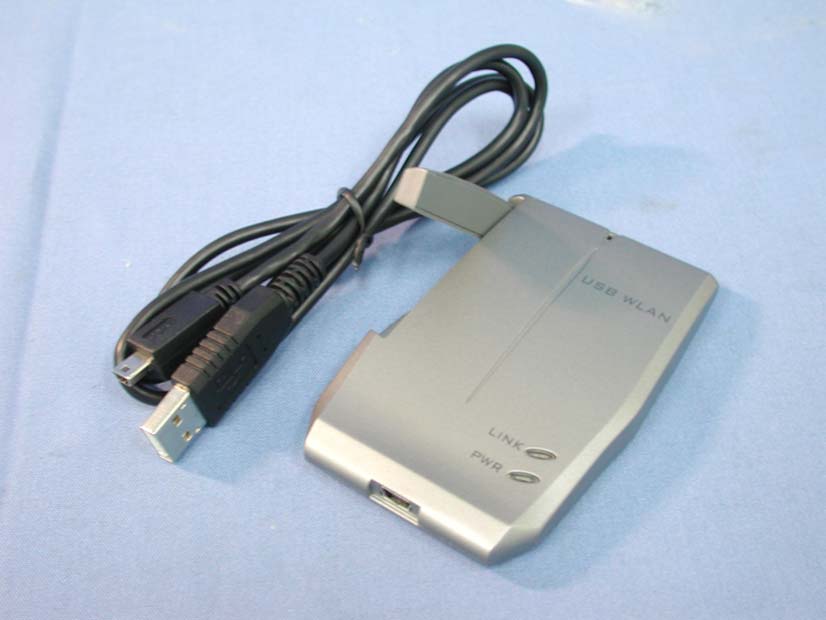

WU221L (1).jpg

WU221L (1).jpg

1234 A B C D 4321 D C B A DWG TITLE DWG NO. CHECKED APPROVED DATE DATE REV doraemon 25/Apr/2003 Size Sheet ofFile Name:A 01 C:\Documents and Settings\doraemon\Local Settings\Temporary Internet Files\Content.IE5\PVV7TD4E\WU221L.ddb - Documents\WU221L USED ONDRAWN 11 WU221L BLOCK DIAGRAM DATE DATEISSUEDDATECHECKEDDATEAPPROVED 374MHz SAW RFMD2958 22MHz External Antenna RF TR SW LNA- always On 505A MAC Connector WU221L-ATMEL 505A System Block Diagram XTOSC System clock Intenral Antenna USB 802.11B RFMD5117 RF Diversity SW + BaseBand + Internal SRAM 128K*8 I/Q Transceiver With Synthesizer+ VCO RF 2958 only 3.3V to 3.0 V 505A MAC CPU 3.3V to 1.8V SOT-223 /600mA 5V to 3.3V 505A-CPU -rf PA D+ /D- 's series R-C value 150 ohm and 180 PF delay data to Host reset's R /C important to host RF2472 22Mhz RF clock 22Mhz MAC clock D+ D- SPI-EEPROM AT25040AN 512 * 8 RF's related register

S:\TimcoOffice\ReportTemplate\Probonholdemail.doc Rev 25 June03 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] 12/18/2003 FCC SUBJECT: PRIME ELECTRONICS AND SATELLITICS INC - FCC ID: PQP- WU221L To Whom It May Concern, The issue of channels is addressed in the attestation from the manufacturer. They state that the software that is use to change the channels beyond the frequency range issued on the Grant of Certification. Sincerely, Sid Sanders

Report No.: 03CH034FI Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

FCC ID.: PQP-WU221L 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN USB adapter PESI Model No.: WU221L TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN USB adapter Model No.: WU221L F F C C C C I I D D : : P P Q Q P P - - W W U U 2 2 2 2 1 1 L L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

FCC ID.: PQP-WU221L 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Wireless LAN USB adapter PESI Model No.: WU221L TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Wireless LAN USB adapter Model No.: WU221L F F C C C C I I D D : : P P Q Q P P - - W W U U 2 2 2 2 1 1 L L This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Report No.: 03CH034FI Page : 2 of 4 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 03CH034FI Page : 3 of 4 Version:1.0 (5) EUT Photo Report No.: 03CH034FI Page : 4 of 4 Version:1.0 (6) EUT Photo

Report No. 03CH034FI Page: 5 of 34 Version:1.0 1.2. Operational Description EUT is a Wireless LAN USB adapter with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was provides diversity function to improve the receiving function. This Wireless LAN USB adapter is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Wireless LAN USB adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Report No. 03CH034FI Page: 1 of 3 Version: 1.0 RF Exposure Evaluation declaration Product Name : Wireless LAN USB adapter Model No.: WU221L FCC ID.: PQP-WU221L Applicant : PRIME ELECTRONICS & SATELLITICS INC. Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt : Dec 08, 2003 Date of Declaration: Dec 10, 2003 Report No. : 03CH034FI The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 03CH034FI Page: 2 of 3 Version: 1.0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 03CH034FI Page: 3 of 3 Version: 1.0 1.3. Test Result of RF Exposure Evaluation Product : Wireless LAN USB adapter Test Item : RF Exposure Evaluation Test Site : No.1 OATS Test Mode : Normal Operation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 2.0dBi or 1.58 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 36.4754 0.0115 6 2437.00 33.1894 0.0105 11 2462.00 25.1768 0.0079 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 17/Nov/2003 Size Sheet of File Name: A A D:\PCB\ \WU221L\PCB\WU221L.ddb - Docu ments\41713-80906-04\82011- 80908ES01-1-A.Sch USED ON DRAWN 12 WU221L WU221L SCHEMATIC DATE 82011-80908 ES01 Laurence 17/Nov/2003JP-Weng 17/Nov/2003 DATE ISSUED DATE CHECKED DATE APPROVED REVISION RECORD REV ECO DATE DESCRIPTION PFLASH B12 E2ORFL C2 TEST_CK D4 TEST A3 EXT_RESET G13 EXT_CLOCK22 F11 EXT_CLOCK22o F13 LFT F12 MEM_READY D3 nFCS K5 nSRCS N3 nWR N4 nRD M5 SRADDR16 F3 SRADDR15 G3 SRADDR14 F1 SRADDR13 G2 SRADDR12 G4 SRADDR11 G1 SRADDR10 H4 SRADDR9 H3 SRADDR8 H1 SRADDR7 J3 SRADDR6 J1 SRADDR5 J2 SRADDR4 J4 SRADDR3 K3 SRADDR2 K2 SRADDR1 L1 SRADDR0 K4 SRDIO7 M1 SRDIO0 N2 SRDIO1 L5 SRDIO2 M3 SRDIO3 L4 SRDIO4 M2 SRDIO5 N1 SRDIO6 L3 TCK H10 TDO H11 TMS J12 nTRST J13 TDI K13 VDD E11 PVCC D1 PVCC B6 PVCC B10 PVCC K6 PVCC E13 PVCC L2 VCC B7 VCC B5 VCC A10 VCC C12 VCC C8 PVDD F2 PVDD A6 PVDD A4 PVDD G10 PVDD D13 PVDD C1 PVDD K7 CVDD B11 PAVDD C6 AVDD M12 AVDD N9 NC D9 NC C10 NC D5 NC B8 NC C7 NC D8 CGND C5 CGND A9 CGND A2 CGND E12 CGND H2 CGND D2 CGND C13 CGND L6 GND E10 GND B3 PAGND F10 PAGND A7 PGND D7 PGND D10 PGND K1 PGND G11 PGND A8 PGND B1 PGND N7 PGND M4 AGND M10 AGND L11 AGND K8 NC B2 NC C9 NC B9 NC A12 NC A11 NC A5 IREF N13 VREF N12 VCX_AC N11 RX_AGC M11 TX_AGC K10 TX_QP L9 TX_QN M8 TX_IP L8 TX_IN N8 RX_QP N10 RX_QN L10 RX_IP K9 RX_IN M9 CCA H13 LNAGAIN N5 ANT0 E1 ANT1 F4 SEL0 E4 SEL1 E2 TX_PE M6 RX_PE L7 RADIO_PE M7 PA_PE N6 SYNTHDATA K11 SYNTHCLK L12 GPIO12 E3 GPIO8 H12 GPIO6 G12 GPIO5 C11 GPIO4 A13 GPIO3 C4 GPIO2 B4 GPIO1 C3 GPIO0 A1 nSPICS0 L13 SPI_CK K12 MOSI M13 MISO J11 nSPICS1 J10 LFTU D6 DN D12 DP D11 USBattach B13 U111 AT76C505A RR6SHORT PFLASH E2ORFL E2ORFL RR8SHORT RR9SHORTTEST_CKTEST R129 1K C189 12N 3V3D R130 10M RESETXin Combo_CLK Combo_CLK R134 3.3K 3V3D R133 270 C193 12N LFT C194 1.5N RR70 GNDLFT M_D7M_D6M_D5M_D4M_D3M_D2M_D1M_D0 M_D0M_D1M_D2M_D3M_D4M_D5M_D6M_D7 TP1 TCK TP2 TDO TP3 TMS TP4 nTRST TP5 TDI TP6 3V3D TP7 DGND 3V3D RR12OPEN E2ORFL E2ORFL 3V3D C188100N L100 GNDLFT 1V8 1V8 3V3D C187100N GNDLFTU L90 1V8 C190100N 3V3A VCX_AC VCX_AC DVGC DVGC TX_VGC TX_VGC BBTX_Q+BBTX_Q-BBTX_I+BBTX_I-RX_Q+RX_Q-RX_I+RX_I-CCAdGS BBTX_Q+BBTX_Q-BBTX_I+BBTX_I-RX_Q+RX_Q-RX_I+RX_I-CCAdGS SEL1TX_PERX_PE RADIO_PE PAPE SEL1TX_PERX_PERADIO_PEPAPE nSPICS0SPI_CLKMOSIMISOnSPICS1 USBattach DPDN USBattach DPDNnSPICS1MISOMOSISPI_CLKnSPICS0 RR100 R135 1K C1961.2N C19512N GNDLFTU GNDLFT R1363.3K nSPICS0MISO MISOnSPICS0 3V3D SPI_CLKMOSI SPI_CLKMOSI 3V3D C197100N C198100N C199100N C200100N 1V8 C201100N C202100N C203100N C204100N C205100N C206100N 3V3D E/D 1 GND 2 Out 3 Vcc 4 U422MHz. F338/20 ppm R126 12 C18510N C186100N 2V8 R113 330 RR3 OPEN C2968P R14 470 C30220P Combo_CLKMCLK L824nH,NP MCLK Combo_CLK 22MHz OSCILLATOR'S CIRCUIT R59 0 R61 NP C181 100N RX_Q RX_Q+ RX_Q+ RX_Q C183 100N RX_Q- RX_Q- R60 0 R62 NP C182 100N RX_I RX_I+ RX_I+ RX_I C184 100N RX_I- RX_I- RX I & Q +/- INTERFACE R118 1K R1201.8K R124 1K C112 100N C7 100N RFTX_Q+RFTX_Q- BBTX_Q+BBTX_Q- RFTX_Q-RFTX_Q+ BBTX_Q+BBTX_Q- R121 1K R1221.8K R125 1K C116 100N C4 100N RFTX_I+RFTX_I- BBTX_I+BBTX_I- RFTX_I-RFTX_I+ BBTX_I+BBTX_I- TX I & Q +/- INTERFACE R2 12 R4 12 R5 12 SCLKSSBSDI SPI_CLKSEL1MOSI MOSISEL1SPI_CLK SDISSBSCLK C37NP C33NP C34NP C2210P C2810P C2310P SPI CIRCUIT DVGC R128 12 RX_VGC DVGC RX_VGC C16 7P dGS R9 10 LNA_GS dGS LNA_GS C1022P C1822P RXVGCLNA GS TP19 LNA_GS TP22 RX_VGC TP23 RX_I+ TP24 RX_Q+ TP25 TX_I+ TP26 TX_I- TP27 TX_Q+ TP28 TX_Q- TP29 1V7REF LNA_GSRX_VGCRX_IRX_QRFTX_I+RFTX_I-RFTX_Q+RFTX_Q-1V7REF 1V7REFRFTX_Q-RFTX_Q+RFTX_I-RFTX_I+RX_QRX_IRX_VGCLNA_GS TP30 SEL1 TP31 MOSI TP32 SPI_CLK TP33 MISO TP34 nSPICS1 TP21 TX_PE TP10 TX_VGC TP11 PAPE TP12 CCA SEL1MOSISPI_CLKMISOnSPICS1TX_PETX_VGCPAPECCA SEL1MOSIMISOSPI_CLKnSPICS1TX_VGCTX_PEPAPECCA NFCSWR_NANDRD_NAND R132 100 WR_NANDRD_NANDNFCS C192100N + C1912.2u VREF SPR1SPRING SPR2SPRING SPR3SPRING SPR4SPRING TP13 GPIO0 TP14 GPIO1 TP15 GPIO5 TP16 GPIO4 TP17 GPIO8 TP18 GPIO12 GPIO0GPIO1GPIO5GPIO4GPIO8GPIO12 GPIO12GPIO8GPIO6GPIO5GPIO4GPIO3GPIO2GPIO1GPIO0 GPIO0GPIO1GPIO2GPIO3GPIO4GPIO5GPIO6GPIO8GPIO12 GNDLFTU SI 5 nWP 3 nCS 1 GND 4 SO 2 SCK 6 nHOLD 7 VCC 8 U14AT25040N-10SC-2.7 GPIO0GPIO1GPIO5GPIO4GPIO8GPIO12 R61.5K C2342.2u TP36 TP37 L13Ferrite BEADL42Ferrite BEAD C216100N VBAT d- 2 d+ 3 G 4 Vcc 1 G 5 6 7 8 9 J1 USB_B ck 1 D 2 /Q 3 GND 4 Q 5 /dr 6 /pr 7 vcc 8 U9 NC7SZ74,NP NC1 1 COM1 2 IN2 3 GND 4 NC2 5 COM2 6 IN1 7 V+ 8 U25NC7WB66,NP 1 2 3 D25BAT54S/SOT,NP 1 2 3 D26BAT54S/SOT,NP R175NPR181NP R22312R222NP R7NP R182 12 R180 12 C178150P VBAT' C177 150P DPDN DPDN 3V3 3V3 C162NP C406NP C163NP R407 NP R22512 R2301.5K R224NP R408 NP GPIO8 GPIO8 3V3 VBAT' 3V3 VBAT' USBattach USBattach DP'DN' R21 0 R220 TP56TP57 ANT_0ANT_1 ANT_0ANT_1 RR20RR40 TP8RESET VBAT' TP35ANT0 TP38ANT1 L19Ferrite BEADL20Ferrite BEAD RX_VGCRX_IRX_QRFTX_I+RFTX_I-RFTX_Q+RFTX_Q-SCLK SSB SDI MCLK RX_PETX_PE1V7REF RX_IN TX_VGC PAPE RX_IN TX_PE RX_PE RADIO_PE GPIO6 RX_PE ANT_1ANT_0 82011-80908ES01-2-A82011-80908ES01-2-A.Sch Joan 17/Nov/2003 Laurence 17/ Nov/2003 JP-Weng 17/Nov/2003 A 17/Nov/2003 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 17/Nov/2003 Size Sheet of File Name: A A D:\PCB\ \WU221L\PCB\WU221L.ddb - Docu ments\41713-80906-04\82011- 80908ES01-2-A.Sch USED ON DRAWN 22 WU221L WU221L SCHEMATIC DATE 82011-80908 ES01 Laurence 17/Nov/2003JP-Weng 17/Nov/2003 DATE ISSUED DATE CHECKED DATE APPROVED IF IN+ 1 IF IN- 2 VCC IF 3 R BIAS 4 VCC RF2 5 VCC RF1 6 IF OUT- 7 IF OUT+ 8 TX VGC 9 RF OUT 10 VCC RF3 11 RF IN 12 LNA GS 13 VCC PLL1 14 DIG REG 15 MODE1 16 MODE0 17 MCLK 18 SDI 19 SSB 20 SCLK 21 VCC PLL4 22 PLL REG 23 VREF 24 Q BYP 25 TX Q 26 I BYP 27 TX I 28 VCC BB 29 RX Q 30 RX I 31 RX VGC 32 GND 33 U8RF2958 GND 1 IN- 2 IN+ 3 GND 4 GND 5 OUT- 6 OUT+ 7 GND 8 FL1TB0135 VCC 1 GND 2 RF_IN 3 PD 4 RF_OUT 5 U19RF2472 RF in 1 Vreg1gnd 2 PWRsen 3 PSref 4 Vreg1 5 Vreg2 6 Vreg2 7 NC 8 NC 9 RFout 10 RFout 11 RFout 12 Vcc…

Text truncated - open the document above for the full version.

Report No. 03CH034FI Page: 1 of 34 Version:1.0 Test Report Product Name : Wireless LAN USB adapter Model No.: WU221L FCC ID.: PQP-WU221L Applicant : PRIME ELECTRONICS & SATELLITICS INC. Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Date of Receipt : Dec 08, 2003 Date of Test : Dec 10, 2003 Report No. : 03CH034FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 03CH034FI Page: 2 of 34 Version:1.0 Test Report Certification Test Date : Dec 10, 2003 Report No. : 03CH034FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Wireless LAN USB adapter Applicant : PRIME ELECTRONICS & SATELLITICS INC. Address : 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. Manufacturer : PRIME ELECTRONICS & SATELLITICS INC. Model No. : WU221L FCC ID. : PQP-WU221L Rated Voltage : DC 5V (Power by PC) Trade Name : PESI Measurement Standard : FCC Part 15 Subpart C Paragraph 15.247 Measurement Procedure : ANSI C63.4: 1992 Test Result : Complied Documented By : ( Carol Tsai ) Tested By : ( James Wu ) Approved By : ( Kevin Wang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200347-0 Report No. 03CH034FI Page: 3 of 34 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................7 1.5. EUT Exercise Software .................................................................................................................7 1.6. Test Facility ...................................................................................................................................8 2. Conducted Emission....................................................................................................................9 2.1. Test Equipment..............................................................................................................................9 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Test Result of Conducted Emission.............................................................................................11 3. Peak Power Output ...................................................................................................................13 3.1. Test Equipment............................................................................................................................13 3.2. Test Setup ....................................................................................................................................13 3.3. Limits ..........................................................................................................................................13 3.4. Test Result of Peak Power Output...............................................................................................14 4. Radiated Emission .....................................................................................................................15 4.1. Test Equipment............................................................................................................................15 4.2. Test Setup ....................................................................................................................................15 4.3. Limits ..........................................................................................................................................16 4.4. Test Procedure .............................................................................................................................16 4.5. Test Result of Radiated Emission................................................................................................17 5. Band Edge ..................................................................................................................................23 5.1. Test Equipment............................................................................................................................23 5.2. Test Setup ....................................................................................................................................23 5.3. Limits ..........................................................................................................................................25 5.4. Test Procedure .............................................................................................................................25 5.5. Test Result of Band Edge ................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 03CH034FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 03CH034FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 03CH034FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn)
