PQP-WU233GWireless LAN USB Adapter

Prime Electronics & Satellitics Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 20, 2004
Application Purpose: Original Equipment
Date of Application: Sep 20, 2004
Equipment Note: Wireless LAN USB Adapter
Frequency Range: 2412.00000000 - 2462.00000000
Company: Prime Electronics & Satellitics Inc.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

33333333 百一電子股份有限公司 PRIME ELECTRONICS & SATELLITICS INC. 69, TUNG-YUAN RD., CHUNG-LI INDUSTRIAL PARK, CHUNG-LI CITY 320, TAO-YUAN COUNTY, TAIWAN. 中壢巿中壢工業區東園路69號 TEL: +886-3-461-5000 FAX: +886-3-461-4000 W W i i r r e e l l e e s s s s L L A A N N U U S S B B A A d d a a p p t t e e r r M M o o d d e e l l n n a a m m e e : : W W U U 2 2 3 3 3 3 g g User ManualVersion: 2.0 (June. 2004) Wireless LAN USB Adapter I Copyright Copyright  2004 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Wireless LAN USB Adapter II Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment complies with FCC radiation exposure limits. However, in order to avoid the possibility of exceeding the FCC exposure limits, this device and its antenna should not be co-located or operating in conjunction with any other antenna or transmitter.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static Wireless LAN USB Adapter III electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 Wireless LAN USB Adapter IV Manual Contents Chapter 1 Introduction ......................................................... 1 Chapter 2 Installation Procedure ......................................................... 2 Chapter 3 Using the Configuration & Monitor Utility ................................ 5 3.1 Using Utility ...................................... 5 3.1.1 Network ...........................................................................................5 3.1.2 Status setting ...........................................................................................7 3.1.3 WEP Setting ................................................................................…

Text truncated - open the document above for the full version.

Block Diagram

Wireless LAN USB Adapter WU233g block diagram 33333333

Cover Letter(s)

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 20, 2004 RE: Prime Electronics & Satellitics FCC ID: PQPWU233G I have a few comments on this Application. Depending on your responses, kindly understand there may be additional comments. 1.) I note that no Confidentiality letter was presented. Please review with your client and be sure that no Confidentiality for block diagram or schematics is required. 2.) The Manual has multiple references to a PCMCIA card. This RF category “Mobile” device is not a PCMCIA card. Kindly review your Manual and correct. 3.) Please confirm with your client that end users will not have the ability to set channels other than 1-11 in North America. Use of channels 12 and 13 are prohibited. William H. Graff President and Director of Engineering mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Cover Letter(s)

Dear Bill, Thanks for the prompt reply. 1. Client does not ask documents confidential. 2. Please find attached revised user's manual because I cannot upload to ATCB website right now. 3. Channels 12 and 13 will be locked as shipping this product to USA. Client knows it because they sell their products to USA very often. Best regards, Joanna

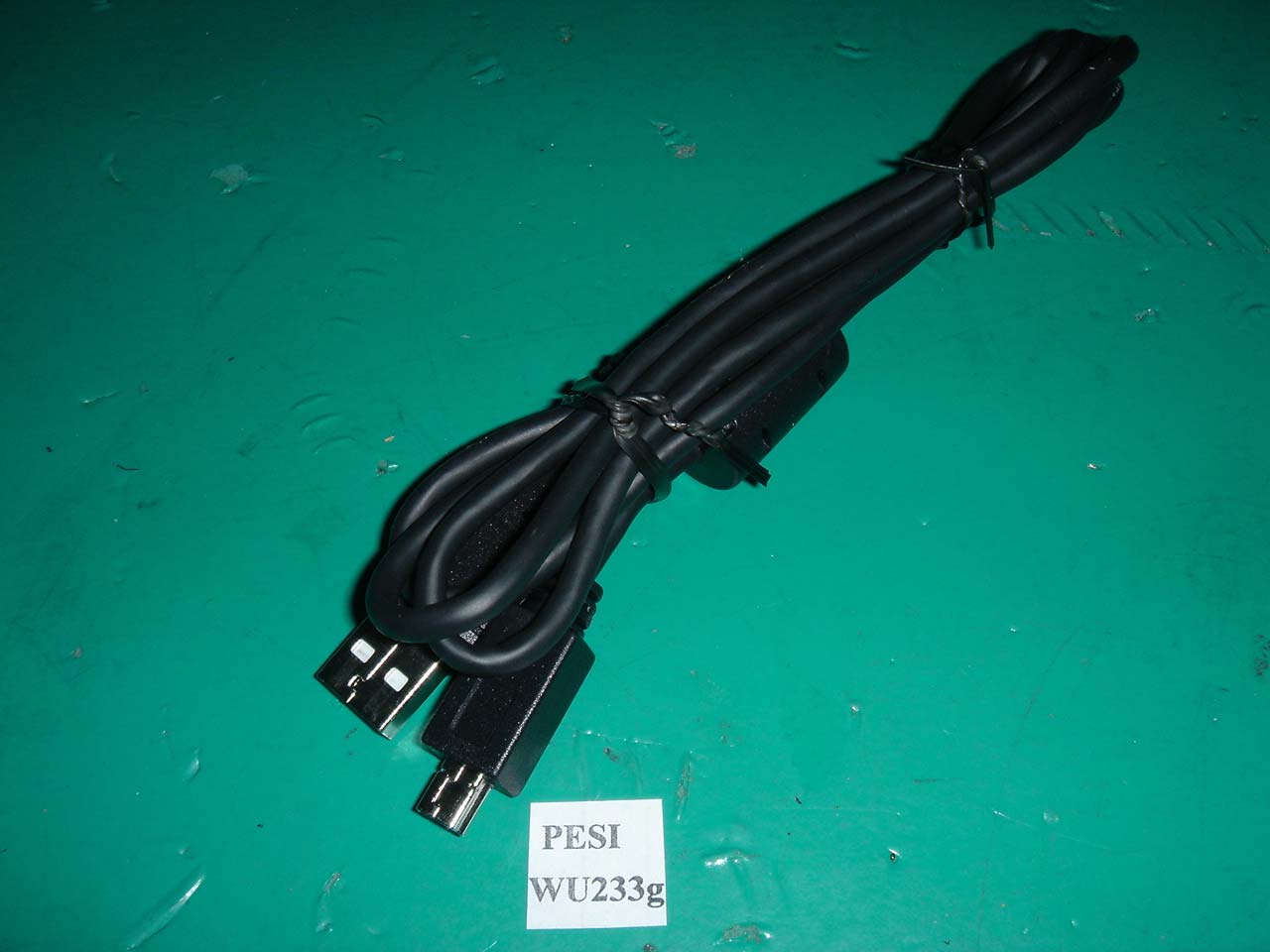

External Photos

ID Label/Location Info

( C ) ( A ) 41.5mm 3 3 . 5 m m 1 0 m m 1 0 m m ( B ) Wireless LAN USB Adapter 802.11g Compliant / 54Mbps Data Transfer Rate Certified for FCC Part 15 Class B FCC ID: PQP-WU233G Made in China This device complies with Part 15 of FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. P/N: 26007-83001 TX01 PART NAME: LABEL MODEL: WU233g() REC: A FINISH: MATL: Joyce Joyce DRAWING NO: 26007-83001- A 2004/07/27 1 OF 1 PAGE

ID Label/Location Info

Internal Photos

GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 61 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. Front View Of Wireless LAN USB Adapter (EUT) 4. Back View Of Wireless LAN USB Adapter (EUT) GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 62 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. Front View Of Wireless LAN USB Adapter (EUT) 6. Back View Of Wireless LAN USB Adapter (EUT) GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 63 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 7. Front View Of Wireless LAN USB Adapter (EUT) 8. Back View Of Wireless LAN USB Adapter (EUT) GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 64 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. Front View Of Wireless LAN USB Adapter (EUT) 10. Front View Of Wireless LAN USB Adapter (EUT) GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 65 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 11. Front View Of Wireless LAN USB Adapter (EUT) 12. LABEL HERE

Operational Description

RF Exposure Info

GESTEK Lab Report #: 0409011 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN USB Adapter Model Number: WU233g FCC ID: PQP-WU233G Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. 320 Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : (02) 2603-5321 Fax : (02) 2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0409011 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0409011 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 3 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test September 03, 2004 Temperature 23.4 deg/C EUT Wireless LAN USB adapter Humidity 48 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 114.0250 0.0227 6 2437.00 110.9175 0.0221 11 2462.00 98.6279 0.0196 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0409011 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 4 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test September 03, 2004 Temperature 23.4 deg/C EUT Wireless LAN USB adapter Humidity 48 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 110.9175 0.0221 6 2437.00 104.2317 0.0207 11 2462.00 90.1571 0.0179 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

Schematics

123456 A B C D 6 54321 D C B A DWG TITLE DWG NO. CHECKED APPROVED DATE DATE REV Ken 23/Aug2004 Size Sheet of File Name: C A E:\PROTEL LOYOUT\WU233g-RFIC\EPR1\WU233g-RFIC.ddb - Documents\41713-83003-01\82011-83006ES01-A-1.Sch USED ONDRAWN 14 WU233g Wireless LAN USB adapter WU233g SCHEMATIC DATE 82011-83006 ES01 Laurence 23/Aug/2004 Alex 23/Aug/2004 DATE ISSUEDDATECHECKEDDATEAPPROVED REVISION RECORD REVECODATEDESCRIPTION RX_BB_Q+ TX_BB_I+ GND T X _ B B _ Q - RX_BB_I+ TX_BB_I- RX_BB_Q- TX_BB_Q+ RX_BB_Q- TX_BB_Q- RX_BB_Q+ 40MI RFRX_PE RFTX_PE CY_X1 RX_BB_I- RX_BB_I+ GND RX_BB_I- SYNDATA S Y N C L K SYNCLK S Y N D A T A AGC T X _ B B _ I + R F _ L E - G # RF_LE-G# LNAG0 VEVCCBVCCF IF-IN+ TXBBI TXBBQ T X _ B B _ I - T X _ B B _ Q + IFIN- I F I N + IF-IN- I F I N - IFIN+ VCC6 CY_X2 VCTRL2 AGC VCCB GND R F V C 3 LNAG1 GND VCTRL1 V C C E VCCB D O 1 DO1 LNA0 LNA0 GND RFTX_PE RFRX_PE IREF GND GND VDVCCB RFRX_PE GND G N D I R E F VCCA VCCA V C C 4 2 VCCBGND V C C 4 1 R F V C 4 GNDRFIN VCCB VCCB VCCB VCCB VCTRL1 GND GND RFIN+ RFIN- GND GND GND RFIN_F GNDGNDGND VCCA G N D GND G N D IFO+ IFO- VCCA VCCA GND VCCA VCCA I F O U T - VCCA I F O U T + VCCA G N D GND R F R C I F R C VCCA G N D PA_RFIN RF-OUT- RFOUT- RFOUT+ RF-OUT+ VCCA GND G N D VCCA VCCA VCCA V C C A DO2 G N D GND RFTX_PE 12 L44 0 ohm 12 R13 2.4K 1 2 R32 910 12 L2 0 ohm/SB 1 2 C56 47pF 1 2 C244 0.1uF 12 C83 1nF 1 2 L17 56nH 1 2 C316 100pF 12 R7 270 1 2 C76 10pF 12 C253 1pF 1 2 C315 4.7nH/NI 1 2 C23 1nF 1 2 C257 1nF 1 2 C67 4.7uF/6.3V 12 R190 27 1 2 C60 10pF 12 C31 0.01uF 12 R214 510/NI 1 2 C245 4.7uF/6.3V 12 L10 6.8nH 12 L8 2.2nH 12 L26 100nH 1 2 C55 33nF 1 3 5 7 2 4 6 8 RA1 RA 100*4 12 C321 1.2pF 1 2 C304 100pF 12 L27 0 ohm/SB 1 2 C322 100pF 12 L12 2.2nH 12 C84 1nF 12 C342 5.6pF 12 R27 6.2K 12 C21 2pF U B 1 G N D / D C 2 B P 3 B P 4 N C 6 G N D 5 U34 BL2012-20B2450 12 C45 1.8pF 1 2 C95 27pF/NI 12 R5 270 12 L32 100nH 1 2 C344 100pF 12 R14 1K 12 L36 4.7nH/NI 1 2 C26 100pF 12 C48 1.5pF 12 C320 10pF 12 C54 680pF Core1_Vcc 2 V C C 1 0 4 7 I F O U T + 4 6 I F O U T - 4 5 B B _ Q _ I n + 4 2 B B _ Q _ I n - 4 1 B B _ I _ I n + 4 4 LO1_VC 1 LNA_Gain1 5 RFIN- 7 RFIN+ 6 VCC2 8 RFOUT+ 10 RFOUT- 11 V C C 3 1 9 V C C 4 2 0 VCC5 32 I F I N + 3 9 I F I N - 3 8 TR_PE 12 RF_PE 3 V P 1 1 7 D O 1 1 8 VCC6 34 C L K 1 5 L D _ f o 2 3 VCC7 35 DO2 26 VP2 27 BB_Q_Out- 28 BB_Q_Out+ 29 V C C 8 3 7 BB_I_Out- 30 RX_AGC 36 I R E F 1 6 D A T A 1 4 L E 1 3 X 1 2 4 X2 25 V C C 1 1 4 8 BB_I_Out+ 31 V C C 9 4 0 VCC1 4 B B _ I _ I n - 4 3 G N D 4 9 LO2_VC 33 LNA_Gain0 9 V C C 4 1 2 1 V C C 4 2 2 2 U9 RT2526 12 C343 5.6pF 12 R28 100nH 1 2 C89 1nF 12 C3460.01uF 12 R215 510/NI G 4 I 2 I 3 O 7 O 6 G 1 G 5 G 8 U11 SAW_374-3*8-TB0152A 12 L5 47nH 1 2 C94 0.01uF 1 2 C255 1nF 12 L43 0 ohm 12 R172 4.7K 1 2 R62 1K 12 C42 1nF 12 C349 6.8pF 12 C20 2pF 1 2 L18 39nH 1 2 C65 100pF 12 L11 2.2nH 12 R221 4.7K 12 C93 100pF 12 L4 47nH 12 L33 100nH 12 C254 1pF 12 R160 27 12 L35 0 ohm/SB 12 L34 0 ohm/SB TX_BB_Q+ TX_BB_Q- TX_BB_I+ TX_BB_I- RX_BB_Q+ RX_BB_Q- RX_BB_I+ RFRX_PE RFTX_PE 40MI RX_BB_I- SYNCLK RF_LE-G# SYNDATA AGC LNA0 IREF RFIN PA_RFIN VCCA VCCB VCCA VCCA VCCB VCCB VCCA VCCA VCCB VCCB VCCB VCCA VCCA VCCA VCCA (PE2) (PE1) CLOSE TO THE SAW CLOSE TO THE SAW CNT-TO-PARTS CNT-TO-PARTS RALINK TECHNOLOGY, CORP.CONFIDENTIAL 56nH 1K-ohm L4,L5 56nH 8.2pF TB0152A (TAI-SAW) 5.6pF C342, C343 2pF U11 (SAW Filter)R62 620-ohm C20, C21L18 47nH TFS374A (Telefilter) 47nH 47nH L17 39nH 2.2pF RFIN TR_SW TR_SWN PA_RFIN PA_PE_G TSSI 82011-83006ES01-A-2 82011-83006ES01-A-2.Sch 40MI SUSPB UDM UDP RX_BB_Q- RX_BB_I+ RX_BB_Q+ RX_BB_I- TX_BB_I+ TX_BB_I- AGC TX_BB_Q- TSSI TX_BB_Q+ LNA0 IREF PA_PE_G RF_LE-G# RFRX_PE RFTX_PE TR_SW TR_SWN SYNDATA SYNCLK 82011-83006ES01-A-3 82011-83006ES01-A-3.Sch SUSPB UDP UDM 82011-83006ES01-A-4 82011-83006ES01-A-4.Sch 23/Aug/2004A Ken23/Aug/2004Laurence23/Aug/2004Alex23/Aug/2004 PEF00009A 12345678 A B C D 8 7654321 D C B A DWG TITLE DWG NO. CHECKED APPROVED DATE DATE REV Ken 23/Aug2004 Size Sheet of File Name: A3 A E:\PROTEL LOYOUT\WU233g-RFIC\EPR1\WU233g-RFIC.ddb - Documents\41713-83003-01\82011-83006ES01-A-2.Sch USED ONDRAWN 24 WU233g Wireless LAN USB adapter WU233g SCHEMATIC DATE 82011-83006 ES01 Laurence 23/Aug2004 Alex 23/Aug2004 DATE ISSUEDDATECHECKEDDATEAPPROVED RFIN PA_OUT BPF_INSW9 SW8 SW10 BPF_OUTGND TR_SW TR_SWN GND ANTE2EANTE2 GND GND GND GND G N D G N D G N D GND PA_RFIN G N D G N D PA_IN PA_PE_G VB2 VC2 PA_PE_G G N D PARFIN G N D VB1 TSSI G N D PA_OUT 3.3VD PARFO G N D GND GND 1 2 C329 22pF 1 2 L47 10nH 12 L3 10pF 1 2 C78 C/NI 1 2 C404 1uF 12 C402 1pF 1 2 L49 10nH 12 C74 10pF 1 2 C362 4.7uF/6.3V/NI 1 2 R219 100K 12 R12 0 OUT1 3 GND 2 OUT2 1 VC2 6 IN 5 VC1 4 U6 AS179-92 1 2 C387 2.7pF RF IN 1 GND 2 VCCB 3 DECT_OUT 4 N C 8 G N D 7 V R 2 6 V R 1 5 NC 9 RFOUT 10 RFOUT 11 RFOUT 12 V C C 1 1 3 V C C 1 1 4 N C 1 5 N C 1 6 G N D 1 7 U5 AP1093 1 2 C190 4.7nH 1 2 C385 1nF 12 R15 0 12 R211 3K BI 2 BO 4 G 3 G 1 U7 BPF-BP145B 12 C341 10pF/NI IO 1 GND 0 ANT2 12 C7 5.6pF 1 2 C360 22pF 1 2 C403 0.5pF/NI 12 C323 10pF 12 R210 536 12 C43 1.8pF 12 L51 1nH 1 2 L50 4.7nH 1 2 C405 1pF 12 L41 2.7nH/0603 12 C340 10pF/NI 1 2 C249 1.5pF/NI RFIN TR_SW TR_SWN PA_RFIN PA_PE_G TSSI 3.3VD RALINK TECHNOLOGY, CORP.CONFIDENTIAL Close to PA. Ken23/Aug/2004Laurence23/Aug/2004Alex23/Aug/2004 PEF00009A 123456 A B C D 6 54321 D C B A DWG TITLE DWG NO. CHECKED APPROVED DATE DATE REV Ken 23/Aug2004 Size Sheet of File Name: C A E:\PROTEL LOYOUT\WU233g-RFIC\EPR1\WU233g-RFIC.ddb - Documents\41713-83003-01\82011-83006ES01-A-3.Sch USED ONDRAWN 34 WU233g Wireless LAN USB adapter WU233 g SCHEMATIC DATE 82011-83006 ES01 Laurence 23/Aug2004 Alex 23/Aug2004 DATE ISSUEDDATECHECKEDDATEAPPROVED VREF01 40MI OSC40 VCCA SUSPB G N D 1.8VD 3.3VD 3.3VD 3.3VD 3.3VD 3.3VA 3 . 3 V A 3 . 3 V A 3 . 3 V A 3 . 3 V A 3 . 3 V A 1 . 8 V A 1 . 8 V D 1.8VD 1.8VD 3.3VD 3.3VD 1 . 8 V A 3 . 3 V D 3.3VD 1.8VD 1.8VD 3.3VA 3.3VD V S P L L 3 . 3 V D 3 . 3 V D 3 . 3 V D 3 . 3 V D 3 . 3 V D 3 . 3 V D 3 . 3 V D GNDMRSTB 1 . 8 V D 3 . 3 V A 3.3VARPU GNDRR…

Text truncated - open the document above for the full version.

Test Report

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK 1082 ILAC MRA September 2004 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 PRIME ELECTRONICS & SATELLITICS INC. Product Type : Wireless LAN USB Adapter Model Number : WU233g Test Report Number : GTK-0409011 Date of Test : September 02, 2004- September 09, 2004 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2001 Sharon Chang, President Date: September 15, 2004 http : //www.gestek.com.tw Accredited Laboratory GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Declaration of Conformity On Behalf Of PRIME ELECTRONICS & SATELLITICS INC. EUT: Wireless LAN USB Adapter Model Number: WU233g FCC ID: PQP-WU233G Prepared for: PRIME ELECTRONICS & SATELLITICS INC. 69, Tung-Yuan Rd., Chung-Li Industrial Park, Chung-Li City, Taoyuan, Taiwan. 320 Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0409011 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 68 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ...................................................................................................................3 2. GENERAL INFORMATION ...................................................................................................4 2.1 PRODUCTION DESCRIPTION ............................................................................................................4 2.2 OPERATIONAL DESCRIPTION...........................................................................................................5 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION.......................................................................5 2.4 CONFIGURATION OF THE TESTED SYSTEM ..................................................................................6 2.5 TEST FACILITY....................................................................................................................................8 2.6 TEST SETUP .......................................................................................................................................9 2.7 EUT OPERATING CONDITIONS.........................................................................................................9 3. CONDUCTION EMISSION DATA .......................................................................................10 3.1 TEST EQUIPMENTS..........................................................................................................................10 3.2 BLOCK DIAGRAM OF TEST SETUP.................................................................................................10 3.3 CONDUCTED EMISSION LIMIT ........................................................................................................11 3.4 OPERATING CONDITION OF EUT ...................................................................................................11 3.5 EUT CONFIGURATION ON MEASUREMENT..................................................................................11 3.6 CONDUCTED EMISSION DATA........................................................................................................11 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS.................................................................12 4. RADIATION EMISSION DATA ...........................................................................................13 4.1 TEST EQUIPMENT ............................................................................................................................13 4.2 OPEN TEST SITE SETUP DIAGRAM................................................................................................13 4.3 RADIATED EMISSION LIMIT.............................................................................................................14 4.4 EUT CONFIGURATION .....................................................................................................................14 4.5 OPERATING CONDITION OF EUT ...................................................................................................14 4.6 RADIATED EMISSION DATA ............................................................................................................14 4.7 RADIATED EMISSIONS MEASUREMENT RESULTS......................................................................15 5. PEAK POWER OUTPUT.....................................................................................................33 5.1 TEST EQUIPMENT ............................................................................................................................33 5.2 BLOCK DIAGRAM OF TEST SETUP..…

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

willian Chiang Hsieh(R&D Engineer)

[email protected]886-3-461-5000Fax: 886-3-461-4000

Technical Contact

Global EMC Standard Tech. CorpJoanna Chen

[email protected]+886 2 2603 5321

No. 3, Pau-Tou-Tsuo Valley · Lin Kou Hsiang, Taipei County · Taiwan

Test Firm

Global EMC Standard Tech. Corp.Tony Tsai

[email protected]886-2-2603-5321Fax: 886-2-2603-5325

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	114.00 mW

Grant Notes

Power Output listed is Conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
