PQY-4710874200012RF Wireless Mouse

USER MANUAL Model No.: O-Mouse FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. The equipment has been certified to comply with the limits for a class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by switching the equipment off and on. The user can try to correct the interference by the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experience radio/TV technician for help. Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

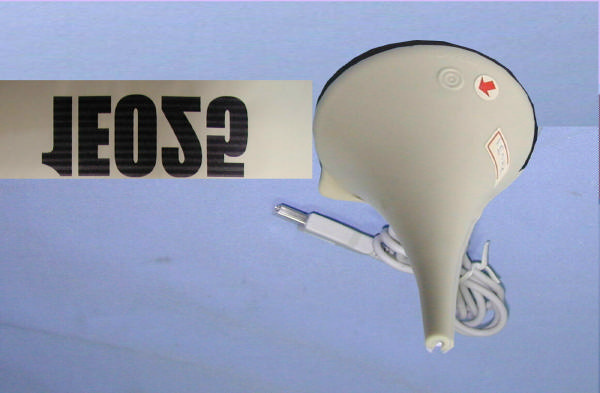

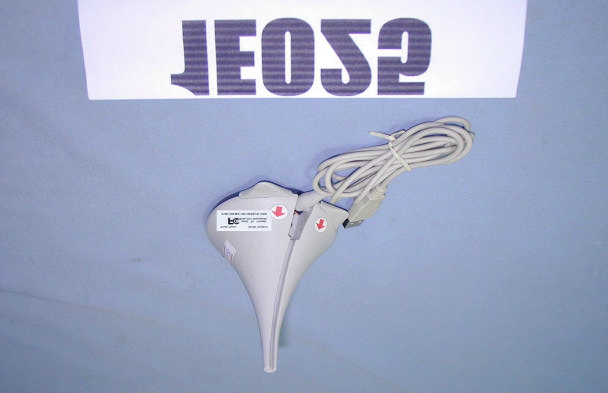

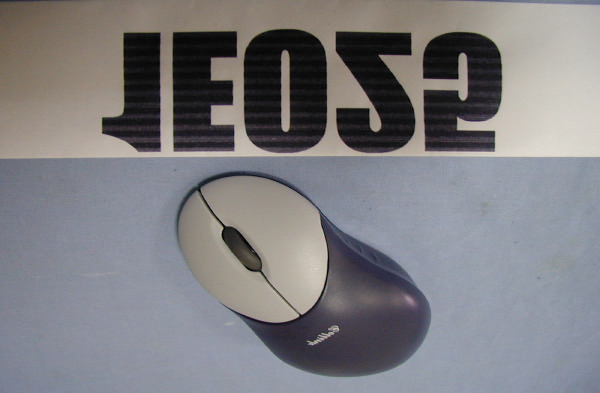

A. EUT top side view (Transmitter) B. EUT bottom side view C. EUT front side view (Receiver) D. EUT back side view

Sample of FCC ID Label FCC ID : PQY-4710874200012 TRADE NAME : CELLINK CO., LTD. MODEL NO. : O-Mouse THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENE THAT CAUSE UNDESIRED OPERATION.

A. EUT inside whole view (Transmitter) B. EUT case inside whole view C. Main board component side (Transmitter) D. Main board solder side E. EUT inside whole view (Receiver) F. EUT case inside whole view G. Main board component side (Receiver) H. Main board solder side I. USB to PS/2 connector whole view

Operational Manual Purpose: O-Mouse is a wireless mouse, identical to current mice, with the added convenience of being free of cable. The system uses the 27 MHz ISM band. The transmitter implement a low power mode for batteries saving. The Operational Manual will include : 1. The description of antenna. 2. Type of Modulation. 3. Radio transmission.. 4. Data Rate. 5. Functionality of the O-Mouse 6. How the wireless O-Mouse works. 1. The description of Antenna : loop antenna integrated on printed circuit board. 2. Type of Modulation : FSK. 3. Radio transmission : Mono directional, from mouse to computer only. 4. Data Rate : 4800 bit/s. 5. Functional Description a. The wireless mouse free of cable, easy to use. b. Button : setup for habit of using right or left hand, adjustment of continuously pressing twice the mouse buttons, adjustment of numbers of column for each rolling. c. Mouse Marking: to set up the pattern or mouse marking. d. Wheel : to set up the functions of hot key, zooming, and rolling of auto-turning. e. Motion : to set up the moving speed of mouse sign, the length of dragging tail, and non-border. How the wireless mouse works 1. Shut down the power of the computer. 2. Connect the green connector of the receiver to the PS/2 connection port of the computer, or connect the white connector to the USB connection port on the computer. 3. Insert the Batteries into the mouse. 4. Aim the front point of the mouse at receiver. 7. Press first the button under the mouse, then press the connect button on the receiver. 6. When setup, if the mouse and receiver got the same information , the "Status" light will light up. When it's completed, the light will go off. 7. The setup must be completed in one minute. If exceeded, please repeat the steps. CELLINK CONFIDENTIAL 30 / August / 2001

Class B Certification Application Under Part 15, Subpart C EUT RF Wireless Mouse MODEL O-Mouse FCC ID PQY-4710874200012 SRT REPORT # FID1E025 PREPARED FOR CELLINK CO., LTD. 11F, NO. 102, SEC. 1, HSIN TAI WU RD., HIS-CHIH, TAIPEI, TAIWAN, R.O.C. Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 2 OF 35 Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 3 OF 35 EMI TESTING REPORT EUT : RF Wireless Mouse MODEL : O-Mouse FCC ID : PQY-4710874200012 PREPARED FOR CELLINK CO., LTD. 11F, NO. 102, SEC. 1, HSIN TAI WU RD., HIS-CHIH, TAIPEI, TAIWAN, R.O.C. PREPARED BY SPECTRUM RESEARCH & TESTING LABORATORY INC. NO. 101-10 , LING 8 , SHAN-TONG LI CHUNG – LI CITY , TAOYUAN, TAIWAN , R. O. C. TEL (03) 4987684 FAX (03) 4986528 Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 4 OF 35 TABLE OF CONTENTS 1. TEST REPORT CERTIFIICATION................................................................ 5 2. TEST STATEMENT 2 . 1 TEST STATEMENT.............................................................................. 6 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS, TEST STATEMENT....................... 6 3. EUT MODIFICATIONS................................................................................. 7-8 4. CONDUCTED POWER LINE TEST 4 . 1 TEST EQUIPMENT.............................................................................. 9 4 . 2 TEST PROCEDURE.............................................................................. 9 4 . 3 TEST SETUP....................................................................................... 10 4 . 4 CONFIGURATION OF THE EUT......................................................... 11-12 4 . 5 EUT OPERATING CONDITION............................................................. 13 4 . 6 EMISSION LIMITS............................................................................... 13 4 . 7 CONDUCTED EMISSION TEST RESULTS............................................. 14-15 5. RADIATED EMISSION TEST 5 . 1 TEST EQUIPMENT.............................................................................. 16 5 . 2 TEST PROCEDURE............................................................................. 16 5 . 3 TEST SETUP...................................................................................... 16-17 5 . 4 CONFIGURATION OF THE EUT......................................................... 18 5 . 5 EUT OPERATING CONDITION............................................................. 18 5 . 6 EMISSION LIMITS............................................................................... 18 5 . 7 RADIATED EMISSION TEST RESULTS................................................ 19-20 5 . 8 FUNDAMENTAL FREQUENCY TEST..................................................... 21-30 6. BANDWIDTH 6 . 1 LIMIT.................................................................................................. 31 6 . 2 RESULTS.............................................................................................. 31 7. CHANGE THE VOLTAGE +/-15% TEST..................................................... 32 8. CHANGE THE TEMPERATURE TEST......................................................... 33-35 Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 5 OF 35 1. TEST REPORT CERTIFICATION APPLICANT CELLINK CO., LTD. ADDRESS 11F, NO. 102, SEC. 1, HSIN TAI WU RD., HIS-CHIH, TAIPEI, TAIWAN, R.O.C. EUT DESCRIPTION RF Wireless Mouse (A) POWER SUPPLY RECEIVER FROM PC TRANSMITTER FROM BATTERY (B) MODEL O-Mouse (C) FCC ID PQY-4710874200012 FINAL TEST DATE 06/26/2001 MEASUREMENT PROCEDURE USED * PART 15 SUBPART C OF FCC RULES AND REGULATIONS ( 47 CFR PART 15) * ANSI C63.4 - 1992 * TEST PROCEDURE AND DATA ARE TRACEABLE TO NATIONAL OR INTERNATIONAL STANDARDS. We hereby certify that The measurements contained in this report were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. TESTING ENGINEER DATE 6/26/2001 Moore Weng SUPERVISOR DATE 6/26/2001 Sunyou Chen APPROVED BY DATE 6/26/2001 Johnson Ho Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 6 OF 35 2. TEST STATEMENT 2 . 1 TEST STATEMENT 1. This letter is to explain the test condition of this project. The EUT be tested as the following status. 2. The data was shown in this report reflects the worst – case data for the condition as listed above. Please disregard any other processor (s) speed shown in this user manual. 3. EUT Conditions. Transmitting frequency : 27 MHz Operation range : 6 feet Hardware resolution : 600 dpi Mode 1 : Test with USB connector port Mode 2 : Test with PS/2 connector port 4. NVLAP logo is to be approved by management (it is according to NVLAP requirement if it need) before use. 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS , THE STATEMNT 1. Did have Any departure from document policies & procedures or from specifications. Yes , No  . If yes , the description as below. 2. .The certificate and report shall not be reproduced except in full , without the written approval of SRT laboratory. 3. .The report must not be used by the client to claim product endorsement by NVLAP or any agency the government. 4. This product is a test sample that was shown as the photos of this test report only. 5. The effect that the results relate only to the items tested. Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 7 OF 35 3. EUT MODIFICATIONS No modification by SRT lab. Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 8 OF 35 Spectrum Research & Testing Lab. FCC ID PQY-4710874200012 Report # FID1E025 PAGE 9 OF 35 4. CONDUCTED POWER LINE TEST 4 . 1 TEST EQUIPMENT The following test equipment were used during the conducted power line test EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DATE…

Text truncated - open the document above for the full version.

A. Conducted test front view (Mode 1) B. Conducted test back view C. Conducted test front view (Mode 2) D. Conducted test back view E. Open site test front view (Mode 1) F. Open site test back view G. Open site test front view (Mode 2) H. Open site test back view I. Fundermental frequency test view (Mode 1, Mode 2)
