1 Cellink Bluetooth USB Adapter BTA-6030R / BTA-6000R User’s Manual 2 Introduction Introduction to Bluetooth Wireless Technology Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, and printers), and home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4 GHz – 2.48 GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (33 feet) for class II or 100 meters (330 feet) for class I. Introduction to Bluetooth USB Adapter Bluetooth USB Adapter is a Bluetooth enabler, that enables your desktop or notebook computer to connect wirelessly to any other Bluetooth enabled computers and devices. It allows a working range of up to 10 (class 2)/100 (class 1) meters (33/330 feet) with a 723 Kbps data rate transmission, and complies with Bluetooth 1.2 and USB 1.1 (support the two lower data-transfer rates of either 1.5 Mb/s or 12 Mb/s)/2.0(support all three data rates: 1.5 Mb/s, 12 Mb/s, and 480 Mb/s. the fast data-transfer rate of 480 Mb/s) specifications. Bluetooth USB Adapter is an ideal solution for home and mobile networking needs. It is easy to install and use for wireless connectivity to such as cellular phones, PDAs, printers, computers, keyboards, mice etc. Box Content and Picture - Bluetooth USB Adapter - Driver CD - Quick Guide and User Manual 3 System Requirement PC System Requirement: - CPU: Intel Pentium III 500MHz or above. - Memory: 256MB or more. - Hard disk space: at least 50MB. - OS: Windows 98SE/Me/2000/XP - A free USB port, USB 1.1/2.0 compliant. - CD-ROM Drive. Mac System Requirement: - MAC OS: 10.1.4 or later - Mac OS driver and software provided by Apple. - A free USB port, USB 1.1/2.0 compliant. - CD-ROM Drive. 4 Software Installation Note: Do not plug your Bluetooth USB Adapter into USB port until you have completed the software installation as the following: 1. Insert the software CD comes with your USB adapter. The “InstallShield Wizard” should automatically start running. If it doesn’t load, run its “Setup.exe” file. 2. A menu window appears for you to select settings items. Click “Install” to start installation process. 3. The InstallShiel Wizard window should now appear, Click “Next”. 5 4. Select “Yes” to accept License Agreement. 5. Click “Install” to begin the installation. 6 6. InstallShiel is processing. 7. Wait for the setup. 7 8. Now plug the EDR USB adapter onto an available USB port and click “OK” to continue installation. 9. Click “Finish” to finish the installation. 8 10. You will be asked to restart system. Click “Yes” to restart immediately or click “No” to restart later. 9 Pairing Guide What’s pairing? Pairing is a process of associating Bluetooth devices with each other. It allows avoiding entering access information every time when a connection is requested. Bluetooth devices need to be paired with each other before attempting a connection at first time. Paired devices will remain paired, even if: 1. One of the devices is un-powered. 2. A service connection is interrupted or stopped. 3. One or both devices are rebooted. Pass Key Paired devices share a unique Pass Key (also referred to as Link Key), by which they authenticate with each other when connecting. The Pass Key can be alphanumeric, numbers, or letters, and must consist of one or up to 16 characters. How to pair devices? Automatically -- If a passkey is required before connection, devices will pair automatically the first time they connect (a passkey must be successfully exchanged). Manually -- In the main window of Bluetooth Manager, right click a device, select Pair Device from the popup menu, and then input a same passkey on both sides. 10 Example 1, pair with a Bluetooth Mouse. 1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar. 2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start Bluetooth device searching. 11 3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in working range. 12 4. Select the “Bluetooth Mouse” in the Bluetooth Device list and click “Next”. If you can’t find the device you want to pair with, click “Refresh” to search again. 13 5. Enter a name and select an icon. 14 6. An icon “Bluetooth Mouse” will appear after pairing process completed. 15 Example 2, pair with a Bluetooth Headset. 1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar. 2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start Bluetooth device searching. 16 3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in working range. 17 4. Select the “BT Headset-F” in the Bluetooth Device list and click “Next”. If you can’t find the device you want to pair with, click “Refresh” to search again 5. You will be required to enter Passkey (PIN Code). Check headset’s manual for the passkey and enter it. 18 6. Press Answer button of the headset to continue pairing process. 19 7. Enter a name and select an icon. 20 8. An icon “BT Headset-F” will appear after pairing process completed. 21 Note! Read Help file of “Bluetooth Settings” for detail information. 22 Connect and Disconnect Connect There are two ways to setup a Bluetooth connection. Select Remote Device First Select a remote device and double click it to refresh its services. Bluetooth passkey may be asked if security level of either side of the connection is set to High and they are not paired devices. After service searching finished, the services that the remote device supports are found and the corresponding service icons on the top of the main window will change to be pink colo…

Text truncated - open the document above for the full version.

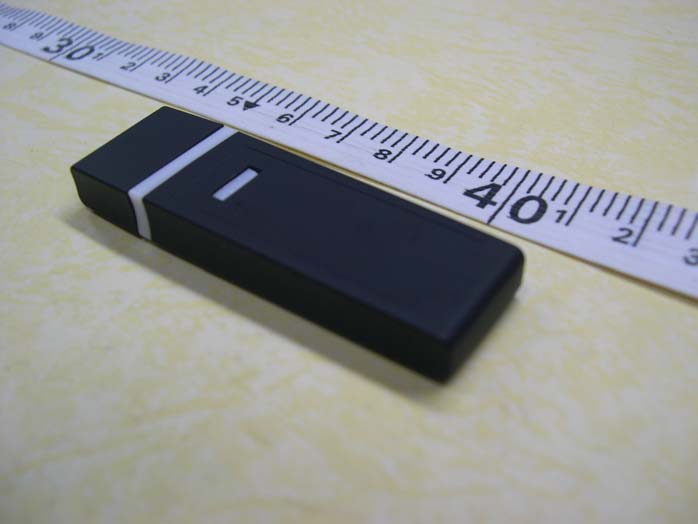

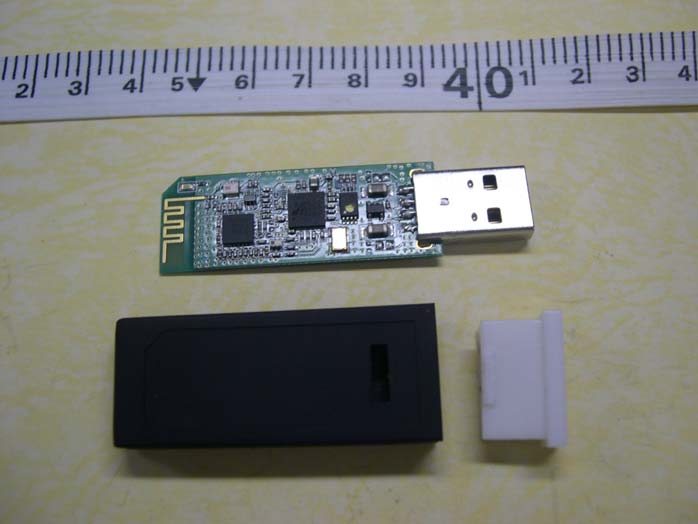

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 15, 2005 FAX : 886-2-2696-2255

Operational Description Date: 2005/12/2 EUT is a Bluetooth USB Dongle with 79 channels(2402~2480MHz, Space 1MHz). It allows you to connect to other Bluetooth device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Bluetooth (Transceiver/BBP) single chip IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: Bluetooth IC has FHSS (GFSK) modulation function, it provides transmission data rate are 1 Mbps. Digital data signal will be converted to analog (TX IQ) signals through DAC in Bluetooth IC, TX IQ pass through to low pass filter of Bluetooth IC. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Bluetooth IC has a power amplifier to magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Bluetooth IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel hopping: Automatic hopping channel is controlled by Bluetooth IC. Data Modulation: FHSS (GFSK) modulation type is controlled by Bluetooth IC. Power Control Level: Bluetooth IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ± 0.5dB. The typical out power is class 2~3. Transmit/Receive Switch: Not-applicable Data Link Layer: It supports BlueCore Serial Protocol (BCSP), Dynamic UART configuration. On-chip RAM of Bluetooth IC allows full speed Bluetooth data transfer, mixed voice and data. Transcoders for A-law, μ-law and linear voice from host and A-law, μ-law and CVSD voice over air. It dedicates logic for forward error correction, header error control, access code correlation, demodulation, cyclic redundancy check, encryption bitstream generation. 6. Interface: USB 7. Power: Input 5Vdc from host equipment. This power is provided to regulator components to regulated DC power. Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : 3 of 46 Issued Date : Nov. 15, 2005 3. GENERAL INFORMATION 3.1. Product Details For more detailed features description, please refer to the manufacturer’s specifications or user’s manual. Items Description Radio Type Intentional Transceiver Power Type 5V DC from host Interface Type USB Modulation FHSS (GFSK / QPSK /8PPSK) Data Rate (Mbps) GFSK: 1 ; QPSK: 2 ; 8PSK: 3 Frequency Range 2400 ~ 2483.5MHz Channel Number 79 Channel Band Width (99%) 1167 kHz Conducted Output Power 12.84 dBm Carrier Frequencies 2402-2480 MHz Antenna Printed Antenna 3.2. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 - - Printed Antenna NA 0 3.3. Table for Carrier Frequencies Freqeuncy Band Channel No. Frequency 0 2402 MHz 1 2403 MHz : : 38 2440 MHz 39 2441 MHz 40 2442 MHz : : 77 2479 MHz 2400~2483.5MHz 78 2480 MHz

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw FCC RADIO TEST REPORT Applicant’s company CELLINK CO. Ltd. Applicant Address 11F, NO.102, Sec. 1, Hsin Tai Wu Rd. Hsi-Chih 221, Taipei, Taiwan. R.O.C. FCC ID PQY-4710874204751 Manufacturer’s company CELLINK CO. Ltd Manufacturer Address 11F, NO.102, Sec. 1, Hsin Tai Wu Rd. Hsi-Chih 221, Taipei, Taiwan. R.O.C. Product Name Bluetooth USB Adapter Brand Name Cellink Model Name BTA-6030R / BTA-6000R Test Rule Part(s) 47 CFR Part 15 Subpart C.15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Oct. 31, 2005 Test Date Nov. 2, 2005 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : i of ii Issued Date : Nov. 15, 2005 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Table for Filed Antenna.......................................................................................................................................................................3 3.3. Table for Carrier Frequencies .............................................................................................................................................................3 3.4. Table for Test Modes ...........................................................................................................................................................................4 3.5. Table for Testing Locations..................................................................................................................................................................4 3.6. Table for Supporting Units ...................................................................................................................................................................4 3.7. Table for Parameters of Test Software Setting .....................................................................................................................................4 3.8. Test Configurations .............................................................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 7 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................7 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................11 4.3. Hopping Channel Separation Measurement ...................................................................................................................................13 4.4. Number of Hopping Frequency Measurement.................................................................................................................................18 4.5. Dwell Time Measurement..................................................................................................................................................................20 4.6. Radiated Emissions Measurement ....................................................................................................................................................27 4.7. Band Edge Emissions Measurement .................................................................................................................................................39 4.8. Antenna Requirements .....................................................................................................................................................................42 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 43 6. SPORTON COMPANY PROFILE ........................................................................................................................ 45 6.1. Test Location.....................................................................................................................................................................................45 7. CERTIFICATE OF NVLAP ACCREDITATION ......................................................................................................... 46 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A7 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B4 APPENDIX C. MAXIMUM PERMISSIBL…

Text truncated - open the document above for the full version.

Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : 1 of 4 Appendix B. Test Photos Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : 2 of 4 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : 3 of 4 Report No.: FR5O1827 FCC ID: PQY-4710874204751 Page No. : 4 of 4 2. Photographs of Radiated Emissions Test Configuration FRONT VIEW REAR VIEW
