PQY-4710874204737Bluetooth Stereo Box

BTST-6 XXX 1 Table of Contents Thank You ................................................................................................- Box contentOverview ..................................................................................................Getting Start ............................................................................................- Charge battery- Power On- Plug into the audio device- Pairing- Volume Control- Set volume modeUse with mobile phone............................................................................- Pairing-Tomakeacall- To receive a Call- To reject a CallUse with computer device ......................................................................Important Information .............................................................................French ......................................................................................................German.....................................................................................................Spanish ....................................................................................................Italian ........................................................................................................Dutch ........................................................................................................Portuguese...............................................................................................CE Statements .........................................................................................FCC Safety Statements ..........................................................................Warranty ................................................................................................... 002002003005006007010018026034042050058058059 3 2 Box contentOverviewThank you Getting Start English English 1 Charge battery Note:For the first time use, it takes 4 hours to fully charge the batteries and 2 hours afterward.With the batteries fully charged, the working time is around 10 hours and the standby time isaround 160 hours. - Use the power switch to turn on the power 2 Power On Thank you for purchasing the Bluetooth Stereo Box. The Bluetooth Stereo Box is designed foraudio device users to have a high quality stereo sound and a wireless operating range up to10 meters. Please read the instruction manual to make the best use of the Bluetooth StereoBox. We hope you will enjoy the high quality stereo sound and power of Bluetooth wirelesstechnology. - Bluetooth Stereo Box- Power Adapter- User guide 1. Play on/off button2. Power switch3. Pairing button / track wheel4. Audio port5. Speaker6. Charging port7. LED8. Volume button9. Volume button10. Microphone 11. Power adapter 11 1 2 3 4 5 10 6 7 8 9 5 4 English English - Use the volume buttons on the Stereo Box to adjust volume. 4 Pairing 5 Volume Control - Press and hold the pairing wheel on the Stereo Box for 6 seconds until the blue and red LEDs flash alternately. This device name is set to be “Bluetooth Stereo Box”.If you are asked to enter pin-code during pairing, please enter 1234.(Note: The “1234” is default pin-code pre-stored in this Stereo Box.)from “Use with mobile phone” Use with mobile phone 1 Pairing2 To make a call Press and hold the pairing/track wheel button on the Stereo Box for 6 seconds to set theStereo Box into pairing mode. The blue and red LEDs will be flashing when the Stereo Boxis in pairing mode. To properly perform pairing procedure on your mobile phone, please referto the user manual of your mobile phone for its own pairing instruction. This device name isset to be “Bluetooth Stereo Box”. If you are asked to enter pin-codeduring pairing, please enter 1234. (Note: The “1234” is default pin-code pre-stored in thisStereo Box.) - Dial out the number from your mobile phone.- Voice is automatically transferred to the headset. 4 To reject a Call - Press the reject button on the mobile phone to reject a call. 5 Speaker function - The Speaker is a special design for user’s comfort. When making or receiving a phone call, users have no need to wear the earphone. 3 To receive a Call 1. When there is an incoming call, press the answer button to answer the call and the audio channel will be switched tothe mobile phone. 2. Press the Volume control button to adjust the volume.3. When finish talking, press the answer button to end the call and the audio channel will be switched back to the audio device. Note:To have music streaming, make sure your mobile phone supports Bluetooth Stereofunctions.Note:The Speaker is not for listening music, only for mobile handsfree purpose. Vol+ Vol- 7 6 Without the Stereo Adapter, the Stereo Box can be used with PC, Notebook or PDA thatsupport Bluetooth Stereo functions (A2DP Profile) for Stereo Sound Streaming.Music playbackThe Stereo Box provides a track wheel that allowsmusic playback on Windows Media Player in PCs thatsupport Bluetooth Stereo functions. Use with computer device Product care- Use of non-original accessories may result in performance deterioration, injury, products damage, electronic shock, and warranty termination. - Attempt to disassemble your Stereo Box or stereo adapter may damage it, and the warranty will be void. - Always store the Bluetooth Stereo Box with the power turned off.- Avoid exposing the Bluetooth Stereo Boxto direct sunlight or other heat source.- Do not expose the Bluetooth Stereo Box to water or other liquids.ChildrenPlease keep the Stereo Box and stereo adapter away from children, as the small parts maycause choking hazard.Battery Information- New batteries For time first time use, please charge the battery for at least 4 hours. - Battery care Only qualified Service Centers are authorized to remove or replace the battery. The rechargeable battery has a long service life if treated with care. The battery can only be charged in a temperature range of -10C to 45C. The battery capacity may be reduced if operating in a cold env…

Text truncated - open the document above for the full version.

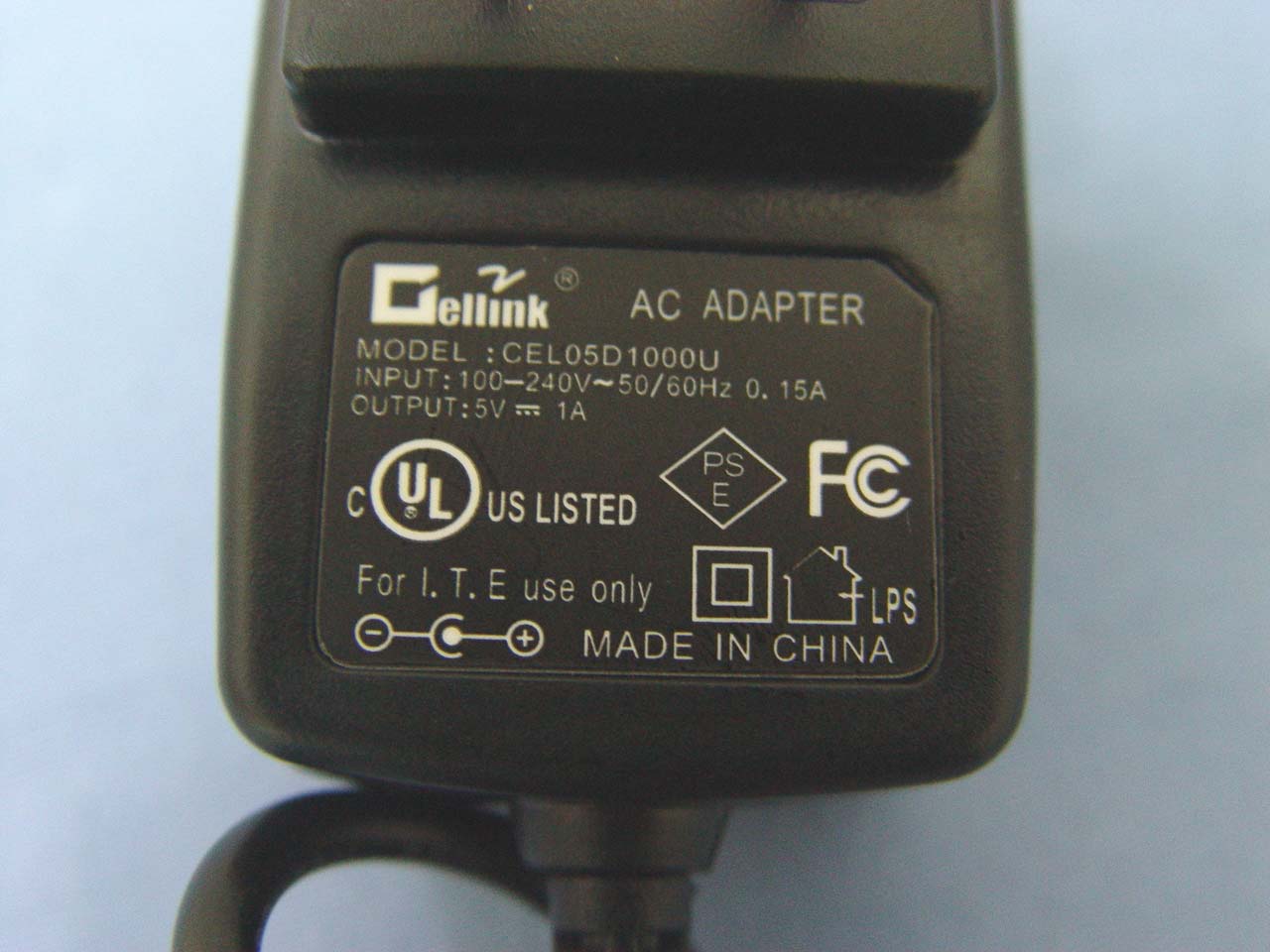

Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 2 Rev.00

Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT BTST-6700 Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 6 Rev.00 BTST-6710 Compliance Certification Services Inc. Report No: 51206004 Date of Issue: May 5, 2006 Page 7 Rev.00

ACX Advanced Ceramic X AT7020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT7020 -B2R4HAA_ 2400~2500 2.0 (XZ-V) 0.5 (XZ-V) 2 max. 50 Ω Q’ty/Reel (pcs) : 1,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 7020 - B 2R4 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 7.0× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T Mark L W T a Dimensions 7.00.2 2.00.2 1.2+ 0.1/-0.2 0.50.3 *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Typical Electrical Characteristics (T=25 o C) ™Test Board * * * 2.0 5.5 8.0 1.0 (Matching circuit and component values will be different, depending on PCB layout) Antenna No Ground Ground 20mm 19mm 40mm 9.5mm L 50Ω Feed Line ACX Advanced Ceramic X ™Return Loss ACX Advanced Ceramic X ™Radiation Patterns XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XY-V/XY-H XZ-V/XZ-H YZ-V/YZ-H Z 270 o 0 o 90 o X Y XY-cut scanning direction Y 270 o 0 o 90 o X Z XZ-cut scanning direction X 270 0 o 90 o Y Z YZ-cut scanning direction Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw 180 180 180 o

Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 48 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Bluetooth Stereo Box Model: BTST-6XXX (X=0~9, A~Z or blank) Trade Name: Cellink Issued to CELLINK CO, LTD. 11F,No.102.Sec.1,Hsin Tai Wu Rd., Hsi-Chih, Taipei,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.....................................................................................................3 2. EUT DESCRIPTION...........................................................................................................................4 3. TEST METHODOLOGY....................................................................................................................5 3.1 EUT CONFIGURATION.....................................................................................................................5 3.2 EUT EXERCISE.................................................................................................................................5 3.3 GENERAL TEST PROCEDURES..........................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.....................................................6 3.5 DESCRIPTION OF TEST MODES........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 4.1 MEASURING INSTRUMENT CALIBRATION...................................................................................7 4.2 MEASUREMENT EQUIPMENT USED......................................................................................7 5. FACILITIES AND ACCREDITATIONS ...........................................................................................9 5.1 FACILITIES ......................................................................................................................................9 5.2 EQUIPMENT.....................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST........................................................................................11 6.1 SETUP CONFIGURATION OF EUT....................................................................................................11 6.2 SUPPORT EQUIPMENT ............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 PEAK POWER.................................................................................................................................12 7.2 BAND EDGES MEASUREMENT .............................................................................................13 7.3 PEAK POWER SPECTRAL DENSITY.................................................................................................18 7.4 FREQUENCY SEPARATION....................................................................................................21 7.5 NUMBER OF HOPPING FREQUENCY ...................................................................................23 7.6 TIME OF OCCUPANCY (DWELL TIME)................................................................................25 7.7 SPURIO US EMISSIONS .............................................................................................................32 7.8 POWERLINE CONDUCTED EMISSIONS............................................................................................42 APPENDIX I RADIO FREQUENCY EXPOSURE ................................................................................45 APPENDIX II PHOTOGRAPHS OF TEST SETUP ...............................................................................46 Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Bluetooth Stereo Box Trade Name Cellink Model Number BTST-6XXX (X=0~9, A~Z or blank) Model Discrepancy 1.The EUT comes with and without speaker for sale, please refer to the internal photos. 2. Model Speaker BTST-6700 Yes BTST-6710 No Power Supply Power Adapter: CELLINK Model:CEL05D1000U I/P: AC 100-240V, 50/60Hz, 0.15A O/P: DC 5V, 1A Battery: 320mAh 3.7V Frequency Range 2402 ~ 2480 MHz Transmit Power -2.79 dBm Modulation Technique FHSS (GFSK) Transmit Data Rate 1Mbps Number of Channels 79 Channels Antenna Specification Multilayer Chip Antenna / Gain: 2.0 dBi Remark: : 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: PQY-4710874204737 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.104…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 46 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 47 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 51206004-RP1 FCC ID: PQY-4710874204737 Date of Issue: May 5, 2006 Page 48 Rev. 00 Powerline Conducted Emissions Setup Photos
