PQY-4710874200234Pocket Mouse Pro Wireless

RF Mini Optical Mouse RECEIVER TRANSMITTER USB/PS2 CABLE Power from pc supply MCU RECEIVER BLOCK DIAGRAM BA TTER Y MCU BUTT ON AND SCROLL OPTICAL SENSOR ENTER MOUSE TRANSMITTER BLOCK DIAGRAM

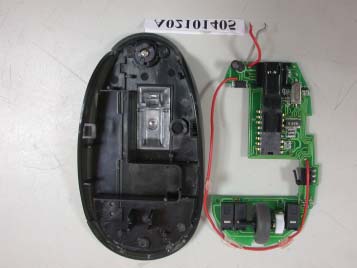

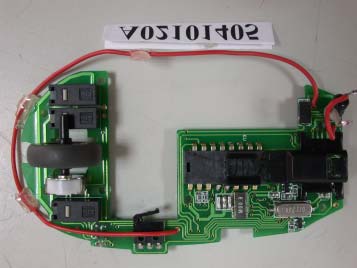

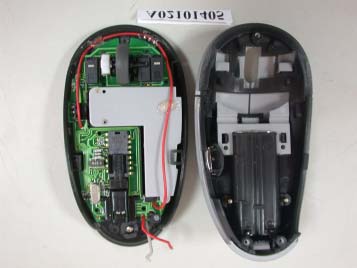

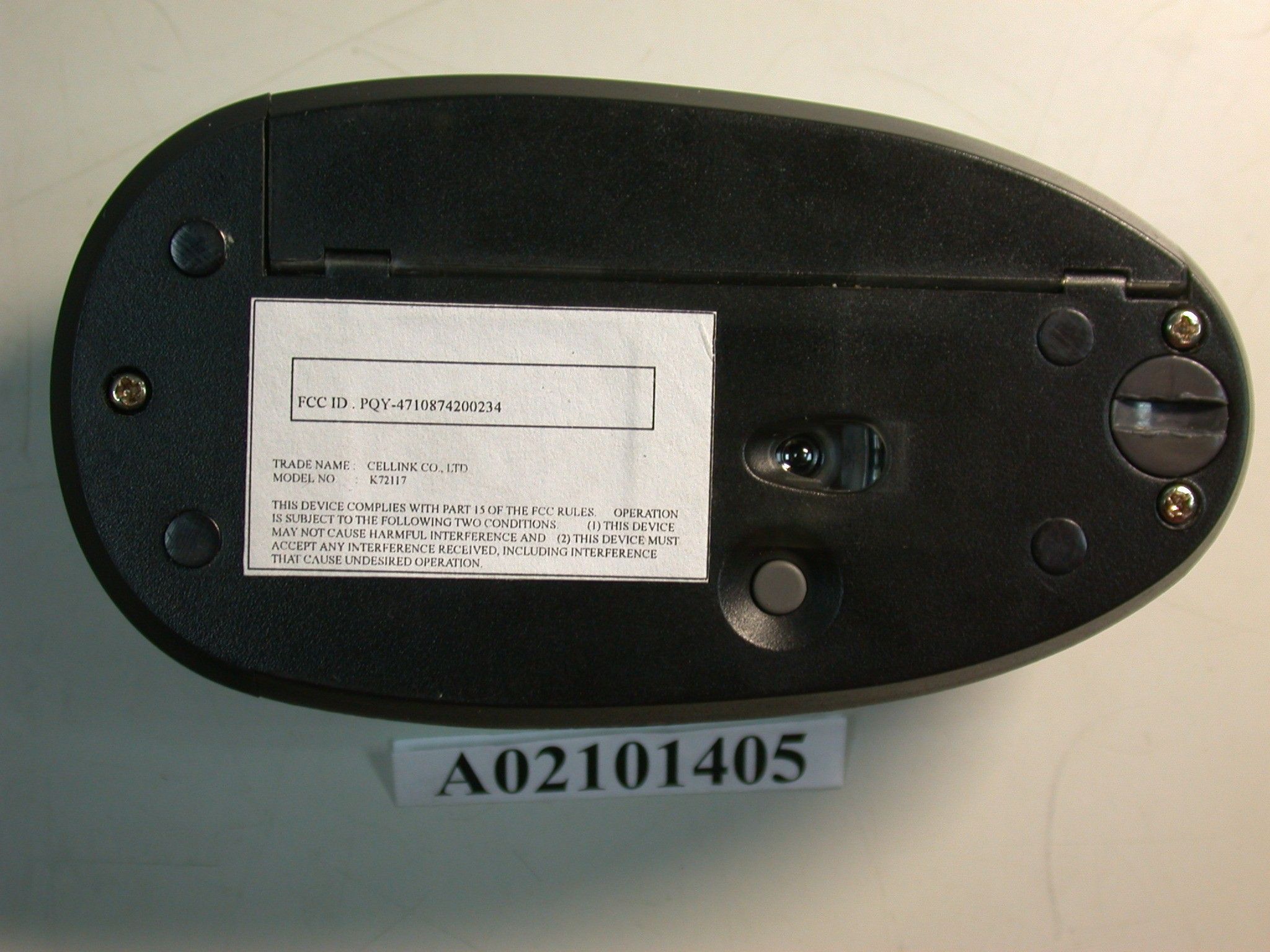

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT (Transmitter Part)

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT (Transmitter Part) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 PHOTOS OF EUT (Transmitter Part)

FCC ID:PQY-4710874200234 Operational Description of the equipment This product is a wireless mouse, identical to current mice, with the added convenience of being free of cable. The more detailed information are listed as below: PRODUCT PocketMouse Pro Wireless (Tx) MODEL NO. K72117 POWER SUPPLY DC 3V from Battery CABLE N/A I/O PORT N/A FREQUENCY BAND 26.96 ~ 27.28 MHz CARRIER FREQUENCY 27.015 MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 25 kHz RF OUTPUT POWER 0 dBm I.F. & L.O. I.F. 0.455 MHz, L.O. 26.56 MHz MODULATION TYPE FSK BIT RATE OF TRANSMISSION 4.8k bps ANTENNA TYPE Printed loop antenna

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02101405 Report No.: FCCA02101405 Page: 2 of 13 Date: Nov. 13, 2002 FCC ID : PQY-4710874200234 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................ 3 1.1 DOCUMENT POLICY .........................................................................................3 1.2 TEST STATEMENT.............................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE ...................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.....................................................4 2.3 DESCRIPTION OF TEST MODE........................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT ..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS ...................................................... 6 4. RADIATED EMISSION TEST............................................................................. 6 4.1 RADIATED EMISSION LIMIT..............................................................................6 4.2 TEST EQUIPMENT.............................................................................................7 4.3 TEST SET-UP.....................................................................................................8 4.4 TEST PROCEDURE ...........................................................................................9 4.5 EUT OPERATING CONDITION ..........................................................................9 4.6 RADIATED EMISSION TEST RESULT.............................................................10 5 BAND EDGE.....................................................................................................11 5.1 BAND EDGE LIMIT ..........................................................................................11 5.2 TEST EQUIPMENT...........................................................................................11 5.3 TEST SET-UP...................................................................................................11 5.2 TEST PROCEDURE.........................................................................................11 5.5 EUT OPERATING CONDITION ........................................................................11 5.6 BAND EDGE TEST RESULT...............................................................................12 6 TERMS OF ABRIVATION.................................................................................. 13 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02101405 Report No.: FCCA02101405 Page: 3 of 13 Date: Nov. 13, 2002 FCC ID : PQY-4710874200234 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 3V from battery, was used during the test. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02101405 Report No.: FCCA02101405 Page: 4 of 13 Date: Nov. 13, 2002 FCC ID : PQY-4710874200234 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT PocketMouse Pro Wireless (Tx) MODEL NO. K72117 POWER SUPPLY DC 3V from Battery CABLE N/A I/O PORT N/A FREQUENCY BAND 26.96 ~ 27.28 MHz CARRIER FREQUENCY 27.015 MHz NUMBER OF CHANNEL 1 CHANNEL SPACING 25 kHz RF OUTPUT POWER 0 dBm I.F. & L.O. I.F. 0.455 MHz, L.O. 26.56 MHz MODULATION TYPE FSK BIT RATE OF TRANSMISSION 4.8k bps ANTENNA TYPE Printed loop antenna NOTE The EUT is the transmitter part of a Mini optical mouse. For more detailed features, please refer to the User’s Manual of EUT. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02101405 Report No.: FCCA02101405 Page: 5 of 13 Date: Nov. 13, 2002 FCC ID : PQY-4710874200234 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID / DOC CABLE N/A NOTE For the actual test configuration, please refer to the photos of testing. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A02101405 Report No.: FCCA02101405 Page: 6 of 13 Date: Nov. 13, 2002 FCC ID : PQY-4710874200234 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of ITE and according to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:1992 All tests have been performed and recorded as per the above standards. 4. RADIATED EMISSION TEST 4.1 RADIATED EMISSION LIMIT All emission from EUT, including any network of conductors and apparatus connected thereto, shall not exceed the level of field strength specified below FCC Part 15, Subpart C Section 15.227. FIELD STRENGTH (dBμV/m) FREQUENCY (MHz) DISTANCE (m) PEAK AVERAGE 26.96 - 27.28 3 100.0 80.0 FCC Part 15…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Raditated test
