PQY-4710874200258Bluetooth USB Adapter

28 x 15.5 cm Introduction Cellink's Bluetooth USB Adapter is a Bluetooth enabler, that enables your desktop or notebook computer to connect wirelessly to any other Bluetooth enabled computers and devices. It allows a working range of more than 33 feet with a 723 Kbps data rate transmission, and complies with Bluetooth 1.1 and USB 1.1 specifications. Cellink's Bluetooth USB adapter is an ideal solution for home and mobil networking needs.It is easy to install and use for the connectivity to such as cellular phones, PDAs, printers, computers, Bluetooth keyboards, Bluetooth Mouses, etc. Microsoft and Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business Machines, inc. Maccntosh, G3/G4 and iMac are registered trademarks of apple Computer. 6 1 28 x 15.5 cm This package contains: . 1 CELLINK Bluetooth USB Adapter ( BTA-3000 ) . 1 Installation CD . 1 User Manual The Bluetooth Installation CD contains the following: . Setup programs and drivers for Microsoft Windows 98 SE, Windows Me, Windows 2000, and Windows XP . README. TXT file with updated information about your Bluetooth USB Adapter . Bluetooth USB Adapter User Manual Table of Contents Package Contents.............................................................................03 Overview...........................................................................................04 System Requirement........................................................................ 06 Installation.........................................................................................07 - Software Installation........................................................07 - Hardware Installation......................................................11 Uninstallation....................................................................................14 Reinstallation....................................................................................14 Pairing Guide....................................................................................15 - What is Pairing?..............................................................15 - How to pair devices?.......................................................16 - How to unpair devices?...................................................18 Operation..........................................................................................19 - How to connect to a Cellular Phone...............................19 - How to connect to a PDA................................................21 - How to connect to a Network Access..............................23 - How to add Bluetooth to your Mac..................................25 - File Shairing....................................................................28 - How to Send/Receive files?............................................28 - How to establish Internet Shairing?................................28 - How to use the Internet Shairing Connection.................33 - How to do synchronization?............................................33 Technical Support.............................................................................34 Specification.....................................................................................35 FCC Safety Statement......................................................................36 Regulatory Information......................................................................37 Warranty............................................................................................38 23 28 x 15.5 cm Bluetooth Technology supports: .Windows 2000 .Windows XP . Mac OS X . Windows 98 SE/Me ( only as a client. For used as a server, it needs an Internet sharing software such as Win Route Lite. It is available on www.kerio.com, which You may get access through Cellink's Website.) Overview Bluetooth is a low-power wireless networking standard, which uses short radio links to allow electronic devices to communicate with each other without using cables. The following services are supported by Bluetooth technology: . Synchronize your Bluetooth PDA with your computer. . Send your business card to anyone who has a Bluetooth enabled device. . Send or receive files to or from anyone who has a Bluetooth enabled device. . Send an e-mail without being wired to the network. . Dial up to Internet on your computer over your Bluetooth cellular phone. . Send a fax from your computer over your Bluetooth cellular phone. . Chat with anyone who has a Bluetooth enabled computer. . Play an one-on-one serial game without a cable. Most Bluetooth-enabled devices may act as: . A Bluetooth server - can provide one or more services, such as access to the Internet,or to other Bluetooth devices. . A Bluetooth client - can use the services provided by Bluetooth servers. * Bluetooth devices that can act as both server and client, and can often do both at the same time. 4 5 28 x 15.5 cm Installation Software Installation Note : Do not plug your Bluetooth USB Adapter into USB port until you have completed the software installation as the following: 1. With the computer on and Windows 98 Se/ME, 2000 or XP running, insert the Blutooth Installation CD into CD/DVD drive. The auto-start feature starts the installation. If auto-start is disabled on your computer, click Start>Run and type d:\setup.exe (where d: is your CD-ROM drive). The Bluetooth InstallShield Wizard will appear. Please Click "Next" button. System Requirement System Requirements: . Notebook or desktop computers, with 500 Mhz Cpu or higher, 256MB RAM or higher, 50MB free of hard disk space, and with a free USB port . Mac OS 10.1.4 or later . Windows 2000, XP . Windows 98 SE/Me ( only as a client. For used as a server, it requires an Internet sharing software such as Win Route Lite. It is available on www.kerio.com , which You may get access through Cellink's Website.) 6 7 28 X 15.5cm 4. Click "Next" to install the default directory, or click "Change" to…

Text truncated - open the document above for the full version.

28 x 15.5 cm 12. Once all Bluetooth client drivers have been installed. Click on "Finish". A Bluetooth Icon will appear in bottom right-hand corner of the window. 10. The installation of the software will install all Bluetooth clients drivers. 11. The Installation Wizard will also prompt that the client drivers have not been Windows - certified. Click "Continue Anyway" to complete the installation. 12 13 CONGRATULATIONS! Now your computer is ready and BLUETOOTH ENABLED. Note : For Cellink's Bluetooth Power Kit model No. BTK-2003, BTM-5022 please continue the installation steps by following an additional User's Manual. 28 x 15.5 cm Pairing Guide What is Pairing? Pairing is a process of associating Bluetooth devices with each other. It allows to avoid entering access information everytime when a connection is requested. Bluetooth devices need to be paired with each other before attempting a connection at first time. Paired devices will remain paired, even if - one of the devices is unpowered. - a service connection is interrupted or stopped. - one or both devices are rebooted. Pass Key Paired devices share a unique Pass Key (also refered to as Link Key), by which they authenticate with each other when connecting. The Pass Key can be alphanumeric, numbers, or letters, and must consist of one or up to 16 characters. Uninstallation 1. With your Bluetooth USB Adapter plugged in the computer, click Start > Setting > Control Panel 2. Click on Add/Remove Programs 3. Click on Bluetooth USB Adapter and select Remove 4. When the uninstall is complete, remove the Bluetooth device and restart your computer Reinstallation Under normal circumstances, you will not need to reinstall the drivers for your Bluetooth USB device; however, the need may arise if your hard drive is rebuilt or if your USB device is dropped from your devices list. Please follow steps 1-12 in the installation section to reinstall the drivers. 14 15 28 x 15.5 cm 3. Enter a Pass Key when asked, and click OK.How to pair devices? 1. Right-click on the Bluetooth Icon, then click on Setup, and Security. 16 17 2. Click on the Bluetooth devices in the Found Devices pane, which you want to pair with ,and click on Execute Pairing . Note : Please click on Refresh to search for the device wanted, if it hasn't appeared yet in the Found Devices pane. 4. If the mate device is running on Windows 98SE, its Bluetooth Icon will blink in red color. If it is on Windows Me/2000/XP, a Bluetooth Connection Request Detected Box will appear. Click on Bluetooth Icon. 28 x 15.5 cm How to unpair devices? 1. Double click on the Bluetooth Icon, double-click on Entire Bluetooth Neighborhood, and right-click on the paired Bluetooth device, then click on Unpair Device. 2. The device is now unpaired. 5. Enter the same Pass Key in the mate device, .and click OK. 18 19 6. The two Blutooth computers are now paired and connected.. Note : If a mate device is a Cellular Phone, PDA, Printer; etc., please refer to the manufacturer's manual for the setup of Pairing. Operation How to connect to a Cellular Phone? 1. Double-click on the Bluetooth Icon. 2. Click on "View devices in range" on the left bar. 3.The name of the cellular phone will appear in the list.

28 x 15.5 cm 4. Right-click on the cellular phone icon, and it will appear all available cellular phone services. 20 21 IMPORTANT: In order to use all the services of the cellular phone, please refer to the cellular phone manufacturer's manual. 5. A pass key will be required when connecting the devices in order to get services. This authentication is not required once devices are paired. ( see page X: What's Pairing?) How to connect to a PDA (Personal Digital Assistant)? 1. Double-click on the Bluetooth Icon. 2. Click on "View devices in range" on the left bar. 3. The name of the PDA will appear in the list. 28 x 15.5 cm 4. Right-click on the PDA icon. It will appear all available PDA services. 22 23 5. A pass key will be required when connecting to the devices in order to get services. This authentication is no required once devices are paired. (see page: What's Pairing?) How to connect to Network Access (Bluetooth enabled computers)? 1. Double-click on the Bluetooth Icon. 2. Click on "View devices in range" on the left bar. 3. The name of the computer will appear in the list. 28 x 15.5 cm 4. Right-click on the computer name and a list of services will appear. 24 25 5. Select "Connect Network Access" 6. A pass key is required to connect both Bluetooth enabled devices. (A pass key is needed to be set by either device in advance.) After your Bluetooth enabled device has been authenticated, your device will be able to share its Internet connection (if the device has Internet access) and files. 7. Once devices are paired, the authentication will not be required. (see page: What's Pairing?) How to add Bluetooth to your Mac? IMPORTANT INFORMATION TO MAC OS X USERS: Bluetooth support for Mac OS X is still in development but will be supported natively with the full release of Mac OS X Version 10.2. As of now, the beta drivers for Bluetooth support can be downloaded from the Apple website at http://www.apple.com. To enable Bluetooth on your Mac is as following: 1. Download the Technology Preview 2 software from apple and install the software. (Double-click"Apple Bluetooth.pkg.") 2. Plug in the Bluetooth USB Adapter to a available USB port on your PowerBook G4, iBook, PowerMac Ge or iMac (for the PowerMac G4 and iMac, you can attach the Bluetooth USB adapter to a free USB port on your keyboard). 3. Launch the Bluetooth software to find Bluetooth enabled devices within range of your computer to pair with. 4. Select the Bluetooth device on the list and click the Pair button. 5. Now, you are connected. Please refer to the Apple website for further information on Bluetooth support and updates at http://www.info.apple.com

28 x 15.5 cm Network Resource Sharing Your Bluetooth enabled computers are ready to share the resources between one and another, such as File Sharing, Internet Sharing and Synchronization. File Sharing Right-click on Bluetooth Icon, then click on Setup>Configuration>Information Exchange. On My Shared Directory of File Transfer (D:\Program Files\Widcomm\ Bluetooth Software\ftp), click on Browse and select a FTP Root Directory for shared files. 26 27 Files located in shared folder can be accessed by other Bluetooth enabled devices. For accessing files located in another computer, double click on the device's name in My Bluetooth Place. You will see what services are offered by the device. Double-clicking on Public folder will get access to all shared files located in the folder. 28 x 15.5 cm How to Send/Receive Files? Right-click on the file that you want to send, and select Send>Bluetooth> Name of Bluetooth Device. If the Bluetooth enabled computers are Not paired when receiving a file, authentification will be executed for the file transfer by entering a Pass Key and by pressing Accept as soon as the pop-up box appears. If the two computers ARE paired, it won't need to pair again everytime when sending/receiving files. How to establish Internet Sharing ? Before setup an Internet sharing, make sure there is at least one Bluetooth computer has access to the Internet. IMPORTANT: Internet Connection Sharing is currently ONLY allowed with Windows 2000 and XP. Windows 98SE or Me users can only access Internet through a Bluetooth enabled computer with either Windows 2000 or XP installed. A Bluetooth enabled computer running either Windows 98 SE or Me is not able to run as Internet Server. In order to run as a Sever, Windows 98 SE/Me users will need to install an Internet Sharing Software, such as Win Route Lite. Please go to Cellink's Web site to get the connection to the relative Web site for the software. 28 29 For Windows 2000/XP Note: The user must have administrative rights in order to enable Internet Sharing. 1. Prompt to Start>Settings>Network and Dial-Up Connections 2. Right-click the Network Connection to access the Internet. 3.Click on Properties. 28 x 15.5 cm 4. Select "Internet Protocol (TCP/IP)" and click on "properties". 30 31 7. Click on the "Advanced" Tab. 8. Make sure that the Internet Connection Option is checked. 9. Click on Settings. 10. Make sure that all items on the Advanced Settings Screen are checked. Once all setting are set and verified, the Internet Connection will be shared among up to seven (7) Bluetooth enabled devices. 11. Click on "OK". 5. Make sure that the IP and DNS Server Address are obtained automatically. 6. Click on "OK". It will appear the " Local Area Connection Properties" window again. How to use the Internet Sharing Connection? After Internet Sharing is established, the client can share Internet access by the following steps: 1. In "My Bluetooth Places" find the computer that has access to the Internet. 2. Right-click on the computer name and select "Connect Network Access". 3. Once selected, your computer will go through an authentication process and establish the connection with the other one. 4. The computer that has Internet access will act as the server (Only with Windows 2000/XP. Computers with Windows 98SE/Me installed will need an Internet Sharing Software such as Win Route Lite in order to act as a serve.) It allows to share its Internet connection to your linked Bluetooth computer. 28 x 15.5 cm 12. Click on "OK" to close the Local Area Connection Properties window. 32 33 How to do Synchronization ? Please refer to the manufacturer's manual how to synchronization data with your cellular phone, PDA, or computer (e.g. Outlook Synchronization.)

Specification Bluetooth Power Control Class II Frequency Band 2.40GHZ- 2.4835 GHZ Unlicensed ISM band Interface USB1.1 Sensitivity -80dBm @0.1%BER Transmission Power 0dBm Data Speed Up to 732 kbps Operating Temperature -10~55 C Humidity 10%-90% non-condensing DC Power 5V (from USB port) Power Consumption 35mA Operating Range 33feet+ Package Dimensions 14.5x20.5x5 Dimensions 6.9x1.9x0.85 Weight 10g Package Weight 205g 28 x 15.5 cm Technical Support For Support for your other Bluetooth devices, contact your device manufacturer. For Support for your external Bluetooth to USB adapter and please check the Cellink Web site at: www.cellink.com.tw For advanced introduction about Bluetooth such as . Bluetooth for Windows . Basic Operations . Client Application . Configurations . Technical Supports . Troubleshooting just click on the Cellink's Bluetooth Icon>My Blutooth Places>Help 34 35 28 x 15.5 cm FCC Safety Statements This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. The radiated output power is far below the FCC Radio frequency exposure limits. Nevertheless, this device should be used in such a manner that the potential for human contact during normal operation is minimized. Warning: Changes or modifications made to this equipment not expressly approved by Cellink Co., LTD. May void the FCC authorization to operate this equipment. Important This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. 36 37 Regulatory Information Bluetooth This equipment is qualified according to Bluetooth Core Specification, version 1.1 Special notices for use in France and Italy France Dispositif a` faible puissance (1mW), pas de limitation pour son usage a` l'interieur ou a` l'exterieur. Low power device (1mW), no limitation for indoor or outdoor use Italy E' necessaria la concessione ministeriale anche per l'useo Verifcare con I rivenditori la procedura da seguire. Licence required for use. Check with your reseller for the procedure you need to follow. Copyright and Trademark Notices Products and brand names may be the trademarks or registered trademarks of their respective owners. 28 x 15.5 cm Warranty Cellink warrants that the Bluetooth Mouse adaptor shall conform to Cellink published specifications, which maybe subject to change, and remain free from defects in materials and workmanship under normal, proper and intended use for a period of one year from date of purchase, provide that proof of purchase be furnished with any returned equipment. During the warranty period, if any component part of the equipment becomes defective by reason of material or workmanship, Cellink is immediately notified of such defect. Cellink shall supply a replacement part or request return of equipment, freight prepaid, and its designated facility for repair. In the event that no fault is found on a product returned for repair, Cellink reserves the right to charge the customer its standard published repair charge. This warranty shall not apply to any product that has been subject to misuse, bending, twisting, neglect, alteration, improper installation, operation outside of the parameters of the published specification, use in any non-approved countries or unauthorized repair performed by anyone other than a Cellink designated repair facility. Any non-warranty repairs or maintenance shall be at Cellink's standard rates in effect at the time. This warranty is in lieu of all other warranties, whether expressed, implied, or statutory, including but not limited to, implied warranties or merchantability and fitness for a particular purpose. In no event shall Cellink be liable, whether in contract, in tort, or on any other basis, for any damage sustained by its customers or any other person arising from or related to loss of use, failure or interruption in the operation any products, or delay in maintenance, or for incidental, consequential, indirect, or special damages or liabilities, or for loss of revenue, loss of business, or other financial loss arising out of or in connection with the sale, lease, maintenance, use, performance, failure, or interruption of theses products. 36 37

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 Photo Page: 1 of 1 PHOTOS OF EUT

FCC ID:PQY-4710874200258

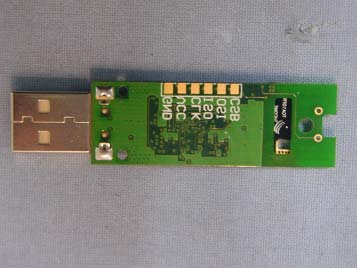

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 Photo Page: 1 of 2 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax:: 886-3-4986528 Photo Page: 2 of 2 PHOTOS OF EUT

FCC ID: PQY-4710874200258 Operational Description of the equipment This is a Bluetooth USB Adapter. The detailed circuit functions are described as below: PRODUCT Bluetooth USB Adapter MODEL NO. BTA-3000 POWER SUPPLY 5Vdc from USB port of PC system CABLE N/A I/O PORT USB interface FREQUENCY BAND 2400~2483.5MHz CARRIER FREQUENCY CH0: 2402MHz~CH78: 2480MHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER 0.2mW I.F. & L.O. I.F.: 0MHz, L.O.:2402~2480MHz MODULATION TYPE GFSK (FHSS) BIT RATE OF TRANSMISSION 743Kbps ANTENNA TYPE Dipole antenna ANTENNA GAIN 2 dBi

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03020605 Report No.:FCCA03020605 FCC ID:PQY-4710874200258 Page:1 of 42 Date: Apr. 07, 2003 Lab Code: 200099-0 Product Name: Bluetooth USB Adapter Model Number: BTA-3000 Applicant: CELLINK CO., LTD. 11F, NO.102, SEC.1, HSIN TAI WU RD., HIS-CHIH, TAIPEI, TAIWAN, R.O.C. Date of Receipt: Feb. 06,2003 Finished date of Test: Mar. 31, 2003 Applicable Standards: 47 CFR Part 15, Subpart C ANSI C63.4:1992 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Checked By : , Date: Approved By : ( Sunyou Chen ) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03020605 Report No.:FCCA03020605 FCC ID:PQY-4710874200258 Page:2 of 42 Date:Apr. 07, 2003 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT.......................................................4 1.1 DOCUMENT POLICY....................................................................................................4 1.2 TEST STATEMENT........................................................................................................4 2. DESCRIPTION OF EUT AND TEST MODE..............................................................4 2.1 GENERAL DESCRIPTION OF EUT...........................................................................4 2.3 DESCRIPTION OF TEST MODE.................................................................................5 3. DESCRIPTION OF APPLIED STANDARDS.............................................................5 4.1 CONDUCTED EMISSION TEST.................................................................................6 4.1.1 LIMIT................................................................................................................................6 4.1.2 TEST EQUIPMENT.......................................................................................................6 4.1.3 TEST SETUP..................................................................................................................7 4.1.4 TEST PROCEDURE......................................................................................................7 4.1.5 EUT OPERATING CONDITION..................................................................................7 4.1.6 TEST RESULT................................................................................................................8 4.2 RADIATED EMISSION TEST.......................................................................................9 4.2.1 LIMIT................................................................................................................................9 4.2.2 TEST EQUIPMENT..................................................................................................10 4.2.3 TEST SET-UP............................................................................................................11 4.2.4 TEST PROCEDURE................................................................................................12 4.2.5 EUT OPERATING CONDITION.............................................................................12 4.2.6 TEST RESULT..........................................................................................................13 4.3 CHANNEL SEPARATION TEST..............................................................................17 4.3.1 LIMIT.............................................................................................................................17 4.3.2 TEST EQUIPMENT..................................................................................................17 4.3.3 TEST SET-UP...........................................................................................................17 4.3.5 EUT OPERATING CONDITION.............................................................................17 4.3.6 TEST RESULT..........................................................................................................18 4.4 QUANTITY OF HOPPING CHANNEL TEST.........................................................21 4.4.1 LIMIT.............................................................................................................................21 4.4.2 TEST EQUIPMENT..................................................................................................21 4.4.3 TEST SET-UP...........................................................................................................21 4.4.5 EUT OPERATING CONDITION.............................................................................21 4.4.6 TEST RESULT..........................................................................................................22 4.5 AVERAGE TIME OF OCCUPANCY TEST................................................................23 4.5.1 LIMIT.............................................................................................................................23 4.5.2 TEST EQUIPMENT..................................................................................................23 4.5.3 TEST SET-UP...........................................................................................................23 4.5.5 EUT OPERATING CONDITION.............................................................................23 4.5.6 TEST RESULT..........................................................................................................24 4.7 PEAK POWER TEST...................................................................................................26 Spectrum Research & Testing Lab., Inc. …

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Conducted test - Radiated test
