PQY-4710874200357BLUETOOTH HEADSET

- 1 - User Manual For Mini Bluetooth Headset BT-3000 - 2 - TABLE OF CONTENTS Introduction ..........................................................................3 -Introduction to Bluetooth Technology - Mini Bluetooth Headset -Box Contents & Picture Get Start ...........................................................................4 -Charge battery -Check the Headset buttons -Turning the Headset On or Off -Pairing the Headset -Making and Answering call -Connect with a PC or PDA Important Information ...............................................................6 -Troubleshooting -Product care -Children -Travel Charger -Battery information -About Pairing . FCC Safety Statements ...............................................................8 . Warranty .................................................................................8 - 3 - Introduction Introduction to Bluetooth Wireless Technology Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, printers), home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4Ghz – 2.48Ghz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (class II). Mini Bluetooth Headset The Mini Bluetooth Headset is a Bluetooth device developed with the latest bluetooth technology, which can connect to other bluetooth devices such as mobile phone, desktop or notebook computer, PDA (with audio gateway profile supported) wirelessly within a range of 10 meters. Box Content and Picture - Mini Bluetooth headset - Travel charger 100/240V - Carry bag - Necklace and Hook - Earplug sponges - Quick Guide and User Manual - 4 - Getting Start Charging Battery The Headset comes with a rechargeable battery included. The battery is not fully charged when it is new. For first time use, it takes 4 hours to fully charge the battery. Afterward , It will take about 2 hours to fully charge the battery. With battery fully charged, the talk time will be 3 to 4.5 hours, and the stand-by time will be about 100 hours. 1. Plug the travel charger into an AC outlet. The green indicator on the adapter will turn on. 2. Connect the adaptor into the Headset as shown as the picture. Gently press the adaptor until it clicks into place (Both the red and the green indicators on the adapter will turn on). 3. When the battery is full, the red indicator will turn off. Check the Headset buttons - S1 Button: Power on/off, Answer calls, Volume up ( increase Volume) , Pairing - S2 Button: End calls, Volume down (decrease Volume) Turning the Headset On or Off To turn the Headset on Press and hold the S1 button for 3 seconds, then you will hear two short high tone, and the blue indicator of the Headset flashes. The Headset is now turned on. (Note: When it is in low battery, the red indicator will flash.) To turn the Headset off Press and hold the S1 button for 3 seconds, then you will hear two short low tone. The Red indicator will flash, and then the Headset will turn off. Pairing the Headset You are required to pair the Headset with your mobile phone before using the Headset. Step 1 : Turn on the Headset. Keep pressing the S1 button for 2 more seconds till the blue and the red indictors light flashing alternatively. When you hear two short high tone. it is ready for pairing. Step 2 : Initiate pairing procedure on your Bluetooth mobile phone to pair with the Headset. Step 3 : When asked the Passkey by the mobile phone, enter 1234 and confirm it. (Note: The 1234 is a Default pin-code pre-stored in the Headset.) When pairing is successful, the red indicator will turn off and the blue indicator will flash. If no pairing is possible for a period of time (approx. two minutes), the Headset will automatically power off, and so the previous pairing (if any) is revoked. You may need to repeat steps 1 to 3 until pairing succeeded. - 5 - Making and Answering/Ending Calls Once the Headset is successfully paired with your phone, you can use the Headset to make and receive calls. The Headset can be used with voice dialing if your phone supports this feature. For detailed operation on voice control, please refer to the user manual of your mobile phone. Making Calls 1. Using voice dialing Press the S1, waiting for a beep, and say the name of the person you want to call. 2. Using the phone keys to make a call Enter and dial the number on the mobile phone as you normally do. Once the call has been set up, the sound will be transmitted to your Headset automatically. Answering Calls and Ending Call When the Headset is powered on, and there is an incoming call, you will hear a musical beep, and also the blue indicator will change to a quick-flashing mode. (When the Headset is in stand-by, the blue indicator will be in a slow-flashing mode.) When the Headset rings, press the S1 button to answer. Adjust the Headset volume by press the S1 for volume up or S2 for volume down. End calls by pressing S2 for 3 sec or No Button. When the Headset is powered off, press S1 Button for 3 sec to answer a call. (Note: Due to different design of some mobile phones, an auto-disconnect may happen even when the Headset is powered on. In that case, the Headset won't ring when there is an incoming call. Press S1 button for 1 sec. to reconnect the Headset with mobile phone for an incoming call.) Connect with a PC or PDA You are allowed to connect the Headset with a Bluetooth enabled PC or PDA that is with Audio Gateway Profiles supported. Please refer to the user manual of your Bluetooth enabled PC or PDA for a setup information. - 6 - Important Information Trouble Shooting 1. The red LED indicator flashes. It indicates that the H…

Text truncated - open the document above for the full version.

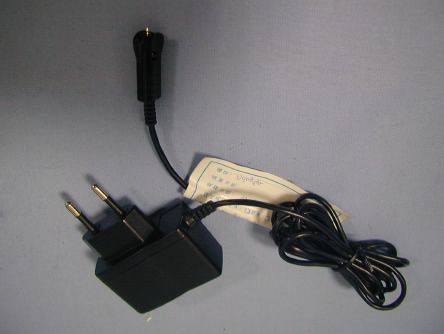

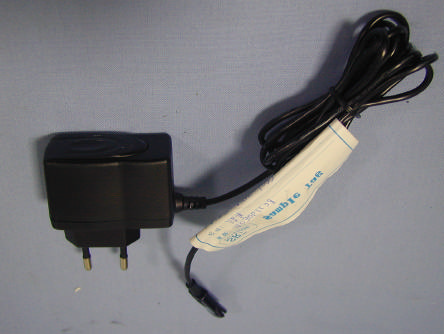

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 1 of 2 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 2 of 2 PHOTOS OF EUT

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :PQY-4710874200357

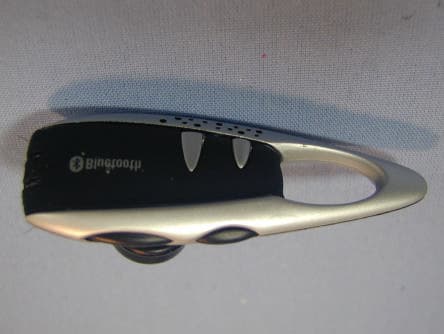

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 1 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 2 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 3 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 4 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Tel: 886-3-4987684 Fax: 886-3-4986528 Photo Page: 5 of 5 PHOTOS OF EUT

FCC ID: PQY-4710874200357 Operational Description of the equipment Bluetooth is a short-range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, printers), home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (industrial Scientific and Medical) frequency band. Within the ISM band (2.4GHz-2.48GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (class II). PRODUCT BLUETOOTH HEADSET MODEL NO. BTHS-6023, BT-3000 POWER SUPPLY 3.7Vdc, 30mA CABLE N/A I/O PORT N/A FREQUENCY BAND 2400~2483MHz CARRIER FREQUENCY CH0: 2402MHz~CH78: 2480MHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER -6 dBm I.F. & L.O. I.F.: 0MHz, L.O.: MHz MODULATION TYPE GFSK MODE OF OPERATION duplex DUTY CYCLE 50% BIT RATE OF TRANSMISSION 723Kbps ANTENNA TYPE PCB antenna ANTENNA GAIN 1 dBi

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 9-Jun-2003 Sheet of File: F:\temp\JOE'S DATA\CLK_043E_03.sch Drawn By: AIO[0] H4 PIO[9] C3 VDD_RADIO C1 VDD_RADIO C2 VDD_VCO H1 VDD_CORE E10 VDD_MEM J6 VDD_MEM A7 VDD_MEM A9 VDD_MEM H6 VDD_MEM A6 VDD_MEM K7 VDD_PADS D10 VDD_PIO A3 VDD_ANA k4 VDD_USB K9 MODE_SEL D8 EXT_FLASH B8 VREG_IN K6 XTAL_IN K3 VSS_ANA K2 XTAL_OUT J3 PIO[2] B3 PIO[3] B4 PIO[4] E8 PIO[5] F8 PIO[0] B1 PIO[1] B2 PIO[7] F9 PIO[6] F10 PIO[8] C5 URX H9 UTX J10 URS H7 UCS H8 SCL C10 SOI C8 SIO B9 SCS C9 USB_DP J8 USB_DN K8 RESET C7 RESET_EN C6 AIO[1] H5 AIO[2] J5 PIO[11] E3 MIC_P H3 SPK_N K1 SPK_P J1 VSS F3 VSS_PADS D9 VSS_MEM B5 VSS_MEM B7 VSS_MEM A10 VSS_MEM J7 VSS_MEM B10 VSS_CORE E9 VSS_PIO A2 VSS_PIO A1 VSS_USB K10 VSS_USB J9 VSS_RADIO E2 VSS_RADIO F2 VSS_RADIO D2 VSS_ANA J4 VSS_ANA J2 VSS_VCO G1 VSS_VCO G2 LOOP_FILTER H2 TX_B E1 TX_A F1 RF_IN D1 AUX_DAC D3 MIC_N G3 U2 BC02_AUDIO 1 5 4 62 3 T1 Balun IN 1 GND 3 GND 2 OUT 4 F1FILTER C122p2C132p2 L33n9 L4 3n9 L215n C1115p 1V8 R17 150K C1 10U R1150K 1% R2220K 1% R18150K 1V8 C65P6 L515n 1V8 C410n R52R2 1V8 1V8 1 1 2 2 3 3 4 4 XT1 16MHz C83P3 C910P S4 S3 S1 SMT4-02E-1 1V8 R3001k2 R4001k2 1 1 2 2 D300 RED 0603 1 1 2 2 D400 BLUE 0603 R162K2 R152K2 R122K2 A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U3 AT24C16A 1v8 C1910n 1 1 2 2 3 3 4 4 J1PIN4 123456 J2CON6 1v8 C510n 1 23 Q3BC847BW R9 100K C161U C1747n C1847nR101K5 C715P MIC_P EAR_PEAR_N L615n BAT AUX TALK VOL- VOL+ SCLSOISIOSCS TXATXB 1V8 C210U 1 1 2 2 J4MIC EM4022-BOL-443 1 1 2 2 J3EAR NAI13BM07-68M-07 MIC_N VIN 1 GND 2 OE 3 TYPE 4 VOUT 5 U1RT9167-18CB 1 1 2 2 J5BATTERY C310n 1V8 1 1 2 2 J6CHARGER C100.5p 1 23 Q300 BC847BW 1 23 Q401BC847BW BAT BAT R30147kR40147k RF S2 SMT4-02E-1 L10 1n2H RF 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 27-May-2003 Sheet of File: C:\My Documents\Design\BT Headset Charger\clk-053-03\clk-053-03.DDB Drawn By: C101100N C102100N D1LED Green D2LED Red R1011R2 R104150kR103150k R1021K R1052K2 VCC 1 TS 2 STAT 3 VSS 4 CC 5 COM 6 SNS 7 BAT 8 U1BQ2057CDGK Q101BC856BW D101BAT54W 1R01R21R51R82R02R2 100MA88MA70MA58MA50MA46MA R101 1 1 2 2 J1VCCIN R101k5 Battery

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03061108 Report No.:FCCA03061108 FCC ID:PQY-4710874200357 Page:2 of 45 Date:Jul. 25, 2003 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT.........................................................4 1.1 DOCUMENT POLICY....................................................................................................4 1.2 TEST STATEMENT........................................................................................................4 2. DESCRIPTION OF EUT AND TEST MODE..............................................................5 2.1 GENERAL DESCRIPTION OF EUT...........................................................................5 2.2 DESCRIPTION OF SUPPORT UNIT..........................................................................6 2.3 DESCRIPTION OF TEST MODE.................................................................................6 3. DESCRIPTION OF APPLIED STANDARDS.............................................................6 4.1 CONDUCTED EMISSION TEST.................................................................................7 4.1.1 LIMIT................................................................................................................................7 4.1.2 TEST EQUIPMENT.......................................................................................................7 4.1.3 TEST SETUP..................................................................................................................8 4.1.4 TEST PROCEDURE......................................................................................................8 4.1.5 EUT OPERATING CONDITION..................................................................................8 4.1.6 TEST RESULT................................................................................................................9 4.2 CHANNEL SEPARATION TEST..............................................................................10 4.2.1 LIMIT.............................................................................................................................10 4.2.2 TEST EQUIPMENT..................................................................................................10 4.2.3 TEST SET-UP...........................................................................................................10 4.2.4 TEST PROCEDURE................................................................................................10 4.2.5 EUT OPERATING CONDITION.............................................................................10 4.2.6 TEST RESULT...........................................................................................................11 4.3 20DB BANDWIDTH....................................................................................................13 4.3.1 LIMIT..........................................................................................................................13 4.3.2 TEST EQUIPMENT..................................................................................................13 4.3.3 TEST SET-UP...........................................................................................................13 4.3.4 TEST PROCEDURE................................................................................................13 4.3.5 EUT OPERATING CONDITION.............................................................................13 4.3.6 TEST RESULT..........................................................................................................14 4.4 QUANTITY OF HOPPING CHANNEL TEST.........................................................16 4.4.1 LIMIT.............................................................................................................................16 4.4.2 TEST EQUIPMENT..................................................................................................16 4.4.3 TEST SET-UP...........................................................................................................16 4.4.4 TEST PROCEDURE................................................................................................16 4.4.5 EUT OPERATING CONDITION.............................................................................16 4.4.6 TEST RESULT..........................................................................................................17 4.5 TIME OF OCCUPANCY (DWELL TIME).................................................................18 4.5.1 LIMIT.............................................................................................................................18 4.5.2 TEST EQUIPMENT..................................................................................................18 4.5.3 TEST SET-UP...........................................................................................................18 4.5.4 TEST PROCEDURE................................................................................................18 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03061108 Report No.:FCCA03061108 FCC ID:PQY-4710874200357 Page:3 of 45 Date:Jul. 25, 2003 4.5.5 EUT OPERATING CONDITION.............................................................................18 4.5.6 TEST RESULT..........................................................................................................19 4.6 PEAK POWER TEST...................................................................................................23 4.6.1 LIMIT.............................................................................................................................23 4.6.2 TEST EQUIPMENT..................................................................................................23 4.6.3 TEST SET-UP..............…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03061108 Report No.:FCCA03061108 FCC ID:PQY-4710874200357 Page:1 of 3 Date: Jul. 25, 2003 Lab Code: 200099-0 PHOTOS OF TESTING - Conducted test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03061108 Report No.:FCCA03061108 FCC ID:PQY-4710874200357 Page:2 of 3 Date:Jul. 25, 2003 - Radiated test (Charge) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03061108 Report No.:FCCA03061108 FCC ID:PQY-4710874200357 Page:3 of 3 Date:Jul. 25, 2003 - Radiated test (Headset)
