PQY-47108742004322.4 GHz Wireless Mouse

Cellink Co., Ltd.
2.4 GHz Wireless Mouse - FCC ID PQY-4710874200432 - Cellink Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Nov 18, 2004
Application Purpose
Original Equipment
Date of Application
Nov 18, 2004
Equipment Note
2.4 GHz Wireless Mouse
Frequency Range
2402.00000000 - 2483.00000000
Company
Cellink Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Schematics

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User’s Manual For 2.4 GHz Wireless Mouse OPM- 6324 Introduction Thank you for purchasing this 2.4 GHz wireless optical mouse. You are about to experience the superior speed and the excellent performance it brings to you. This RF Wireless optical mouse is designed compact and portable with the goal of eliminating bothersome cables and maximize your working space anytime anywhere. It cordlessly works up to 10 meters from your PC or laptops. The 2.4GHz frequency, 82 channels and 65,000 sets IDs will prevent your mouse being interfered by other RF products. Advance features such as a 3-mode power saving technology triple extends your battery life. Furthermore, the synchronized 2408 ID auto-detects between mouse and receiver efficiently to avoid interference. Please go over this entire manual for the safety concern and make the most use of its advanced features. Battery placement 1. Gently press the button and lift up the cap from its side indicated in the following diagram. 2. Place batteries in their proper polarities. 3. To save battery power, turn off the mouse while traveling or when you’re not using it. To turn off the mouse, slide the on/off switch at the bottom of the mouse. ! Caution l Follow the battery polarity markers to ensure the proper polarity. l Insure of the battery type. (AAA, Alkaline 1.5 V) l Always take out batteries if you know you won’t use the mouse for a while. Press to open Power on/off Lift to open Hardware Installation 1. Connect the mini receiver to any available USB port. (Fig. 2-1) Refer to the following diagram for instruction. 2. Switch on the mouse. (Fig. 3) Driver Installation Note: Your mouse is able to function properly without installing the software. Install this driver CDROM only if necessary. Note: Go to “Control Panel<Add/Remove Program” to remove your previous mouse drivers before starting using the mouse. The following is instructions of driver installation: 1. Insert the driver CD into your CD Rom Drive. The installation should start automatically. 2. If auto-run failed, click the Start Manu and select “Run”. Type in “<your CD Rom drive>:/setup.exe”. (Go to “My Computer” and find the letter of your CD Rom Drive) 3. Select the language you want for this installation. 4. You may be required inserting the Windows 98 CD during the installation. 5. Follow the on-screen instruction to complete the installation. 6. When the installation completes, you should be able to see an icon on the right hand side of the task bar. Pairing 1. Press the receiver “connect” button shown below. And Its LED will light up. (Fig. 5) 2. Press the mouse “connect” button. (Fig. 5) 3. The LED of the receiver is off when the mouse is functional. If not, re-do pairing (step 1 and 2). 4. Re-do pairing whenever you change batteries, remove the battery cap or change another receiver. Receiver connect button. Press it firstly. Receiver connect button. Press it firstly. Customize your mouse settings Click “Mouse” in your control panel, or click the mouse icon on the task bar to program your mouse buttons. Setup for multiple users If you have two or more RF mice, you may setup the second user 30 seconds after setting up the first user to avoid interference. Environment The following conditions may shorten the effective distance or drop the performance: 1. To avoid using RF mouse on a metal, reflecting or half tone painted surface. For instance: mirror, glass, or 3D mouse pad... etc. 2. To avoid obstacles between the mouse and the receiver. 3. To keep at least 1.5 meters from other RF devices to avoid frequency interference. Troubleshooting If the mouse doesn’t function properly, try to do the following: l Check if the distance is within the working range of 1.2 meters. l Make sure the mouse is switched on. l Check your mouse pad. Problems will occur if you use Cellink wireless optical mouse on a metal, reflecting or half-tone-painted surface. l Re-pair the mouse to properly set up its ID. Others l System requirement: Windows 98SE, 2000, ME, XP. l Window 98 CD disk may be required during the installation of the driver. FCC Safety Statements This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. The radiated output power is far below the FCC Radio frequency exposure limits. Nevertheless, this device should be used in such a manner that the potential for human contact during normal operation is minimized. Warning: Changes or modifications made to this equipment not expressly approved by the manufacturer. May void the FCC authorization to operate this equipment. Important. Please note the following: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CE Statements This device has bee tested and found to comply with the requirements set up in the council directive on the appro…

Text truncated - open the document above for the full version.

Block Diagram

2.4 GHz Wireless Mouse OPM- 6324 Ⴧቹֱ ჇቹֱჇቹֱჇቹֱ USB/PS2 CABLE Power from pc supply MCU 2.4G RECEIVER RECEIVER BLOCK DIAGRAM ( ԫ ) BATTERY BUTTON AND SCROLL OPTICAL SENSOR ENTER MCU 2.4G TRANSMITTER (MOUSE) ʳ TRANSMITTER BLOCK DIAGRAM ( Բ )

External Photos

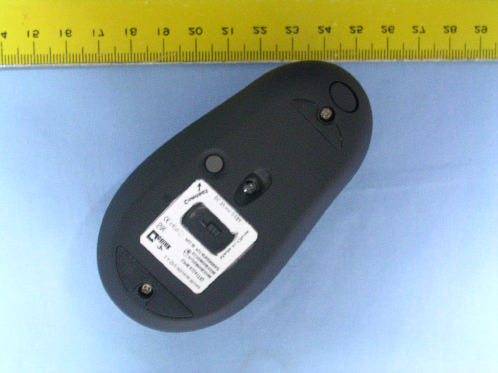

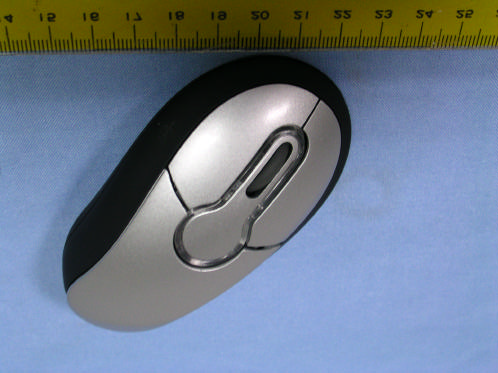

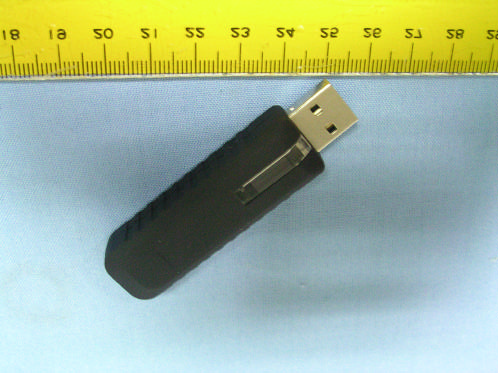

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 2 Part I: Wireless Mouse PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 2 Part II: Receiver PHOTOS OF EUT

ID Label/Location Info

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :PQY-4710874200432

Internal Photos

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 6 Part I: Wireless Mouse PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 6 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 6 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 6 Part II: Receiver PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 6 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 6 of 6 PHOTOS OF EUT

Operational Description

FCCID: PQY-4710874200432 Operational Description of the equipment This RF Wireless optical mouse is designed compact and portable with the goal of eliminating bothersome cables and maximize your working space anytime anywhere. It cordlessly works up to 10 meters from your PC or laptops. The 2.4GHz frequency, 82 channels and 65,000 sets IDs will prevent your mouse being interfered by other RF products. Advance features such as a 3-mode power saving technology triple extends your battery life. Furthermore, the synchronized 2408 ID auto-detects between mouse and receiver efficiently to avoid interference. PRODUCT 2.4 GHz Wireless Mouse MODEL NO. OPM-6324 POWER SUPPLY DC 3.0V, 0.03A FREQUENCY BAND 2402 ~ 2483MHz NUMBER OF CHANNEL 82 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER 0dBm MODULATION TYPE GFSK BIT RATE OF TRANSMISSION 800dpi ANTENNA TYPE PCB antenna ANTENNA GAIN 0dBi DUTY CYCLE 50%

Schematics

2.4GHz Mini Mouse Model No:OPM-6324

Schematics

2.4 GHz W i r e less Mouse Model No:OPM-6324

Test Report

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A04082404 Report No.:FCCA04082404 Page:2 of 22 Date:Nov. 15, 2004 FCCID: PQY-4710874200432 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT..................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT.............................................................................................3 1.3 EUT MODIFICATION..........................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.......................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE........................................................................5 2.4 DESCRIPTION OF SUPPORT UNIT..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS.......................................................5 4.1 CONDUCTED EMISSION TEST.........................................................................6 4.1.1 LIMIT..................................................................................................................6 4.1.2 TEST EQUIPMENT............................................................................................6 4.1.3 TEST SETUP...................................................................................................7 4.1.4 TEST PROCEDURE...........................................................................................7 4.1.5 EUT OPERATING CONDITION..........................................................................7 4.1.6 TEST RESULT....................................................................................................8 4.2 SPURIOUS RADIATED EMISSION TEST........................................................11 4.2.1 LIMIT................................................................................................................11 4.2.2 TEST EQUIPMENT........................................................................................12 4.2.3 TEST SET-UP................................................................................................13 4.2.4 TEST PROCEDURE......................................................................................14 4.2.5 EUT OPERATING CONDITION.....................................................................14 4.2.6 TEST RESULT...............................................................................................15 5. PHOTOS OF TESTING.....................................................................................19 6. TERMS OF ABRIVATION...................................................................................22 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A04082404 Report No.:FCCA04082404 Page:3 of 22 Date:Nov. 15, 2004 FCCID: PQY-4710874200432 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 VAC/60 Hz, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A04082404 Report No.:FCCA04082404 Page:4 of 22 Date:Nov. 15, 2004 FCCID: PQY-4710874200432 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 2.4 GHz Wireless Mouse MODEL NO. OPM-6324 POWER SUPPLY DC 3.0V, 0.03A FREQUENCY BAND 2402 ~ 2483MHz NUMBER OF CHANNEL 82 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER 0dBm MODULATION TYPE GFSK BIT RATE OF TRANSMISSION 800dpi ANTENNA TYPE PCB antenna ANTENNA GAIN 0dBi DUTY CYCLE 50% NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual of EUT. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A04082404 Report No.:FCCA04082404 Page:5 of 22 Date:Nov. 15, 2004 FCCID: PQY-4710874200432 2.3 DESCRIPTION OF TEST MODE The EUT was tested under the following channels during the test: 82 channels are provided by EUT. The 3 channels of lower, medium and higher were chosen for test. Channel Frequency 1 2402 41 2442 82 2483 NOTE : 1. Below 1 GHz, the channel 1, 41 and 82 were pre-tested in chamber. 2. Above 1 GHz, the channel 1, 41 and 82 were tested individually. 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISRP22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 NOTEBOOK DELL C510/C610 DOC 1.5m unshielded power cord 2 PRINTER EPSON STYLUS C20SX DOC 1.5m unshielded power cord 1.2m shielded data cable 3 MODEM ACEEX DM-1414 DOC 1.5m unshielded DC power cable 1.2m shielded data cable NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a notebook system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:2003 DA 00-705 All tests have been performed and rec…

Text truncated - open the document above for the full version.

Test Setup Photos

PHOTOS OF TESTING - Conducted test - Radiated test (TX mode) - Radiated test (RX mode)

Contact Information

Applicant

Ting-Ting Huang(Vice President)
[email protected]886-2-26962773Fax: 886-2-26962774

Test Firm

Spectrum Research & Testing Lab.Linda Chiang
[email protected]886-3-498-7684Fax: 886-3-498-6528

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.00 mW
