PQY-4710874200500BLUETOOTH MINI MOUSE

Introduction The 2.4GHz Bluetooth Wireless Optical Mouse and Bluetooth USB adapter can create a flexible, convenient and wireless working environment. The optical mouse with ergonomic design offers high frequency penetration, low interference, and omni-directional signal transmission. Employing reliable 2.4GHz Bluetooth wireless technology, the Bluetooth Optical Mouse can be positioned up to 10 meters away from the PC in any direction (or angle), even with objects placed between the mouse and the adapter. For example, a Bluetooth-enabled printer in the radio range can receive documents from the computer wireless and print the documents. Bluetooth USB Adapter is a Bluetooth enabler, that enables your desktop or notebook computer to connect wirelessly to any other Bluetooth enabled computers and devices. It allows a working range of up to 10 meters (33 feet) with a 723 Kbps data rate transmission, and complies with Bluetooth 1.1 and USB 1.1 specifications. Bluetooth USB Adapter is an ideal solution for home and mobile networking needs. It is easy to install and use for wireless connectivity to such as cellular phones, PDAs, printers, computers, keyboards, mice etc. Content Package Contents Overview System Requirements Software Installation Hardware Installation Install USB Adapter Install battery for mouse Pairing for mouse Technical Support Specification FCC Safety Statements Regulatory Information Warranty Package Contents • Bluetooth USB Adapter (BTA-3000) • Bluetooth Mouse (BTM-5302) • Installation CD • User’s Guide Bluetooth Installation CD contains: • Widcomm v1.4 driver for USB Adapter • BTW User’s Guide Overview Bluetooth is a low-power wireless networking standard, which uses short radio links to allow electronic devices to communicate with other without using cables. The following services are supported by Bluetooth technology: • Synchronize your Bluetooth PDA with your computer. • Send your business cad to anyone who has a Bluetooth enabled device. • Send or receive files to or from anyone who has a Bluetooth enabled device. • Send an e-mail without being wired to the network. • Dial up to internet on your computer over your Bluetooth cellular phone. • Send a fax from your computer over your Bluetooth cellular phone. • Chat with anyone who has a Bluetooth enable computer. • Play a one-on-one serial game without a cable. Most Bluetooth enabled devices may act as: • A Bluetooth host – can provide one or more services, such as access to the internet or to other Bluetooth devices. • A Bluetooth client – can use the service provided by Bluetooth servers. • Bluetooth devices can act as both host and client, and do both at the same time. System Requirements • CPU: Intel Pentium III 500MHz or above. • System Memory: 256MB or more. • Hard disk space: at least 50MB. • OS: Windows 98SE/Me/2000/XP • MAC OS 10.1.4 or later • A free USB port, USB 1.1 compliant. • CD-ROM Drive. Software Installation Note: Do not plug your Bluetooth USB Adapter into USB port until you have completed the software installation as the following: 1. Insert the driver CD into a CD-ROM drive. The setup program will start automatically. 2. In case the drive doesn’t support auto-run function, please find “setup.exe” file at the root of driver CD. Double click it to start installation process. (Note: the following pictures will be a little bit different if you are installing on Windows XP) (d01.jpg) 3. The license Agreement will appear. Please read and agree with the agreement by checking “I accept the terms in the license agreement” and click “Next”. (d02.jpg) 4. Click “Next” to install the default directory, or click “Change” to install in a different directory. (d03.jpg) 5. Click “Install” to start the installation. (d04.jpg) 6. The installation process may take a few minutes. (d05.jpg) 7. A notice of Driver Signature from Windows system may appear. Please click “OK” to continue the installation. (d08.jpg) 8. Installation program will ask you to plug in Bluetooth Adapter. Please click “Cancel” to skip it. (d09.jpg) 9. Once the installation has completed, click “Finish”. (d06.jpg) 10. You will be asked to restart system. Click “Yes” to restart. (d07.jpg) 11. You will see a shortcut on Windows desk and a Bluetooth Logo icon on the task bar after system re-started. (10.jpg) Hardware Installation Install USB Adapter 1. Make sure you have completed the software installation before you install USB Adapter. 2. Plug the USB Adapter into a free USB port of PC. The blue LED of the Adapter will flash. System will detect the Adapter and start to install driver automatically. The Bluetooth logo on task bar will change color from red to white. (09.jpg) 3. To enable the USB Adapter by double clicking the short cut on the desk or the icon on the task bar. System will initiate a Bluetooth configuration wizard. Follow the on screen procedures to complete configuration setup. Click “next”. (01.jpg) 4. Give a name of your computer and select type of your computer. (02.jpg) 5. Click “Next” (03.jpg) 6. Choose the services that your computer will offer. Uncheck the items you don’t want to offer. Click “Next”. (05.jpg) 7. Click “Skip” to skip adding other Bluetooth devices on this step. (06.jpg) 8. Now, your USB Adapter is enabled and ready to use. Click “Finish” to complete the setup process. (07.jpg) CONGRATULATIONS! Now your computer is Bluetooth Enabled. Install batteries for Mouse 1. Remove the battery cap from the top of the mouse by pressing the buttons as pictures shown. 2. Insert the supplied 1.5 V AAA Alkaline batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. 3. To save battery power, turn off the mouse while traveling or when you’re not using it. To turn off the mouse, slide the on/off switch at the bottom of the mouse. (mouse 302-1.jpg) Pairing the mouse 1. Launch “My Bluetooth Places” by double clicking the short cut on the desk or the Bl…

Text truncated - open the document above for the full version.

Flash memory Right/Middle/Left Keys Scrolling wheel Filter ANT Battery Bluetooth Baseband/RF Optical Sensor 16MHz Bluetooth Mini Mouse Model No: B TM-5302

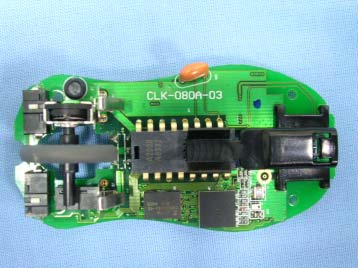

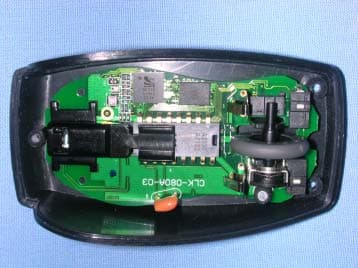

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 1 PHOTOS OF EUT.

Sample of FCC ID Label

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 3 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3

FCC ID: PQY-4710874200500 Operational Description of the equipment The EUT is 2.4GHz Bluletooth Wireless Optical Mouse and Bluetooth USB adapter can create a flexible, convenient and wireless working environment. The optical mouse with ergonomic design offers high frequency penetration, low interferencem, and omni-directional signal transmission. Employing reliable 2.4GHz Bluetooth wireless technology, the Bluetooth Optical Mouse can be positioned up to 10 meters aay from the PC in any direction (or angle),even with objects placed between the mouse and the adapter. For example, a Bluetooth-enabled printer in the radio range can receive documents from the computer wireless and print the documents. PRODUCT BLUETOOTH MINI MOUSE MODEL NO. BTM-5302, BT-01U, BT-01MU POWER SUPPLY DC 3.0V , 45mA FREQUENCY BAND 2401~2483MHz NUMBER OF CHANNEL 79 CHANNEL SPACING 1MHz RATED RF OUTPUT POWER -6~0 dBm I.F. I.F.: 0MHz, MODULATION TYPE GFSK MODE OF OPERATION duplex DUTY CYCLE 50% BIT RATE OF TRANSMISSION 723Kbps ANTENNA TYPE PCB antenna

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03111701 Report No.:FCCA03111701 FCC ID:PQY-4710874200500 Page:2 of 41 Date:Dec. 06, 2003 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT.................................................... 4 1.1 DOCUMENT POLICY ......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 2. DESCRIPTION OF EUT AND TEST MODE ....................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT.................................................................. 6 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 3. DESCRIPTION OF APPLIED STANDARDS....................................................... 7 4.1 CHANNEL SEPARATION TEST ......................................................................... 8 4.1.1 LIMIT .................................................................................................................. 8 4.1.2 TEST EQUIPMENT ......................................................................................... 8 4.1.3 TEST SET-UP.................................................................................................. 8 4.1.4 TEST PROCEDURE........................................................................................ 8 4.1.5 EUT OPERATING CONDITION....................................................................... 8 4.1.6 TEST RESULT................................................................................................. 9 4.3 20DB BANDWIDTH .......................................................................................... 11 4.3.1 LIMIT ............................................................................................................. 11 4.3.2 TEST EQUIPMENT ....................................................................................... 11 4.3.3 TEST SET-UP................................................................................................ 11 4.3.4 TEST PROCEDURE...................................................................................... 11 4.3.5 EUT OPERATING CONDITION..................................................................... 11 4.3.6 TEST RESULT............................................................................................... 12 4.4 QUANTITY OF HOPPING CHANNEL TEST.................................................... 14 4.4.1 LIMIT ................................................................................................................ 14 4.4.2 TEST EQUIPMENT ....................................................................................... 14 4.4.3 TEST SET-UP................................................................................................ 14 4.4.4 TEST PROCEDURE...................................................................................... 14 4.4.5 EUT OPERATING CONDITION..................................................................... 14 4.4.6 TEST RESULT............................................................................................... 15 4.5 TIME OF OCCUPANCY (DWELL TIME)........................................................... 16 4.5.1 LIMIT ................................................................................................................ 16 4.5.2 TEST EQUIPMENT ....................................................................................... 16 4.5.3 TEST SET-UP................................................................................................ 16 4.5.4 TEST PROCEDURE...................................................................................... 16 4.5.5 EUT OPERATING CONDITION..................................................................... 16 4.5.6 TEST RESULT............................................................................................... 17 4.6 PEAK POWER TEST ........................................................................................ 21 4.6.1 LIMIT ................................................................................................................ 21 4.6.2 TEST EQUIPMENT ....................................................................................... 21 4.6.3 TEST SET-UP................................................................................................ 22 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A03111701 Report No.:FCCA03111701 FCC ID:PQY-4710874200500 Page:3 of 41 Date:Dec. 06, 2003 4.6.4 TEST PROCEDURE...................................................................................... 22 4.6.5 EUT OPERATING CONDITION..................................................................... 22 4.6.6 TEST RESULT............................................................................................... 22 4.7 BAND EDGE TEST ........................................................................................... 25 4.7.1 LIMIT ................................................................................................................ 25 4.7.2 TEST EQUIPMENT ....................................................................................... 26 4.7.3 TEST SET-UP................................................................................................ 27 4.7.4 TEST PROCEDURE...................................................................................... 28 4.7.5 EUT OPERATING CONDITION..................................................................... 28 4.7.6 TEST RESULT.....................................................................................…
