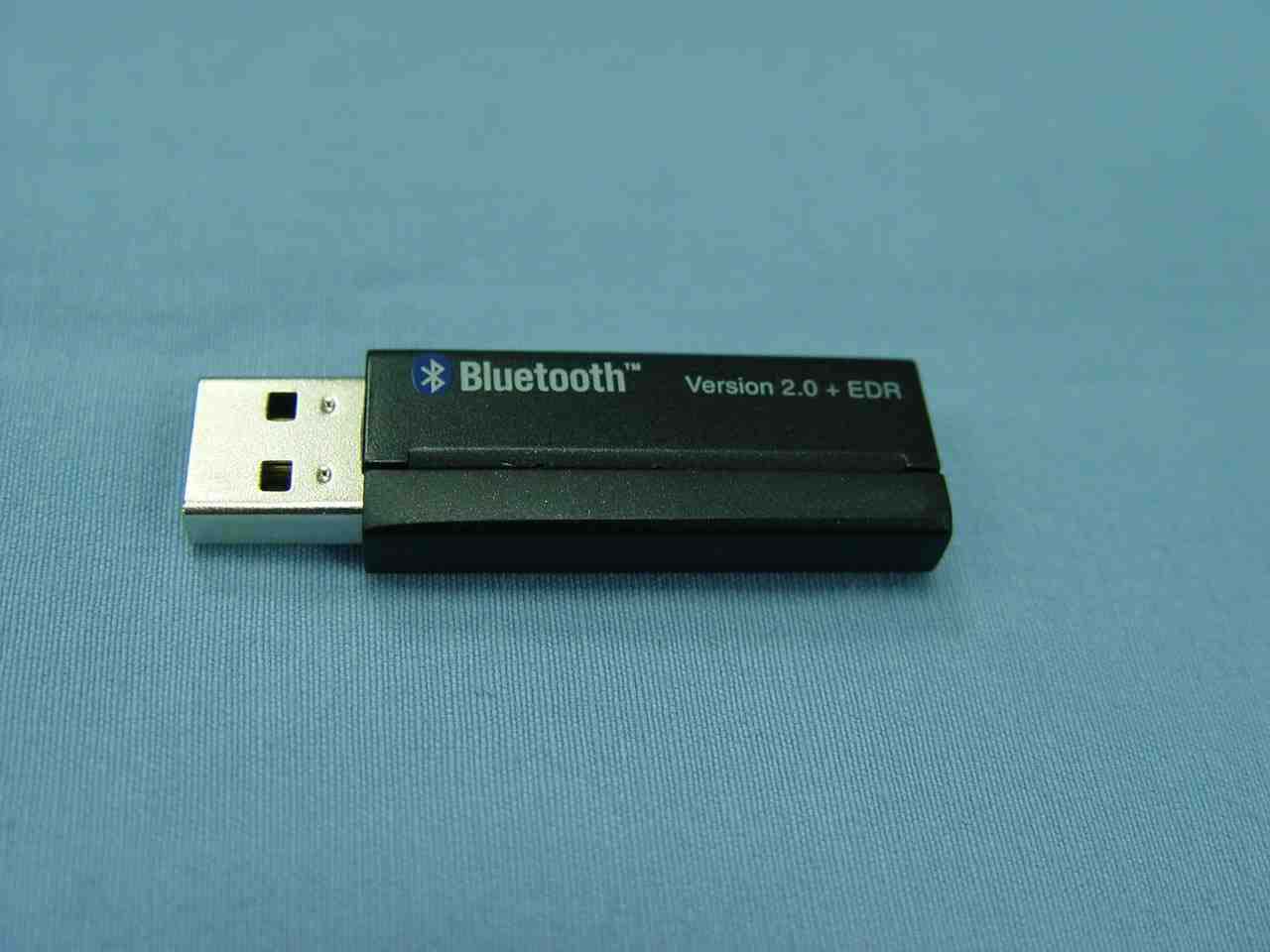

PQY-4710874204034Bluetooth USB Adaptor

- 1 - User Manual For Bluetooth USB Dongle - 2 - Introduction Introduction to Bluetooth Wireless Technology Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, and printers), and home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4 GHz – 2.48 GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (class II). Introduction to Bluetooth USB Adapter Bluetooth USB Adapter is a Bluetooth enabler, that enables your desktop or notebook computer to connect wirelessly to any other Bluetooth enabled computers and devices. It allows a working range of up to 10 meters (33 feet) with a 723 Kbps data rate transmission, and complies with Bluetooth 1.2 and USB 1.1 specifications. Bluetooth USB Adapter is an ideal solution for home and mobile networking needs. It is easy to install and use for wireless connectivity to such as cellular phones, PDAs, printers, computers, keyboards, mice etc. Box Content and Picture - Bluetooth USB Adapter - Driver CD - Quick Guide and User Manual - 3 - System Requirement PC System Requirement: - CPU: Intel Pentium III 500MHz or above. - Memory: 256MB or more. - Hard disk space: at least 50MB. - OS: Windows 98SE/Me/2000/XP - A free USB port, USB 1.1 compliant. - CD-ROM Drive. Mac System Requirement: - MAC OS: 10.1.4 or later - Mac OS driver and software provided by Apple. - A free USB port, USB 1.1 compliant. - CD-ROM Drive. - 4 - Software Installation Note: Do not plug your Bluetooth USB Adapter into USB port until you have completed the software installation as the following: 1. Insert the software CD comes with your USB adapter. The “InstallShield Wizard” should automatically start running. If it doesn’t load, run its “Setup.exe” file. 2. A menu window appears for you to select settings items. Click “Install” to start installation process. 3. The InstallShiel Wizard window should now appear, Click “Next”. - 5 - 4. Select “Yes” to accept License Agreement. 5. Click “Install” to begin the installation. - 6 - 6. InstallShiel is processing. 7. Wait for the setup. - 7 - 8. Now plug the EDR USB adapter onto an available USB port and click “OK” to continue installation. 9. Click “Finish” to finish the installation. - 8 - 10. You will be asked to restart system. Click “Yes” to restart immediately or click “No” to restart later. - 9 - Pairing Guide What’s pairing? Pairing is a process of associating Bluetooth devices with each other. It allows avoiding entering access information every time when a connection is requested. Bluetooth devices need to be paired with each other before attempting a connection at first time. Paired devices will remain paired, even if: 1. One of the devices is un-powered. 2. A service connection is interrupted or stopped. 3. One or both devices are rebooted. Pass Key Paired devices share a unique Pass Key (also referred to as Link Key), by which they authenticate with each other when connecting. The Pass Key can be alphanumeric, numbers, or letters, and must consist of one or up to 16 characters. How to pair devices? Automatically -- If a passkey is required before connection, devices will pair automatically the first time they connect (a passkey must be successfully exchanged). Manually -- In the main window of Bluetooth Manager, right click a device, select Pair Device from the popup menu, and then input a same passkey on both sides. Example 1, pair with a Bluetooth Mouse. 1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar. 2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start Bluetooth device searching. 3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in working range. - 10 - 4. Select the “Bluetooth Mouse” in the Bluetooth Device list and click “Next”. If you can’t find the device you want to pair with, click “Refresh” to search again. 5. Enter a name and select an icon. - 11 - 6. An icon “Bluetooth Mouse” will appear after pairing process completed. Example 2, pair with a Bluetooth Headset. 1. Open Bluetooth Manager main window by clicking Bluetooth icons on task bar. 2. Set the Bluetooth Mouse into pairing mode. Click “New Connection” button to start Bluetooth device searching. - 12 - 3. Select “Express Mode” and click “Next”. System starts searching Bluetooth devices in working range. 4. Select the “BT Headset-F” in the Bluetooth Device list and click “Next”. If you can’t find the device you want to pair with, click “Refresh” to search again - 13 - 5. You will be required to enter Passkey (PIN Code). Check headset’s manual for the passkey and enter it. 6. Press Answer button of the headset to continue pairing process. - 14 - 7. Enter a name and select an icon. 8. An icon “BT Headset-F” will appear after pairing process completed. - 15 - Note! Read Help file of “Bluetooth Settings” for detail information. - 16 - Connect and Disconnect Connect There are two ways to setup a Bluetooth connection. Select Remote Device First Select a remote device and double click it to refresh its services. Bluetooth passkey may be asked if security level of either side of the connection is set to High and they are not paired devices. After service searching finished, the services that the remote device supports are found and the corresponding service icons on the top of the main window will change to be pink color. Double click the pink color service icon you want to connect on the top of the Main Window. Connection will be setup. After connection is OK, the remote device and the service icon will turn green. Note: PAN: If the PAN server side does not connec…
