PRB-MB-A845Tomato

USER’S MANUAL More compatible, more functional and more competitive. Excellent quality and faster response. Supporting Socket mPGA478 Intel Pentium 4® FC-PGA2 Processors, UDMA33/66/100, PC133 SDRAM Quality, Performance Mainboards No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of MANUFACTURER. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL MANUFACTURER, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF MANUFACTURER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THlS MANUAL OR PRODUCT. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners benefit, without intent to infringe. AMD, Duron, Thunderbird are registered trademark of AMD Corporation. VIA is a registered trademark of VIA Technologies, Incorporated. IBM, IBM PC, IBM PC/AT, PC-DOS, OS/2 and OS/2 WARP are registered trademarks of International Business Machines Corporation. MS-DOS, Windows, Windows NT, Windows 95, Windows 98, Windows 2000, Windows ME and Windows XP are registered trademarks of Microsoft Corporation. Norton AntiVirus Corporate Edition is a product of Symantec Corporation. AMI BIOS is a product of American Megatrends, Inc. AWARD BIOS is a product of Phoenix Technologies Ltd. Third-party brands and names mentioned in this User’s Manual are the property of their respective owners. The product name and revision number are both printed on the board itself. Manual revisions are released for each board design represented by the digit before and after the period of the manual revision number. Manual updates are represented by the third digit in the manual revision number. SPECIFlCATlONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATION USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY MANUFACTURER. MANUFACTURER ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT. Copyright © 2001 Manufacturer All Rights Reserved. Manual Revision: 1.00 Release Date: August 2001 Part No: 90-A845X1-00-00 Page 2 Mainboard User's Manual Contents Table Of Contents Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Fast Start Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Checking the Package Contents . . . . . . . . . . . . . . . . . . . . .7 Mainboard Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Jumper Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 7 Quick Steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Installing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Installing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . .13 Attaching ATX Power Supply . . . . . . . . . . . . . . . . . . . .14 Floppy Disk Drive Header . . . . . . . . . . . . . . . . . . . . . . .15 IDE Device Headers . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Mounting Mainboard to chassis . . . . . . . . . . . . . . . . . .16 Installing Add-in Boards . . . . . . . . . . . . . . . . . . . . . . . .18 BIOS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41 CD Driver & Software Installation Guide . . . . . . . . . . . . . .51 Norton AntiVirus OEM Version Setup Guide . . . . . . . . .. 52 INSTANT ON Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Mainboard User's ManualPage 3 Table of Contents Overview Thank You for purchasing our High Performance Mainboard. Our advanced technology mainboard is designed for Socket mPGA478 Pentium 4 CPU at processing speed of 1.4GHz or above and is upgradeable for future processors. The Intel Mainboard utilizes i845 and ICH2 chipset. The ICH2 I/O Controller provides an Integrated Bus Mastering IDE controller with two high performance IDE interfaces for up to four UDMA IDE devices (hard drives, or CD-ROM's) and two USB 1.1 compliant controllers support a total of 4 USB ports. The LPC (Low-pin count) I/O controller integrates a floppy drive interface, two enhanced 16C550 compatible serial ports, one parallel port and one consumer infrared compatible interface. Three DIMM slots support up to 3GB Memory Capacity. WAKEUP-LINK Header supports Wake-On-LAN feature. Integrated AC97 2.1 Compliant Codec with 3D Stereo enhancement. Award 2M bits Firmware Hub compliant with PC99, ACPI//DMI power management. Optional Ethernet 10/100MB onboard LAN interface. ATX 305mm x 210mm. Mainboard User's ManualPage 5 Overview Page 6 Mainboard User's Manual Fast Start Installation This section will aid you in quickly setting up the Mainboard. Be sure to take caution to avoid personal injury or damage to wiring due to sharp pins on connectors, printed circuit assemblies, rough edges and corners and hot components. Your Location Requirements Are: • A sturdy, level surface for placement • Space allowance around mainboard • A stable environment with no abrupt temperature or humidity changes • No exposure to chemicals or direct sunlight • Line volta…

Text truncated - open the document above for the full version.

BIOS Setup Mainboard User's ManualPage 29 UR2 Duplex Mode This option is not available when UART is set to "Normal". Available options are Half Duplex and Full Duplex. Default setting is "Half Duplex". Onboard Parallel Port Specifies the I/O port address of the onboard parallel port. Available settings are Disable, 378h, 278h and 3BCh. Default setting is "378h". Parallel Port Mode Specifies the onboard parallel port mode. Available options are SPP, EPP, ECP, ECP+EPP and Normal. Default setting is "SPP". EPP Mode Select Specifies the Enhanced Parallel Port specification version number. This option only appears if the Parallel Port Mode is set to "EPP". The settings are 1.7 or 1.9. Default is N/A because the default setting for the Parallel Port Mode option is not EPP. ECP Mode USE DMA This option only appears if the Parallel Port Mode option is set to ECP. It assigns a DMA channel to the onboard parallel port. Available settings are 1, 3. Default setting is "3". PWRON After PWR-Fail Selects the power-on method after a power function. Options are Off, ON and Former-Sts. Game Port Address Specifies the Onboard Game Port I/O address. Available settings are 201, 209, and Disabled. Default setting is "201". Midi Port Address Specifies the I/O address of the MIDI interface on the Onboard Game Port. Available options are 300h, 330h 290h and Disabled. Default setting is "330". Midi Port IRQ Assigns the IRQ line to the MIDI interface. Available options are 5 and 10. Default setting is "10". This option is not available if the Onboard Midi Port is disabled S-232 serial port. Page 30 Mainboard User's Manual Power Management Setup ACPI Function Enabled / Disabled ACPI Function. Default setting is "Disabled". ACPI Suspend Type Specifies ACPI Suspend type. Options are : S1(POS), S3(STR) Instant On function. Default setting is "S1(POS)". Power Management Specifies Power Management Mode. Default setting is "User Define". Video Off Method Specifies Video off Method. Default setting is V/H SYNC+Blank. Video Off In Suspend Specifies Video off in Suspend. Default setting is "Yes". Suspend Type Specifies Suspend Type. Default setting is "Stop Grant". MODEM Use IRQ Sets Modem use IRQ. Default setting is "3". Suspend Mode Specifies Suspend Mode. Default setting is "Disabled". Mainboard User's ManualPage 31 BIOS Setup HDD Power Down Specifies HDD Power Down Mode. Default setting is "Disabled". Soft Off by PWR-BTTN Sets Power Down Mode by PWR_BTTN. Default setting is "Instant-off". CPU THRM-Throttling Monitor CPU Temperature, slow down CPU Speed. Power On by Ring Enabled / Disabled Power on by Ring. Default setting is "Enabled". USB KB Wake-Up From S3 Enabled / Disabled USB KB Wake-up from S3. Default setting is "Disabled". Resume by Alarm Enabled / Disabled Resume by alarm. Default setting is "Disabled". Primary IDE0 Enabled / Disabled monitor Primary IDE0 for Green event. Default setting is "Disabled". Primary IDE1 Enabled / Disabled monitor Primary IDE1 for Green event. Default setting is "Disabled". Secondary IDE0 Enabled / Disabled monitor Secondary IDE0 for Green event. Default setting is "Disabled". Secondary IDE1 Enabled / Disabled monitor Secondary IDE1 for Green event. Default setting is "Disabled". FDD, COM, LPT Port Enabled / Disabled monitor FDD, COM, LPT for Green event. Default setting is "Disabled". PCI PIRQ [A-D]# Enabled PCI PIRQIA-DJ#, Monitor PCI PIRQIA-DJ#IRQ Active, Disabled PCI PIRQIA-DJ# Ignore PCI PIRQIA-DJ# IRQ Active. Default setting is "Disabled". PnP/PCI Configurations Reset Configuration Data Enabled / Disabled Reset configuration Data. Default setting is "Disabled". Resources Controlled By Sets the allocation of PCI resources. Available options are Manual and Auto(ESCD). Default setting is "Auto"(ESCD). BIOS automatically assigns resources. IRQ Resources When resources are controlled manually, assign each system inter- rupt a type, depending on the type of device using the interrupt. PCI/VGA Palette Snoop Enabled / Disabled PCI / VGA Palette Snoop, sets "Enabled" for having Video card on ISA Bus and VGA card on PCI Base, sets "Disabled" for VGA card only. Mainboard User's ManualPage 32 BIOS Setup Page 33 Mainboard User's Manual CPU Warning Temperature Specifies CPU warning temperature value. Available options are 50°C/122°F, 53°C/127°F, 56°C/133°F, 60°C/140°F, 63°C/145°F, 66°C/151°F, 70°C/158°F and Disabled. Default setting is "Disabled". Current System Temp. Current CPU Temperature Display System and CPU temperatures. Current System Fan Speed Current CPU Fan Speed Display Fan Speed status. Vcore/VDDq/3.3V/+5V/+12V/-12V/-5V/VBAT(V)/5VSB(V) Display System's Voltage status. Shutdown Temperature This function will only be effective for operating systems that support ACPI Function. Specifies Shutdown Temperature Value. Available options are 60°C/140°F, 65°C/149°F, 70°C/158°F, 75°C/167°F and Disabled. Default setting is "Default". PC Health Status Page 34 Mainboard User's Manual CPU Clock Ratio Select CPU’s core/bus frequency ratio. This setting has no effect on processors with frequency ratio locked. Available settings are between X8 to X24 of the CPU BUS Speed. Default setting is "X8" (Safe). Auto Detect PCI Clk Enabled / Disabled Auto detect PCI CLOCK. Default setting is "Enabled". Spread Spectrum This option turns on/off the clock generator’s Spread Spectrum feature to reduce Electromagnetic Interference (EMI) generated by high speed clock signals. Default setting is "Disabled". Frequency / Voltage Control BIOS Setup Fail-safe defaults contain the most appropriate values of the system parameters that allow minimum system performance. Load Fail-safe Defaults Mainboard User's ManualPage 35 Load Optimized Defaults Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects. Page 36 Mainboard User's Manual BIOS Setup Set Supervisor / User password When you select this function, the following message will appear at the center of the…

Text truncated - open the document above for the full version.

Glossary Mainboard User's ManualPage 43 4-pin ATX Power Supply Pin Signal Name 1 Ground 2 Ground 3 +12V 4 +12V About the Soft Touch Power Button In an ATX based system, the new soft touch power button replaces the main power switch that turns your system on and off. From an OFF state, you can switch the system ON by simply pressing the power button. From an ON state, the system can be turned OFF by pressing and holding the power button for four (4) seconds OR shut down instantly. The functions of the power button can also be altered in the Power Management section in the BIOS setup. C Universal Serial Bus (USB) / Lan (Optional) Connector The Mainboard provides Two 4-pin Universal Serial Bus (USB) connectors. USB is a new interface standard for adding external Plug-and-Play (PnP) devices to the computer system. Peripherals that support USB PnP capabilities can operate at up to a 12Mb/sec data transfer rate. Eventually, all external devices connected to your computer will be standardized to USB. Mainboard User's ManualPage 44 Your mainboard may come with an optional onboard LAN func- tion. It utilizes the Intel 82562ET Physical Layer Interface, which is IEEE 10BASE-T and 100BASE-TX compliant. If your mainboard does come with an onboard LAN function, make sure it is enabled in the BIOS setting under “Integrated Peripherals” in order to use it. If you rather install and use the LAN function on the CNR card, make sure you disable the onboard LAN function and select “EXT. CNR” in the BIOS setting. The reason being that they both share the same LAN controller on the ICH2 chip. Only one physical layer interface can uses the LAN controller at a time, otherwise conflict will occur. c Universal Serial Bus (USB) Header Connect this header to the optional USB extension cable for a USB port. D Serial (COM1 & 2) Headers The Mainboard provides two 9-pins serail port headers. E Infrared (IR) Header The Mainboard provides a 5-pin header interface, IR for connection to a Hewlett Packard HSDSL-1000 compatible infrared (IrDA) transmitter/receiver. Connect IR to the front panel I/O IrDA connector provided with your system. Once the module is connected to the front panel I/O IrDA connector, Serial port 2 can be re-directed to the IrDA module. When configured for IrDA, the user can transfer files to or from portable devices such as laptops, PDA’s, mobile phone and printers using application software such as LapLink. The IrDA specification provides for data transfers at 115 kbps from a distance of 1-meter. Support for Consumer infrared (ASK-IR) is also included. Please refer to your IR equipment for more detailed information. Glossary The header pin-out is as follows: Pin . . . . . . . . . . . . .Signal Name 1 . . . . . . . . . . . . . . .VCC, power source 2 . . . . . . . . . . . . . . .No Connection 3 . . . . . . . . . . . . . . .IRRX, infrared receive 4 . . . . . . . . . . . . . . .Ground 5 . . . . . . . . . . . . . . .IRTX, infrared transmit F Memory Module Sockets The Mainboard provides 168 pin standard DIMM sockets for installation of 3.3V unbuffered Single or Double Bank SDRAM modules. G Parallel Port Connector The ATX Mainboard provides a parallel port connector. Based on the ATX standard, a 25-pin parallel port is now built on the mainboard back panel. This design makes the mainboard installation easier. The parallel port can be BIOS configured into standard (SPP) mode, Enhanced Parallel Port (EPP) mode, and a high speed Extended Capabilities Port (ECP) mode. EPP Mode requires a driver provided by the peripheral manufacturer in order to operate properly. H Accelerated Graphics Port [AGP] Connector The Mainboard provides an AGP slot compatible with the Accelerated Graphics Port specification. AGP compliant video cards offer a much higher throughput than equivalent PCI bus video cards. PCI currently only supports a 33MHz bandwidth, and can transport at peak rates up to 133MB/s over its 32 bit data bus. AGP operates at a 66MHz bandwidth which enables a peak rate of 266MB/s in what is known as 'X1' mode. 'X2' mode has a peak rate of 532MB/S. 'X4' mode has a peak rate as high as 1.06GB/S. However, the 845 chipset only support the 1.5V AGP under 4X mode. Page 45 Mainboard User's Manual Mainboard User's ManualPage 46 I LITHIUM BATTERY A 3V, CR2032, Lithium battery is installed on the on-board battery socket. This battery is used to supply the CMOS RAM backup power during system powered-off. Danger of explosion if battery is incorrectly replaced. Therefore, if you have any difficulties, please consult the technical personnel. J PCI Add-In Board Connector The Mainboard provides 6 PCI Connector for the PCI cards. M Front Panel Function Connector The Mainboard integrates all system front panel functions into a single on-board connector. These include connections for the following features: Function Connector Pin-Out Label System Reset RESET Power LED / Keylock PW-LED Hard Drive Activity LED HD_ LED Soft-Touch Button Power On/Off PW-BN External Power Saving Control (optional)EXTSMI Suspend LED Sus-Led External speaker Speaker Glossary N Flash BIOS The Mainboard Flash BIOS provides users with more flexibility in upgrading their mainboards. The flash BIOS can be easily reprogrammed via software. O Floppy Drive Header The Mainboard provides a 34-pin header that supports the included floppy drive ribbon cable. After connecting the single end to the on-board “FLOPPY” header, connect the remaining plugs on the other end of the cable to the corresponding floppy drives. P IDE Device Headers The Mainboard provides two independent bus-mastering PCI IDE interfaces capable of supporting up to Mode 4 and Ultra DMA-33/66/100 devices. The system BIOS supports automatic detection of the IDE device data transfer rate and translation between different kinds of device modes such as Logical Block Addressing (LBA), Extended Cylinder Sector Head (ECSH) translation modes and ATAPI (e.g., CD-ROM) devices on both IDE interfaces. The two on-…

Text truncated - open the document above for the full version.

AA BB CC DD EE 4 4 3 3 2 2 1 1 TitleSize Document Number Re v Date: Sheet of A845 A BLOCK DIAGRAM B 25 25 Tuesday, December 11, 2001 ZIDA TECHNOLOGIES LTD. CTRL ADDR DATA ADDR DATA CTRL USB IDE Primary IDE Secondary ICH2 PC133DDR PCI CONN 1 PCI CONN 3 PCI CONN 2 BLOCK DIAGRAM FirmWare Hub SIO PCI CNTRL PCI ADDR/DATA AC'97 LINK Keyboard Mouse Floopy Game Port Serial 1 GTL BUS AudioCodecParallel Serial 2 USB PORT 1-4 UDMA/100 CNR Connector ETHERNET 10/100BASE TX AGPConnector PCI CONN 4 PCI CONN 5 PCI CONN 6 478-PIN P4 PROCESSOR CK_408 VRM 9.0 Modules LPC ASIC MCH BROOKDALE

Sample of FCC ID Label TRADE NAME : ZIDA TECHNOLOGIES LTD. MODEL NO. : A845 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENE THAT CAUSE UNDESIRED OPERATION. FCCID : PRB-MB-A845

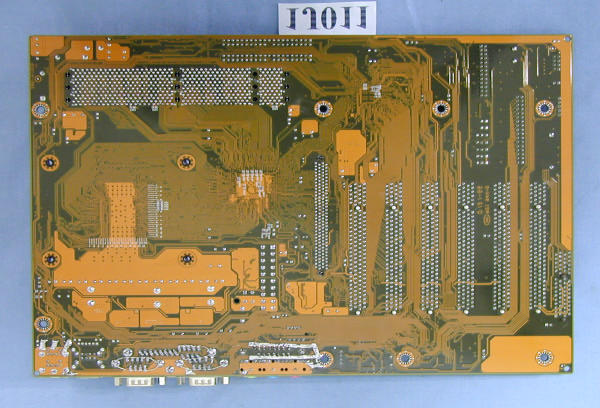

A. PC back side view B. PC inside whole view

Class B Certification Application Under Part 15, Subpart B EUT Tomato MODEL A845 FCC ID PRB-MB-A845 SRT REPORT # FID1J011 PREPARED FOR ZIDA TECHNOLOGIES LTD. 8/F, BLOCK A, GOODVIEW INDUSTRIAL BUILDING, 11 KIN FAT STREET, TUEN MUN, HONG KONG Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 2 OF 33 Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 3 OF 33 EMI TESTING REPORT EUT : Tomato MODEL : A845 FCC ID : PRB-MB-A845 PREPARED FOR ZIDA TECHNOLOGIES LTD. 8/F, BLOCK A, GOODVIEW INDUSTRIAL BUILDING, 11 KIN FAT STREET, TUEN MUN, HONG KONG PREPARED BY SPECTRUM RESEARCH & TESTING LABORATORY INC. NO. 101-10 , LING 8 , SHAN-TONG LI CHUNG – LI CITY , TAOYUAN, TAIWAN , R. O. C. TEL (03) 4987684 FAX (03) 4986528 Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 4 OF 33 TABLE OF CONTENTS 1. TEST REPORT CERTIFIICATION................................................................ 5 2. TEST STATEMENT 2 . 1 TEST STATEMENT.............................................................................. 6 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS, TEST STATEMENT....................... 6 3. EUT MODIFICATIONS................................................................................. 7-8 4. CONDUCTED POWER LINE TEST 4 . 1 TEST EQUIPMENT.............................................................................. 9 4 . 2 TEST PROCEDURE.............................................................................. 9 4 . 3 TEST SETUP....................................................................................... 10 4 . 4 CONFIGURATION OF THE EUT......................................................... 11-12 4 . 5 EUT OPERATING CONDITION............................................................. 13 4 . 6 EMISSION LIMITS............................................................................... 13 4 . 7 CONDUCTED EMISSION TEST RESULTS............................................. 14 5. RADIATED EMISSION TEST 5 . 1 TEST EQUIPMENT.............................................................................. 15 5 . 2 TEST PROCEDURE............................................................................. 16 5 . 3 TEST SETUP...................................................................................... 16-17 5 . 4 CONFIGURATION OF THE EUT......................................................... 18 5 . 5 EUT OPERATING CONDITION............................................................. 18 5 . 6 EMISSION LIMITS............................................................................... 18 5 . 7 RADIATED EMISSION TEST RESULTS................................................ 19-20 6. PHOTOS OF TESTING................................................................................. 21-32 7. FCC LABEL................................................................................................ 33 Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 5 OF 33 1. TEST REPORT CERTIFICATION APPLICANT ZIDA TECHNOLOGIES LTD. ADDRESS 8/F, BLOCK A, GOODVIEW INDUSTRIAL BUILDING, 11 KIN FAT STREET, TUEN MUN, HONG KONG EUT DESCRIPTION Tomato (A) POWER SUPPLY 115/230V (B) MODEL A845 (C) FCC ID PRB-MB-A845 FINAL TEST DATE 12/04/2001 MEASUREMENT PROCEDURE USED * PART 15 SUBPART B OF FCC RULES AND REGULATIONS ( 47 CFR PART 15) * ANSI C63.4 - 1992 * TEST PROCEDURE AND DATA ARE TRACEABLE TO NATIONAL OR INTERNATIONAL STANDARDS. We hereby certify that The measurements contained in this report were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. TESTING ENGINEER DATE 12/04/2001 Nissan Yi SUPERVISOR DATE 12/04/2001 Sunyou Chen APPROVED BY DATE 12/04/2001 Johnson Ho Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 6 OF 33 2. TEST STATEMENT 2 . 1 TEST STATEMENT 1. This statement is to explain the test condition of this project. The EUT was the test condition of each test item. 2. The data was shown in this report reflects the worst – case data for the condition as the summary of test result. 3. EUT conditions. CPU : Intel Pentium 4 1.7GHz, clock chip : 100MHz Resolution : 800*600 4. NVLAP logo is to be approved by management (it is according to NVLAP requirement if it need) before use. 2 . 2 DEPARTURE FROM DOCUMENT POLICIES, PROCEDURE OR SPECIFICATIONS , THE STATEMNT 1. Did have Any departure from document policies & procedures or from specifications. Yes , No  . If yes , the description as below. 2. .The certificate and report shall not be reproduced except in full , without the written approval of SRT laboratory. 3. .The report must not be used by the client to claim product endorsement by NVLAP or any agency the government. 4. This product is a test sample that was shown as the photos of this test report only. 5. The effect that the results relate only to the items tested. Spectrum Research & Testing Lab. FCC ID PRB-MB-A845 Report # FID1J011 PAGE 7 OF 33 3. EUT MODIFICATIONS The following accessories were added to the EUT during testing 1). Added a bypass capacitor 270PF at all pins of printer port. 2). Added a bypass capacitor 270PF at all pins of COM1 and OCM2. 3). Replaced the C144 and C145 insteaded of capacitor 0.1μF. 4). Replaced the C146, C147, C148 and C149 insteaded of capacitor 470PF. 5). Added a bypass capacitor 22PF at C16 ~ C30. 6). Improved the I/O port GND. 7). Connected the Audio and Game port GND to screw hold. 8). Connected the I/O port GND. 9). Replaced the FB21, FB22, FB23, FB24 and FB25 insteaded of bead MLB- 201209-1200A-N4 (1200Ω at 100MHz). 10). Improved the Audio GND contact to Case GND. 11). Replaced the R249 insteaded of bead MLB-201209-1200A-N4 (1200 Ω at 100MHz). 12). Removed C192 ~ C201, C135 ~ C143. 13). The Pin1, Pin8 and Pin9 of Game port bypass 0.1μF to screw hold. 14). The Pin4 and Pin5 of Game port bypass 0.1μF to screw hold. 15). The Pin2, P…

Text truncated - open the document above for the full version.

A. Conducted test front view B. Conducted test back view C. Open site test front view (Close case : 30MHz ~ 1GHz) D. Open site test back view E. Open site test front view (Close case : 1GHz ~ 10GHz) F. Open site test back view G. Open site test front view (Open case : 30MHz ~ 1GHz) H. Open site test back view I. Open site test front view (Open case : 1GHz ~ 10GHz) J. Open site test back view
