PRB-NET-AP11B-01VCTnet AirXpress AP11B Wireless Access Point

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: VCTnet AirXpress AP11B Wireless Access Point (Receiver Part) MODEL NO.: AirXpress AP11B TRADE NAME: VCTNet IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D901019R01 B THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION： ManufacturerUSA Local Representative Company name: ZIDA TECHNOLOGIES LTD. To Be Determined. Address: 8F, Block A, Goodview Industrial Building, 11 Kin Fat Street, Tuen Mun, N.T.H.K. Contact Person: Alex Au Title: R&D Manager, Network Technologies Tel/Fax: Tel: 852-2276-6721 Fax: 852-2456-0717

User’s Guide IEEE 802.11b WLAN Bridge Access Point Version 2.0 2 Table of Contents Information to the User................................ 3 1 Introduction.............................................. 5 2 System Configurations................................ 6 3 Installation................................................ 7 3.1 Installing the SNMP Manager application.. 8 3.2 Setting the IP Address.......................... 12 3.3 Using the SNMP Manager...................... 14 4 Technical Specifications.............................. 40 Troubleshooting........................................ 41 Glossary.................................................. 42 Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. 3 INFORMATION TO USER FCC INFORMATION FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Notice: The Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. 4 REGULATORY INFORMATION The Wireless LAN Access Point must be installed and used in strict accordance with the manufacturer’s instructions. This device complies with the following radio frequency and safety standards. USA - Federal Communications Commission (FCC) This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference that may cause undesired operation. Europe - R&TTE Directive This device complies with the specifications listed below • ETS 301-489 -1&-17 General EMC requirements for Radio equipment. • ETS 300-328 Technical requirements for Radio equipment. • EN60950 Safety Requirements for Radio equipment 5 1 Introduction The Access Point is a wireless LAN bridge that can act as the connection point between the Ethernet CSMA/CD protocol and the wireless CSMA/CA protocol. The Access Point can be easily integrated into your existing wireless network. In large installations, the roaming functionality provided by multiple Access Points allows wireless users to move freely throughout the facility while maintaining seamless, uninterrupted access to the network. This document describes the steps required for the initial IP address assign and AP configuration. The description includes the implementation of the above steps. 1.1 Installation Requirements Before you begin installation, make sure that you have the following items: • The Access Point • The AC to DC power adapter • The Documentation CD You will also need: • A computer that is connected to the same network as the Access Point. 1.2 System Requirements • Desktop or laptop PC configuration through Ethernet: • Operating System: MS Windows 9X / ME / 2000 / XP. 6 2. Wireless LAN basics Wireless LAN network defined by IEEE 802.11b standard committee could be configured as: • Ad Hoc wireless LAN, or • Infrastructure wireless LAN. Ad Hoc network is a group of notebooks with wireless LAN PC card called a BSS (Basic Service Set). These notebooks use their wireless LAN PC cards to communicate with each other, and notebooks cannot connect to the Internet. Figure 2-1 Ad Hoc wireless network The most obvious differentiation between Infrastructure wireless network and Ad Hoc wireless network is that the notebooks in Infrastructure wireless network can make use of the resource in the Internet through Access Point. STA 3 STA 1 STA 2 Access Point Internet Figure 2-2 Infrastructure wireless network To set up your notebook’s network as the type of “Ad Hoc” or “Infrastructure” wireless network depends completely on your requirement. Generally, if your network environment has an Access Point, we recommend that you set it as “Infrastructure” to connect to the Internet. STA 1 STA 2 STA 3 7 3. Installation This section describes the procedures for installing the Wireless LAN Bridge Access Point under Windows 98 SE operating system. Before You Start Before setting up your Access Point, ask your network system administrator for the following information: • Your IP address, gateway address, and subnet mask if you’re not using a DHCP server. • The MAC address from the label on the bottom of the Access Point. • Your Wireless Client Name • Your Wireless SSID • Your computer’s unique client name and workgroup name • For your network account, your user name and password. Every computer on a network is identified by a unique network address. There are two methods of assigning network addresses to com…

Text truncated - open the document above for the full version.

P.03 3/J, / SF, Block A, Goodview Industrial Building, 11 Kin Fat Street, Tuen Mun, N.T.H.K. TEL: '852-2276-6721 FAX: 852-2456-0'?17 Federal Communications Commission Authorization and Evaluation Division FCC ID: PRB-NET -AP11B-O1 ConfidentialitY ReQuest Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to 'its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sjncerely. ~ / /JA:~A J ~3~~) -::::!I1.l.t!~~t:\!_I.~! ...~~/It~~, pe~br""k ~ 4 Alex Au I Please fill in Job Title 1 TEL: 0049-2161-9488-0 FAX: 0049-2161-9488-111 e-mail: [email protected] 07-JAN-200J 11:18 95% P.03

ZIDA TECHNOLOGIES LTD. 8/F, Block A, Goodview Industrial Building, 11 Kin Fat Street, Tuen Mun, N.T., H.K. FAX: 852-2456-0717TEL: 852-2276-6721 POWER OF ATTORNEY To whom it may concern We, the undersigned ZIDA TECHNOLOGIES LTD., hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority for the for VCTnet AirXpress AP11 B Wireless Access Point. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don't hesitate to contact us. Thank you! Sincerely yours, Alex Au, R&D Manager, Network Technologies TEL: 852-2276-6721 FAX: 852-2456-0717 e-mail: [email protected]

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 3, 2003 RE: ZIDA Technologies Ltd. FCC ID: PRB-NET-AP11B-01 After a review of the submitted information, I have a few comments on the above referenced Application. EMC Report/General: 1) The block diagram should show the frequencies of all oscillators in the TX portion of the device (CFR 2.1033(a)(5)). Please provide an updated version that includes this information. 2) The schematics do not appear to contain the RF portion of the circuitry. Please provide an updated set of schematics that includes this as specified by CFR 2.1033(a)(5). 3) The device appears to contain 3 antennas. However only 2 are used. Please explain the purpose of 3 antennas. 4) The device appears to contain 2 different antennas. The block diagram appears to show that the device may transmit out of either antenna, but only one set of test results have been provided. Please explain or provide additional data for the 2 nd antenna. 5) Please provide information for both antennas (i.e., are both dipoles, are both + 1 dBi, etc.). Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Close From: [email protected] [SMTP:[email protected]] To: Timothy R. Johnson Cc: [email protected]; [email protected] Subject: ??: Review of ZIDA Technologies, Ltd., FCC ID: PRB-NET-AP11B-01 Sent: 3/5/03 8:09 AM Importance: Normal Tim, Our response to the comments as below. Comment 1 and 2: done Comment 3 : The device contains 3 antennas, the left antenna from rear sight is fictitious, our client talked to us it is used for decoration. Command 4 : Two antennas are provided for receiver diversity function, it only can transmit at one antenna. Command 5 : Both antenna type are diople with 1 dBi gain Thanks and Best Regards ??? / Ellis Wu E-mail : [email protected] ???? / ADT Corp. TEL : +886 3 3270910 #24 FAX : +886 3 3270892 "Timothy R. Johnson" ???: [email protected] <tjohnson@Americ ????: [email protected] anTCB.com> ??: Review of ZIDA Technologies, Ltd., FCC ID: PRB-NET-AP11B-01 2003/03/04 09:11 AM Ellis, Attached are comments regarding review of this application. Please provide information as soon as possible. Thank You, Timothy R. Johnson NARTE Certified EMC Engineer No. EMC-002205-NE Page 1 of 2??: Review of ZIDA Technologies, Ltd., FCC ID: PRB-NET-AP11B-01 3/5/03http://64.50.160.2/exchange/forms/IPM/NOTE/read.asp?command=open&obj=00000000A08... email: [email protected] alternate email: [email protected] Page 2 of 2??: Review of ZIDA Technologies, Ltd., FCC ID: PRB-NET-AP11B-01 3/5/03http://64.50.160.2/exchange/forms/IPM/NOTE/read.asp?command=open&obj=00000000A08...

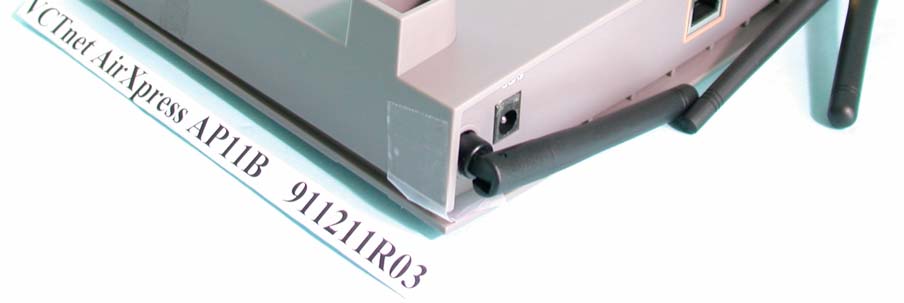

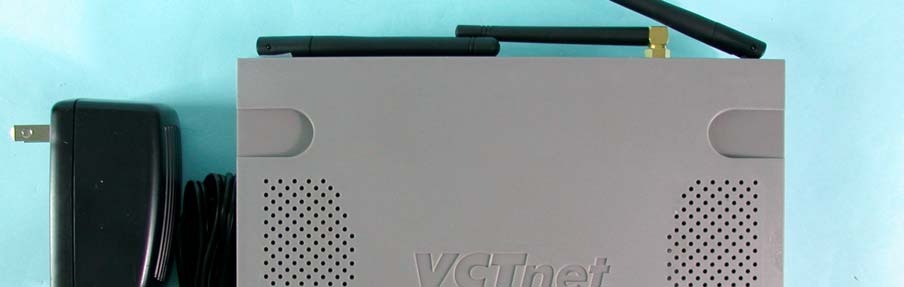

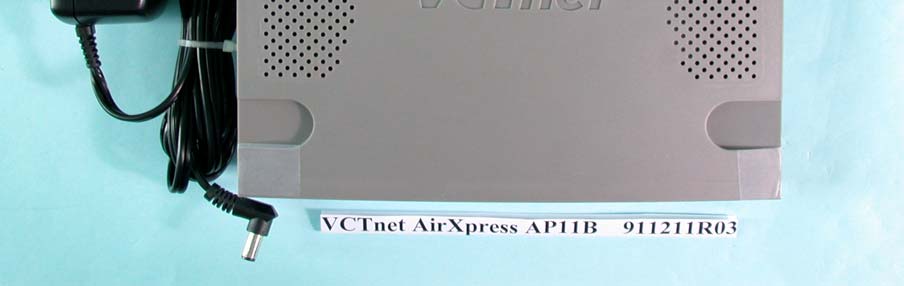

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3

LABEL LOCATION FOR FCC ID

Page 4 Page 5 Page 6 Page 7

FCC ID: PRB-NET-AP11B-01 ADT No.911211R03 Operational Description The transmitter of the EUT (VCTnet AirXpress AP11B Wireless Access Point) is powered by power adapter and connected with notebook through RJ45 port. The antenna is Dipole antenna. The antenna connector is Reversed SMA connector. Under normal use condition, the user has to keep at least 20cm separation distance between radiator and the body of the user. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

ADT No: 911211R03 1 RF EXPOSURE REPORT REPORT NO.: RF901019R01B MODEL NO.: AirXpress AP11B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: ZIDA Technologies Ltd. ADDRESS: 8F, Block A, Goodview Industrial Building, 11 Kin Fat Street, Tuen Mun, N.T.H.K. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 ADT No: 911211R03 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT No: 911211R03 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 20 deg. C and 63 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT No: 911211R03 4 7 Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 1241217.781.34 6243718.621.87 11246221.231.46 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20 cm separation distance with the antenna.

FCC ID: PRB-NET-AP11B-01 Report No.: RF901019R01B1Issued: December 17, 2002 Reference No.: RF901019R01 FCC TEST REPORT REPORT NO.: RF901019R01B MODEL NO.: AirXpress AP11B RECEIVED: Dec. 11, 2002 TESTED: Dec. 21. 2001 ~ Jan. 15, 2002 APPLICANT: ZIDA Technologies Ltd. ADDRESS: 8F, Block A, Goodview Industrial Building, 11 Kin Fat Street, Tuen Mun, N.T.H.K. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14 th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 49 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: PRB-NET-AP11B-01 Report No.: RF901019R01B2Issued: December 17, 2002 Reference No.: RF901019R01 Table of Contents 1CERTIFICATION .................................................................................................................... 4 2SUMMARY OF TEST RESULTS............................................................................................ 5 3GENERAL INFORMATION .................................................................................................... 6 3.1GENERAL DESCRIPTION OF EUT....................................................................................... 6 3.2DESCRIPTION OF TEST MODES......................................................................................... 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS........................................................ 7 3.4DESCRIPTION OF SUPPORT UNITS................................................................................... 8 4TEST TYPES AND RESULTS ................................................................................................ 9 4.1CONDUCTED EMISSION MEASUREMENT......................................................................... 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ...................................................... 9 4.1.2TEST INSTRUMENTS ...........................................................................................................9 4.1.3TEST PROCEDURES .......................................................................................................... 10 4.1.4TEST SETUP ....................................................................................................................... 10 4.1.5EUT OPERATING CONDITIONS......................................................................................... 11 4.1.6TEST RESULTS ................................................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT............................................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ......................................................... 18 4.2.2TEST INSTRUMENTS ......................................................................................................... 19 4.2.3TEST PROCEDURES .......................................................................................................... 20 4.2.4TEST SETUP ....................................................................................................................... 21 4.2.5EUT OPERATING CONDITIONS......................................................................................... 21 4.2.6TEST RESULTS ................................................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT ................................................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ................................................................ 27 4.3.2TEST INSTRUMENTS ......................................................................................................... 27 4.3.3TEST PROCEDURE ............................................................................................................28 4.3.4TEST SETUP ....................................................................................................................... 28 4.3.5EUT OPERATING CONDITIONS......................................................................................... 28 4.3.6TEST RESULTS ................................................................................................................... 29 4.4MAXIMUM PEAK OUTPUT POWER ................................................................................... 33 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ................................... 33 4.4.2INSTRUMENTS.................................................................................................................... 33 4.4.3TEST PROCEDURES .......................................................................................................... 34 4.4.4TEST SETUP ....................................................................................................................... 34 4.4.5EUT OPERATING CONDITIONS......................................................................................... 34 4.4.6TEST RESULTS ................................................................................................................... 35 4.5POWER SPECTRAL DENSITY MEASUREMENT.............................................................. 36 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT............................................ 36 4.5.2TEST INSTRUMENTS ......................................................................................................... 36 4.5.3TEST PROCEDURE ............................................................................................................37 4.5.4TEST SETUP .......................................…
