PRL-IWE1000Wireless Access Point

∈ i NTER E POCH InterEpoch Wireless Access Point IWE- 1000A Quick Installation Guide Version: 1.0 Draft 1 InterEpoch Technology, Inc. ∈ i NTER E POCH FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Introduction The instant Wireless Network Access Point : Don’t be bound by cabling restrictions any longer! The Instant Wireless Network Computers in a Access Point from InterEpoch delivers the freedom to configure your network your way. Utilization of state-of-the-art wireless technology gives you the ability to set up workstations in ways you never though possible; no cables to install means fewer expenses and fewer hassles. The Instant Wireless Network Access Point’s high-powered antennas , providing seamless roaming throughout your LAN infrastructure. Advanced user authentication ensures a high level of security for wireless networking, while easy-to-use Windows-based diagnostics and statistic tools ensure that you’ll always be in control. Best of all, the Instant Wireless Network Access Point features easy installation— just plug it in and you’re ready to go! Features : • Highly Efficient Dipole Antennas Provide Extensive Range of Operation • Enjoy Your Wireless Office Beyond the Range of Ethernet Networking • Auto Fall-Back Data Rate for Long-Distance Communication and Noisy Environments • High-Speed Data Transfer Rate Up to 11 Mbps • Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment • Features Roaming, Best Access Point Selection, Load Balancing, and Network Traffic Filtering • 40-Bit Wired Equivalent Privacy • Free Software Driver Upgrades • Compatible with Virtually All Major Operating Systems • Auto Fallback Data Rate for Long-Distance Communication and Noisy Environments System Requirement : • A PC with USB Support or Ethernet Connection • Windows 95, 98, Millennium, 2000 Professional ∈ i NTER E POCH Connecting the Wireless Network Access Point to Your Network 1. Locate an optimum location for the Wireless Network Access Point. The best place for your Wireless Network Access Point is usually at the center of your wireless network, with line of sight to all of your mobile stations. 2. Fix the direction of the antenna. Try to place it in a position which can best cover your wireless network. Normally, the higher you place the antenna, the better the performance will be. The antenna’s position enhances the receiving sensitivity. 3. Connect an RJ-45 connector to the Wireless Network Access Point. Then, connect the other end of the Ethernet cable to a switch or hub. The Wireless Network Access Point will then be connected to your 10/100 Network. 4. Connect the AC Power Adapter to the Wireless Network Access Point’s Power Socket. Only use the power adapter supplied with the Wireless Network Access Point. Use of a different adapter may result in product dam-age. The Hardware Installation is complete. Configuring the Wireless Network Access Point The Wireless Network Access Point can be configured one of two ways, through the AP Utility or the Access Point SNMP Manager. AP Utility The AP Utility can be used when configuring the Wireless Network Access Point through a USB connection and is compatible with Windows 98, Millennium, and 2000. Access Point SNMP Manager The Access Point SNMP Manager can be used when configuring the Wireless Network Access Point through an Ethernet connection and is compatible with all Windows Operating Systems. ∈ i NTER E POCH Installing the USB Drivers for the Wireless Network Access Point Installing the Driver Software for Windows 98 1. Windows 98 will automatically identify the Wireless Network Access Point, once it is connected to the PC, and prompt you to install the necessary driver. Make sure that the Setup CD is inserted into your CD-ROM drive and click the Next button on the Add New Hardware Wizard screen to proceed. 2. Select Search for the best driver for your device. (Recommended) and click the Next button. This will search for the Windows 98 driver. ∈ i NTER E POCH 3. Windows will now ask you where to search for the driver software. Select Specify a location and type in the blank field D:\Driver (where “D” specifies your CD-ROM). Then, click the Next button. 4. Windows will now search for the driver. After Windows has acknowledged finding the driver, click the Next button. ∈ i NTER E POCH 5. Windows will now install the driver files. Click the Finish button when completed. Installing the Driver Software for Windows Millennium 1. Windows Millennium will automatically identify the Wireless Network Access Point, once it is connected to the PC, and prompt you to install the necessary driver. Make sure that the Setup CD is inserted into your CD-ROM drive. 2. Select Specify the location of the driver (Advanced) and click the Next button. This will search for the Windows Millennium driver. ∈ i NTER E POCH 3. Windows will now ask you where to search for the driver software. Select Specify a location and type in the blank field D:\Driver (where “D” specifies your CD-ROM). Then, click the Next button. 4. Windows will now search for the driver. After Windows has acknowledged finding the driver, click the Next button. ∈ i NTER E POCH 5. Windows will now install the driver files. Click the Finish button when completed. Installing the Driver Software for Windows 2000 1. Windows 2000 will automatically identify the Wireless Network Access Point, once it is connected to the PC, and prompt you to install the necessary driver. Make sure that the Setup CD is inserted into your CD-ROM drive and click the Next button on the Found New Hardware Wizard screen to proceed. ∈ i NTER E POCH 2. Select Search for a suitable driver for my device (recommanded) and click the Next button. This will search for the Windows 2000 driver. 3. Under “Optional Search Locations”, selec…

Text truncated - open the document above for the full version.

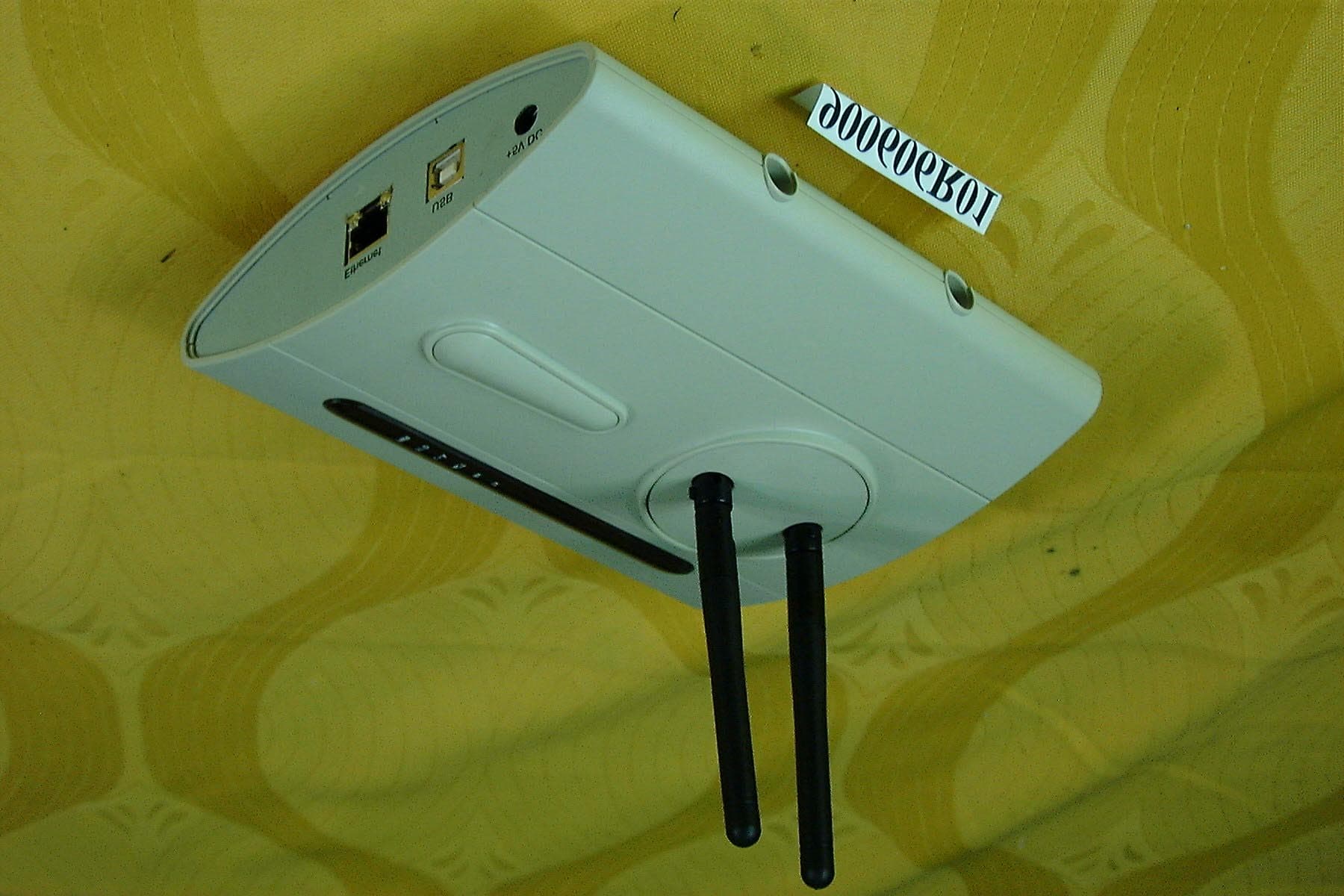

FCC ID: PRL-IWE1000 Report No.: RF900606R011Issued: July 6, 2001 ANNEX PHOTOGRAPHS OF EUT FCC ID: PRL-IWE1000 Report No.: RF900606R012Issued: July 6, 2001

FCC ID label location

FCC ID: PRL-IWE1000 Report No.: RF900606R013Issued: July 6, 2001 FCC ID: PRL-IWE1000 Report No.: RF900606R014Issued: July 6, 2001 FCC ID: PRL-IWE1000 Report No.: RF900606R015Issued: July 6, 2001

ADT Number: 900606R01 1 FCC TEST REPORT REPORT NO.: RF900606R01 MODEL NO.: IWE1000A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Interepoch Technology Inc. ADDRESS: 7F, No. 3, Alley 6, Lane 235, Pao Chiao Rd., Hsin-Tien, Taipei Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 Lab Code: 200102-0 ADT Number: 900606R01 2 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz ADT Number: 900606R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5 Climate Condition The temperature and related humidity: 30 deg. C and 60 % RH 6. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. ADT Number: 900606R01 4 7Test Results 7.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 1dBi or 1.26 (numeric). 7.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) EIRP OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124127.118.96 6243710.5913.35 11246211.4314.40 The minimum allowable distance is very close to the enclosure of the antenna. So, the user has no need to worry about the harmfulness of radiation. But it is recommended to always keep, at least, 20cm separation distance with the antenna.

FCC ID: PRL-IWE1000 Report No.: RF900606R03 1 Issued: July 16, 2001 ANNEX PROCESSING GAIN OF DIRECT SEQUENCE SPREAD SPECTRUM MEASUREMENT 1. 1.1. 1. LIMITS OF PROCESSING GAIN OF A DIRECT SEQUENCE SPREAD SPECTRUM MEASUREMENT The limit of processing gain is 10dB 1.1 TEST INSTRUMENTS & SUPPORT UNIT Description & ManufacturerModel No.Serial No. Anritsu Spectrum Analyzer, 9kHz to 30GHz MS2667CM10281 Anritsu Signal Generator, 10kHz to 20GHz 68247B984703 Hewlett Packard Power Meter,HP438A2743A04416 Hewlett Packard Power Sensor, -30 to 20dBm 8485A2942A08387 Hewlett Packard Step Attenuator, 10dB steps HP8496B3247A18505 Mini-Circuits Power SplitterZN2PD-9GNA DELL Laptop ComputerInspiron 5000eNA Campaq Laptop ComputerPPX99125 FCC ID: PRL-IWE1000 Report No.: RF900606R03 2 Issued: July 16, 2001 1.2 METHOD OF MEASUREMENT The processing gain may be measured using the CW jamming margin method. Section 4.7.4 shows the test configuration. The test consists of stepping a signal generator in 50 kHz increments across the passband of the system. At each point, the generator level required to produce the recommended Bit Error Rate (BER) is recorded. This level is jammer level. The output power of the transmitting unit is measured at the same point. The jammer to Signal (J/S) ratio is then calculated. Discard the worst 20% of the J/S data points. The lowest remaining J/S ratio is used when calculating the Process Gain. The reference PER is specified as 8%. The corresponding Es/No (signal to noise ratio per symbol) is 16.4 dB. The curve is attached as below. This value and the measured J/S ratio are used in the following equation to calculate the Process Gain (Gp) of the system. Where: (S/N) o : Signal to noise ratio for the chosen BER. Gp = (S/N)+Mj+Lsys FCC ID: PRL-IWE1000 Report No.: RF900606R03 3 Issued: July 16, 2001 Mj : Maximum jammer to Signal Ratio recorded at the detected BER. Lsys : System losses . For the purpose of this processing gain calculation, we assume Lsys at its minimum value of 2 dB. TEST SETUP 7 NOTEBOOK EUT ANRITSU SIGNAL GENERATOR EUT NOTEBOOK PWR SENSOR 8485A Power meter HP 438A Mini-Circuits 15542 ZNZPD-9G HP8496D STEP ATTN 110dB (10dB steps) Matched Cables RECEIVER Transmitter FCC ID: PRL-IWE1000 Report No.: RF900606R03 4 Issued: July 16, 2001 1.3 TEST PROCEDURES Obtain the simplex link shown. Perform all independent instrumentation calibrations prior to this procedure. Set operating power levels using fixed and variable attenuators in system to meet the following objectives: Signal Power at receiver approximately –55dBm (above thermal sensitivity such that thermal noise does not cause bit errors. Signal Power at power meter between –20 and –30dBm for optimal linearity. Use spectrum analyzer to monitor test. Ensure that CW Jammer generator RF output is disabled and measure the power at the power meter port using the power meter. This is the relative signal power, Sr. Disable Transmitter, and set CW Jammer generator RF output frequency equal to the carrier frequency and enable generator output. Set reference CW Jammer power level at power meter port 8.4dB below Sr (minimum J/S, or 10dB processing gain reference level). Note the power level setting on the generator, this is the reference CW Jammer power setting, Jr. Disable CW Jammer, re-establish link. PER test should be operating essentially error -free. Enable CW Jammer at the reference power level and verify that the PER test indicates a PER of less than 8%. Alternatively, adjust the CW Jammer level to that which causes 8% PER and verify that the S/J is less than 8.4dB. Repeat step 7 for uniform steps in frequency increments of 50 kHz across the receiver passband with the CW Jammer. In this case the receiver passband is +/- 8.5 MHz. The numerical data associated with the following radio channel is tabulated and presented for Channel 1,6, and 11. Note:Since the jamming signal will be blocked by the IF filter if the jamming frequency is far form the center of the carrier frequency. So, only those frequencies around carrier frequency are shown here. FCC ID: PRL-IWE1000 Report No.: RF900606R03 5 Issued: July 16, 2001 1.4 EUT OPERATING CONDITION The software provided by client to set the EUT to transmit at lowest, middle and highest channel. 1.5 TEST RESULTS EUTWireless USB AdapterModelIWE100U Environmental Conditions30°C, 60%RHTe s t e d B yGary Chang Although the theoretical processing gain is lower than 10 dB, but the CCK coding provides an extra coding gain of 2.2dB. 11Mbps CHANNEL 1 Processing Gain FrequencyGp(S/N)Mj = J/SLsys (GHz)(dB)(dB)(dB)(dB) 2.40800 12.4 16.4 -4.5 1 2.40805 13.1 16.4 -4.1 1 2.40810 12.8 16.4 -4.0 1 2.40815 13.2 16.4 -4.7 1 2.40820 12.9 16.4 -4.5 1 2.40825 12.4 16.4 -5.0 1 2.40830 12.9 16.4 -4.5 1 2.40835 13.5 16.4 -4.3 1 2.40840 12.0 16.4 -5.0 1 2.40845 12.0 16.4 -5.4 1 2.40850 13.1 16.4 -4.6 1 2.40855 12.9 16.4 -4.8 1 2.40860 12.7 16.4 -4.7 1 2.40865 12.0 16.4 -5.4 1 2.40870 11.9 16.4 -5.5 1 2.40875 11.9 16.4 -5.5 1 2.40880 12.0 16.4 -5.4 1 2.40885 12.2 16.4 -5.0 1 2.40890 11.8 16.4 -5.4 1 2.40895 12.1 16.4 -5.3 1 2.40900 12.0 16.4 -5.4 1 2.40950 11.0 16.4 -6.4 1 FCC ID: PRL-IWE1000 Report No.: RF900606R03 6 Issued: July 16, 2001 11Mbps CHANNEL 1 Processing Gain FrequencyGp(S/N)Mj = J/SLsys (GHz)(dB)(dB)(dB)(dB) 2.40955 11.4 16.4 -6.0 1 2.40960 11.2 16.4 -6.4 1 2.40965 11.8 16.4 -5.6 1 2.40970 11.7 16.4 -5.7 1 2.40975 11.3 16.4 -6.1 1 2.40980 11.4 16.4 -6.0 1 2.40985 11.0 16.4 -6.4 1 2.40990 10.9 16.4 -6.9 1 2.40995 10.9 16.4 -6.5 1 2.41000 10.4 16.4 -7.0 1 2.41005 11.2 16.4 -6.2 1 2.41010 11.4 16.4 -6.0 1 2.41015 11.5 16.4 -5.9 1 2.41020 11.9 16.4 -5.8 1 2.41025 11.0 16.4 -6.4 1 2.41030 11.2 16.4 -6.2 1 2.41035 11.6 16.4 -5.8 1 2.41040 12.1 16.4 -5.9 1 2.41045 11.8 16.4 -5.8 1 2.41050 11.0 16.4 -6.4 1 2.41055 10.9 16.4 -6.5 1 2.41060 10.8 16.4 -6.6 1 2.41065 11.0 16.4 -6.4 1 2.41070 11.6 16.4 -5.8 1 2.41075 11.7 16.4 -5.7 1 2.41080 11.4 16.4 -5.6 1 2.41085 11.6 16.4 -5.8 1 2.41090 11.9 16.4 -5.5 1 2.41095 12…
