PRL-IWE1700-A11Mbps Internet Access Server Appliance

IEEE 802.11b Wireless Access Point Pro/Advanced User’s Guide Version: 2.12 Last Updated: 05/14/2004 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated ra- dio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is en- couraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. z z z z Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is con- nected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example – use only shielded interface cables when connecting to computer or peripheral devices). Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or trans- mitter. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment. This equipment should be installed and operated with minimum distance 20 cm between the ra- diator & your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi- tions: (1) This device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. i R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Termi- nal Equipment and Satellite Earth Station Equipment) as of April 8,2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. How- ever, special attention must be paid to the dangers of electric shock and static electricity when work- ing with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria, Belgium, Denmark, Finland, France (with Frequency channel restrictions), Germany, Greece, Ireland, Italy, Luxembourg, Portugal, Spain, Sweden, The Netherlands, and United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states Norway and Swit- zerland. EU Countries Not Intended for Use None. Potential Restrictive Use France: only channels 10, 11, 12, and 13. ii Table of Contents 1. Introduction.........................................................................................................................1 1.1. Overview...................................................................................................................1 1.2. Features.................................................................................................................... 1 1.3. Feature Comparison.................................................................................................3 1.4. LED Definitions .........................................................................................................4 2. First-Time Installation and Configuration............................................................................5 2.1. Selecting a Power Supply Method ............................................................................5 2.2. Mounting the AP on a Wall.......................................................................................5 2.3. Preparing for Configuration.......................................................................................6 2.3.1. Connecting the Managing Computer and the AP...........................................6 2.3.2. Changing the TCP/IP Settings of the Managing Computer............................7 2.4. Configuring the AP....................................................................................................7 2.4.1. Entering the User Name and Password.........................................................7 2.4.2. Step 1: Selecting an Operational Mode..........................................................9 2.4.3. Step 2: Configuring TCP/IP Settings............................................................10 2.4.4. Step 3: Configuring IEEE 802.11 Settings....................................................11 2.4.5. Step 4: Reviewing and Applying Settings.....................................................11 2.5. Deploying the AP....................................................................................................12 2.6. Setting up Client Computers...................................................................................13 2.6.1. Configuring IEEE 802.11b-Related Settings................................................13 2.6.2. Configuring TCP/IP-Related Settings...........................................................14 2.7. Confirming the Settings of the AP and Client Computers...................................…

Text truncated - open the document above for the full version.

Interepoch Technology, Inc. 6F, No.1, Alley 1, Lane 235, Pao-Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Federal Communications Commission Dear Sir: We, the undersigned, hereby authorize ETS Dr.Genz Taiwan PS Co., Ltd. to act on our behalf in all matters relating to application for“ ( Model : IWE1700, FCC ID: PRL-IWE1700-A )”authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Dr.Genz Taiwan PS Co., Ltd. on our behalf shall have the same effect as acts of our own. The applicant certifies that in the case of an individual applicant ( e.g., corporation ), no party to the applicant is subject to a denial of federal benefits, that includes FCC benefits, pursuant to section 5301 of the Anti-drug abuse Act of 1988, 21 U.S.C. 862. For a definition of a “party” for these purposes See 47 C.F.R. 1.2002 (b). By: By: Jason Liu (Signature) (Printed) Title : Product Manager Applicant : Interepoch Technology, Inc. Address : 6F, No.1, Alley 1, Lane 235, Pao-Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Tel : +886-2-8665-0305 Fax: +886-2-8665-0306 Date : March 31, 2005

Interepoch Technology, Inc. 6F, No.1, Alley 1, Lane 235, Pao-Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Federal Communications Commission FCC ID: PRL-IWE1700-A Dear Sir: This is to request confidentiality on information submitted for above application. We would like to request confidentiality on some exhibits we submitted for above original application for the reason of trade secret. If those exhibits are available for public inspection, any person who once gets the information contained in those exhibits will be able to design and to make the same products very easily. This is a very serious problem and huge loss for us, because we did invest so much on it. Please be not made the Exhibit Types listed below routinely available for public inspection: Part List Schematics By: By: Jason Liu (Signature) (Printed) Title : Product Manager Applicant : Interepoch Technology, Inc. Address : 6F, No.1, Alley 1, Lane 235, Pao-Chiao Rd., Hsin-Tien City, Taipei Hsien, Taiwan, R.O.C. Tel : +886-2-8665-0305 Fax: +886-2-8665-0306 Date : March 31, 2005

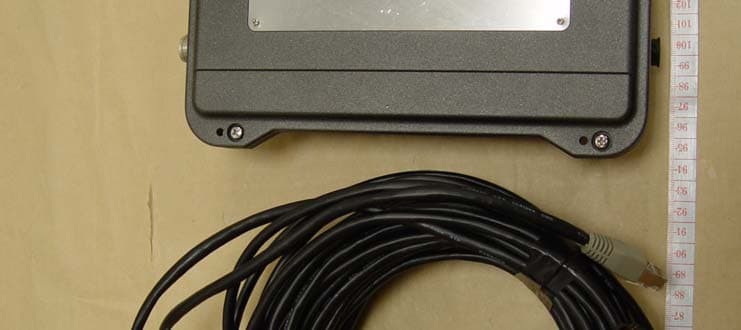

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. External Photo ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd.

100 mm 45mm

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.96 (dBm) Maximum peak output power at antenna input terminal: 78.70458 (mW) Antenna gain(maximal): 2.0 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0156577 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

ETS Dr.Genz Taiwan PS Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 Accredited Testing Laboratory A2LA Cert.No.: 2300.01 FCC TEST - REPORT FCC Part 15 C for IEEE 802.11 b device FCC ID: PRL-IWE1700-A Test report no.: W6M20503-5771-C-1 ETS DR.GENZ TAIWAN PS CO., LTD. 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU, TAIPEI 114, TAIWAN, R.O.C. PHONE 886-2-66068877 FAX 886-2-66068879 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. 2 of 31 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 3 1.1 N OTES................................................................................................................................... 3 1.2 T ESTING LABORATORY......................................................................................................... 4 1.2.1 Location .......................................................................................................................4 1.2.2 Details of accreditation status ..................................................................................... 4 1.3 D ETAILS OF APPROVAL HOLDER............................................................................................ 4 1.4 A PPLICATION DETAILS.......................................................................................................... 5 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 5 1.6 T EST STANDARDS.................................................................................................................. 6 2 TECHNICAL TEST ..................................................................................................................7 2.1 S UMMARY OF TEST RESULTS................................................................................................. 7 2.2 T EST ENVIRONMENT.............................................................................................................. 7 2.3 T EST EQUIPMENT LIST.......................................................................................................... 8 2.4 G ENERAL TEST PROCEDURE............................................................................................... 11 3 TEST RESULTS (ENCLOSURE).......................................................................................... 13 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 E QUIVALENT ISOTROPIC RADIATED POWER......................................................................... 15 3.2.1 Transmitter................................................................................................................. 15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 16 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 17 3.6 M INIMUM 6 DB BANDWIDTH.............................................................................................. 21 3.7 P EAK POWER SPECTRAL DENSITY....................................................................................... 22 3.8 P OWER LINE CONDUCTED EMISSION.................................................................................. 23 APPENDIX ....................................................................................................................................... 24 A PPENDIX A.................................................................................................................................... 25 A PPENDIX B .................................................................................................................................... 26 A PPENDIX C .................................................................................................................................... 27 A PPENDIX D.................................................................................................................................... 28 A PPENDIX E .................................................................................................................................... 29 A PPENDIX F .................................................................................................................................... 30 A PPENDIX G.................................................................................................................................... 31 ETS Dr.Genz Taiwan PS CO., Ltd. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. 3 of 31 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS DR. GENZ TAIWAN PS CO., LTD.…

Text truncated - open the document above for the full version.

ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. Set Up Photo ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd. ETS DR.GENZ TAIWAN PS CO., LTD. Registration number: W6M20503-5771-C-1 FCC ID: PRL-IWE1700-A ETS Dr.Genz Taiwan PS Co., Ltd.
