PROEDDY-WIFIV3WiFi Module

16F Daerung Post Tower-1, 212-8, Guro-dong, Seoul, Korea Eddy-WiFi V3.0 Pursuant to 47 CFR Part 0, section 0.459, we herewith submit a request for non-disclosure of the following exhibits, related to this application for FCC ID : PROEDDY-WIFIV3 The contents of the exhibits as listed below under 1-4 may not be disclosed to any other party than company name and must be temporary with held from public inspection under 5 U.S.C552 (b)(4) and must be temporary kept confidential. 1. External photographs 2. Inter photographs 3. User manual 4. Test-setup photographs The short-term confidentiality is scheduled to terminate on 06. 30. 2012. The reason for this request for short-term confidentiality is that the information contained in the exhibits as listed above has been classified as being temporary company confidential (with reference to 47 CFR Part 0, section 0.457(d)). Disclosure of any portion of this information to other parties prior to the date of the actual marketing of the device would cause substantial competitive harm. I, as the applicant, understand and have taken notice of the following. (a) The maximum period for short-term confidentiality is 180 days, counting from the date of issue of the Grant (b) The applicant shall inform the TCB about the date on which the device will be actually marketed. Such a notification must be received by the TCB before the date of actual marketing. The short-term confidentiality will then terminate before or on the date of the actual marketing of the device. (c) If no request from the applicant is received by the TCB for releasing the short- term confidentiality, it will terminate automatically after 180 days, counting from the date of issue of the Grant Your sincerely, Won Kyu Yeon / project manager

16F Daerung Post Tower-1, 212-8, Guro-dong, Seoul, Korea Tel. No. : 82-02-855-0501 Fax. No. : 82-02-855-0580 March 23, 2012 Federal Communications Commission Authorization and Evaluation Division FCC ID: PROEDDY-WIFIV3 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, (Won Kyu Yeon / project manager) (SystemBase Co., Ltd. )

Modular Approval Request FCC FCC ID: PROEDDY-WIFIV3 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Yes 3. The modular transmitter must have its own power supply regulation. Yes 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Yes 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Yes Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): Won Kyu Yeon Date: March 20. 2012 Signature:

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment: WiFi Module Trademark(s) and Model(s): / Eddy-WiFi V3.0 Manufacturer: SystemBase Co.,Ltd. FCC ID in case other parts of this equipment are subject to certification: PROEDDY-WIFIV3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: Issue date: 12-IST-0119 March 21. 2012 The f o llow ing manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: SystemBase Co.,Ltd. Name/Title (legal representative): Won Kyu Yeon / project manager Address: 16F Daerung Post Tower-1, 212-8, Guro-dong, Seoul, Korea Phone: 82-02-855-0501 Fax: 82-02-855-0580 E-mail: [email protected] Date: March 21. 2012 Signature: FCC

Label Location Module PCB

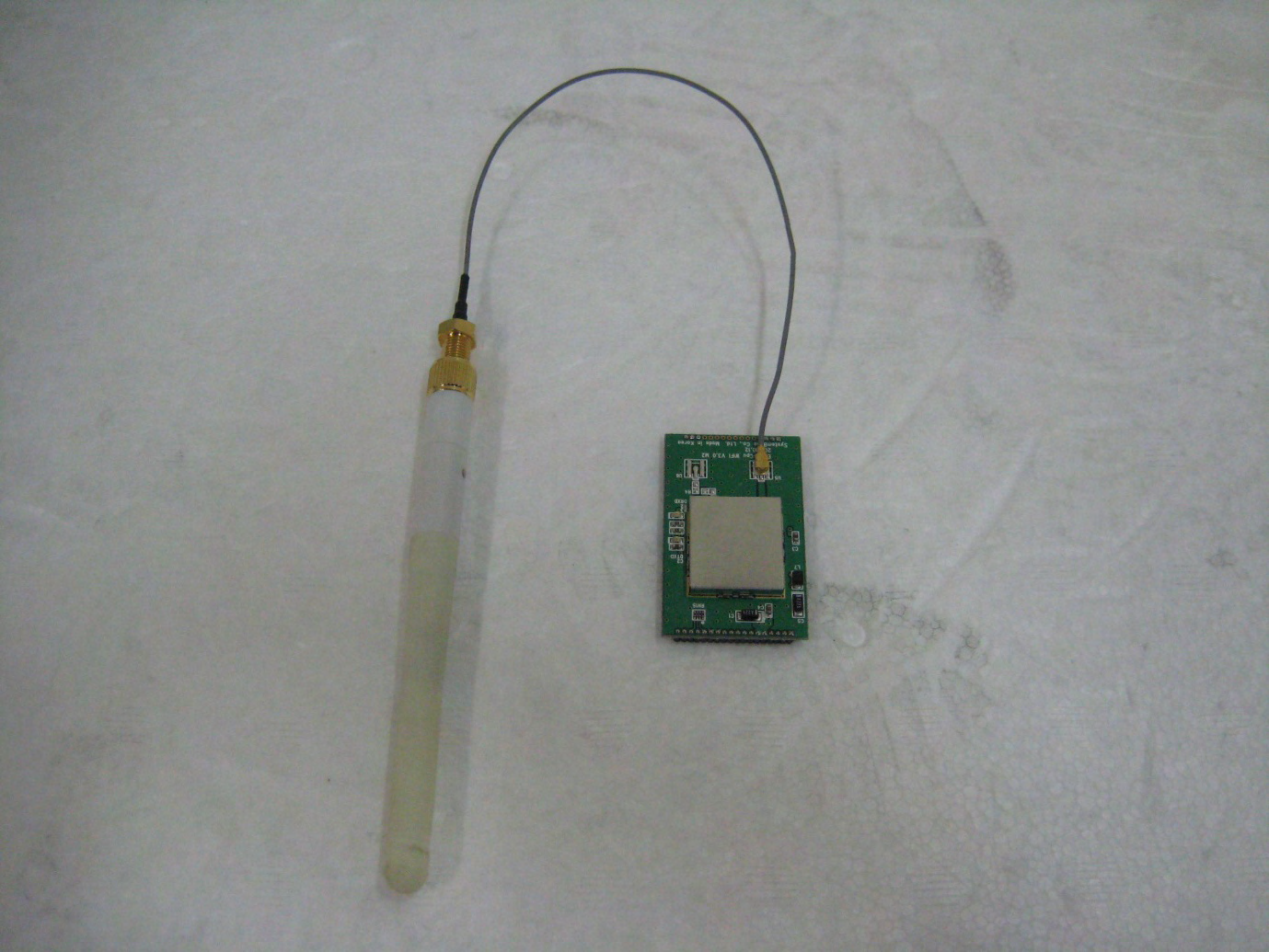

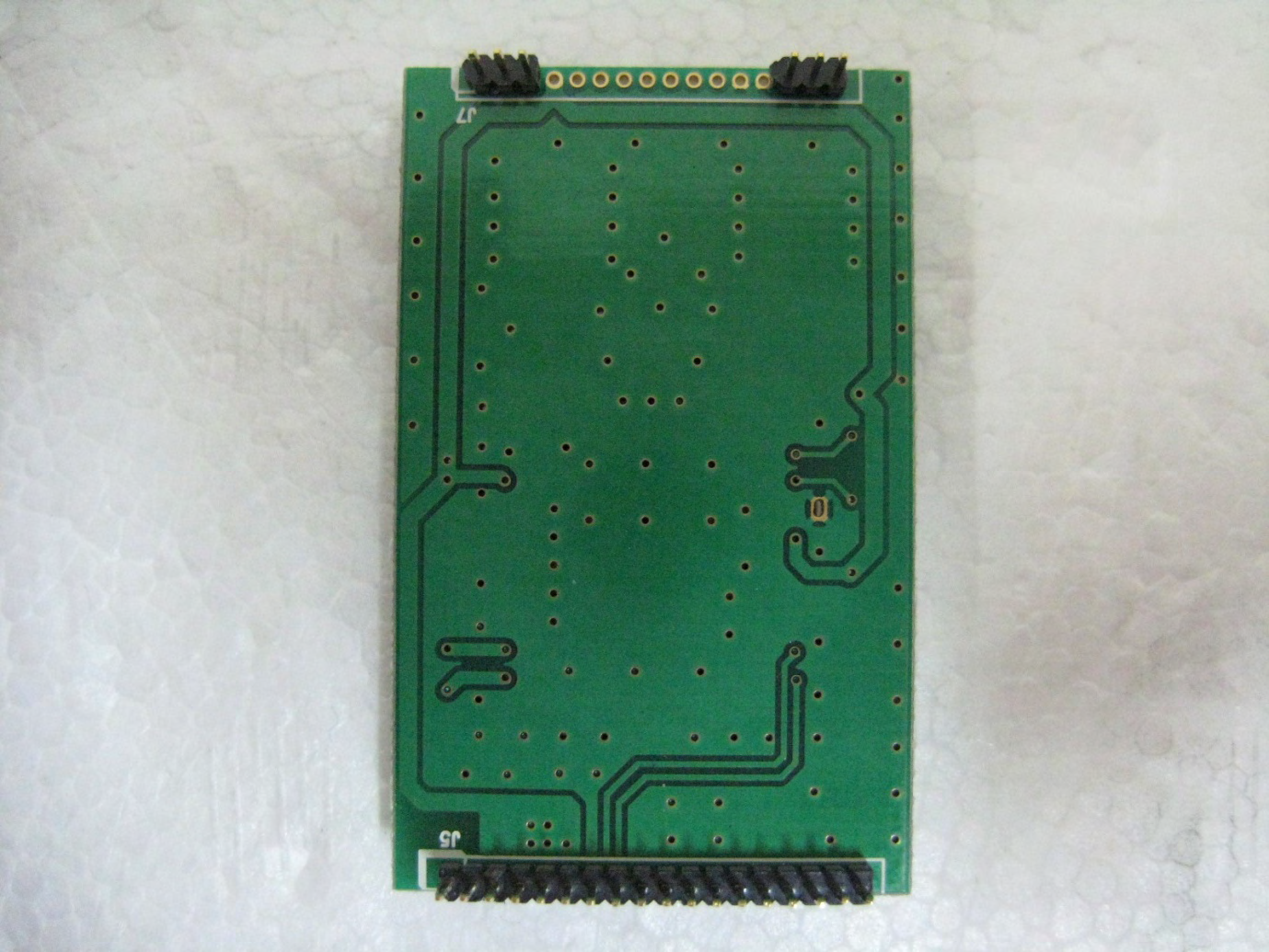

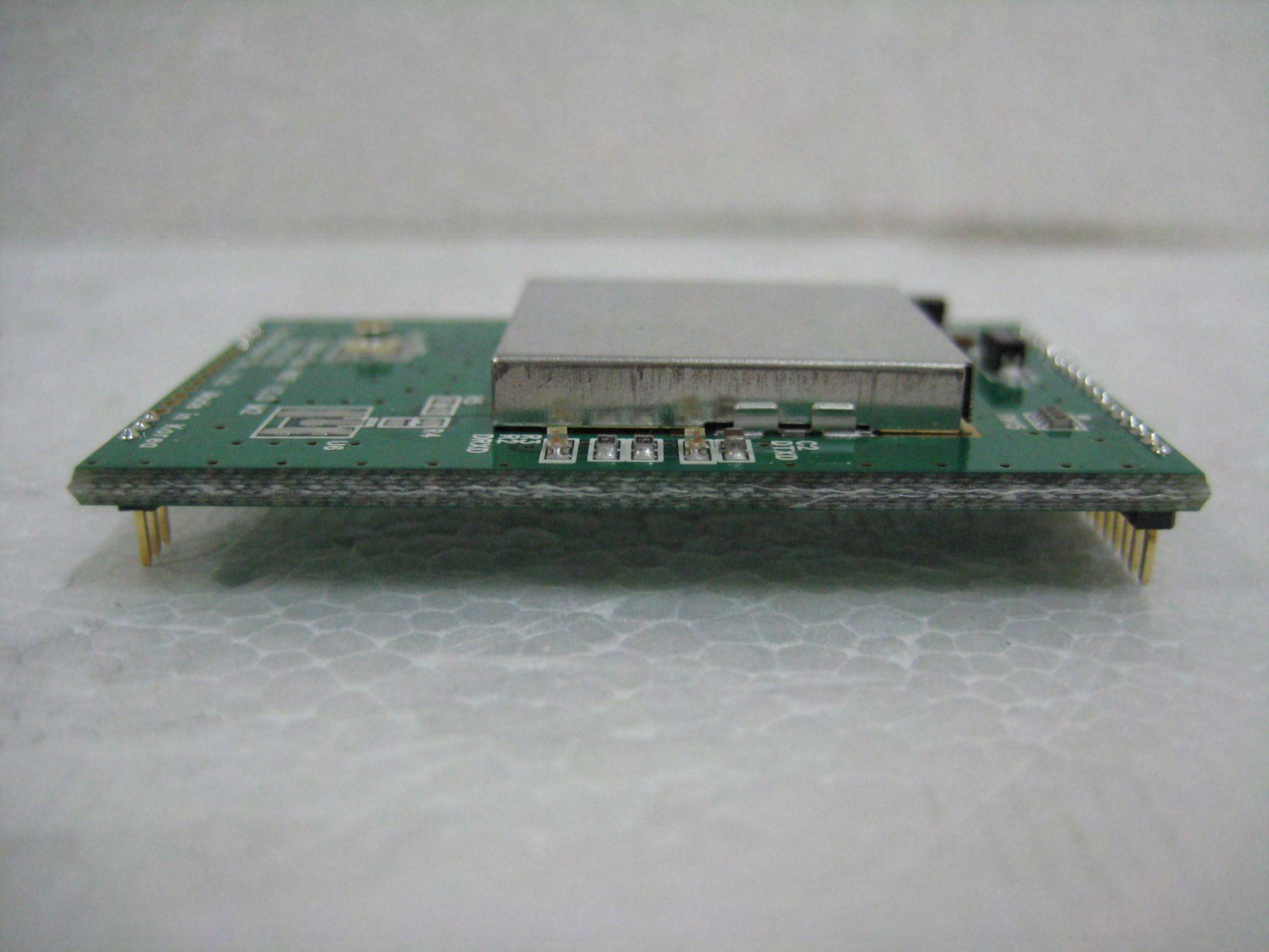

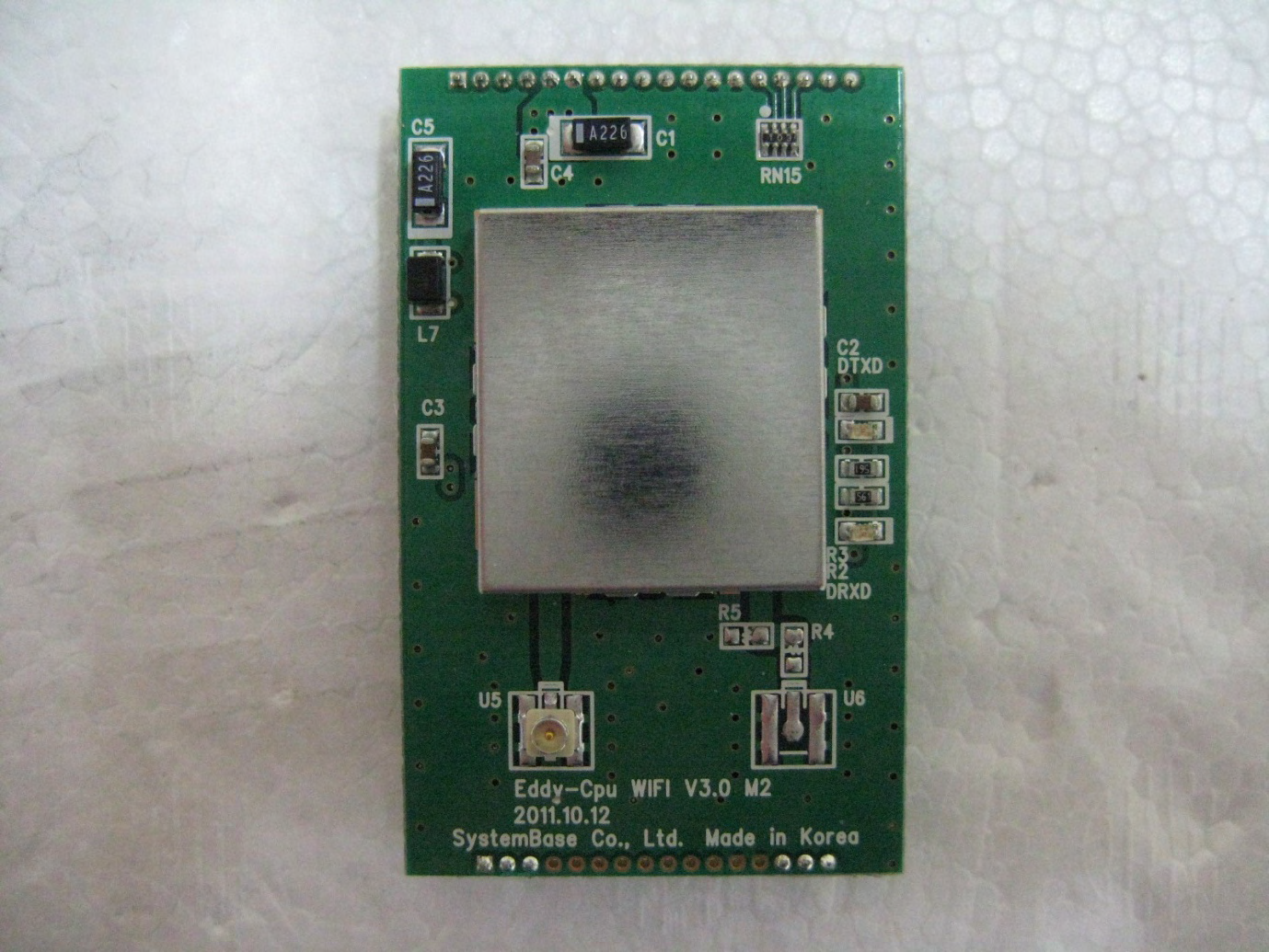

A B Photo 1: support board as test bed, not a part of the RF module Photo 2: support board = test bed (zoom in) A B Photo 3: WiFi module (front) Photo 4: WiFi module (front side, shield removed from RF board, front side RF board) Photo 5: WiFi module (back side) Photo 6: RF board (back side)

IST Co., Ltd EMC LABORATORY 1 of 2 RF Exposure According 15.247(b)(4) and 1.307(b)(1) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to 1.1310 and 2.1093 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electronic Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 *(100) 30 1.34 – 30 824/f 2.19/f *(180/f 2 ) 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 / / f/1500 30 1500 - 15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equivalent power density IST Co., Ltd EMC LABORATORY 2 of 2 RF exposure calculations EUT Eddy-WiFi V3.0 Operating Frequency Band 2412 ~ 2462 Exposure Classification General Population / Uncontrolled exposure ( S = 1 mW/ cm 2 ) Max. Output Power 14.06 dBm ( 25.46 mW ) Antenna Gain(Max) 3 dBi ( Numeric Gain : 2) Evaluation Applied MPE Evaluation Note : 1. The maximum output power is 14.06 dBm ( 25.46 mW ) at 2462 MHz. 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. S = (P*G)/4πR 2 Where, S = Power Density ( mW/cm 2 ) P = Output Power to Antenna ( mW ) G = Gain of antenna in numeric R = Distance between radiating structure and observation point ( cm ) Then, the power density ( S ) = (25.46 * 2) / 4 * 3.1416 * 20 2 ) = 0.01013 ( mW/cm 2 ) Note : The power density at 20 cm does not exceed the 1 mW/cm 2 limit. Therefore, the exposure condition is compliant with FCC rules.

IST Co., Ltd. TEST REPORT NO. : 12-IST-0119 2 of 39 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. TABLE OF CONTENTS Table of contents 2 Information of test laboratory 3 Description of the Equipment uder Test 4 Measurement Uncertainty, 5 Summary of the test results 6 - Conducted Emission 7 - Radiated Emission 12 - Peak Power Output 19 - Band edge 23 - 6dB Bandwidth 31 - Power Density 35 - Antenna Requirements 39 IST Co., Ltd. TEST REPORT NO. : 12-IST-0119 3 of 39 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. INFORMATION OF TEST LABORATORY IST Co., Ltd. 400-19, Singal-dong, Giheung-gu, Yongin-si, Gyeonggi-do, 446-599, Korea TEL : +82 31 326 6700 FAX : +82 31 326 6797 KOLAS Testing No. : 118 RRA Designation No. : KR0018 FCC Registration No. : 400603 FCC(DoC) Registration No. : 801060 VCCI Member No. : 1739 ENVIRONMENTAL CONDITIONS Temperature 18 °C Humidity 38 % Atmospheric pressure 1018 mbar POWER SUPPLY SYSTEM USED Power supply system DC 3.3 V (Refer to the product information) IST Co., Ltd. TEST REPORT NO. : 12-IST-0119 4 of 39 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Description of the Equipment under Test Application WiFi Module Model No. Eddy-WiFi v3.0 Serial No. N/A Standard 802.11b, 802.11g, 802.11n(HT20) Type of Modulation 802.11b : CCK, DQPSK, DBSPK 802.11g : 64QAM, 16QAM, QPSK, BPSK 802.11n(HT20) : BPSK, QPSK, 16-QAM, 64-QAM Data Rate 802.11b : 11, 5.5, 2, 1 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 802.11n(HT20): 130, 117, 104, 78, 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Duty Cycle 100% Dwell time per channel N/A Specification(s) FCC CFR47 PART 15 SUBPART C Type of Unit Built in Output power Conducted 802.11b: 14.06 dBm, 25.4 mW Conducted 802.11g: 12.35 dBm, 17.1 mW Conducted 802.11n(HT20): 12.48 dBm, 17.7 mW Frequency alignment range ISM band 2.4GHz ~ 2483.5MHz Channel switching frequency range Fixed frequency: 2412~2462 MHz Number of Channel 11 Power Source DC 3.3 V Antenna Gain Dipole antenna 3 dBi Dimension 28.2 X 45.4 X 9.6 mm Note: All the testing were performed according to the procedures in FCC CFR47 PART 15 SUBPART C IST Co., Ltd. TEST REPORT NO. : 12-IST-0119 5 of 39 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. Measurement Uncertainty Calculations The measurement uncertainties stated were calculated in accordance with the requirements of NIST Technical Note 1297 and NIS 81 (1994). TYPE Contribution Probability Distribution Uncertainty Remark B AMN Impedance Triangular +2.6/-2.7 dB CISPR Voltage Division Factor normal(k=2) ±0.2 Attenuation : AMN to Receiver normal(k=2) ±0.1 Receiver(ESCI(S/N:100374)) Sine-Wave Voltage Accuracy normal(k=2) ±1.0 dB CISPR Pulse Amplitude Response Rectangular ±1.5 dB Pulse Repetition Rate Response Rectangular ±1.5 dB Mismatch AMN to Receiver U-Shaped +0.7/-0.8 dB CISPR Reading normal(k=1) ±0.1 Combined Standard Uncertainty normal ± 1.8 dB Expanded Uncertainty U normal(k=2) ± 3.6 dB 95 % U = -3.70 / +3.42 (k=2, 95.45% confidence level) T Y P E Contribution Probability Distribution Uncertainty Remark B Antenna AF factor Normal(k=2) ±0.56 CAL. AF frequency interpolation Rectangular ±0.30 dB CISPR AF height deviations Rectangular ±0.50 dB CISPR ±0.30 dB directivity difference Rectangular +1.0/-0.0 dB CISPR phase center location(3 m) phase center location(10 m) Rectangular ±1.0 dB ±0.30 dB CISPR Receiver Sine Wave Voltage Accuracy Normal(k=2) ±0.20 dB CAL. Pulse Amplitude Sensibility Normal(k=2) ±0.40 dB CAL. Pulse Frequency Response Normal(k=2) ±0.57 dB CAL. Random Noise Normal(k=2) ±0.35 dB CAL. Mismatch : Antenna – receiver U-Shaped +0.9/-1.0 dB CISPR Table height Normal(k=2) ±0.01 dB CISPR Separation distance(3 m ) Separation distance(10 m ) Rectangular ±0.30 dB ±0.10 dB CISPR Combined standard Uncertainty Normal ± 1.13 Expanded Uncertainty U Normal(k=2) ± 2.26 dB 95 % U = ±2.26 (k=2, 95% confidence level) IST Co., Ltd. TEST REPORT NO. : 12-IST-0119 7 of 39 IST(02) 029 A4 모(101025) The test result only responds to the tested sample. This report shall not be reproduced except in full, without the allowance of the test laboratory. < Concept Drawing > 215 >150 >40 80 Receiver EUT LISN 80 ≥ 80 80 40 ≥ 80 Measuring apparatus Mains Filter Mains Rear side Equipment under test Coaxial cable Artificial mains network Screened room Non-metallic support 80 Conducted Emissions: The measurement were performed over the frequency range of 0.15 MHz to 30 MHz using a 50 Ω /50 uH LISN as the input transducer to a Spectrum Analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 10 kHz or for "quasi- peak" & “Average” within a bandwidth of 9 KHz. - Procedure of Test The line-conducted facility is located inside a shielded room No.1. A 1 m X 1.5 m wooden table 80 cm height is placed 40 cm away from the vertical wall and 1.5 m away from the other wall of the shielded room. The R/S ESCI and Hyup-Rip KNW-407 LISN are bonded to bottom of the shielded room. The EUT is located on the wooden table with distance more than 80 cm from the LISN and powered from the EMCO LISN .The peripheral equipment is powered from the other LISN. Power to the LISNs are filtered by a noise cut power line filters. All electrical cables are shielded by braided tinned steel tubing with inner φ 1.2 cm. If the EUT is a DC-powered device, power will be derived from the source power supply it normally will be powered from and this supply lines will be connected to the EMCO LISN. All interconnecting cables more than 1m w…
