Age Grade 15+6100-INS-US 2 SAFETY GUIDELINES It is important that you read and understand the instructions completely before use. Misuse of this product could cause fi re or injury. Please keep this manual and package since it contains important information. This product is not recommended for use by children less than 15 years of age without adult supervision. In the event of * Smoke * Burning smell * Strange sound * Water or any liquid coming into contact with the product * Or if it is dropped or damaged. ----> Remove the battery and contact your supplier. Please read before use * The manufacturer and distributor will accept no responsibility, expressed or implied for injuries caused as a result of dismantling or modifi cation. The place where you can play. CAN PLAY CANNOT PLAY Low Gear Dry asphalt road or ground On wet sand or mud uphill up to around 30 degree In puddles On rocks or gap around 10cm On deep sand On long grass High Gear Dry asphalt road or ground On wet sand or mud Flat place In puddles On deep sand On long grass On rough ground * When using in an unstable place, such as rocks, always pay attention that the car does not overturn. Attention during use * Any water ingress or moisture may cause damage or malfunction. Do not use in the rain or expose equipment to water. * Always drive an RC car with care and do not use in: 1. Crowded places, near other people, especially small children. 2. a place where there is another RC or similar transmitter nearby which could cause interference. 3. Confi ned spaces. In the wet, in fog or at night time. 4. Never operate when tired, sick, taking medication, under infl uence of alcohol or any other condition which may affect your ability to control the model. * Always turn on the TX fi rst and then the power to the car. * Reverse this procedure when turning off i.e. turn off the car and then the TX. * Never lose sight of your model which could result in damage or injury. To avoid unexpected accident, pay attention as below. * Do not play in the street or crowded place. * If there is thunder, please stop playing immediately. RC system attracts lightning bolt. * Do not hit or damage the car. * Be careful not to break furniture if you play indoors. * Do not bend the antenna. If antenna is broken it may cause injury. * Be careful not to trap fi nger, hair or clothes in the wheel or moving points. * This radio system should only be used in a radio control car G 3 Attention after use * Do not keep your car 1. In an extremely hot or cold place (more than 40°C/104°F, less than -10°C/14°F) 2. In direct sunlight 3. Humid atmosphere 4. Avoid excessive vibration 5. Dusty environment * Exposing this car to such conditions, may cause damage, degradation or malfunction. * Keep the car away from children. Essential information regarding batteries * When not in use always disconnect batteries. Leaving batteries connected can be very dangerous resulting in explosion or fi re. * Never short-circuit the connector terminal. This can cause explosion or fi re. * Only charge batteries with their own charger. * Do not dismantle batteries. Batteries contain dangerous chemicals. * Do not immerse batteries in water. * Always ensure correct polarity. * Note that alkaline batteries cannot be recharged. Make sure that batteries are rechargeable items before you charge them. * Do not mix different types of batteries. * Be careful of the sharp edges inside the battery box. * Exhausted batteries are to be removed from the toy. * Only batteries of the same type as recommended are used. In case of battery leakage Avoid eye contact, which may cause blindness. Rinse eyes immediately with water and consult your doctor. Battery disposal Do not dispose the battery with other general garbage. Disposal should be in accordance with your Country’s regulation. * Isolate battery terminals with insulating tape before disposal. Rechargeable batteries must be recycled. * Please note that short-circuiting batteries can cause fi re or electric shock. CONTENTS OF THE KIT Age Grade 15+6100-INS-US Transmitter Car Instruction manual AntennaAntenna PipeNi-MH Battery pack for car 9.6V / 750mAH Charger AA battery × 8 4 TRANSMITTER Transmitter other than the one included cannot be used with this product. FEATURES OF TRANSMITTER Steering Wheel Steering wheel rotates 7steps each to right and left. Throttle Trigger Throttle Trigger moves up 7 steps each to forward and backwards. HOW TO CHANGE TRANSMITTER BATTERIES * To remove the battery cover, push both of the tabs towards the centre, and then pull the cover. Please be careful that batteries may pop out when the cover is opened. * If the transmitter voltage indicator fails to register, check the contacts, especially the negative (-) terminals and recheck that batteries are fi tted correctly. * Different types of batteries or new and used batteries are not to be mixed. LED Blinking LED indicates that the batteries are getting weak. Change batteries when the LED turns off, the batteries are dead. Antenna Steering Wheel Battery Cover 7steps <-- -->7steps 7steps each Steering Trim R Pull Push Push Steering Trim L Battery box Steering Trim R Steering Trim L Throttle trigger ON/OFF Power Switch 5 CAR Front side of the car Under side of the car Bumper Steering servo unit Rear Tire (No Weight) High-Low gear selector switch Front Gear Unit Front tire (With Weight) ON/OFF Power Switch Main Chassis Unit Rear suspension 9.6V Ni-MH battery pack compartment Battery Lock cover High-Low gear selector switch Front suspension Antenna pipe Rear gear unit 6 START-UP HOW TO CHARGE THE BATTERY 1. Rechargeable batteries are to be removed from the car before being charged. 2. Tightly connect 9.6V battery pack and the charger. 3. Plug into standard outlet. 4. It will take about 4 hours to fully charge the battery pack. * Please do not charge the battery for more than 4 hours. 5. After charging the battery for 4hrs, remove the charger from the outlet and disconnect the charg…

Text truncated - open the document above for the full version.

7 Loading battery 1. Switch the car off 2. Unlock the snaps 3. Open the end cover 4. Connect the battery plug , connector or socket in correct polarity. 5. Fix the battery pack on the box evenly. 6. Close the end cover and lock the snaps. Turn the power switch on Pull the transmitter antenna out completely. The range of the remote control is reduced if the antenna is not pulled out completely. CAUTION : Always turn the transmitter’s power switch ON fi rst. SNAP ON/OFF Power switch on the car 8 How to control your car Raise the tires off the ground. Turn the steering wheel to the right and left as far as it will go. The wheels are to follow the steering direction. Steering Trim L Push the Steering Trim button L, then steering centre position will move to the left direction. Steering Trim R Push the Steering Trim button R, then steering centre position will move to the right direction. Attention Once you switch the product off, please adjust the steering again each time upon switch on again. For regulating the driving speed pull the trigger to the rear and/or forward. * PROTECT FUNCTION 1. If any excess power is added on the circuit or the battery, such as when tire is locked, the operation is stopped to protect the circuit. The operation will resume automatically after around 30 seconds. (Moter Protection) 2. If the same operation is made for around 45 second, it is considered miss operation and the operation is stopped automatically. If the operation is changed, it will resume automatically. (Abnormal Control Protection) Neutral LeftLeftRight STEERING TRIM L NEUTRAL FORWARDBACKWARD STEERING TRIM R Right LeftRight 9 Change the gear to High & Low CAUTION: 1. If the switch cannot be pushed smoothly, push it while turning the tire by hand. 2. The wheels will not turn if the gears are not set to high or low position completely. Change the switch of front and rear to High or Low position, Front and rear must always have the same setting, or the different setting will cause damage to the car. BATTERY SAFETY GUIDELINE 1. Take care to fi t your batteries correctly, observing the plus and minus marks on the battery and transmitter. 2. Replace the whole set of batteries at one time, taking care not to mix old and new batteries or batteries of different types. 3. The supply terminals are not to be short-circuited. Store unused batteries in their packaging and away from metal objects which may cause a short-circuit. 4. Remove dead batteries from transmitter and all batteries from transmitter you know you are not going to use for a long time. Otherwise the batteries may leak and cause damage. 5. Never dispose of batteries in fi re as this may cause them to explode. Please put dead batteries in with the normal household waste. 6. Never attempt to recharge ordinary batteries, either in a charger or by applying heat to them. There are special rechargeable batteries which are marked as such. 7. Supervise children if they are replacing batteries themselves in order to ensure these guidelines are followed. Trouble Shooting Problem Cause Correction Car doesn’t move Transmitter or chassis power switch is not “ON”. Switch power on. Polarity or battery type is wrong. Check the battery polarity and type. Battery has run down. Change batteries to new one or charge them. High/Low gear switch are not properly engaged. Set the front/rear switch so fully engaged. Loss of control Batteries have run down. Change batteries to new one or charge them. Antenna is missing or not attached properly. Attach antenna correctly and extend transmitter antenna to full length. Same frequency R/C model is using nearby. Run model in different area. Car doesn’t run straight Steering trim is not adjusted correctly. Adjust the trim correctly. Front and rear wheel nuts are too loose Tighten wheel nuts. Car is running too slowly Batteries have run down. Change batteries to new one or charge them. Short range Batteries have run down. Change batteries to new one or charge them. Low HighLow High PUSH Push and slide to change gear setting SLIDE 10 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. lncrease the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an expenenced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA Color, style and decoration may vary. Distributed by Bandai America Incorporated, 5551 Katella Avenue, Cypress, California 90630. X-Crawlee is a trademark of Bandai. BANDAI logo: ® and © 2010 Bandai. All rights reserved. Warning: Changes or modifi cations to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 11 Exploded drawing 12 9.6V Ni-MH battery Front Gear box unit Rear gear box unit Servo set TX unit 9.6V Ni-MH battery charger Front tire set (with weight) Rear tire set Suspension set Body set M…

Text truncated - open the document above for the full version.

12V 88156 1217AB U2 78L05

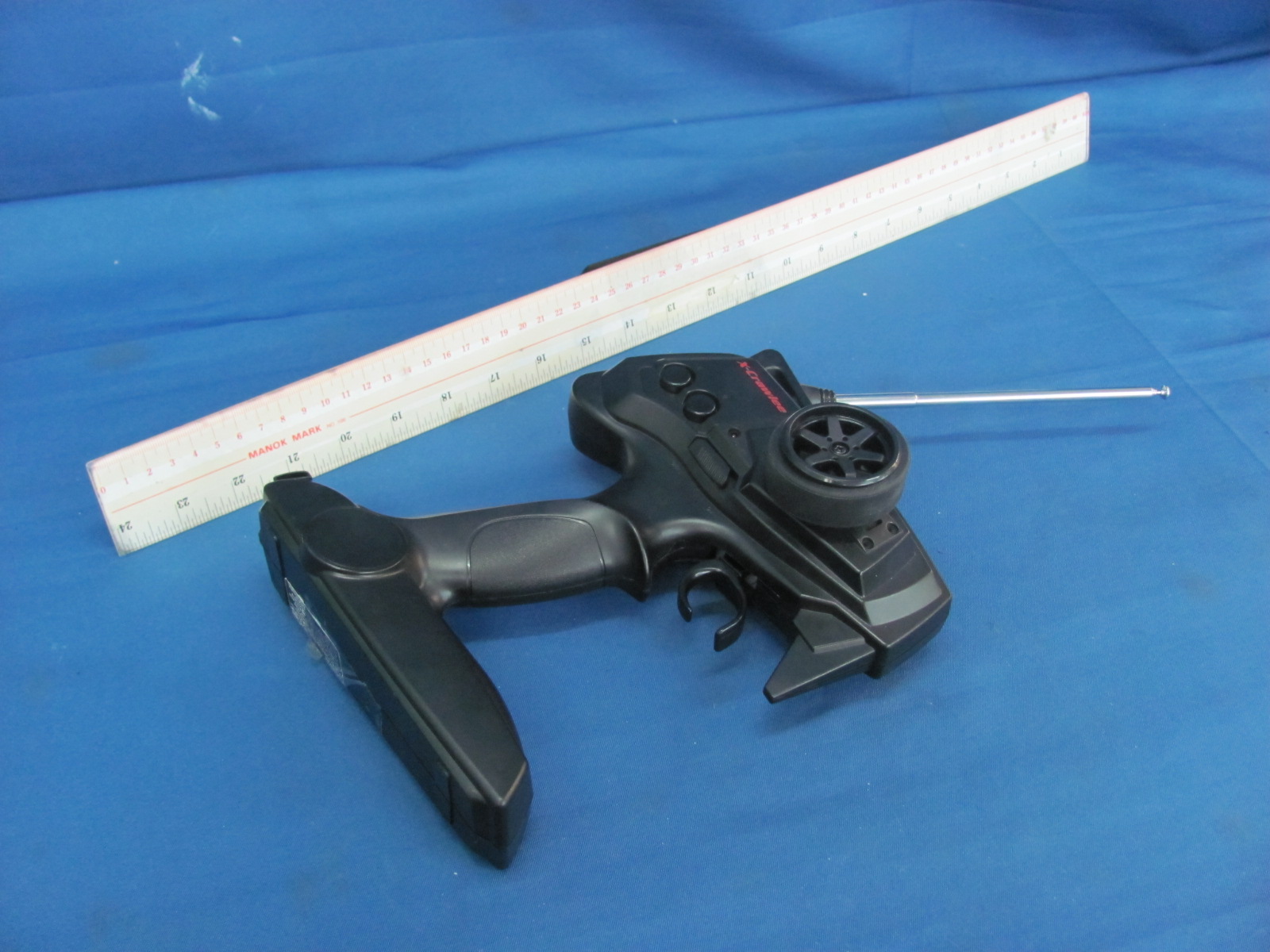

INTERTEK TESTING SERVICE Report No.: HK10070526-1 FCC ID: PSN-6100-TX27 Equipment Photographs Model : 88156 (External) INTERTEK TESTING SERVICE Report No.: HK10070526-1 FCC ID: PSN-6100-TX27 Equipment Photographs Model : 88156 (External)

FCC LABEL Label size:22X42mm

INTERTEK TESTING SERVICE Report No.: HK10070526-1 FCC ID: PSN-6100-TX27 Equipment Photographs Model : 88156 (Internal) INTERTEK TESTING SERVICE Report No.: HK10070526-1 FCC ID: PSN-6100-TX27 Equipment Photographs Model : LP210 (Internal) INTERTEK TESTING SERVICE Report No.: HK10070526-1 FCC ID: PSN-6100-TX27 Equipment Photographs Model : LP210 (Internal)

Technical Description: The brief circuit description is listed as follows: - Y1, Q1 and associated circuit act as 27.145MHz Oscillator. - Q2 and associated circuit act as RF Amplifier and Modulation. - U1, Y2 (4MHz clock) and associated circuit act as Encoder. - U2 and associated circuit act as Voltage Regulator. - T1, C10, C12 & C31 associated circuit act as Low Pass Filter. Antenna Used: External, Telescope-type antenna (with unique antenna connector)
