PSNPG-24012.4G Basic Radio Control System with Servo Unit

It is important that you read and understand the instructions completely before use. Misuse of this product could cause fire or injury. Please keep this manual for future reference in order to prevent accidents. This product is not recommended for use by children less than 14 years of age without adult supervision. Please read before use This product is designed only for radio control ground models. Not recommended for use in boats or flying models. The manufacturer and distributor will accept no responsibility, expressed or implied, for accidents or injuries caused as a result of dismantling or modification. Please plug the connector into the receiver firmly and in the correct direction. Do not damage the cable, break, modify, pull or twist it. When pulling out the connector, it should always be pulled by its housing not by the cable. Keep fuel and exhaust away from plastic parts. This may cause damage or malfunction. Attention during use Any water ingress or moisture may cause damage or malfunction. Do not use in the rain or expose equipment to water. Always drive an RC car with care and do not use in: 1 Crowded places, near other people, especially small children. 2 Confined spaces. In the wet, in fog or at night time. 3 When tried, sick, medication, under influence of alcohol or any other condition which may affect your ability to control the model. Changes to the TX settings should only be made when the engine has stopped (or motor wires disconnected). Always turn on the TX first and then the power to the RX. Reverse this procedure when turning off i.e. turn off the RX and then the TX. Always check the fail safe function on Nitro cars in prior to running the model. Never loose sight of your model which could result in damage or injury. After the smoke has cleared, check if the item has cooled. 1 2 3 4 5 Stop the engine and motor of the model. Turn the receiver switch off. Turn the transmitter switch off. Remove the battery and contact your supplier . That changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In the event of SAFETY GUIDELINES In the event of Smoke Burning smell Strange sound Water or any liquid coming into contact with the product Or if it is dropped or damaged. 1 Attention after use Do not keep your model 1 In an extremely hot or cold place (more than 40 degree, less than -10 degree C.) 2 In direct sunlight 3 Humid atmosphere 4 Avoid excessive vibration 5 Dusty environment ! Exposing this equipment to such conditions, may cuase the damage, degradation or malfunction. Keep the model away from children. Essential information regarding batteries When not in use always disconnect batteries. Leaving batteries connected can be very dangerous resulting in explosion or fire. Never short-circuit the connecter terminal. This can cause explosion or fire. Only ever charge TX batteries with their own charger. Do not dismantle batteries. Batteries contain dangerous chemicals. Do not immerse batteries in water. Always ensure correct polarity. Note that alkaline batteries cannot be recharged. Make sure that batteries are rechargeable items before you charge them. Do not mix different types of batteries. Be careful of the sharp edges inside the battery box. Battery disposal Do not dispose the battery with other general garbage. Disposal should be in accordance with your Country's legislation. Isolate battery terminals with insulating tape before disposal. Rechargeable batteries must be recycled. Please note that short-circuiting batteries can cause fire or electric shock. 2.4GHz CHARACTERISTICS This system allows the transmitter and receiver to search for available bands empty band and lock on to one of 76 available on the 2.4GHz frequency. This eliminates the traditional method of using crystals. Each transmitter hold its own I.D. Receivers never operate with other transmitters. It also is not necessary to switch on TX and then RX as with traditional radio system. The control signal is high speed digital and it is recognized by RX CPU. In a fully charged state function. the car should be in full control at all times. You can also select hold function or fail safe In case of battery leakage Avoid eye contact, which may cause blindness. Rinse eyes immediately with water and consult your doctor. 2 EXTERNAL VIEW OF TRANSMITTER When each lever is operated the action is confirmed with the sound of a buzzer beep. You can hear this click sound when the setting position is changed. HOLE FOR STRAP HOW TO INSTALL THE BATTERIES Push the finger point ,then slide the battery cover Pay close attention to polarity of batteries when installing. ! Incorrectly installed batteries may cause damage to the radio. ! Do not mix different types of batteries. ! Never allow batteries to leak. Clean surfaces and avoid skin contact. Then replace with new batteries. TRANSMITTER STEERING WHEEL(CH-1) Turn to left and right LED BATTERY BOX Be careful of sharp edges of the battery terminals or springs. TX SETTING BUTTON Switch the transmitter on by pushing the set up button. The LED will start to flash slowl y indicating that it is in POWER SWITCH Slide to right to switch on. Slide to left to switch off. THROTTLE TRIGGER(CH-2) Squeeze the trigger to accelerate. Push the trigger to engage brakes or reverse. ANTENNA ! Please handle with care to reduce risk of damage. THROTTLE TRIM LEVER Operates up and down STEERING TRIM LEVER Operates left and right adjustment CHARGING JACK GRIP THROTTLE REVERSE SWITCH Switch between throttle forward and backward direction STEERING REVERSE SWITCH Switch between steering left and right direction IMPORTANT! Only charge batteries capable of being recharged and marked rechargeable. Serious damage to equipment will result in trying to charge non-rechargeable cells. Battery cover Finger point 3 Transmitter When the Transmitter is switched on it automatically starts to search for free a band. Once i…

Text truncated - open the document above for the full version.

Transmitter

FCC ID: PSNPG-2401 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

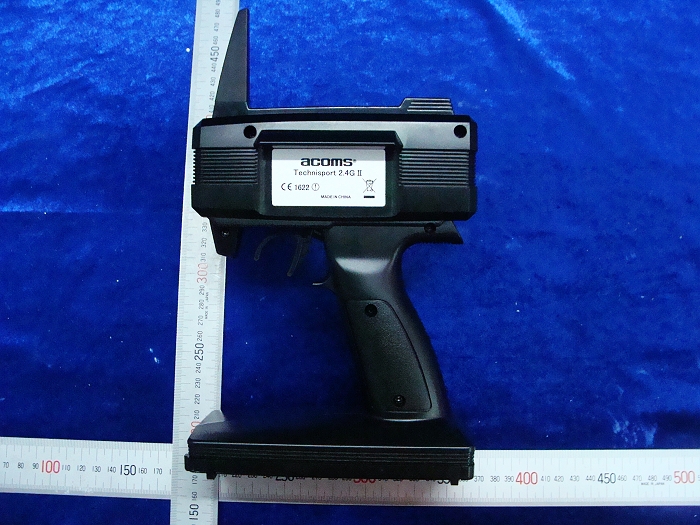

Label Location: FCC ID Label Location

Transmitter Transmitter Transmitter

Operation Description book for 2.4G basic radio control system with Servo unit First please press the TX’s Set-up button, push the power switch form off to on at the same time. After that, the TX LED will be flash and TX will send out the 16 bit binary system signal, the frequency is 2.402-2.477GHZ.Then press the RX’s Set-up button, the RX LED will flash. After RX searches the TX’s signal, the LED will stop flash. It means TX and RX already paired well and the ID No. will be saving in the RX’s EPROM. So the sample no need to pair again. After TX and RX power on again, you can go on the other operations. After TX power on, when you press one of these switch of TX （TH、ST、SET-UP、 TH-TRIM、ST-TRIM、Channel1、Channel2），via Battery supply the power（12V），go through the voltage regulation of IC(LM1117) and output the voltage of 3.3V to MCU’s 5 foot, which make the single chip can work normal. The C4 capacitor plays a role for filtering. Via TH、ST、SET-UP、TH-TRIM、ST-TRIM button to set up the parameter of ATV, Center. The Buzzer will remind every setting, LED will show the working state; 12MHZ Crystal provide the stable clock signal to RF module. When you change the Channel 1, channel 2, it will make the MCU‘s 11, 22 foot’s electric potential changing, which also change the output impulse width of MCU 24 foot. This impulse signal via high frequency IC 6936 and power amplifier IC 2423 to enlarge the power, through the antenna to send out. Operational Frequency Range: 2402-2477MHz Antenna: An Internal Antenna with antenna gain 1.8dBi Input Volage: DC12V, 8 pcs AAA nickel-cadmium batteries

ISO/IEC17025 Accredited Lab. Report No: FCC0906060 File reference No: 2009-06-09 Applicant: CCP Co., Ltd Product: 2.4G Basic Radio Control System With Servo Unit Model No: PG-2401 Brand Name: acoms Test Standards: FCC Part 15 Subpart C, Paragraph 15.249 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.249 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: June 09, 2009 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD East 5/Block 4, Anhua Industrial Zone, No.8,Tairan Rd. CheGongMiao, FuTian District, Shenzhen, CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 0906060 Page 2 of 41 Date: 2009-06-09 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-01. Report No: 0906060 Page 3 of 41 Date: 2009-06-09 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition..................…

Text truncated - open the document above for the full version.

Radiated Emissions TX
