XMODS Street RC Starter Kit Thank you for purchasing your XMODS ® Street RC Starter Kit. Please read this user’s guide before installing, setting up and using your new product. User’s Guide 60-47X_XMODS Street_En.120408.in1 1 12/09/2008 10:37:08 2 www.xmodsRC.com Contents XMODS ® Custom RC Starter Kit ........................................................................................................ .. 3 Your Starter Kit Includes ..................................................................................................... .................4 Assembling Your XMODS Custom RC ............................................................................................... .5 Assembling the Wheels.......................................................................................................... ..............5 Installing Batteries in the Chassis ........................................................................................... ...........6 Assembling the Car Antenna .................................................................................................... ..........7 Redistributing the Car’s Weight................................................................................................ ..........7 Mounting the Body on the Chassis .............................................................................................. ......8 Setting Up Your Controller .................................................................................................... ................. 9 Installing the Battery ........................................................................................................ ....................9 Changing the Steering Control for the Left Hand ..........................................................................10Preparing to Drive ............................................................................................................ ...................11 Controller Unfolded ........................................................................................................... .................12 Driving Your Car .............................................................................................................. ........................ 13 Steering Wheel ................................................................................................................ ....................13 Speed Control ................................................................................................................. .....................13 Fine Tuning ................................................................................................................... ........................14 When You Finish Driving ....................................................................................................... .............14 Care .......................................................................................................................... .................................. 15 Additional Notes .............................................................................................................. ....................15 Optional Upgrades ............................................................................................................. .................... 16 Troubleshooting ............................................................................................................... ....................... 18 RF Emissiones Information ..................................................................................................... ............. 19 Warranty ...................................................................................................................... ...............................20 60-47X_XMODS Street_En.120408.in2 2 12/09/2008 10:37:09 www.xmodsRC.com 3 XMODS® Custom RC Starter KitNow you are the proud owner of the next generation of highly-acclaimed XMODS. The new Street series inherits the features of the last generation and has some new features. Your starter kit includes the following features: • A full set of factory parts to assemble your car.• Hard plastic storage case to protect and carry your XMODS.• A digital proportional radio controller with built-in steering and throttle trims for precision driving under varying track conditions. • A switchable controller for left- and right-handed drivers.• A collapsible radio controller for easy carrying and storage.• Redistributable weight so you can optimize driving performance and handling.• Low weight balance enables sharp cornering—20-inch cornering diameter.• Faster speed—880 feet per minute!• Sharper response for acceleration, braking, and steering. To really get your motor running, customize your XMODS with optional upgrades for both performance and looks, available at your local RadioShack store. Check out the line-up of XMODS upgrades online at www.xmodsRC.com. ©2009 RadioShack Corporation. All rights reserved. XMODS is a registered trademark of RadioShack Corporation. 60-47X_XMODS Street_En.120408.in3 3 12/09/2008 10:37:09 4 www.xmodsRC.com Your Starter Kit Includes Controller with Antenna Car Body Assembly Car Chassis Car Antenna Wheels with Tires (4) Lug Wrench Wheel Nuts (16) Spare Left/Right Side Mirrors Screwdriver (not shown) Decal sheet (not shown) 11 Spare screws (not shown) Note: Only a spare left side mirror is supplied for ‘65 Mustang, ‘67 Camaro, and Firebird. 60-47X_XMODS Street_En.120408.in4 4 12/09/2008 10:37:09 www.xmodsRC.com 5 Assembling Your XMODS® Custom RCAssembling the WheelsWheels with tires are included with your XMODS Street starter kit. Follow the steps below to attach them to your car: Line up the flat side of the wheel’s center with the flat side of the axle. Gently press the tire onto the chassis. Using the supplied Lug Wrench, screw the supplied wheel nut onto the axle and tighten gently. Do not overtighten. Repeat …
Text truncated - open the document above for the full version.
ZD1/R10 006P / 6LF22 DC Voltage Regulater Power ON-OFF Switch SW3 Battery.9.0Vdc B+1 PolarityProtectionDiode D17 B+2 Control Switch STEERINGMatrix D4-D7 Control Switch THROTTLE Matrix D8-D13 OsillatorInternal Timing Generator InputCircuit DecodeControl Counter ControlLogic PLA LATCH Q3 FundamentalFrequencyOscillator 27mhz (optional XTAL freq.) Q1 / XTAL Q2 RF POWER OUTPUT & Demodulator Low Pass Filter C17/L3/C11/L2 TX ANTENNA B+1 B+1 B+2 PAGE NUMBER :- 1 OF 1 BLOCK DIAGRAM OF VERSION:- TX MHZ 8MHZ Left / Right Adjust sw5 /sw4 THROTTLE ( SPEED ) Control sw HI-LOW SW1 STEERING REVERSE CONTROL L/R SW2 IC1 ENCODER STEERING RANGE ADJUST MIN--MAX VR1 SignalAmplifier Q4 B+2 OSCILLATION ON-OFF CONTROL POWER ON -OFF INDICATOR LED BAT MODEL NAME:- LEMEN/XNODS 27MHZ:- BAND 1 TO BAND 12 ( 26.975mhz to 27.255mhz ) ( 1 OUT OF 12 BAND USED ) 26.975MHZ TO 27.255MHZ XTAL:- 26.975/26.995/27.025/27.045/27.075/27.095/27.125/27.145/27.175/27.195/27.225/27.255MHZ./ RF Amplifier & Modulator X-mods

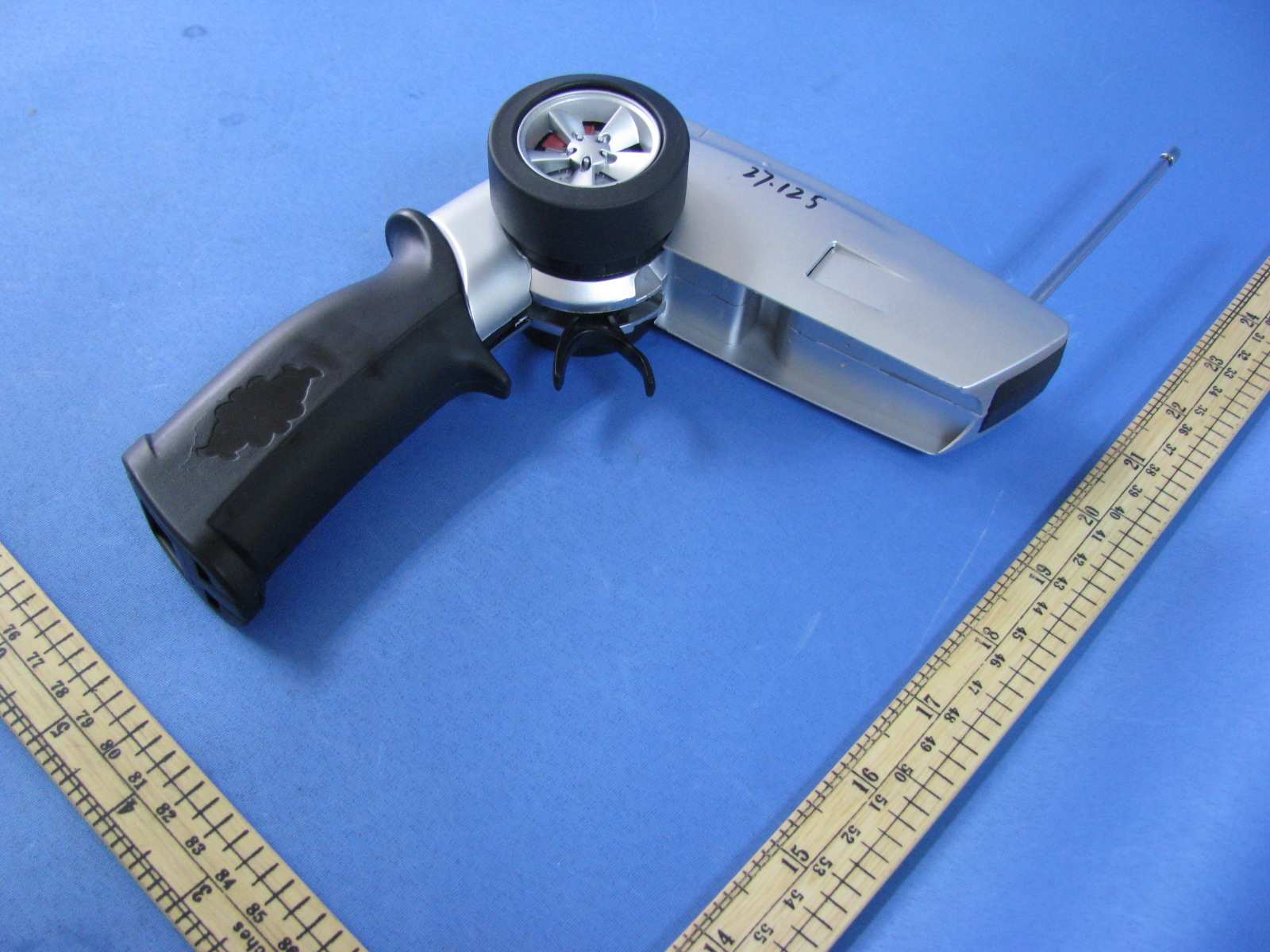

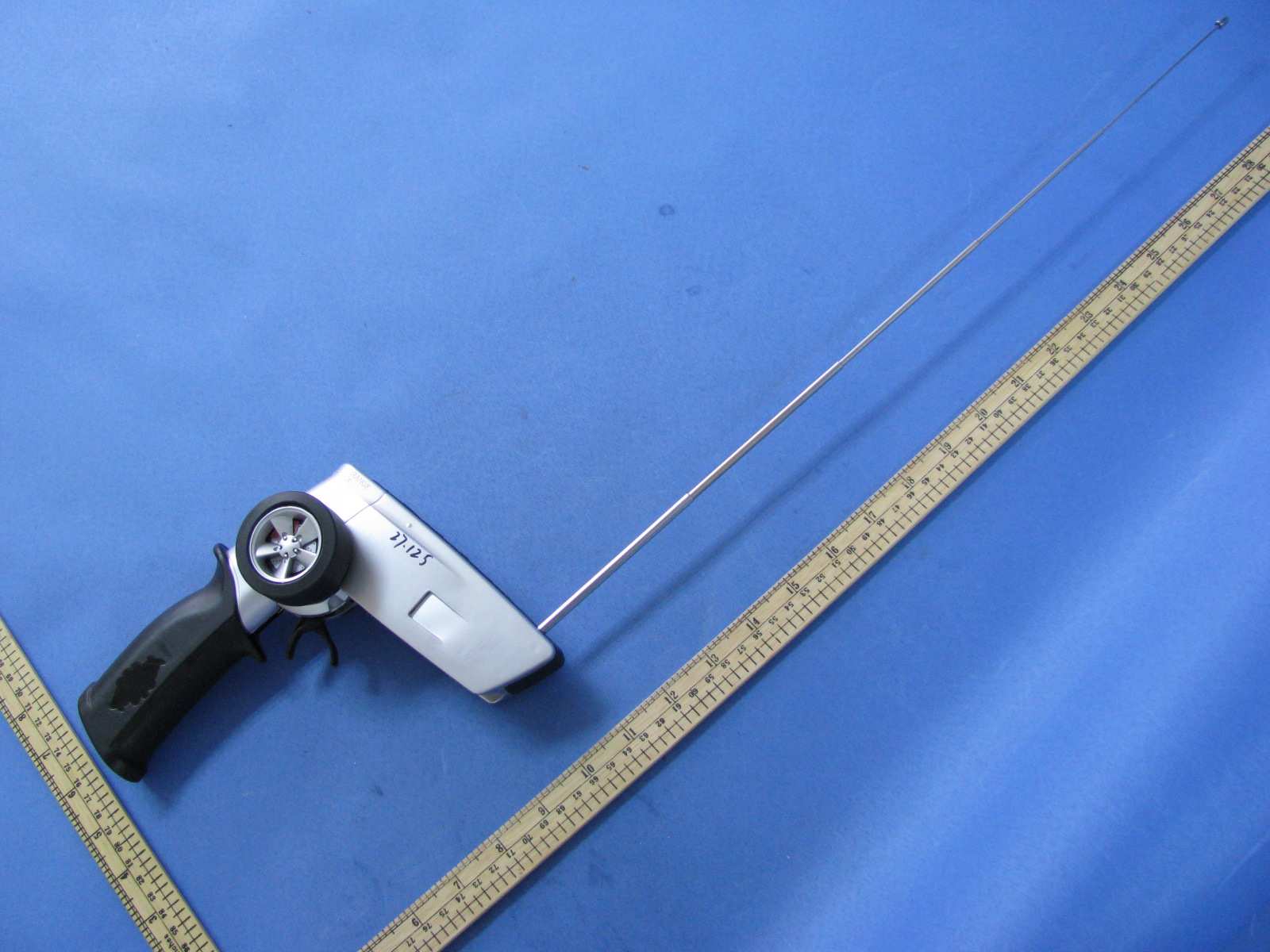

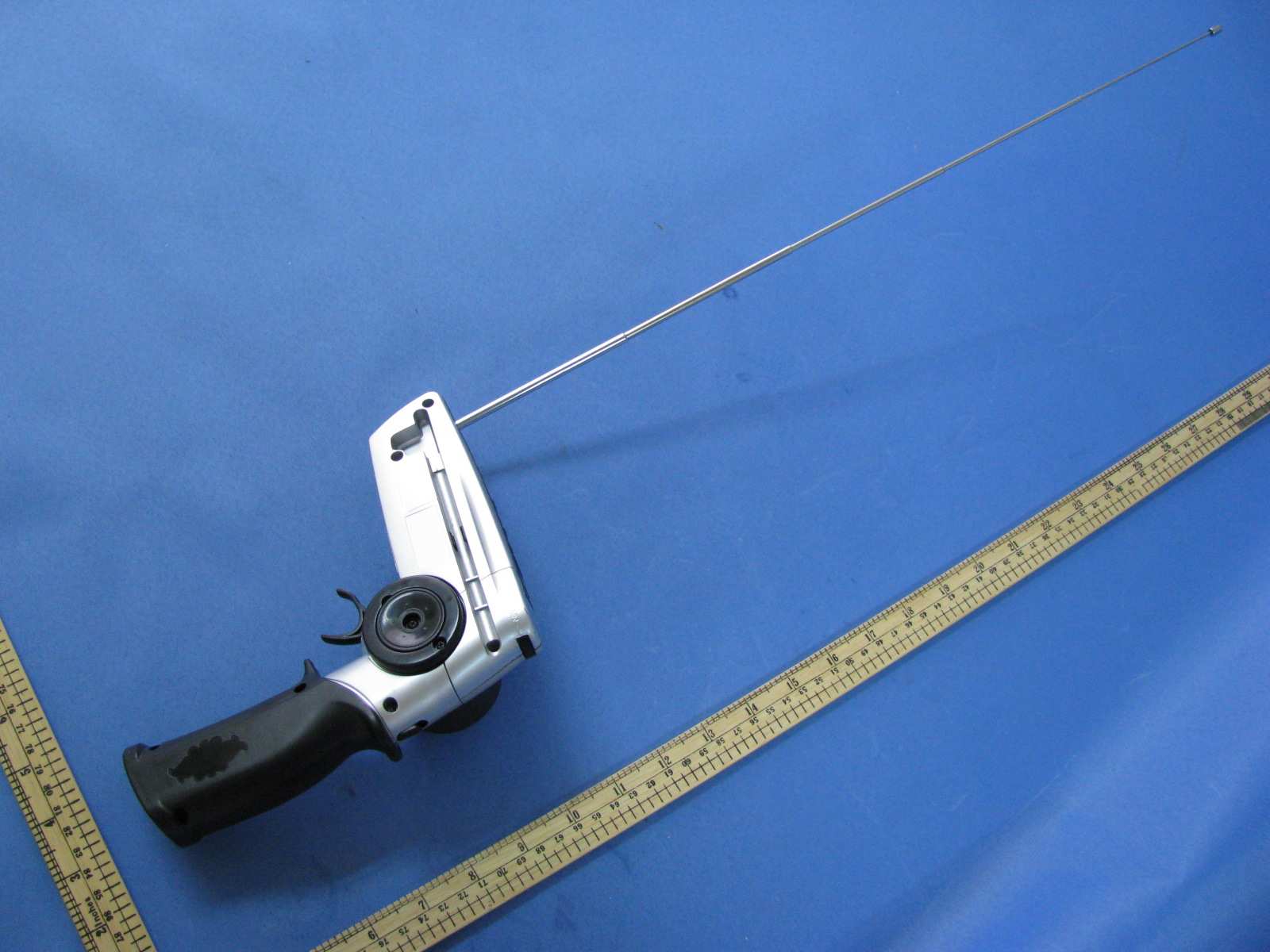

External Photos:
Internal Photos:
Technical Description: The brief circuit description is listed as follows: - C17, L3, C11 and L2 act as Low Pass Filter. - Q2 and associated circuit act as RF Amplifier & Modulator. - Q1, XTAL and associated circuit act as 27MHz Oscillator. - Q3 and associated circuit act as Oscillation ON/OFF control circuit. - Q4 and associated circuit act as Signal Amplifier Circuit. - IC1 acts as Encoder and MCU. - SW1, SW2, SW3, SW4 and SW5 acts as Control Keys. Antenna type: telescope antenna with unique antenna connector Note: 27MHz Oscillator could be: 26.975MHz, 26.995MHz, 27.025MHz, 27.045MHz, 27.075MHz,27.095MHz, 27.125MHz, 27.145MHz, 27.175MHz,27.195MHz, 27.225MHz ,27.255MHz
Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com January 16, 2009 CCP Co., Ltd. 3-1-8 Sakae-cho, Kawaguchi, Saitama, 332-8521 Japan Dear Jiro Nemoto, Enclosed you will find your file copy of a Part 15 Certification (FCC ID: PSN3300-TX27). For your reference, review normally take 1 week. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Shawn Xing Assistant Manager Enclosure • The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_TXa FCC ID: PSN3300-TX27 Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com CCP Co., Ltd. Application For Certification (FCC ID: PSN3300-TX27) Transmitter Sample Description : X-mods Model: 60383 Additional Model: 60384, 60385, 60386, 60474, 60475, 60476 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [20-9-2007] SZ09010139-1 Billy Li January 16, 2009 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: PSN3300-TX27 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: PSN3300-TX27 ii MEASUREMENT/TECHNICAL REPORT CCP Co., Ltd. - MODEL: 60383 Additional Model: 60384, 60385, 60386, 60474, 60475, 60476 FCC ID: PSN3300-TX27 January 16, 2009 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [20-9-07 Edition] provision. Report prepared by: Shawn Xing Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6/F, Block D, HuaHan Building, Longshan Road, Nanshan District, Shenzhen, China. Development Zone, Guangzhou, P. R.China. Phone: (86 755) 8601 6288 Fax: (86 755) 8601 6751 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TXa FCC ID: PSN3300-TX27 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology ................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories ............................................................................................ 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Measurement Uncertainty.................................................................................... 6 2.6 Support Equipment List and Descripition ............................................................ 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data ........................................................…
Text truncated - open the document above for the full version.
Ref 97 dBμVAtt 0 dB ** B TDF * 3DB RBW 10 kHz * VBW 30 kHz SWT 100 ms * *1 RM VIEW Start 26.96 MHzStop 27.28 MHz32 kHz/ 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 82.19 dBμV 27.125760000 MHz 2 Delta 2 [T1 ] -69.66 dB -165.760000000 kHz 3 Delta 3 [T1 ] -69.82 dB 154.240000000 kHz Date: 15.JAN.2009 17:31:48
Ref 97 dBμVAtt 0 dB * * CLRWR B TDF 3DB RBW 3 MHz VBW 3 MHz Center 27.125 MHz8 ms/ SWT 80 ms SGL 1 AP 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 78.45 dBμV 16.960000 ms 2 Delta 2 [T1 ] -0.56 dB 29.600000 ms Date: 15.JAN.2009 17:34:15 Ref 97 dBμVAtt 0 dB * * CLRWR B TDF 3DB RBW 3 MHz VBW 3 MHz Center 27.125 MHz4 ms/ SWT 40 ms SGL 1 AP 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 76.20 dBμV 3.920000 ms 2 Delta 2 [T1 ] -1.75 dB 29.600000 ms Date: 15.JAN.2009 17:36:22 Ref 97 dBμVAtt 0 dB * * CLRWR B TDF 3DB RBW 3 MHz VBW 3 MHz Center 27.125 MHz4 ms/ SWT 40 ms SGL 1 AP 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 72.26 dBμV 4.640000 ms 2 Delta 2 [T1 ] 4.60 dB 320.000000 μs Date: 15.JAN.2009 17:37:49 Ref 97 dBμVAtt 0 dB * * CLRWR B TDF 3DB RBW 3 MHz VBW 3 MHz Center 27.125 MHz4 ms/ SWT 40 ms SGL 1 AP 0 10 20 30 40 50 60 70 80 90 1 Marker 1 [T1 ] 76.69 dBμV 28.880000 ms 2 Delta 2 [T1 ] -3.70 dB 560.000000 μs Date: 15.JAN.2009 17:39:27
Radiated Photos:
6F, D Block, Huahan Building, Langshan Road · Shenzhen · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 26.975 MHz - 27.255 MHz | - |
