PSN59830-RX49Receiver for Radio Control Toy

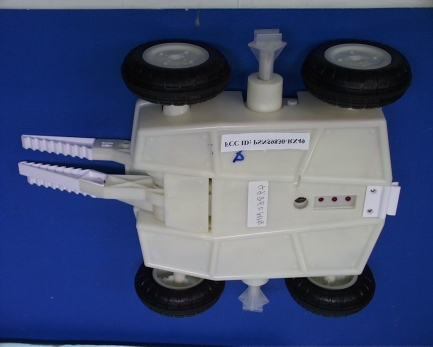

External Photographs

Internal Photographs

Product Description The equipment under test (EUT) is a Super-regenerative Receiver a Remote Controlled Toy operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 6.0V Ni-Cd Battery. There is a ON/OFF switch on the EUT. Once turn on the EUT, it can receive RF Signals and moving continuous. The brief circuit description is listed as follows : - IC1 and associated circuit act as Decoder. - Q1 and associated circuit act as Detector. - Q2 and associated circuit act as RF Amplifier. Antenna Requirements A permanently antenna is used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited FCC ID : PSN59830-RX49 CCP Co., Ltd. Application For Certification (FCC ID: PSN59830-RX49) Superregenerative Receiver WO# 0110571 WN/at September 11, 2001 INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1:General Description EXHIBIT 2:System Test Configuration EXHIBIT 3:Emission Results EXHIBIT 4:Equipment Photographs EXHIBIT 5:Product Labelling EXHIBIT 6:Technical Specifications EXHIBIT 7:Instruction Manual EXHIBIT 8:Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 ii MEASUREMENT/TECHNICAL REPORT CCP Co., Ltd. - MODEL: 59830 FCC ID: PSN59830-RX49 September 11, 2001 This report concerns (check one:)Original Grant X Class II Change Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes No X If no, assumed Part 15, Subpart C for intentional radiator Report prepared by:Wilbur Ng Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone:852-2173-8502 Fax:852-2742-9149 INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 iii Table of Contents 1.0 General Description.......................................................................................................................2 1.1 Product Description...................................................................................................................2 1.2 Related Submittal(s) Grants.....................................................................................................2 1.3 Test Methodology......................................................................................................................3 1.4 Test Facility...............................................................................................................................3 2.0 System Test Configuration............................................................................................................5 2.1 Justification...............................................................................................................................5 2.2 EUT Exercising Software..........................................................................................................5 2.3 Support Equipment List and Description.................................................................................5 2.4 Equipment Modification...........................................................................................................6 2.5 specialk Accessories..................................................................................................................6 3.0 Emission Results............................................................................................................................8 3.1 Field Strength Calculation........................................................................................................9 3.2 Radiated Emission Configuration Photograph......................................................................10 3.3 Radiated Emission Data.........................................................................................................11 4.0 Equipment Photographs.............................................................................................................14 5.0 Product Labelling.........................................................................................................................16 6.0 Technical Specifications..............................................................................................................18 7.0 Instruction Manual......................................................................................................................20 8.0 Miscellaneous Information.........................................................................................................22 8.1Stabilization Waveform..........................................................................................................23 8.2 Discussion of Pulse Desensitization.......................................................................................24 8.3 Calculation of Average Factor.................................................................................................25 8.4 Emissions Test Procedures.....................................................................................................26 8.4 Emissions Test Procedures (cont'd)........................................................................................27 INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 iv List of attached file Exhibit typeFile Descriptionfilename Test ReportTest Reportreport.pdf Test Setup PhotoRadiated Emissionradiated1.jpg to radiated2.jpg Test ReportBandwidth Plotbw.pdf External PhotoExternal Photoophoto1.jpg, ophoto2.jpg Internal PhotoInternal Photoiphoto1.jpg to iphoto7.jpg Block DiagramBlock Diagramblock.pdf SchematicsCircuit Diagramcircuit.pdf ID Label/LocationLabel Artwork and Locationlabel.pdf User ManualUser Manualmanual.pdf INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: PSN59830-RX49 2 1.0General Description 1.1Product Description The equipment under test (EUT) ius a Super-regenerative Receiver a Remote Controlled Toy operating at 49.860 MHz which is controlled by a crystal. The EUT is powered by a 6.0V Ni-Cd Battery. There is a ON/OFF switch on …

Text truncated - open the document above for the full version.

EMC Testing Equipment - Calibration Status represent changes 1) Radiated Emissions Tests Equipment Registration No. Manufacturer Model No. Serial No. Calibration Institute CalibrationCertificate No. Calibration Date Next Calibration Due Date Traceab ility SignalGenerator EW-0190 Marconi Ins truments 2022D 119156-029 HKGSCL RF 010141 10 July, 2001 10 July , 2002 HKGSCL SignalGenerator EW-0423 IFR 2023B 202301/429 HKGSCL RF 010071 24 April, 2001 24 April, 2002 HKGSCL EMI TestReceiver EW-0014 R&S ESVS30 842807/001 HKGSCL RF 010108 16 January, 2001 16 January, 2002 HKGSCL EMI TestReceiver EW-0016 R&S ESVS30 863342/008 HKGSCL RF 010149 9 August, 2001 9 August, 2002 HKGSCL Antenna Set EW-0446 EMCO 3146 9905-5219 Schaffner CA 1210 14 November, 2000 14 May, 2002 UKAS EW-0448 EMCO 3104C 9904-4850 Schaffner CA 1207 10 November, 2000 10 May, 2002 UKAS EW-0953 EMCO 3148 9909-1093 ETS 12974 22 June, 2001 22 June, 2002 NIST EW-0954 EMCO 3104C 9911-4872 ETS 13045 27 June, 2001 27 June, 2002 NIST
