PUU-A19-DMSWIVLED LAMP (BT/WiFi)

GE Connected A19 CLEDA199LD1,input 120Vac,frequencywas 60Hz, high efficiency,safety & stabilityoutput.Use Bluetooth4.2 and Wi-Fi 2.4G Hz chip technologyto realizethe far distancecontrol.Throughthe APP to controlthe PWM signal to dim and even controlthe switch on & off of the bulb. Productfeatures: 1. Controlledby Bluetooth4.2 and 2.4G Wi-Fi to realizethe far distancecontrol. 2. CCT is 2700K. 3. With advancedchips to make sure the bulb with high efficiency,low consumption and stability. 4. Internalconstantcurrentoutput to make sure the high power conversionefficiency and stabilityoutput. ProductNameLED LAMP BrandNameGE ModelNo.CLEDA199LD1@ WorkingVoltage120Vac BluetoothSpecificationVersion4. 2 Wi-Fi Specification2.4G Hz FrequencyRange2400- 2483.5MHz ChannelNumber Bluetooth 40 ChannelSeparation Bluetooth 2MHz Type of Modulation Bluetooth GFSK Data Rate Bluetooth1Mbps(GFSK) ChannelNumberWi-Fi11 FCC ID:PUU-A19-DMSWIV ChannelSeparationWi-Fi5MHz DataRateWi-Fi 802.11b:11,5.5,2,1Mbps 802.11g:54,48,36,24,18,12,9,6Mbps 802.11n:upto20Mbps AntennaType PCBAntenna PeakAntennaGain Bluetooth 0dBi PeakAntennaGainWi-Fi 0dBi Foradditionalhelp,regulatoryandsafetyInformation,pleasegoto: FederalCommunicationsCommission(FCC)InterferenceStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Thegranteeisnotresponsibleforanychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliance.Suchmodificationscouldvoidthe user’sauthoritytooperatetheequipment. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB digitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedto providereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation. Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnot occurinaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouraged totrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistanceof20cmbetweentheradiatorandyourbody. CAUTION: -DONOTUSEWITHSTANDARDDIMMERS,SEE INSTRUCTIONS -NOTFORUSEINTOTALLYENCLOSEDLUMINAIRES -SUITABLEFORDAMPLOCATIONS -THISDEVICEISNOTINTENDEDFORUSEWITHEMERGENCY EXITS Onlyusethecontrolprovidedwithorspecifiedbytheseinstructionstocontrolthis lamp.Thislampwillnotoperateproperlywhenconnectedtoastandard(incandescent) dimmerordimmingcontrol. ThisdevicecomplieswithIndustryCanadalicence-exemptRSSstandard(s). Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcause interference,and(2)thisdevicemustacceptanyinterference,includinginterference thatmaycauseundesiredoperationofthedevice. LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesaux appareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditions suivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurde l'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageest susceptibled'encompromettrelefonctionnement. RadiationExposureStatement: ThisequipmentcomplieswithICradiationexposurelimitssetforthforan uncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwith minimumdistance20cmbetweentheradiator&yourbody. Déclarationd'expositionauxradiations: Cetéquipementestconformeauxlimitesd'expositionauxrayonnementsICétablies pourunenvironnementnoncontrôlé.Cetéquipementdoitêtreinstalléetutiliséavec unminimumde20cmdedistanceentrelasourcederayonnementetvotrecorps.

Savant Technologies LLC, dba GE Lighting, a Savant Company Ad-Hoc Country Code Cover Letter We, Savant Technologies LLC, dba GE Lighting, a Savant Company, declare that this EUT FCC ID:PUU-A19-DMSWIV doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disable by firmware for device marketed to the US/Canada. For DTS part of this device, only channel 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ___________________ Paul Smith Company name：Savant Technologies LLC, dba GE Lighting, a Savant Company Tel: 2162662189 Fax:2162663003 Email: [email protected]

Savant Technologies LLC, dba GE Lighting, a Savant Company Date: 05/17/2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Savant Technologies LLC, dba GE Lighting, a Savant Company, the undersigned, hereby authorizes Mr. Qijie Xiao from Kehu-Morlab Test Laboratory to act on the behalf of the Savant Technologies LLC, dba GE Lighting, a Savant Company solely in matters relating to the application for an FCC equipment authorization for FCC ID: PUU-A19-DMSWIV including the signing of documents in connection with this Application. Necessary acts carried out Kehu-Morlab Test Laboratory on our behalf of the Savant Technologies LLC, dba GE Lighting, a Savant Company in connection with the Application shall have the same effect as acts of the f Savant Technologies LLC, dba GE Lighting, a Savant Company. Savant Technologies LLC, dba GE Lighting, a Savant Company also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Contact name: Paul Smith Title: Systems Engineer – Safety & Regulatory Tel: 216 266 2189 Email: [email protected] Company name: Savant Technologies LLC, dba GE Lighting, a Savant Company

Savant Technologies LLC, dba GE Lighting, a Savant Company Date:05/17/2021 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: Request of Confidentiality for FCC ID:PUU-A19-DMSWIV To Whom it may concern: Pursuant to sections 0.457 and 0.459 of Commission’s Rules(CFR 47), and Section 552(b)(4) of the Freedom of Information Act, Savant Technologies LLC, dba GE Lighting, a Savant Company hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality till date 10/14/2021(max time 180 days from grant date) as outlined in Public Notice DA04-1705. This provision will give Savant Technologies LLC, dba GE Lighting, a Savant Company temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics 4 BOM SHORT-TERM 6 External Photos 7 Internal Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Name：Paul Smith Company name： Savant Technologies LLC, dba GE Lighting, a Savant Company Address：1975 Noble Road Cleveland Ohio United States 44112 Tel： 216 266 2189 Email：[email protected]

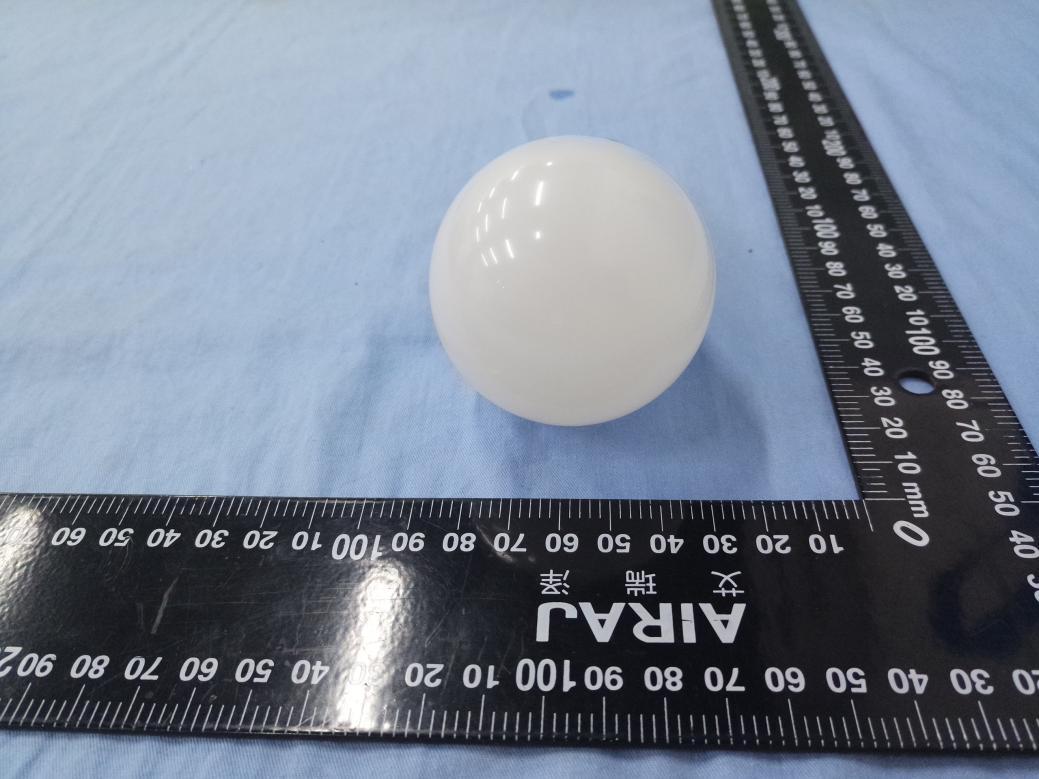

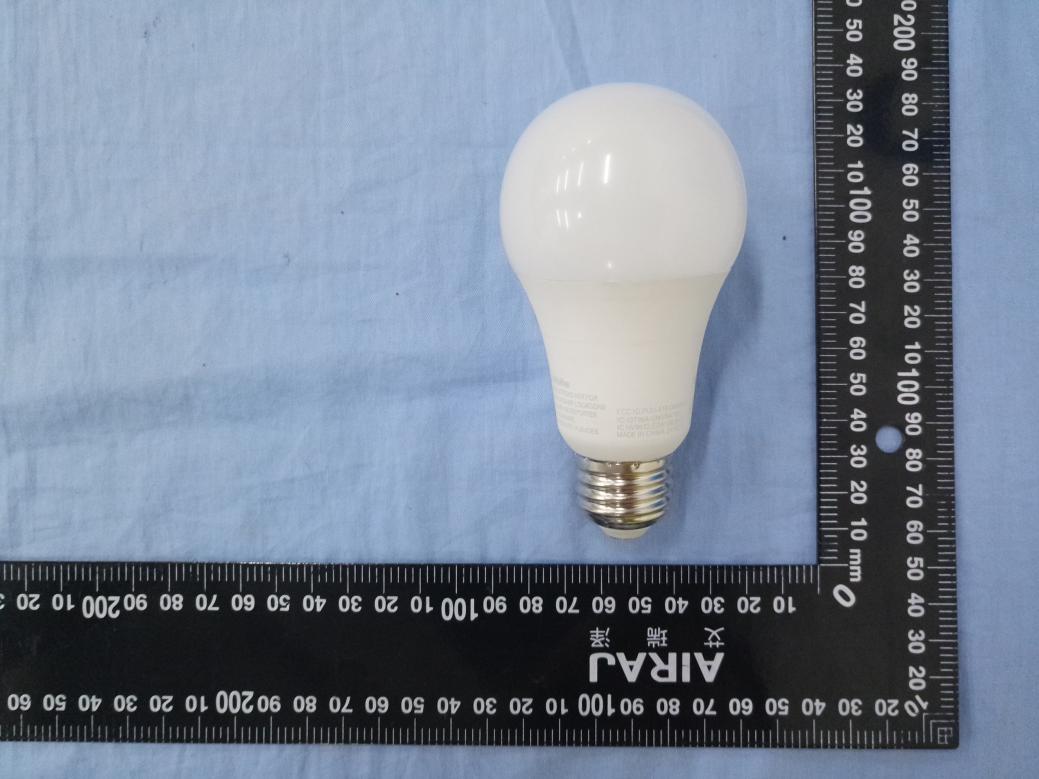

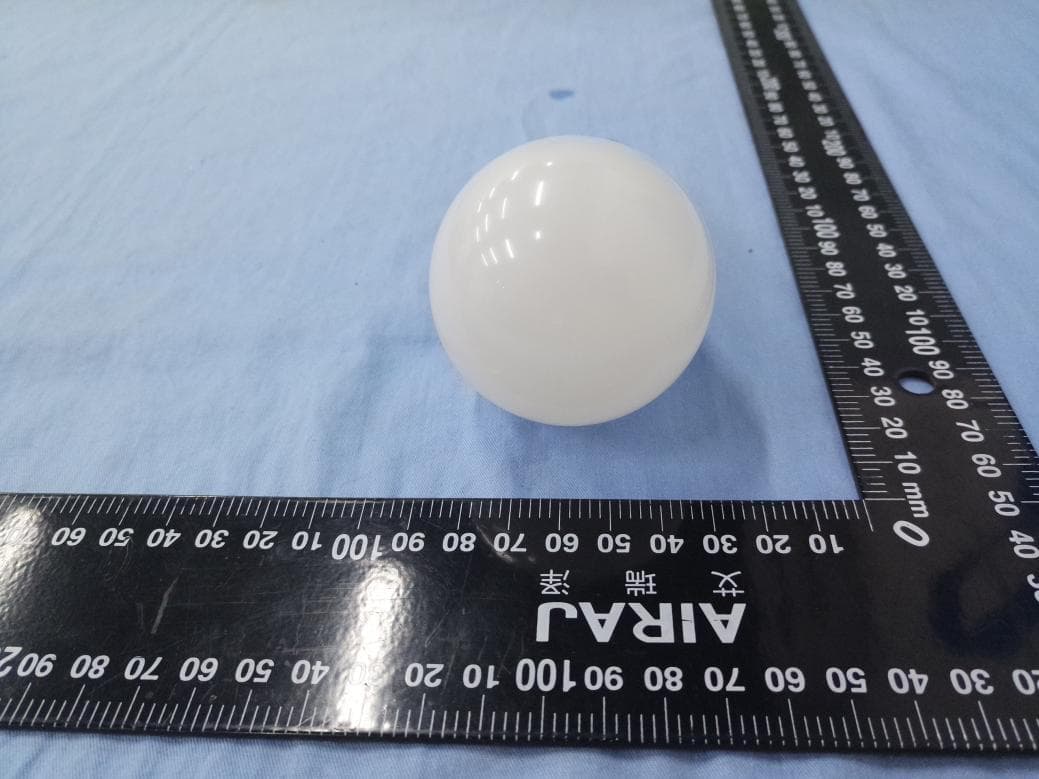

Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page 1 of 2 FCCID:PUU-A19-DMSWIV ExternalPhotos 1.EUTfrontview 2.EUTtopview Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page 2 of 2 3.EUTbottomview

IC:10798A-DMSWA19IV IC HVIN:CLEDA199LD1C FCC ID:PUU-A19-DMSWIV MADE IN CHINA YYDDDTSLED LAMP 4US7 800 LUMENS 9.5W 95mA 120V 60Hz 2700K CLEDA199LD1 DO NOT USE WITH STANDARD DIMMERS,SEE INSTRUCTIONS NOT FOR TOTALLY ENCLOSED OR RECESSED LUMINAIRES FOR DAMP LOCATIONS NE PAS UTILISER AVEC DES GRADATEURS STANDARD.SE REPORTER AUX INSTRUCTIONS -NE PAS UTILISER DANS UN LUMINAIRE ENCASTRE OU FERME-CONVIENT AUX EMPLACEMENTS HUMIDES FCC ID:PUU-A19-DMSWIV

Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page1of4 FCCID:PUU-A19-DMSWIV InternalPhotos 1.uncoverview 2.mainboardtopview Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page2of4 3.mainboardbottomview 6.lightsourcetopview Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page3of4 7.lightsourcebottomview 6.ICview Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page4of4 7.Antennaview BLE/WIFIAntenna

NOTE: ThisreportisissuedbyMorlabandmaynotbecopiedwithoutwrittenpermissionfromMorlab.Thetestresultsinthis reportareonlyapplicabletospecificsamplesandspecifictests.Theinformationinthisreportcanbeverifiedandconfirmedon ourwebsite. Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page0of6 VersionV2.0 REPORTNo.：XM21040105W03 RFEXPOSURE EVALUATIONREPORT APPLICANT: SavantTechnologiesLLCdbaGELighting, aSavantcompany PRODUCTNAME:LEDLAMP MODELNAME:CLEDA199LD1@ BRANDNAME:GE FCCID: PUU-A19-DMSWIV STANDARD(S) 47CFR§2.1091,KDB447498D01v06 RECEIPTDATE: 2021-04-25 TESTDATE:2021-04-25to2021-05-14 ISSUEDATE:2021-05-19 Editedby: QijieXiao Approvedby: StefanSun Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page20f6 VersionV2.0 REPORTNo.：XM21040105W03 DIRECTORY 1.TechnicalInformation ............................................................................................................... 3 1.1.ApplicantandManufacturerInformation ......................................................................... 3 1.2.EquipmentUnderTest(EUT)Description ........................................................................ 3 1.3.AppliedReferenceDocuments ........................................................................................... 3 2.DevicecategoryandRFexposurelimit ............................................................................... 4 3.RFExposureEvaluation .......................................................................................................... 5 AnnexAGeneralInformation ...................................................................................................... 6 ChangeHistory IssueDateReasonforchange 1.02021-05-19Firstedition Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page30f6 VersionV2.0 REPORTNo.：XM21040105W03 1.TechnicalInformation Note:Providebymanufacturer. 1.1.ApplicantandManufacturerInformation Applicant:SavantTechnologiesLLCdbaGELighting,aSavantcompany ApplicantAddress:1975NobleRoadClevelandOhioUnitedStates44112 Manufacturer:XiamenTopstarlightingCo.,Ltd. ManufacturerAddress:676MeixiAvenue,Tong'anDistrict,Xiamen,China 1.2.EquipmentUnderTest(EUT)Description EUTType:LEDLAMP HardwareVersion: C-8235V2.3 SoftwareVersion: C_Life_Blub_Single_Chip_Full_V1.0.135 FrequencyBands:802.11b/g/n20:2.412GHz-2.462GHz Bluetooth:2402MHz–2480MHz ModulationMode: Wi-Fi:OFDM,DSSS Bluetooth5.1LE:GFSK Antennatype: PCBAntenna 1.3.AppliedReferenceDocuments Leadingreferencedocumentsfortesting: No.IdentityDocumentTitle 147CFR§2.1091RadiofrequencyRadiationExposureEvaluation:mobile devices 2KDB447498D01v06GeneralRFExposureGuidance Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page40f6 VersionV2.0 REPORTNo.：XM21040105W03 2.DevicecategoryandRFexposurelimit Perusermanual,Basedon47CFR2.1091,thisdevicebelongstomobiledevicecategorywith GeneralPopulation/Uncontrolledexposure. MobileDevices: 47CFR2.1091(b) Forpurposesofthissection,amobiledeviceisdefinedasatransmittingdevicedesignedtobe usedinotherthanfixedlocationsandtogenerallybeusedinsuchawaythataseparationdistance ofatleast20centimetersisnormallymaintainedbetweenthetransmitter'sradiatingstructure(s) andthebodyoftheuserornearbypersons.Inthiscontext,theterm“fixedlocation”meansthatthe deviceisphysicallysecuredatonelocationandisnotabletobeeasilymovedtoanotherlocation. Transmittingdevicesdesignedtobeusedbyconsumersorworkersthatcanbeeasilyre-located, suchaswirelessdevicesassociatedwithapersonalcomputer,areconsideredtobemobile devicesiftheymeetthe20centimeterseparationrequirement. GENERALPOPULATION/UNCONTROLLEDEXPOSURE Thegeneralpopulation/uncontrolledexposurelimitsareapplicabletosituationsinwhichthe generalpublicmaybeexposedorinwhichpersonswhoareexposedasaconsequenceoftheir employmentmaynotbemadefullyawareofthepotentialforexposureorcannotexercisecontrol overtheirexposure.Membersofthegeneralpublicwouldcomeunderthiscategorywhen exposureisnotemployment-related;forexample,inthecaseofawirelesstransmitterthat exposespersonsinitsvicinity.Warninglabelsplacedonlow-powerconsumerdevicessuchas cellulartelephonesarenotconsideredsufficienttoallowthedevicetobeconsideredunderthe occupational/controlledcategory,andthegeneralpopulation/uncontrolledexposurelimitsapplyto thesedevices. TABLE1—LIMITSFORMAXIMUMPERMISSIBLEEXPOSURE(MPE) Frequency range (MHz) Electricfield strength (V/m) Magneticfield strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f 2 )30 30-30027.50.0730.230 300-1500--f/150030 1500-100,000--1.030 f=frequencyinMHz*=Plane-waveequivalentpowerdensity Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page50f6 VersionV2.0 REPORTNo.：XM21040105W03 3. RFExposureEvaluation StandalonetransmissionMPEevaluation Mode Frequency Antenna Gain OutputPower Power density(S) Limitfor MPE (MHz)(dBi)(dBm)(mW)(mW/cm²)(mW/cm²) Wi-Fi(Esp32)2437020.77119.3990.0241.0 BLE(Esp32)244009.7239.3820.0021.0 AccordingtoKDB447498D01GeneralRFExposureGuidancev06,simultaneous transmissionisevaluated: SimultaneoustransmissionMPEtestexclusionapplieswhenthesumoftheMPEratiosforall simultaneouslytransmittingantennasincorporatedinahostdeviceis≤1.0. Calculationmethod: S=P·G/4πR² Where: S=powerdensity(inappropriateunits,e.g.,mW/cm²) P=powerinputtotheantenna(inappropriateunits,e.g.,mW) G=antennagain R=Sep…

Text truncated - open the document above for the full version.

NOTE: ThisreportisissuedbyMorlabandmaynotbecopiedwithoutwrittenpermissionfromMorlab.Thetestresultsinthis reportareonlyapplicabletospecificsamplesandspecifictests.Theinformationinthisreportcanbeverifiedandconfirmedon ourwebsite. Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page1of51 VersionV2.0 REPORTNo.：XM21040105W01 TESTREPORT APPLICANT :SavantTechnologiesLLCdbaGE Lighting,aSavantcompany PRODUCTNAME:LEDLAMP MODELNAME:CLEDA199LD1@ BRANDNAME:GE FCCID:PUU-A19-DMSWIV STANDARD(S):47CFRPart15SubpartC RECEIPTDATE: 2021-04-25 TESTDATE:2021-04-25to2021-04-26 ISSUEDATE:2021-05-19 Editedby: QijieXiao Approvedby: StefanSun Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page2of51 VersionV2.0 REPORTNo.：XM21040105W01 DIRECTORY 1.TechnicalInformation...............................................................................................................3 1.1.ApplicantandManufacturerInformation.........................................................................3 1.2.EquipmentUnderTest(EUT)Description.......................................................................3 1.3.TestStandardsandResults................................................................................................4 1.4.EnvironmentalConditions ................................................................................................... 4 2.47CFRPart15CRequirements ............................................................................................. 5 2.1.Antennarequirement ............................................................................................................. 5 2.2.PeakOutputPower ................................................................................................................ 6 2.3.6dBBandwidth ........................................................................................................................ 9 2.4.ConductedSpuriousEmissionsandBandEdge........................................................12 2.5.Powerspectraldensity(PSD)...........................................................................................18 2.6.RestrictedFrequencyBands............................................................................................21 2.7.ConductedEmission...........................................................................................................28 2.8.RadiatedEmission...............................................................................................................32 AnnexATestUncertainty..........................................................................................................48 AnnexBTestingLaboratoryInformation..............................................................................49 ChangeHistory VersionDateReasonforchange 1.02021-05-19Firstedition Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page3of51 VersionV2.0 REPORTNo.：XM21040105W01 1.TechnicalInformation Note:Providebyapplicant. 1.1.ApplicantandManufacturerInformation Applicant:SavantTechnologiesLLCdbaGELighting,aSavantcompany ApplicantAddress:1975NobleRoadClevelandOhioUnitedStates44112 Manufacturer:XiamenTopstarlightingCo.,Ltd. ManufacturerAddress:676MeixiAvenue,Tong'anDistrict,Xiamen,China 1.2.EquipmentUnderTest(EUT)Description ProductName: LEDLAMP SerialNo:(N/A,marked#1bytestsite) HardwareVersion: C-8235V2.3 SoftwareVersion: C_Life_Blub_Single_Chip_Full_V1.0.135 ModulationType: GFSK OperatingFrequencyRange: 2402MHz-2480MHz BluetoothVersion:Bluetooth5.1LE BluetoothSpecification:Bluetooth5.1LE1MPHY AntennaType: PCBAntenna AntennaGain: 0dBi Note1:TheEUTcontainsBluetoothModuleoperatingat2.4GHzISMband;thefrequenciesis F(MHz)=2402+2*n(0<=n<=39).Thelowest,middle,highestchannelnumbersoftheBluetooth Moduleusedandtestedinthisreportareseparately0(2402MHz),19(2440MHz)and39 (2480MHz). Note2:Bluetooth5.1LEsupport1MPHY. Note3:TheEUTconnectedtotheserialportofthecomputerwithaserialcommunicationcable, weusethededicatedsoftwaretocontroltheEUTcontinuoustransmission. Note4:Foramoredetaileddescription,pleaserefertoSpecificationorUser’sManualsuppliedby theapplicantand/ormanufacturer. Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page4of51 VersionV2.0 REPORTNo.：XM21040105W01 1.3.TestStandardsandResults Theobjectiveofthereportistoperformtestingaccordingto47CFRPart15SubpartC(Bluetooth, 2.4GHzISMbandradiators)fortheEUTFCCIDCertification: NoIdentityDocumentTitle 147CFRPart15RadioFrequencyDevices Testdetaileditems/sectionrequiredbyFCCrulesandresultsareasbelow: No.SectionDescriptionTestDateTestEngineerResult 115.203AntennaRequirementN/AN/APASS 215.247(b)PeakOutputPowerApr26,2021StefanSunPASS 315.247(a)BandwidthApr26,2021StefanSunPASS 415.247(d) ConductedSpuriousEmission andBandEdge Apr26,2021StefanSunPASS 515.247(e)Powerspectraldensity(PSD)Apr26,2021StefanSunPASS 615.247(d)RestrictedFrequencyBandsApr25,2021QijieXiaoPASS 715.207ConductedEmissionApr25,2021QijieXiaoPASS 8 15.209, 15.247(d) RadiatedEmissionApr25,2021QijieXiaoPASS Note:Thetestswereperformedaccordingtothemethodofmeasurementsprescribedin ANSIC63.10-2013and558074D0115.247MeasGuidancev05r02. 1.4.EnvironmentalConditions Duringthemeasurement,theenvironmentalconditionswerewithinthelistedranges: Temperature(°C):15-35 RelativeHumidity(%):30-60 AtmosphericPressure(kPa):86-106 Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page5of…

Text truncated - open the document above for the full version.

NOTE: This report is issued by Morlab and may not be copied without written permission from Morlab. The test results in this report are only applicable to specific samples and specific tests. The information in this report can be verified and confirmed on our website. Kehu-Morlab Test Laboratory XIAMEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. Unit 101, No.1732 Gangzhong Road, Xiamen Area, Pilot Free Trade Zone (Fujian) , P. R. China Tel: +86 592 5612050 Fax: +86 592 5612095 Page 1 of 100 Version V2.0 REPORT No.：XM21040105W02 TEST REPORT APPLICANT : Savant Technologies LLC dba GE Lighting, a Savant company PRODUCT NAME : LED LAMP MODEL NAME : CLEDA199LD1@ BRAND NAME : GE FCC ID : PUU-A19-DMSWIV STANDARD(S) : 47 CFR Part 15 Subpart C RECEIPT DATE : 2021-04-25 TEST DATE : 2021-04-25 to 2021-05-25 ISSUE DATE : 2021-05-25 Edited by : Qijie Xiao Approved by: Stefan Sun Kehu-Morlab Test Laboratory XIAMEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. Unit 101, No.1732 Gangzhong Road, Xiamen Area, Pilot Free Trade Zone (Fujian) , P. R. China Tel: +86 592 5612050 Fax: +86 592 5612095 Page 2 0f 100 Version V2.0 REPORT No.：XM21040105W02 DIRECTORY 1. Technical Information ................................................................................................... 3 1.1. Applicant and Manufacturer Information ................................................................. 3 1.2. Equipment Under Test (EUT) Description ................................................................ 3 1.3. Test Standards and Results ...................................................................................... 4 1.4. Environmental Conditions ........................................................................................ 4 2. 47 CFR Part 15C Requirements ................................................................................... 5 2.1. Antenna requirement ................................................................................................. 5 2.2. Output Power ............................................................................................................. 6 2.3. Bandwidth .................................................................................................................. 8 2.4. Conducted Spurious Emissions and Band Edge .................................................. 15 2.5. Power spectral density (PSD) ................................................................................. 31 2.6. Restricted Frequency Bands .................................................................................. 38 2.7. Conducted Emission ............................................................................................... 52 2.8. Radiated Emission ................................................................................................... 56 Annex A Test Uncertainty ............................................................................................... 97 Annex B Testing Laboratory Information ..................................................................... 98 Change History Version Date Reason for change 1.0 2021-05-25 First edition Kehu-Morlab Test Laboratory XIAMEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. Unit 101, No.1732 Gangzhong Road, Xiamen Area, Pilot Free Trade Zone (Fujian) , P. R. China Tel: +86 592 5612050 Fax: +86 592 5612095 Page 3 0f 100 Version V2.0 REPORT No.：XM21040105W02 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Savant Technologies LLC dba GE Lighting, a Savant company Applicant Address: 1975 Noble Road Cleveland Ohio United States 44112 Manufacturer: Xiamen Topstar lighting Co.,Ltd. Manufacturer Address: 676 Meixi Avenue,Tong'an District,Xiamen,China 1.2. Equipment Under Test (EUT) Description Product Name: LED LAMP Serial No: (N/A, marked #1 by test site) Hardware Version: C-8235 V2.3 Software Version: C_Life_Blub_Single_Chip_Full_V1.0.135 Modulation Type: DSSS, OFDM Operating Frequency Range: 802.11b/g/n-20MHz: 2.412GHz - 2.462GHz Antenna Type: PIFA Antenna Antenna Gain: 0dBi Note 1: The EUT is operating at 2.4GHz ISM; it supports 802.11b, 802.11g, 802.11n and they are all tested in this report. For 802.11b/g/n-20MHz (2.4GHz band), the frequencies allocated is F (MHz) =2412+5*(n-1) (1<=n<=11). The lowest, middle, highest channel numbers of the EUT used and tested in this report are separately 1 (2412MHz), 6 (2437MHz) and 11 (2462MHz). Note 2: The EUT connected to the serial port of the computer with a serial communication cable, we use the dedicated software to control the EUT continuous transmission. Note 3: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Kehu-Morlab Test Laboratory XIAMEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. Unit 101, No.1732 Gangzhong Road, Xiamen Area, Pilot Free Trade Zone (Fujian) , P. R. China Tel: +86 592 5612050 Fax: +86 592 5612095 Page 4 0f 100 Version V2.0 REPORT No.：XM21040105W02 1.3. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C for the EUT FCC ID Certification: No Identity Document Title 1 47 CFR Part 15 Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section Description Test Date Test Engineer Result 1 15.203 Antenna Requirement N/A N/A PASS 2 15.247(b) Output Power May 13, 2021 Stefan Sun PASS 3 15.247(a) Bandwidth May 13, 2021 Stefan Sun PASS 4 15.247(d) Conducted Spurious Emission and Band Edge May 24, 2021 Stefan Sun PASS 5 15.247(e) Power spectral density (PSD) May 13, 2021 Stefan Sun PASS 6 15.247(d) Restricted Frequency Bands Apr 25, 2021 Qijie Xiao PASS 7 15.207 Conducted Emission Apr 25, 2021 Qijie Xiao PASS 8 15.209, 15.247(d) Radiated Emission Apr 25, 2021 Qijie Xiao PASS Note: The tests of Conducted Emission and Radiated Emission were performed according to the method of measurements prescri…

Text truncated - open the document above for the full version.

Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page1of3 FCCID:PUU-A19-DMSWIV Test-SetupPhotos 1.ConductedEmission Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page2of3 2.RadiatedEmission（30MHz-1GHz） 3.RadiatedEmission（Above1GHz） Kehu-Morlab TestLaboratory XIAMENMORLABCOMMUNICATIONSTECHNOLOGYCo.,Ltd. Unit101,No.1732GangzhongRoad,XiamenArea,PilotFreeTradeZone(Fujian),P.R.China Tel:+865925612050 Fax:+865925612095 Page3of3 4.RFMeasurement
