PUU-BR30-DMENLED LAMP with Bluetooth and WiFi

CYNC Entertainment Full Color BR30 CLEDR309CDEN, input 120Vac, frequency was 60Hz, high efficiency, safety & stability output. Use Bluetooth 4.2 and Wi-Fi 2.4G Hz chip technology to realize the far distance control. Through the APP to control the PWM signal to dim and even control the switch on & off of the bulb. Product features: 1. Controlled by Bluetooth 4.2 and 2.4G Wi-Fi to realize the far distance control. 2. CCT is 2200K to 7000K. 3.With advanced chips to make sure the bulb with high efficiency, low consumption and stability. 4. Internal constant current output to make sure the high power conversion efficiency and stability output. Product Name LED LAMP Brand Name GE Model No. CLEDR309CDEN Working Voltage 120Vac Bluetooth Specification Version 4.2 Wi-Fi Specification 2.4G Hz Frequency Range WIFI:2412- 2462MHz BLE:2402~2480MHz Channel Number Bluetooth 40 Channel Separation Bluetooth 2MHz Type of Modulation Bluetooth GFSK Data Rate Bluetooth 1Mbps(GFSK) Channel Number Wi-Fi 11 Channel Separation Wi-Fi 5MHz Data Rate Wi-Fi 802.11b:11, 5.5,2,1 Mbps 802.11g: 54,48,36,24,18,12,9,6 Mbps 802.11n: MCS0~7 Antenna Type Chip Monopole Antenna Peak Antenna Gain Bluetooth 1.13dBi Peak Antenna Gain Wi-Fi 1.13dBi For additional help, regulatory and safety Information, please go to: Federal Communications Commission (FCC) Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. CAUTION: - DO NOT USE WITH STANDARD DIMMERS, SEE INSTRUCTIONS -NOT FOR USE IN TOTALLY ENCLOSED LUMINAIRES -SUITABLE FOR DAMP LOCATIONS -THIS DEVICE IS NOT INTENDED FOR USE WITH EMERGENCY EXITS Only use the control provided with or specified by these instructions to control this lamp. This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Savant Technologies LLC, dba GE Lighting, a Savant Company Ad-HocCountry Code Cover Letter We, < Savant Technologies LLC, dba GE Lighting, a Savant Company>, declare that this EUT (FCC ID: PUU-BR30-DMEN IC: 10798A-DMENBR30) doesn’t have Ad Hoc Mode function on “non-US/Canada frequencies”. In addition, the frequency selection feature is disable by firmware for device marketed to the US/Canada. For DTS part of this device, only channel 1~11 will be used in North America. Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ___________________ Company name：Savant Technologies LLC, dba GE Lighting, a Savant Company Tel: 2162662189 Fax: 2162663003 Email: [email protected]

Savant Technologies LLC, dba GE Lighting, a Savant Company Date: 2022-04-01 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The Savant Technologies LLC, dba GE Lighting, a Savant Company, the undersigned, hereby authorizes Mrs. Wendy Zhan from Shenzhen Morlab Communications Technology Co., Ltd., to act on the behalf of the Savant Technologies LLC, dba GE Lighting, a Savant Company solely in matters relating to the application for an FCC equipment authorization for FCC ID: PUU-BR30-DMEN including the signing of documents in connection with this Application. Necessary acts carried out Shenzhen Morlab Communications Technology Co., Ltd. on our behalf of the Savant Technologies LLC, dba GE Lighting, a Savant Company in connection with the Application shall have the same effect as acts of the Savant Technologies LLC, dba GE Lighting, a Savant Company. Savant Technologies LLC, dba GE Lighting, a Savant Company also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Thank you for your attention to this matter. Yours Sincerely, Signatory: Contact name: Paul Smith Title: Systems Engineer - Safety & Regulatory Tel: 2162662189 Email: [email protected] Company name: Savant Technologies LLC, dba GE Lighting, a Savant Company

Savant Technologies LLC, dba GE Lighting, a Savant Company Date: 2022-04-01 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Re: SAVANT TECHNOLOGIES LLC, DBA GE LIGHTING, A SAVANT COMPANY. FCC ID: PUU-BR30-DMEN FCC Part 15C Certification Confidentiality Request Gentlemen: This letter is to comply with 47 CFR 0.457 and 0.459 pertaining to confidentiality material. SAVANT TECHNOLOGIES LLC, DBA GE LIGHTING, A SAVANT COMPANY requests that the following documents regarding this submission for FCC ID: PUU-BR30-DMEN be kept confidential: Exhibit Type File Name Block Diagram Block Diagram.pdf Schematics Schematic.pdf Operational Description Operational description.pdf Those documents contain detailed system and equipment description and related information about the product which SAVANT TECHNOLOGIES LLC, DBA GE LIGHTING, A SAVANT COMPANY, considers to be confidential proprietary, a custom design and, otherwise, not releasable to the general public. Since this design is a basis form which future technological products will evolve, SAVANT TECHNOLOGIES LLC, DBA GE LIGHTING, A SAVANT COMPANY considers this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours Sincerely, Contact name: Paul Smith Title: Systems Engineer - Safety & Regulatory Tel: 2162662189 Email: [email protected] Company name: Savant Technologies LLC, dba GE Lighting, a Savant Company

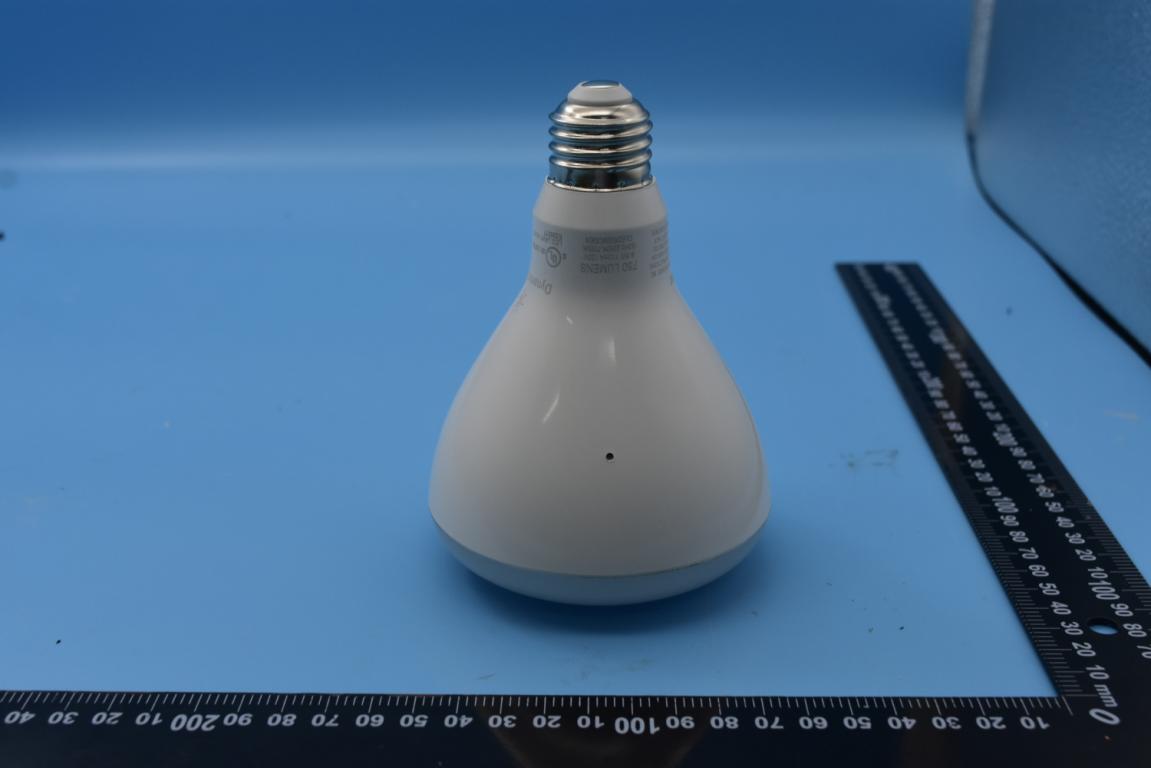

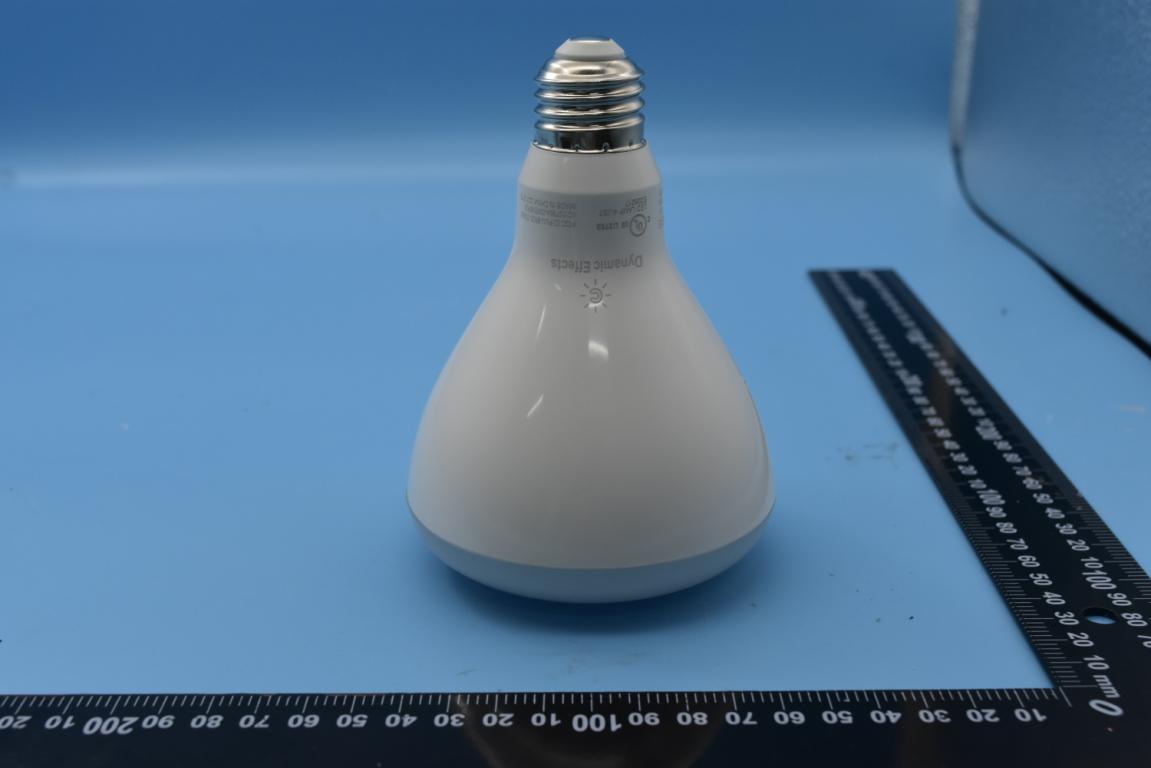

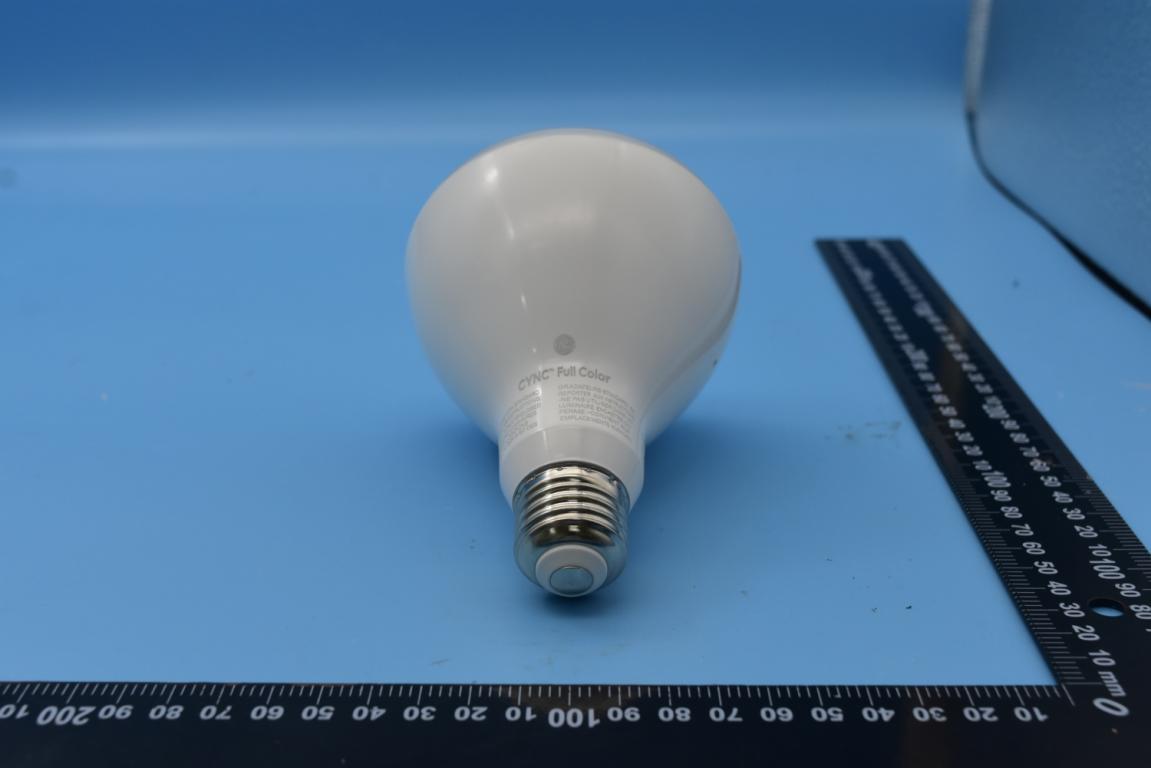

FCC ID: PUU-BR30-DMEN, IC: 10798A-DMENBR30 External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT top view 6. EUT bottom view

DO NOT USE WITH STANDARD DIMMERS,SEE INSTRUCTIONS NOT FOR TOTALLY ENCLOSED OR RECESSED LUMINAIRES FOR DAMP LOCATIONS NE PAS UTILISER AVEC DES GRADATEURS STANDARD.SE REPORTER AUX INSTRUCTIONS -NE PAS UTILISER DANS UN LUMINAIRE ENCASTRE OU FERME-CONVIENT AUX EMPLACEMENTS HUMIDES FCC ID: PUU-BR30-DMEN IC: 10798A-DMENBR30 MADE IN CHINA YYDDDTS 750 LUMENS 9.5W 110mA 120V 60Hz 2000K-7000K CLEDR309CDEN LED LAMP 4US7 E328217 Dynamic Effect s

FCC ID: PUU-BR30-DMEN, IC: 10798A-DMENBR30 Internal Photos 1. EUT uncover view 2. Antenna view Bluetooth/Wi-Fi Antenna Antenna

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. C hina Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 8 REPORT No.：SZ22030295S01 RF EXPOSURE EVALUATION REPORT APPLICANT : Savant Technologies LLC, dba GE Lighting, a Savant Company PRODUCT NAME : LED LAMP MODEL NAME :CLEDR309CDEN BRAND NAME : GE FCC ID :PUU-BR30-DMEN STANDARD(S) : 47 CFR Part 2(2.1091) RECEIPT DATE : 2022-04-01 TEST DATE :2022-04-06 to 2022-04-13 ISSUE DATE : 2022-07-04 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030295S01 Page2of 8 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1 Applicant and Manufacturer Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2 Equipment under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.3 Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2. Device Category and RF Exposure Limit ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 5 3. RF Output Power ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 4. RF Exposure Assessment ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 Annex A Testing Laboratory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 8 Change History Version Date Reason for change 1.0 2022-07-04 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030295S01 Page3of 8 1. Technical Information Note: Provide by applicant. 1.1 Applicant and Manufacturer Information Applicant: Savant Technologies LLC, dba GE Lighting, a Savant Company Applicant Address: 1975 Noble Road Cleveland, OH 44112 United States of America Manufacturer: Xiamen Topstar lighting Co.,Ltd. Manufacturer Address: 676 Meixi Avenue,Tong'an District,Xiamen,China 1.2 Equipment under Test (EUT) Description Product Name: LED LAMP Sample No.: 1# Hardware Version: N/A Software Version: N/A Frequency Bands: Bluetooth 2402MHz–2480MHz WLAN 2.4GHz 2412MHz–2462MHz Modulation Mode: Bluetooth GFSK WLAN 2.4GHz DSSS, OFDM Antenna Type: Chip Monopole Antenna Antenna Gain: Bluetooth 1.13dBi WLAN 2.4GHz 1.13dBi MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030295S01 Page4of 8 1.3 Applied Reference Documents Leading reference documents for testing: Identity Document Title Method Determination /Remark 47 CFR Part 2(2.1091) Radio Frequency Radiation Exposure Assessment: mobile devices No deviation KDB 447498 D01v06 General RF Exposure Guidance No deviation Note 1: Additions to, deviation, or exclusions from the method shall be judged in the "method determination" column of add, deviate or exclude from the specific method shall be explained in the "Remark" of the above table. Note 2: When the test result is a critical value, we will use the measurement uncertainty give the judgment result based on the 95% confidence intervals. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] REPORT No.：SZ22030295S01 Page5of 8 2. Device Category and RF Exposure Limit Per user manual, Based on 47 CFR 2.1091, this device belongs to mobile device category with General Population/Uncontrolled exposure. Mobile Devices: 47 CFR 2.1091(b) For purposes of this section, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-located, such as wireless devices associated with a personal computer, are considered to be mobile devices if they meet the 20 centimeter separation requirement. General Population/Uncontrolled Exposure: The general population/uncontrolled exposure limits are applica ble to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for expo…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 41 REPORT No.：SZ22030295W01 TEST REPORT APPLICANT : Savant Technologies LLC, dba GE Lighting, a Savant Company PRODUCT NAME : LED LAMP MODEL NAME :CLEDR309CDEN BRAND NAME : GE FCC ID :PUU-BR30-DMEN STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2022-04-01 TEST DATE :2022-04-06 to 2022-04-13 ISSUE DATE : 2022-07-04 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 41 REPORT No.：SZ22030295W01 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. The Channel Number and Frequency ····························································· 4 1.4. Test Standards and Results ·········································································· 5 1.5. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ·················································································· 7 2.2. Duty Cycle of Test Signal ············································································· 8 2.3. Maximum Peak Conducted Output Power ······················································ 9 2.4. Maximum Average Conducted Output Power ················································· 12 2.5. 6 dB Bandwidth ························································································· 13 2.6. Conducted Spurious Emissions and Band Edge ············································ 16 2.7. Power Spectral Density ··············································································· 20 2.8. Conducted Emission ·················································································· 23 2.9. Restricted Frequency Bands ······································································· 27 2.10. Radiated Emission ··················································································· 31 Annex A Test Uncertainty ················································································ 38 Annex B Testing Laboratory Information ··························································· 39 Change History Version Date Reason for change 1.0 2022-07-04 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 41 REPORT No.：SZ22030295W01 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Savant Technologies LLC, dba GE Lighting, a Savant Company Applicant Address: 1975 Noble Road Cleveland, OH 44112 United States of America Manufacturer: Xiamen Topstar lighting Co.,Ltd. Manufacturer Address: 676 Meixi Avenue,Tong'an District,Xiamen,China 1.2. Equipment Under Test (EUT) Description Product Name: LED LAMP Sample No.: 1# Hardware Version: N/A Software Version:N/A Equipment Type: Bluetooth LE Bluetooth Version: 4.2 Modulation Type: GFSK Data Rate: 1Mbps Operating Frequency Range: 2402MHz-2480MHz Antenna Type: Chip Monopole Antenna Antenna Gain: 1.13dBi Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 41 REPORT No.：SZ22030295W01 1.3. The Channel Number and Frequency Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 10 2422 20 2442 30 2462 1 2404 11 2424 21 2444 31 2464 2 2406 12 2426 22 2446 32 2466 3 2408 13 2428 23 2448 33 2468 4 2410 14 2430 24 2450 34 2470 5 2412 15 2432 25 2452 35 2472 6 2414 16 2434 26 2454 36 2474 7 2416 17 2436 27 2456 37 2476 8 2418 18 2438 28 2458 38 2478 9 2420 19 2440 29 2460 39 2480 Note 1: The black bold channels were selected for test. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 41 REPORT No.：SZ22030295W01 1.4. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C for the EUT FCC ID Certification: No. Identity Document T…

Text truncated - open the document above for the full version.

NOTE: This document is issued by Shenzhen Morlab Communications Technology Co., Ltd., the test report shall not be reproduced except in full without prior written permission of the company. The test results apply only to the particular sample(s) tested and to the specific tests carried out which is available on request for validation and information confirmed at our website. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZh en , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 1 of 68 REPORT No.：SZ22030295W02 TEST REPORT APPLICANT : Savant Technologies LLC, dba GE Lighting, a Savant Company PRODUCT NAME : LED LAMP MODEL NAME :CLEDR309CDEN BRAND NAME : GE FCC ID :PUU-BR30-DMEN STANDARD(S) :47 CFR Part 15 Subpart C RECEIPT DATE : 2022-04-01 TEST DATE :2022-04-06 to 2022-04-13 ISSUE DATE : 2022-07-04 Edited by: Peng Mi (Rapporteur) Approved by: Shen Junsheng (Supervisor) MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 68 REPORT No.：SZ22030295W02 DIRECTORY 1. Technical Information ··················································································· 3 1.1. Applicant and Manufacturer Information ························································ 3 1.2. Equipment Under Test (EUT) Description ······················································· 3 1.3. Modulation Type and Data Rate of EUT ·························································· 4 1.4. The Channel Number and Frequency ····························································· 4 1.5. Test Standards and Results ·········································································· 5 1.6. Environmental Conditions ············································································ 6 2. 47 CFR Part 15C Requirements ······································································ 7 2.1. Antenna Requirement ·················································································· 7 2.2. Duty Cycle of Test Signal ············································································· 8 2.3. Maximum Peak and Average Conducted Output Power ··································· 11 2.4. Bandwidth ································································································· 14 2.5. Conducted Spurious Emissions and Band Edge ············································ 21 2.6. Power Spectral Density ··············································································· 31 2.7. Conducted Emission ·················································································· 38 2.8. Restricted Frequency Bands ······································································· 42 2.9. Radiated Emission ····················································································· 52 Annex A Test Uncertainty ················································································ 65 Annex B Testing Laboratory Information ··························································· 66 Change History Version Date Reason for change 1.0 2022-07-04 First edition MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 68 REPORT No.：SZ22030295W02 1. Technical Information Note: Provide by applicant. 1.1. Applicant and Manufacturer Information Applicant: Savant Technologies LLC, dba GE Lighting, a Savant Company Applicant Address: 1975 Noble Road Cleveland, OH 44112 United States of America Manufacturer: Xiamen Topstar lighting Co.,Ltd. Manufacturer Address: 676 Meixi Avenue,Tong'an District,Xiamen,China 1.2. Equipment Under Test (EUT) Description Product Name: LED LAMP Sample No.: 1# Hardware Version: N/A Software Version: N/A Modulation Technology: DSSS, OFDM Modulation Mode: 802.11b, 802.11g, 802.11n (HT20) Operating Frequency Range: 802.11b/g/ n (HT20): 2412MHz–2462MHz Antenna Type: Chip Monopole Antenna Antenna Gain: 1.13dBi Note 1: We use the dedicated software to control the EUT continuous transmission. Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 68 REPORT No.：SZ22030295W02 1.3. Modulation Type and Data Rate of EUT Modulation Technology Modulation Type Data Rate (Mbps) Note1 DSSS (802.11b) DBPSK 1 DQPSK 2 CCK 5.5/ 11 OFDM (802.11g) BPSK 6 / 9 QPSK 12 / 18 16QAM 24 / 36 64QAM 48 / 54 OFDM (802.11n (HT20)) BPSK 6.5 QPSK 13/19.5 16QAM 26/39 64QAM 52/58.5/65 Note1: The worst-case mode (bold face) in all data rates has been determined during the pre-scan, only the test data of the worst-case were recorded in this report. 1.4. The Channel Number and Frequency Test Mode Channel Frequency (MHz) Channel Frequency (MHz) 802.11b/g/n (HT20) 1 2412 8 2447 2 2417 9 2452 3 2422 10 2457 4 2427 11 2462 5 2432 6 2437 7 2442 Note 1: The black bold channels were selected for test. MORLAB Shenzhen Morlab Communications Technology Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: service@morla…

Text truncated - open the document above for the full version.

FCC ID: PUU-BR30-DMEN, IC: 10798A-DMENBR30 Test Setup Photos 1. Conducted emission main’s port front view 2. Conducted emission main’s port side view 3. Radiated emission (9KHz-30MHz) 4. Radiated emission (30MHz-1GHz) 5. Radiated emission (above 1GHz) 6. RF measurement setup (Bluetooth LE, WIFI 2.4G)
