PUU-BR30-DMFCC by GE Full Color Direct Connect BR30

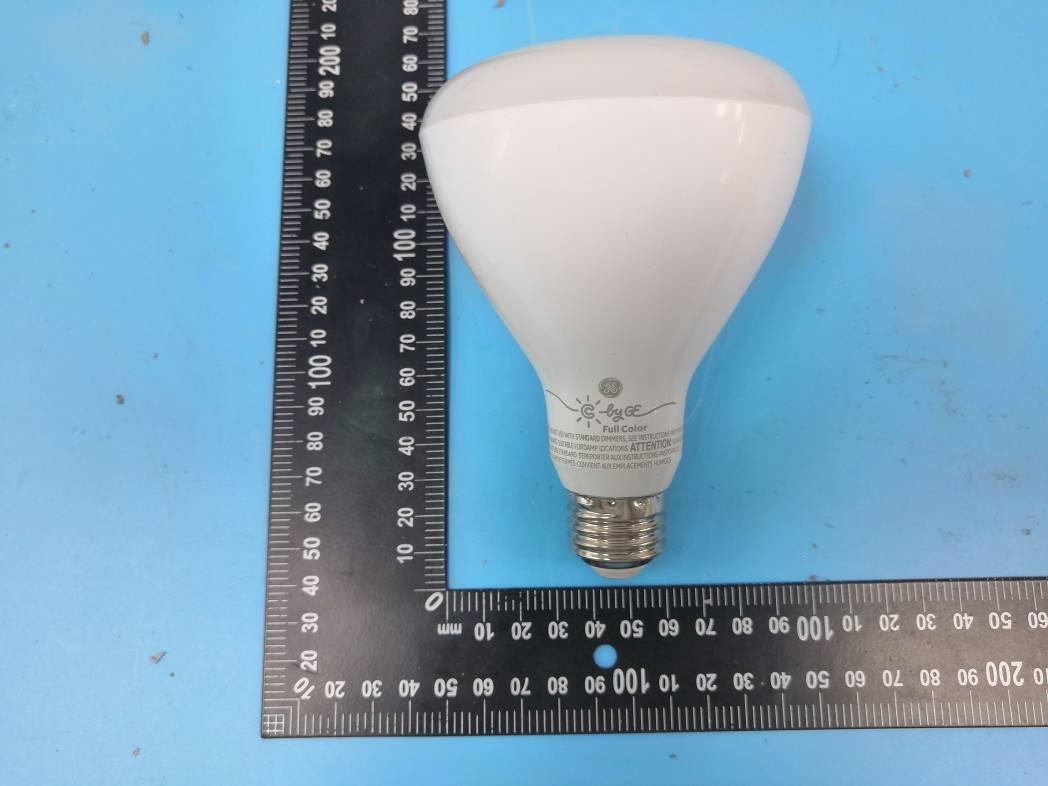

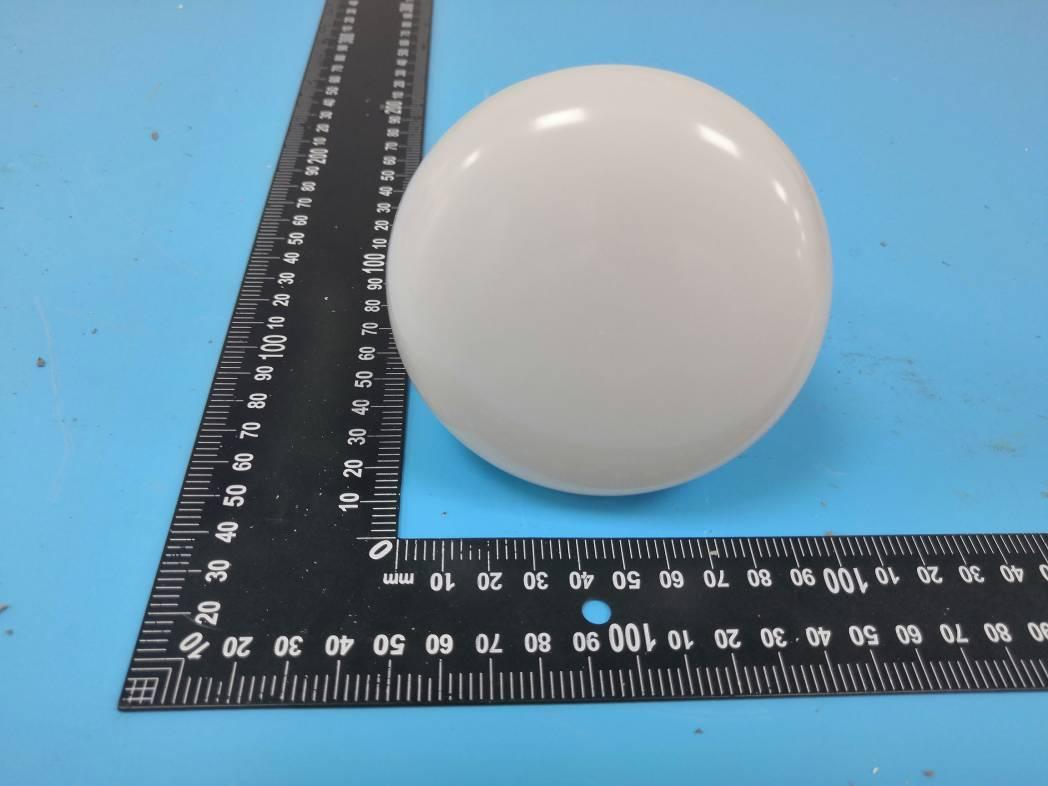

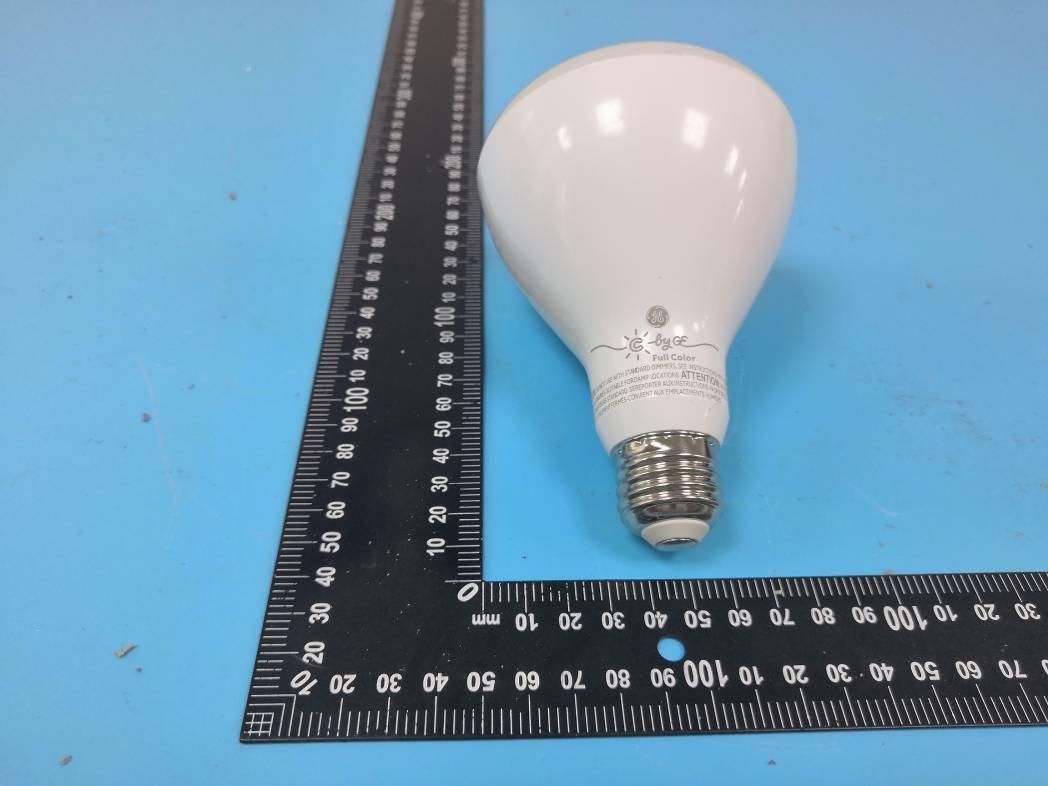

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS BT Module: BT Antenna Wi-Fi Module: Wi-Fi Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 11 of 34 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG  S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 12 of 34 Frequency (MHz) Antenna Gain Max Tune-up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2402-2480 0 1 3.0 2.0 20 0.0004 1 2412-2472 0 1 13.0 19.95 20 0.004 1 Note: 1. the maximum tune up conducted power was declared by the applicant. 2. the Bluetooth can transmit at the same time with the Wi-Fi. Simultaneous transmitting consideration: The ratio=MPE Bluetooth /limit + MPE Wi-Fi /limit=0.0004+0.004=0.0044＜1.0 So simultaneous exposure comply with the limit. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliance

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 1 of 11 Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict LE 1M Ant1 2402 0.696 0.5 PASS 2440 0.692 0.5 PASS 2480 0.696 0.5 PASS LE 2M Ant1 2402 1.144 0.5 PASS 2440 1.148 0.5 PASS 2480 1.140 0.5 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 2 of 11 Test Graphs LE 1M_Ant1_2402 LE 1M_Ant1_2440 LE 1M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 3 of 11 LE 2M_Ant1_2402 LE 2M_Ant1_2440 LE 2M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 4 of 11 Appendix B: Maximum conducted Peak output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict LE 1M Ant1 2402 2.71 <=30 PASS 2440 2.72 <=30 PASS 2480 2.67 <=30 PASS LE 2M Ant1 2402 2.71 <=30 PASS 2440 2.72 <=30 PASS 2480 2.72 <=30 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 5 of 11 Appendix C: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict LE 1M Ant1 2402 -10.31 <=8 PASS 2440 -10.49 <=8 PASS 2480 -10.64 <=8 PASS LE 2M Ant1 2402 -14.47 <=8 PASS 2440 -14.72 <=8 PASS 2480 -14.90 <=8 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 6 of 11 Test Graphs LE 1M_Ant1_2402 LE 1M_Ant1_2440 LE 1M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 7 of 11 LE 2M_Ant1_2402 LE 2M_Ant1_2440 LE 2M_Ant1_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 8 of 11 Appendix D: Band edge measurements Test Graphs LE 1M_Ant1_Low_2402 LE 1M_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 9 of 11 LE 2M_Ant1_Low_2402 LE 2M_Ant1_High_2480 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 10 of 11 Appendix E: Duty Cycle Test Result TestMode Antenna Channel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] LE 1M Ant1 2440 0.41 0.91 45.30 LE 2M Ant1 2440 0.20 0.90 22.22 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 11 of 11 Test Graphs LE 1M_Ant1_2440 LE 2M_Ant1_2440

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 1 of 18 Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] Limit[MHz] Verdict 11B Ant1 2412 10.120 0.5 PASS 2442 10.160 0.5 PASS 2472 10.160 0.5 PASS 11G Ant1 2412 16.640 0.5 PASS 2442 16.640 0.5 PASS 2472 16.600 0.5 PASS 11N20 Ant1 2412 17.760 0.5 PASS 2442 17.800 0.5 PASS 2472 17.680 0.5 PASS 11N40 Ant1 2422 36.560 0.5 PASS 2442 36.480 0.5 PASS 2462 36.480 0.5 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 2 of 18 Test Graphs 11B_Ant1_2412 11B_Ant1_2442 11B_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 3 of 18 11G_Ant1_2412 11G_Ant1_2442 11G_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 4 of 18 11N20_Ant1_2412 11N20_Ant1_2442 11N20_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 5 of 18 11N40_Ant1_2422 11N40_Ant1_2442 11N40_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 6 of 18 Appendix B: Maximum conducted output power（peak） Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 10.38 <=30 PASS 2442 10.69 <=30 PASS 2472 10.82 <=30 PASS 11G Ant1 2412 10.97 <=30 PASS 2442 10.88 <=30 PASS 2472 11.20 <=30 PASS 11N20 Ant1 2412 11.85 <=30 PASS 2442 11.71 <=30 PASS 2472 12.30 <=30 PASS 11N40 Ant1 2422 10.18 <=30 PASS 2442 10.39 <=30 PASS 2462 10.58 <=30 PASS Appendix C: Maximum conducted output power （AV） Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 8.90 <=30 PASS 2442 9.24 <=30 PASS 2472 9.43 <=30 PASS 11G Ant1 2412 6.57 <=30 PASS 2442 6.85 <=30 PASS 2472 7.19 <=30 PASS 11N20 Ant1 2412 6.44 <=30 PASS 2442 6.74 <=30 PASS 2472 6.90 <=30 PASS 11N40 Ant1 2422 6.47 <=30 PASS 2442 6.69 <=30 PASS 2462 6.74 <=30 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 7 of 18 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -21.90 <=8 PASS 2442 -21.54 <=8 PASS 2472 -21.74 <=8 PASS 11G Ant1 2412 -22.09 <=8 PASS 2442 -21.75 <=8 PASS 2472 -21.75 <=8 PASS 11N20 Ant1 2412 -21.94 <=8 PASS 2442 -21.71 <=8 PASS 2472 -20.92 <=8 PASS 11N40 Ant1 2422 -22.09 <=8 PASS 2442 -21.78 <=8 PASS 2462 -21.88 <=8 PASS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 8 of 18 Test Graphs 11B_Ant1_2412 11B_Ant1_2442 11B_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 9 of 18 11G_Ant1_2412 11G_Ant1_2442 11G_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 10 of 18 11N20_Ant1_2412 11N20_Ant1_2442 11N20_Ant1_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 11 of 18 11N40_Ant1_2422 11N40_Ant1_2442 11N40_Ant1_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 12 of 18 Appendix E: Band edge measurements Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 13 of 18 11G_Ant1_Low_2412 11G_Ant1_High_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 14 of 18 11N20_Ant1_Low_2412 11N20_Ant1_High_2472 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 15 of 18 11N40_Ant1_Low_2422 11N40_Ant1_High_2462 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 16 of 18 Appendix F: Duty Cycle Test Result TestMode Antenna Channel TransmissionDuration [ms] Transmission Period [ms] Duty Cycle [%] 11B Ant1 2442 30.00 30.00 100.00 11G Ant1 2442 30.00 30.00 100.00 11N20 Ant1 2442 30.00 30.00 100.00 11N40 Ant1 2442 30.00 30.00 100.00 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 17 of 18 Test Graphs 11B_Ant1_2442 11G_Ant1_2442 11N20_Ant1_2442 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 18 of 18 11N40_Ant1_2442

Note: This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA* or any agency of the Federal Government. This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 TEST REPORT For GE Lighting 1975 Noble Road Cleveland, OH 44112 United States FCC ID: PUU-BR30-DMFC R e p o r t T y p e : O r i gi n a l R e p o r t P r o d u c t T y p e: C b y G E F u l l C o l o r D i r e c t C o n n e c t B R 3 0 Report Number: RSZ200408551-00A Report Date: 2020-05-05 Reviewed By: Jimmy Xiao RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ200408551-00A FCC Part 15.247 Page 2 of 34 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 DUTY CYCLE ................................................................................................................................................................ 8 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 8 EXTERNAL I/O CABLE.................................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED FACTOR & MARGIN CALCULATION ...............................................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz)
