Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road, East Cleveland, OH 44112 USA Family Certification Attestation Letter 11/11/2024 Nemko Canada Inc 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC: PUU-CAFE-CD IC: 10798A-CAFECD HVINs/Models: CCF24CDOD/ENS, CCF48CDOD/ENS, CCF72CDOD/ENS, CCF96CDOD/ENS We hereby request Family Certification for the above mentioned HVINs/Models based on them being the differences as below: Above models are identical in electrically and physically design, there are including one controller and one LED bulb string. The only difference between above models is the length of LED bulb string, show as below: HVINs/Models Controller LED bulb string CCF24CDOD/ENSAll the same 24ft length, with 12 LED bulbs CCF48CDOD/ENS48ft length, with 20 LED bulbs CCF72CDOD/ENS72ft length, with 36 LED bulbs CCF96CDOD/ENS96ft length, with 40 LED bulbs The circuit, RF Chip, PCB, component and the specifications of wireless functions are the same, which are not affect the RF characteristics. As the differences, therefore the test performed on the HVIN/Model CCF96CDOD/ENS. Signed: Printed name: Paul Smith Title: Lead Systems Engineer – Safety & Regulatory Date: 11/11/2024

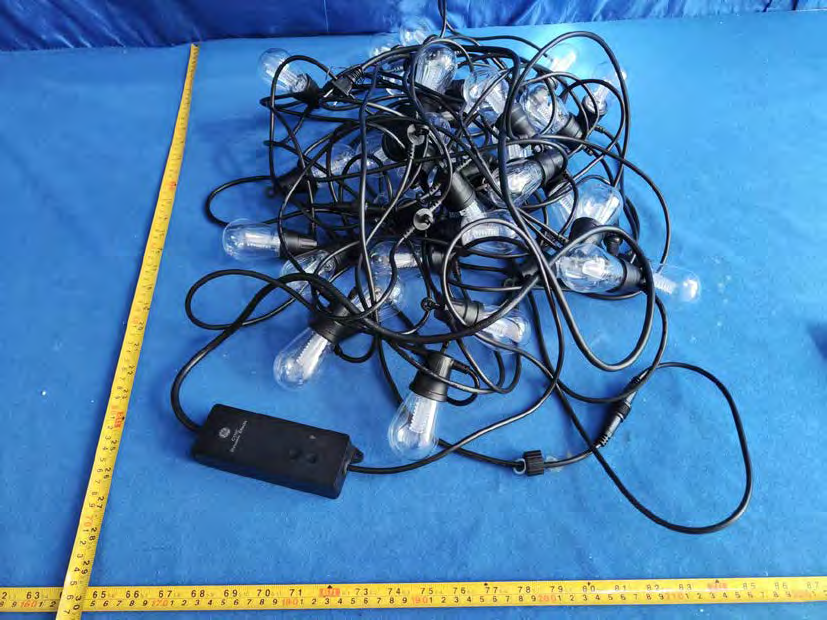

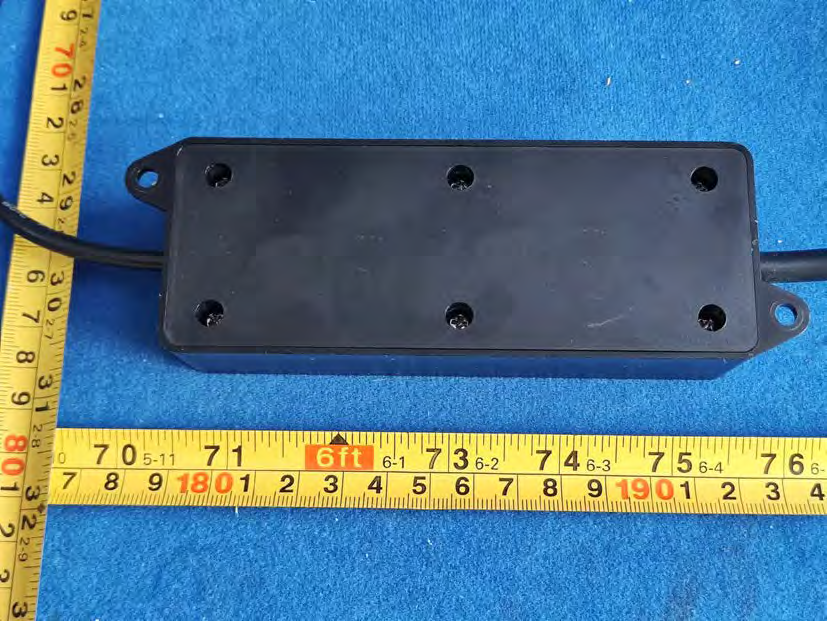

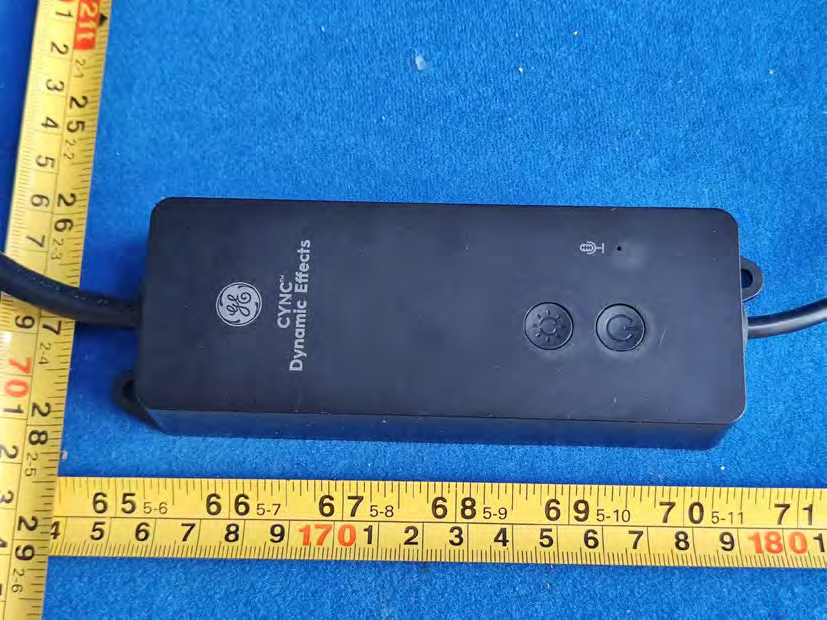

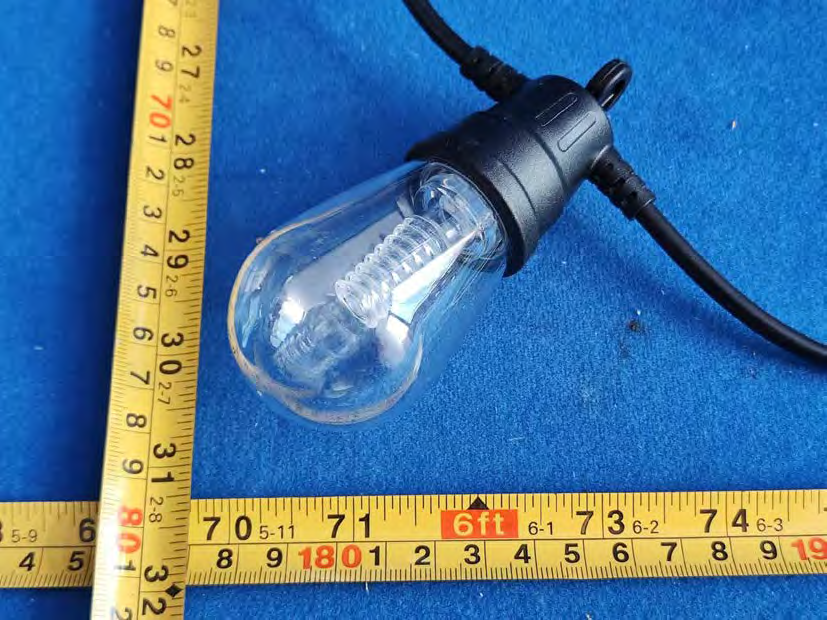

Appendix II Page 1 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 APPENDIX II P HOTOGRAPHS OF EUT Appendix II Page 2 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 1 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) G ENERAL VIEW F IGURE 2 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) BULB GENERAL Appendix II Page 3 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 3 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL TOP F IGURE 4 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL BOTTOM Appendix II Page 4 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 5 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL SIDE1 F IGURE 6 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL SIDE2 Appendix II Page 5 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 7 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL SIDE3 F IGURE 8 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF48CDOD/ENS) CONTROL SIDE4 Appendix II Page 10 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 16 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) G ENERAL VIEW F IGURE 17 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) BULB GENERAL Appendix II Page 11 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 18 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL TOP F IGURE 19 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL BOTTOM Appendix II Page 12 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 20 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL SIDE1 F IGURE 21 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL SIDE2 Appendix II Page 13 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 22 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL SIDE3 F IGURE 23 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF24CDOD/ENS) CONTROL SIDE4 Appendix II Page 18 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 31 C YNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) GENERAL VIEW F IGURE 32 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) BULB GENERAL Appendix II Page 19 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 33 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL TOP F IGURE 34 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL BOTTOM Appendix II Page 20 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 35 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL SIDE1 F IGURE 36 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL SIDE2 Appendix II Page 21 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 37 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL SIDE3 F IGURE 38 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF96CDOD/ENS) CONTROL SIDE4 Appendix II Page 26 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 46 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) G ENERAL VIEW F IGURE 47 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) BULB GENERAL Appendix II Page 27 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 48 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL TOP F IGURE 49 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL BOTTOM Appendix II Page 28 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 50 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL SIDE1 F IGURE 51 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL SIDE2 Appendix II Page 29 of 33 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24154 FIGURE 52 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL SIDE3 F IGURE 53 CYNC DYNAMIC EFFECTS SMART CAFÉ LIGHTS (M/N: CCF72CDOD/ENS) CONTROL SIDE4

Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CAFE-CD Page 1 of 3 Audix Technology (Shanghai) Co., Ltd. RADIO FREQUENCY EXPOSURE EVALATION General Information Applicant : Savant Technologies LLC, dba GE Lighting, a Savant company EUT Description : Cync Dynamic Effects Smart Café Lights Model No. : CCF48CDOD/ENS, CCF24CDOD/ENS, CCF96CDOD/ENS, CCF72CDOD/ENS Radio Tech : BLE 4.2, IEEE 802.11 b/g/n. Description of Test Facility Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F, Building 34, No. 680 Guiping Rd., Caohejing, Hi-Tech Park, Shanghai 200233, China NVLAP, Lab Code : 200371-0 FCC Designation Number : CN5027 Test Firm Registration Number: 954668 Evaluation Method KDB 447498 D04 Interim General RF Exposure Guidance v01 Applicable Standard: KDB 447498 D04 v01: Section 2.1.3: SAR-Based Exemption. A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements and is detailed in Appendix C. FCC CFR 47 §1.1307(b)(3)(i)(B): A single RF source is exempt if the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CAFE-CD Page 2 of 3 Audix Technology (Shanghai) Co., Ltd. Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CAFE-CD Page 3 of 3 Audix Technology (Shanghai) Co., Ltd. RF Exposure evaluation: Mode Frequency Max output power Ant. Gain Max E.I.R.P P th MHz dBm mW dBi dBm mW mW BLE 2442 6.385 4.35 2 8.385 6.894 3060 802.11b 2462 17.74 59.43 2 19.74 94.189 3060 802.11g 2437 12.67 18.49 2 14.67 29.309 3060 802.11n 2462 12.1 16.22 2 14.1 25.704 3060 Note1: For this EUT, and the separation distance is 20 cm. And the Bluetooth and WIFI can not transmit at the same time. Note2: The Conducted output power and Maximum EIRP both no greater than the threshold P th , that meets the exemption, the RF exposure evaluation is not required. -END-

JXC32-18 ANTENNA SPECIFICATIONS Item Specifications Antenna Frequency Range 2400~2483.5MHz Polarization Linear Peak Gain 2.0dBi V.S.W.R ＜2.0 Impedance 50Ω Return Loss -10dB Connector Microstrip line connection Efficiency 42.5% Environmental Operating Temperature -10°C~+60°C Manufacturer Sichuan Hongrui Electric Co., Ltd Mianyan Export Processing Zone, Mianyan, Sichuan, China ANTENNA PATTERN Frequency (MHz) Gain (dBi) 2400 1.8295 2410 1.8714 2420 1.8318 2430 1.8534 2440 1.7901 2450 1.7227 2460 1.8084 2470 1.9767 2480 1.8979 2490 1.7174 Antenna Picture：

Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CAFE- CD Page 1 of 49 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24155 Prepared For: Savant Technologies LLC, dba GE Lighting, a Savant company 1975 Noble Road Cleveland, Ohio United States 44112 Prepared By: Audix Technology (Shanghai) Co., Ltd. 3F, Building 34, No. 680 Guiping Rd., Caohejing, Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 File No. : C1D2409021 Report No. : ACI-F24155 Date of Test : 2024.09.22-10.22 Date of Report : 2024.10.24 TEST REPORT On behalf of Savant Technologies LLC, dba GE Lighting, a Savant company Product Name: Cync Dynamic Effects Smart Café Lights Model No.: CCF48CDOD/ENS, CCF24CDOD/ENS CCF96CDOD/ENS, CCF72CDOD/ENS FCC ID: PUU-CAFE-CD The statement is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. TESTING NVLAP LAB CODE 200371-0 Savant Technologies LLC, dba GE Lighting, a Savant company FCC ID: PUU-CAFE- CD Page 2 of 49 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F24155 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 5 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 EUT Specifications Assessed in Current Report ........................................................................ 7 2.3 Test Information ......................................................................................................................... 7 2.4 Duty Cycle Check ...................................................................................................................... 8 2.5 Sample Description .................................................................................................................... 9 2.6 Supported equipment .................................................................................................................. 9 2.7 Description of Test Facility ........................................................................................................ 9 3 CONDUCTED EMISSION TEST ................................................................................................ 10 3.1 Test Equipment ......................................................................................................................... 10 3.2 Block Diagram of Test Setup ................................................................................................... 10 3.3 Conducted Emission Limits (§15.207) ..................................................................................... 11 3.4 Test Configuration .................................................................................................................... 11 3.5 Operating Condition of EUT .................................................................................................... 11 3.6 Test Procedures ........................................................................................................................ 11 3.7 Test Results .............................................................................................................................. 12 4 RADIATED EMISSION TEST ..................................................................................................... 15 4.1 Test Equipment ......................................................................................................................... 15 4.2 Block Diagram of Test Setup ................................................................................................... 16 4.3 Radiated Emission Limit (§15.209) ......................................................................................... 17 4.4 Test Configuration .................................................................................................................... 17 4.5 Operating Condition of EUT .................................................................................................... 17 4.6 Test Procedures ........................................................................................................................ 17 4.7 Test Results .............................................................................................................................. 19 5 6 DB BANDWIDTH MEASUREMENT ...................................................................................... 32 5.1 Test Equipment ......................................................................................................................... 32 5.2 Block Diagram of Test Setup ................................................................................................... 32 5.3 Specification Limits (§15.247(a)(2)) ........................................................................................ 32 5.4 Operating Condition of EUT .................................................................................................... 32 5.5 Test Procedure .......................................................................................................................... 32 5.6 Test Results .............................................................................................................................. 33 6 MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................... 35 6.1 Test Equipment .........................................…
