Simple DIY Setup Outdoor Plug Quick Start Guide 1 Mark the location for hole to be drilled. 23 Install screw in desired location leaving 3/16" of the screw exposed. 4 Align mounting hole with screw head, slide the bracket over the screw head and let the plug drop down to lock into place. 5 Identify where you want to mount your plug. Using 3/16" bit, drill hole in wall for mounting screw. Mount Plug Vertically with Sockets Facing Downwards Minimum distance to ground: 30cm Unplugging Outdoor Plug 1 2 Hold the housing. Pull the plug out. To enable voice control with Amazon Alexa or Google Home, enable C by GE within your voice assistant app and find your devices. Voila! Now you can control your outdoor lights and devices with your voice and away from home. 4 Plug your smart outdoor plug into the outlet. 1 Download the C by GE app. 2 Add the Outdoor Smart Plug to the C by GE app. 3 How to Set Up and Enable Voice and Out of Home Control for your Plug and Devices Connect with your Google Assistant or Amazon Alexa device to control your outdoor lights and devices with your voice. Try these voice commands: Amazon Alexa Alexa, turn off front yard. Alexa, good morning. Alexa, turn on patio lights. Google Home Okay Google, turn on fountain. Okay Google, turn off Christmas lights. Okay Google, turn on party scene. LED Indicators On/Off Buttons Additional Information and Warnings FCC Compliance Statement Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause interference; and 2. This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. l'appareil ne doit pas produire de brouillage, et 2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil ettoutes les personnes. WARNING: Electric Shock. To reduce the risk of electric shock, this product is equipped with a cord having grounding type plug. This plug must be plugged into an outlet that is properly installed and grounded. Contact a qualified electrician to install a proper outlet if doubt exists as to whether the product is properly grounded. Do not change the plug in any way. • When not in use, the sockets should remain capped with the weather-resistant cover. • Mount vertically with the sockets facing downward and be at least 30cm above ground level. • To remove a plug from outdoor plug, hold outdoor plug’s housing and pull the plug out. Outdoor Smart Plug CPLGOD2BLG1 Input: 120V AC 60Hz Output: General use, maximum 15A in total Motor, maximum 1/3HP Operation temperate: -20oC ~ 50oC IP64 Rainproof Type 3R Enclosure Type 1 action Pollution Degree 3 Rated impulse voltage: 1500V The supply cord of this control can be replaced only by the manufacturer or his accredited service agent. Like your new C by GE Outdoor Plug? Share your experience! Leave a review where you purchased the product.

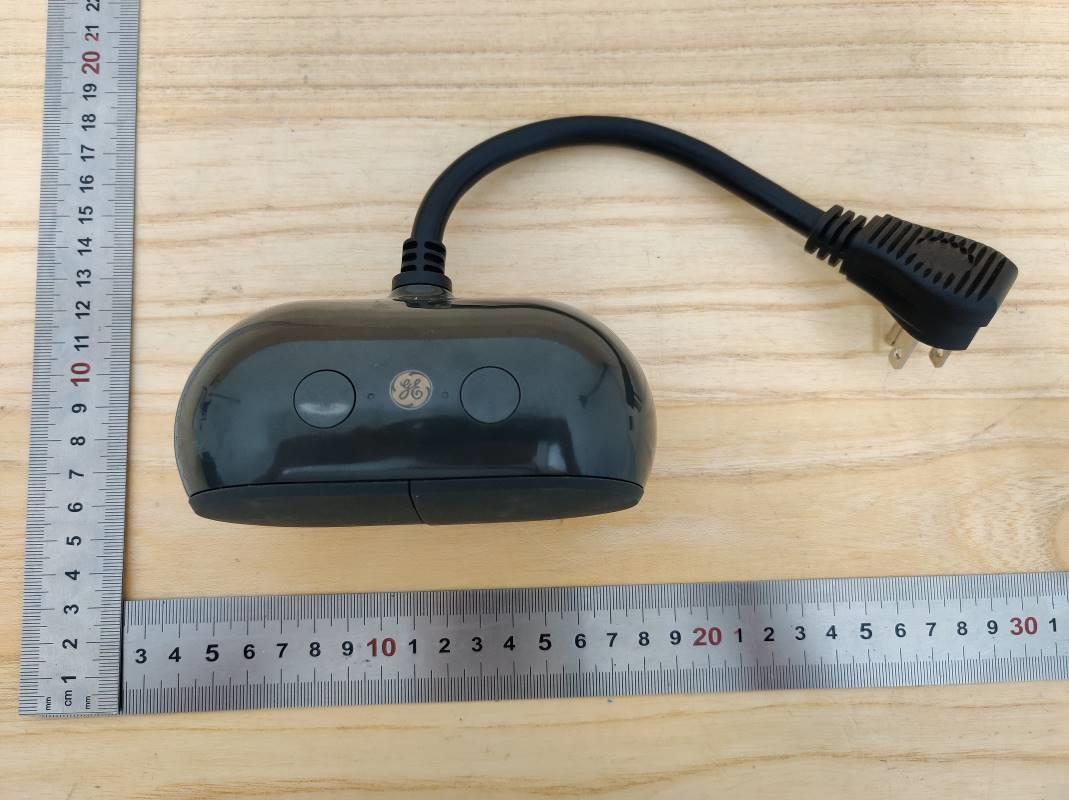

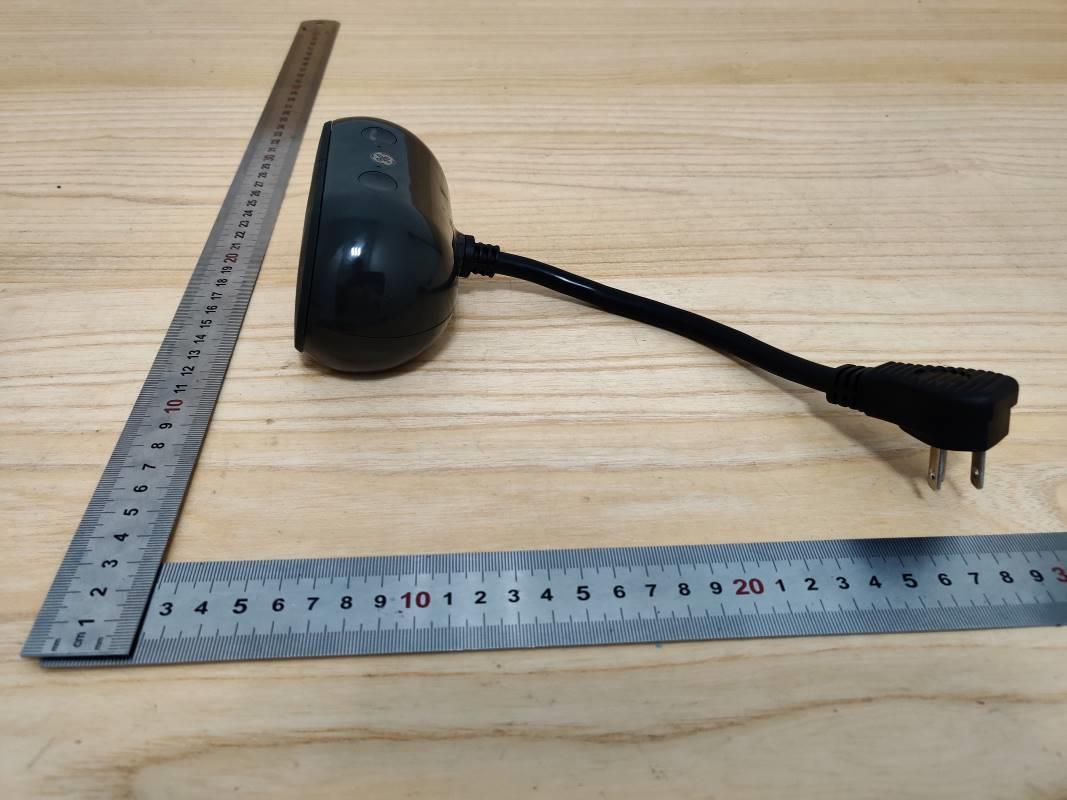

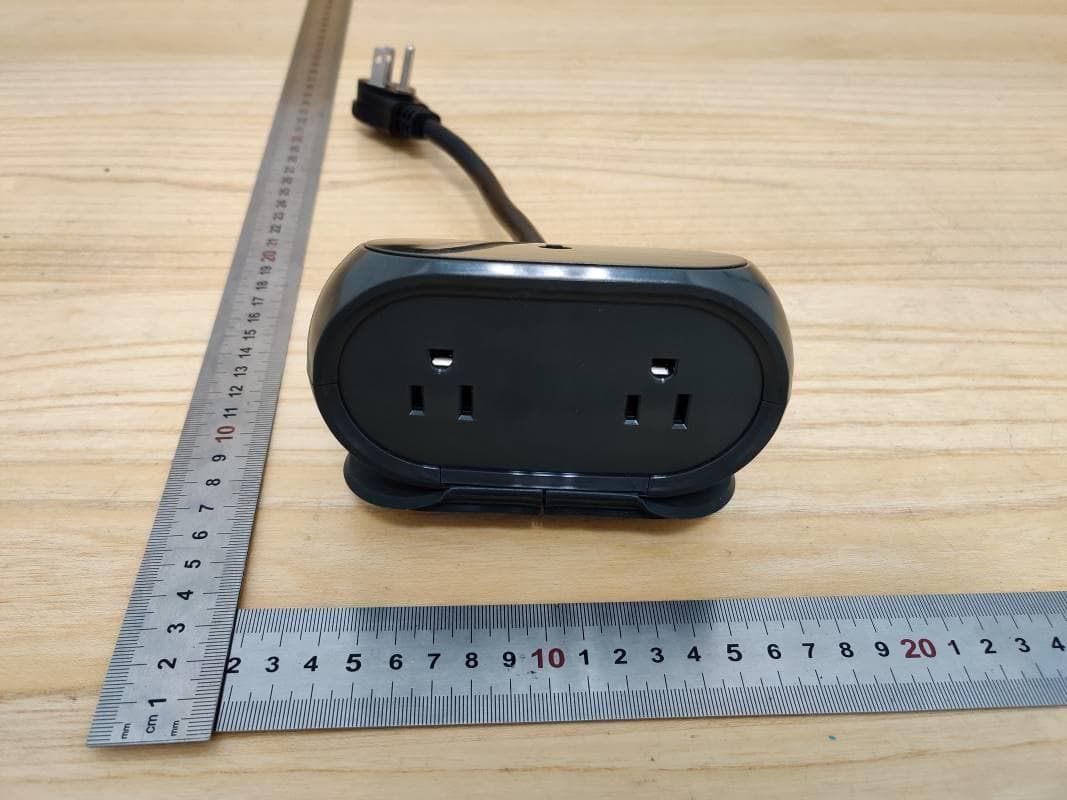

Appendix I External Photographs Page 2 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4 Page 4 of 4 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-5

Confidential. Not to be copied, distributed, or reproduced with out prior approval. June 9, 2020 Presentation Title 1 Outdoor Smart PlugCPLGOD2BLG1Rating120V AC 60HzGeneral use, maximum 15A in totalMotor, maximum 1/3HPOperation temperate: -20 o C ~ 50 o C IP64RainproofType 3R EnclosureFCC ID: PUU-CPLGOD2BLG1IC:10798A-CPLGOD2BLG1 WARINING: SUITABLE FOR OUTDOOR AND DAMP LOCATIONS. DO NOT IMMERSE IN WATER. INSTALL ABOVE GROUND LEVEL WITH RECEPTACLE POINTED DOWN WHEN OUTDOOR’ XXXXXXXXXXXX ENGINEERING SAMPLE Designed in U.S.A.Made in China YYDDDLScbyge.com See marking under the bracket ↓ Wifi MAC 二维码+12位MAC 地址

Appendix II Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Open View of EUT Internal View of EUT-1 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-2 Internal View of EUT-3 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-4 Detail view of BLE module Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Detail view of WIFI module Detail view of BLE Antenna BLE ANTENNA Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Detail view of WIFI Antenna WIFI ANTENNA

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For Outdoor Smart Plug MODEL NUMBER: CPLGOD2BLG1 FCC ID: PUU-CPLGOD2BLG1 REPORT NUMBER: 4789516666-4 ISSUE DATE: June 23, 2020 Prepared for Consumer Lighting (U.S.) LLC dba GE Lighting, a Savant Company 1975 Noble Road Cleveland, Ohio 44112 United States Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789516666-4 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789516666-4 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS FCC Applicant Information Company Name: Consumer Lighting (U.S.) LLC dba GE Lighting, a Savant Company Address: 1975 Noble Road Cleveland, Ohio 44112 United States FCC Manufacturer Information Company Name: Consumer Lighting (U.S.) LLC dba GE Lighting, a Savant Company Address: 1975 Noble Road Cleveland, Ohio 44112 United States ISED Applicant Information Company Name: Consumer Lighting Canada Company, dba GE Lighting, a Savant Company Address: 1975 Noble Road Cleveland OH 44112 United States Of America ISED Manufacturer Information Company Name: Consumer Lighting Canada Company, dba GE Lighting, a Savant Company Address: 1975 Noble Road Cleveland OH 44112 United States Of America EUT Information EUT Name: Outdoor Smart Plug Model: CPLGOD2BLG1 Sample Status: Normal Sample ID: 3102161 Sample Received Date: June 11, 2020 Date of Tested: June 12~19, 2020 REPORT No.: 4789516666-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789516666-4 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789516666-4 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V…
